NR3UIT2525Automated Fuel System

DAC TCVCXO PLL Antenna BPF LNA 1st IF 10.7 MHz 2nd IF 455 kHz Discriminator 2nd LO10.245 MHz Microcontroller PLL Ref19.2 MHz VCO 904-937 MHz PLL Tuning data FSKData LPF PowerAmp PowerAmplifierControl DataSlicer FSK ReceivedData μP Clock18.432 MHz 904-926 MHz HostDataInterface XC-900 Data Transceiver Block Diagram

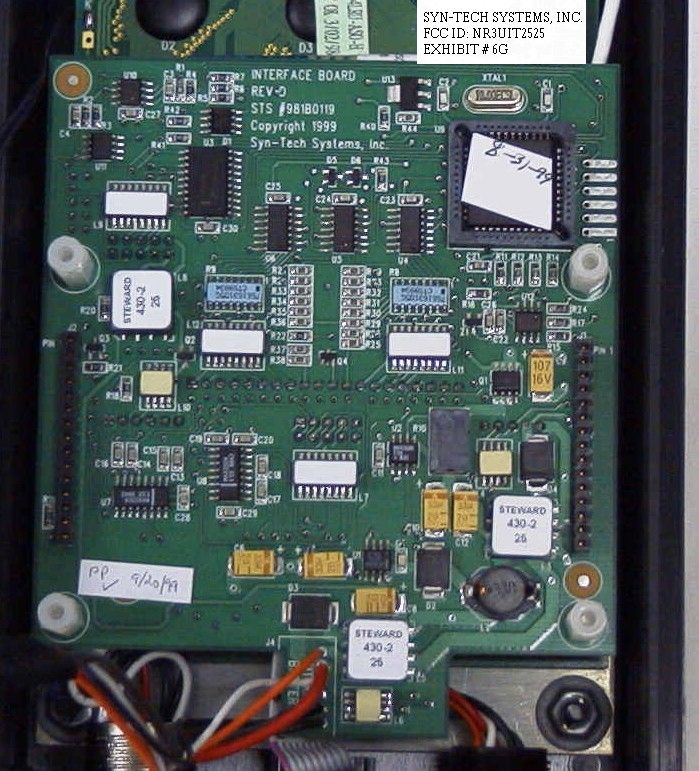

981b0119.sch-1 - Thu Oct 14 09:53:59 1999

981B0125.sch-1 - Thu Oct 14 09:55:54 1999

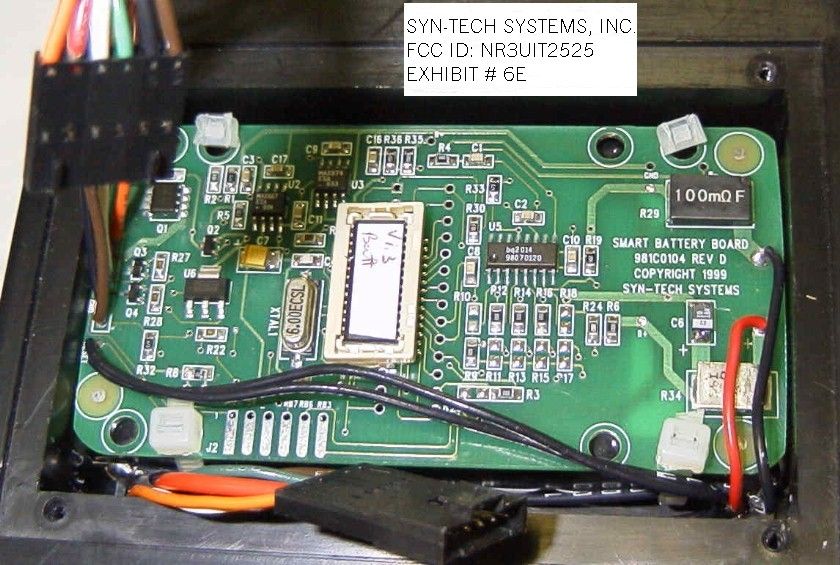

981C0104.sch-1 - Thu Oct 14 09:57:04 1999

Untitled.sch-1 - Thu Oct 14 09:57:57 1999

123456 A B C D 6 54321 D C B A REVZONEDESCRIPTIONDATEAPPVD APPROVALSDATE DRAWN BY DESIGNER CHECKER ENGINEER DO NOT SCALE DRAWING SIZEFSCM NO.DRAWING NO.REV. SCALE: NONE BXH-900B SCHEMATIC DIAGRAM XH-900 UHF Data Transceiver ROB YOUNG11/16/98 SHEET 1 OF 3 6926 Tenth Avenue North, St. Petersburg, FL 33710 Odin Engineering Co. EA/VPP 35 X1 21 X2 20 RST 10 P3.0/RXD 11 P3.1/TXD 13 P3.2/INT0 14 P3.3/INT1 15 P3.4/T0 16 P3.5/T1 17 P1.0/T2 2 P1.1/T2EX 3 P1.2 4 P1.3 5 P1.4/SS 6 P1.5/MOSI 7 P1.6/MISO 8 P1.7/SCK 9 P0.0 43 P0.1 42 P0.2 41 P0.3 40 P0.4 39 P0.5 38 P0.6 37 P0.7 36 P2.0 24 P2.1 25 P2.2 26 P2.3 27 P2.4 28 P2.5 29 P2.6 30 P2.7 31 PSEN 32 ALE/PROG 33 P3.6/WR 18 P3.7/RD 19 VCC 44 VSS 22 U101 AT89S8252-44A CLR 8 LDAC 7 GND 6 VREFB 5 VREFA 4 VSS 3 VOUTA 2 VOUTB 1 VOUTC 16 VOUTD 15 VDD 14 VREFC 13 VREFD 12 SDI/SHDN 11 CLK 10 CS 9 U102 AD7304BRU SynthCLK SynthLD R101 10K +5D +5D R102 10K + C103 4.7uF +5D C105 .1uF + C104 4.7uF Test Connector To Synthesizer R103 10K MOD_V DEMOD_DATA RCVDATA XMTDATA CD DTR RTS CTS Half Duplex Remote Link SynthCE LD/FO TXA TXB TR Switch Control RX_ON TX_ON RCVR/XMTR CONTROL CDETECT DS_HOLD R106 10K +5D AUX_CTLA AUX_CTLB 12 34 56 78 910 J102 .025 SQUARE HEADER 5X2 R107 10K R108 10K +5D +5D R111 10K R112 10K +5D +5D SynthDAT To U4 - 13 To U4 - 11 To U4 - 12 To U4 - 10 To U4 - 14 Y101 18.4320Mhz C102 27pF C101 27pF To J101 - 16 To J101- 15 To U5 - 21 To U5 - 18 To J101 - 14 To J101 - 13 To J101 - 12 To J101 - 11 NC NC To U3 - 1 To U5 - 17 To U1 - 7 To U1 - 6 To U2 - 16 To Base - Qx + C107 4.7uF +5D PWR_G8 PWR_G16 PWR_DWN G8 G16 PWRDN +3A PGM_EN PGM_DI PGM_DO PGM_CK To J101 -2 To J101 - 4 To J101 - 3 To J101 - 1 J101 Interconnect Pins 1 - PGM_CK 2 - PGM_EN 3 - PGM_Do 4 - PGM_DI 5 - Spare 6 - Spare 7 - Batt+ 8 - +5V 9 - GND 10 - ON/OFF 11 - HOST TX DATA 12 - HOST RCV DATA 13 - RTS 14 - CTS 15 - CD 16 - DTR J102 Test Connector 1 - +Vcc 2 - MOSI 3 - DAC_CS 4 - DAC_DI 5 - RESET 6 - SCK 7 - DAC_LD 8 - TXD 9 - GND +5D + C106 4.7uF +3A Q100 MUN2111 R27 10 R24 10k R25 10k R26 10k R28 10 R29 10 G8 G16 PWRDN TO Power Amplifier TO Power Amplifier TO Power Amplifier Q101 MUN2111 Q102 MUN2111 +3A +3A +5D

123456 A B C D 6 54321 D C B A REVZONEDESCRIPTIONDATEAPPVD APPROVALSDATE DRAWN BY DESIGNER CHECKER ENGINEER DO NOT SCALE DRAWING SIZEFSCM NO.DRAWING NO.REV. SCALE: NONE BXH-900C SCHEMATIC DIAGRAM XC-900 UHF Data Transceiver ROB YOUNG11/16/98 SHEET 3 OF 3 6926 Tenth Avenue North, St. Petersburg, FL 33710 Odin Engineering Co. 4 31 6 25 U201 IC 3 41 2 5678 U202 MIC5209-5.0BM 4 31 6 25 U203 IC C203 CAP C204 0.01uF C205 CAP C208 CAP C207 10uF, 6.3V C206 CAP +5D +5A +3A C202 0.01uF R201 1K R202 10K C201 2.2uF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 J101 CON16 BATT+ ON/OFF POWER SUPPLY RCVDATA XMTDATA CD DTR RTS CTS PGM_EN PGM_DI PGM_DO PGM_CK +5D +5PA

123456 A B C D 6 54321 D C B A REVZONEDESCRIPTIONDATEAPPVD APPROVALSDATE DRAWN BY DESIGNER CHECKER ENGINEER DO NOT SCALE DRAWING SIZEFSCM NO.DRAWING NO.REV. SCALE: NONE BXH-900B SCHEMATIC DIAGRAM XH-900 UHF Data Transceiver ROB YOUNG11/16/98 SHEET 2 OF 3 6926 Tenth Avenue North, St. Petersburg, FL 33710 Odin Engineering Co. 5 2 10 25 24 18 17 16 3 4789 1213141520262728 1611222321 U2 MAX2440 C4 47pF L1 8.2nH L2 12nH C33 0.1uF C34 47pF C36 100pF +5A C37 100pF C35 47pF +5A C5 100pF C3 100pF +5A C2 100pF C1 100pF 13 2 456789101112131415 FL1 FILTER S C J1 SMB C39 100pF C40 100pF TXA TXB C30 1.6pF L7 8.2nH C29 100pF 32 14 U7 MXF0916 Q1 2N2907 L9 6.8uH C28 100pF R17 RES R16 RES R15 RES R22 4.7k C38 100pF TX_ON +5A 7 6 4 3 1 2 5 8 U6 MCL BP2C 13 2 FL2 FILTER C14 33pF L5 8.2uH C15 0.01uF RX_ON +5A +5A R1 10 R2 10 L3 6.8nH C6 2.2pF L4 100nH C43 100pF +5A C7 2.2pF C8 2.2pFR4 2.2K R3 2.2K R5 4.7K R6 RES C41 47uF C9 CAP C10 CAP R7 RES R8 RES 6 5 2 7 14 13 10 349 8 15 16 11 12 1 U4 LMX2316 C12 100pF C11 100pF SynthCE SynthCLK SynthDAT SynthLD LD/FO C13 1000pF +5A 1 3 2 4 U3 TTS05V C27 1000pF C44 0.01uF +3A MOD_V 1 2 3 4 5 6 7 8 9 10 11 1213 14 15 16 17 18 19 20 21 22 23 24 U5 MC13156 FL3 FILTER R9 1.2K C16 0.1uF C17 0.1uF C18 0.1uF FL4 FILTER R10 1.2K C19 0.1uF C20 0.1uF +5A R14 47K R20 4.7K C21 18pF C22 82pF Y1 10.245MHz +5A CDETECT C23 1000pF R13 47k 1 TP1 RSSI TP DEMOD_DATA DS_HOLD +5D C24 0.1uF C25 330uF R12 47K R18 3.9K R19 1.0K +5A R11 27k C26 180pF C42 0.1uF L6 680 uH Var CR1 DIODE R21 4.7K +5D 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U8 RF2155 R23 39 C32 33pF C31 100pF C48 3.9pF C49 33pF L10 3.9nH L8 6.8nH L11 1.8uH +5PA +5PA PWR_DWN POWER AMPLIFIER PWR_G8 PWR_G16 L12 15nH C45 33pF C46 33pF C47 33pF PA_IN PA_OUT C50 0.1uF R30 47 C51 100pF +5A C52 47pF C53 47pF C54 47pF D1 BAR 63-02W C55 100pF R31 1k FE short R32 1k C56 100pF FE short C58 .01uF C57 1000pF 48 3 1 2 567 U1 HMC174MS8 R33 100

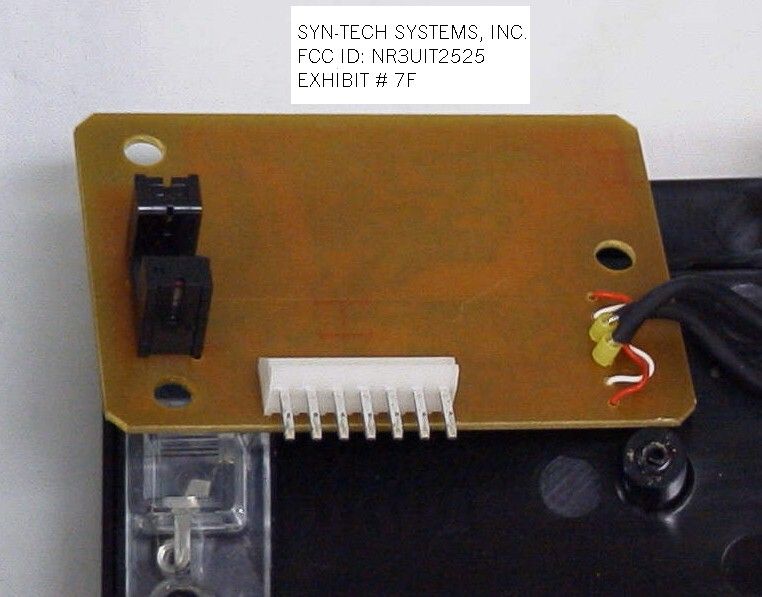

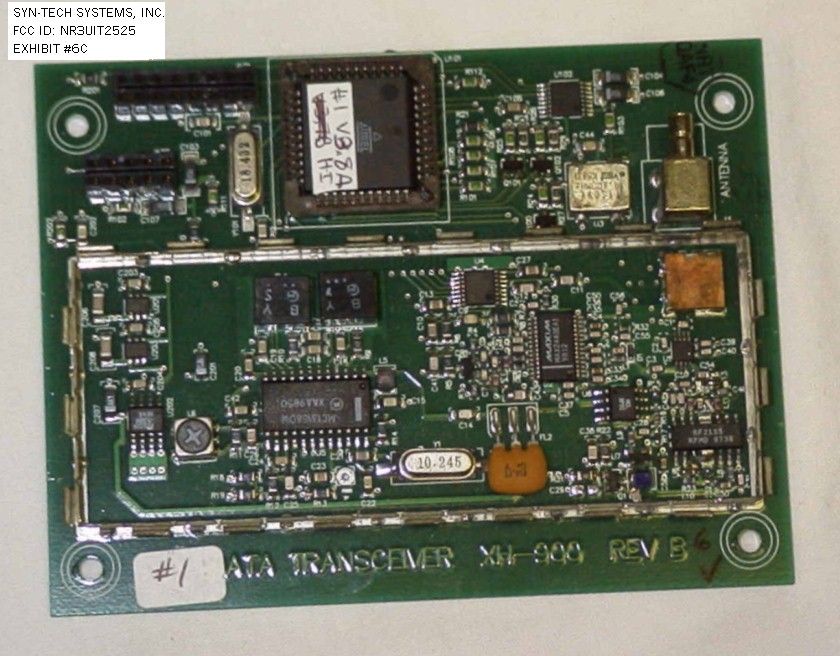

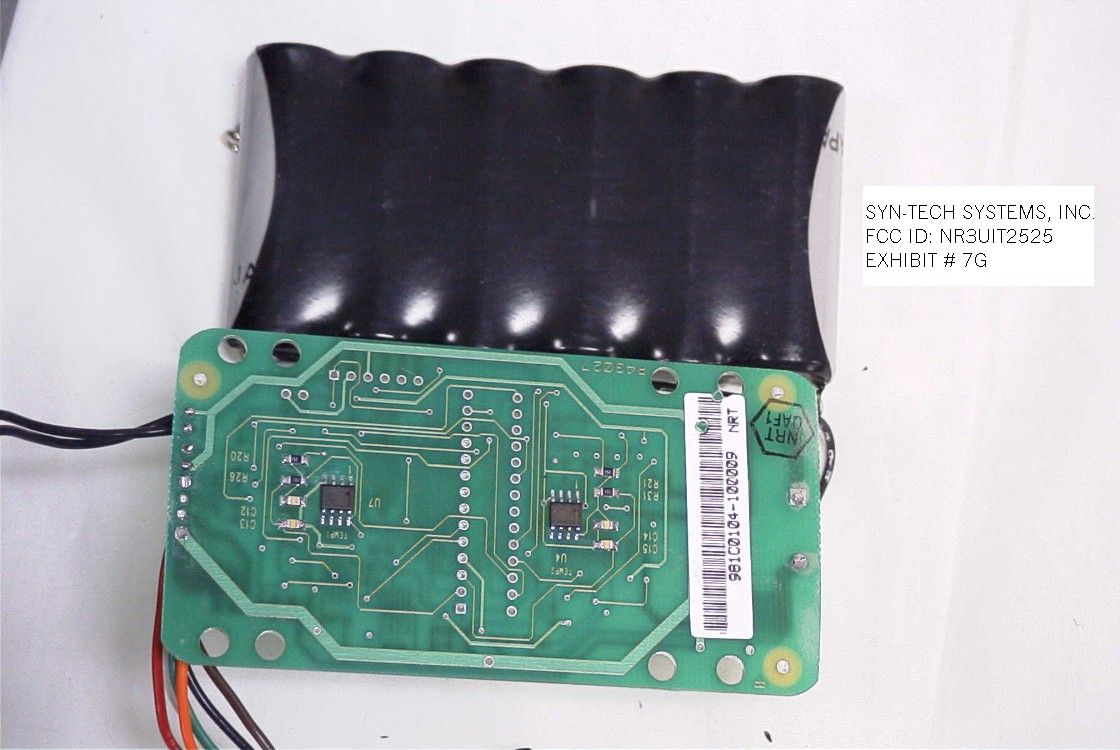

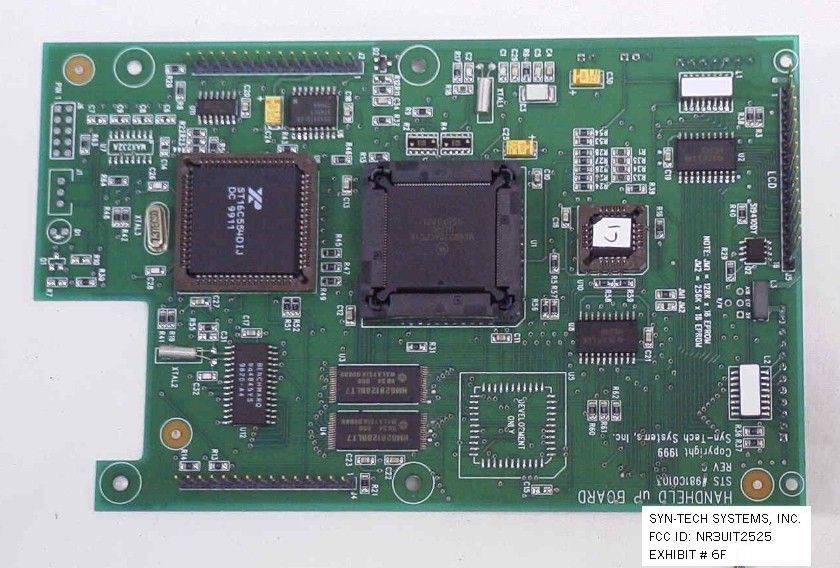

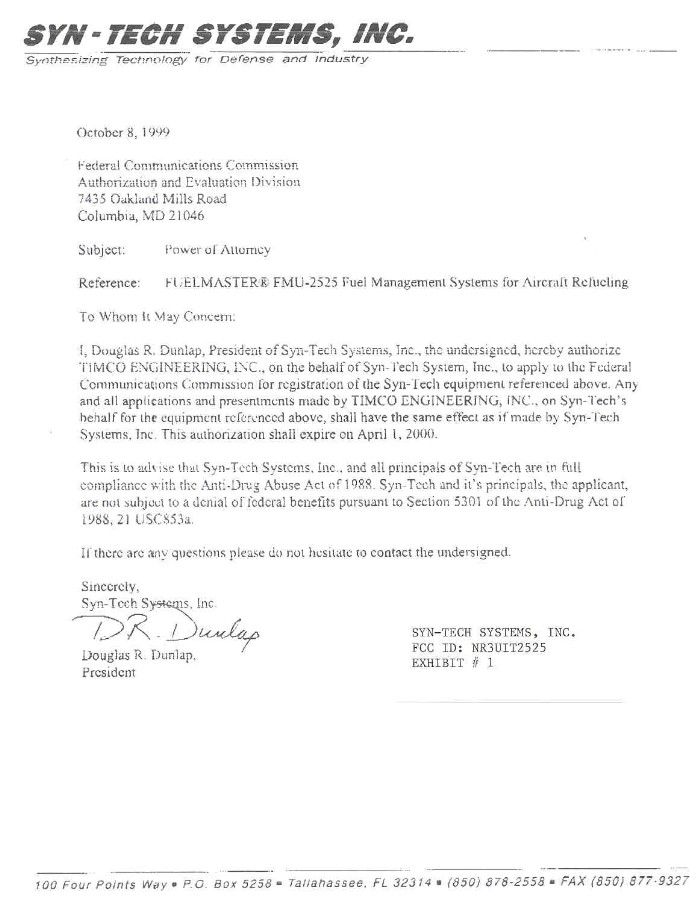

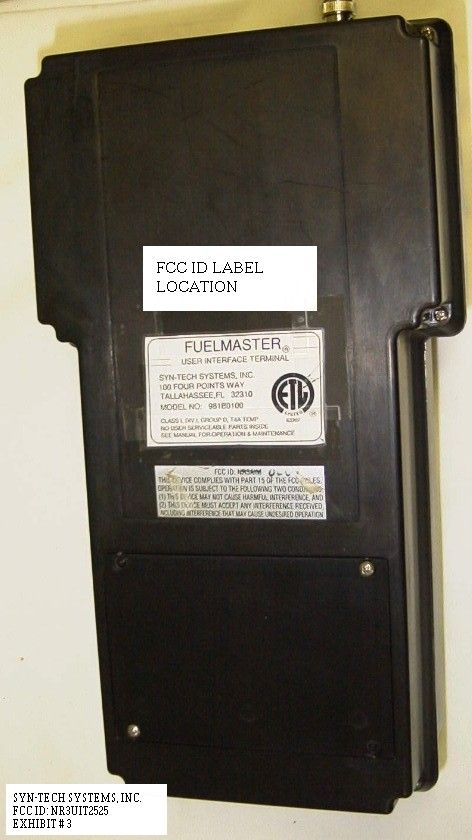

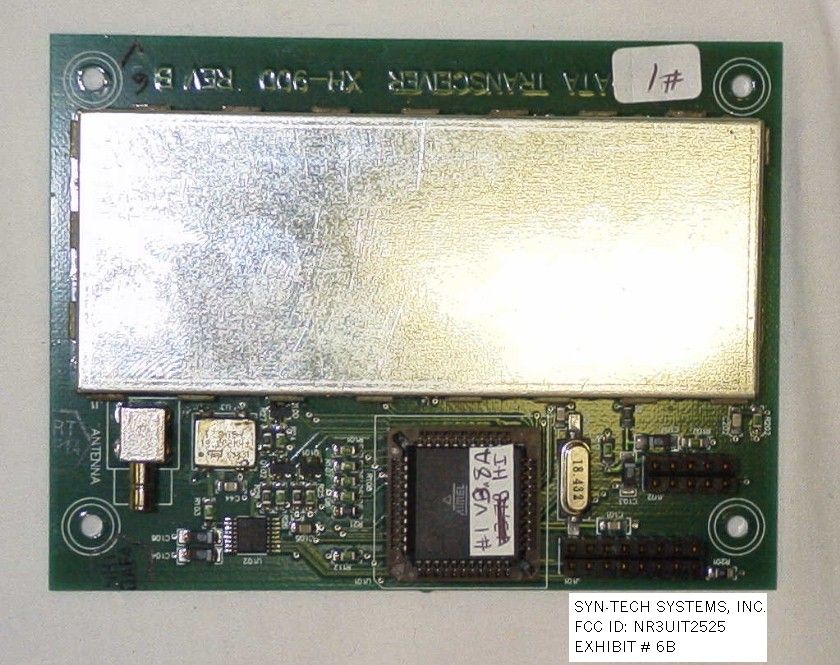

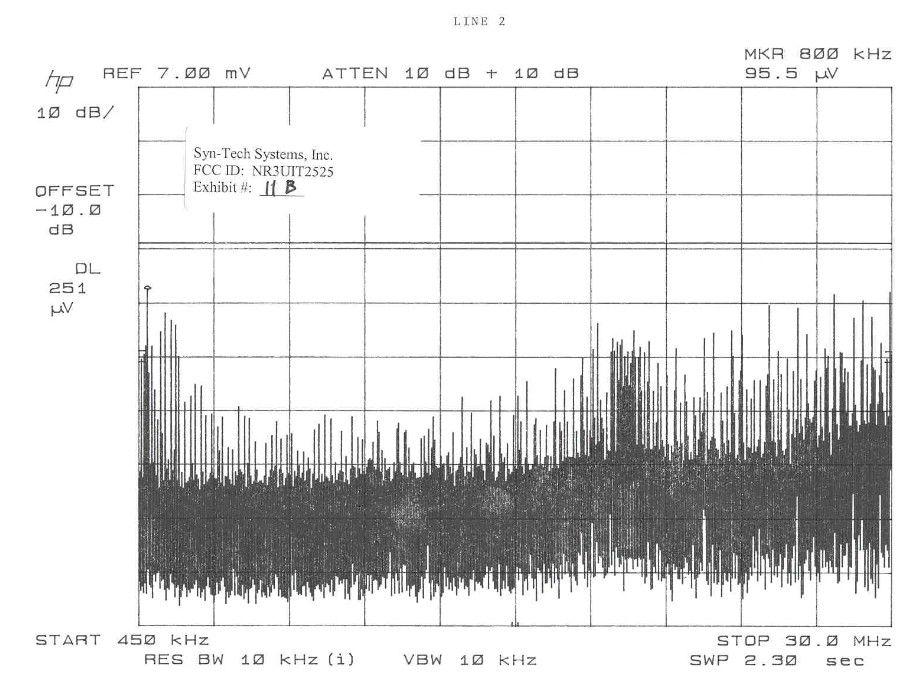

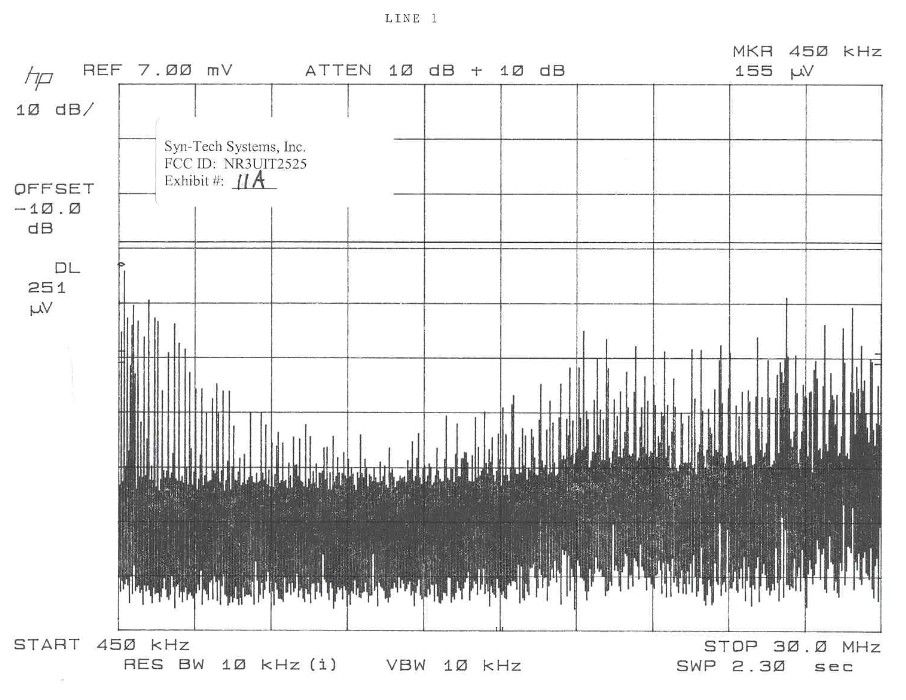

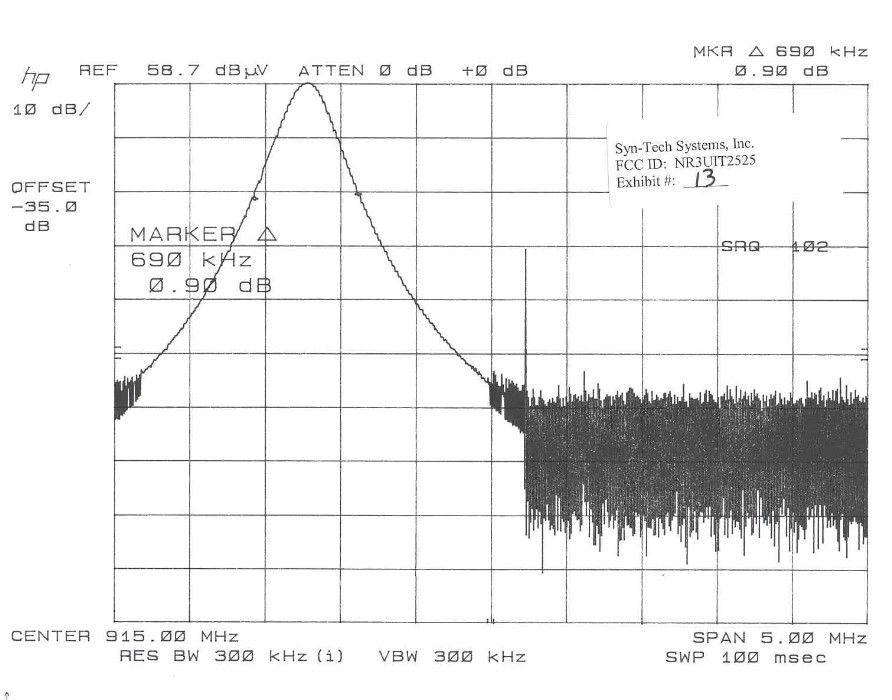

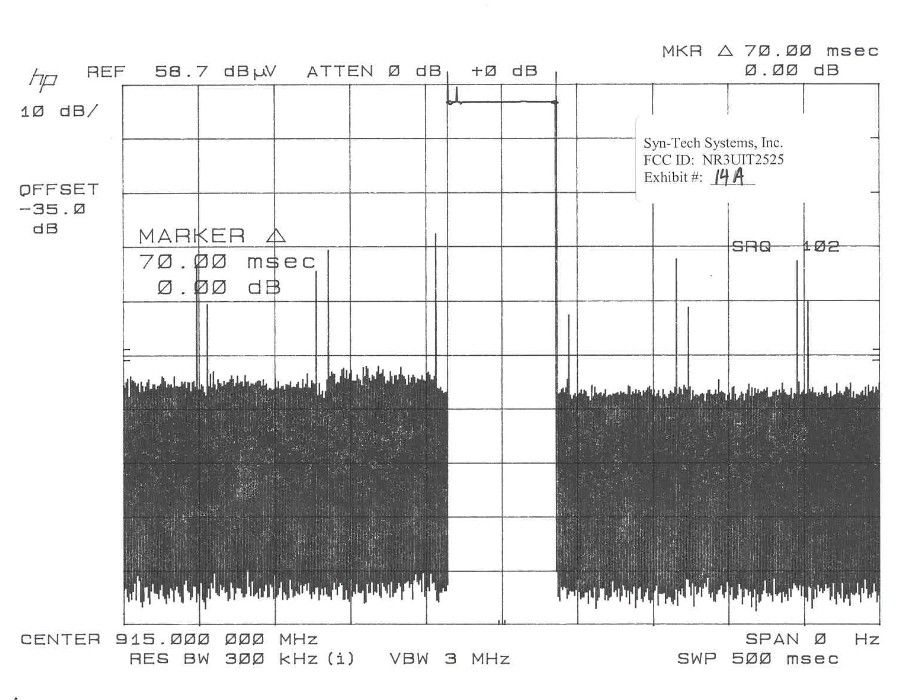

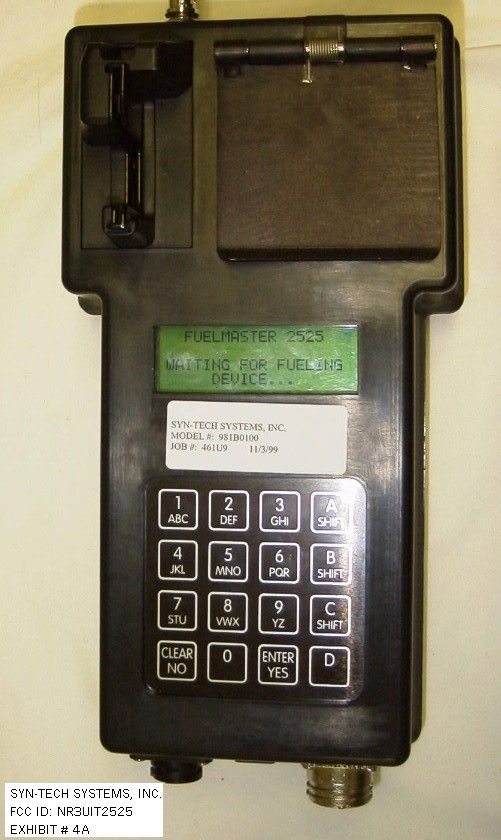

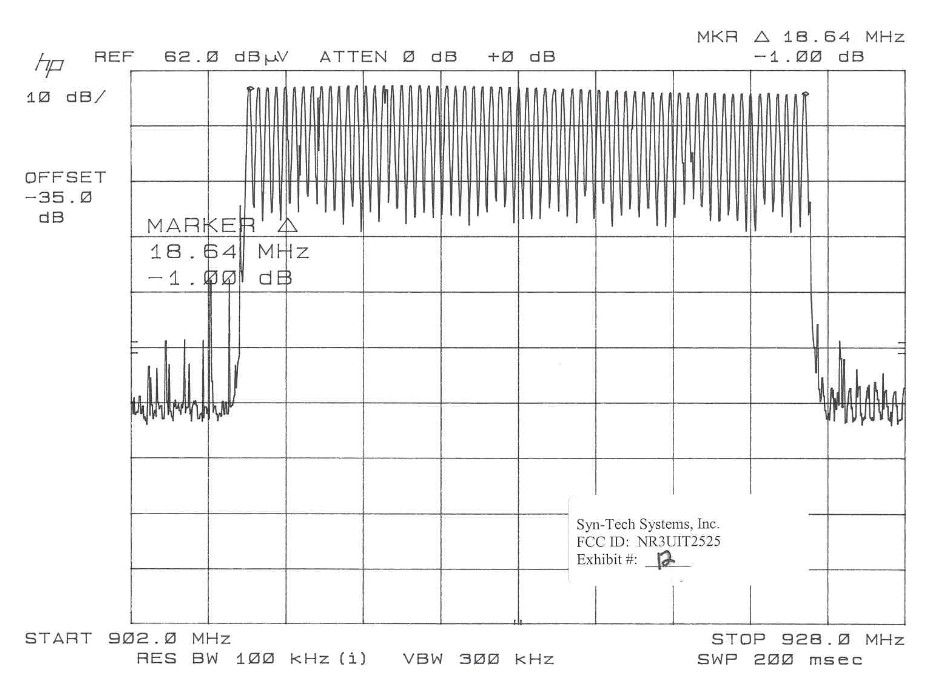

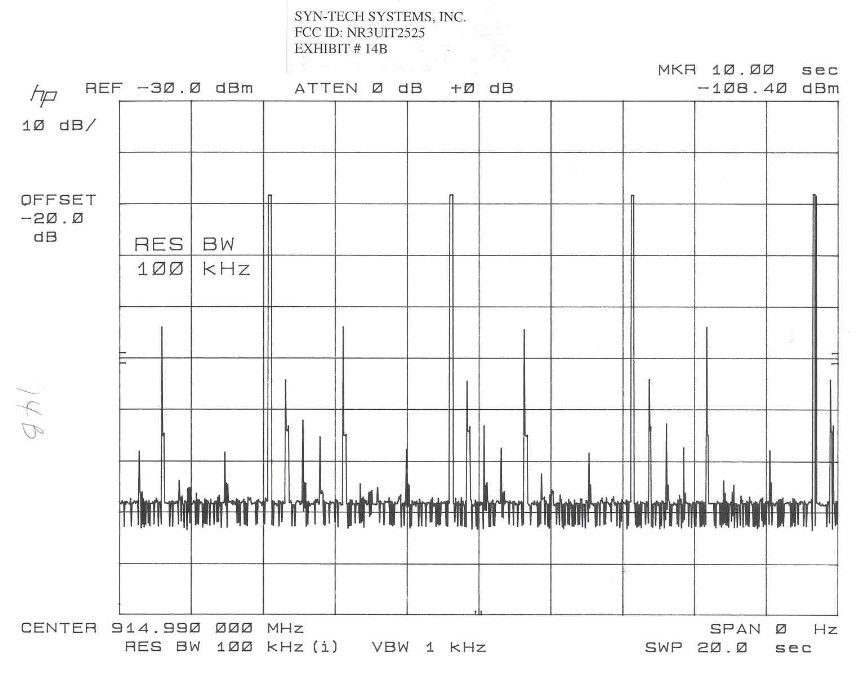

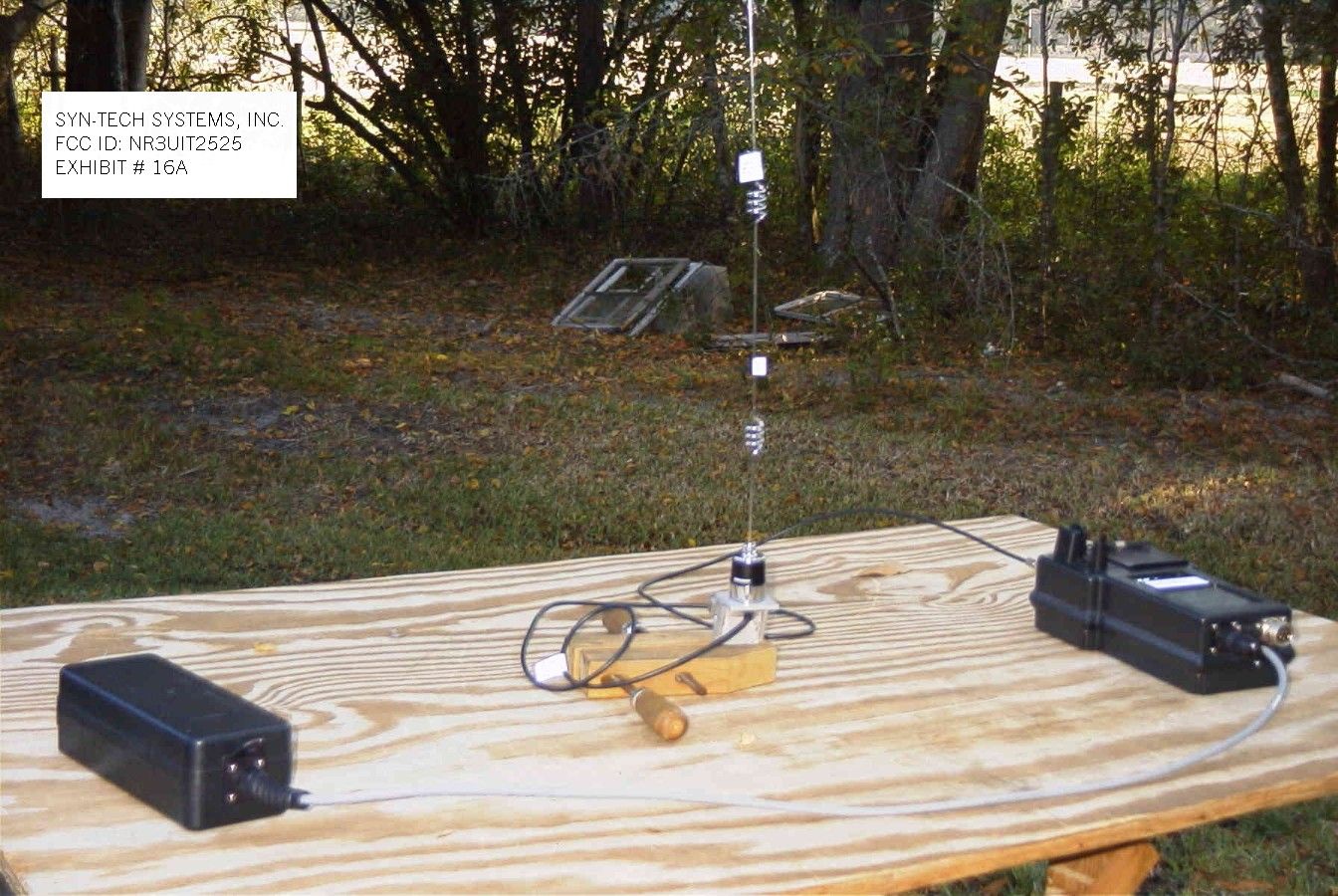

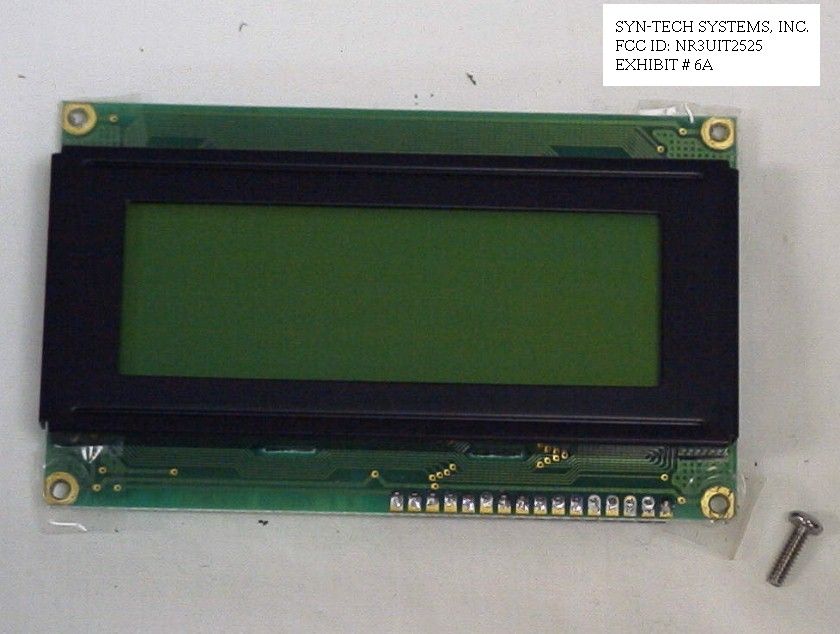

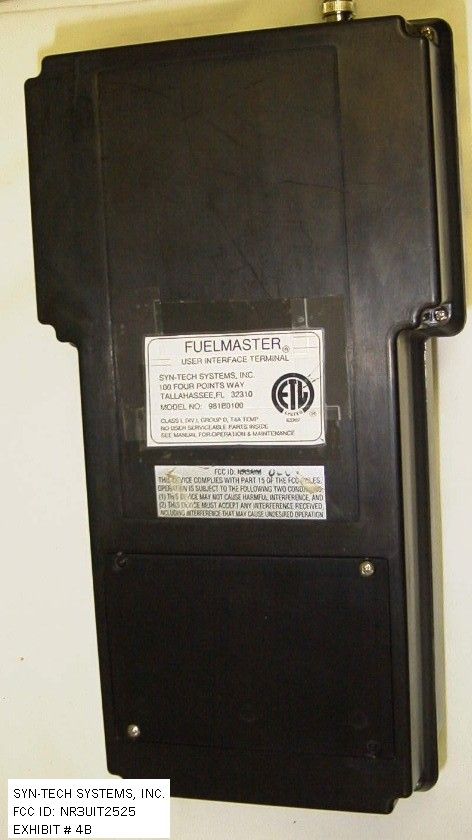

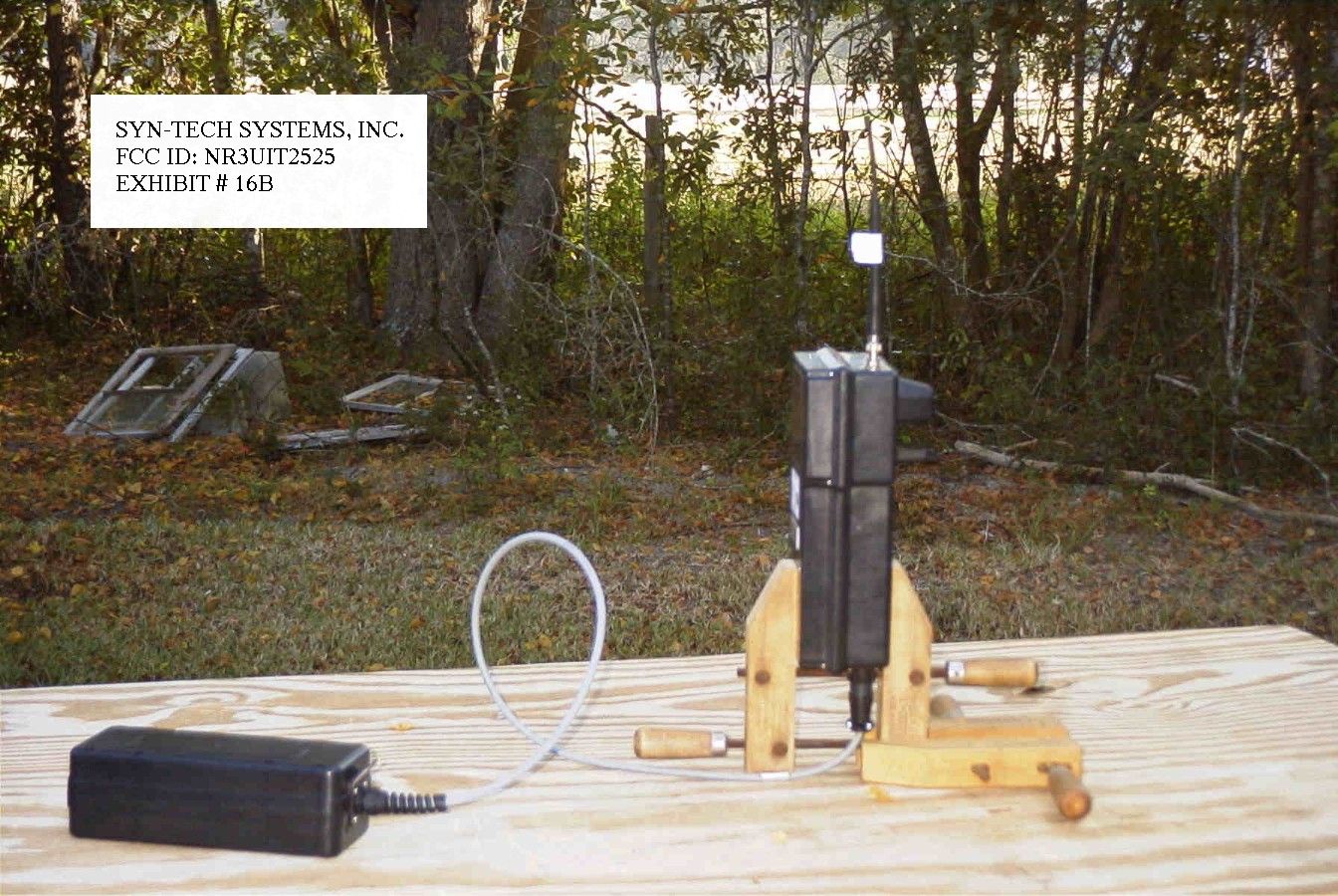

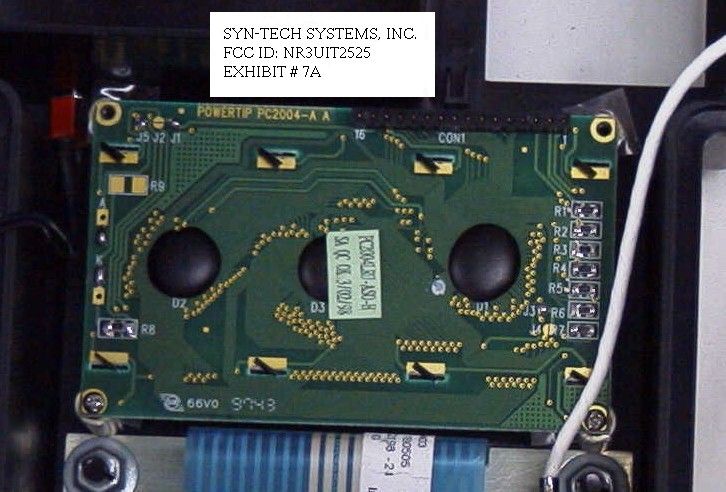

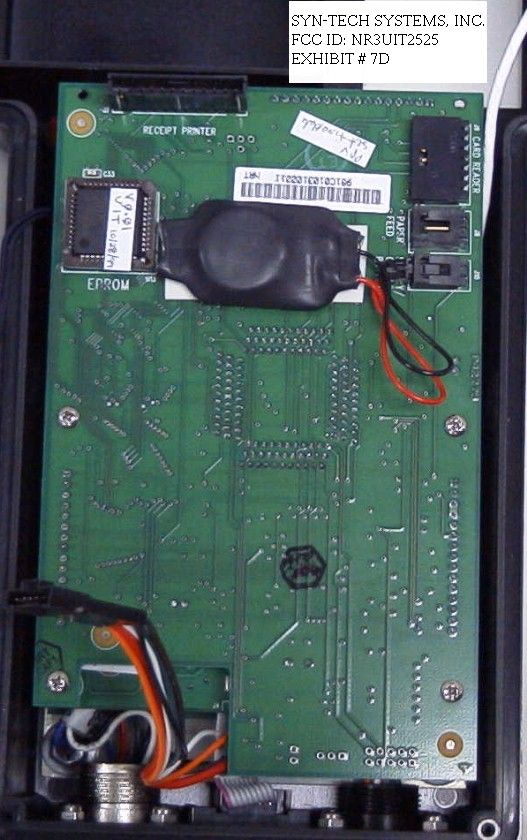

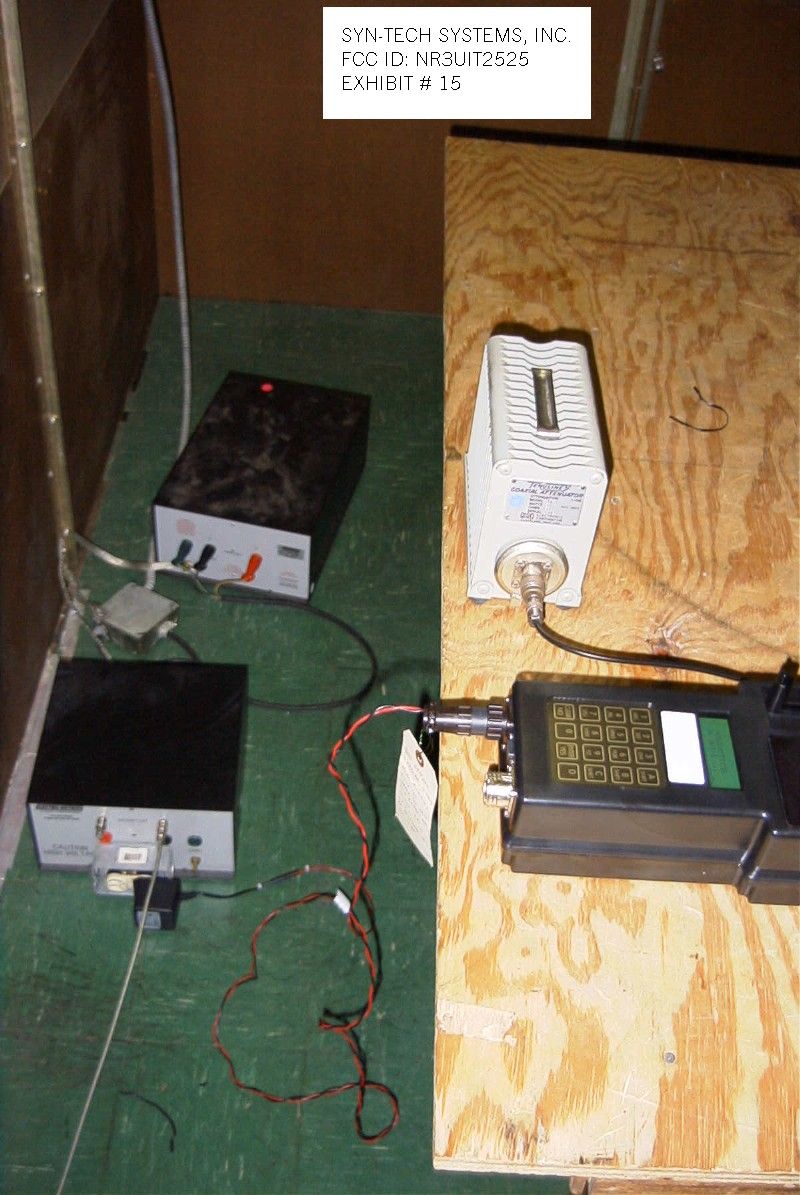

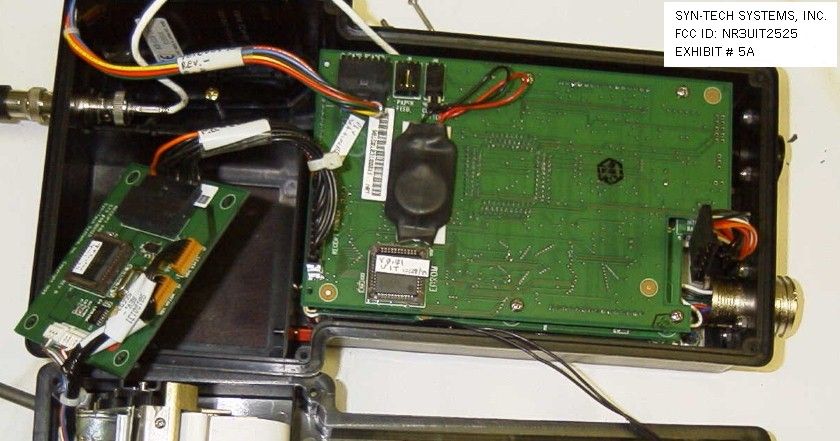

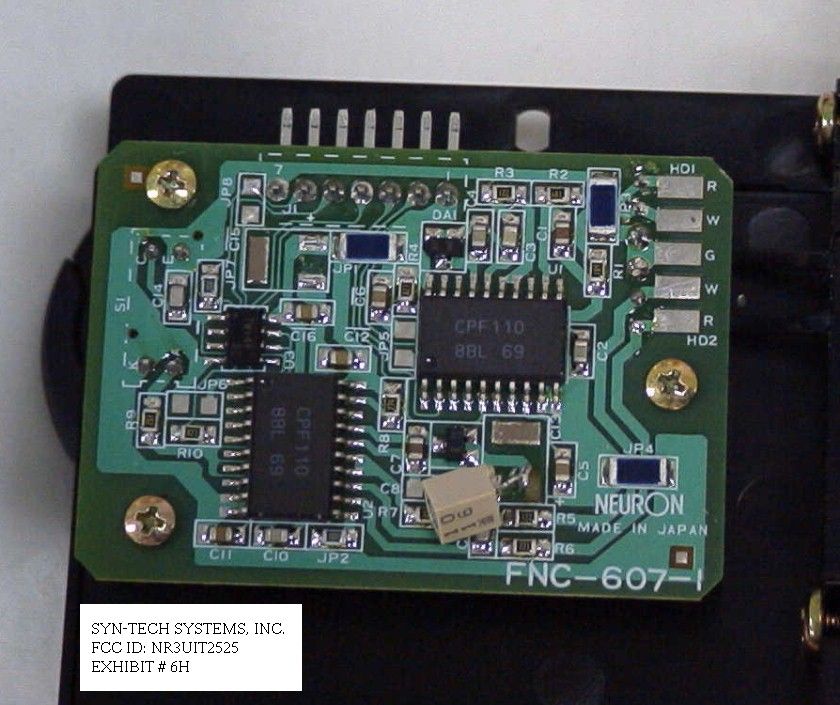

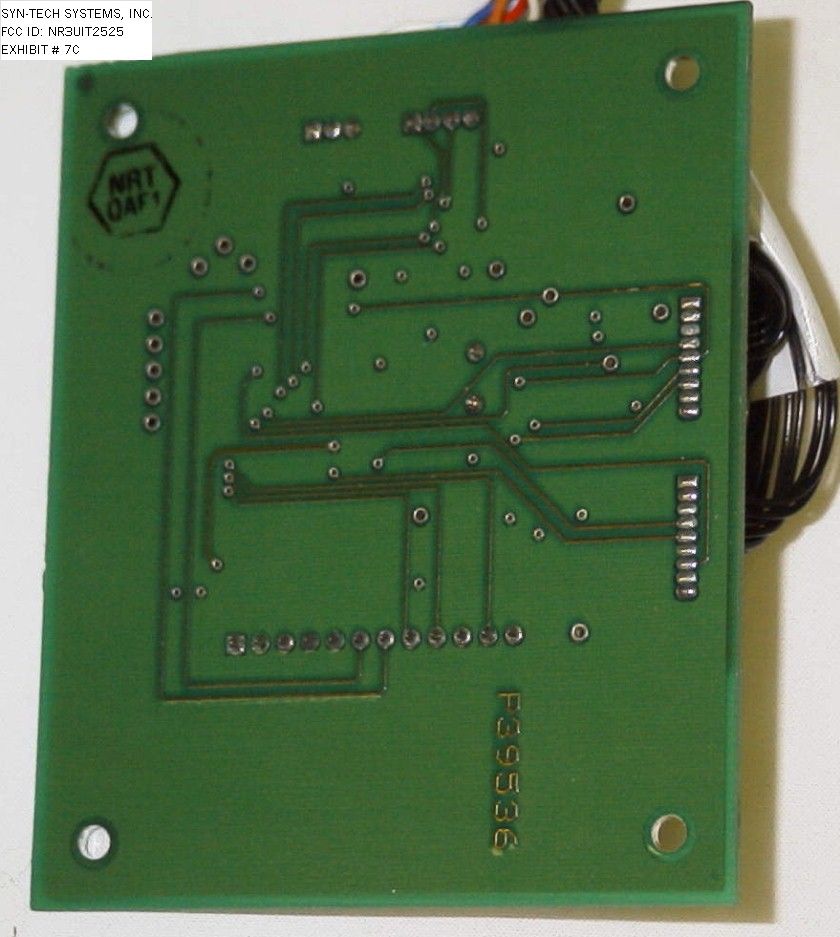

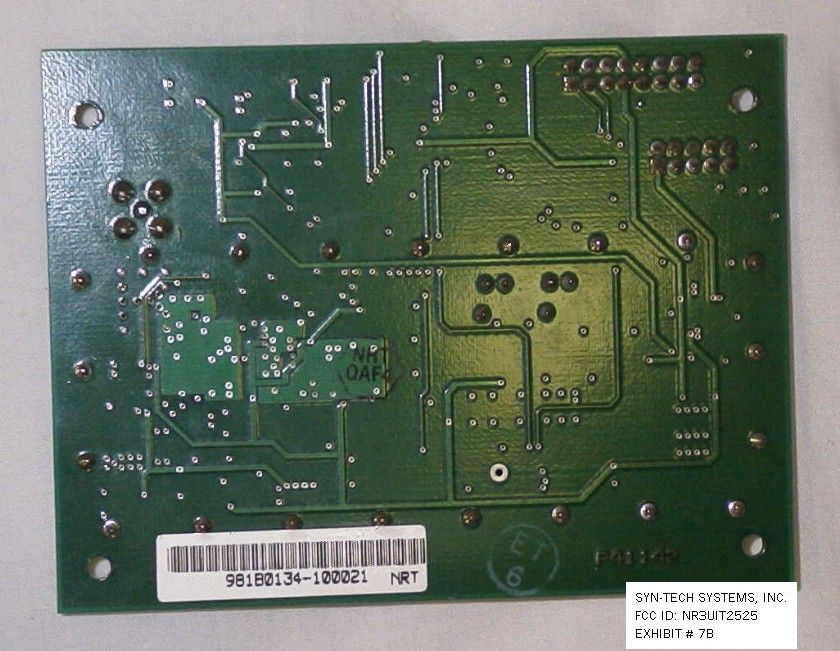

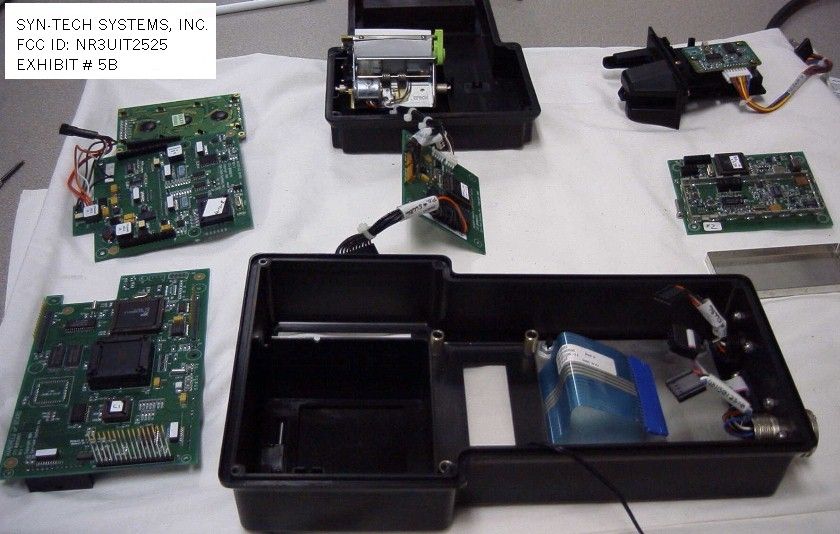

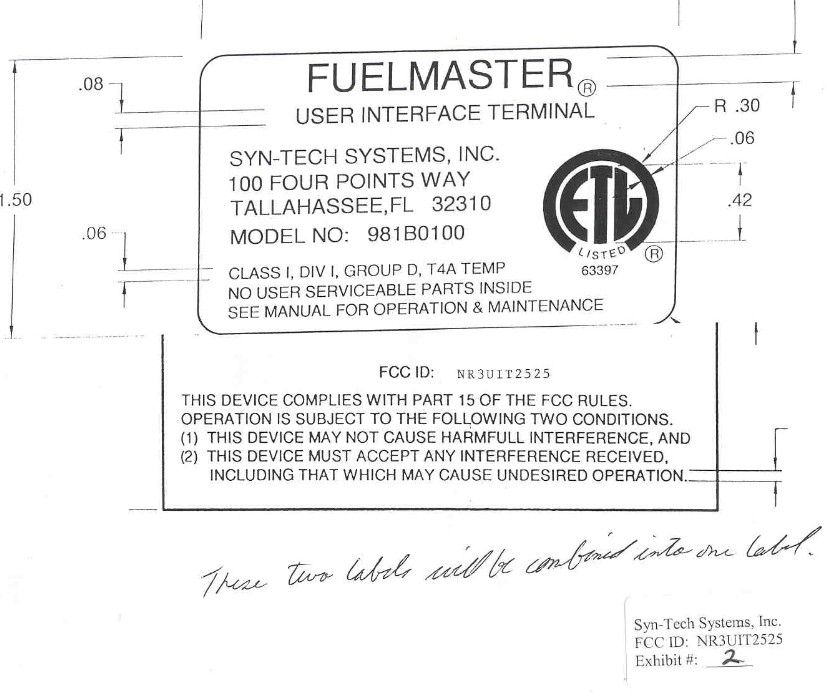

TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1.............TEST PROCEDURE PAGE 2.............TEST PROCEDURE & EQUIPMENT LIST PAGE 3.............STATEMENT ABOUT ANTENNA PAGE 3.............PRODUCT DESCRIPTION PAGE 4.............POWERLINE CONDUCTED EMISSIONS TEST DATA PAGE 4.............CARRIER SEPARATION & NUMBER OF CHANNELS PAGE 4.............DWELL TIME INFORMATION & BW PAGE 5.............POWER OUTPUT PAGE 6.............METHOD OF MEASURING RF CONDUCTED SPURIOUS EMISSIONS PAGE 6.............SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 7-8...........RADIATION INTERFERENCE TEST DATA PAGE 9.............METHOD OF MEASURING RADIATION INTERFERENCE EXHIBIT ATTACHMENTS: EXHIBIT 1...........POWER OF ATTORNEY LETTER EXHIBIT 2...........FCC ID LABEL SAMPLE EXHIBIT 3...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4A&B........FRONT & REAR VIEW EXTERNAL PHOTO EXHIBIT 5A&B........CONSTRUCTION PHOTOS EXHIBIT 6A,B,C,D,E,F,G,H...COMPONENT SIDE INTERNAL PHOTO EXHIBIT 7A,B,C,D,E,F,G.....COPPER SIDE INTERNAL PHOTO EXHIBIT 8...........BLOCK DIAGRAM EXHIBIT 9A..........SCHEMATIC - INTERFACE BOARD EXHIBIT 9B..........SCHEMATIC - RECEIPT PRINTER CONTROLL BOARD EXHIBIT 9C..........SCHEMATIC - SMART BATTERY BOARD EXHIBIT 9D..........SCHEMATIC - BATTERY BACK UP BOARD EXHIBIT 9E-G........SCHEMATICS- UHF DATA TRANSCEIVER BOARDS EXHIBIT 10..........INSTRUCTION MANUAL EXHIBIT 11A-11B.....POWER LINE CONDUCTED PLOTS EXHIBIT 12..........NO. OF CHANNELS PLOT & CHANNEL SEPERATION PLOT EXHIBIT 13..........HOPPING CHANNEL 20dB BW PLOT EXHIBIT 14A-14B.....DWELL TIME PLOTS EXHIBIT 15..........TEST SETUP PHOTOGRAPH POWER LINE CONDUCTED EXHIBIT 16A-16B.....TEST SETUP PHOTOGRAPH RADIATED EMISSIONS APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3UIT2525 REPORT NO.: T:\CUS\S\SYN\461V9\SYN461V9.RPT PAGE #: TABLE OF CONTENTS TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmit- ting a test signal during the testing. 15.247(a)(1) CARRIER FREQUENCY SEPARATION & NUMBER OF CHANNELS: A portion of the signal was coupled into the spectrum analyzer. The UUT was made to hop its full range. The spectrum analyzer was set to view the frequency range from 902 to 928MHz and placed in the memory mode. A plot was then made of the display showing the number of channels, 63 and the separation of the channels, 290kHz. The 63 were spread over a frequency range of 18.64MHz. See exhibit 13. 15.247(a)(1)(i) CARRIER FREQUENCY DWELL TIME: A portion of the signal was coupled into the spectrum analyzer. The UUT was made to hop its full range. The spectrum analyzer was set to view the frequency range from 902 to 928MHz and the center of the HOPPING RANGE was centered on the Spectrum Analyzer. The SPAN was then set to ZERO(0) and the SWEEP TIME was set to 20 seconds. The by analyzing the plot of the total ON TIME of the UUT during the 20 Seconds it was determined the dwell time on any frequency was less than 0.4Seconds. 15.247(b)(2) POWER OUTPUT: The RF power output was measured at the antenna feed point by removing the permanent antenna and connecting the UUT to a peak power meter, HP Model No. 8900C. 15.247(c) ANTENNA CONDUCTED EMISSIONS: The RBW=100KHz, VBW =1.0MHz up to 1000MHz and RBW=1.0MHz & VBW=3.0MHz above 1.0GHz. The spectrum was scanned from 30MHz to the 10th Harmonic of the fundamental. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 62.2Deg F with a humidity of 34.2%. The hopping was stopped at the low end, middle and high end of the band in order to test the radiated emis- sions. At frequencies above 1GHz the measurements were made at 1meter or less then converted to readings at 3 meters. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 74Deg F with a humidity of 54%. APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3UIT2525 REPORT #: T:\CUS\S\SYN\461V9\SYN461V9.RPT PAGE #: 1 TEST PROCEDURES CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correc- tion factors are stated in terms of dB. The gain of the Preselec- tor was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m TEST EQUIPMENT 1. Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2. Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 3. Signal Generator: HP 8614A, S/N 2015A07428 Cal. 5/29/99 4. Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/23/97 5. Biconnical Antenna: Eaton Model 94455-1, S/N 1057 6. Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 7. Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 8. Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 9. Horn 40-60GHz: ATM Part #19-443-6R 10. Line Impedance Stabilization Network: Electro-Metrics Model FCC-25/2, S/N 2512 Cal. 11/18/99 11. Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 11/30/99 12. Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, S/N 2682 Cal. 12/1/99 13. Line Impedance Stabilization …
