NRA001TER98TXAlarm Transmitter

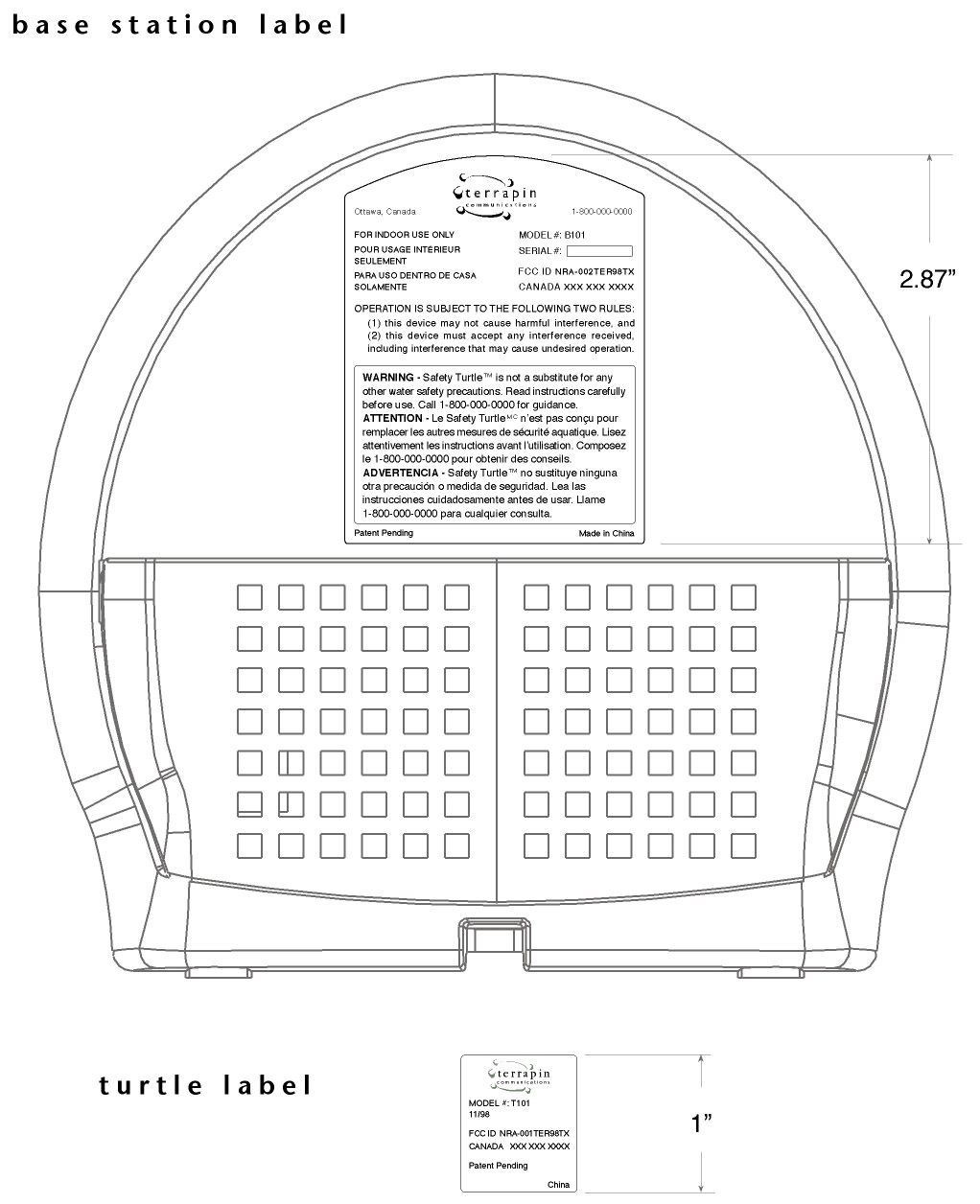

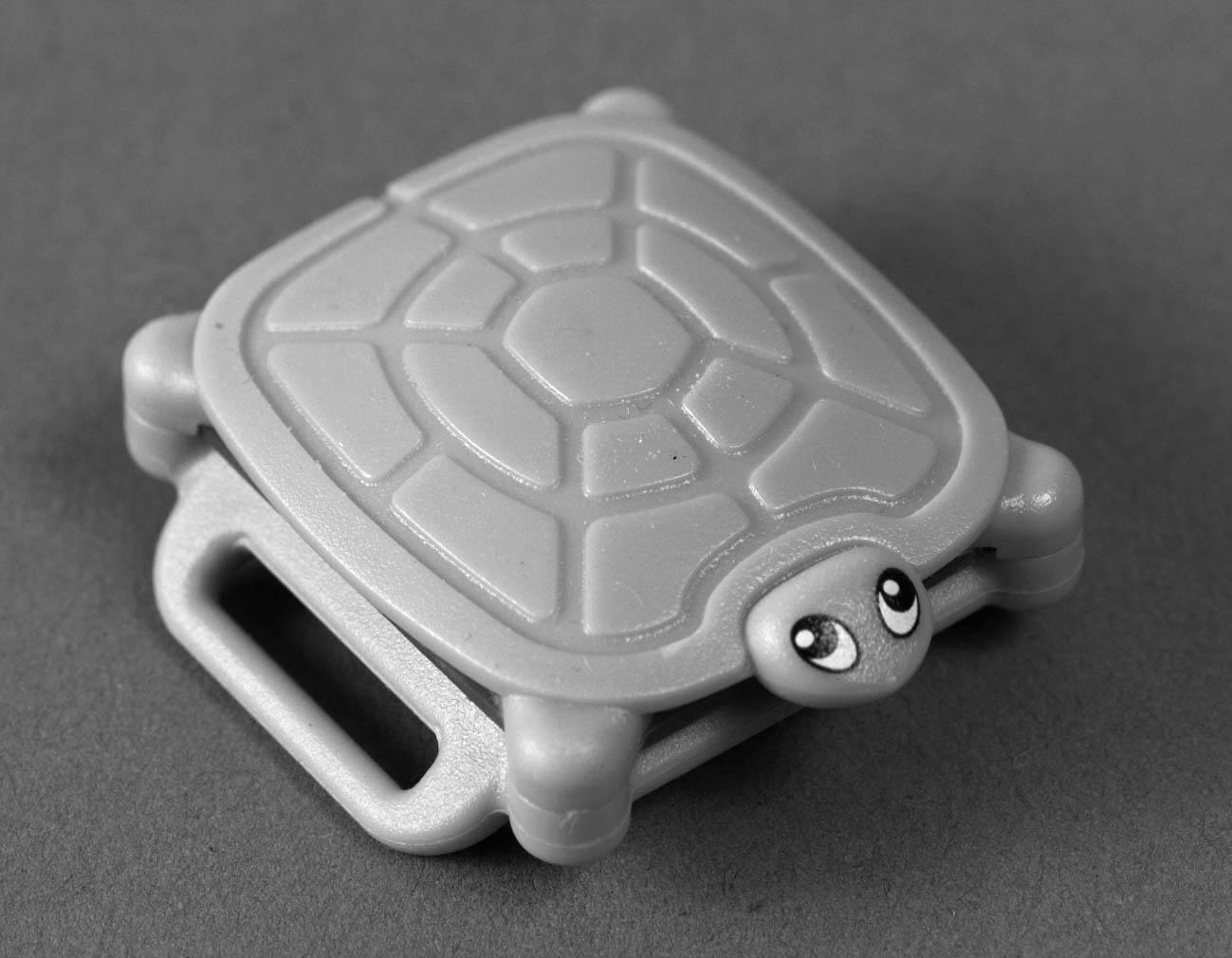

Draft User’s Guide (2.1) Safety Turtle™ User’s Guide Yet to be Completed Page 1 (Cover) – will show an illustration of the product, the product’s name and the name of the company. Page 2 (Folded-in part of the cover) – will show page number for each language. Page 3 (Back of fold out) – schematic of products with components labeled. When folded out, can be referenced while reading instructions. This schematic (Exhibit 1) would only show numbers and not writing as it is referenced by all three languages (English, French and Spanish).. Congratulations Congratulations on purchasing the Safety Turtle™ product. This state-of-the-art product, while not a substitute for diligent supervision and pool access barriers, provides an additional “line of defense” for you and your children in using your swimming pool. Limitations The Safety Turtle™ product is not effective in seawater. Effectiveness diminishes with increasing pool salinity. Federal Communications Commission (FCC) Notice This device complies with FCC Part 15 Rules and Industry Canada RSS 210 Issue 2 Regulations.. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and, (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Terrapin Communications Inc. could void the user’s authority to operate the equipment. Important – Read Instructions Carefully Please take the time to read these instructions carefully before using your Safety Turtle™ product. Ensure that you pay particular attention to the instructions related to product testing, which is both important in setting up the system and in daily use. Your Safety Turtle™ product is designed as a “last line of defense” to help prevent drownings of young children. The product is not a substitute for diligent supervision or pool access barriers. The Safety Turtle™ alarm system consists of a Base Station plus one or more Turtles of the same color. • The Base and Turtles are purchased in separate packages, allowing the purchaser to buy more than one Turtle to be used with the same Base. • The Turtle package also includes a Turtle Plug to be used with the Base, so that the Base will recognize the color of Turtle(s) purchased. The Safety Turtle™ alarm system has two modes of operation: Active Mode and Test Mode. • Active Mode is the operating mode for the system. If a Turtle is immersed in water, the full alarm sound is produced. The alarm sound can be reduced at any time by pressing the large button on the Base. • Test Mode is provided for system testing, without producing the full alarm sound. Test Mode is entered by pressing the large button on the Base, and is identified when the amber light is lit. Active Mode is re-entered by again pressing the large button (amber light will no longer be lit). Initial Setup and Testing • Please read these instructions in conjunction with the illustration(s) before using the Safety Turtle™ alarm system. • Ensure that all Turtles to be used with a base unit are the same color. • Firmly insert a colored Turtle Plug, supplied with each Turtle, into the receptacle on the Base. If you purchased more than one Turtle, only one Turtle Plug is required. • Locate Base indoors in a location near to the pool. A window facing the pool is a good location • For best reception, place the Base with its rear surface towards the pool. Do not put your ear close to the Base, as the alarm is extremely loud and could cause permanent hearing damage. • Plug the power adapter into a standard 115/120V AC power source. Connect the other end into the Base. Ensure that the green power light is on. • To ensure that the Turtle works with your pool, set the Base to Test Mode by pressing the large button on the Base (amber light will be lit) and dip the Turtle in all corners of the pool and check that the alarm sounds. Test the farthest point in the pool from the Base, to make sure that it will alarm if the Turtle is immersed at that location. If the alarm fails to sound, unfortunately the Safety Turtle™ product will not work with your pool, and you should return the product to where it was purchased with proof of purchase for a full refund. Reasons why the product may not work in your situation are the distance between the Turtle and the Base Station, a high concentration of chemicals in your pool, the pool water is sea water, and interference from other communications devices in your neighborhood. • Following testing the Turtle in your pool, press the large button on the Base to return to Active Mode (amber light is no longer lit.) • Check that the alarm, when in Active Mode (amber light is not lit), can be heard throughout the house. To mute the alarm, press the large button on the Base. • If the Base does not sound an alarm when tested, see Troubleshooting section. Daily Use and Testing • Ensure that the Base is plugged into an AC power source, and that the green power light is on. • Use Test Mode (entered by pressing the large button on the Base), to check Turtle by immersing it in the pool. (Test Mode is indicated when the amber light is lit.) When finished, lightly shake the Turtle to remove any excess water. • Following testing, press the large button on the Base to return to Active Mode (amber light is no longer lit.) • Attach Turtle wristband comfortably but firmly to the child’s wrist. Use a small coin (dime) in the slot provided to secure the strap. Ensure that the wristband is secured and cannot slip over the child’s hand. • If the Base does not sound an alarm when tested, see Troubleshooting section. Troubleshooting In the event that you experience a problem with the Safety Turtle™ system, several possible problems and solutions are provided below: Problem : Alarm does not sound when Turtle is immersed in water. Solution : If you have just purchased the product, please refer to the instructions on Initial Setup Testi…

Text truncated - open the document above for the full version.

July 13, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission On our behalf, I appoint KTL Ottawa to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Dated this 8th Day of September 1998 Agency Agreement Expiration Date: September 8, 1999 By: __________________________ Robert G. Lyons Title: President Telephone: 613-820-4486 Applicant: Terrapin Communications Inc.

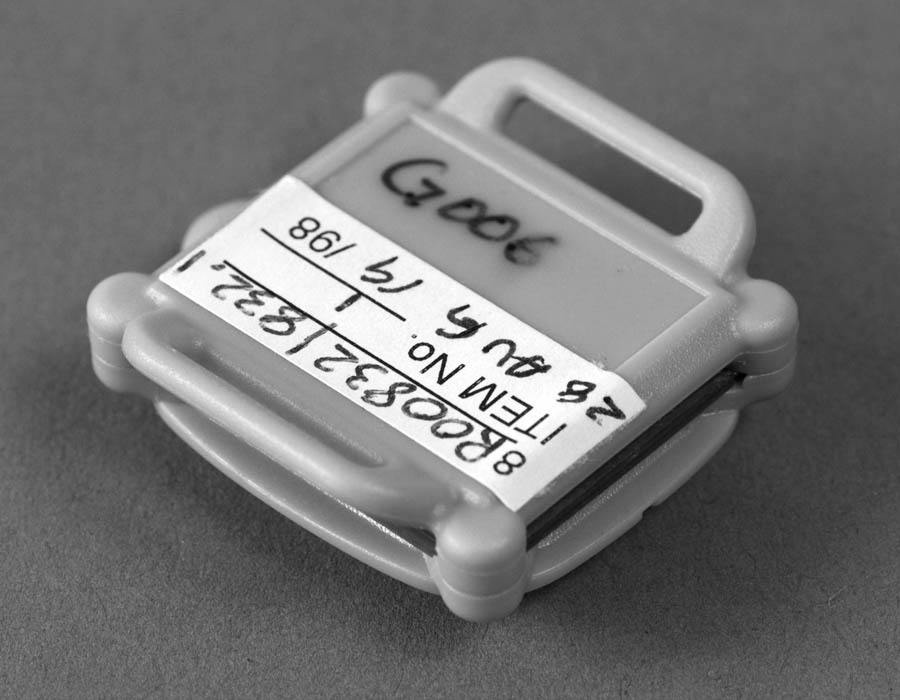

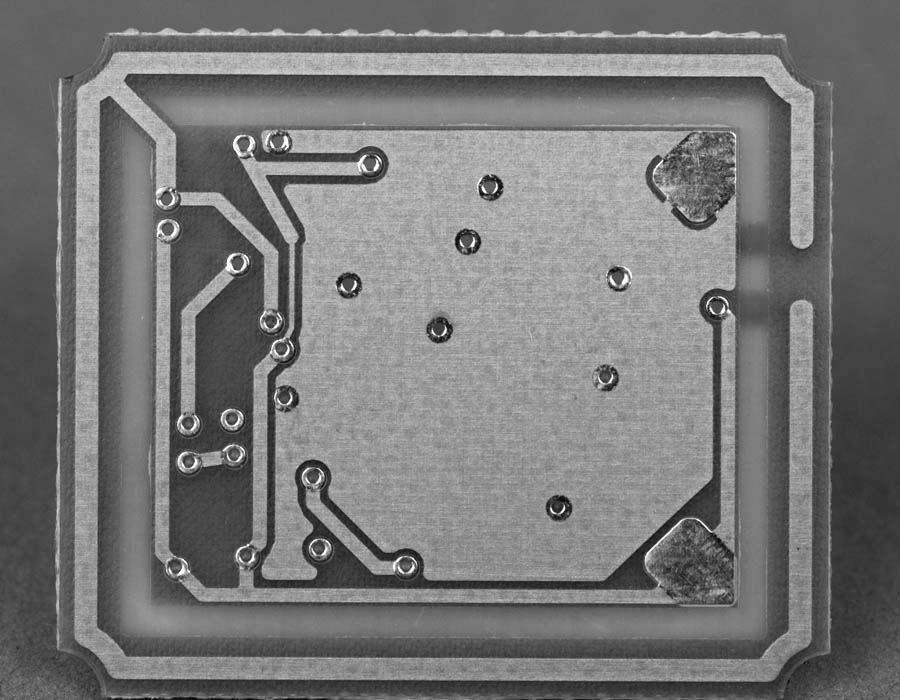

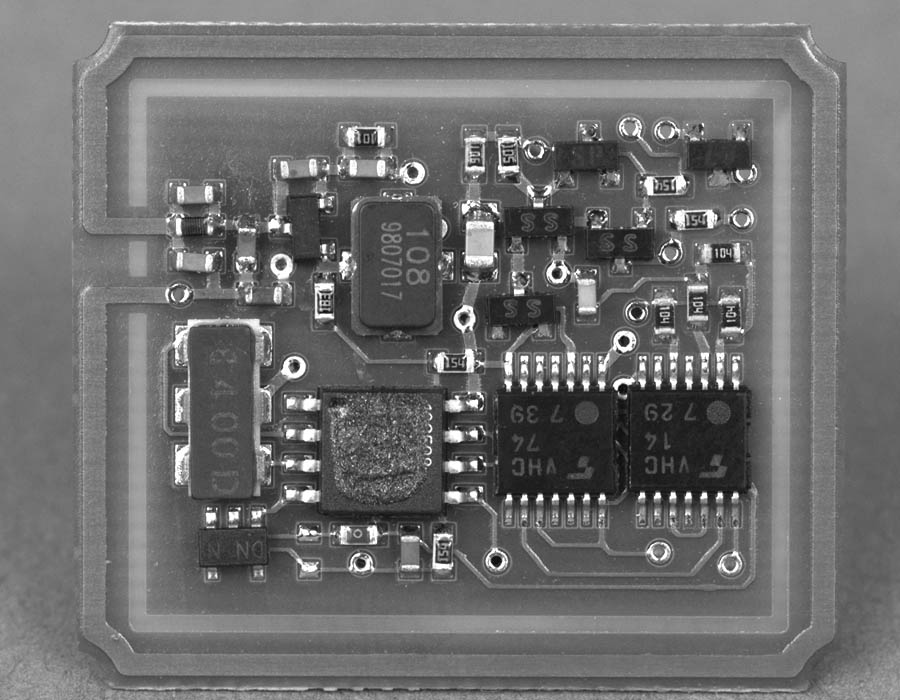

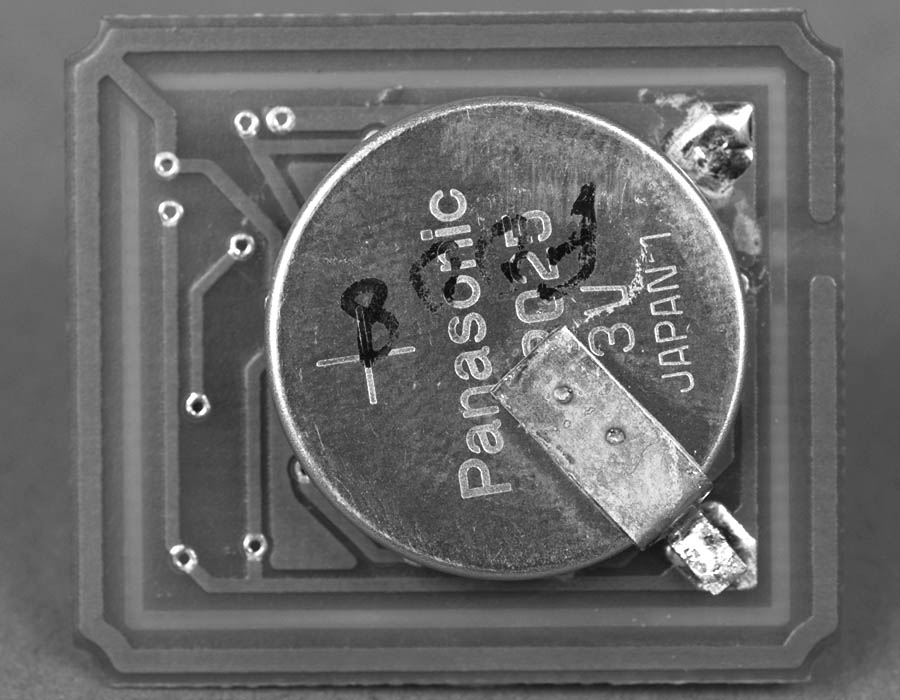

Watersafe Transmitter Bill of Materials ItemRe fValueDescriptionPackage 1A1AntennaPCB Track 2B1CR2025Battery CR2025 3C1100 nFCapacitor, Ceramic. 10%, 50V805 4C233 pFCapacitor, Ceramic, 5%, 50V, NPO603 5C34.7 pFCapacitor, Ceramic, +/- 0.25pF, 50V, NPO603 6C412 pFCapacitor, Ceramic, 5%, 50V, NPO603 7C510 nFCapacitor, Ceramic, 10%, 50V603 8C61 nFCapacitor, Ceramic, 10%, 50V603 9C715 pFCapacitor, Ceramic, 5%, 50V, NPO603 10C82.7 pFCapacitor, Ceramic, +/- 0.25pF, 50V, NPO603 11C910 nFCapacitor, Ceramic, 10%, 50V603 12DN1BAV99Diode, Dual with Series ConnectionSOT-23 13L122 nHInductor, 5%603 14Q1BSS138Transistor, MOSFET, N-ChannelSOT-23 15Q2BSS138Transistor, MOSFET, N-ChannelSOT-23 16Q3BSS84Transistor, MOSFET, P-ChannelSOT-23 17Q4BSS138Transistor, MOSFET, N-ChannelSOT-23 18Q5MMBR901Transistor, MMBR901SOT-23 19R110MResistor, 5%603 20R10100kResistor, 5%603 21R11100kResistor, 5%603 22R12100kResistor, 5%603 23R135.62k 1%Resistor, 1%603 24R1420.0k 1%Resistor, 1%603 25R21MResistor, 5%603 26R3150kResistor, 5%603 27R4150kResistor, 5%603 28R5150kResistor, 5%603 29R6150kResistor, 5%603 30R718kResistor, 5%603 31R8100Resistor, 5%603 32R9100kResistor, 5%603 33SN1Water SensorPCB Track 34U174VHC14IC, Hex Schmitt-Trigger INVERTERSTSSOP-14 35U274VHC74IC, Dual D-Type FLIP-FLOPSTSSOP-14 36U3PIC-12C508-04/SM IC, PIC12C508 (4 MHz)SOIC-8 37U4S-80720SN-DHIC, Voltage Detector, 2.0V, S-80720SN-DHSOT-23-5 38X1RO2118AResonator, SAW, (318 MHz)SM-2 39X2PBRC-4.00BRResonator, Ceramic, (4 MHz), Internal caps7.4 x 3.4 x 2.0 Page 17236 7/13/01

July 13, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission On our behalf, I appoint KTL Ottawa to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Dated this 8th Day of September 1998 Agency Agreement Expiration Date: September 8, 1999 By: __________________________ Robert G. Lyons Title: President Telephone: 613-820-4486 Applicant: Terrapin Communications Inc.
