NS3-502RWIRELESS REMOTE CONTROL

Model 502R Wireless Remote Notes for remote operation • The Home mode function for 820s only. • If radio linked remote control operation range become shorten, replace the batteries according to "BATTERIES REPLACEMENT". • The battery life should be about six months under normal use, so replace battery at least every 6 months. • Effective range about 15~30 meters.ay cause undesired operation of the device. FCC COMPLIANCE STATEMENT 1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment 1.Battery install and replacement (Battery CR2032) a. Remove the battery compartment cover by sliding it in the direction of the arrow. b. Replace with new batteries of the same type. Make sure the polarity (+ or -) of the batteries match the polarity marks inside the unit. As shown below (Fig. 1) c. Replace battery cover. (Fig.1) size: 80x120mm p/n:610-50200-00xR white paper print black words 610-50200-00xR Model T015S Model T018S Model T016S 1 4 7 */ UP 2 5 8 0 3 6 9 PROG PAUSE ARM/ DISARM PANIC /DOWN Model T068S AC.POWER GSM PSTN REC. 1 2 3 4 5 6 7 8 9 HOME REC./ PLAY DEL./ PAUSE ARM/ DISARM 0 PROG PANIC Model 820S Model 625R Model T056S BATT. LOW 1 4 7 / UP 2 5 8 0 3 6 9 PROG DEL./ PAUSE /DOWN PANIC ARM/ DISARM AC BAT.LOW AC Model 527SL Model T055S BATT. LOW 1 4 7 / UP 2 5 8 0 3 6 9 PROG DEL./ PAUSE /DOWN PANIC ARM/ DISARM AC The wireless remote control compatible T015S, T016S, T055S, T056S, T018S, T068S, 639S, 820S, 526F, 526L, 625R, 527SL, 527SF main unit, must learn code to main unit then use. learn code operation see main unit manual. Model :526L Model :639s ARM POWER/ B A T T . LOW LEARNING CODE TO MAIN UNIT generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 2. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: a. This device may not cause harmful interference, and b. This device must accept any interference received, including interference that may cause undesired operation. 3. Changes or modifications to this unit not exspressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant.

Schematic Block diagram Battery (CR2032)MCU Radio Frequency oscillator ARM/DISARM/PA NIC/HOME Key DATA 433.92MHz SAW Resonator Match circuit and Antenna

深圳安磁产品技术服务有限公司 S&E Technologies Laboratory Ltd. 深圳市南山区科技园深南花园裙楼A区407室 No. 407, Block A, Shennan Garden, High-Tech Industrial Park, Nanshen, Shenzhen, P.R. China Tel: +86 755 2663 6573（12线） Fax: +86 755 2663 0557 DATE: November 25, 2010 Dear TCB Reviewer, Thank you for cooperation. I would like to submit new FCC application of Lelux Electronics Ltd/FCC ID: NS3-502R by your TCB Approval today. Best Regards, S&E Technologies Laboratory Ltd. Adum Liu General Manager

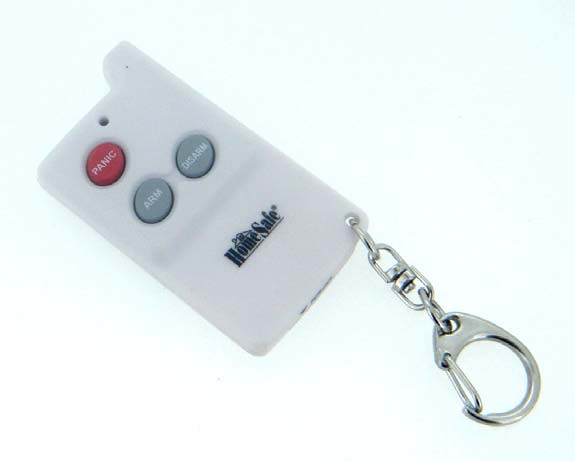

Lelux Electronics Ltd FCC ID: NS3-502R Appendix 2 Photographs of Constructional Details EUT – Front View EUT – Rear View Lelux Electronics Ltd FCC ID: NS3-502R Supplementary Model: 503R

Lelux Electronics Ltd FCC ID: NS3-502R Appendix 3 FCC ID Label FCC ID: NS3-502R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location

Lelux Electronics Ltd FCC ID: NS3-502R Appendix 2 Photographs of Constructional Details EUT – Internal View EUT – PCB View

Wireless Remote Control (502R) This product designed for T015 and T016/T018/T068 series as remote control, it send four kids data signal for control system ARM/DISARM/ PANIC/HOME respectively. Schematic description — Battery: a CR2032 button cell as power supply. — Data modulation and base oscillator: C7, C8, R10, R11, R9 and PCB antenna loop complete radio frequency oscillator, SAW1 (SAW resonator) control and regulate the oscillate frequency to 433.92MHZ +/- 75K, from MCU data signal through R11 control radio frequency generate ASK modulation. — Key in circuitry: Key ARM/DISARM/PANIC/HOME (also ON/OFF/PANIC/HOME to be use other system) component key input. — Indicate LED: LED1 indicate the unit work status.




FCC Part 15C MEASUREMENT AND TEST REPORT For Lelux Electronics Ltd Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong November 25, 2010 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of S&E Technologies Laboratory Ltd. FCC ID: NS3-502R This Report Concerns: Original Report Equipment Type: Wireless Remote Control Test Engineer: Rocky Ge Report Number: SE10K-061F Test Date: November 21 to 23, 2010 Reviewed By: Karbon Y.Chung (Senior Manager) Prepared By: S&E Technologies Laboratory Ltd Room 407, Block A Shennan Garden, Hi-Tech Industrial Park, Shenzhen 518057, P.R. China. Tel: 86-755-26636573, 26630631 Fax: 86-755-26630557 Lelux Electronics Ltd FCC ID: NS3-502R Report No.:SE10K-061F Page 2 of 22 FCC Part 15.231 Report Table of Contents 1-TEST RESULT CERTIFICATION ...................................................................................................3 2- EUT DESCRIPTION......................................................................................................................4 3-TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION...............................................................................................................................5 3.2 EUT EXERCISE......................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES................................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................................... 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................................. 6 4- INSTRUMENT CALIBRATION......................................................................................................7 5- FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES................................................................................................................................................ 8 5.2 EQUIPMENT............................................................................................................................................... 8 5.3 LABORATORY ACCREDITATION AND LISTING............................................................................................ 8 6- SETUP OF EQUIPMENT UNDER TEST ......................................................................................9 6.1 SETUP CONFIGURATION OF EUT............................................................................................................... 9 6.2 SUPPORT EQUIPMENT................................................................................................................................9 7- FCC PART 15.231 REQUIREMENTS .........................................................................................10 7.1 20 DB BANDWIDTH................................................................................................................................. 10 7.2 LIMIT OF TRANSMISSION......................................................................................................................... 12 7.3 RADIATED EMISSIONS............................................................................................................................. 17 7.4 POWER LINE CONDUCTED EMISSION...................................................................................................... 22 Lelux Electronics Ltd FCC ID: NS3-502R Report No.:SE10K-061F Page 3 of 22 FCC Part 15.231 Report 1-Test Result Certification Applicant: Lelux Electronics Ltd Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong Equipment Under Test: Wireless Remote Control Trade Name: HomeSafe Model No.: 502R (EUT) Supplementary Model No.: 503R Note: The above models share the same schematic diagram, PCB layout and enclosure except for the different button functions. Operation Frequency: 433.92MHz Antenna Designation: Non-user replaceable (fixed) Battery Voltage: DC3.0V [ powered by 1*3.0V button battery ] Date of Test: November 21 to 23, 2010 Applicable Standards Standard Test Result FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested at ATC Lab Co., Ltd (Guangdong, China). The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 - 2003 and Public Notice DA 00-705. The energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules (2007), Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Lelux Electronics Ltd FCC ID: NS3-502R Report No.:SE10K-061F Page 4 of 22 FCC Part 15.231 Report 2- EUT Description Product Wireless Remote Control Trade Name HomeSafe Model No.: 502R Supplementary Model No.: 503R Power Supply Powered by 1*3.0V button battery Frequency Range 433.92MHz Antenna Designation Non-user replaceable (fixed) Remark: This submittal(s) test report is intended for FCC ID: NS3-502R filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Lelux Electronics Ltd FCC ID: NS3-502R Report No.:SE10K-061F Page 5 of 22 FCC Part 15.231 Report 3-Test Methodology The tests documented in this report were performed in accordance with ANSI C63.4 - 2003 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.231. 3.1 EUT Configura…

Text truncated - open the document above for the full version.

Lelux Electronics Ltd FCC ID: NS3-502R Appendix 1 Photographs of Test Setup Radiated Emission
