NS3-660WIRELESS WATER OVERFLOW SENSOR WITH ALARM

Lelux Electronics Ltd
WIRELESS WATER OVERFLOW SENSOR WITH ALARM - FCC ID NS3-660 - Lelux Electronics Ltd
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Aug 18, 2010
Application Purpose
Original Equipment
Date of Application
Aug 18, 2010
Equipment Note
WIRELESS WATER OVERFLOW SENSOR WITH ALARM
Frequency Range
433.92000000 - 433.92000000
Company
Lelux Electronics Ltd
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Operational Description

β†—

Schematics

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

β€’ Detect water overflow output wireless radio signal and activates alarm β€’ Alarm On/Off switch β€’ 9V battery operation (not included) β€’ Low power consumption - - - long battery life β€’ Battery low indicator LED β€’ Wireless RF transmission up to 50~70meter Wireless Water Overflow Sensor with Alarm MODEL 660 1. Remove the screw from the battery compartment cover. (Fig.1) 2. Install an alkaline 9V battery, now unit enter into standby mode. 3. Replace the battery cover and screw. 4. Learning ID code to main unit. 5. Mount the main unit at the desired location with anchors and screw (included). 6. Press suctorial cap against of water detect sensor on the desired location. (Fig.2) NOTE: 1. The wireless water overflow sensor output RF signal compatible trigger T015S, T016S, T018S, T068S auto dialer function, must learn ID code to main unit then use, learn ID operation see main unit manual. Fig.1 Fig.2 FEATURES 2. After select a location, you should test the sensor transmitting range before mount it permanently, turn local alarm switch to OFF, turn the CHIME switch to ON of T015S, T016S main unit or press HOME button of T018S, T068S, after 60 seconds, put sensor into water to trigger, you will hear the main unit sounds β€œDING DONG” chime if signal is received successfully, if not , change location is required. OPERATION After 60 seconds install 9V battery, the unit will into standby mode, once water overflow sensor detect location will output wireless radio signal to trigger auto dialer and LED flash, then sound alarm 45 seconds, you can turn switch select alarm sound on or off. BATTERY LOW INDICATOR When 9V battery goes lower, the LED will light on 3 seconds and off 1 second, change a new alkaline 9V battery immediately, to avoid the sensor might not detection properly. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation INSTALLATION size:90X175mm p/n:610-66000-00XR white paper print black words 610-66000-001R -1- -2-

Block Diagram

%ORFN'LDJUDPVFK6DW-XQ

External Photos

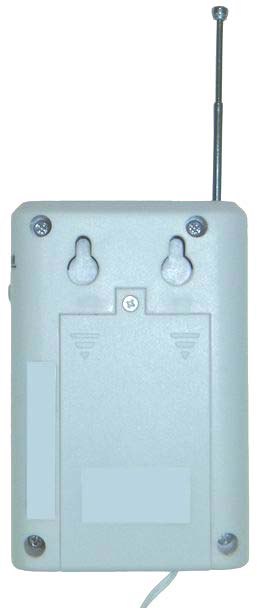

Lelux Electronics Ltd FCC ID: NS3-660 Appendix 2 Photographs of Constructional Details EUT – External View EUT – Front View Lelux Electronics Ltd FCC ID: NS3-660 EUT – Rear View EUT – Side View Lelux Electronics Ltd FCC ID: NS3-660 EUT – Water Overflow Sensor View

ID Label/Location Info

Lelux Electronics Ltd FCC ID: NS3-660 Appendix 3 FCC ID Label FCC ID: NS3-660 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location

Internal Photos

Lelux Electronics Ltd FCC ID: NS3-660 Appendix 2 Photographs of Constructional Details EUT – Internal View Lelux Electronics Ltd FCC ID: NS3-660 EUT – PCB View

Operational Description

Wireless Water Sensor (660) Schematic description z Water detect circuitry: Water Sensor current through R15, R16,Q4, R1 amplify then trigger MCU to send a RF signal link the system and let the system process. z Data modulation and base oscillator: L1, C1, C2, C3, R1, Q1, R2, R3 complete radio frequency oscillator, SAW1 (SAW resonator) control and regulate the oscillate frequency to 433.92MHZ +/- 75K, from MCU data signal through R1 control radio frequency generate ASK modulation, L2, C4, L3, R4, L5, Z2 to complete 50 ohm antenna matching. z Battery low detect: Q2, R8, Q1, R6, R7, R11 complete battery voltage compare and detect, when the battery low MCU will enable indicate BAT. LOW LED flashes and sends the signal to system. z Power supply circuitry: battery though regulator IC (HT7130) generate 3.0V voltage supply MCU and other circumjacent working. z Local Alarm: Q3, R12, L1 to complete local siren amplify and through Buzzer to generate alarm sound. z MCU: MCU1 (78P153) composing signal process and control center.

Schematics

VFK  6DW -XQ    RFmodule_TX01_V10.sch-1 - Wed May 17 08:59:40 2006

Test Report

FCC Part 15C MEASUREMENT AND TEST REPORT For Lelux Electronics Ltd Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong August 17, 2010 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of S&E Technologies Laboratory Ltd. FCC ID: NS3-660 This Report Concerns: Original Report Equipment Type: Wireless Water Overflow Sensor with Alarm Test Engineer: Rocky Ge Report Number: SE10H-32F Test Date: August 14 to 16, 2010 Reviewed By: Prepared By: S&E Technologies Laboratory Ltd Room 407, Block A Shennan Garden, Hi-Tech Industrial Park, Shenzhen 518057, P.R. China. Tel: 86-755-26636573, 26630631 Fax: 86-755-26630557 Lelux Electronics Ltd FCC ID: NS3-660 Report No.:SE10H-032F Page 2 of 22 FCC Part 15.231 Report Table of Contents 1-TEST RESULT CERTIFICATION ...................................................................................................3 2- EUT DESCRIPTION......................................................................................................................4 3-TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION...............................................................................................................................5 3.2 EUT EXERCISE......................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES................................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................................... 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................................. 6 4- INSTRUMENT CALIBRATION......................................................................................................7 5- FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES................................................................................................................................................ 8 5.2 EQUIPMENT............................................................................................................................................... 8 5.3 LABORATORY ACCREDITATION AND LISTING............................................................................................ 8 6- SETUP OF EQUIPMENT UNDER TEST ......................................................................................9 6.1 SETUP CONFIGURATION OF EUT............................................................................................................... 9 6.2 SUPPORT EQUIPMENT................................................................................................................................9 7- FCC PART 15.231 REQUIREMENTS .........................................................................................10 7.1 20 DB BANDWIDTH................................................................................................................................. 10 7.2 LIMIT OF TRANSMISSION......................................................................................................................... 12 7.3 RADIATED EMISSIONS............................................................................................................................. 17 7.4 POWER LINE CONDUCTED EMISSION...................................................................................................... 22 Lelux Electronics Ltd FCC ID: NS3-660 Report No.:SE10H-032F Page 3 of 22 FCC Part 15.231 Report 1-Test Result Certification Applicant: Lelux Electronics Ltd Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong Equipment Under Test: Wireless Water Overflow Sensor with Alarm Trade Name: HomeSafe Model: 660 Operation Frequency: 433.92MHz Antenna Designation: Non-user replaceable (fixed) Battery Voltage: DC9.0V [ powered by 1*9.0V battery ] Date of Test: August 14 to 16, 2010 Applicable Standards Standard Test Result FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested at ATC Lab Co., Ltd (Guangdong, China). The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 - 2003 and Public Notice DA 00-705. The energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules (2007), Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Lelux Electronics Ltd FCC ID: NS3-660 Report No.:SE10H-032F Page 4 of 22 FCC Part 15.231 Report 2- EUT Description Product Wireless Water Overflow Sensor with Alarm Trade Name HomeSafe Model Number 660 Model Difference N/A Power Supply Powered by 1*9.0V battery Frequency Range 433.92MHz Antenna Designation Non-user replaceable (fixed) Remark: This submittal(s) test report is intended for FCC ID: NS3-660 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Lelux Electronics Ltd FCC ID: NS3-660 Report No.:SE10H-032F Page 5 of 22 FCC Part 15.231 Report 3-Test Methodology The tests documented in this report were performed in accordance with ANSI C63.4 - 2003 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.231. 3.1 EUT Configuration The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emi…

Text truncated - open the document above for the full version.

Test Setup Photos

Lelux Electronics Ltd FCC ID: NS3-660 Appendix 1 Photographs of Test Setup Radiated Emission

Contact Information

Applicant

Luke Lo(President)
[email protected]852 2480 1886Fax: 852 2427 4666

Test Firm

ATC Laboratory Co., LtdIvan Wen
[email protected]8675728375537Fax: 86 757-28375535

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
