NS3-T055SWIRELESS SECURITY/SAFETY ALARM SYSTEM WITH AUTO DIALER

OWNER'S MANUAL WIRELESS SECURITY/SAFETY ALARM SYSTEM WITH AUTO DIALER 1 23 4 5 6 7 8 11 12 13 14 15 INTRODUCTION Our unique wireless security/safety Alarm system with Auto dialer concentrate on the protected area you select. Whenever the main unit is set at ARMED, the wireless motion detection sensor or wireless door/window sensor will concentrate on the protected area. Once there is movement or door/window open detected, the alarm will turn on and call to the memorized telephone numbers one by one. In chime mode, the chime will Ding Dong when movement be detected. IMPORTANT SAFETY TIPS 1. Do not install the system where it will be exposed to direct sunlight or rain. 2. The system siren is very loud, never put the unit close to your ear. 3. The unit should be away from heat sources such as radiators, heating ducts and stoves. 4. If the system sounds at random, it is possible that the location too close to a heat source, changing the location or direction of the unit can remedy this. 5. The system can provide valuable protection for your home and property if utilized properly. However, this unit cannot guarantee complete protection against to burglary or robbery. Therefore, we will not be responsible for any losses or damages which occur, during use of this product. DESCRIPTION OF COMPONENTS 1. Telephone Line Jack 2. Antenna 3. Battery Low Led 4. Ex AC Power Led 5. LCD Display 6. Numerical Keys 7. Buzzer 8. DC 9V Power Jack 9. H ome mode button 10. Battery Cover 11. External Terminal 12. 9V Battery FEATURES •• Received wireless sensor trigger signal activates auto-dialer and alarm •• 16 Digit large number display with date/time and function icon •• 9 zone icon for easy differentiating sensor location - From Zone 1 to Zone 7, each can learn seperately learn one wireless sensor ID code for each to trigger the system (While In Arm mode) - Zone 8S can learm 8 wireless sensor ID code to trigger the system in arm mode - Zone 24H (24 hours stand by) can learn 8 wireless sensor ID code to trigger the system in arm or disarm mode. •• Room monitor by telephone function •• Remote turn system to ARM or DISARM by telephone function •• Programmable security code, entry delay timing •• 5 emergency telephone numbers (up to 32 digits each) •• Programmable auto dialling cycle •• 5 Trigger recorder for alarm mode •• Built-in flash memory to protect system data for power failure •• Battery Low indicator •• Tone dialling only •• HOME mode function •• Built-in 105 dB alarm (with programmable alarm on/off) •• External extend trigger input terminal (compatible magnetic sensor) •• External siren terminal (compatible with outdoor siren) •• AC adaptor operated (included) with 9V battery back-up (not included) •• Wall mountable •• RF remote control for ARM/DISARM/PANIC INSTALLATION 1. Remove the screw of main unit from battery compartment cover, install an alkaline 9V battery, this is a back-up battery, in case of AC power failure. This battery will keep the unit working. (Fig.1) 2. The unit with an external antenna, the antenna should be vertical for use. 3. Insert the supplied double adaptor telephone socket into your telephone wall socket. (Fig.2a) 4. Now using the telephone lead supplied, insert the small clear plug into the LINE socket on the auto-dialer and the other end into the double adaptor in your telephone wall socket, or insert you double adaptor telephone socket in Line Jack of main unit, then telephone line cord in wall socket. (Fig.2b) 5. Your existing telephone lead can now be inserted into the double adaptor in your telephone wall socket. (Fig.2a/b) 6. Plug the AC adaptor to the DC 9V socket on the auto-dialer. (Fig. 2c) 7. For wall mount-If required Choose a suitable location, 5 - 6 feet (1.5 - 2.0 meters) away from floor, drill holes and install anchors and screws Place the unit over the screws and slide it down to secure in place (fig 4). It is suggested that you mount the unit this distance above the floor to obtain the best coverage of the intended protected area. (Fig 3) SYSTEM SETTING •• This program can only be operated during standby mode. During setup, if not key in any message within 15 seconds, the system will auto exit setup mode. •• Your auto-dialer has a factory preset pass number of "0-0-0". This can now be changed to a pass number personal to you. 1 TO CHANGE PASSWORD a. Enter factory preset pass number, "0-0-0". Press［PROG］button once,"PASSWORD" will flash on the LCD.( Fig. 5) b. Press the ［ARM/DISARM］ button to confirm. c. Enter your new pass number followed by the ［ARM/DISARM］button to confirm the new number. (You can choose 3~ 6 numbers in your pass number) d.You can press ［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button nine times to exit setup mode. NOTE: If you forget your pass number, press and hold ［PROG］button, use a pen to touch［RESET］button once of unit bottom, the LCD will split second not display, unpress ［PROG］button after LCD comeback display date time, the auto-dialer will restore to the factory preset pass number "0-0-0", all the setup will be remained as you programmed except the date and time and password. 2 TO STORE TELEPHONE NUMBERS a. Enter the pass number followed by ［PROG］button twice. b. "MEMORY" will flash on the LCD ( Fig. 6). c. Press the ［ARM/DISARM］button to confirm. d. You are now ready to program in your 5 chosen telephone numbers. Press the ［ /UP］and［#/DOWN］buttons to select 1 - 5, For example if you select 4 this will be the fourth number dialed. e. Now enter the number that you want to store, followed by ［ARM/DISARM］to confirm and store the number (maximum of 32 numbers, but LCD only show last 16 digits) f. Repeat steps c-e for the four other numbers you wish to be stored. 3 TO DELETE TELEPHONE NUMBER IN MEMORY a. Enter the pass number followed by ［PROG］button twice. b. " MEMORY " will flash on the LCD. c. Press the ［ARM/DISARM］button to confirm (Fig.6) . d. Press the［ /UP ］and［#/DOWN］buttons to select the number you wan…

Text truncated - open the document above for the full version.

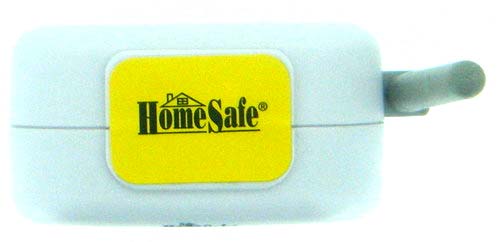

Lelux Electronics Ltd FCC ID: NS3-T055S Appendix 2 Photographs of Constructional Details EUT – External View EUT – Front View Lelux Electronics Ltd FCC ID: NS3-T055S EUT – Rear View EUT – Top View Lelux Electronics Ltd FCC ID: NS3-T055S EUT – Side View EUT – Accessary View

Lelux Electronics Ltd FCC ID: NS3-T055S Appendix 3 FCC ID Label FCC ID: NS3-T055S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location

Lelux Electronics Ltd FCC ID: NS3-T055S Appendix 2 Photographs of Constructional Details EUT – Internal View EUT – PCB View Lelux Electronics Ltd FCC ID: NS3-T055S Lelux Electronics Ltd FCC ID: NS3-T055S

















!
 "


#$%


&'(


)

*
 %





 )





+,
-%.,%


+,


/
.$ .

.
