NS3LELUX200RWireless Remote Control

OWNER'S MANUAL Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation WIRELESS REMOTE CONTROL (Fig.1) PANIC ARM DISARM 1.Battery install and replacement (Battery Type-23A 12V) a. Remove the battery compartment cover by sliding it in the direction of the arrow. b. Replace with new batteries of the same type. Make sure the polarity (+ or -) of the batteries match the polarity marks inside the unit. As shown below (Fig. 1) c. Replace battery cover. LEARNING CODE TO MAIN UNIT The wireless remote control compatible T015, T016, T018 main unit, must learn code to main unit then use. learn code operation see main unit manual. Notes for remote operation If radio linked remote control operation rage become near, replace the batteries according to "BATTERIES REPLACEMENT". The battery life should be about six months under normal use, so replace battery at least every 6 months. Effective range , about 30 meters.

Schematic Block diagram Model: 200R Version: 1.0 Engineer: Date: Apr 1, 06 Approval: Battery (12V GP23A) 3.6V Power Regulator MCU Radio Frequency oscillator ARM/DISARM/PA NIC Key DATA 433.92MHz SAW Resonator PCB Antenna

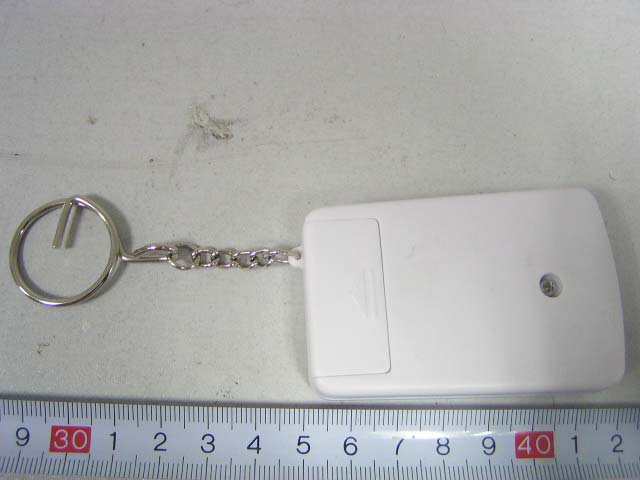

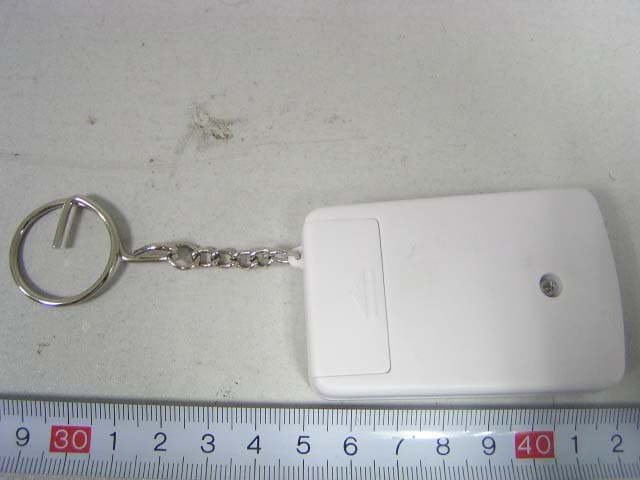

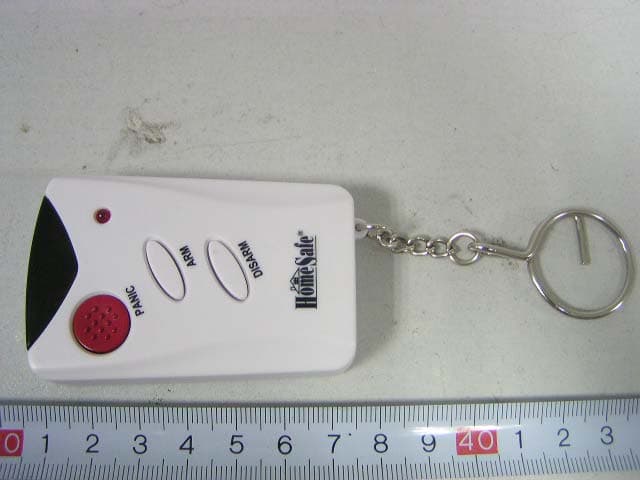

External Photos EUT –Front View EUT –Back View

ID Label Label FCC ID: NS3LELUX200R

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT- Open View EUT–Uncovered View EUT- PCB Top View EUT–PCB Bottom View

Remote Control (200R) This product designed for T015 and T016 or T018 series as remote control, it send three kids data signal for control system ARM or DISARM and PANIC respectively. Schematic description — Battery regulator: circuitry use a 12V battery as power supply, IC U1 (HT7136) regulate the voltage to 3.6V for U2 (MCU) power supply. — Data modulation and base oscillator: C7, C8, R10, R11, R9 and PCB antenna loop complete radio frequency oscillator, SAW1 (SAW resonator) control and regulate the oscillate frequency to 433.92MHZ +/- 75K, from MCU data signal through R11 control radio frequency generate ASK modulation. — Key in circuitry: Key ARM/DISARM/PANIC (also ON/OFF/PANIC to be use other system) component key input. — Indicate LED: LED1 indicate the unit work status.

Production Specification Model: 200R Version: 0.5 Engineer: Date: Approval: Item Testing Content Range Unit 1 Operation voltage 12 (GP23A) V 2 Standby current ≤8 uA 3 Working current ≤15 mA 433.92 +/-75K 4 Transmit frequency MHz 5 TX power ≥-30 (30cm measured) dBm 8 Battery life (standby) 180 Days REMARKS: Operation temperature : -10~40 °C Storage temperature : -20~60 °C





Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Lelux Electronics Ltd. Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong FCC ID: NS3LELUX200R May 9, 2006 This Report Concerns: Original Report Equipment Type: Wireless Remote Control Test Engineer: Simon Mo Report No.: RSZ06041404 Test Date: April 30, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Lelux Electronics Ltd. FCC ID: NS3LELUX200R Report # RSZ06041404 Page 2 of 17 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.231 (B) - RADIATED EMISSION...........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 PLOT(S) OF TEST DATA..............................................................................................................................................11 §15.231(C) 20dB BANDWIDTH TESTING..............................................................................................................14 REQUIREMENT...........................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST PROCEDURE.................................................................................................................................................…
