NS3LELUX218WRWireless Slim Door/Window Sensor

OWNER'S MANUAL INSTALLATION 1. Remove the screw from the battery compartment cover. 2. Install 2 “CR2032” batteries (included) on the battery box, ensure the polarity is correct. 3. Replace the battery cover and screw. 4. Mount the magnetic door/window sensor Choose a suitable location, stick the main unit to the door/window frames by attached double – side tape. Then stick the magnetic unit (smaller unit) to the door/window by attached double-side tape and make sure to align the “ ”mark to right “ ”mark on the main unit and “▲” facing “▲” at no more than1/4” apart as shown in (fig.1a/b) 5.External Magnetic sensor terminal You can additional wire magnetic sensor to expanding you desired detection area. a.remove the screw from the battery compartment cover b.remove the screw from terminal and take out connect wire (fig.2) c.Measure the length of wire needed to connect the sensor to the transmitter, then cut the wire to the correct length. Strip about 1/2 inch of insulation from the wire ends, and twist the wires together d.Connect the sensor switch on door to the main terminal post using the wire you just cut. (There is no polarity need to be taken care of, any terminal will be fine, as long as the wires from a loop) e.Connect another sensor switch screw to another switch terminal post by using the parallel another wire as shown in (Fig.3) f.If you connect more than one sensor to the main unit, connect them in series as shown in (Fig.4) NOTE: After select a location, you should test the sensor transmit- ting range before mount it permanently, turn the CHIME switch to ON of T015, T016 main unit or press HOME button of T018 main unit, then open/close the magnetic switch of door/window sensor to trigger, you will hear the main unit sounds “DING DONG” chime if signal is received successfully, if not, elongate mini retractable antenna or change location is required. LEARNING CODE TO MAIN UNIT The door/window sensor compatible T015, T016, T018 main unit, must learn code to main unit then use, learn code operation see main unit manual. OPERATION After 60 seconds installed battery, the unit will into standby mode. Once the door/window opened or the unit vibration will output wireless radio signal and LED flash。 BATTERY LOW INDICATOR When battery goes low, the LED will light on 3 seconds and off 1 second, change a new alkaline 9V battery immediately, or the sensor might not detection properly. WIRELESS SLIM DOOR/WINDOW SENSOR Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's author- ity to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi- cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (fig.1a)(fig.1b) (fig.3) (fig.2) (fig.4) - 1 - - 2 - - 3 -

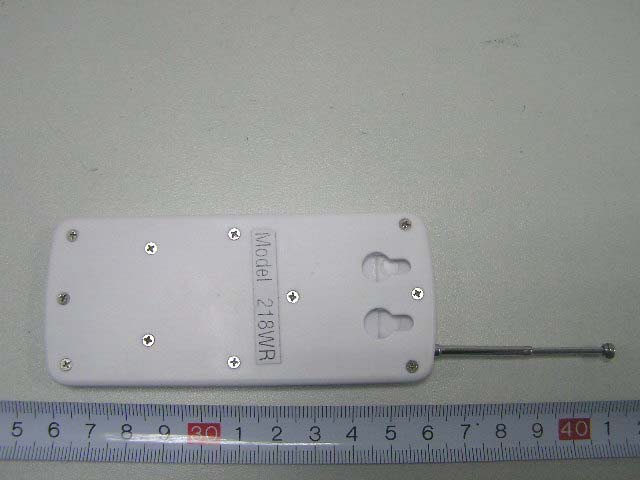

External Photos EUT Top View EUT Bottom View

ID Label Label FCC ID: NS3LELUX218WR

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT - Inside View (1) EUT - Inside View (2) EUT – PCB Top View EUT –PCB Bottom View

Wireless Magnetic Sensor (218WR) This product design for home or office safe protect system/ subsystem, it detect vibration and window/door open trigger through radio frequency link to T018/T016/T015 system. Schematic description z Vibration detect circuitry: mechanical vibration switch to complete sense the mechanical vibrate, and through R15, Q4, R1 amplify then trigger MCU to send a RF signal link the system and let the system process. z Magnetic sensor circuitry: magnetic switch detect window or door from close to open then through D3, Q4, C15, C16, R15 as small signal amplify and trigger the MCU to send a RF signal link the system. z Data modulation and base oscillator: L1, C6, C7, R12, Q3, R10, R4 complete radio frequency oscillator, SAW1 (SAW resonator) control and regulate the oscillate frequency to 433.92MHZ +/-75K, from MCU data signal through R4 control radio frequency generate ASK modulation. z Battery low detect: Q2, R8, Q1, R6, R7, R11 complete battery voltage compare and detect, when the battery low MCU will enable indicate BAT. LOW LED flashes and sends the signal to system. z Power supply circuitry: battery though regulator IC (HT7130) generate 3.0V voltage supply MCU and other circumjacent working. z MCU: MCU1 (78P153) composing signal process and control center.

LELUX ELECTRONICS LTD. PRODUCT SPECIFICATION MODEL： 218WR VERSION： 1.0 ENGINEER： ZSJ DATE： 15-Apr-06 APPROVAL： Kevin COUNTRY: INT’L ITEM CONDITION SPEC. UNIT 1 WORKING VOLTAGE 4.5~6.5 V 2 STANDBY CURRENT ＜6 uA 3 SPRING CURRENT ＜20 mA 4 WORKING DELAY TIME 5+1 SEC. 5 BATTERY LOW DETECT 5.2+0.3 V 6 RF Frequency 433.92+0.075 MHz 7 System RF Modulation ASK 8 Output Power (30cm away) ≥-20 dBm 9 Remote Control Distance ----T015 (open area 25°C) ≥90 METER 10 VIBRATION SENSITIVITY 0.2～1.4 Kg 11 MAGNET SENSOR SENSITIVITY(Horizontal move away) 6～25 mm 12 BATTERY LIFE (STANDBY) ABOUT 12 MONTHS 13 BATTERY TYPE CR2032 *2 PCS 14 OPERATING TEMPERATURE 0°C ~ 35°C 15 STORAGE TEMPERATURE -10°C ~ 60°C NOTE:

801-21890-XX1R MODEL: 218WR INT'L REV.1 "ROHS" ordernum part_no part_name part_loc part_qt y unit_name 1 298-21890-000R P.C.B M/B ASSY 218WR REV.0.1 "ROHS" 1 SET 2 023-30028-001R LED DIODE 91-21VRC D=1.8mm PIN=8mm FOCUS RED-HIG H-BRIGHT "ROHS" LED1 1 PCS 2 024-20020-000R SAW RESONATOR DTT433.92MHz+-75K VENDOR"QUNG TEK" "ROHS" SAW1 1 PCS 2 051-47601-101R E.CAP 47uF 10V +-20% MINI D4x7mm "ROHS" C1 1 P CS 2 074-00030-000R CHOKE AIR COIL D2.6x7.5Tx0.55mm SC-0.55x2.6x7.5 -L-N "ROHS" L6 1 PCS 2 081-01005-000R REED SWITCH MKA14-103 10-15AT "PIC " "ROH S" M/S,M/S1 2 PCS 2 149-00003-000R VIBRATION SWITCH SS12D0 1V G4 RAIBON D4.5x12+8 mm "ROHS' V/S 1 PCS 2 180-48020-420R PVC WIRE 1571#28 3+20+5mm RED "ROHS" V+ 1 PCS 2 180-48040-400R PVC WIRE 1571#28 3+40+5mm BLK "ROHS" G- 1 PC S 2 180-48040-440R PVC WIRE 1571#28 3+40+5mm YEL "ROHS" M/S+,GND 2 PCS 2 185-00002-000R 铁线 10mm FOR 600WR "ROHS" ANTENNA END 1 PCS 2 202-00032-000R ANTENNA FOR S600WR "ROHS" 1 PCS 1 298-21890-010R P.C.B M/B S.M.T ASSY 218WR REV.0.1 "ROHS" 1 SET 2 000-21804-000R P.C.B S.M.T CHARGE 218WR FOR: 018-218WR-020R "R OHS" 1 PCS 2 001-10018-000R S.M.T IC REGULATOR 3V HT-7130A "ROHS" U2 1 PCS 2 001-60017-000R S.M.T IC CPU EM78P153 FOR 615PR "ROHS" U1 1 PCS 2 002-20012-000R S.M.T TRANSISTOR 9014C (HEF: 200-400)"ROHS' Q1-2 2 PCS 2 002-20013-000R S.M.T TRANSISTOR 9015C "ROHS" Q4 1 PCS 2 002-20032-000R S.M.T TRANSISTOR MARH7D (HFE: 180-300) "ROHS" Q3 1 PCS 2 003-10001-000R S.M.T CYLINDER DIODE IN4148 "ROHS" D3 1 PCS 2 018-218WR-020R P.C.B M/B 218WR FR4 42.5x46x0.8(t)mm REV.1.0 "RO HS" 1 PCS 2 037-10030-103R S.M.T RES-0603 10 OHM +-5% 1/16W "ROHS" R3 1 PCS 2 037-10130-103R S.M.T RES -0603 100 OHM +-5% 1/16W "ROHS" R12 1 PCS 2 037-10230-103R S.M.T. RES -0603 1K OHM +-5% 1/16W "ROHS" R9 1 P CS 2 037-10330-103R S.M.T RES -0603 10K OHM +-5% 1/16W "ROHS' R8 1 PCS 2 037-10530-103R S.M.T RES-0603 1M OHM +-5% 1/16W "ROHS" R6 1 PCS 2 037-22530-103R S.M.T RES-0603 2.2M OHM +-5% 1/16W "ROHS' R5 1 P CS 2 037-27330-103R S.M.T RES-0603 27K OHM +-5% 1/16W "ROHS' R4 1 PCS 2 037-33530-103R S.M.T RES-0603 3.3M OHM +-5% 1/16W "ROHS" R 1-2,15 3 PCS 2 037-47430-103R S.M.T RES -0603 470K OHM +-5% 1/16W "ROHS ' R20 1 PCS 2 037-56230-103R S.M.T RES-0603 5.6K OHM +-5% 1/16W "ROHS" R11 1 PCS 2 037-82330-103R S.M.T RES-0603 82K OHM +-5% 1/16W "ROHS' R7 1 PCS 2 057-01001-510R S.M.T C.CAP-0603 1PF NPO +-0.25P 50V "ROHS' C23 1 PCS 2 057-04001-210R S.M.T C.CAP-0603 4PF NPO +-0.25P 16V "ROHS' C6 1 PCS 2 057-06001-510R S.M.T C.CAP-0603 6pF NPO +-0.25pF 50V "ROHS" C2 2 1 PCS 2 057-10001-510R S.M.T C.CAP-0603 10PF NPO +-10% 50V "ROHS' C 7,8 2 PCS ordernum part_no part_name part_loc part_qt y unit_name 2 057-10101-510R S.M.T C.CAP-0603 100PF +-10% 50V NPO "ROHS' C12,17,19 3 PCS 2 057-10201-510R S.M.T C.CAP-0603 0.001uF +-10% 50V NPO "ROHS ' C13,16 2 PCS 2 057-10301-510R S.M.T C.CAP-0603 0.01uF +-10% 50V "ROHS" C3, 4,15,18 4 PCS 2 057-10501-210R S.M.T C.CAP-0603 1uF +-10% 16V "ROHS" C2 1 PCS 2 057-33001-510R S.M.T C. CAP-0603 33pF NPO +-5%, 50V "ROHS' C5 1 P CS 2 206-00016-000R S.M.T INDUCTOR 0603 18nH "ROHS' L3 1 PCS 2 206-00020-000R S.M.T INDUCTOR 0603 68nH "ROHS' L2 1 PCS 2 206-00031-000R S.M.T INDUCTOR 0603 12nH "ROHS' L1 1 PCS 1 319-21890-911R PLASTIC ASST 218WR "HOMESAFE" P.WHITE "ROHS" 1 SET 2 346-21801-910R BATTERY DOOR S218WR P.WHITE ABS "ROHS" 1 PCS 2 348-21800-910R COVER FOR WALL MOUNT HOLE 218WR P.WHITE ABS "R OHS" 2 PCS 2 371-21804-910R CABINET FRONT S218WR "HOMESAFE" P.WHITE ABS "RO HS" 1 PCS 2 372-21801-910R CABINET REAR S218WR P.WHITE ABS "ROHS" 1 PCS 2 373-21801-910R CABINET MAGNET/UP S218WR P.WHITE ABS "ROHS" 1 PC S 2 374-21801-910R CABINET MAGNET LOW S218WR P.WHITE ABS "ROHS" 1 PC S 1 596-21890-XX0R MAIN UNIT ASSY 218WR REV.0.1 "ROHS" 1 SET 2 425-30023-040R CONTACT PLATE 218WR COPPER "ROHS" 2 PCS 2 427-10003-000R MAGNET 5x8x25(L)mm "ROHS" 1 PCS 2 428-15068-040R BATTERY PLATE "+" FOR 218WR STEEL COPPER "ROHS" 1 PCS 2 428-15069-040R BATTERY PLATE "-" & "+ -" FOR 218WR STEEL COPPER "ROHS" 2 PCS 2 431-17056-411R SCREW KA1.7x5mm PHILIPS N.P."ROHS" FOR CAB. FRON T 11 PCS 2 431-20046-601R SCREW KM2.0x4mm PHILIPS N.P "ROHS" FOR REED WIR E 2 PCS 2 431-20066-601R SCREW KM2.0X6mm, PHILIPS N.P. "ROHS" FOR BATTERY D O 1 PCS 2 438-02015-000R NUT M2X1.5mm, STEEL "ROHS" FOR BATTERY D O 1 PCS 2 605-10303-000R LITHIUM CELL BATTERY 3V, CR2032 "ROHS" 2 PCS




Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Lelux Electronics Ltd. Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong FCC ID: NS3LELUX218WR April 30, 2006 This Report Concerns: Original Report Equipment Type: Transmitter, Wireless Slim Door/Window Sensor Test Engineer: Simon Mo Report No.: RSZ06041405 Test Date: April 18-25, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Lelux Electronics Ltd. FCC ID: NS3LELUX218WR Report # RSZ06041405 Page 2 of 16 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 B LOCK D IAGRAM OF T EST S ETUP ................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.231 (B)- RADIATED EMISSION...........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 PLOT(S) OF TEST DATA..............................................................................................................................................11 §15.231(C) 20dB BANDWIDTH TESTING..............................................................................................................13 REQUIREMENT...........................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE.................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission – Front View (30-1000MHz) Radiated Emission – Rear View (30-1000MHz) Radiated Emission - Front View (Above 1000MHz) Radiated Emission - Rear View (Above 1000MHz)
