NS3LELUX300RWireless Remote Control

OWNER'S MANUAL (Fig.1) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation WIRELESS REMOTE CONTROL PANIC ARM DISARM 1. Batteries install and replacement (Battery Type-LR44X3 or Similar) a. Remove the battery compartment cover by screw driver and sliding open the battery Cover. b. Replace with new batteries of the same type. Make sure the polarity (+ or -) of the batteries match the polarity marks inside the unit. As shown below. c. Replace battery cover. LEARNING CODE TO MAIN UNIT The wireless remote control compatible T015, T016, T018 main unit, must learn code to main unit then use, learn code operation see main unit manual. Notes for remote operation If radio linked remote control operation rage become near, replace the batteries according to "BATTERIES REPLACE- MENT". The battery life should be about six months under normal use, so replace battery at least every 1 year. Effective range, about 20 meters.

Schematic Block diagram Model: 300R Version: 1.0 Engineer: MORSE Date: Apr 1, 06 Approval: KEVIN Batteries (4.5V 3 LR44 or similar) MCU Radio Frequency oscillator ARM/DISARM/ PANIC Key DATA 433.92 MHz SAW Resonator PCB Antenna

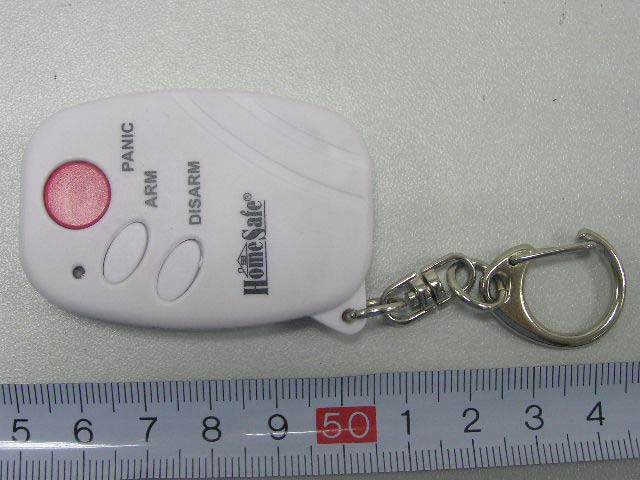

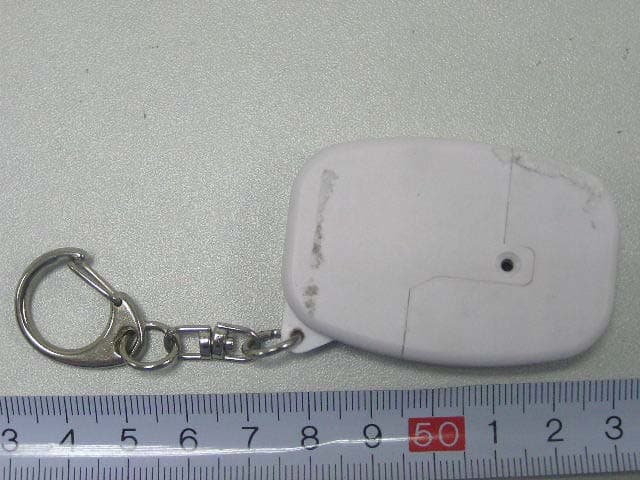

External Photos EUT Top View EUT Bottom View

ID Label Label FCC ID: NS3LELUX300R

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT - Inside View (1) EUT - Inside View (2) EUT – PCB Top View EUT –PCB Bottom View

Production Specification Model: 300R Version: 0.5 Engineer: MORSE Date: 15-Apr-06 Approval: KEVIN Item Testing Content Range Unit 1 Operation voltage 4.5 (3 LR44 button cell) V 2 Standby current ≤4 uA 3 Working current ≤15 mA 433.92+/-0.075 4 Transmit frequency MHz 5 TX power ≥-40 (30cm measured) dBm 8 Battery life (standby) 1 Year REMARKS: Operation temperature : -10~40 °C Storage temperature : -20~60 °C

Remote Control (300R) This product designed for T015 and T016 or T018 system as remote control, it send three kinds data signal for control system ARM or DISARM and PANIC respectively. Schematic description — Battery: circuitry use 3 LR44 (or similar) batteries as power supply. — Data modulation and base oscillator: C5, C6, R1, R2, R4 and PCB antenna loop component radio frequency oscillator, SAW1 (SAW resonator) control and regulate the oscillate frequency to 433.92MHZ +/-75kHz, from MCU data signal through R11 control radio frequency generate ASK modulation. — Key in circuitry: Key ARM/DISARM/PANIC (also ON/OFF/PANIC to be use other system) component key input. — Indicate LED: LED1 indicate the unit work status.

801-300R0-XX1R MODEL: 300R (433MHz) REMOTE CONTROL REV.1 "ROHS" ordernum p art no p art name p art loc p art q t y unit name 1 298-300R0-000R P.C.B ASSY 300R (433MHZ) INT'L REV.0.1 "ROHS" 1 SE T 2 023-30028-001R LED DIODE 91-21VRC D=1.8mm PIN=8mm FOCUS RED-HIG H-BRIGHT "ROHS" LED1 1 PCS 2 180-48020-300R PVC WIRE 1571#28 3+20+3mm BLK "ROHS" BAT- 1 PCS 2 180-48020-320R PVC WIRE 1571#28 3+20+3mm RED "ROHS" BAT- 1 PCS 1 298-300R0-010R P.C.B S.M.TASSY 300R (433MHZ) INT'L REV.0.1 "ROH S" 1 SET 2 000-300R0-000R S.M.T CHARGE 300R FOR: 018-300R0-020R "ROHS" 1 PC S 2 001-60024-000R S.M.T IC EM78P153S 14PIN SOP FOR 300R "ROHS" U2 1 P CS 2 002-20032-000R S.M.T TRANSISTOR MARH7D (HFE: 180-300) "ROHS" Q1 1 PCS 2 004-20001-000R S.M.T SAW RESONATOR 433.92MHz +-75K HPR433A QCC8 C "ROHS" SAW1 1 PCS 2 018-300R0-020R P.C.B REMOTE 300R 30.8x28.5x1.0(t)mm FR4 REV.1 " ROHS" 1 PCS 2 037-00030-103R S.M.T RES-0603 0 OHM 1/16W +-5% "ROHS' L1 1 PCS 2 037-10430-103R S.M.T RES -0603 100K OHM +-5% 1/16W "ROHS' R6 1 PCS 2 037-27330-003R S.M.T RES-0805 27K OHM +-5% 1/10W "ROHS' R4 1 PCS 2 037-33330-103R S.M.T RES-0603 33K OHM+-5% 1/16W "ROHS' R1 1 P CS 2 037-47030-103R S.M.T RES -0603 47 OHM +-5% 1/16W "ROHS" R2 , 5 2 PCS 2 037-56230-103R S.M.T RES-0603 5.6K OHM +-5% 1/16W "ROHS" R3 1 P CS 2 057-02001-510R S.M.T C.CAP-0603 2PF NPO +-0.25P 50V "ROHS" C6 1 PCS 2 057-07001-510R S.M.T C.CAP-0603 7PF +-0.25PF 50V NPO "ROHS' C5 1 PCS 2 057-10101-510R S.M.T C.CAP-0603 100PF +-10% 50V NPO "ROHS' C4 1 PCS 2 057-10201-510R S.M.T C.CAP-0603 0.001uF +-10% 50V NPO "ROHS ' C3 1 PCS 2 057-10501-210R S.M.T C.CAP-0603 1uF +-10% 16V "ROHS" C1-2 2 PCS 2 057-33001-510R S.M.T C. CAP-0603 33 p F NPO +-5% , 50V "ROHS' C7 1 PCS 1 319-300R0-911R PLASTIC ASSY 300R "HOMESAFE" WHITE ABS "ROHS" 1 S ET 2 326-300R0-910R FUNCTION KEY 300R (ARM/DISARM) P.WHITE ABS "ROHS " 2 PCS 2 327-300R0-250R PANIC KEY 300R RED PMS 192C ABS "ROHS" 1 PCS 2 346-300R0-910R BATTERY COVER 300R P.WHITE ABS "ROHS" 1 PCS 2 348-300R0-910R PLASTIC COVER 300R P.WHITE ABS "ROHS" 1 PCS 2 371-300R0-910R CABINET FRONT 300R "HOMESAFE" P.WHITE ABS "ROHS" 1 PCS 0 371-300R1-910R CABINET FRONT 300R "AlarmCaller" P.WHITE ABS "R OHS" 0 PCS 2 372-300R0-910R CABINET BACK 300R P.WHITE ABS "ROHS" 1 PCS 1 597-300R0-XX0R REMOTE CONTROL ASSY 300R REV.0.1 "ROHS" 1 SET 2 368-00007-000R KEY HOLDER S300R WITH RING NICKEL "ROHS" 1 PCS 2 425-10015-040R 锅仔片 6mm 300R W/O LEG SPRING FORCE 300 g "ROHS" ON/OFF/PANIC 3 PCS 2 428-15049-040R BATTERY PLATE "+" STEEL FOR S219 "ROHS" 1 PCS 2 428-15050-040R BATTERY PLATE "-" STEEL FOR S219 "ROHS" 1 PCS 2 428-15051-040R BATTERY PLATE "- & + " STEEL FOR S219 "ROHS" 2 PC S ordernum p art no p art name p art loc p art q t y unit name 2 431-20056-411R SCREW KA2.0x5mm PHILIPS N.P. "ROHS" FIX CAB. FRONT & 2 PCS 2 431-20056-601R SCREW KM2.0x5mm PHILIPS N.P "ROHS" FOR BATTERY C O 1 PCS 2 438-02015-000R NUT M2X1.5mm , STEEL "ROHS" FOR BATTERY C O 1 PCS 2 605-10102-000R ALKALINE MANGANESE BUTTON CELLS 357A 1.5V "ROHS" 3 PCS



Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Lelux Electronics Ltd. Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong FCC ID: NS3LELUX300R April 27, 2006 This Report Concerns: Original Report Equipment Type: Transmitter, Wireless Remote Control Test Engineer: Simon Mo Report No.: RSZ06041406 Test Date: April 18-25, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Lelux Electronics Ltd. FCC ID: NS3LELUX300R Report # RSZ06041406 Page 2 of 16 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 B LOCK D IAGRAM OF T EST S ETUP ................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.231 (B)- RADIATED EMISSION...........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 PLOT(S) OF TEST DATA..............................................................................................................................................11 §15.231(C) 20DB BANDWIDTH TESTING .............................................................................................................13 REQUIREMENT...........................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE............................................................................................................................…
