NS3LELUX600WRWireless Door/Window Sensor With Alarm

ON OFF ALARM (Fig.2a)(Fig.2b) (Fig.3) INSTALLATION 1. Remove the screw from the battery compartment cover.(fig.1) 2. Install an alkaline 9V battery. 3. Replace the battery cover and screw. 4. Mount the magnetic door/window sensor Choose a suitable location, then use the template provided in the last page of manual, mark locations to drill holes and install anchors and screws. Place the unit over the screws and slide it down to secure in place. (fig.2) 5． Mount the magnetic wired piece to the door or window frame and another single piece to the door/window by using the double- side tapes (included) and aligned the 2 sensor pieces to be flushed and “arrow” facing “arrow” at no more than1/4” apart as shown in (fig.3) NOTE: After select a location, you should test the sensor transmit- ting range before mount it permanently, turn local alarm switch to OFF , turn the CHIME switch to ON of T015, T016 main unit or press HOME button of T018 main unit, then open/close the magnetic switch of door/window sensor to trigger, you will hear the main unit sounds “DING DONG” chime if signal is received successfully, if not, change location is required. LEARNING CODE TO MAIN UNIT The motion detector sensor compatible T015, T016, T018 main unit, must learn code to main unit then use, learn code operation see main unit manual. OPERATION After 60 seconds installed 9V battery, the unit will into standby mode. Once the door/window opened or the unit vibration will output wireless radio signal and LED flash, then sound alarm 3 seconds, you can turn alarm switch select on or off. BATTERY LOW INDICATOR When 9V battery goes low, the LED will light on 3 seconds and off 1 second, change a new alkaline 9V battery immediately, or the sensor might not detection properly. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. OWNER'S MANUAL WIRELESS DOOR/WINDOW SENSOR WITH ALARM (fig.1) - 1 - - 2 - arrow facing arrow

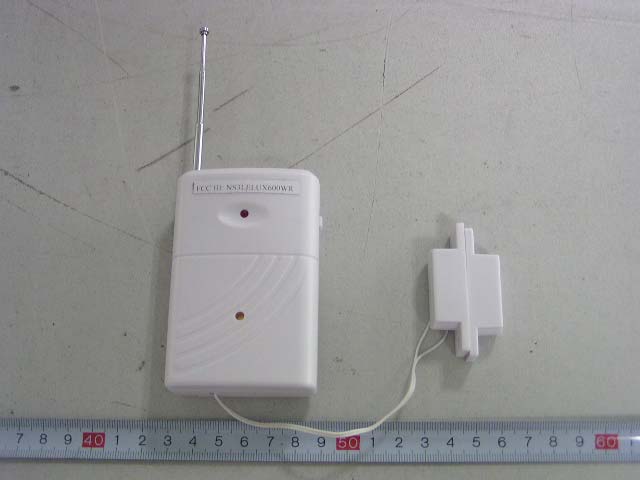

External Photos EUT –Top View EUT –Bottom View

ID Label Label FCC ID: NS3LELUX600WR

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT- Uncovered View EUT–Inside View EUT- PCB Top View EUT–PCB Bottom View

Wireless Magnetic Sensor (600WR) This product design for home or office safe protect system/ subsystem, it detect vibration and window/door open trigger through radio frequency link to T018/T016/T015 system. Schematic description z Vibration detect circuitry: mechanical vibration switch to complete sense the mechanical vibrate, and through R15, Q4, R1 amplify then trigger MCU to send a RF signal link the system and let the system process. z Magnetic sensor circuitry: magnetic switch detect window or door from close to open then through D2, C8, C4, R15 as small signal integral process and trigger the MCU to send a RF signal link the system. z Data modulation and base oscillator: L1, C1, C2, C3, R1, Q1, R2, R3 complete radio frequency oscillator, SAW1 (SAW resonator) control and regulate the oscillate frequency to 433.92MHZ +/- 75K, from MCU data signal through R1 control radio frequency generate ASK modulation, L2, C4, L3, R4, L5, Z2 to complete 50 ohm antenna matching. z Battery low detect: Q2, R8, Q1, R6, R7, R11 complete battery voltage compare and detect, when the battery low MCU will enable indicate BAT. LOW LED flashes and sends the signal to system. z Power supply circuitry: battery though regulator IC (HT7130) generate 3.0V voltage supply MCU and other circumjacent working. z Local Alarm: Q3, R12, L1 to complete local siren amplify and through Buzzer to generate alarm sound. z MCU: MCU1 (78P153) composing signal process and control center.



Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Lelux Electronics Ltd. Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong FCC ID: NS3LELUX600WR June 9, 2006 This Report Concerns: Original Report Equipment Type: Wireless Door/Window Sensor With Alarm Test Engineer: Deny Xiong Report No.: RSZ06053104 Test Date: June 2-8, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Lelux Electronics Ltd. FCC ID: NS3LELUX600WR Report # RSZ06053104 Page 2 of 17 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.231 (B) - RADIATED EMISSION...........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 PLOT(S) OF TEST DATA..............................................................................................................................................12 §15.231(C) 20DB BANDWIDTH TESTING .............................................................................................................14 REQUIREMENT...........................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST PROCEDURE..........................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission – Front View (30-1000MHz) Radiated Emission - Rear View (30-1000MHz) Radiated Emission – Front View (Above 1000MHz) Radiated Emission – Rear View (Above 1000MHz)
