NS3LELUXT018RWIRELESS SECURITY ALARM SYSTEM

- 13 - c. Make sure the system should be setup in Auto dial mode. 3. NOT REMOTE CONTROL FUNCTION a. Check if battery low and battery replacement. b. If it doesn't work, re-learn ID code again, according to " TO LEARN WIRELESS SENSOR OR REMOTE CONTROL ID CODE ". TIPS 1. Make sure the full telephone has been stored. 2. If you are leaving pets at home while the Auto-Dialer is ON, then make sure the Auto-Dialer has been set in a location high enough not to detect any animals walking around but not too high to detect other movement. 3. Keep the Auto-Dialer dust free, away from cobwebs that may cause movement in the protected area. 4. Only suitable for single phone lines. Not compatible with fax machines. NOTE:This valuable manual will let your security system work properly. Please preserve this manual at your record, and keep reading when need some trouble obviation. INTRODUCTION HomeSafe's unique wireless security/safety Alarm system with Auto dialer concentrates on the protected area you select. Whenever the main unit is set at ARMED, the wireless motion detection sensor or wireless door/window sensor will concentrate on the protected area. Once there is movement or door/window open detected, the alarm will turn on and call to the memorized telephone numbers one by one. In chime mode, the chime will Ding Dong when movement be detected. IMPORTANT SAFETY TIPS 1. Do not install the system where it will be exposed to direct sunshine or rain. 2. The system siren is very loud, never put the unit close to your ear. 3. The unit should be away from heat sources such as radiators, heating ducts and stoves. 4. If the system sounds at random, it is possible that the location too close to a heat source, changing the location or direction of the unit can remedy this. 5. The system can provide valuable protection for your home and property if utilized properly. However, this unit cannot guarantee complete protection against to burglary or robbery. Therefore, we will not be responsible for any losses or damages which occur, during use of this product. DESCRIPTION OF COMPONENTS FEATURES Detecting motion or door/window open activates auto-dialer and alarm 16 Digit large number display with date/time and function icon 9 zone icon for easy differentiating intruder location Room monitor and broadcast by telephone function Remote turn system to ARM or DISARM by telephone function Programmable security code, entry delay timing 5 emergency telephone numbers (up to 32 digits each) Programmable auto dialling cycle 5 Trigger recorder with zone indication for alarm mode PAUSE key PANIC key - 1 - PROG key Built-in 20 seconds Voice REC./Play back IC for help message Built-in flash memory to protect system data for power failure Battery Low indicator DTMF(Tone )dialling only Home mode function Trigger AC socket by radio linked function AC adaptor operated (included) with 9V battery back-up (not included) Wall mountable Built-in 105 dB alarm (with programmable alarm on/off) Compatible with additional up to 16 wireless motion detector sensor or wireless window/door sensor and 8 wireless remote control or wireless control AC socket or wired sensor to EXPANDING the system Trigger AC Socket by radio linked function INSTALLATION 1. Remove the screw of main unit from battery compartment cover, install an alkaline 9V battery, this is a back-up battery, in case of AC power failure. This battery will keep the unit working (Fig.1) OPEN 121110 13 14 18 15 16 17 SYSTEM SETTING This program can only be operated during standby mode. During set-up, if not key in any message within 15 seconds, the system will auto exit set-up mode. Your auto-dialer has a factory preset pass number of 0-0-0. This can now be changed to a pass number personal to you. 1 TO CHANGE PASSWORD a. Enter factory pre-set pass number, 0-0-0. Press PROG button once, PASSWORD will flash on the auto-dialer screen. b. Press the ARM/DISARM button to confirm that you want to enter the PASSWORD option. c. Enter your new pass number followed by the ARM/DISARM button to confirm the new number. (You can choose 3~ 6 numbers in your pass number) d. You can press #/DOWN button or /UP button select other setup, or press the PROG button nine times to exit set-up mode. NOTE: If you forget your pass number, press and hold PROG button, use a pen to touch “RESET” button once of unit bottom, the LCD will split second not display, unpress PROG button after LCD comeback display date time, the auto-dialer will restore back to the factory pre-set pass number 0-0-0, all the setup will be remained as you programmed except the date and time and password. 2 TO STORE TELEPHONE NUMBERS a. Enter the pass number followed by PROG button twice. b. MEMORY will flash on the auto-dialer screen. c. Press the ARM/DISARM button to confirm this is the option you need. d. You are now ready to program in your 5 chosen telephone numbers. Press the /UP and #/DOWN buttons to select 1 - 5, For example if you select 4 this will be the fourth number dialed. e. Now enter the number that you want to store, followed by ARM/DISARM to confirm and store the number (maximum of 32 numbers, but LCD only show last 16 digits) f. Repeat steps c-e for the four other numbers you wish to be stored. g. You can press #/DOWN button or /UP button select other setup, or press the PROG button eight times to exit the set-up mode. 3 TO DELETE TELEPHONE NUMBER IN MEMORY a. Enter the pass number followed by PROG button twice. ( Fig. 5) PASSWORD (Fig. 4) ( Fig. 3b ) DC 9V Adaptor ( Fig. 3a ) 2. The unit with a external antenna which plug into the antenna jack, the antenna should be vertical, since it may come out of the package bent can simply bend it back to a straight position (Fig.2). 3. Connect the line cord between "LINE" jack and telephone wall socket. (Fig.3a) 4. Now connect the plug/wire included with your auto-dialer (this is the plug/wire with the clear plugs at either end) one end inserted in the TEL socket on the auto-dialer, an…

Text truncated - open the document above for the full version.

- 13 - c. Make sure the system should be setup in Auto dial mode. 3. NOT REMOTE CONTROL FUNCTION a. Check if battery low and battery replacement. b. If it doesn't work, re-learn ID code again, according to " TO LEARN WIRELESS SENSOR OR REMOTE CONTROL ID CODE ". TIPS 1. Make sure the full telephone has been stored. 2. If you are leaving pets at home while the Auto-Dialer is ON, then make sure the Auto-Dialer has been set in a location high enough not to detect any animals walking around but not too high to detect other movement. 3. Keep the Auto-Dialer dust free, away from cobwebs that may cause movement in the protected area. 4. Only suitable for single phone lines. Not compatible with fax machines. NOTE:This valuable manual will let your security system work properly. Please preserve this manual at your record, and keep reading when need some trouble obviation. INTRODUCTION HomeSafe's unique wireless security/safety Alarm system with Auto dialer concentrates on the protected area you select. Whenever the main unit is set at ARMED, the wireless motion detection sensor or wireless door/window sensor will concentrate on the protected area. Once there is movement or door/window open detected, the alarm will turn on and call to the memorized telephone numbers one by one. In chime mode, the chime will Ding Dong when movement be detected. IMPORTANT SAFETY TIPS 1. Do not install the system where it will be exposed to direct sunshine or rain. 2. The system siren is very loud, never put the unit close to your ear. 3. The unit should be away from heat sources such as radiators, heating ducts and stoves. 4. If the system sounds at random, it is possible that the location too close to a heat source, changing the location or direction of the unit can remedy this. 5. The system can provide valuable protection for your home and property if utilized properly. However, this unit cannot guarantee complete protection against to burglary or robbery. Therefore, we will not be responsible for any losses or damages which occur, during use of this product. DESCRIPTION OF COMPONENTS FEATURES Detecting motion or door/window open activates auto-dialer and alarm 16 Digit large number display with date/time and function icon 9 zone icon for easy differentiating intruder location Room monitor and broadcast by telephone function Remote turn system to ARM or DISARM by telephone function Programmable security code, entry delay timing 5 emergency telephone numbers (up to 32 digits each) Programmable auto dialling cycle 5 Trigger recorder with zone indication for alarm mode PAUSE key PANIC key - 1 - PROG key Built-in 20 seconds Voice REC./Play back IC for help message Built-in flash memory to protect system data for power failure Battery Low indicator DTMF(Tone )dialling only Home mode function Trigger AC socket by radio linked function AC adaptor operated (included) with 9V battery back-up (not included) Wall mountable Built-in 105 dB alarm (with programmable alarm on/off) Compatible with additional up to 16 wireless motion detector sensor or wireless window/door sensor and 8 wireless remote control or wireless control AC socket or wired sensor to EXPANDING the system Trigger AC Socket by radio linked function INSTALLATION 1. Remove the screw of main unit from battery compartment cover, install an alkaline 9V battery, this is a back-up battery, in case of AC power failure. This battery will keep the unit working (Fig.1) OPEN 121110 13 14 18 15 16 17 SYSTEM SETTING This program can only be operated during standby mode. During set-up, if not key in any message within 15 seconds, the system will auto exit set-up mode. Your auto-dialer has a factory preset pass number of 0-0-0. This can now be changed to a pass number personal to you. 1 TO CHANGE PASSWORD a. Enter factory pre-set pass number, 0-0-0. Press PROG button once, PASSWORD will flash on the auto-dialer screen. b. Press the ARM/DISARM button to confirm that you want to enter the PASSWORD option. c. Enter your new pass number followed by the ARM/DISARM button to confirm the new number. (You can choose 3~ 6 numbers in your pass number) d. You can press #/DOWN button or /UP button select other setup, or press the PROG button nine times to exit set-up mode. NOTE: If you forget your pass number, press and hold PROG button, use a pen to touch “RESET” button once of unit bottom, the LCD will split second not display, unpress PROG button after LCD comeback display date time, the auto-dialer will restore back to the factory pre-set pass number 0-0-0, all the setup will be remained as you programmed except the date and time and password. 2 TO STORE TELEPHONE NUMBERS a. Enter the pass number followed by PROG button twice. b. MEMORY will flash on the auto-dialer screen. c. Press the ARM/DISARM button to confirm this is the option you need. d. You are now ready to program in your 5 chosen telephone numbers. Press the /UP and #/DOWN buttons to select 1 - 5, For example if you select 4 this will be the fourth number dialed. e. Now enter the number that you want to store, followed by ARM/DISARM to confirm and store the number (maximum of 32 numbers, but LCD only show last 16 digits) f. Repeat steps c-e for the four other numbers you wish to be stored. g. You can press #/DOWN button or /UP button select other setup, or press the PROG button eight times to exit the set-up mode. 3 TO DELETE TELEPHONE NUMBER IN MEMORY a. Enter the pass number followed by PROG button twice. ( Fig. 5) PASSWORD (Fig. 4) ( Fig. 3b ) DC 9V Adaptor ( Fig. 3a ) 2. The unit with a external antenna which plug into the antenna jack, the antenna should be vertical, since it may come out of the package bent can simply bend it back to a straight position (Fig.2). 3. Connect the line cord between "LINE" jack and telephone wall socket. (Fig.3a) 4. Now connect the plug/wire included with your auto-dialer (this is the plug/wire with the clear plugs at either end) one end inserted in the TEL socket on the auto-dialer, an…

Text truncated - open the document above for the full version.

- 13 - c. Make sure the system should be setup in Auto dial mode. 3. NOT REMOTE CONTROL FUNCTION a. Check if battery low and battery replacement. b. If it doesn't work, re-learn ID code again, according to " TO LEARN WIRELESS SENSOR OR REMOTE CONTROL ID CODE ". TIPS 1. Make sure the full telephone has been stored. 2. If you are leaving pets at home while the Auto-Dialer is ON, then make sure the Auto-Dialer has been set in a location high enough not to detect any animals walking around but not too high to detect other movement. 3. Keep the Auto-Dialer dust free, away from cobwebs that may cause movement in the protected area. 4. Only suitable for single phone lines. Not compatible with fax machines. NOTE:This valuable manual will let your security system work properly. Please preserve this manual at your record, and keep reading when need some trouble obviation. INTRODUCTION HomeSafe's unique wireless security/safety Alarm system with Auto dialer concentrates on the protected area you select. Whenever the main unit is set at ARMED, the wireless motion detection sensor or wireless door/window sensor will concentrate on the protected area. Once there is movement or door/window open detected, the alarm will turn on and call to the memorized telephone numbers one by one. In chime mode, the chime will Ding Dong when movement be detected. IMPORTANT SAFETY TIPS 1. Do not install the system where it will be exposed to direct sunshine or rain. 2. The system siren is very loud, never put the unit close to your ear. 3. The unit should be away from heat sources such as radiators, heating ducts and stoves. 4. If the system sounds at random, it is possible that the location too close to a heat source, changing the location or direction of the unit can remedy this. 5. The system can provide valuable protection for your home and property if utilized properly. However, this unit cannot guarantee complete protection against to burglary or robbery. Therefore, we will not be responsible for any losses or damages which occur, during use of this product. DESCRIPTION OF COMPONENTS FEATURES Detecting motion or door/window open activates auto-dialer and alarm 16 Digit large number display with date/time and function icon 9 zone icon for easy differentiating intruder location Room monitor and broadcast by telephone function Remote turn system to ARM or DISARM by telephone function Programmable security code, entry delay timing 5 emergency telephone numbers (up to 32 digits each) Programmable auto dialling cycle 5 Trigger recorder with zone indication for alarm mode PAUSE key PANIC key - 1 - PROG key Built-in 20 seconds Voice REC./Play back IC for help message Built-in flash memory to protect system data for power failure Battery Low indicator DTMF(Tone )dialling only Home mode function Trigger AC socket by radio linked function AC adaptor operated (included) with 9V battery back-up (not included) Wall mountable Built-in 105 dB alarm (with programmable alarm on/off) Compatible with additional up to 16 wireless motion detector sensor or wireless window/door sensor and 8 wireless remote control or wireless control AC socket or wired sensor to EXPANDING the system Trigger AC Socket by radio linked function INSTALLATION 1. Remove the screw of main unit from battery compartment cover, install an alkaline 9V battery, this is a back-up battery, in case of AC power failure. This battery will keep the unit working (Fig.1) OPEN 121110 13 14 18 15 16 17 SYSTEM SETTING This program can only be operated during standby mode. During set-up, if not key in any message within 15 seconds, the system will auto exit set-up mode. Your auto-dialer has a factory preset pass number of 0-0-0. This can now be changed to a pass number personal to you. 1 TO CHANGE PASSWORD a. Enter factory pre-set pass number, 0-0-0. Press PROG button once, PASSWORD will flash on the auto-dialer screen. b. Press the ARM/DISARM button to confirm that you want to enter the PASSWORD option. c. Enter your new pass number followed by the ARM/DISARM button to confirm the new number. (You can choose 3~ 6 numbers in your pass number) d. You can press #/DOWN button or /UP button select other setup, or press the PROG button nine times to exit set-up mode. NOTE: If you forget your pass number, press and hold PROG button, use a pen to touch “RESET” button once of unit bottom, the LCD will split second not display, unpress PROG button after LCD comeback display date time, the auto-dialer will restore back to the factory pre-set pass number 0-0-0, all the setup will be remained as you programmed except the date and time and password. 2 TO STORE TELEPHONE NUMBERS a. Enter the pass number followed by PROG button twice. b. MEMORY will flash on the auto-dialer screen. c. Press the ARM/DISARM button to confirm this is the option you need. d. You are now ready to program in your 5 chosen telephone numbers. Press the /UP and #/DOWN buttons to select 1 - 5, For example if you select 4 this will be the fourth number dialed. e. Now enter the number that you want to store, followed by ARM/DISARM to confirm and store the number (maximum of 32 numbers, but LCD only show last 16 digits) f. Repeat steps c-e for the four other numbers you wish to be stored. g. You can press #/DOWN button or /UP button select other setup, or press the PROG button eight times to exit the set-up mode. 3 TO DELETE TELEPHONE NUMBER IN MEMORY a. Enter the pass number followed by PROG button twice. ( Fig. 5) PASSWORD (Fig. 4) ( Fig. 3b ) DC 9V Adaptor ( Fig. 3a ) 2. The unit with a external antenna which plug into the antenna jack, the antenna should be vertical, since it may come out of the package bent can simply bend it back to a straight position (Fig.2). 3. Connect the line cord between "LINE" jack and telephone wall socket. (Fig.3a) 4. Now connect the plug/wire included with your auto-dialer (this is the plug/wire with the clear plugs at either end) one end inserted in the TEL socket on the auto-dialer, an…

Text truncated - open the document above for the full version.

- 13 - c. Make sure the system should be setup in Auto dial mode. 3. NOT REMOTE CONTROL FUNCTION a. Check if battery low and battery replacement. b. If it doesn't work, re-learn ID code again, according to " TO LEARN WIRELESS SENSOR OR REMOTE CONTROL ID CODE ". TIPS 1. Make sure the full telephone has been stored. 2. If you are leaving pets at home while the Auto-Dialer is ON, then make sure the Auto-Dialer has been set in a location high enough not to detect any animals walking around but not too high to detect other movement. 3. Keep the Auto-Dialer dust free, away from cobwebs that may cause movement in the protected area. 4. Only suitable for single phone lines. Not compatible with fax machines. NOTE:This valuable manual will let your security system work properly. Please preserve this manual at your record, and keep reading when need some trouble obviation. INTRODUCTION HomeSafe's unique wireless security/safety Alarm system with Auto dialer concentrates on the protected area you select. Whenever the main unit is set at ARMED, the wireless motion detection sensor or wireless door/window sensor will concentrate on the protected area. Once there is movement or door/window open detected, the alarm will turn on and call to the memorized telephone numbers one by one. In chime mode, the chime will Ding Dong when movement be detected. IMPORTANT SAFETY TIPS 1. Do not install the system where it will be exposed to direct sunshine or rain. 2. The system siren is very loud, never put the unit close to your ear. 3. The unit should be away from heat sources such as radiators, heating ducts and stoves. 4. If the system sounds at random, it is possible that the location too close to a heat source, changing the location or direction of the unit can remedy this. 5. The system can provide valuable protection for your home and property if utilized properly. However, this unit cannot guarantee complete protection against to burglary or robbery. Therefore, we will not be responsible for any losses or damages which occur, during use of this product. DESCRIPTION OF COMPONENTS FEATURES Detecting motion or door/window open activates auto-dialer and alarm 16 Digit large number display with date/time and function icon 9 zone icon for easy differentiating intruder location Room monitor and broadcast by telephone function Remote turn system to ARM or DISARM by telephone function Programmable security code, entry delay timing 5 emergency telephone numbers (up to 32 digits each) Programmable auto dialling cycle 5 Trigger recorder with zone indication for alarm mode PAUSE key PANIC key - 1 - PROG key Built-in 20 seconds Voice REC./Play back IC for help message Built-in flash memory to protect system data for power failure Battery Low indicator DTMF(Tone )dialling only Home mode function Trigger AC socket by radio linked function AC adaptor operated (included) with 9V battery back-up (not included) Wall mountable Built-in 105 dB alarm (with programmable alarm on/off) Compatible with additional up to 16 wireless motion detector sensor or wireless window/door sensor and 8 wireless remote control or wireless control AC socket or wired sensor to EXPANDING the system Trigger AC Socket by radio linked function INSTALLATION 1. Remove the screw of main unit from battery compartment cover, install an alkaline 9V battery, this is a back-up battery, in case of AC power failure. This battery will keep the unit working (Fig.1) OPEN 121110 13 14 18 15 16 17 SYSTEM SETTING This program can only be operated during standby mode. During set-up, if not key in any message within 15 seconds, the system will auto exit set-up mode. Your auto-dialer has a factory preset pass number of 0-0-0. This can now be changed to a pass number personal to you. 1 TO CHANGE PASSWORD a. Enter factory pre-set pass number, 0-0-0. Press PROG button once, PASSWORD will flash on the auto-dialer screen. b. Press the ARM/DISARM button to confirm that you want to enter the PASSWORD option. c. Enter your new pass number followed by the ARM/DISARM button to confirm the new number. (You can choose 3~ 6 numbers in your pass number) d. You can press #/DOWN button or /UP button select other setup, or press the PROG button nine times to exit set-up mode. NOTE: If you forget your pass number, press and hold PROG button, use a pen to touch “RESET” button once of unit bottom, the LCD will split second not display, unpress PROG button after LCD comeback display date time, the auto-dialer will restore back to the factory pre-set pass number 0-0-0, all the setup will be remained as you programmed except the date and time and password. 2 TO STORE TELEPHONE NUMBERS a. Enter the pass number followed by PROG button twice. b. MEMORY will flash on the auto-dialer screen. c. Press the ARM/DISARM button to confirm this is the option you need. d. You are now ready to program in your 5 chosen telephone numbers. Press the /UP and #/DOWN buttons to select 1 - 5, For example if you select 4 this will be the fourth number dialed. e. Now enter the number that you want to store, followed by ARM/DISARM to confirm and store the number (maximum of 32 numbers, but LCD only show last 16 digits) f. Repeat steps c-e for the four other numbers you wish to be stored. g. You can press #/DOWN button or /UP button select other setup, or press the PROG button eight times to exit the set-up mode. 3 TO DELETE TELEPHONE NUMBER IN MEMORY a. Enter the pass number followed by PROG button twice. ( Fig. 5) PASSWORD (Fig. 4) ( Fig. 3b ) DC 9V Adaptor ( Fig. 3a ) 2. The unit with a external antenna which plug into the antenna jack, the antenna should be vertical, since it may come out of the package bent can simply bend it back to a straight position (Fig.2). 3. Connect the line cord between "LINE" jack and telephone wall socket. (Fig.3a) 4. Now connect the plug/wire included with your auto-dialer (this is the plug/wire with the clear plugs at either end) one end inserted in the TEL socket on the auto-dialer, an…

Text truncated - open the document above for the full version.

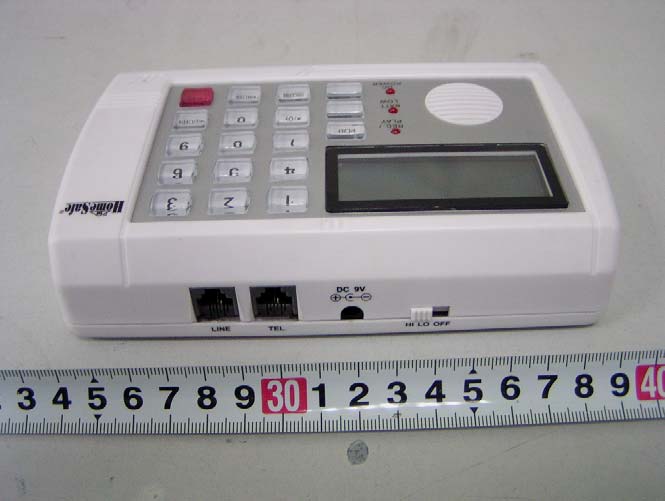

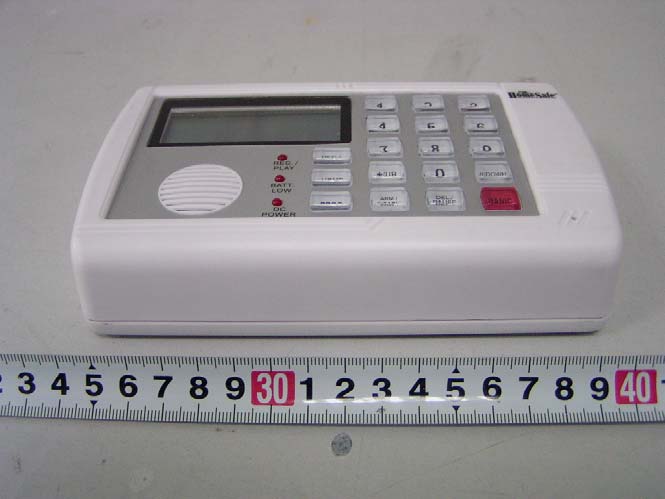

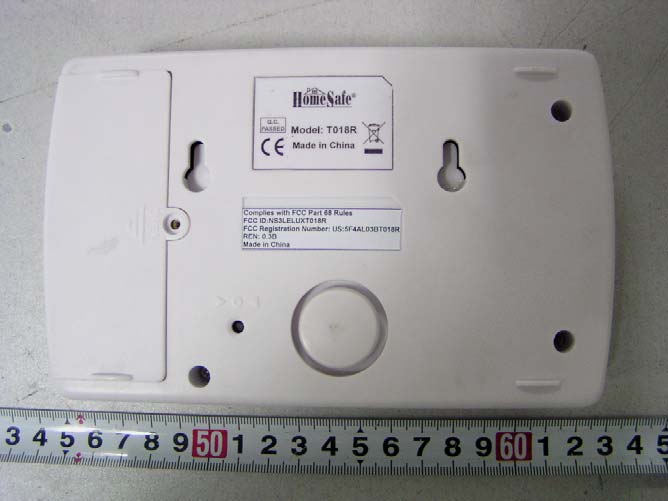

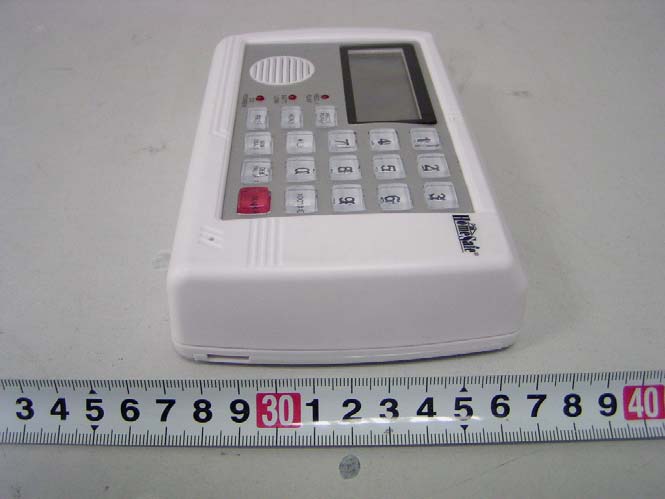

External Photos EUT – Whole View EUT – Top View EUT – Bottom View EUT – Port View EUT – Rear View EUT – Left View EUT – Right View EUT – Battery Uncovered View EUT – Power Adapter View EUT – Telephone Line View EUT – Antenna View

ID Label Label FCC ID: NS3LELUXT018R

ID Label/Location FCC Label Location Information Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT – Uncovered View EUT – Keyboard Top View EUT – Keyboard Bottom View EUT – Main board Top View EUT – Main board Bottom View EUT – Radio Module Top View EUT – Radio Module Bottom View

                                       !"     #$%   &   '  & ()
          &          *+,'- *+.'- *+
/'-   *+,'-        0 12 3 4 .3 .4     *1 55  %  - *   -*+.'-*+
/-     *+.'-    $6
.77374     $3 8#4//9: $7 $. 837;7<.
:       *+
/-        69
 3< .<=.9     $8#$: $
897<9: $48> /9<:    &*   -&
            &   >?@

<2    A A 7

,9#;5&& &  A2B&  & &  &&  & #$ & &A   &        7

,9#;5>  &   &  #$ (& C 2B&
       &  D      >== > /9<E                &A  () ( #$    A A  &  &E   &&           $38#4//9:=
..7=3  $4&   (   $3    ( #$E #>%2$ >F >GH2"    A $7 $. 837;7<.
:    ) D    (    98   &   :/.3
 !          #  &   # A     ( #$E     &I &( 894/3/494
<..:E               6/64
<=
7
//,
=/
E   A &    !""   A   *!"    -    869=
 4=,: &   * =  -    8 9=.:    &A    HF  && !"   86  " ,:    &               (       &A HF9     &&    8$9647<==9:  &        D            (   &A HF
   # A &     84=, 7=.:   &  # A #$& &A
"!#$            #$8$==!#344<4:      E     A & J                 &A   "  & E   ) (&E   !!F#       !!        6 /=4 3 &       @=9

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Lelux Electronics Ltd. Unit 6, 10/F, TCL TOWER, NO.8, Tai Chung Road, Tsuen Wan, New Territories, Hong Kong FCC ID: NS3LELUXT018R This Report Concerns: Original Report Equipment Type: WIRELESS SECURITY ALARM SYSTEM WITH AUTO DIALER Test Engineer: David Zhang Report No.: RSZ06110803 Test Date: 2006-11-29 Report Date: 2006-12-01 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Lelux Electronics Ltd. FCC ID: NS3LELUXT018R Report # RSZ06110803 Page 2 of 20 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE.........................................................…

Text truncated - open the document above for the full version.
