GSM Dual Amplifier Booster/ Combiner CCI Model Number DAB-1819 & DAC-1819 USER’S GUIDE The CCI GSM Dual Amplifier-Booster Module (DAB) consists of two linear power amplifiers with intermodulation level control circuitry, each capable of generating a 55-60 Watt GSM signal. The Dual Amplifier-Combiner Module (DAC) is identical to the DAB Module with the exception of a power hybrid combiner at the output which combines both signals to provide two 27-30 Watt GSM signals on a common output. The following instructions should be followed when installing the unit in service: • Apply a 28VDC input voltage to the DC Input connector of the Dual Amplifier- Booster/Combiner Module. • Insure that the DC Source is capable of delivering up to 15 Amps at 28VDC. • Apply a GSM signal of up to +39dBm to each RF input port of the Dual Amplifier-Booster/Combiner Module. • The Dual Amplifier-Booster/Combiner Module will provide approximately 10dB or less of RF Gain. • Check the RF output to insure the proper output power is present. (Approximately 55-60 Watts). • Adjust the input power level to insure the output power level is in compliance with the values indicated in the table on page 2. • Install the Alarm Connector to the Alarm Output connector of the Dual Amplifier-Booster/Combiner Module. Communication Components Inc. Communication Components Inc. 89 Leuning Street, 2 nd Floor S. Hackensack, NJ 07606 Tel: (201) 342-3338 Fax:(201) 342-3339 z Page 2 Setting the RF Output Power on the DAB & DAC Booster Amplifier The RF output power is not adjustable on the DAB & DAC Booster Amplifier. The user must adjust the RF input power to the Booster Amplifier such that the RF output power level does not exceed the levels shown below in order for the RF output spectral emissions to be compliant with the FCC spurious emissions limit of -13 dBm outside of the assigned frequency block. These levels must not be exceeded. Block Channel Center Frequency (MHz) Maximum RF 0utput (Watt) A 1930.2 5 A 1930.4 - 1944.6 55 A 1944.8 5 D 1945.2 5 D 1945.4 - 1949.6 55 D 1949.8 5 B 1950.2 5 B 1950.4 - 1964.6 55 B 1964.8 5 E 1965.2 5 E 1965.4 - 1969.6 55 E 1969.8 5 F 1970.2 5 F 1970.4 - 1974.6 55 F 1974.8 5 C 1975.2 5 C 1975.4 - 1989.6 55 C 1989.8 5 This equipment complies with Part 24 of the FCC rules. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. In order to comply with FCC rules for RF exposure, it must be observed that the antenna connected to this equipment is fixed on an outdoor structure and that it must have a minimum separation distance of 2 meters between it and any person."

COMMUNICATION COMPONENTS INC. 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3338 South Hackensack, NJ 07606 www.cciproducts.com Extendin g Wireless Covera g e CB-1819 INDOOR CELL BOOSTER

REQUEST FOR CONFIDENTIALITY Communication Components Inc. would like to request confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. No. NT3DAB-C-1819 (1) Schematic diagrams and Parts List contained in electronic file identified as schematics.pdf. It is the opinion of Communication Components Inc. disclosure of this information would result in significant loss of revenue. This information should be kept confidential for 10 years. Authorized signature: Printed name: Dennis Nathan Company name: Communication Components Inc. Company Address: 89 Leuning Street, South Hackensack, NJ 07606 Only information that is not accessible to the general public may be held confidential. Generally internal and external photos cannot be held confidential. The exception would be if the PC board is potted. Communication Components Inc. Communication Components Inc. 89 Leuning Street, 2 nd Floor S. Hackensack, NJ 07606 Tel: (201) 342-3338 Fax:(201) 342-3339

Response to TCB findings FCC ID: NT3DAB-C-1819 Hi Davida, The following issues were identified after our review of the application: 1. “/” is not an allowed character in an FCC ID. Please provide a new FCC ID and all associated paperwork changed to the new ID. Response – Revised form 731 supplied. 2. Please confirm that there are no configurations were one antenna output could exceed the 24.232 100 watt limit. We need to be clear what “55 watts per channel” means. Response - The equipment is designed for one carrier per output only. There is a configuration where two separate carriers can be fed to two separate input ports on the amplifier and the output signals are passively combined and fed to the antenna. In this case there are two identical amplifiers housed in one single chassis. Two carriers are never fed simultaneously to one amplifier. 3. The power reduction for the first and last channels should be for each block. See 24.238(a). Please modify the test report to reflect this. Response – Revised test report supplied. 4. Please supply the installation manual. Response – Manual supplied. 5. Please provide an exhibit documenting how the installer sets the power level. It should also include information about the restriction to 5W on the highest and lowest channel of each block. Make sure the exhibit lists the highest and lowest power level settings available. Response – See manual. Best regards Barry C. Quinlan Certification & Telecom Manager ------------------------------------------------------------------------------- Curtis-Straus LLC Voice: 978.486.8880 x270 527 Great Road Fax: 978.486.8828 Littleton, MA 01460 http://www.curtis-straus.com -------------------------------------------------------------------------------

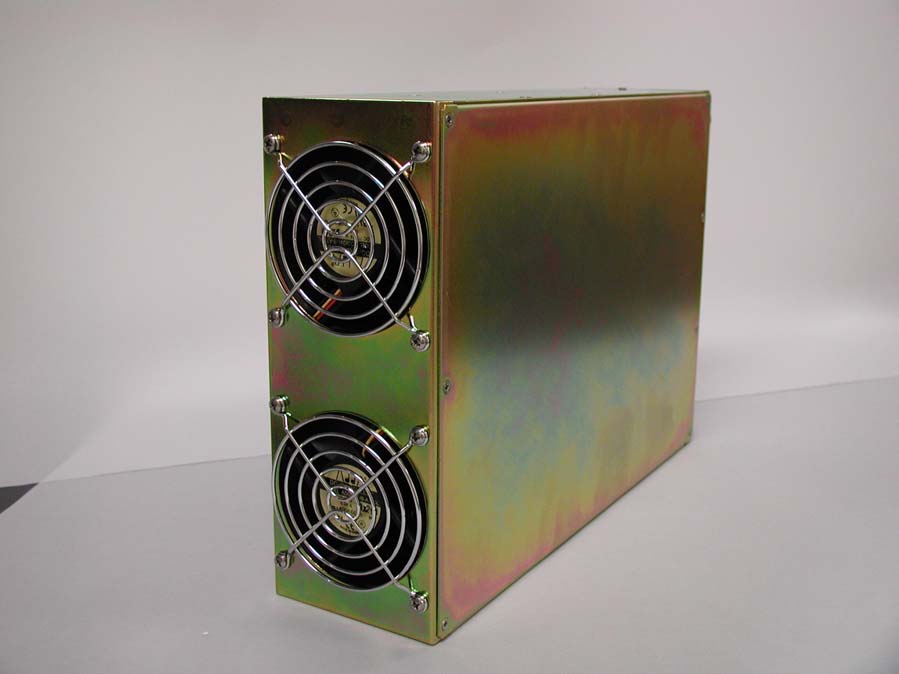

External photos

MODEL #: DAB-C-1819 FCC ID: NT3DAB-C-1819

Internal photos

Technical Description The PCS Cell Booster was specifically designed to integrate with compact GSM base stations without any need for retrofitting the original equipment. The system consists of a 5U 19” rack mount tray, which can accommodate up to five individual modules. The modules include a Dual Amplifier-Booster Module, a Dual Amplifier-Combiner Module, a Triple Duplexer Module, and a Power Supply Unit (PSU). The Cell Booster system can be configured with any combination of the above modules in order to achieve the desired performance results. The Dual Amplifier-Booster Module (DAB) consists of two linear power amplifiers with intermodulation level control circuitry, each capable of generating a 55 Watt GSM signal. The Dual Amplifier- Combiner Module (DAC) is identical to the DAB Module with the exception of a power hybrid combiner at the output which combines both signals to provide two 25 Watt GSM signals on a common output. The Triple Duplexer Module (TDM) consists of three duplexers, which combine the transmit (TX) and receive (Rx) signals on a common antenna (ANT) port. A Splitter-Bias-Tee and Low Noise Amplifier (LNA) option is available to provide DC pass-thru and receive diversity for particular BTS equipment such as the Ericsson RBS 2102 configured with CDUA’s. The Power Supply Unit (PSU) consists of a AC to DC Converter which is capable of powering up to four DAB or DAC Modules. An optional battery back-up circuit is available that can tap into the existing BTS battery bank during the loss of AC power. All of the modules contain alarm and monitoring circuits and provide relay contact closures that can be tied into the BTS alarm circuit.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiato r R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:47.40(dBm) Maximum peak output power at antenna input terminal:54954.09(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Prediction distance:200(cm) Prediction frequency:1900(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.109328(mW/cm^2) Maximum allowable antenna gain:9.612699(dBi) Note: The antenna will be on a fixed outdoor structure and much further than the 2 meters used in this scenario 2 4R PG S π =

Nemko Test Report No.: 1L0581RUS1 Applicant: Communications Components 89 Leuning Street South Hackensack, NJ 07606 Tel: 201-342-3338 Fax: 201-342-3339 Email: [email protected] Equipment Under Test: GSM Amplifier DAB1819 In Accordance With: FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date: 11/1/01 Total Number of Pages: 37 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 2 of 37 Table of Contents Section 1. Summary of Test Results..................................................................3 Section 2. General Equipment Specification......................................................5 Section 3. RF Power Output...........................................................................10 Section 4. Occupied Bandwidth......................................................................11 Section 5. Spurious Emissions at Antenna Terminals......................................20 Section 6. Field Strength of Spurious..............................................................23 Section 7. Frequency Stability.........................................................................26 Section 8. Test Equipment List.......................................................................27 ANNEX A - TEST DETAILS.............................................................................28 ANNEX B - TEST DIAGRAMS.........................................................................34 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 3 of 37 Section 1. Summary of Test Results Manufacturer: Communications Components Model No.: DAB1819 Serial No.: 160 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 4 of 37 Summary Of Test Data NAME OF TEST PARA. NO. SPECIFIED LIMT RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth (GSM) 24.238 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a) -13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Footnotes: (1) Modulation characteristics were not tested since the E.U.T. processes but does not produce a modulated waveform. Measurement uncertainty for each test configuration is expressed to 95% probability. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 5 of 37 Section 2. General Equipment Specification Supply Voltage Input: 28 Vdc 10A Frequency Bands: Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands: Uplink: Not Applicable. The equipment is directly connected to the BTS via coaxial cable. CDMA GSM NADC (G7W) (GXW) (DXW) Type of Modulation and Designator: Output Impedance: 50 ohms Max Input: 5 dBm Highest Channel: 5.01 W Per channel: 55 W RF Output (Rated): Lowest Channel: 5.01 W The power output must be lowered on the first and last channels of each frequency block. F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 6 of 37 Description of Modifications For Class II Permissive Change Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 7 of 37 Modifications Made During Testing Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 8 of 37 Description of Operation The PCS Cell Booster was specifically designed to integrate with compact GSM base stations without any need for retrofitting the original equipment. The system consists of a 5U 19” rack mount tray that can accommodate up to five individual modules. The modules include a Dual Amplifier-Booster Module, a Dual Amplifier-Combiner Module, a Triple Duplexer Module, and a Power Supply Unit (PSU). The Cell Booster system can be configured with any combination of the above modules in order to achieve the desired performance results. The Dual Amplifier-Booster Module (DAB) consists of two linear power amplifiers with intermodulation level control circuitry, each capable of generating a 55 Watt GSM signal. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 9 of 37 System Diagram Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: DAB 1819 PROJECT NO.: 1L0581RUS1 Page 10 of 37 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: Lance Walker DATE: October 22, 2001 Test Results: Complies. Channel Per Channel Output Power (dBm) Composite Output Power (dBm) Composite Output Power (W) High (1989.8 MHz) 37 37 5.01 Mid (1960 …

Text truncated - open the document above for the full version.

RF DC Currents and Voltages DC Current & Voltage: 24-28VDC @ 3-15 AMPS
