NT3MCPA2100125HIGH EFFICIENCY MCPA

AWS 120W MCPA User Guide Page 1 Communication Components Inc. 89 Leuning Street South Hackensack, NJ 07606 Phone: 201-342-3338 Fax: 201-342-3339 www.cciproducts.com AWS (UMTS/HSPA) 120W Multi-Carrier Power Amplifier CCI Model Number MCPA-2100-125 USER’S GUIDE Product Description: MCPA-2100-125 AWS (UMTS/HSPA) 120W Multi-Carrier Power Amplifier: The CCI AWS (UMTS/HSPA) 120W Multi-Carrier Power Amplifier (MCPA) Module consists of a Digital Pre-Distortion power amplifier, capable of generating a minimum 120 Watt UMTS/HSPA signal. Operation Description: The MCPA-2100-125 Multi-Carrier Power Amplifier is designed to supply a nominal output power level of 120 Watts (+50.8 dBm). Although the gain of the MCPA is fixed, the output can be adjusted by setting the input power level. Operation and Installation Instructions: The following instructions should be followed when installing the unit in service: • Apply a 30-34 VDC input voltage to the DC Input connector of the AWS 120W Multi- Carrier Power Amplifier Module. • Insure that the DC Source is capable of delivering up to 15 Amps at 32 VDC. • Apply a UMTS/HSPA signal up to +9 dBm to the RF Input port of the Multi-Carrier Power Amplifier Module. Note: “System Level” usage (see typical site installation block diagram on page 2) is based on the input signal from the BTS being +46 dBm. If a directional coupler with a -30 dB forward coupled port is used as the input to the AWS 120W MCPA Module, then the signal level out of the coupled port is +16 dBm. Finally, there is a variable attenuator set to 6 dB is placed prior to the MCPA Module. This drops the input level to the Amplifier to approximately +9 dBm including the Attenuator and any Cable losses. Note: A variable attenuator is called out in case the coupler used has a different value for its coupled port, or the cable losses vary. Remember, the maximum input to the Amplifier is +9 dBm. • The Multi-Carrier Power Amplifier Module will provide approximately 42 dB or less of RF Gain. • Check the RF Output to insure proper output power is present. {Approximately 125 Watts (+51 dBm)} • Adjust the input power level to insure the output power level is in compliance with the values indicated in the table on page 2. • Install the Alarm Connector to the Alarm Output connector of the Multi-Channel Power Amplifier Module. AWS 120W MCPA User Guide Page 2 Communication Components Inc. 89 Leuning Street South Hackensack, NJ 07606 Phone: 201-342-3338 Fax: 201-342-3339 www.cciproducts.com Figure 1 - “Typical Site Installation Config.” Block Diagram for AWS 120W Cell Extender Setting the RF Output Power to the MCPA-2100-125 Multi-Carrier Power Amplifier: The RF output power is not adjustable on the AWS MCPA Amplifier. The user must adjust the RF input power to the AWS MCPA Amplifier such that the RF output power level does not exceed the levels shown below in order for the RF output spectral emissions to be compliant with the FCC spurious emissions limit of -13 dBm outside of the assigned frequency block. These levels must not be exceeded. The total output power at the antenna terminal output of the device must not exceed the peak output power of 125.9W. *Note: The Maximum RF Output Power is after any passive losses after the MCPA Module such as filters and cables. This equipment complies with Part 24 of the FCC rules. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. In order to comply with FCC rules for RF exposure, it must be observed that the antenna connected to this equipment be fixed on an outdoor structure and that it must have a minimum separation distance of 10 meters between it and any person. 30dB Coupler Diplexer AWS BTS Tx/RxMRxD TMA +6dB Atten AA ANT T +51dBm Output 2100 MCPA +9dBm Input Max AA ANT T ANT Tx Rx TMA +46dBm, +16dBm +9dBm +51dBm +50.7dBm Center Channel Frequency (MHz) Maximum RF Output (Watt)* 2110 - 2155 117.5

AWS Band MCPA-2100-125 Block Diagram COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www cciproducts com

Timco Engineering 849 N.W. State Road 45 PO Box 370 Newberry, FL 32669 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I authorize Michelle Furrow of Nemko USA, Inc., 802 N. Kealy, Lewisville, TX 75057, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commission regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Timco Engineering still resides with (name and address). Dated this 28th Day of February 20 11 Agency agreement expiration date: February 28 th , 2012 By: Dennis Nathan Signature Printed Title: President On behalf of : Communication Components, Inc. Telephone: 201-342-3338 COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www.cciproducts.com

02/01/11 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: NT3MCPA2100125 Product Name: AWS 125W 2100 MCPA Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential: • MCPA2100125schematics.pdf (Schematics) • MCPA2100125partslist.pdf (Parts Lists) • MCPA2100125internal.pdf (Internal Photos) These materials contain trade secrets and proprietary information that is not customarily released to the public. The product is generally installed in secure locations which are not accessible to the general public. The product is only serviceable by Communication Components personnel or a factory-trained and licensed representative. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. We respectfully request that this information remains confidential for a period of no less than 10 years. Dated this 1st Day of February 20 11 By: Dennis Nathan Signature Printed Title: President On behalf of: Communication Components Inc. Communication Components, Inc. 89 Leuning Street Phone: 201-342-3338 South Hackensack, NJ 07606 Fax: 201-342-3339

RESTRICTED ACCESS OF EQUIPMENT AND DOCUMENTATION NOTICE This Restricted Access of Equipment and Documentation Notice is to inform that access to equipment and related documentation supplied by Communication Components Inc. is to be restricted to only authorized users by means to ensure the security of the equipment and confidentiality of related documentation at all times, and only designated professionals shall be allowed to maintain or service the equipment. This notice includes, but is not limite d to, internal photographs to be held confidential and out of the public domain. The device will be installed at secured cell tower locations where access to the equipment enclosures is restricted to certified technicians by the licensee. When the device is installed outdoors, in a fenced area or rooftop site, we utili ze a secure cabinet for deployment (as pictured below) Communication Components, Inc. 89 Leuning Street Phone: 201-342-3338 South Hackensack, NJ 07606 Fax: 201-342-3339 Thank you, Communication Components Inc. By: ______________________________ Name: __Dennis Nathan____________ _ Title: ____President ______________ Date: ____0 3/ 19/11 _____ ___________

RESTRICTED ACCESS OF EQUIPMENT AND DOCUMENTATION NOTICE This Restricted Access of Equipment and Documentation Notice is to inform that access to equipment and related documentation supplied by Communication Components Inc. is to be restricted to only authorized users by means to ensure the security of the equipment and confidentiality of related documentation at all times, and only designated professionals shall be allowed to maintain or service the equipment. This notice includes, but is not limited to, internal photographs to be held confidential and out of the public domain. The device will be installed at secured cell tower locations where access to the equipment enclosures is restricted to certified technicians by the licensee. When the device is installed outdoors, in a fenced area or rooftop site, we utilize a secure cabinet for deployment (as pictured below) Communication Components, Inc. 89 Leuning Street Phone: 201-342-3338 South Hackensack, NJ 07606 Fax: 201-342-3339 Thank you, Communication Components Inc. By: ______________________________ Name: __Dennis Nathan____________ _ Title: ____President ______________ Date: ____02/01/11 ________________

MCPA2100-125 External Photos ] MCPA2100-125 Front Panel MCPA2100-125Rear Panel Communication Components, Inc. 89 Leuning Street Phone: 201-342-3338 South Hackensack, NJ 07606 Fax: 201-342-3339 MCPA2100-125 Top Cover MCPA2100-125 Bottom Cover MCPA2100-125 Left Side Cover MCPA2100-125 Right Side Cover

MODEL#: MCPA-2100-125 FCC ID : NT3MCPA2100125

MODEL#: MCPA-2100-125 FCC ID : NT3MCPA2100125

CCI MCPA-2100-125 FCC ID Label Location COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www cciproducts com

Page 8 Revision 1.0 Communication Components Inc. AWS High Efficiency Cell Extender System for CDMA and EVDO Communication Components Inc. All specifications are subject to change. The latest specifications are available at www.cciproducts.com Tel:201Ͳ342Ͳ3338       www.cciproducts.com AWS CDMA / EVDO 120 Watt Multi-Carrier Power Amplifier Module DescriptionTypical Specifications Electrical Specifications Frequency range of operation 2110 - 2170 MHz Operating Bandwidth 60 MHz Output Power 120 Watts Gain42 dB Gain variation over temperature ± 0.5 dB Passband flatness ± 0.5 dB Module Efficiency 25% Module Current Draw @ Maximum Output 15 Amps Operating Voltage 32 VDC Out of Band Spurious Input return loss (VSWR) > 15 dB (1.4:1) Output Return Loss (VSWR) > 15 dB (1.4:1) Mechanical Specifications Dimensions 8.55” H x 3.37” W x 15.5” D Weight 13.5 Pounds Operating Temperature Range -35º C to +65º C (Cold start at -35º C, meets all specs at –25º C) Operating Relative Humidity 0% to 99% Operating Altitude Up to 13,000 FT Environmental Specifications Features & Benefits iLow IMD Products iHot Swappable Fans iOptimized for WCDMA / EVDO iHigh Efficiency = 25% Model Number iMCPA-2100-125 CCI Confidential

General Information CCI’s new High Efficiency Multi‐Carrier Power Amplifier (MCPA) is the most efficient (greater than 25%) MCPA available. OPEX is reduced significantly in comparison to traditional Feed‐ Forward MCPAs. This MCPA Module employs a new Digital Pre‐Distortion amplifier design with high power density for a very compact unit. The MCPA Module is optimiz e d for UMTS and HSPA, allowing multiple channels to be combined on high capacity sites to reduce the required number of feeders while improving coverage. General Info 1 Technical Description 1 Electrical Specifications 2 Mechanical Specifications 2 Ordering Information 2 Contents Model MCPA-2100-125 AWS 120W High Efficiency MCPA Module for UMTS and HSPA+ Tel: 201‐342‐3338 www.cciproducts.com Technical Description CCI’s Cell Extender employs a highly efficient Digital Pre‐Distortion (DPD) MCPA design that deliv‐ ers upward of 25% module efficiency. The DPD architecture reduces the number of components and increases amplifier reliability. An internal microprocessor circuit controls all functions, main‐ tains long term (thermal) and short term (distortion) functions, and generates status and alarms. An auto‐reboot feature will aut omatically restart the MCPA module in case of power interrup‐ tions. Fans are alarmed and hot swappable, requiring only common tools for replacement. CCI’s proprietary DPD circuit also reduces current consumption during low traffic periods. Dry contact alarms are provided for simple interface to existing ba se station alarm repo rting circuits. The Cell Extender coherent combining architecture increases the total system power and effi‐ ciency by enabling both the base station power and the Cell Extender power to be transmitted concurrently thus eliminating any unnecessary attenuation of input power. The Cell Extender also provides complete pass thru of DC and AISG signa ls from the BTS or can optionally be configured with the CCI AISG compliant Dual Tower Mount Amplifier (DTMA) and Site Control Unit (SCU). CCI Confidential Features: Ultra High Efficiency Module > 25% Low IMD Products Optimized for UMTS / HSPA+ Hot Swappable Fans Page 1 Revision 1.0 Communication Components Inc. AWS 120W High Efficiency MCPA Module for UMTS and HSPA+ Communication Components Inc. All specifications are subject to change. The latest specifications are available at www.cciproducts.com Tel: 201‐342‐3338 www.cciproducts.com AWS 120 Watt MCPA Module for UMTS/HSPA+ Typical Specifications Description Typical Specifications Electrical Specifications Frequency range of operation 2110 - 2155 MHz Operating Bandwidth 45 MHz Output Power 120 Watts Gain 45 dB Gain variation over temperature ± 0.75 dB Passband flatness ± 1.0 dB Module Efficiency 25% Module Current Draw @ Maximum Output 15 Amps Operating Voltage 30 - 34 VDC, 32 VDC Nominal Out of Band Spurious Meets FCC Input return loss (VSWR) > 15 dB (1.4:1) Output Return Loss (VSWR) > 15 dB (1.4:1) Mechanical Specifications Dimensions 8.55” H x 3.37” W x 15.5” D Weight 13.5 Pounds Operating Temperature Range -35º C to +65º C (Cold start at -35º C, meets all specs at –25º C) Operating Relative Humidity 0% to 99% Operating Altitude Up to 13,000 FT Environmental Specifications Ordering Information 120W AWS MCPA Module CCI Model MCPA-2100-125 CCI Confidential 8.55” 3.37” Page 2 Revision 1.0

AWS Band MCPA-2100-125 DC Voltages and Currents The maximum operational current for this system is : 16A @ +32VDC The DC operational voltage is: +32VDC, ±2VDC COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www cciproducts com

Tune up Procedure There is no tune up procedure for the CCI# MCPA2100-125. It is simply a single input, single output, multicarrier amplifier with a self-contained linearizer control loop. Any gain adjustments are to be performed utilizing an external attenuator. All necessary repairs and adjustments are performed at the factory by trained personnel. Dated this 3rd Day of February 20 11 By: Dennis Nathan Signature Printed Title: President On behalf of: Communication Components Inc. Communication Components, Inc. 89 Leuning Street Phone: 201-342-3338 South Hackensack, NJ 07606 Fax: 201-342-3339

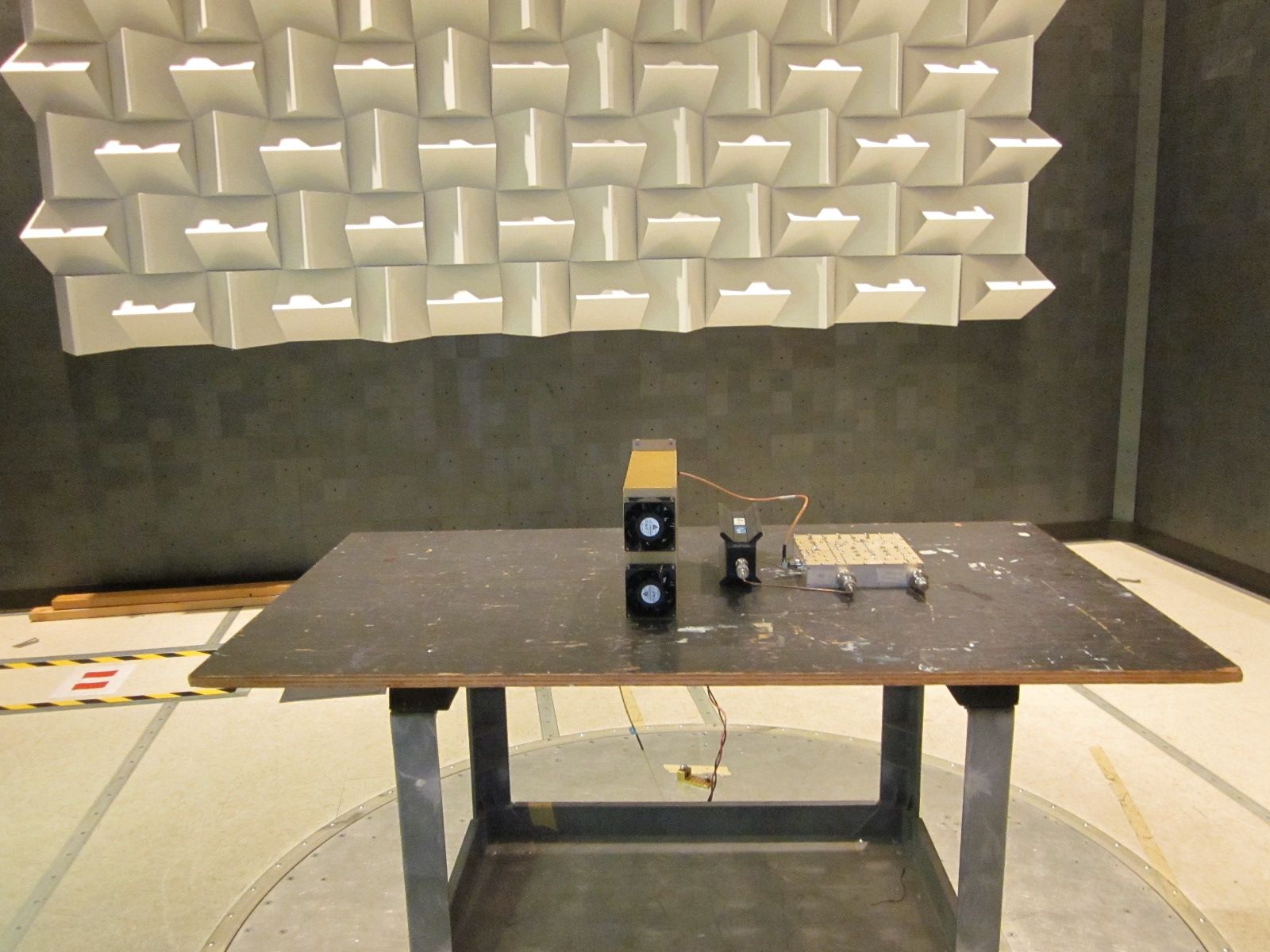

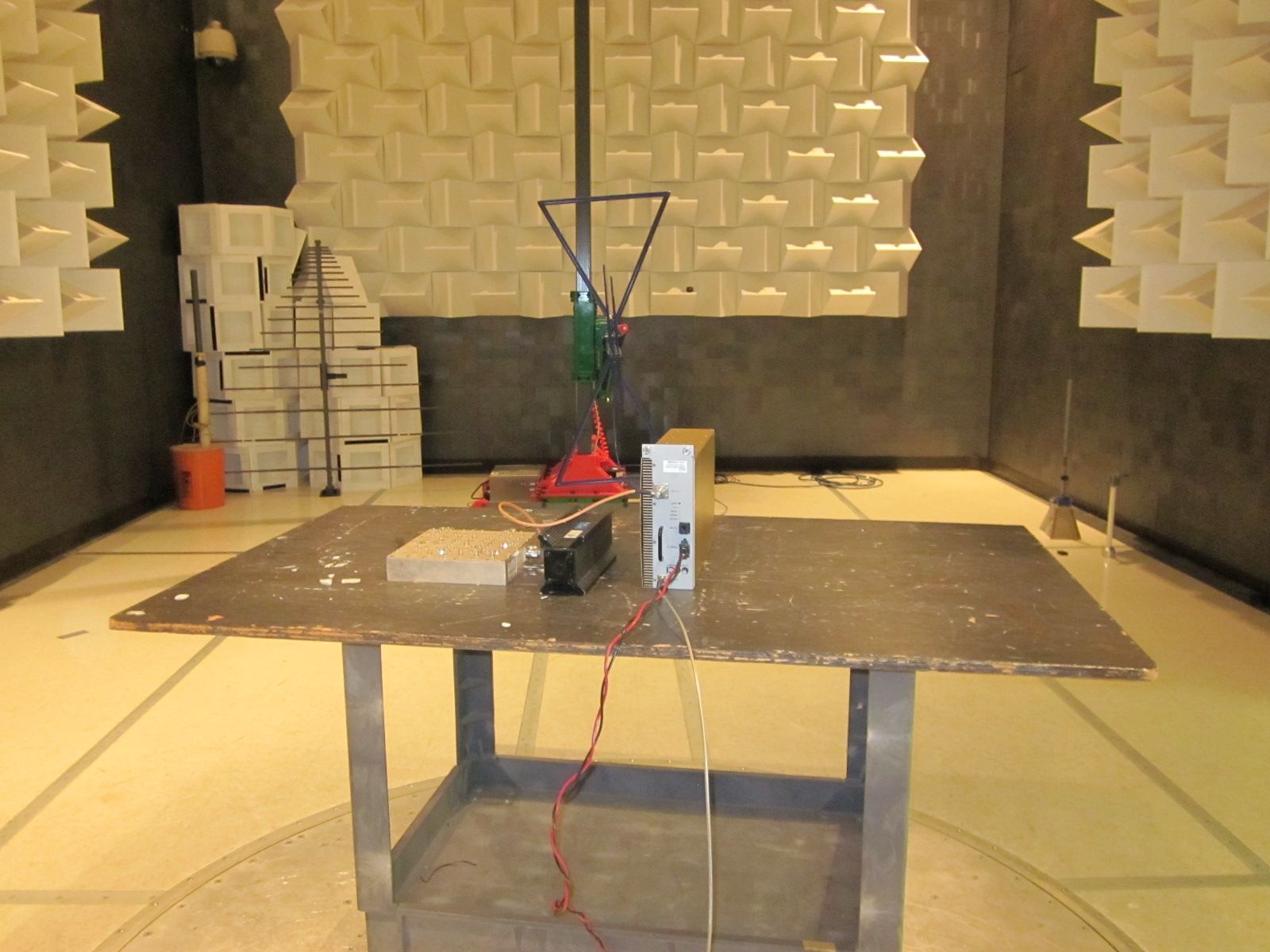

Nemko Test Report: Q1023138RUS1 Applicant: Communication Components, Inc. 89 Leuning Street, 2 nd Floor South Hackensack, NJ 07606 USA Equipment Under Test: MCPA-2100-125 (E.U.T.) FCC Identifier: NT3MCPA2100125 In Accordance With: CFR 47, Part 27, Subpart C Miscellaneous Wireless Communication Services Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 18 January 2011 David Light, Senior Wireless Engineer APPROVED BY: DATE: 26 January 2011 Tom Tidwell, Telecom Direct Number of Pages: 31 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 2 of 31 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 6 SECTION 4. OCCUPIED BANDWIDTH 7 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 12 SECTION 6. FIELD STRENGTH OF SPURIOUS 21 SECTION 7. TEST EQUIPMENT LIST 22 ANNEX A - TEST DETAILS 23 ANNEX B - TEST DIAGRAMS 28 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 3 of 31 Section 1. Summary of Test Results Manufacturer Communication Components, Inc. Model No.: MCPA-2100-125 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47, Part 27, Subpart C. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 4 of 31 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 27.50(d) 1640 Watts Complies Occupied Bandwidth 2.1049 Input/Output Complies Spurious Emissions at Antenna Terminals 27.53(g) -13 dBm Complies Field Strength of Spurious Emissions 27.53(g) -13 dBm E.I.R.P. Complies Frequency Stability 27.54 Must stay in band NA Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 5 of 31 Section 2. General Equipment Specification Supply Voltage Input: 120 VAC Frequency Bands: Downlink: 2110 to 2155 MHz Frequency Bands: Uplink: NA Type of Modulation and Designator: CDMA LTE W-CDMA (F9W) (F9W) (F9W) Power Output: 120 W WCDMA, 90 W CDMA Output Impedance: 50 ohms RF Output (Rated): Downlink 120.0 W 50.8 dBm RF Output (Rated): Uplink NA W NA dBm Frequency Translation: F1-F1 F1-F2 N/A Band Selection: Software Duplexer Fullband Description of EUT The MCPA-2100-125 is a 2100 MHz Predistortion Multicarrier RF Power Amplifier. Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 6 of 31 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 27.50 TESTED BY: David Light DATE: 17 January 2011 Test Results: Complies. Measurement Data: Direction Modulation Composite Power (dBm) RF Power (W) Downlink CDMA 49.7 93.4 UMTS 50.8 120.0 LTE NA NA Uplink CDMA NA NA UMTS NA NA LTE NA NA The rf power output is measured at the output of the power amplifer. The rf output power delivered to the antenna is set by the professional installer in accordance with the operating license. The maximum power output at the output of the amplifier may be set to the maximum levels above in order to overcome cable and coupler losses. Equipment Used: 1055-1064-1065-1082-1767 Measurement Uncertainty: +/- 1.7 dB Temperature: 22 °C Relative Humidity: 35 % Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 7 of 31 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 18 January 2011 Test Results: Complies. Test Data: See attached plot(s). Equipment Used: 1055-1064-1065-1082-1767 Measurement Uncertainty: 1X10 -7 ppm Temperature: 22 °C Relative Humidity: 35 % Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 8 of 31 Test Data – Occupied Bandwidth CDMA/EV-DO Output Downlink Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 9 of 31 Test Data – Occupied Bandwidth CDMA/EV-DO Input Downlink Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 10 of 31 Test Data – Occupied Bandwidth WCDMA/UMTS OUTPUT Downlink Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page 11 of 31 Test Data – Occupied Bandwidth WCDMA/UMTS INPUT Downlink Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: MCPA-2100-125 PROJECT NO.: Q1023138RUS1 Page …
