NT3DAB-DAC-1819-2GSM Amplifier

COMMUNICATION COMPONENTS INC 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www.cciproducts.com Extending Wireless Coverage GSM Dual Amplifier Booster/ Combiner CCI Model Number DAB-1819 & DAC-1819 With Nortel S8000 GSM Base Transceiver Station USER’S GUIDE Product Description: DAB-1819 & DAC-1819 Dual Amplifier Booster/ Combiner: The CCI GSM Dual Amplifier-Booster Module (DAB) consists of two linear power amplifiers with intermodulation level control circuitry. The Dual Amplifier-Combiner Module (DAC) is identical to the DAB Module with the exception of a passive hybrid combiner at the output which combines both signals to provide two 30-35 Watt GSM signals on a common output. Nortel S8000 GSM Base Transceiver Station: The Base Transceiver Station (BTS) is a GSM Base Station which serves one cell and is controlled by the Base Station Controller (BSC). The S8000 is available in an outdoor and indoor versions of the BTS respectively. The BTS contains the radio transceivers and all the digital signal processing equipment. The BTS contains eight DRX/Power Amplifiers for a total of eight transceivers per BTS. The trancievers operate in the frequency band of 1930 to 1990 MHz. There are 299 channels available with a channel spacing of 200 KHz. The transmitter is a constant envelope using 0.3 GMSK modulation, which is MSK filtered with a Gaussian filter, having a BT product of 0.3. The transmitter is capable of operating in a Time Division Multiple Access (TDMA) system. For each channel there are 8 time slots available, each containing digital speech or data. Operation Description: The DAC-1819 and DAB-1819 Dual Amplifier Booster/ Combiner in conjunction with the S8000 BTS are designed to supply a nominal output power level of 47.5 dBm when used in the uncombined mode and 44.5 dBm when used in the combined mode at the antenna connector. A system block diagram is shown on diagram #1 and #2.. z Page 2 z Page 3 Although the gain of the Dual Amplifier Booster/ Combiner is fixed, the output can be adjusted by setting the input power level. The input to the Dual Amplifier Booster/ Combiner is the Nortel Power Amplifier (PA) whose output can be set at 16 power levels in 2dB increments. As shown in diagram #1 and #2, setting the output level of the PA to 41 dBm will result in a power level at the output of the Dual Amplifier Booster/ Combiner of 45.5 dBm in the combined mode. The Dual Amplifier Booster/ Combiner is followed by a Duplexer or TX filter module which contains both a low-pass filter and duplex filter. The low-pass filter secures the required reverse isolation and provides spurious and harmonic suppression of the output signal. The duplex filter allows a single antenna to be used for both transmitting and receiving. Due to the insertion loss of the Duplexer, the maximum output power at the antenna connector of the radio base station is 44.5 dBm in the combined mode. Operation and Installation Instructions: The following instructions should be followed when installing the unit in service: • Apply a 26-28VDC input voltage to the DC Input connector of the Dual Amplifier-Booster/Combiner Module. • Insure that the DC Source is capable of delivering up to 15 Amps at 28VDC. • Apply a GSM signal of up to +41dBm to each RF input port of the Dual Amplifier-Booster/Combiner Module. • The Dual Amplifier-Booster/Combiner Module will provide approximately 7.5dB or less of RF Gain. • Check the RF output to insure the proper output power is present. {Approximately 30-35 Watts in the combined mode (DAC)}. • Adjust the input power level to insure the output power level is in compliance with the values indicated in the table on page 2. • Install the Alarm Connector to the Alarm Output connector of the Dual Amplifier-Booster/Combiner Module. z Page 4 Setting the RF Output Power on the DAB & DAC Booster Amplifier The RF output power is not adjustable on the DAB & DAC Booster Amplifier. The user must adjust the RF input power to the Booster Amplifier such that the RF output power level does not exceed the levels shown below in order for the RF output spectral emissions to be compliant with the FCC spurious emissions limit of -13 dBm outside of the assigned frequency block. These levels must not be exceeded. Channel Center Frequency (MHz) Maximum RF 0utput (Watt)* 1930.2-1989.8 35 (combined mode) This equipment complies with Part 24 of the FCC rules. In order to comply with FCC rules for RF exposure, it must be observed that “the antenna connected to this equipment be fixed on an outdoor structure and that it must have a minimum separation distance of 2 meters between it and any person."

Federal Communications Commission Authorization and Evaluation Division REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematic diagrams and Parts List contained in electronic file identified as DAB_DAC-1819 sch.pdf and DAB_DAC-1819 bom.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Printed name: Dennis Nathan Company name: Communication Components Inc. Company Address: 89 Leuning Street, South Hackensack, NJ 07606 COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www.cciproducts.com

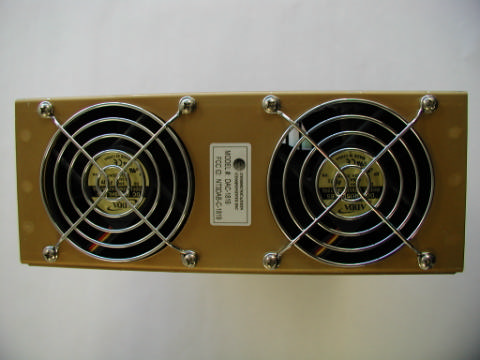

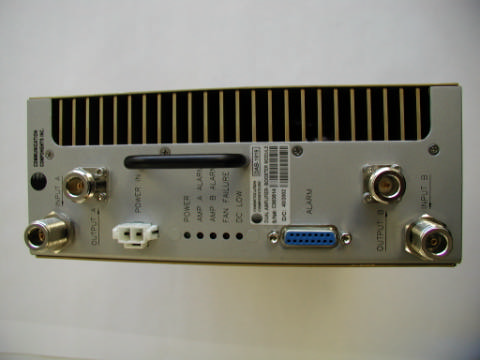

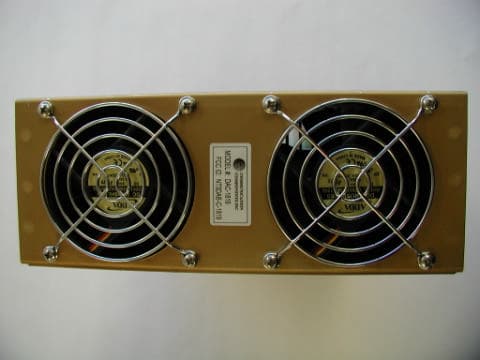

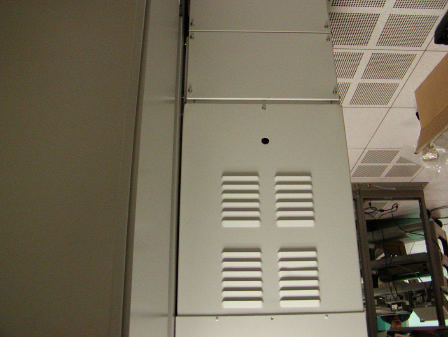

Amplifier Rear Amplifier B Rear DAB Through Board Rear View DAC Combiner Rear View DAB Front View DAB Rear View DAB Side View DAB Top View DAC Front View DAC Rear View DAC Rear View DAC Top View EUT – Chassis Front View EUT – Chassis Rear View

Communication Components Inc. FCC ID: NT3DAB-DAC-1819-2 Report # R0211191Page 27 of 39FCC Part 24 Type Approval report EXHIBIT A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: NT3DAB-DAC-1819-2

Amplifier Front Amplifier B Front DAB Internal Top View DAB Through Board Front View DAC Combiner Front View DAC Internal Top View Logic Board Front View Logic Board Rear View EUT – Chassis Internal View

Tel: 201-342-3338 Fax: 201-342-3339 Email: [email protected] Technical Description General Information CCI’s PCS GSM Cell Booster pro- vides the means to add capacity to existing PCS sites by combining mul- tiple channels onto a common an- tenna port without suffering any com- bining losses. Consequently, capacity of existing sites can be expanded with the existing cabling and antenna infrastructure. The Cell Booster/ Combiner allows the cost efficient implementation of multi-channel high capacity radio networks. The Cell Booster can also be deployed as a booster amplifier without combining, thus increasing the downlink power of the Base Transceiver Station (BTS). When used in conjunction with a Tower Mount Amplifier (TMA), the Cell Booster can significantly in- crease the footprint of rural sites and improve in-building penetration in urban locations. General Info and Technical Description 1 Electrical /Mechanical Specifications 2—3 Mechanical Diagram 4 Contents The PCS Cell Booster was specifically designed to integrate with GSM base stations without any need for retrofitting the original equipment. The system consists of 19” rack mount trays that can accommodate multiple modules. The core modules include a Dual Amplifier-Booster Module and a Dual Amplifier-Combiner Module. The Cell Booster system can be further complemented with a range of Duplexer Modules, Power Supply Modules, and Splitter/VSWR modules. The Cell Booster system can be configured with any combination of the above modules to seamlessly inte- grate with the carriers BTS equipment and achieve the desired performance results. The Dual Amplifier-Booster Module (DAB) consists of two linear power amplifiers with intermodu- lation level control circuitry, each capable of generating a 70 Watt GSM signal. The Dual Ampli- fier-Combiner Module (DAC) is identical to the DAB Module with the exception of a power hybrid combiner at the output which combines both signals to provide two 35 Watt GSM signals on a common output. Both modules incorporate CCI’s proprietary GSM failure-detect circuitry that tracks the amplified GSM signal by timeslot and actively controls and monitors the performance of both amplifiers, providing dry relay contact closures that can be tied into the BTS alarm circuit. Communication Components Inc. PCS GSM Cell Booster/Combiner Model DAB-1819 Model DAC-1819 CCI Confidential Dual Amplifier-Booster (DAB-1819) Module Electrical Specification Operating Frequency: 1930-1990 MHz Rated GSM Output Power: 70 Watts (Per Channel) 1 dB Compression Point: 48.5 dBm Min. Pass Band Ripple: +/-0.5 dB Max. Power Supply Voltage: 28 VDC Nominal Current Consumption: 12 AMPS Typical Dimensions: 8.75”L x 3.5”W x 12”D Number of Inputs/ Outputs: 2 Inputs / 2 Outputs Connectors N or SMA female Weight 13 Lbs. Max. Operating Temperature: -25° to +65° C Ambient Communication Components Inc. Tel: 201-342-3338 Fax: 201-342-3339 Dual Amplifier-Combiner (DAC-1819) Module Electrical Specification Operating Frequency: 1930-1990 MHz Rated GSM Output Power: 35 Watts (Per Channel) 1 dB Compression Point: 45.5 dBm Min. (Per Channel) Pass Band Ripple: +/-0.5 dB Max. Power Supply Voltage: 28 VDC Nominal Current Consumption: 12 AMPS Typical Dimensions: 8.75”L x 3.5”W x 12”D Number of Inputs/ Outputs: 2 Inputs / 1 Outputs Connectors N or SMA female Weight 13 Lbs. Max. Operating Temperature: -25° to +65° C Ambient Communication Components Inc. PCS GSM Cell Booster/Combiner Communication Components Inc. PCS GSM Cell Booster/Combiner Communication Components Inc. Tel: 201-342-3338 Fax: 201-342-3339 89 Leuning Street South Hackensack, NJ 07606 Tel: 201-342-3338 Fax: 201-342-3339 Email: [email protected] W w w . c c i p r o d u c t s . c o m CCI’s Cell Booster/Combiner for PCS Mechanical Drawing Ordering Information Cell Booster 19” Rack Mountable Chassis Cell Booster / Amplifier Plug-in Module Dual Amplifier-Booster Module: CCI Model DAB-1819 Dual Amplifier-Combiner Module: CCI Model DAC-1819 3 . 5 ” 8.75” 1 2 ” 3 . 5 ” 8.75” 1 2 ” 19” 12” 8.75” 19” 12” 8.75”
