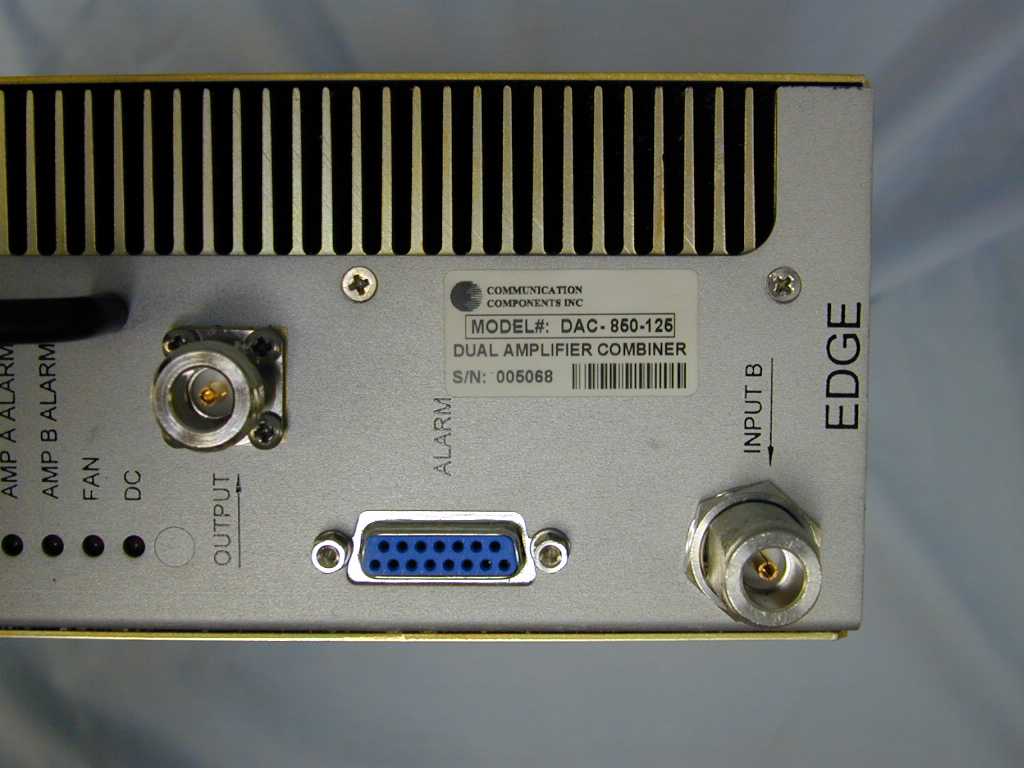

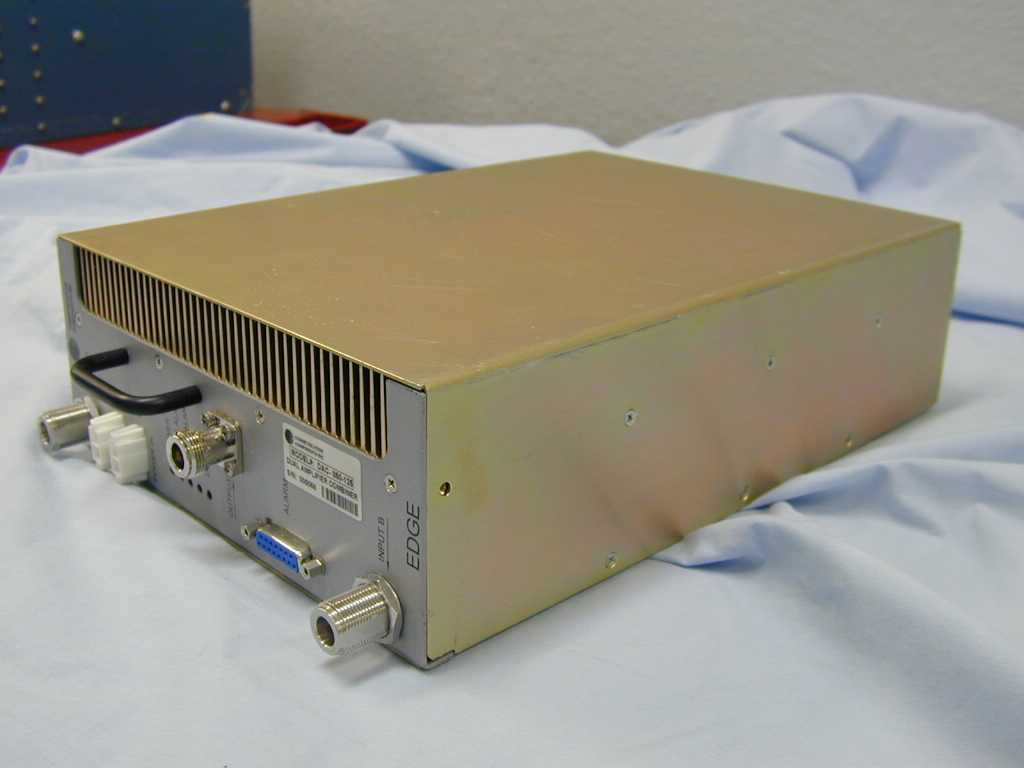

NT3DAC-850-125Cellular Band Amplifier

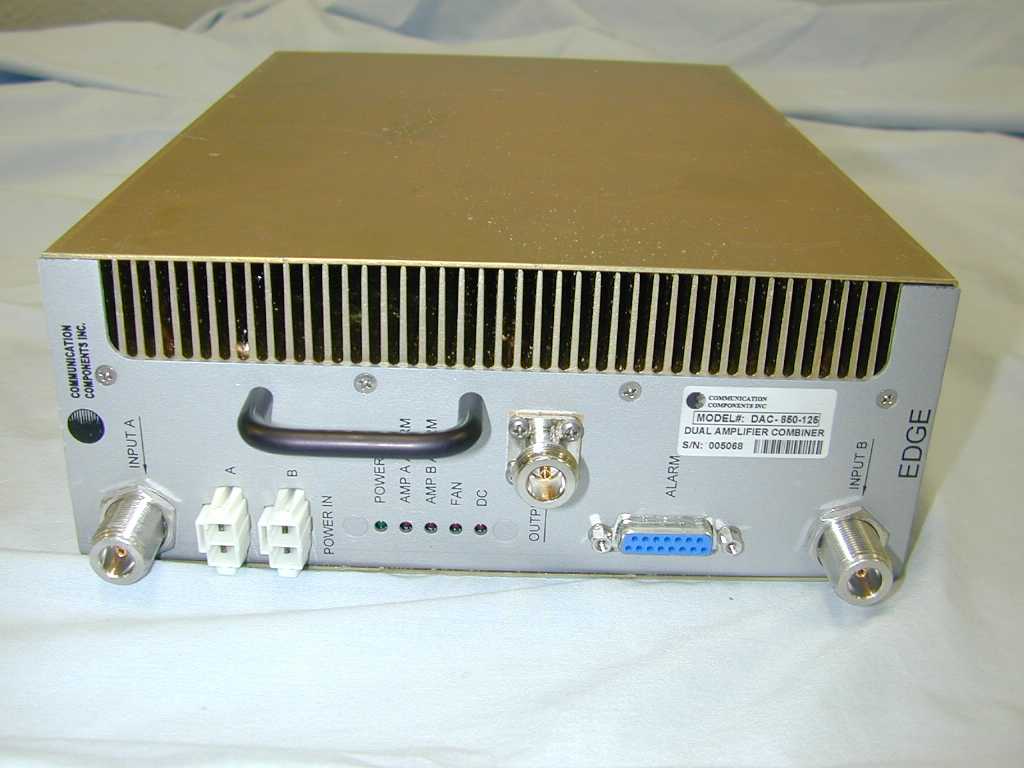

GSM/EDGE Dual Amplifier Booster Combiner CCI Model Number DAC-850-125 USER’S GUIDE Product Description: DAC-850-125 Dual Amplifier Booster/ Combiner: The CCI GSM Dual Amplifier-Booster Combiner Module (DAC) consists of two linear power amplifiers with intermodulation level control circuitry, each capable of generating a 125 Watt GSM/EDGE signal. The Dual Amplifier-Combiner Module (DAC) contains a passive hybrid combiner at the output which combines both signals to provide two 60 Watt GSM/EDGE signals on a common output. Operation Description: The DAC-850-125 Dual Amplifier Booster/ Combiner is designed to supply a nominal output power level of 60 Watts (48 dBm) per channel. Although the gain of the Dual Amplifier Booster/ Combiner is fixed, the output can be adjusted by setting the input power level. Operation and Installation Instructions: The following instructions should be followed when installing the unit in service: • Apply a 26-30VDC input voltage to the DC Input connector of the Dual Amplifier-Booster/Combiner Module. • Insure that the DC Source is capable of delivering up to 30 Amps at 28VDC. • Apply a GSM/EDGE signal of up to +41dBm to each RF input port of the Dual Amplifier-Booster/Combiner Module. • The Dual Amplifier-Booster/Combiner Module will provide approximately 7dB or less of RF Gain. • Check the RF output to insure the proper output power is present. {Approximately 60 Watts (48dBm) per channel}. COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www.cciproducts.com z Page 2 • Adjust the input power level to insure the output power level is in compliance with the values indicated in the table on page 2. • Install the Alarm Connector to the Alarm Output connector of the Dual Amplifier-Booster/Combiner Module. Setting the RF Output Power on the DAC-850-125 Booster Amplifier The RF output power is not adjustable on the DAB & DAC Booster Amplifier. The user must adjust the RF input power to the Booster Amplifier such that the RF output power level does not exceed the levels shown below in order for the RF output spectral emissions to be compliant with the FCC spurious emissions limit of -13 dBm outside of the assigned frequency block. These levels must not be exceeded. Channel Frequency (MHz) Maximum RF 0utput (Watt)* 869.2-893.8 125 * Note: The Maximum RF Output Power is after any passive losses after the Booster Amplifier such as filters and cables. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. In order to comply with FCC rules for RF exposure, it must be observed that the antenna connected to this equipment be fixed on an outdoor structure and that it must have a minimum separation distance of 10 meters between it and any person."

May 19, 2004 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the application under FCC ID: NT3DAC-850-125, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Communication Components Inc. hereby requests confidential treatment of the accompanying information as outlined below: (1) Schematic Diagram & Parts List contained in electronic file identified as Schematic Diagram & Parts List DAC-850-125.PDF. (2) Internal Photographs. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials might be harmful to the Applicant and provide unjustified benefits to its competitors. Communication Components understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documents will not be made prior to the date of the Grant for this application. Sincerely, Dennis Nathan President Communication Components Inc. COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www.cciproducts.com

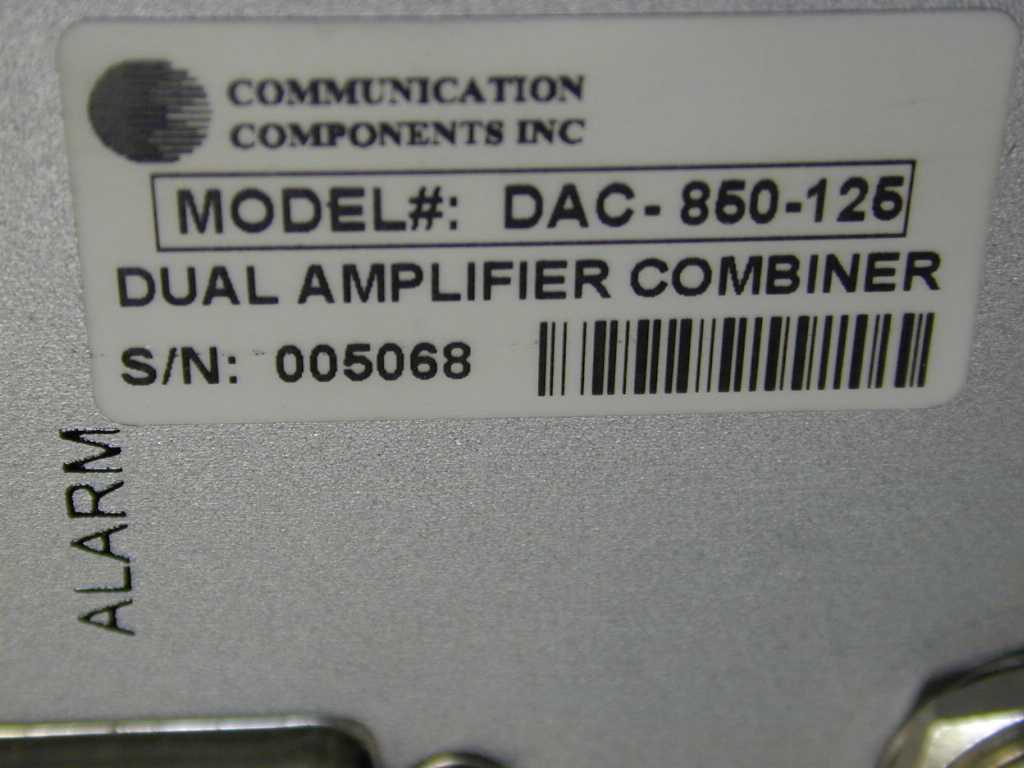

FCC LABEL FOR DAC-850-125 MODEL #: DAC-850-125 FCC ID: NT3DAC-850-125 0. 75” 1. 5”

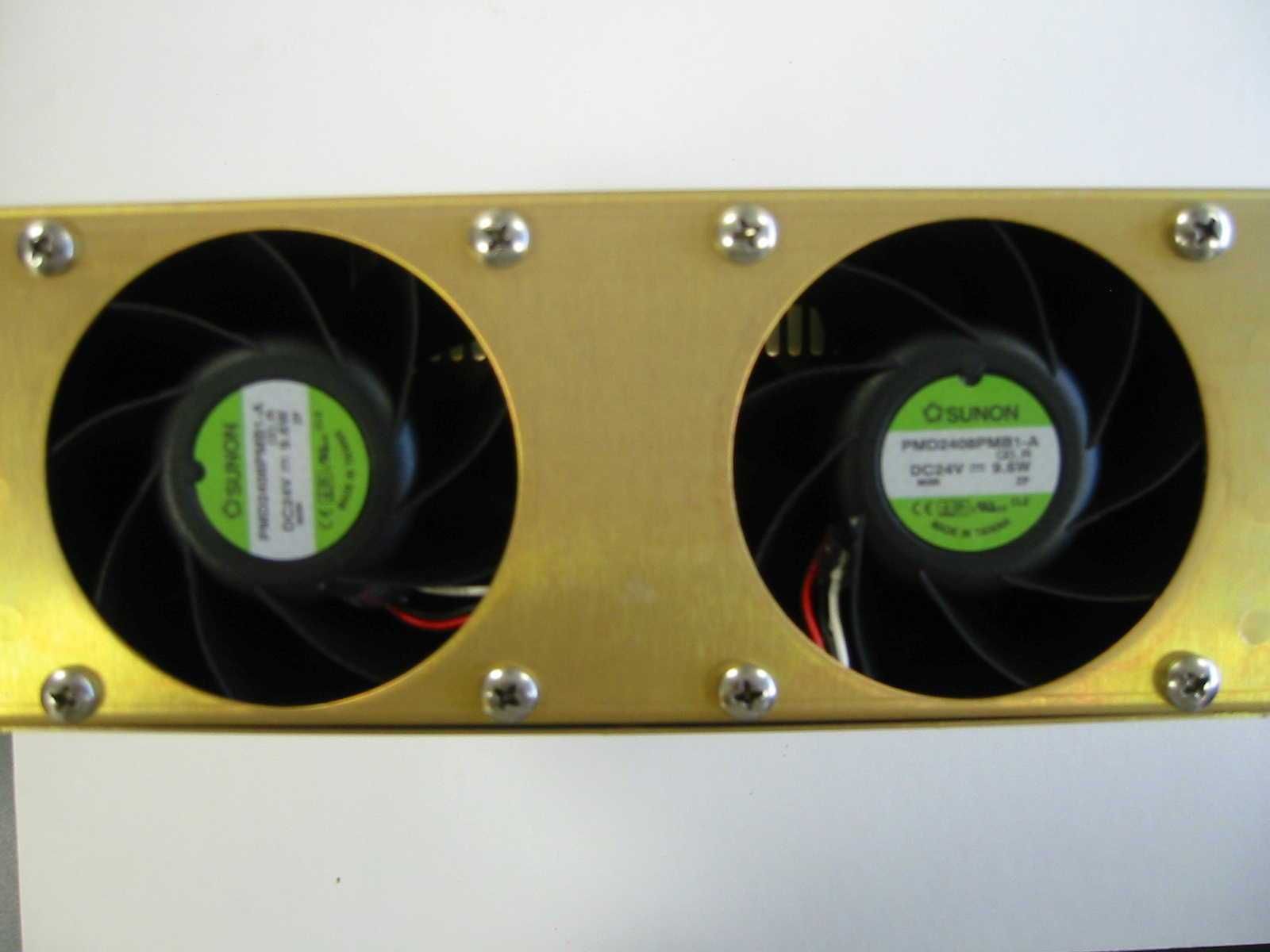

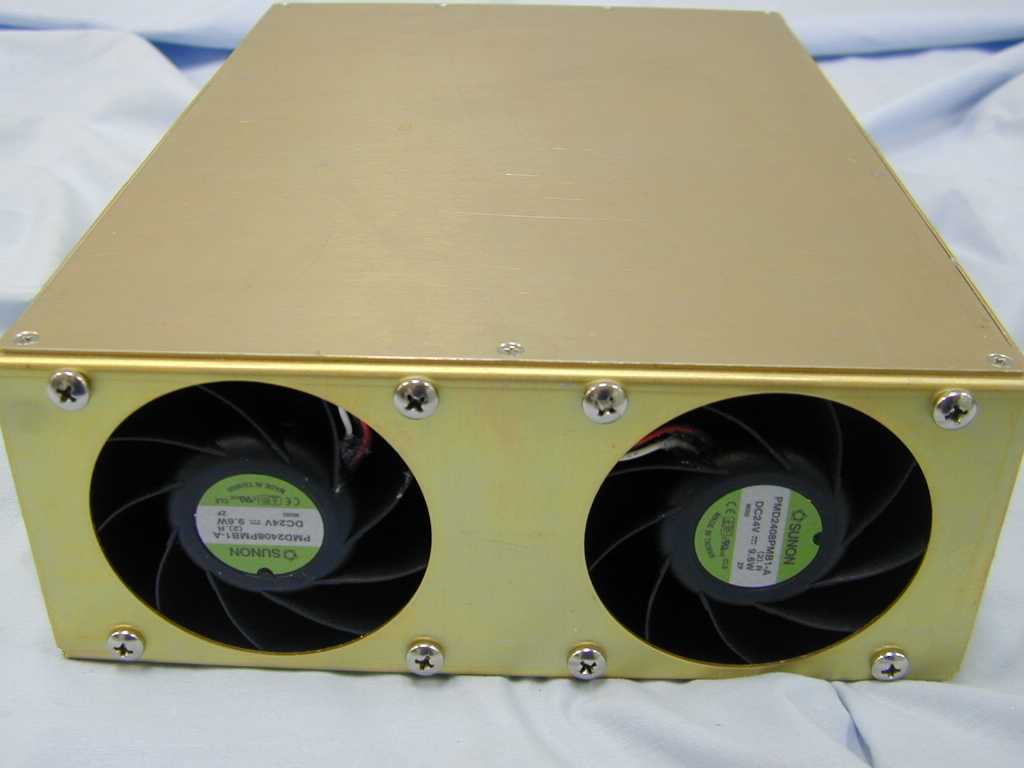

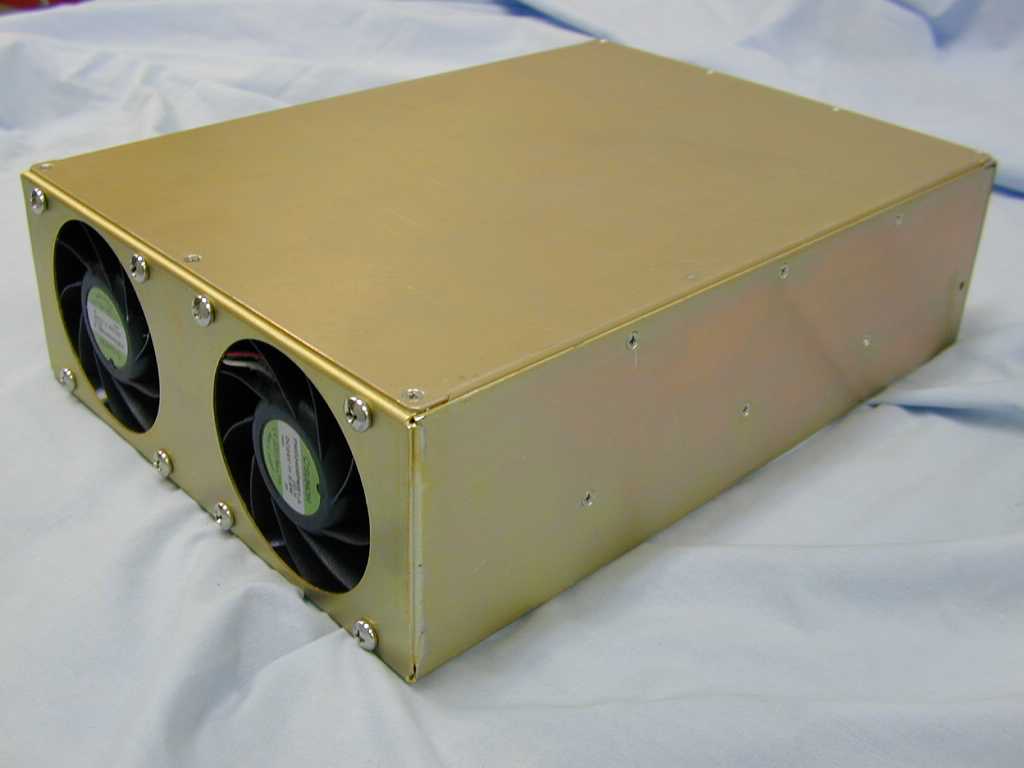

Tel: 201-342-3338 Fax: 201-342-3339 Email: [email protected] Technical Description General Information The 125W Dual Amplifier Booster and Dual Amplifier Combiner Modules are integral components of Communication Component Inc.’s Cellular GSM-EDGE Cell Booster Sys- tem. The Cell Booster System provides the means to add capacity or increase the cover- age area and penetration of existing GSM- EDGE sites. The 125W Dual Amplifier Com- biner (DAC) module combines multiple GSM channels onto a common antenna port with- out suffering any combining losses. Consequently, capacity of existing sites can be expanded with the existing cabling and antenna infrastructure. The 125W Dual Amplifier Booster (DAB) module significantly increases the downlink power of the Base Transceiver Station (BTS). When used in con- junction with a Tower Mount Amplifier (TMA), the Dual Amplifier Booster can significantly increase the footprint of rural sites and improve in-building penetration in urban locations. General Info 1 Technical Description 1 Electrical /Mechanical Specifications 2 Mechanical Diagram 2 Ordering Information 2 Contents The GSM Cellular Cell Booster System was specifically designed to integrate with GSM-EDGE base stations without any need for retrofitting the original equipment. The core modules include a Dual Amplifier Booster Module and a Dual Amplifier Combiner Module. The Cell Booster system is further complemented with a range of Duplexer Modules, Power Supply Modules, and Splitter/ VSWR modules. The Cell Booster system can be configured with any combination of the above modules to seamlessly integrate with the carriers BTS equipment and achieve the desired per- formance results. The 125W Dual Amplifier Booster Module (DAB) consists of two linear power amplifiers with inter- modulation level control circuitry, each capable of generating 125 Watts of useable GSM signal. The Dual Amplifier Combiner Module (DAC) is identical to the DAB Module with the exception of a power hybrid combiner at the output which combines both signals to provide two 60 Watt GSM- EDGE signals on a common output. Both modules incorporate CCI’s proprietary GSM-EDGE fail- ure-detect circuitry that tracks the amplified GSM signal by timeslot and actively controls and monitors the performance of both amplifiers, providing dry relay contact closures that can be tied into the BTS alarm circuit. Communication Components Inc. Cellular 125W GSM-EDGE Cell Booster/Combiner Model DAB-850-125 Model DAC-850-125 CCI Confidential Cellular 125 Watt Booster/Combiner Module Electrical Specification DAB-850-125 DAC-850-125 Operating Frequency: 869-894 MHz Rated GSM/EDGE Output Power: 125 Watts (per channel) 60 Watts (per channel), 120 Watts (composite) 1 dB Compression Point: 53 dBm Min. (per channel) 50 dBm Min. (per channel) Number of Inputs/ Outputs: 2 Inputs / 2 Outputs 2 Inputs / 1 Outputs Gain Flatness: +/-0.5 dB Max. Power Supply Voltage: 28 VDC Nominal, 22-30VDC Current Consumption: 12 AMPS Typical per Channel Dimensions: 8.75”L x 3.5”W x 12”D Connectors N female Weight 13 Lbs. Max. Operating Temperature: -25° to +65° C Ambient Gain: 10 dB 7 dB Input VSWR 1.4:1 Min; 1.25:1 (typical) Port to Port Isolation 85 dB typical Communication Components Inc. Tel: 201-342-3338 Fax: 201-342-3339 Communication Components Inc. Cellular 125W GSM-EDGE Cell Booster/Combiner Mechanical Diagram 3 . 5 ” 8.75” 1 2 ” 3 . 5 ” 8.75” 1 2 ” Ordering Information 125W Dual Amplifier Booster Module: CCI Model DAB-850-125 125W Dual Amplifier Combiner Module: CCI Model DAC-850-125 19” Rack Mount Trays: CCI Model TRA-1819 (5U) CCI Model TRA-1819-2U CCI Model TRA-1819-2M w w w. c c i p r o d u c t s . c o m

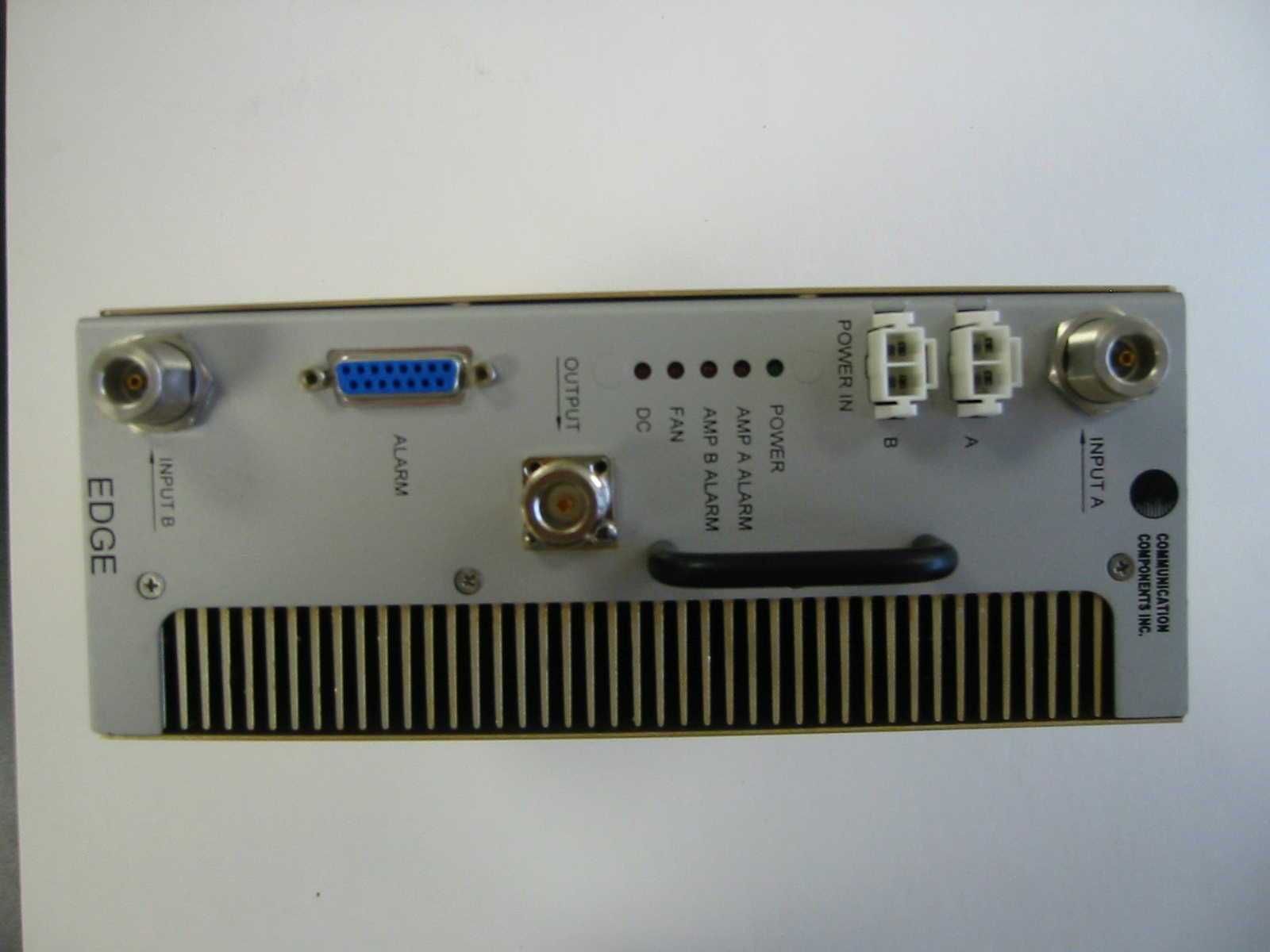

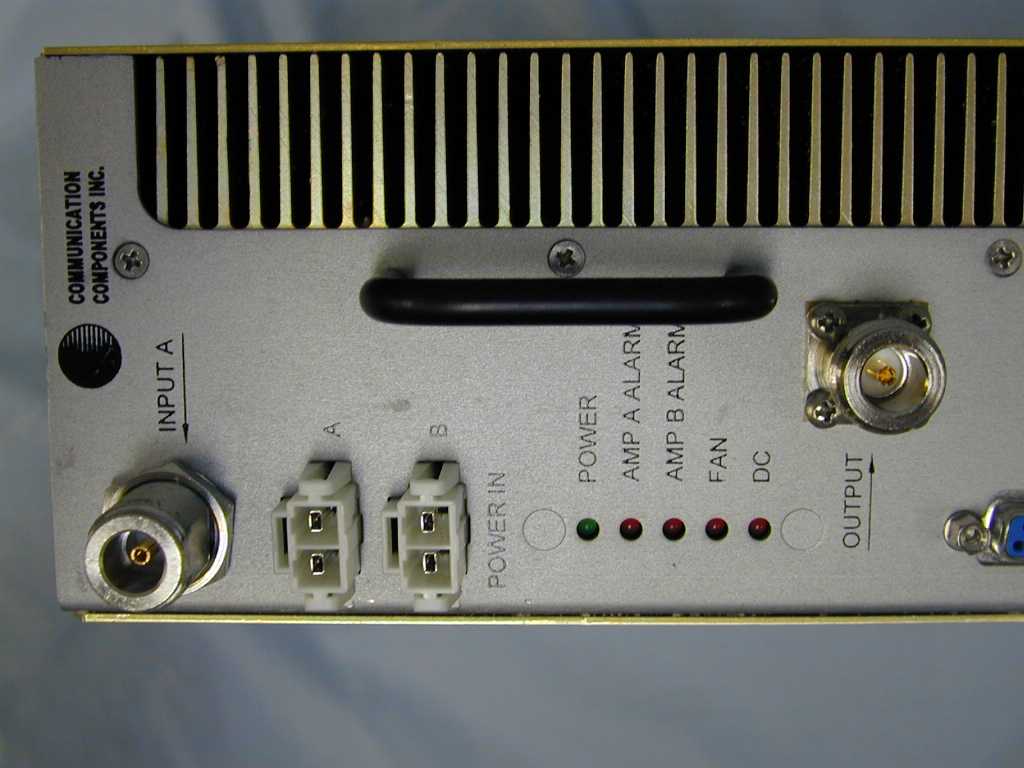

GSM/EDGE Dual Amplifier Booster Combiner CCI Model Number DAC-850-125 USER’S GUIDE Product Description: DAC-850-125 Dual Amplifier Booster/ Combiner: The CCI GSM Dual Amplifier-Booster Combiner Module (DAC) consists of two linear power amplifiers with intermodulation level control circuitry, each capable of generating a 125 Watt GSM/EDGE signal. The Dual Amplifier-Combiner Module (DAC) contains a passive hybrid combiner at the output which combines both signals to provide two 60 Watt GSM/EDGE signals on a common output. Operation Description: The DAC-850-125 Dual Amplifier Booster/ Combiner is designed to supply a nominal output power level of 60 Watts (48 dBm) per channel. Although the gain of the Dual Amplifier Booster/ Combiner is fixed, the output can be adjusted by setting the input power level. Operation and Installation Instructions: The following instructions should be followed when installing the unit in service: • Apply a 26-30VDC input voltage to the DC Input connector of the Dual Amplifier-Booster/Combiner Module. • Insure that the DC Source is capable of delivering up to 30 Amps at 28VDC. • Apply a GSM/EDGE signal of up to +41dBm to each RF input port of the Dual Amplifier-Booster/Combiner Module. • The Dual Amplifier-Booster/Combiner Module will provide approximately 7dB or less of RF Gain. • Check the RF output to insure the proper output power is present. {Approximately 60 Watts (48dBm) per channel}. COMMUNICATION COMPONENTS INC Extending Wireless Coverage 89 Leuning Street Phone: 201-342-3338 2 nd Floor Fax: 201-342-3339 South Hackensack, NJ 07606 www.cciproducts.com z Page 2 • Adjust the input power level to insure the output power level is in compliance with the values indicated in the table on page 2. • Install the Alarm Connector to the Alarm Output connector of the Dual Amplifier-Booster/Combiner Module. Setting the RF Output Power on the DAC-850-125 Booster Amplifier The RF output power is not adjustable on the DAB & DAC Booster Amplifier. The user must adjust the RF input power to the Booster Amplifier such that the RF output power level does not exceed the levels shown below in order for the RF output spectral emissions to be compliant with the FCC spurious emissions limit of -13 dBm outside of the assigned frequency block. These levels must not be exceeded. Channel Frequency (MHz) Maximum RF 0utput (Watt)* 869.2-893.8 125 * Note: The Maximum RF Output Power is after any passive losses after the Booster Amplifier such as filters and cables. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. In order to comply with FCC rules for RF exposure, it must be observed that the antenna connected to this equipment be fixed on an outdoor structure and that it must have a minimum separation distance of 10 meters between it and any person."

TUNE-UP PROCEDURE Unit is factory set, no user accessible controls

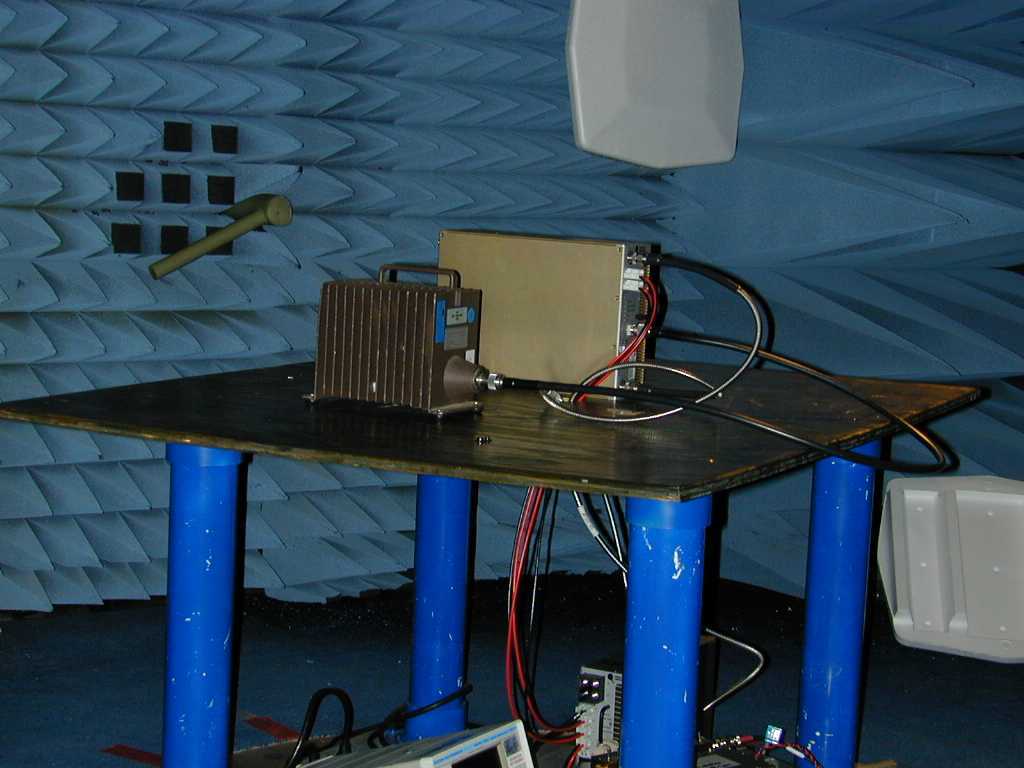

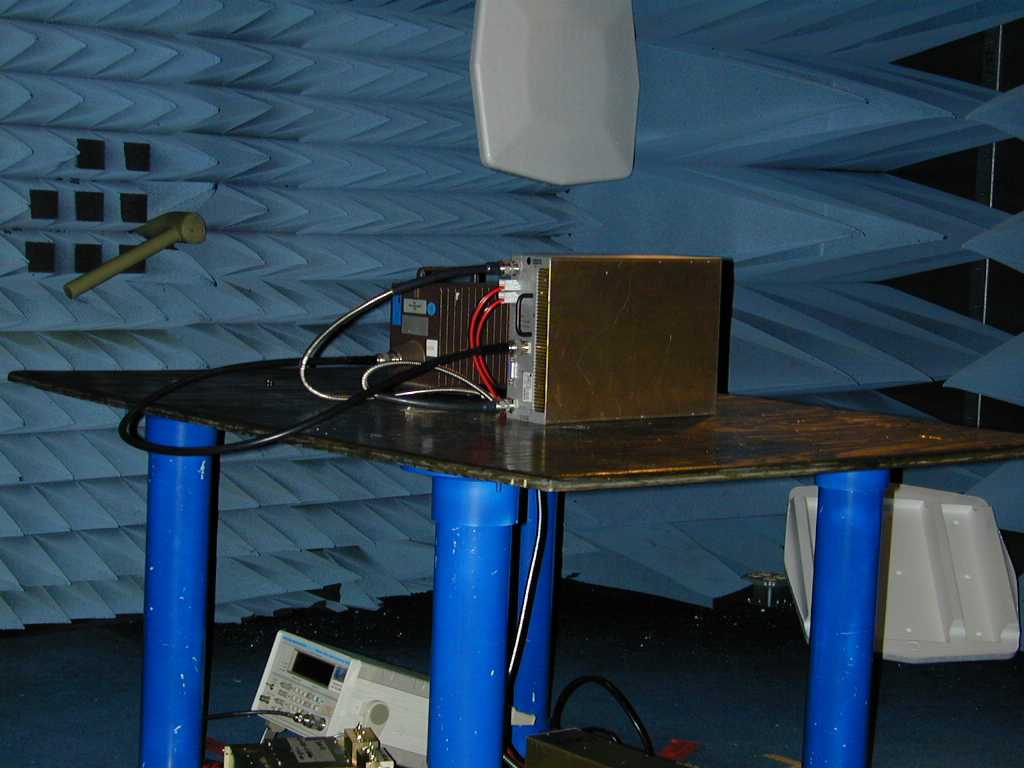

Nemko Test Report: 4L0360RUS1Rev1 Applicant: Communication Components, Inc. 89 Leuning Street 2 nd Floor Hackensack, NJ 07606 Equipment Under Test: DAC-850-125 (E.U.T.) In Accordance With: FCC Part 22, Subpart H 850 MHz Cellular Band Amplifier Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: June 2, 2004 Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Report No.: 4L0360RUS1Rev1 Page 2 of 46 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS..............................................................................................................3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION............................................................................................5 SECTION 3. RF POWER OUTPUT..................................................................................................................................7 SECTION 4. OCCUPIED BANDWIDTH.........................................................................................................................8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS.....................................................................13 SECTION 6. FIELD STRENGTH OF SPURIOUS........................................................................................................28 SECTION 7. TEST EQUIPMENT LIST..........................................................................................................................31 ANNEX A - TEST DETAILS..................................................................................................................................................32 ANNEX B - TEST DIAGRAMS.............................................................................................................................................41 Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Report No.: 4L0360RUS1Rev1 Page 3 of 46 Section 1. Summary of Test Results Manufacturer: Communication Components, Inc. Model No.: DAC-850-125 Serial No.: 005066 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Report No.: 4L0360RUS1Rev1 Page 4 of 46 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 22.913(a) 500W ERP Complies Occupied Bandwidth 22.917(c) Input/Output Complies Spurious Emissions at Antenna Terminals 22.917 -13 dBm Complies Field Strength of Spurious Emissions 22.917 -13 dBm E.I.R.P. Complies Frequency Stability 22.355 1.5 ppm NA Footnotes: (1) Device does not demodulate input RF. Measurement uncertainty for each test configuration is expressed to 95% probability. . Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Report No.: 4L0360RUS1Rev1 Page 5 of 46 Section 2. General Equipment Specification Supply Voltage Input: Frequency Range: 869.2 to 893.8 MHz Note: At the highest and lowest channels, the power output must be reduced to 3 Watts for GSM and 5.8 Watts for EDGE modulations to achieve bandedge compliance. CDMA GSM NADC EDGE AMPS (F9W) (G7W) (DXW) (G7W) (F8W, F1D) Type of Modulation and Designator: Output Impedance: 50 ohms Downlink: Per Channel: 62.5 W RF Output (Rated): Total: 125 W Uplink: Per Channel: NA W Total: NA W Frequency Translation: F1-F1 F1-F2 N/A Software Duplexer Change Fullband Coverage Band Selection: Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Report No.: 4L0360RUS1Rev1 Page 6 of 46 Description of Operation The device is a base station amplifier operating in the 850 MHz cellular band utilizing GSM and GSM EDGE technology. Each input outputs 62.5 Watts single carrier only and input into a combiner prior to output. The device is rated at 125 Watts combined power. System Diagram Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Report No.: 4L0360RUS1Rev1 Page 7 of 46 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 5/12/2004 Test Results: Complies. Test Data: Modulation Type Per Channel Power Output (dBm) Composite Power Output (dBm) Per Channel Power Output (Watts) Composite Power Output (Watts) GSM 47.96 50.96 62.5 125 EDGE 47.96 50.96 62.5 125 Note: RF power output must be reduced at 869.2 and 893.8 MHZ to 3 Watts for GSM and 5.8 Watts for EDGE modulations to adhere to bandedge requirements. Equipment Used: 1036-1604-1054-1629- Measurement Uncertainty: +/- 1.7 dB Temperature: 24 ?C Relative Humidity: 45 % Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Report No.: 4L0360RUS1Rev1 Page 8 of 46 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 5/12/2004 Test Results: Complies. Test Data: See attached plots Nemko Dallas FCC PART 22, SUBPART H 850 MHz Cellular Band Amplifier EQUIPMENT: DAC-850-125 Test Repo…
