NUL4502001ZIGOHM ZigBee

Correspondence by Project Project Number: Correspondence Number Memo NUL4502001ZIG-1 1) Please provide a TCB contract. A) A new TCB Contract has been provided. 2) The sample FCC ID label does not show the FCC ID. Please submit a corrected FCC ID label. A) A new FCC ID Label has been provided. 3) Please provide a TCB submittal attestation letter. A) A TCB Submittal Attestation Letter has been provided. 4) Please describe the type of modulation that is used. A) The type of modulation used is OQPSK. 5) Please provide the gain for the antenna that will be used. A) The antenna gain is 2.0dBi. 6) The user manual provided only contains the required FCC statements, but no actual instructions. Please provide instructions as required in 2.1033(b)(3). A) The full users manual has been provided. 7) Please provide full schematics of the device. Only schematics for the radio portion have been provided. A) Full schematics have been provided. Untitled Documenthttp://www.celectronics.com/CorrespondenceByProject.asp?ProjectNum... 1 of 11/16/2014 9:55 AM

This device FCC ID: is excluded from SAR testing by the following justi fication The maximum power that the transmitter is capable o f is 108.64 mW Applied duty cycle? no !!!!!!!!!! NOT VALID FOR FREQUENCIES BELOW 100MHz !!!!!!!!!! NUL4502001ZIG The maximum power that the transmitter is capable o f is 108.64 mW Applied duty cycle? no Using the following formula from section 4.3.1 of K DB 447498 at test speparation distances > 50mm [(Power limit for <50mm) + (seperation distance - 5 0mm) * 10] When the minimum test separation distance is < 5 mm , a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Duty Cycle Value 1-g (mW) 10-g (mW) 50.00% see power limit -> 667 812 "Value" shall be ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR 1-g power limit 10-g power limit < 50mm power limits for above frequency and distanc e Max Peak Power (dBm) Min Separation distance (mm) Fre quency (Ghz) 20.36 107 2.405 1-g power limit 10-g power limit 97 242 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An e xample of this is the determination of exposure from a device that uses d igital technology such as a time-division multiple- access (TDMA) scheme for transmission of a signal. In general, maximum a verage power levels must be used to determine compl iance. determination of exposure from a device that uses d igital technology such as a time - division multiple - access (TDMA) scheme for transmission of a signal. In general, maximum a verage power levels must be used to determine compl iance.

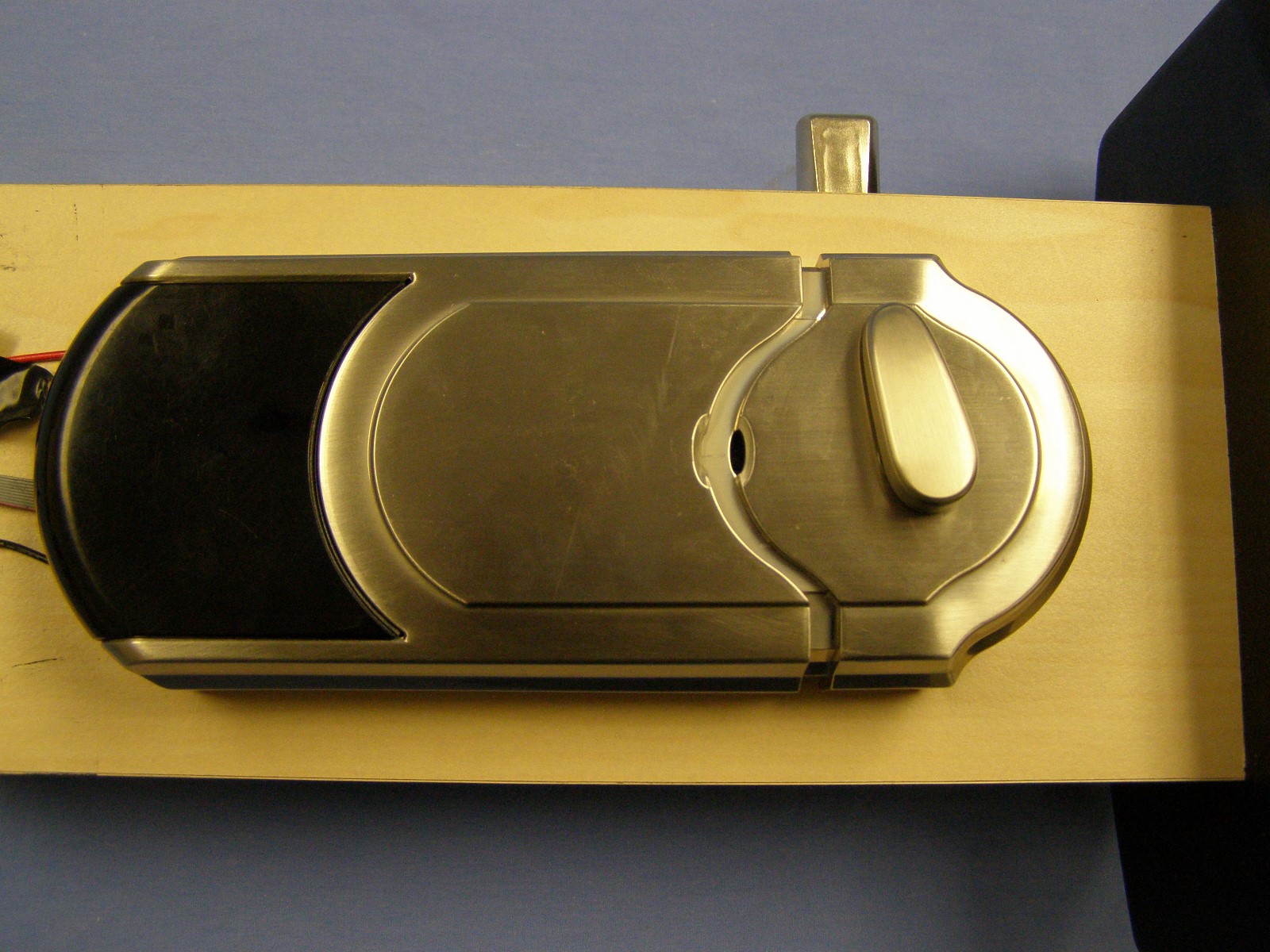

Report Number: D21119P1 FCC ID: NUL4502001ZIG FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15 SUBPART B & C TEST REPORT for ELECTRONIC LOCK Model: OHM ZIGBEE Prepared for KWIKSET HHI 19701 DAVINCI FOOTHILL RANCH, CA 92610 Prepared by:_____________________ MATT HARRISON Approved by:____________________ JEFF KLINGER COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: JANUARY 9, 2014 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 13 45 83 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D21119P1 FCC ID: NUL4502001ZIG FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration 9 4.1.1 Photograph Test Configuration 9 4.1.2 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 6.3 Facility Environmental Characteristics 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Channel Number and Frequencies 14 7.2 Antenna 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.1.3 DTS Bandwidth 17 8.1.4 Maximum Peak Conducted Output Power 17 8.1.5 Maximum Peak Power Spectral Density Level In The Fundamental Emission 17 8.1.6 Emissions in Non-Restricted Frequency Bands (in 100kHz Bandwidth) 18 8.1.7 Emissions in the Restricted Bands (Radiated) 18 8.1.8 Emissions Radiated Outside of the Fundamental Frequency Band 18 8.1.9 Duty Cycle 19 9. TEST PROCEDURE DEVIATIONS 19 10. CONCLUSIONS 19 Report Number: D21119P1 FCC ID: NUL4502001ZIG FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Factors, Charts, and Photos  Test Setup Diagrams  Antenna and Amplifier Factors  Radiated Emissions Photos E Radiated Emissions Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Below 1GHz 2 Plot Map And Layout of Test Site Above 1GHz Report Number: D21119P1 FCC ID: NUL4502001ZIG FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government or other governments. Device Tested: Electronic Lock Model: OHM ZigBee S/N: N/A Product Description: The EUT is an electronic lock transmitting via ZigBee Protocol. Modifications: The EUT was modified in order to comply with specifications. Please see the list of modifications in Appendix B. Manufacturer: Kwikset HHI 19701 DaVinci Foothill Ranch, CA 92610 Test Dates: January 6-9, 2014 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart B Section 15.109, & Subpart C Sections 15.205, 15.209 & 15.247. Test Procedure: ANSI C63.4 & C63.10, and KDB 558074 D01 v03R01. Report Number: D21119P1 FCC ID: NUL4502001ZIG FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz The EUT does not connect to AC Mains; therefore this test was not performed. 2 Radiated RF Emissions & Harmonics, 9 kHz – 25,000 MHz Complies with the limits of CFR Title 47 Part 15 Subpart B, Section 15.109 and Subpart C Sections 15.205, 15.209 3 DTS Bandwidth Comp…

Text truncated - open the document above for the full version.

Pulse Type Width # of Pulses Pulse 1 740 uS 5 Pulse 2 500 uS 3 Pulse 3 1780 uS 1 Total On Time: 6980 uS Standard Lock / Unlock Mode: Span of Pulses = 100ms 6.98mS / 100mS = 0.0698 20Log(0.0698) = -23.12 dB Max Correction Factor -20dB The Duty Cycle has been measured in Standard Lock / Unlock Mode, Retry Mode, Rejoin Mode, and Restart Mode. The Standard Lock / Unlock Mode produced the worst case out of these modes. According to specifications from the firmware designer a worst case possible duty cycle of 11.58% was provided and used for testing.
