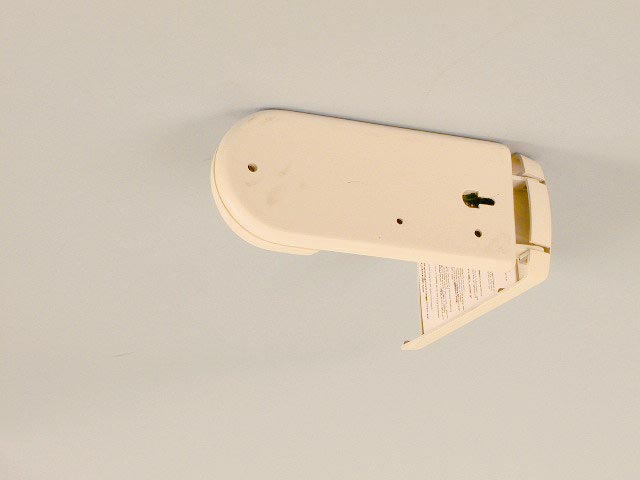

NUL898Security Keypad Transmitter

Kwikset Model Number 898 Remote Keypad Kwikset Corporation, 2000 Programming Remote Keypads (Model number 898) To light up the keypad, push any key before proceeding... Changing a PIN: 1. Enter the PIN you wish to change, the Action LED illuminates green 2. Simultaneously push and hold the “1” and “2” buttons, the Action LED will start flashing red, keep holding “1” and “2” buttons 3. Once the LED starts to flash green, release the “1” and “2” buttons and enter the new PIN (up to 8 digits long) 4. Push LOCK to store new PIN, the Actions LED will extinguish Enabling/Disabling the Auxiliary PIN: 1. Enter your Master PIN, the Action LED illuminates green 2a. To enable the Auxiliary PIN, simultaneously push the UNLOCK and “2” buttons, the Action LED will flash green two times 2b. To disable the Auxiliary PIN, simultaneously push the LOCK and “2” buttons, the Action LED will flash red two times Resetting PINs to Factory Presets: 1. Simultaneously push and hold the LOCK and “5” buttons, the Action LED will start flashing red 2. After 5 seconds, the keypad will shut down and the Master and Auxiliary PINs will be reset to 1-2-3 and 4-5-6 respectively. The Auxiliary PIN will be disabled. 3. All AccessOne Receivers need to be reprogrammed to recognize the Keypad Low Battery Indicator: Under normal conditions, the Action LED will flash red once for each keystroke. When batteries are low, the Action LED will flash red-green-red with each keystroke. Replace batteries immediately to prevent a lock-out situation. Toll Free Installation Information 1-800-327-LOCK USA & Canada This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: NUL-898 Canada : ######

Elliott Laboratories, Inc. -- EMC DepartmentTest Report Report Date: February 24, 2000 File: R36024Page 2 of 14 pages 7$%/(2)&217(176 COVER PAGE ............................................................................................................................................................ 1 TABLE OF CONTENTS............................................................................................................................................ 2 SCOPE ......................................................................................................................................................................... 4 OBJECTIVE ............................................................................................................................................................... 4 STATEMENT OF COMPLIANCE .......................................................................................................................... 4 EMISSION TEST RESULTS..................................................................................................................................... 5 LIMITS OF CONDUCTED INTERFERENCE VOLTAGE ................................................................................... 5 LIMITS OF RADIATED INTERFERENCE FIELD STRENGTH – FUNDAMENTAL FIELD STRENGTH ..... 5 LIMITS OF RADIATED INTERFERENCE FIELD STRENGTH – SPURIOUS EMISSIONS............................ 5 LIMITS OF BANDWIDTH AND TRANSMIT TIME ...........................................................................................5 MEASUREMENT UNCERTAINTIES ................................................................................................................... 6 EQUIPMENT UNDER TEST (EUT) DETAILS...................................................................................................... 7 GENERAL ............................................................................................................................................................... 7 INPUT POWER ....................................................................................................................................................... 7 PRINTED WIRING BOARDS ................................................................................................................................ 7 SUBASSEMBLIES.................................................................................................................................................. 7 ENCLOSURE .......................................................................................................................................................... 7 EMI SUPPRESSION DEVICES.............................................................................................................................. 8 ANTENNA SYSTEM.............................................................................................................................................. 8 MODIFICATIONS .................................................................................................................................................. 8 SUPPORT EQUIPMENT ........................................................................................................................................ 8 EXTERNAL I/O CABLING .................................................................................................................................... 8 TEST SOFTWARE.................................................................................................................................................. 8 TEST SITE .................................................................................................................................................................. 9 GENERAL INFORMATION .................................................................................................................................. 9 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................... 9 MEASUREMENT INSTRUMENTATION ............................................................................................................ 10 RECEIVER SYSTEM............................................................................................................................................ 10 INSTRUMENT CONTROL COMPUTER............................................................................................................ 10 FILTERS/ATTENUATORS .................................................................................................................................. 10 ANTENNAS .......................................................................................................................................................... 11 ANTENNA MAST AND EQUIPMENT TURNTABLE ...................................................................................... 11 INSTRUMENT CALIBRATION .......................................................................................................................... 11 TEST PROCEDURES .............................................................................................................................................. 12 EUT AND CABLE PLACEMENT........................................................................................................................ 12 RADIATED EMISSIONS ..................................................................................................................................... 12 SPECIFICATION LIMITS AND SAMPLE CALCULATIONS.......................................................................... 13 LIMIT FOR FUNDAMENTAL FIELD STRENGTH §15.231( A)........................................................................ 13 LIMITS FOR SPURIOUS EMISSIONS IN RESTRICTED BANDS §15.209 ..................................................... 13 LIMITS FOR SPURIOUS EMISSIONS OUTSIDE RESTRICTED BANDS §15.231…
