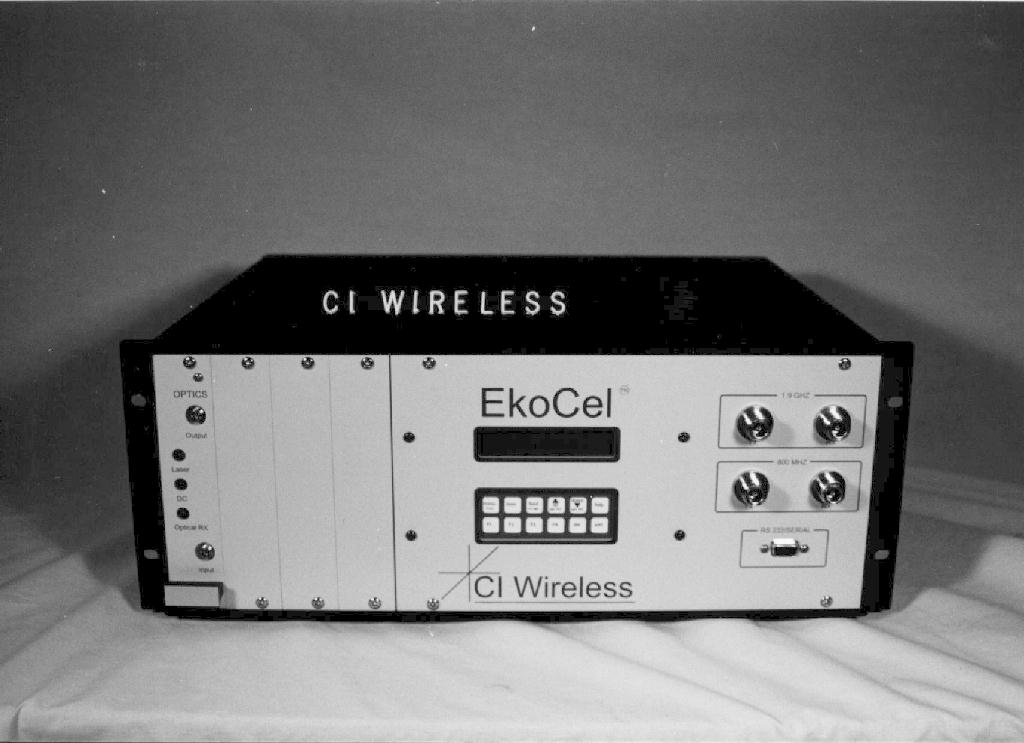

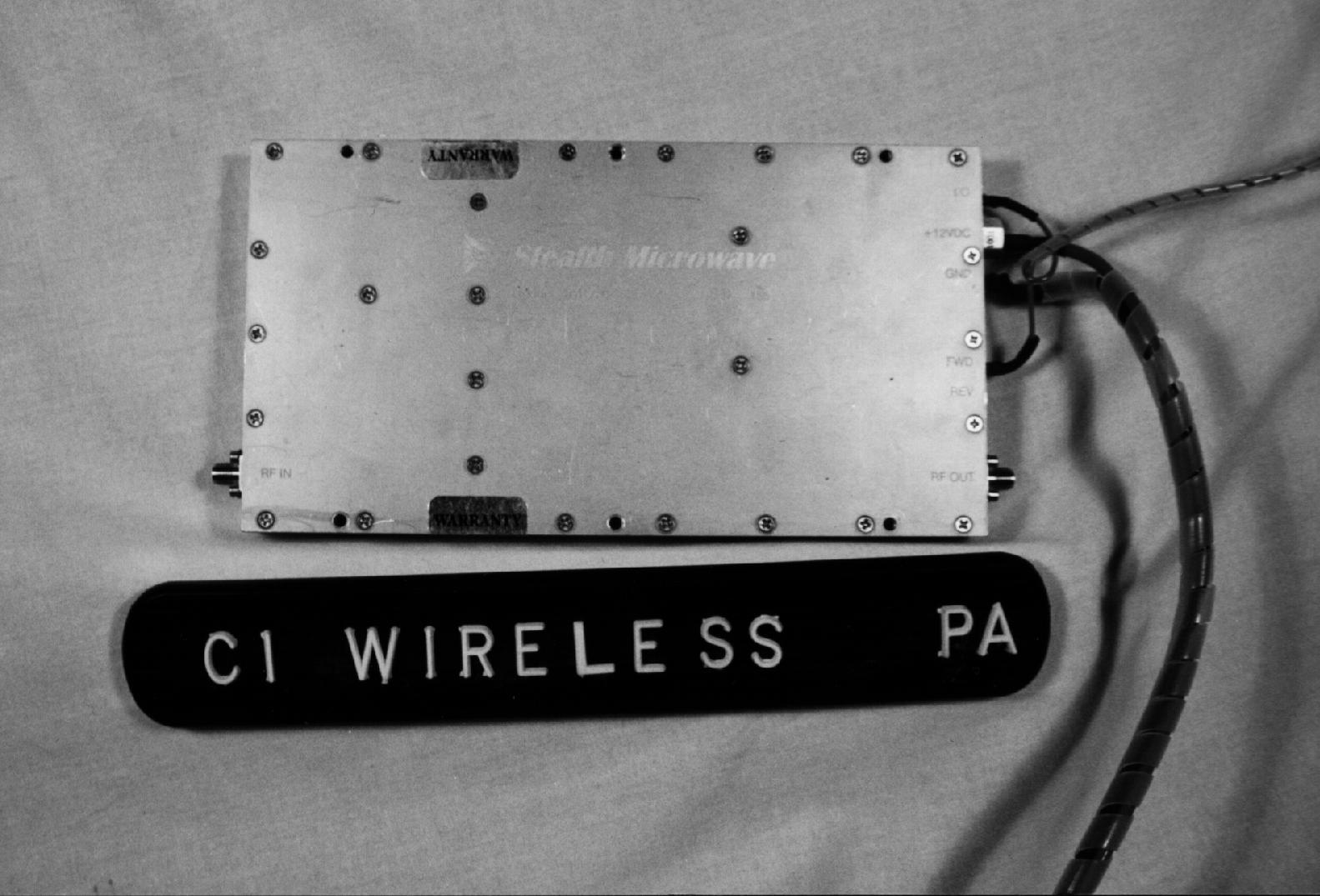

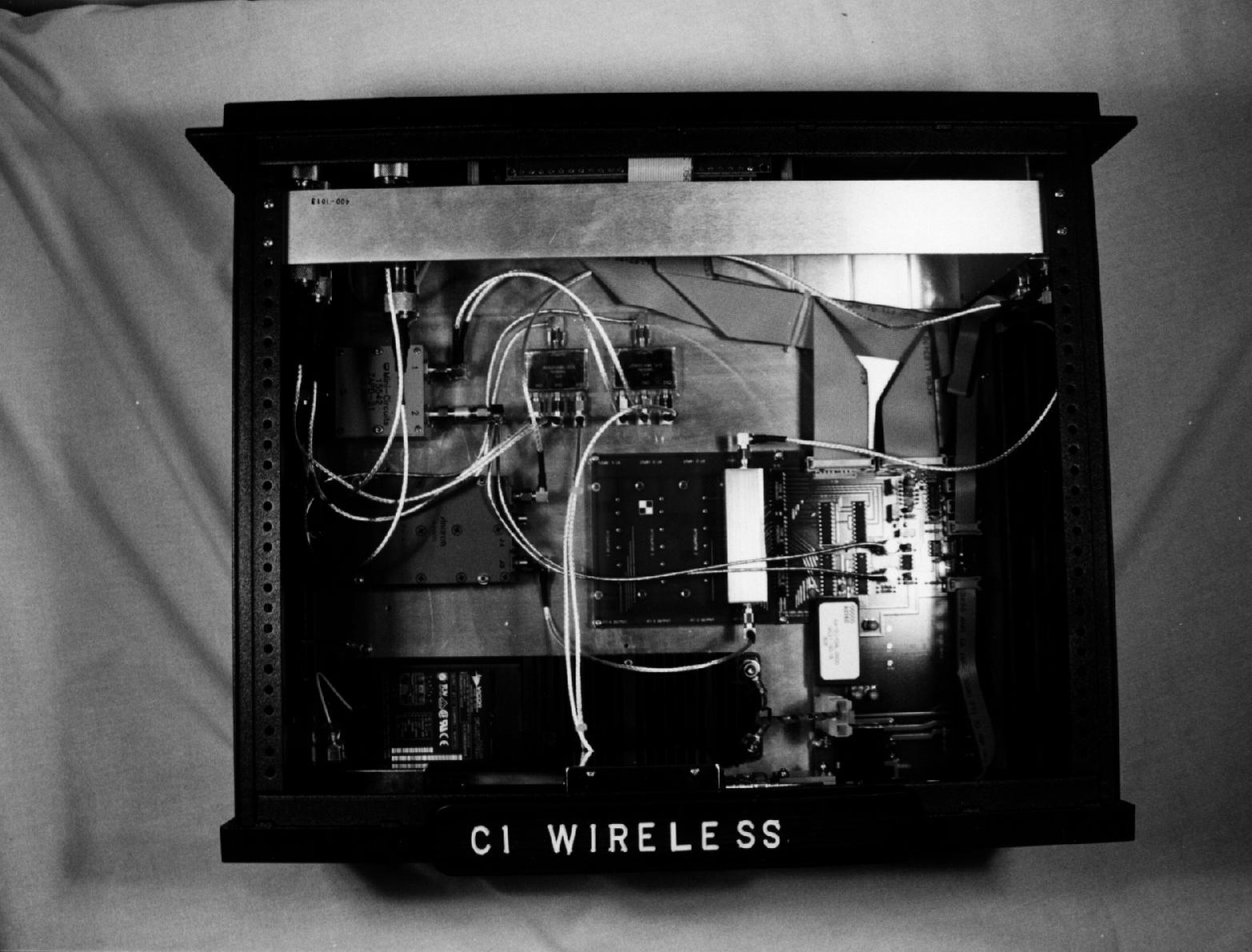

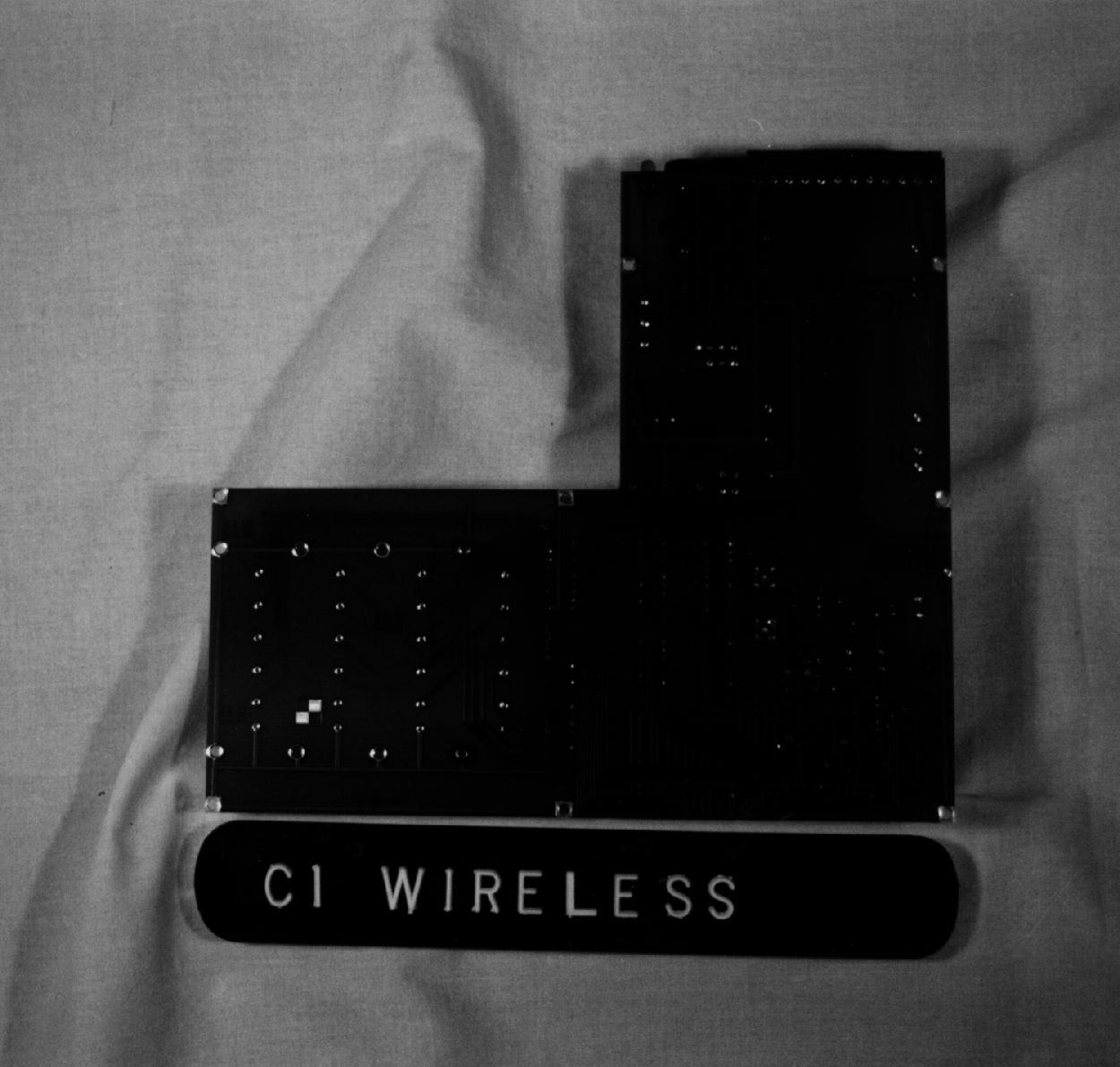

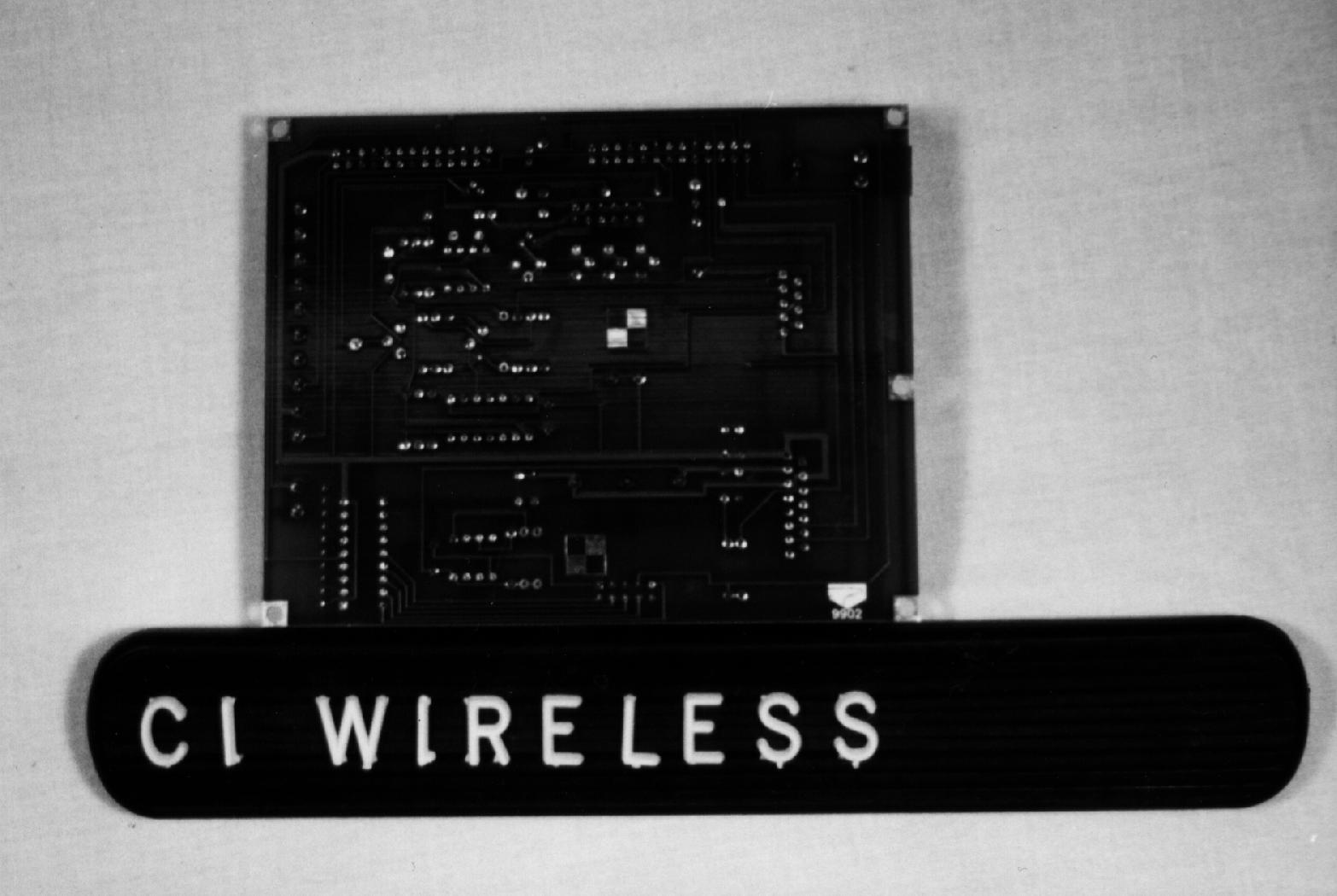

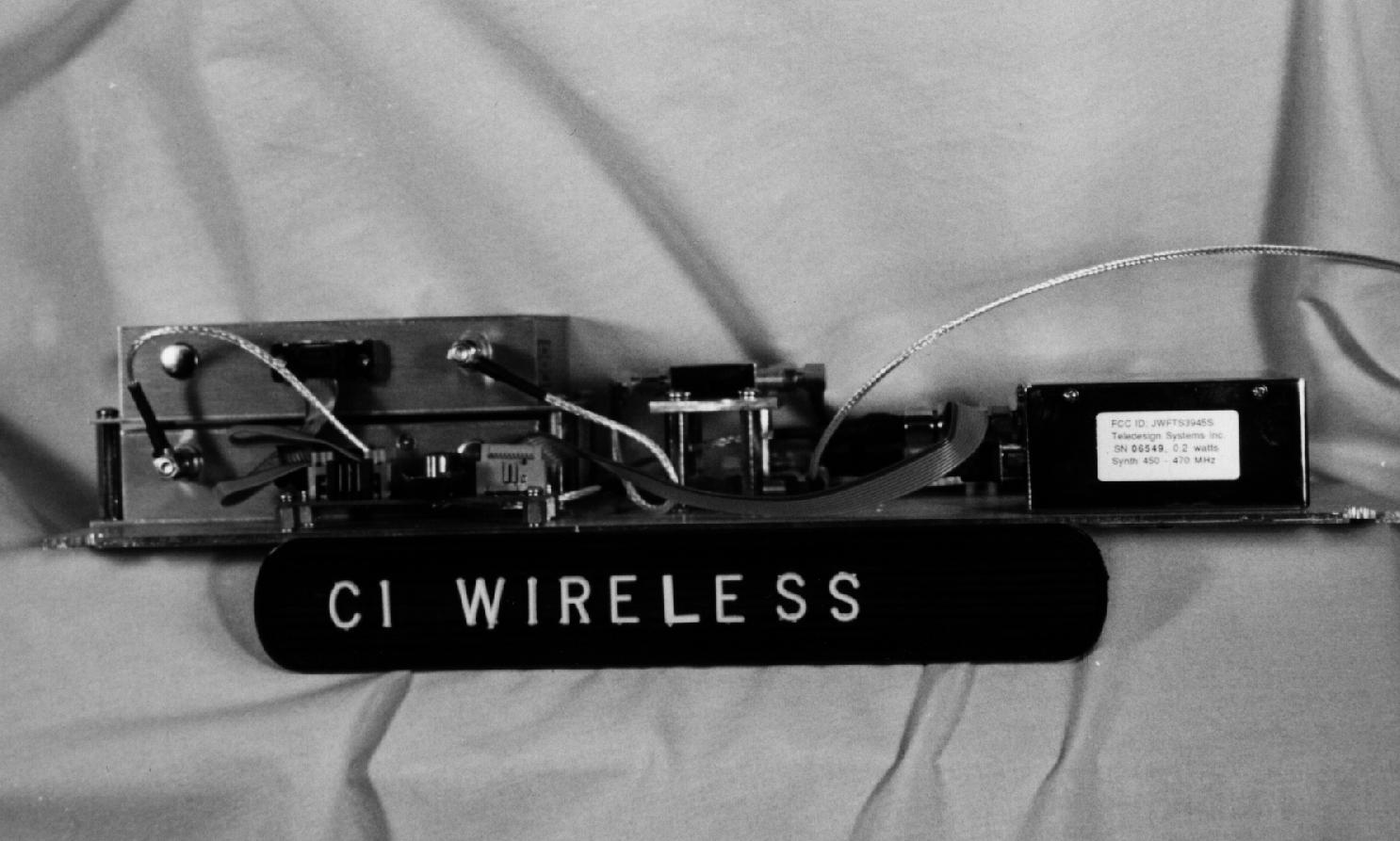

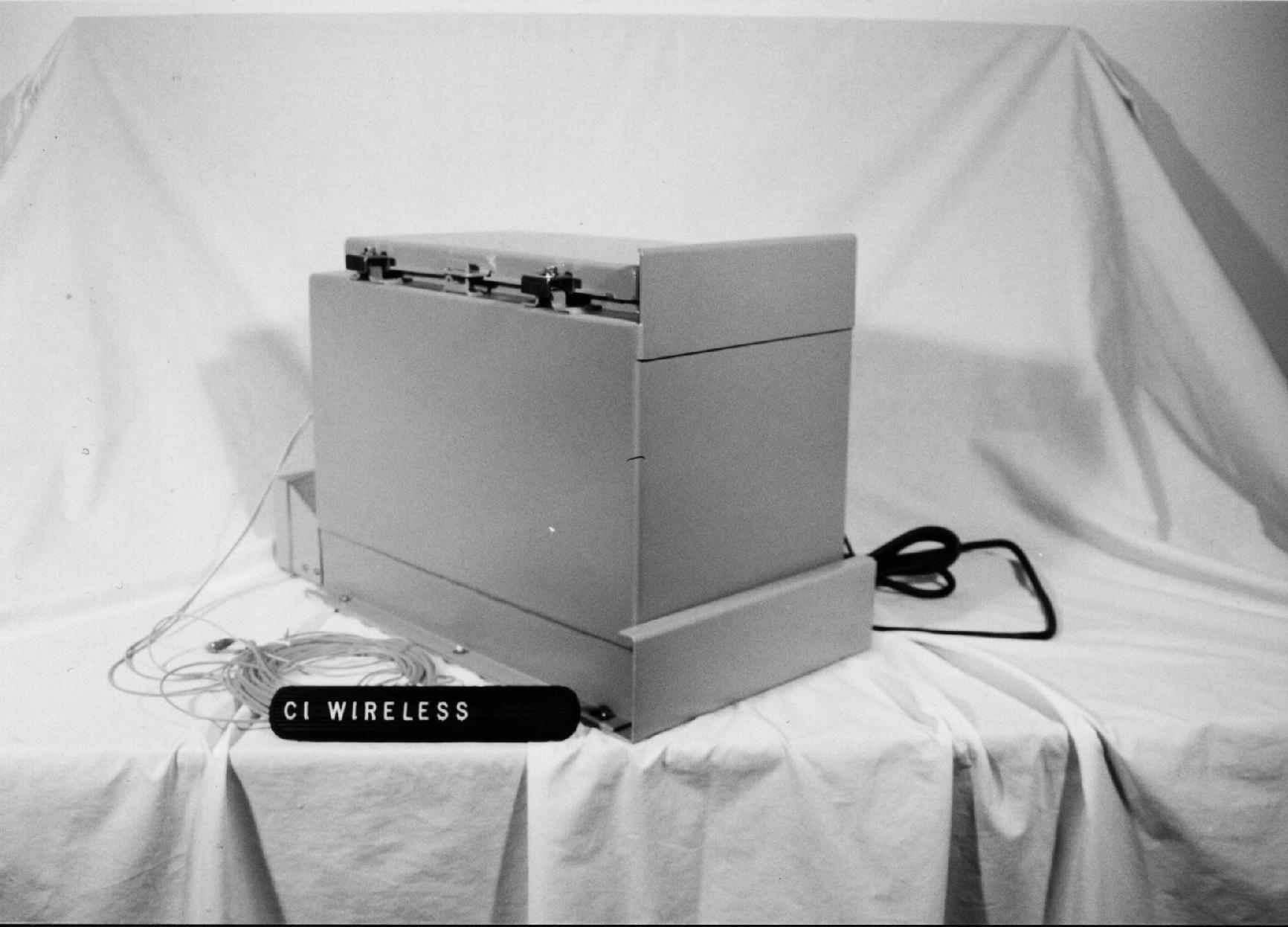

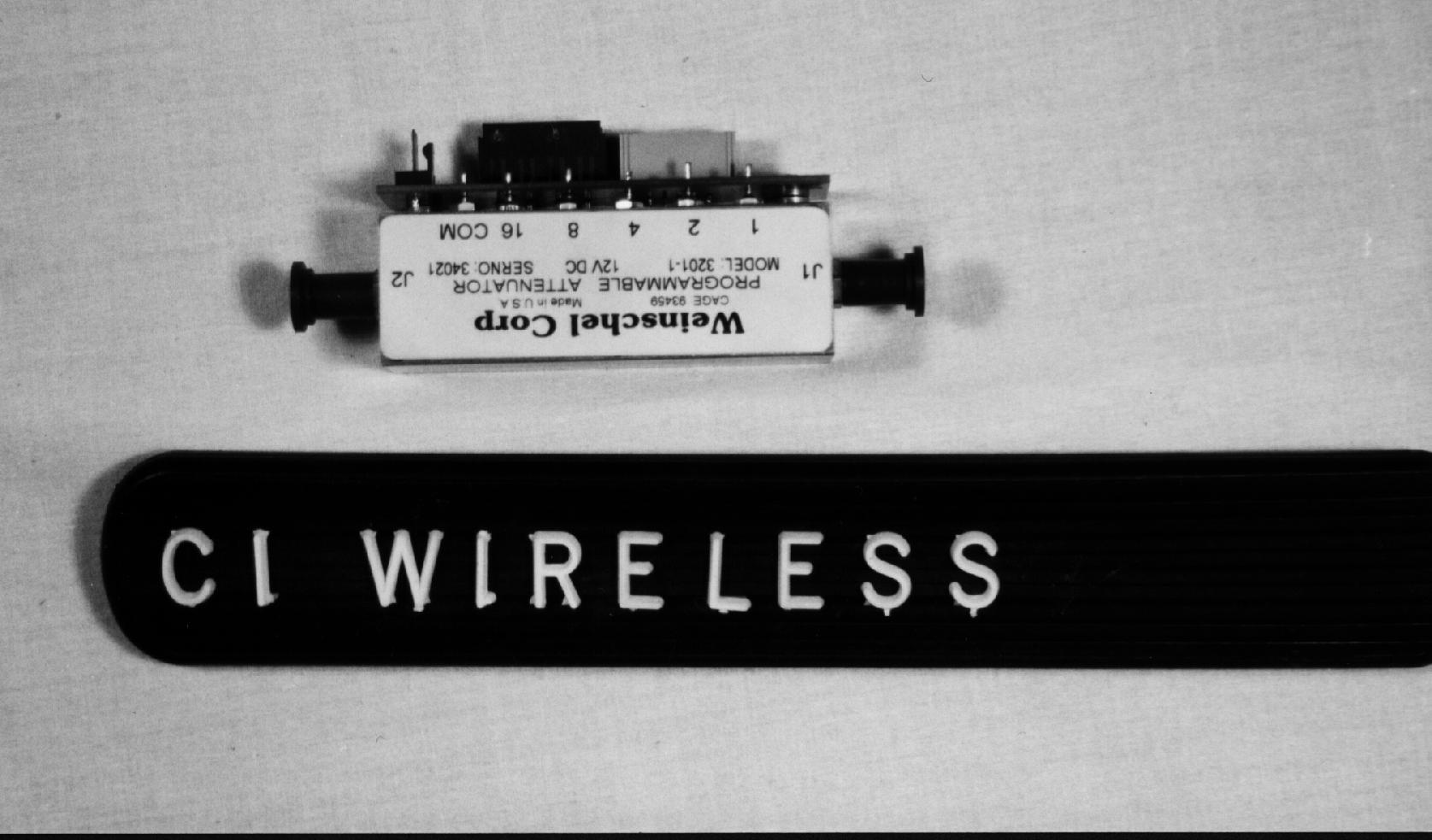

NUW008EKO191900 MHz PCS Band 8 Watt Repeater

EMS Technologies Inc

Click to zoom

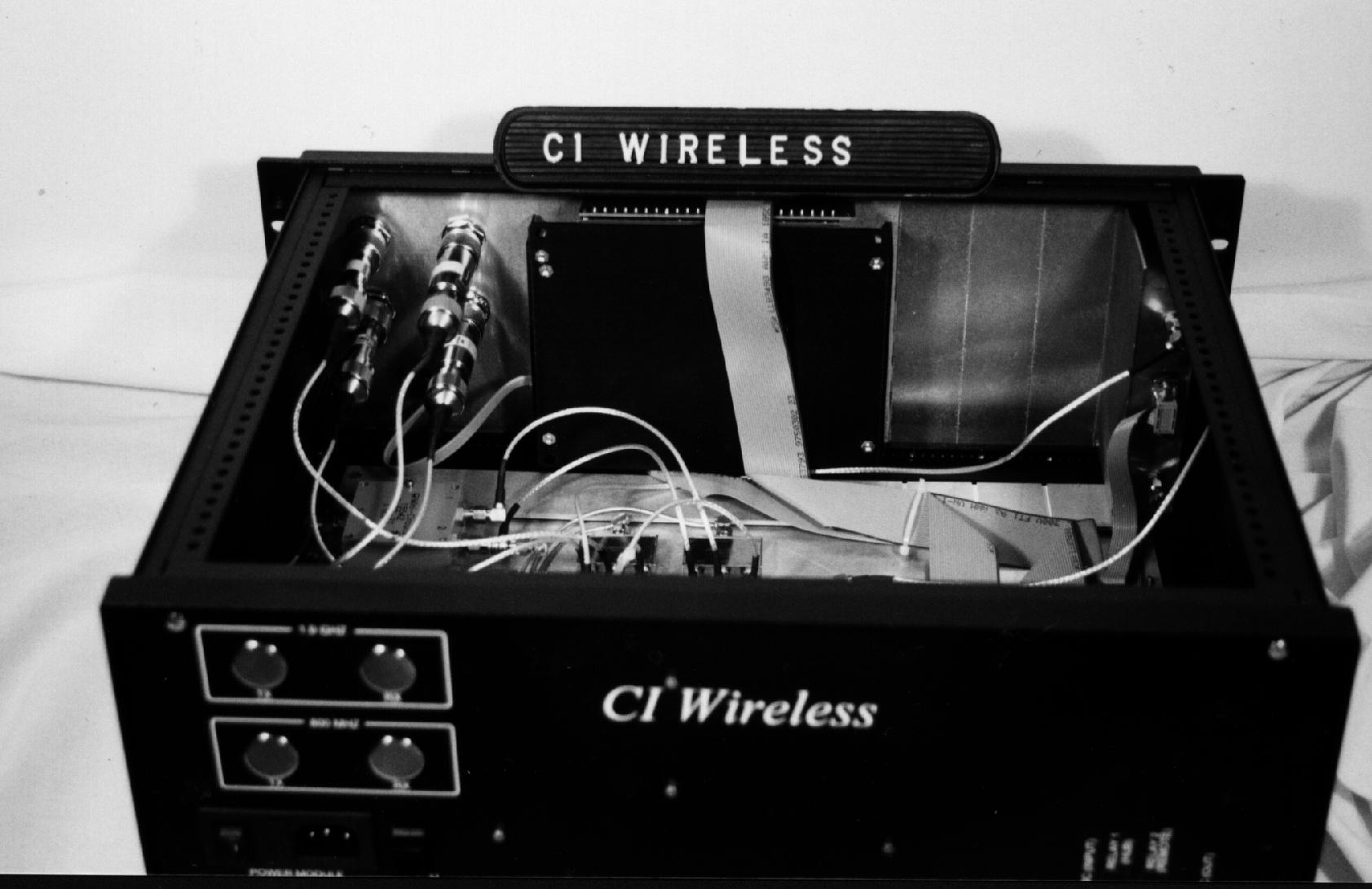

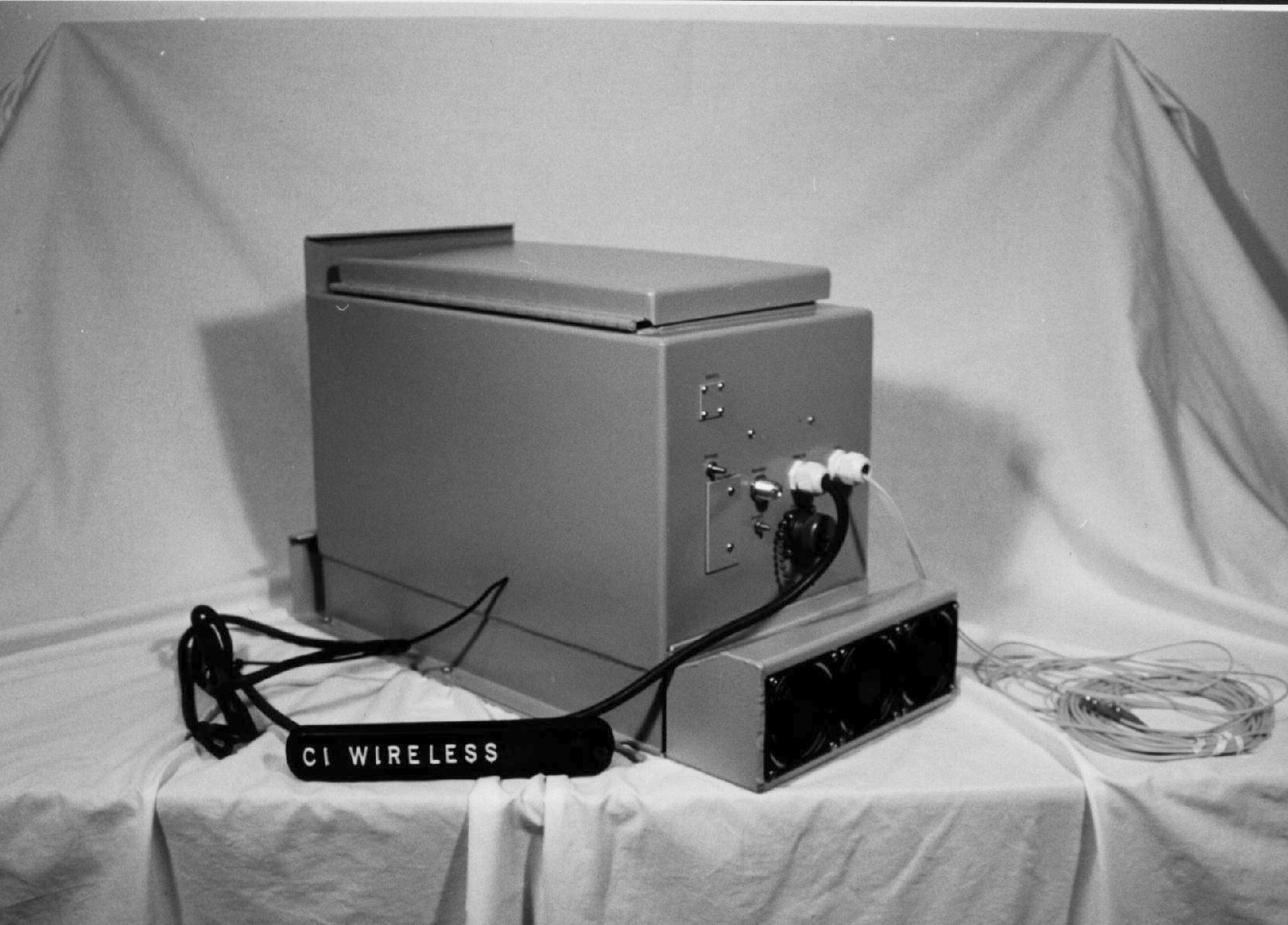

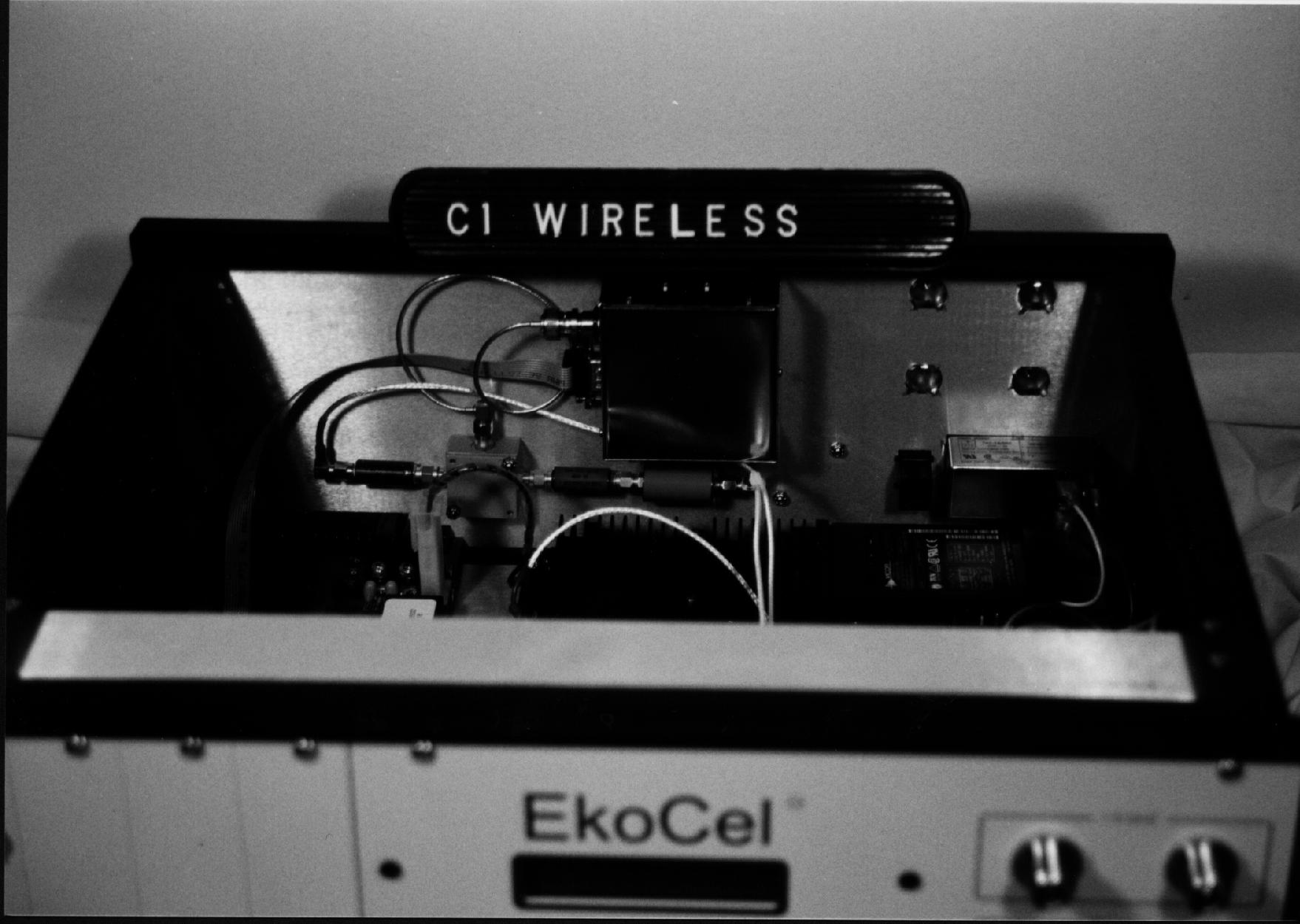

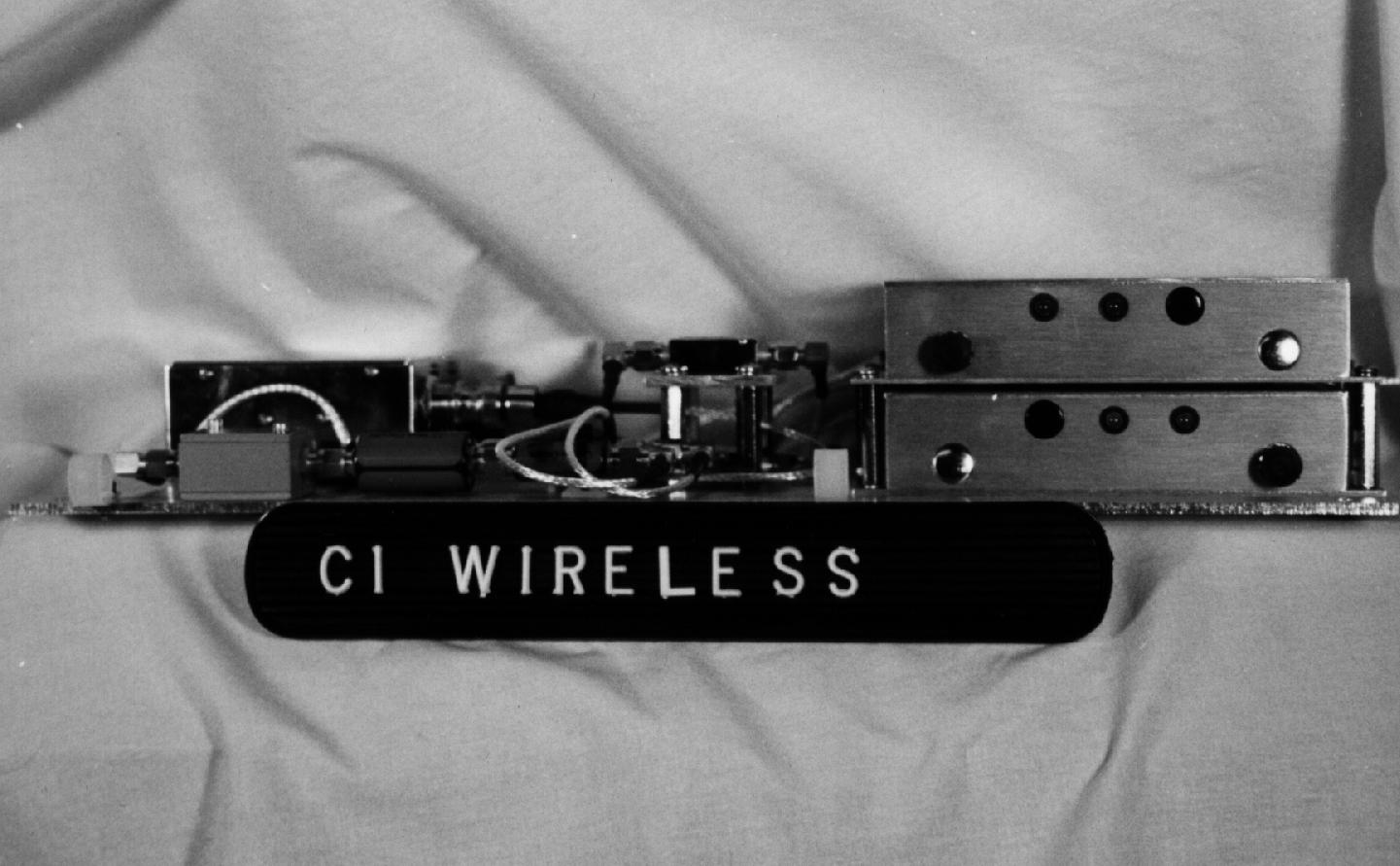

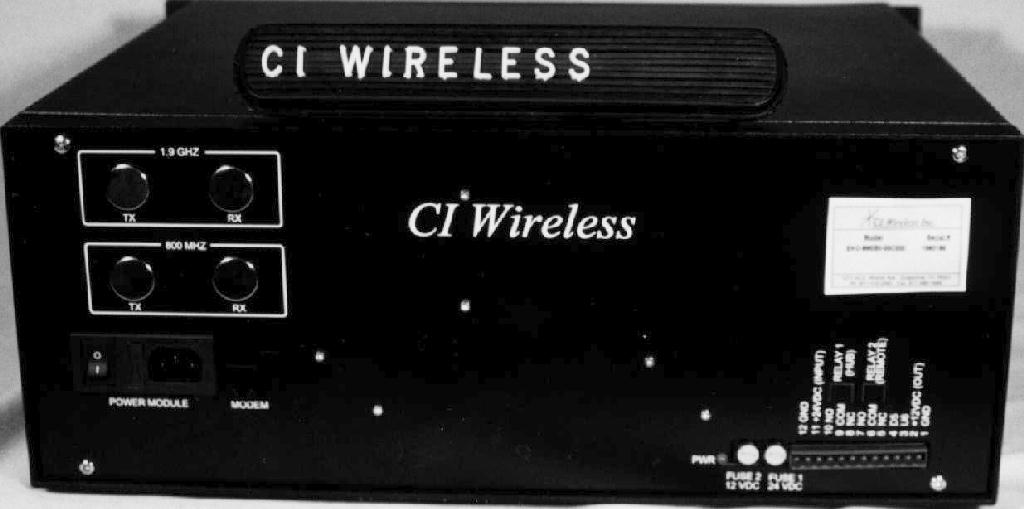

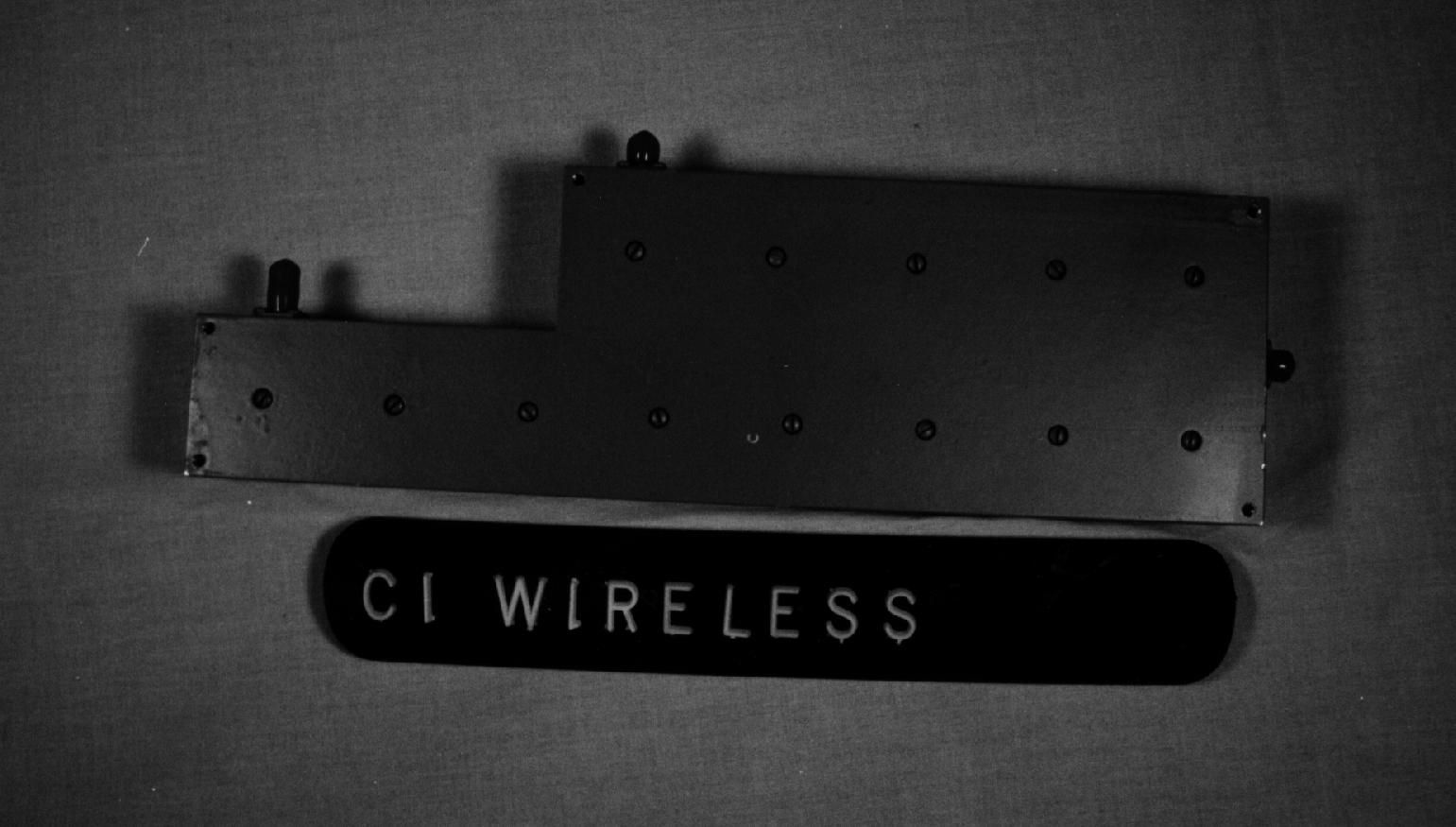

Application Details

Equipment Class: AMP - Amplifier
Date of Grant: Apr 25, 1999
Application Purpose: Original Equipment
Date of Application: Feb 21, 1999
Equipment Note: 1900 MHz PCS Band 8 Watt Repeater
Frequency Range: 1930.00000000 - 1965.00000000
Company: EMS Technologies Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CI Wireless Inc.1211 Ira E Woods Ave1 Tel: 817 416 0583Grapevine, TX 76051 TABLE OF CONTENTS 1.0 Product Description 2.0 EkoCel, System Block Diagram 2.1 EkoCel, Hub Block Diagram 2.2 EkoCel, Microcell Block Diagram 3.0 Description of EkoCel Fiber Optic Microcell System 3.1 Hub 3.2 Microcell 4.0 Description of the Hub Unit Modules 4.1 Fiber Optic Transceiver 4.2 Modem 4.3 RF Detector 4.4 4-Way Splitter/Combiner 4.5 DC/DC Converter 4.6 Hub Interconnect Module 4.7 Controller Module 4.8 AC Power Supply 4.9 Telco Modem 4.10 Duplex, Base Station Interface 4.11 Combiner Option 4.12 Cross Band Operation Option 4.13 Wave Division Multiplexer (WDM) 4.14 Optical Expansion Module 5.0 Description of the Microcell Unit Modules 5.1 Fiber Optic Transceiver 5.2 RF Modem 5.3 LNA/Driver Module 5.4 Duplexer 5.5 Lightning Arrestor 5.6 Power Amplifier Module 5.7 Heater/Thermostat Option 5.8 Microcell (Remote) Control Interface Module 5.9 Power supply for 1.9 GHz and 800 MHz 5.10 Main/Battery Back Up (BBU) Assembly Option 5.11 Fan Control/Alarm Module CI Wireless Inc.1211 Ira E Woods Ave2 Tel: 817 416 0583Grapevine, TX 76051 6.0 Identification of Hub 6.1 Front Panel Layout 6.2 Rear Panel Layout 6.3 Hub Components Layout 6.4 Optical Transceiver 6.5 Wave Division Multiplexer 6.6 System Interconnect 700-1005 Interconnect Module Board Input Connectors Controls Terminal Strip Attenuators Output to Up Link Combiner RF Inputs Input to Optical Transceiver RF Out Other 700-1001 Board 7.0 Identification of Microcell 7.1 Left Panel, A Single Band 7.2 Left Panel, Dual Band 7.3 Door Panel Microcell 7.4 Back (Heat Sink) Microcell (EKO-8) (EKO 1.9R) 7.4bBack (Heat Sink) Microcell (EKO-1.9M) 7.5 Base Bottom 7.6 Triplexer 7.7 System Interconnect 8.0 Software Control Module 8.1 Microcell (Remote) Unit Controller 8.1.1 Basic Interface 8.1.2 System Setup 8.1.3 User Settings 8.1.4 Alarms 8.2 Hub Unit Controller 8.2.1 Basic Interface 8.2.2 System Setup 8.2.3 User Settings 8.2.4 Alarms 8.3 RS 232 Port Communications 8.3.1 Terminal Interface Displays 9.0 Installation 9.1 Introduction 9.2 Getting Started 9.3 Mounting Hub Hardware 9.4 Mounting the Microcell Unit CI Wireless Inc.1211 Ira E Woods Ave3 Tel: 817 416 0583Grapevine, TX 76051 9.5 EkoCel 1.9 System Set Up Instructions 9.5.1 CDMA Down Link Set Up 9.5.2 CDMA Up Link System Set Up 9.5.3 GSM Down Link Set Up 9.5.4 GSM Up Link System Set Up 9.5.5 TDMA Down Link Set Up 9.5.6 TDMA Up Link System Set Up 9.5.7 Down Link Set Up for EKO-8 System 9.5.8 Up Link System Set Up for the System 9.6 Calibration Table – U2 9.6.1 Calibration Table – U3 9.6.2 Calibration Table - U5 10.0 Trouble Shooting and Maintenance 10.1 Trouble Shooting Guide 10.2 Understanding Maintenance Inputs/Alarms 10.3 Module Replacement Procedures Appendix A.Specifications A1.2 Watt CDMA 1.9 GHz A2.2 Watt GSM 1.9 GHz A3.2 Watt IS-136 1.9 GHz A4. 4-5 Watt 800 ESMR & Cellular A5.8 Watt CDMA 1.9 GHz A6.8 Watt GSM 1.9 GHz A7.8 Watt IS-136 1.9 GHz B.Model Number Identification (1.9M) 2 watt C.Model Number Identification (800M) D.Model Number Identification(1.9R) 8watt E.Frequency Bands Channel Plans E1.CDMA 1.9 GHz E2.CDMA 900 MHz E3.GSM 1.9 GHz E4. IS-136 1.9 GHz F.Glossary of Terms H.Product Warranty CI Wireless Inc.1211 Ira E Woods Ave4 Tel: 817 416 0583Grapevine, TX 76051 CI Wireless Inc.1211 Ira E Woods Ave5 Tel: 817 416 0583Grapevine, TX 76051 EkoCel FIBER OPTIC MICROCELL SYSTEM 1.0 PRODUCT DESCRIPTION The EkoCel™ Fiber Optic Microcell System will support CDMA, PCS 1900, IS-136 or AMPS system formats. EkoCel provides system coverage enhancement by remoting the base station RF receive and transmit via a fiber optic connection to a location requiring coverage. EkoCel is designed to meet or exceed applicable base station and FCC emission standards. The EkoCel enhanced specifications provide minimal impact to the overall system performance. EkoCel is comprised of two major components the Microcell (Remote) Unit, which is remotely located in the area being provided service and the Hub Unit, which is located at the base station. EkoCel will support multiple RF channels on all PCS system formats and up to 24 channels for AMPS Cellular. Several options are available including, Wave Division Multiplexing (WDM), diversity receive, battery back up and duplex interface at the base station. EkoCel is supplied in all of the PCS bands A to F and is also available in a dual band operation configuration. The dual band unit will support both 1.9 GHz PCS and 800 MHz Cellular system over the same fiber optic cable. EkoCel is designed to meet the service provider requirements for Operations, Administration, Maintenance and Performance (OAM&P). Alarm and control of the system is accessible at the Microcell hub, remote unit or via a telephone (wire or wireless) modem connection. Relay contacts also allow the user to remote the alarms with the base station alarm system with user defined contacts. This allows the service provider to have instant alarm notification at the Network Operation Control Center (NOCC) without additional specialized hardware and software, commonly referred to as an Element Management System. This provides simplicity and cost savings to the user. Both the hub and the microcell remote are equipped with a display and function keypad allowing the user easy access to alarms and system controls without additional equipment. Three levels of security are provided to prevent unauthorized access to the system. EkoCel has a patent pending self-set up and system control feature that will allow the system to automatically set up for the user defined system requirements. EkoCel automatically adjusts gain and power based on the number of RF channels, system format, system input power and optical loss. The system continues to monitor system performance and alert the user of any system changes that requires additional real time compensation. EkoCel was developed specifically for use as a fiber optic microcell. It specifically addre…

Text truncated - open the document above for the full version.

Block Diagram

CI WIRELESS EKOCELL SYSTEM DIAGRAM CI WIRELESS EKOCELL HUB UNIT DIAGRAM CI WIRELESS EKOCELL REMOTE UNIT DIAGRAM

Cover Letter(s)

1121 Ira E. Woods Avenue, Grapevine, TX, 76051 Tel: 817 416 0583, Fax: 817 488 1949 February 15, 1999 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Authorization, Confidentiality Request and Drug Attestation Reference: Type Acceptance Application: FCC ID NUW008EKO19 To Whom It May Concern: CI Wireless Incorporated hereby authorizes Professional Testing (EMI) Inc. of Round Rock, Texas to operate on its behalf in the matter of FCC approval of the EkoCell 800 MHz 4 Watt ESMR Band Repeater (FCC ID NUW008EKO19). Professional Testing is authorized to file the necessary forms, exhibits and fees required to facilitate this application. In addition, we hereby formally request that the schematics and bill of materials for this product be held confidential. Release of these items could provide critical proprietary design information to competitors which would not normally be available to them. If you have any further questions, please contact me: Mr. David McKay President [email protected] (817) 416-0583 (office) (817) 488-1949 (FAX) ANTI-DRUG CERTIFICATION CI Wireless Incorporated certifies that no party to this application (as defined in 47 C.F.R. §1.2002(b)(2) ) is subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853a. _____________________________________________________________ DateSignature Title

ID Label/Location Info

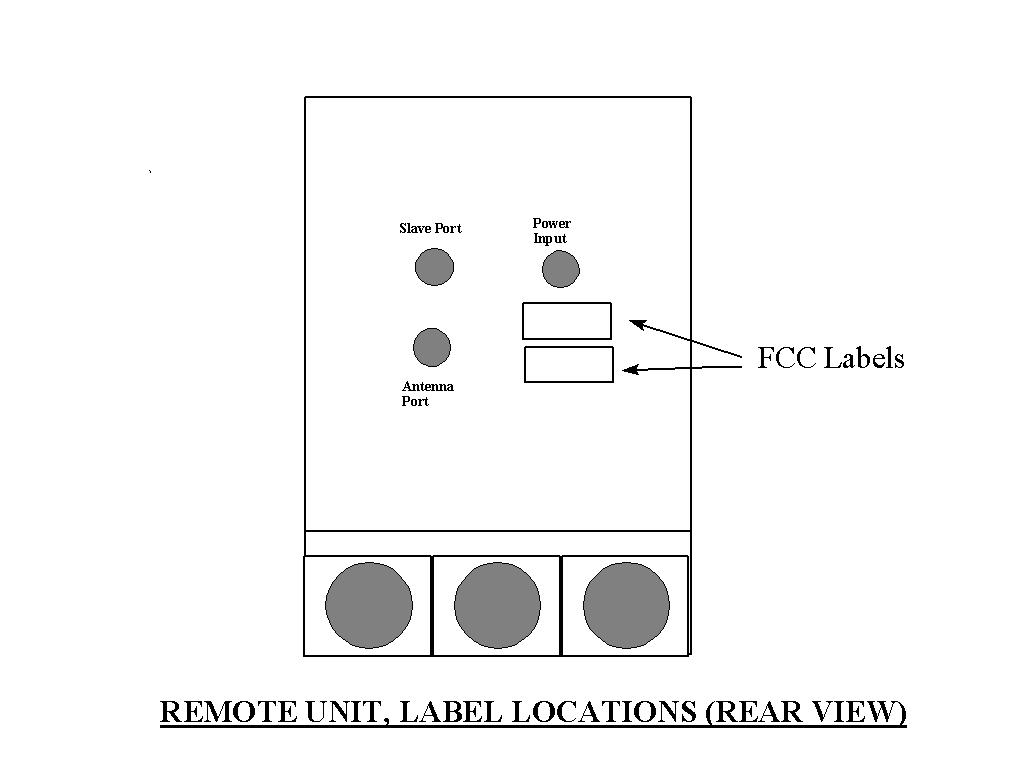

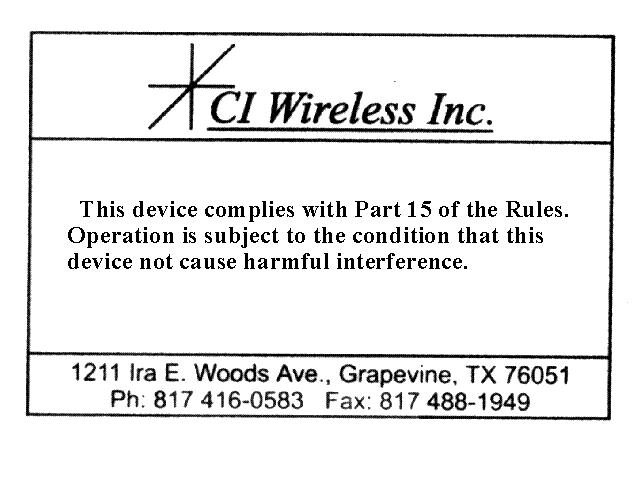

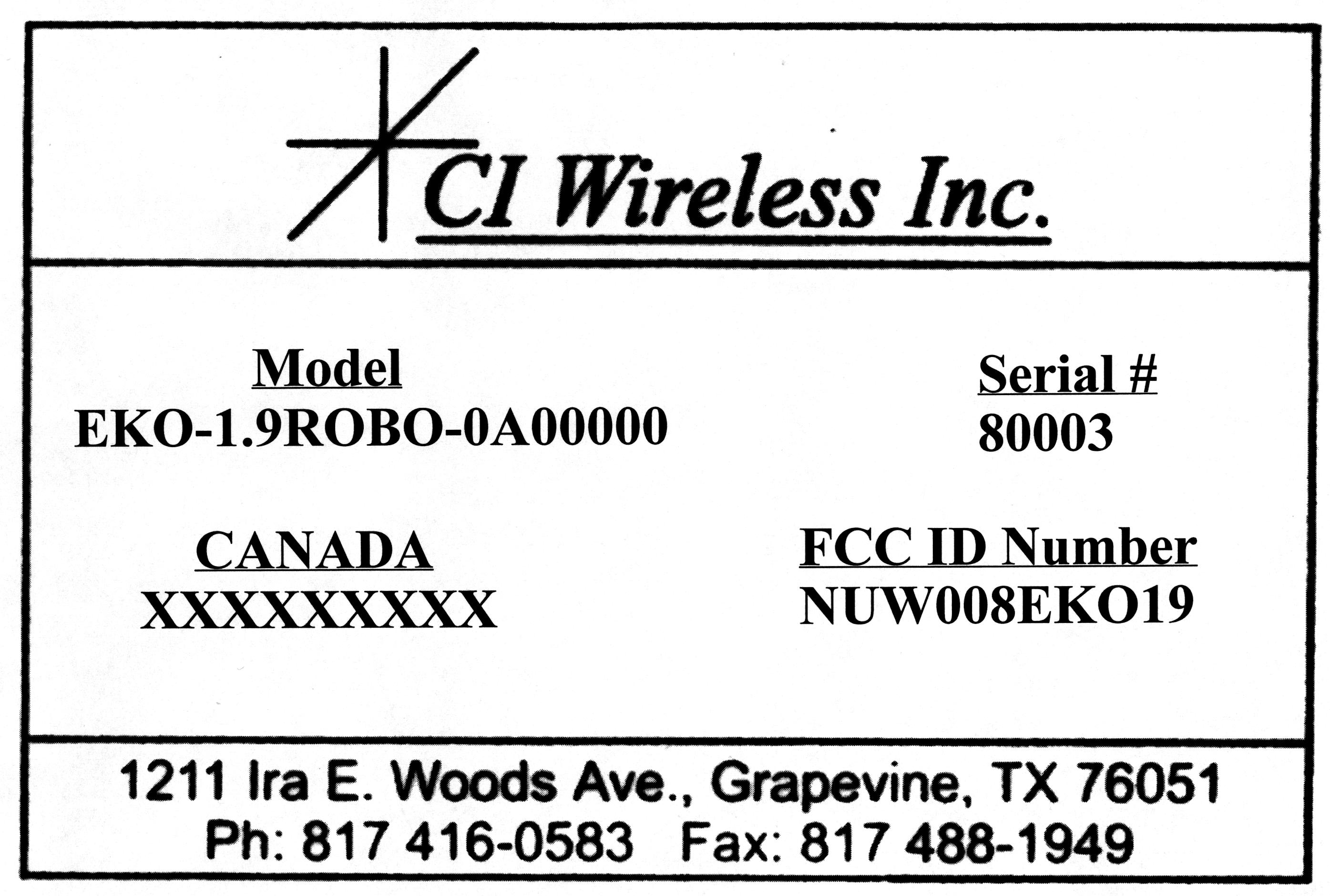

Professional Testing (EMI) Inc. FCC ID: NUW008EKO19 HUB UNIT Label This label is installed on the HUB Unit only. Professional Testing (EMI) Inc. FCC ID: NUW008EKO19 REMOTE UNIT Label This label is installed on the Remote Unit only. Professional Testing (EMI) Inc. FCC ID: NUW008EKO19 FCC Compliance Statement Label This Label is installed on both system components below the Label containing the FCC ID Number. Professional Testing (EMI) Inc. FCC ID: NUW008EKO19 HUB UNIT Label Installation Location Professional Testing (EMI) Inc. FCC ID: NUW008EKO19 REMOTE UNIT Label Installation Location

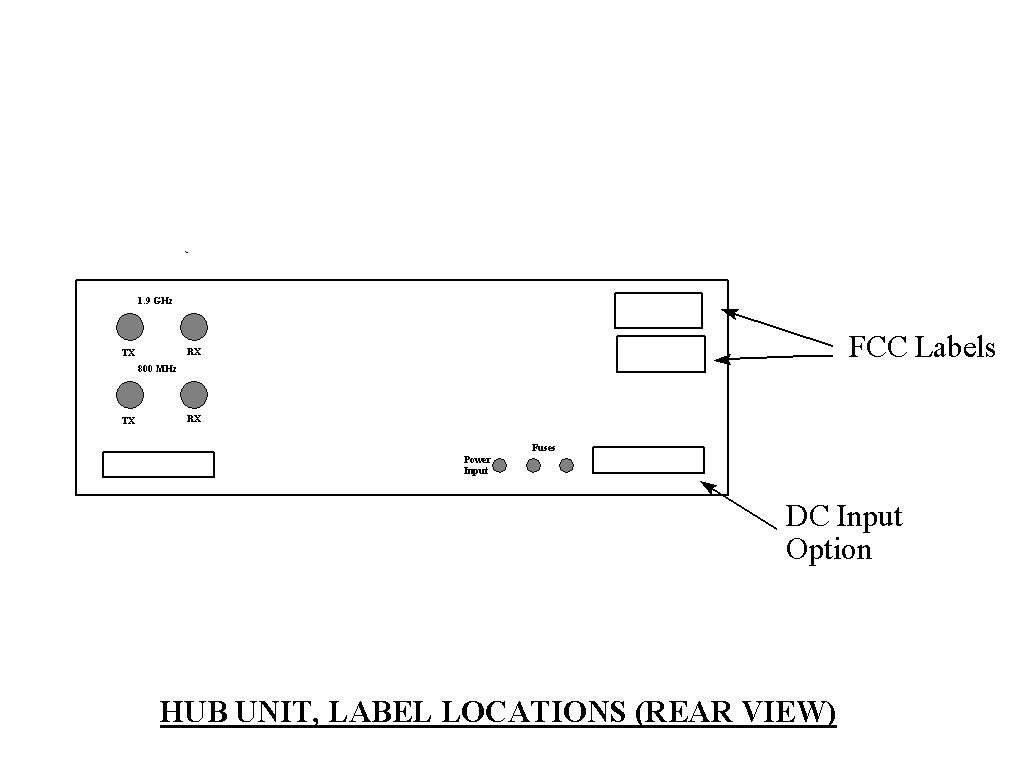

ID Label/Location Info

Operational Description

FCC ID:NUWØØ8EKO19 1 CI WIRELESS 1900 MHZ PCS BAND EKOCELL REPEATER SYSTEM DESCRIPTION OF OPERATION 1.0 BASIC DESCRIPTION The EUT is an 8 watt 1900 MHz PCS Band Repeater System. This system is a U.S. Cellular band repeater system which enhances the coverage of a 1900 MHz PCS system by adding base station capability to traditional poor cellular coverage areas (i.e. subways, shopping malls, convention centers). The system has a set of automatic setup features, enabling the repeater to be installed & configured by one person. Automatic system monitoring is present to monitor sysetm health & report/record any EUT problems. The CI Wireless 1900 MHz PCS Band 8 watt Repeater supports CDMA, TDMA and AMPS communications. The EkoCell system is comprised of two components: a Hub unit and a Remote unit. The Hub is installed at a cellular base station while the remote unit is installed at the desired transmit/receive location and attached to an antenna assembly. The two pieces are connected by two fiber optic links (one for transmit, one for receive). Due to the low loss of the fiber link, the Remote is usually not installed at the same location as the Hub unit. 2.0 RF THEORY OF OPERATION The CI Wireless 1900 MHz PCS Band 8 watt Repeater operates in two basic modes of operation simultaneously: transmit and receive. When installed, the Hub portion of the EkoCell is connected in to a standard base station for the cellular system. The Remote Unit is then installed at a location up to 10 kilometers away from the base station. In the transmit mode of operation, the Hub taps the RF signals from the base, routes the signals through an RF modem, then feeds the output of the RF modem into a fiber optic modulator. The fiber optic modulator contains a solid state laser and optic receiver. The output of the laser is fed via a multimode fiber optic cable to the Remote Unit. When the signal arrives at the Remote Unit, the signal is received by another fiber optic modulator, fed to an RF Modem, then routed to an amplifier. The output of the power amplifier is regulated to maintain a 4 watt output level. The output of the amplifier is fed to a duplexer (with lightning protection) then to the antenna port for transmission. In the receive mode of operation, the mobile signals are received from the antenna port on the Remote Unit, routed through the duplexer, then boosted and filtered by a low noise amplifier/band pass filter assembly. This signal is modulated by the RF modem, fed to the Remote Unit fiber optic modulator, then transmitted back to the Hub Unit. The Hub Unit receives the optical signal and reconstitutes the original mobile signal. This signal is then fed to the base station circuitry. The system does perform RF pre-emphasis on the signals to correct for transmission losses. FCC ID:NUWØØ8EKO19 2 3.0 SYSTEM CONFIGURATION(S) The two models for the system components tested are: Hub Unit:Eko-1.9HOBO-OAC000 Remote Unit:Eko-1.9ROBO-OAC000 The test covered under this report address all subseries of these models. The base model designators for the components of this system are Model Eko-1.9HXB0-XXXXXX for the Hub unit and Model Eko-1.9RXB0-XXXXXX for the Remote Unit. See attached sheet for model designator definitions. The two particular models used for this test were loaded with all active circuit options available, providing a worst case configuration for emissions testing. To cover the 1930 to 1965 MHz frequency range, the CI Wireless Inc., 1900 MHz PCS Band 8 Watt Repeater may be configured (via the selection/specification of the internal filter) to operate in one of three PCS Bands (Bands A, B and D). Each EkoCell can only be configured to operate in one band at a time; changing the EkoCell to a different band requires a change in the filter portion/duplexer of the Remote Unit (no changes to active circuits are required). To verify compliance with the Rules for all three bands, full testing was performed (three points per band for each modulation type) for each band. FCC ID:NUWØØ8EKO19 3 CONFIGURATION INDEX
