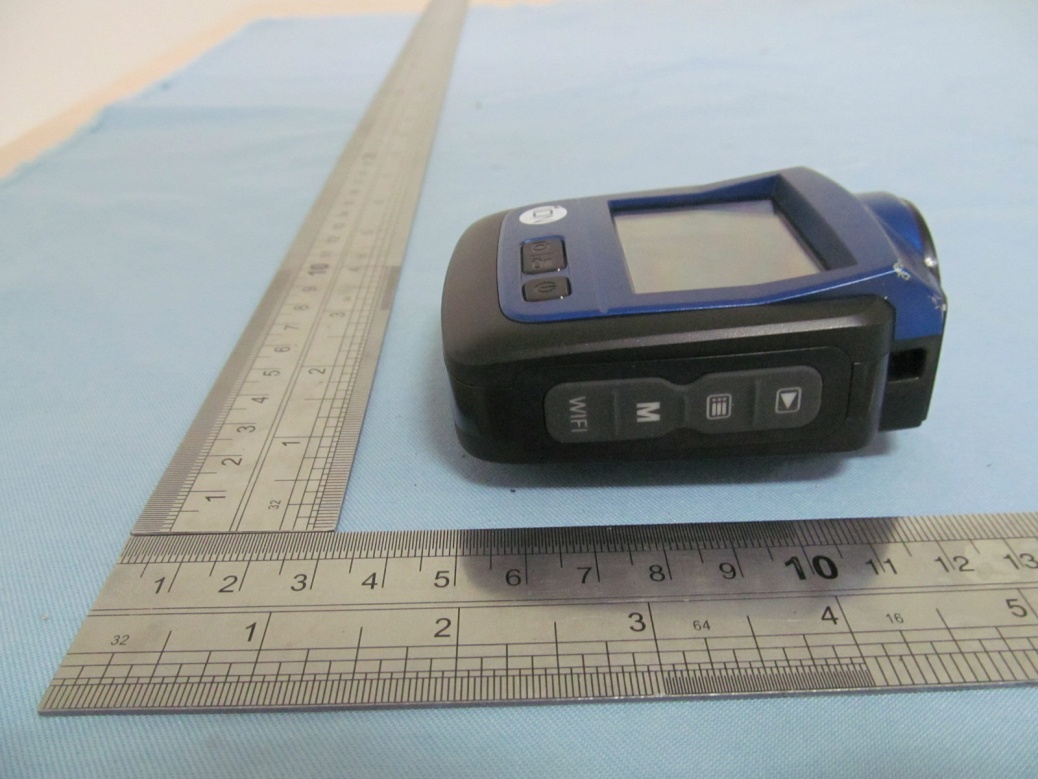

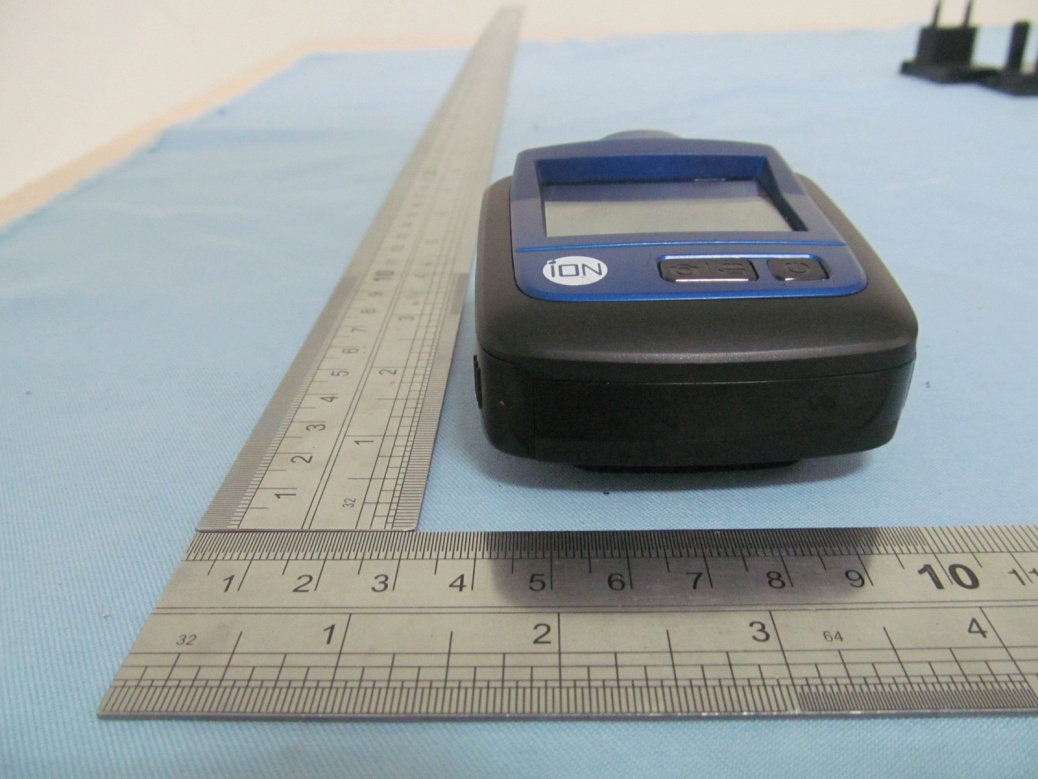

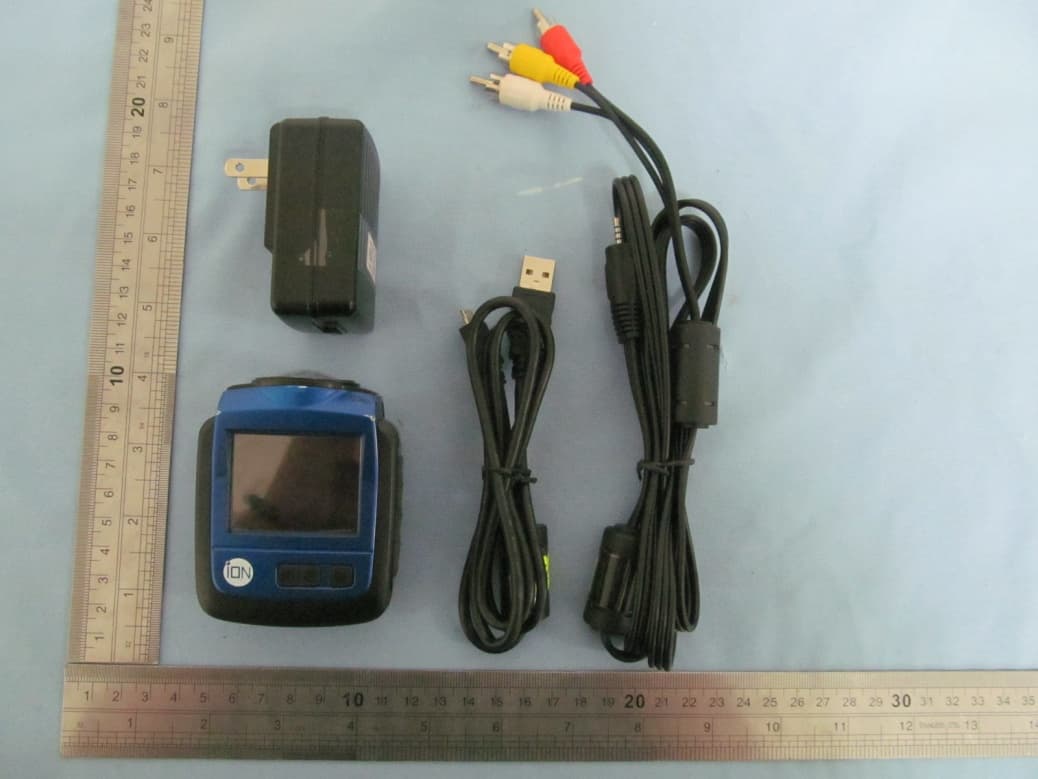

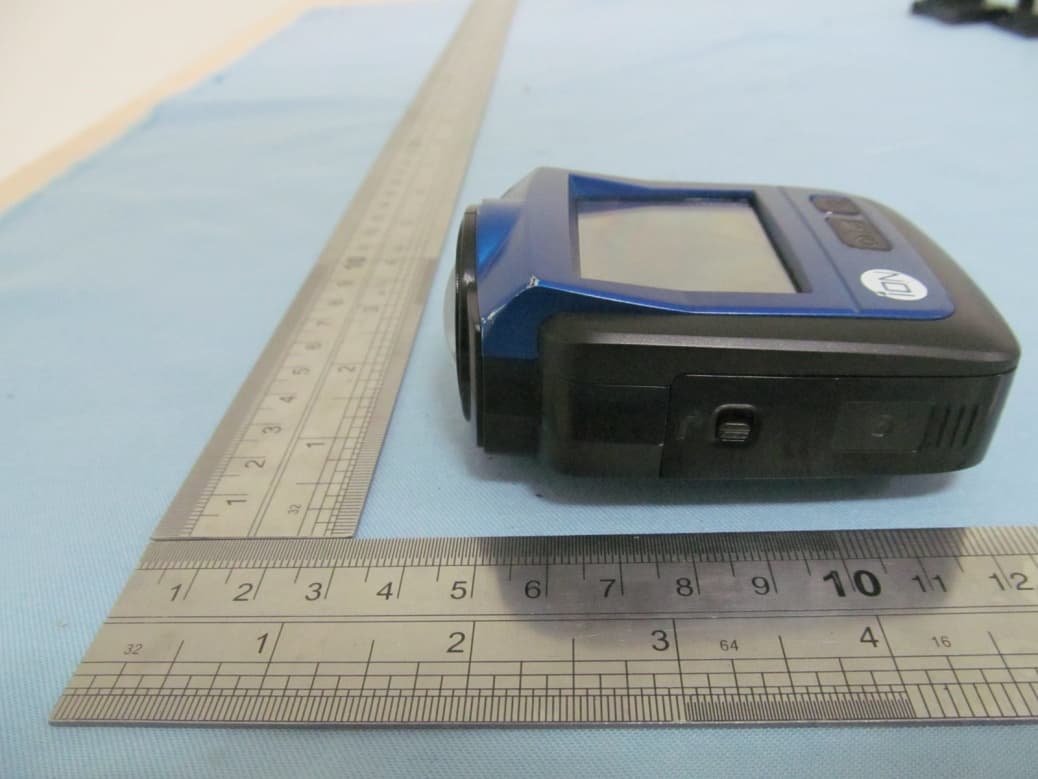

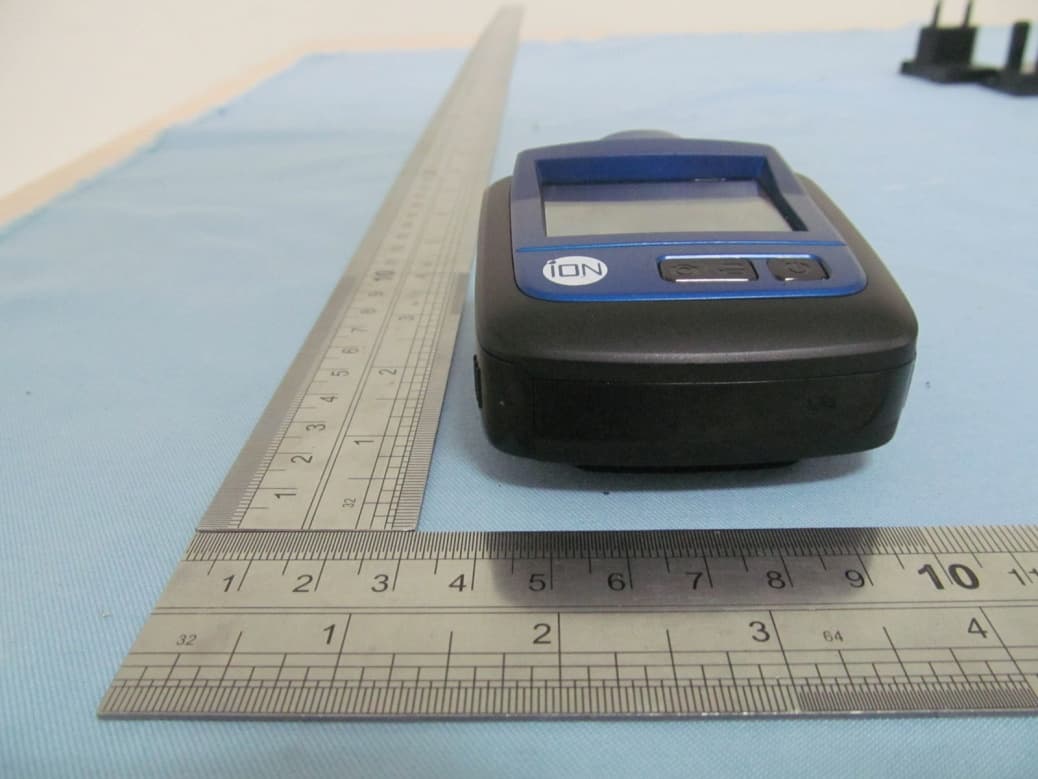

NW71007Wireless HD Sports Video Camera (iON The Game / Game / The Game)

Thanks for purchasing ion GAME sport video camera. Ion GAME can mount with the Bike & Helmet Kit for the ultimate adventure HD recording experience. Getting to know your GAME camera 9 GAME is a Professional, High Quality Digital Video Recorder that records in Full HD video 9 It also has the latest 5 Mega Pixel Sensor for you to take great digital photographs 9 Your camera supports a Micro SD card up to 32GB which allows you taking 1080p with 30 Frame Per Second Video for about 4 Hours 9 The embedded 1200mAh Lithium-Polymer Battery can be recharged quickly and thus allowing you hours of recording those memorable moments. 9 The camera performs up to 3 meters under water. 1. Getting to Know Your Camera 1 Power Press this button to switch on and Shut off. In Preview/ Menu/ Playback (single) mode: press it shortly to display or hide the OSD icon (clean screen) 2 Shutter Press this button in photo capture mode, to take photo shoots. Press this button in movie recording mode, to start movie recording. In menu mode: press this button to confirm the selection bar. In video playing mode: play or pause video playing. 3 LCD screen Display photographs, video clips, camera setting and menu. 4 Lens High quality lens to record the image 5 Strap hook Hook for attaching the wrist strap to the camera. 6 Playback In preview mode: Press this button to into playback mode. (Default is Thumbnail playback mode). In playback mode (thumbnail): press this button at least 1 Seconds to switch photo and video playback mode. (thumbnail) In photo playback mode (thumbnail): press this button shortly to exit to photo preview mode. In Video playback mode (thumbnail): press this button shortly to exit to video preview mode. In playback single mode: Press this button to exit single playback mode then return to thumbnail mode. In video playing mode: Stop and back to Video Playback (single). photo & setup menu mode : Press this button shortly to exit menu. 7 Menu (photo mode): Short press this button to into photo & setup menu. (video mode): Short press this button to into video & setup menu. (photo & setup menu mode): short press to Switch between photo and setup menu. (video & setup menu mode): short press to Switch between video and setup menu. In Playback mode: press this button into and exit delete menu. 8 Mode In preview mode: Press this button to switch movie and still capture mode; In menu mode: press this button to the up or left selection bar. In Playback mode: press this button to the previous one; 9 WiFi In Menu mode: press this button to down or right the selection bar. In Playback mode: press this button to the next one; In video playing mode: press this button to Slow Forward (1/2, 1/8, 1/32) In preview mode: press this button at least 2 seconds to switch WiFi on or off . 10 USB Port Connect to computer for data transfer or camera setup Charge up your camera 11 Reset button Reset the camera 12 Mini HDMI Port Connect the camera to TV through HDMI cable 13 Micro SD card slot Micro SD card storage location. 14 AV port Connect the camera to TV through Composite cable 2. Using Your Camera 2.1 Charging up Your Camera Charge up your camera with the USB cable or optional power adapter. It takes about 2 hours to initially charge the camera. Subsequent charges take approximately 2 hours as well. 2.2 Inserting a Memory Card Insert a MicroSD card (not included) before using your camera. Turning off the device before inserting the card to the slot Note 1. There is only one right direction to insert t he MicroSD card into the slot. Do not force the card into the card slot or it may damage both the camera and the Micro SD card. 2. A new Micro SD card should be formatted before using. 2.3 Formatting the micro SD card You can format the micro SD card through the advanced setting menu. 2.4 Set up Date and Time You can set up your device’s date and time through the advanced setting menu. . 2.5 Recording Videos 1 . Press the Mode button to select the video clip mode ( ). 2. For setting the resolution, Press the Menu ( ) button and then press the Shutter button. Four resolutions will be displayed. 1080P30(1920x1080), 960P30(1280 x960), 720P60(1280x720), 720P30(1280x720). Press the Mode/WiFi button to select the desired resolution, and press the Shutter button to confirm. 3. Press the Shutter button to start recording videos, and press the Shutter button again to stop recording..  An extra WQVGA video file will be created together with your video. Its small file size allows you to upload to social media sites more effectively.  The FHD/HD video files will be saved as IONXxxxx.MP4. The WQVGA video will be saved as IONXxxxx_thm.MP4. “xxxx” is the file number digit. 2.6 Taking Photos You can take a photograph by pressing the Shutter button shortly after you turn on your ion camera. Note: 1. Taking photo function is disabled during video recording 2. You can change the photo resolution and shot mode through the advanced setting menu. ion Air Play User Manual FCC ID:NW71007 Model:1007 2.7 Playback Videos You can play back videos on the camera in both thumbnail (default) and single mode. 2.8 Playback Photos You can play back photos on the camera in both thumbnail (default) and single mode. 2.9 Deleting Files You can delete single/all the photo/video files on the camera. Note: Select “All” and Press the Shutter button to confirm, all the pictures and videos will be deleted. 2.10 CamLOCK TM Mount System Ion’s versatile CamLOCK TM Mount System allows you to attach the ion camera to any type of helmet (bike, motorcycle, ski, skydive etc.), pole and handlebar of bike and motorcycle, board (surf, skate, ski etc). You can refer to the specific mounting guide to learn how to install your mounts with your camera in particular activity. 3. Connecting Your Camera 3.1 Connecting Your Camera to a PC Connect your ion camera to a PC thru USB cable. It allows you to Browse/Move/Copy/Delete the files saved in the camera 3.2 Connecting Your Camera to a TV…
