NW73016Digital Camera

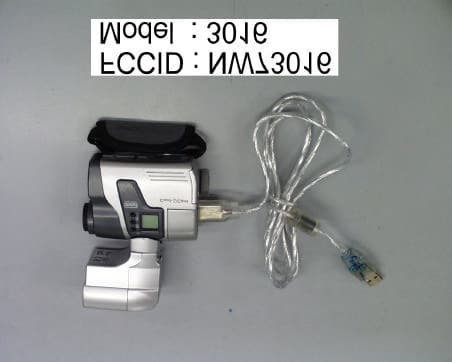

INTERTEK TESTING SERVICES Ophoto1 Ophoto2

INTERTEK TESTING SERVICES Iphoto1 Iphoto2 INTERTEK TESTING SERVICES Iphoto3 Iphoto4 INTERTEK TESTING SERVICES Iphoto5 Iphoto6 INTERTEK TESTING SERVICES Iphoto7 Iphoto8

FCC ID: NW73016 Technical Description The brief circuit description is listed as follows : - U1 and associated circuit act as Video Imager Controller. - T1 and associated circuit act as Crystal. ©2001 EndPoints Incorporated. All rights reserved. SE402 is a trademark of EndPoints Incorporated. All other product names and trademark and/or registered trademarks are the property of their respective owners. Revision 1.2 01/01. EndPoints Incorporated reserves the right to change specifications without notice. SE402 USB Video Image Controller The SE402 USB Video Imager Controller is designed to form the core of a low-cost “PC camera,” “dual-mode camera” or “web camera.” It is a single chip solution to control the image sensor and move the image data to the Universal Serial Bus or to another EndPoints Transport Chip. With the addition of an audio codec, the SE402 can also support sound, enabling a variety of audio and video applications. The SE402 consists of a central 16-bit processor, a JPEG compression engine, a video imager interface, masked ROM, a RAM buffer, a clock generator, and a flexible, extensible series of interfaces. The block diagram shows one example of the SE402 and its interfaces. Other variations can be implemented using external expansion ROM and the SE402’s General Purpose Input/Output (GPIO) facilities. Block Diagram Features · Flexible Sensor Interface · JPEG Compression Engine · Built-in Auto Exposure & AWB · USB 1.1 Interface with four EndPoints · SPORT Audio Codec Interface · Tight-coupling with other EndPoints Transport Chips · Strobe Flash Interface · Status LCD Interface · External Battery-backable SDRAM Interface · Internal Clock Generation · R/W Serial EEPROM Interface · MS Windows 95, 98 and 2000 drivers available HSYNC VSYNC VDATA 7...0 MCLK ENB VID_SDA VID_SCL JPEG Compression Engine UART IRQ (GPIO) External IRQ 0...1 Additional GPIO Timer 0Timer 1 QT Engine 16-Bit Microprocessor 16-Bit Address and Data Mask ROM 6k x 16 Internal RAM 1.5k x 16 USB Serial Interface Engine USB Interface Data -Data + Txd Rxd Watchdog Timer Serial EEPROM Interface SCL SDA External SDRAM Interface A 15...0 D 15...0 CTRL PLL & CLKGEN CLK x2 Audio CODEC Interface TSC CLK RXD TXD FS Aox SE402 Video Imager Interface EndPoints SE 402 ©2001 EndPoints Incorporated. All rights reserved. SE402 is a trademark of EndPoints Incorporated. All other product names and trademark and/or registered trademarks are the property of their respective owners. Revision 1.2 01/01. EndPoints Incorporated reserves the right to change specifications without notice. Video Imager Interface Interfaces directly with a variety of CIF, VGA, SVGA, XGA and SXGA CMOS sensors for resolutions up to 1280 X 1024. Video Compression Engine Includes an ISO/IEC 10918-1 Standard JPEG compression engine with variable compression rates. For maximum flexibility the EndPoints JPEG engine can compress YUV 4:2:2, YUV 4:2:0 or raw Bayer Pattern RGB data. 16-bit QT Processor The SE402 USB Video Imager Controller has a built-in 16-bit EndPoints QT processor with its basic operating firmware in internal 6K X 16 masked ROM. Functionality of the QT Processor can be extended using external EEPROM. Also, the QT processor can function in slave mode for tight-coupling with other EndPoints Transport Chips. USB Subsystem The SE402 USB Video Imager Controller contains a complete USB subsystem with a Serial Interface Engine (SIE) and built-in transceiver operating at full 12Mbits/sec data rate. The USB Subsystem meets the Universal Serial Bus (USB) specification v1.1. In addition to the default control endpoint, the SE402 supports three additional endpoints, which may be configured as Isochronous or Bulk/Interrupt. PLL Clock Generator An inexpensive 12 MHz external crystal may be used with the SE402 USB Video Imager Controller. The controller incorporates PLL circuitry to generate the internal 48MHz clock requirements of the device. Alternatively, an external 12 MHz clock signal may be used instead of the crystal. Dual Mode Camera Support For use in a “dual mode” camera, the SE402 USB Video Imager Controller includes a serial status LCD interface, Strobe Flash interface and USB/Battery power management interface. Image Signal Processing (ISP) Support The SE402 Video Imager Controller includes Automatic Exposure Control and Automatic White Balance support in its operating firmware. Optionally, the SE402 can be interfaced to an external Image Signal Processor. UART Interface Supports 1200 to 115.2K baud at TTL-levels. General Purpose I/O Up to 32 general purpose I/O signals are available. GPIO may be configured for special purpose functions such as the SPORT Synchronous Serial Interface for audio codec etc. Serial EEPROM Support The SE402 USB Video Imager Controller serial EEPROM interface is used to provide read and write access to external EEPROMs for field firmware upgrades. The interface is implemented using general-purpose I/O signals and can support a variety of serial EEPROM formats. External SDRAM Interface The SE402 interfaces with SDRAM devices from 16 Mbits to 256 Mbits without external “glue” logic, supporting a total array size up to 64 MBytes. This interface includes EndPoints proprietary slow refresh technology, which supports battery- backed SDRAM storage of photos etc. Development Tools C Compiler, Assembler and debugging tools are available to qualified customers. About EndPoints EndPoints is a semiconductor company specializing in the digital imaging, networking and connectivity markets. EndPoints, Inc. 4 Preston Court Bedford, MA 01730 Ph: 781-276-3900 Fax: 781-275-1758 www.endpoints.com email: [email protected]

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited FCC ID : NW73016 World Wide Licenses Ltd. Application For Certification (FCC ID: NW73016) MOVI Digital Camera WO# 0113116 WN/at February 19, 2002 INTERTEK TESTING SERVICES FCC ID: NW73016 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual INTERTEK TESTING SERVICES FCC ID: NW73016 ii MEASUREMENT/TECHNICAL REPORT World Wide Licenses Ltd. - MODEL: 3016, CIC 300, 3063, 0098/3070 FCC ID: NW73016 February 19, 2002 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Computer Perpherial (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: NW73016 iii Table of Contents 1.0 General Description........................................................................................................................2 1.1 Product Description.....................................................................................................................2 1.2 Related Submittal(s) Grants........................................................................................................2 1.3 Test Methodology........................................................................................................................3 1.4 Test Facility.................................................................................................................................3 2.0 System Test Configuration............................................................................................................5 2.1 Justification.................................................................................................................................5 2.2 EUT Exercising Software.............................................................................................................5 2.3 Support Equipment List and Description.....................................................................................5 2.4 Equipment Modification...............................................................................................................6 2.5 Special Accessories......................................................................................................................6 3.0 Emission Results.............................................................................................................................9 3.1 Field Strength Calculation.........................................................................................................10 3.2 Radiated Emission Configuration Photograph............................................................................11 3.3 Radiated Emission Data.............................................................................................................12 4.0 Equipment Photographs..............................................................................................................15 5.0 Product Labelling..........................................................................................................................17 6.0 Technical Specifications..............................................................................................................19 7.0 Instruction Manual.......................................................................................................................21 INTERTEK TESTING SERVICES FCC ID: NW73016 iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest ReportTest Report.pdf Operation DescriptionTechnical DescriptionTechnical Description.pdf Test Setup PhotoRadiated EmissionTest Setup Photographs.pdf External PhotoExternal PhotoExternal Photographs.pdf Internal PhotoInternal PhotoInternal Photographs.pdf Block DiagramBlock DiagramBlock Diagram.pdf SchematicsCircuit DiagramCircuit Diagram.pdf ID Label/LocationLabel Artwork and LocationLabel Artwork & Location.pdf User ManualUser ManualManual1.pdf to Manual2.pdf INTERTEK TESTING SERVICES FCC ID: NW73016 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NW73016 2 1.0General Description 1.1Product Description The equipment under test (EUT) is a Digital Camera with flash light. The EUT is powered by 2 AAA size batteries. There are four switches on the EUT, which are used to control the ON/OFF, taking an image and other selecting function such as video cam & webcam. And it could be connected to computer as a web-cam and via the USB cable and download the photo to computer by USB cable. And the EUT can store approximately 16 Hi-Res (High Resolution) 64 Normal-Res (Normal Resolution) & 128 Low-Res (Economy Resolution) images. There is a cool-icam plus software needs to install to a computer. The Model: CIC 300, 3063 and 0098/3070 are the same as the tested Model: 3016 in hardware and software aspect. The difference in the Model No. is only for marketing strategy. The brief circuit description is saved as filename: Technical Description.pdf 1.2Related Submittal(s) Grants This is a single application for certification of a Computer Perherial.…
