NYCPMP-38602.4 GHz 50 Channel Analog Cordless Phone with CID

MODEL: PMP-3860 2.4GHZ CORDLESS TELEPHONE WITH CALL WAITING CALLER ID AND SPEAKERPHONE IMPORTANT:To receive Caller ID information on incoming telephone calls, you must subscribe to the Caller ID service provided by your local telephone company; there is a fee for this service and it may not be available in all areas. 600-0921201-A INSTALLATION AND OPERATING GUIDE This symbol is to alert you to important operating or servicing instructions that may appear in the user's manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electrical shock. When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on the product. 3.Use only with class 2 power source DC 9V 300mA. 4.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 5.Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. 6.Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 7.Slots and openings in the cabinet back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in an enclosed environment unless proper ventilation is provided. 8.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by animals or persons walking on it. 9.Do not overload wall outlets and extension cords as this can result in risk of fire or electrical shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electrical shock, do not disassemble this product. Instead take it to a qualified service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re-assembly can cause electrical shock when the appliance is subsequently used. 12. Unplug all cords and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls covered in the operating instructions. Improper adjustment of other controls may result in damage and require work by a qualified technician to restore the product to normal operation. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use a telephone to report a gas leak in the vicinity of the leak. IF YOUR PRODUCT UTILIZES BATTERIES, THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED: 1.Use only the type and size of batteries specified in the users manual. 2.Do not dispose of batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions. 3.Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 4.Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns. 5.Do not attempt to recharge the batteries with or identified for use with this product. The batteries may leak corrosive electrolyte or explode. 6.Do not attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin. 7.When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the discharged batteries. 8.When inserting the batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries can cause charging, which may result in leakage or explosion. 9.Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the batteries could leak, damaging the product. 10. Discard "dead" batteries as soon as possible since they are more likely to leak in a product. 11. Do not store this product, or the batteries provided with or for identified use with this product, in high temperature areas. 12. If your product uses a rechargeable battery, charge the battery(ies) only in accordance with the instructions and limitation specified in the User Manual. SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 2 Important Safety Instructions ...................2 FCC Regulations....................................3-4 Battery Cautionary Instructions ...............5 PMP-3860 Parts Checklist .........................6 Location of Controls and Features......7-12 Handset .................................................7-8 Base ...................................................9-11 LCD Display ...........................................12 Choosing a Location ...............................13 Telephone Setup.................................14-16 Connecting the Base ..............................…

Text truncated - open the document above for the full version.

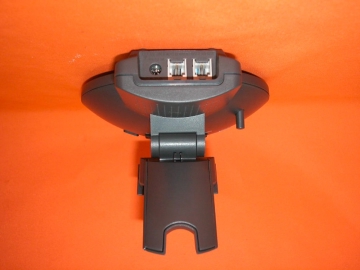

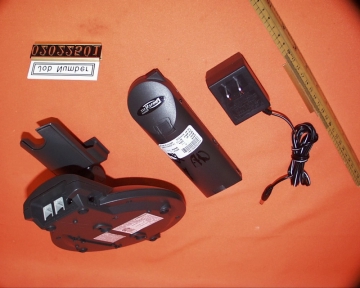

External photos FCC ID: NYCPMP-3860 External photos FCC ID: NYCPMP-3860

Internal photosFCC ID: NYCPMP-3860 Base assembly Base Main PCB comp side (View 1) Internal photosFCC ID: NYCPMP-3860 Base Main PCB comp side (View 2) Base Main PCB comp side (View 3) Internal photosFCC ID: NYCPMP-3860 Base Main PCB solder side Speakerphone PCB keypad side Internal photosFCC ID: NYCPMP-3860 Spe ake rpho ne PCB re ar si de Base Oscillator PCB co mp side Internal photosFCC ID: NYCPMP-3860 Base Oscillator PCB so lde r side Internal photosFCC ID: NYCPMP-3860 Ha ndse t asse mbly Ha ndse t Main PCB co mp s ide Internal photosFCC ID: NYCPMP-3860 Handset Main PCB display side Ha ndse t Oscillato r PCB co mp s ide Internal photosFCC ID: NYCPMP-3860 Ha ndse t Oscillato r PCB solde r side

DESCRIPTION OF CIRCUIT OPERATION BASE UNIT : The demodulated signal, resulting from Double Super Heterodyne system, which appears at output Pin no.3 of J3 is sent to IC4 (COMPANDER IC) Pin no.16 for Expansion. The expended audio signal output from Pin no.19 is coupled to Q9,10 during the TEL. mode The audio signal is sent to the Telephone Line via hybrid Transformer HBY1. The demodulated data code from J3 Pin no.3 is Generated by U1-C,U1-D. It’s output is connected to CODE Input Pin no.18 of IC6 The Audio signal receiving from TEL-LINE is input to IC4 Pin no.8 for compression. The compressed audio signal from Pin no.1 of IC4 is connected to Pin no.10 of J3 for TX modulation. Pin no.21 of IC4 is the output port for data codes that should be transmitted to the handset the data code is connected to Pin no.10 of J3 for modulation. Line controlling is done by Pin no.10 of IC6. Ring signal monitored by IC12 (PHOTO COUPLER IC) is detected by Pin no.28 of IC6 resulting a data code to the handset. DTMF dialing is generated by IC6 Pin no.38 this signal output through the HYB1. When the handset is placed on the base cradle, the charging is detected by Pin no.8 of IC6 and IC6 sends data codes to handset for security code setting. When the handset is far away form base unit, squelch circuit of IC6 operates and Pin no.9 of IC6 goes “HI”. This will be detected by the micro processor and after 20 sec. go to Stand by mode. The power to the base unit is supplied by IC15(5V REGULATOR IC). LED display control Pin no.26,28 of IC6. Speaker phone(ic5) control pin no.12 of ic6. HAND SET : The demodulated signal, resulting from Double Super Heterodyne system, which appears at output Pin no.3 of CON1 is connected to U2 Pin no.16 Expander input. The audio output from U2 Pin no.19 is finally amplified by Q8 and A.C coupled to the Receiver unit with HAC compatibility. The demodulated data code from CON1 Pin no.3 is fed to Q9,10. Q9 is connected to (DATA IN) Pin no.26 of U1. Voice signal from C-MIC is coupled to Pin no.8 of U2. The voice signal is compressed by U2 and output Pin no.1 is connected to Pin no.10 of CON1 for modulation. Pin no.29 of U1 is the output port for data code that should be transmitted to the base unit. This data code is connected to the Pin no.10 of CON1 for modulation. During the charging, it is detected by U1 Pin no.23. Key board operation is monitored by Pin no.50~ 61of U1. Key Tone and the ringing from Pin no.62 of U1 drives the BUZZER. 1. BASE RF MODULE 1) RX PART THE RECEIVER FRONT-END CONTAINS A BAND PASS FILTER, AND RF LOW NOISE AMPLIFIER, A ACTIVE TRANSISTOR MIXER, A CERAMIC FILTER AND 10.7MHz IF AMPLIFIER. ALSO IT INCLUDES BUFFER AMPLIFIERS FOR THE GENERATION OF LOCAL OSCILLATOR POWER. THIS FRONT-END RECEIVER RECEIVERS AND RF SIGNAL FROM THE ANTENNA. AND RF SIGNALS WITHIN THIS FREQUENCY RANGE IS 2403.05MHz ~ 2475.95MHz PASS THROUGH RF AMP (Q1) AND BAND PASS FITER. AFTER PASSING THROUGH THE BAND PASS FILTER AND THE SIGNAL IS MIXED WITHIN 1’ST LOCAL FREQUENCY FROM VOLTAGE CONTROLLED OSCILLATOR. THE SIGNAL IS AMPLIFIED ON THE OF AMP TRANSISTOR (Q3) AND THE SIGNAL PASS THROUGH THE CERAMIC FILTER (10.7MHz). AFTER THE IF SIGNAL PASS THE CERAMIC FILTER, THE SIGNAL ENTER BY THE FM IF(INTERMEDIATE FREQUENCY) IC1. AND THE SIGNAL IS MIXED IN THE FM IF IC (DBL5018V). THE SIGNAL PASS THROUGH THE CERAMIC FILTER (450KHz). THE OUTPUT SIGNAL IN THE FM IF IC STREAMS FROM THE AF-OUT TERMINAL OF THE CONNECTOR TO THE BASE. FIG. 1 ANTENNA IC 1 AF-OUT BPF F1 LNA Q1 VCO MIXER 1’ST LOCAL FREQUENCY F2 10.7MHz MC3361 IF IC DBL5018 GND 450KHz 2’nd LOCAL FREQ. TCXO 11.15MHz 2)TX PART THE SIGNAL IS MADE TO THE BASE, ENTER BY THE AF-IN TERMINAL OF THE CONNECTOR(CON1 OF PIN NO.10). THE SIGNAL SEND THE MOD TERMINAL OF THE TX VCO. THE SIGNAL IS MIXED IN THE TX VCO MIXING THE RF SIGNAL, THE RF SIGNAL ADJUST THE TRIMMER CAPACITOR (VC1). THE RF SIGNAL ENTER BY THE TRANSMISSION POWER AMP TRANSISTOR Q5 THE SINAL IS AMPLITUDE IN THE Q7. ENTER BY THE BAND PASS FILTER. THE RF SIGNAL PASS THROUGH THE BAND PASS FILTER, TO WARDS THE ANT. THE LAST TRANSMISSION RF SIGNAL IS 2403.05MHz ~ 2475.95MHz. FIG. 2 RF MODULE AF-IN VCO BPF3 2403MHz ANTENNA PLL IC IC2 Q5,7 ] TCXO 11.15MHz TREMMER CAP. VC1 2. PORTABLE RF MODULE 1) RX RART THE RECEIVER FRONT-END CONTAINS A BAND PASS FILTER,AND RF LOW NOISE AMPLIFIER, ACTIVE TRANSISTOR MIXER, CERAMIC FILTER AND 10.7MHz “IF” AMPLIFTER. ALSO IT INCLUDES BUFFER AMPLIFIERS OR THE GENERATION OF LOCAL OSCILLATOR POWER. THIS FRONT-END RECEIVERS AND RF SIGNAL FROM THE ANTENNA. AND RF SIGNALS WITHIN THIS FREQUENCY RANGE IS 2403.05MHz ~ 2475.95MHz PASS THROUGH RF AMP (Q1) AND BAND PASS FILTER.. AFTER PASSING THROUGH THE BAND PASS FILTER, THE SIGNAL IS MIXED WITHIN 1’ST LOCAL FREQUENCY FROM VOLTAGE CONTROLLED OSCILLATOR. THE SIGNAL IS AMPLIFIED ON THE IF AMP TRANSISTOR (Q3) AND THE SIGNAL PASS THROUGH THE CERANIC FILTER (10.7MHz) AFTER THE IF SIGNAL PASS THE MCF FILTER, THE SIGNAL ENTER BY THE FM IF (INTERMEDIATE FREQUENCY) IC. AND THE SIGNAL IS MIXED IN THE FM IF IC (DBL5018V). THE SIGNAL PASS THROUGH THE CERAMIC FILTER (450KHz). THE OUTPUT SIGNAL IN THE FM IF IC STREAMS FROM THE AF-OUT TERMINAL OF THE CONNECTOR 1 TO THE PORTABLE. FIG.3 ANTENNA IF IC DBL5018 F1 10. 7MHz 11. IC 1 AF-OUT BPF F1 LNA Q1 VCO MIXER 1’ST LOCAL FREQUENCY 450KHz 2’nd LOCAL FREQ. TCXO 11.15MHz 2) TX PART THE SIGNAL IS MADE TO THE PORTABLE, ENTER BY THE AF-IN TERMINAL OF THE CONNECTOR. THE SIGNAL SEND THE MOD TERMINAL OF THE TX VCO. THE SIGNAL IS MIXED IN THE TX VCO MIXING THE RF SIGNAL, THE RF SIGNAL ADJUST THE TRIMMER CAPACITOR VC1. THE RF SIGNAL ENTER BY THE TRANSMISSION POWER AMP TRANSISTOR (Q5,7). ENTER BY THE BAND PASS FILTER. THE RF SIGNAL PASS THROUGH THE BAND PASS FILTER, TO WARDS THE ANT. THE LAST TRANSMISSION RF SIGNAL IS 2403.025MHz ~ 2475.95MHz. FIG. 4 RF MODULE AF-IN VCO TCXO 11.15MHz TREMMER CAP. VC1 Q5,7 F4 2475MHz ANTHNNA PLL IC IC2

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization form Intertek Testing Services Limit ed FCC ID: NYCPMP-3860 Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Belco International Co., Ltd. Application For Certification 2.4GHz 50 Channel Analog Modulation Cordless Phone with Caller ID & Speakerphone (FCC ID: NYCPMP-3860) WO# 02022501 TL/Ann Choy March 21, 2002 INTERTEK TESTING SERVICES FCC ID: NYCPMP-3860 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual EXHIBIT 8 :Security Code Information INTERTEK TESTING SERVICES FCC ID: NYCPMP-3860 ii MEASUREMENT/TECHNICAL REPORT Belco International Co., Ltd. - MODEL: PMP-3860, PMP-3860XX, TT-3860, TT-3860XX, BE-3860, BE-3860XX, 3860, 3860XX, 860, 860XX FCC ID: NYCPMP-3860 This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [ 12-18-01 Edition ] Provision. Report prepared by:Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone :852-2173-8538 Fax:852-2741-1693 INTERTEK TESTING SERVICES FCC ID: NYCPMP-3860 iii Table of Contents 1.0 General Description ....................................................................................................... 2 1.1 Product Description.................................................................................................... 2 1.2 Related Submittal(s) Grants........................................................................................ 3 1.3 Test Methodology....................................................................................................... 3 1.4 Test Facility................................................................................................................ 3 2.0 System Test Configuration ............................................................................................. 5 2.1 Justification................................................................................................................. 5 2.2 EUT Exercising Software ........................................................................................... 5 2.3 Support Equipment List and Description ................................................................... 6 2.4 Measurement Uncertainty .......................................................................................... 7 2.5 Equipment Modification............................................................................................. 7 3.0 Emission Results ............................................................................................................. 9 3.1 Field Strength Calculation ........................................................................................ 10 3.2 Radiated Emission Configuration Photograph - Base Unit ...................................... 11 3.3 Radiated Emission Data - Base Unit ........................................................................ 12 3.4 Radiated Emission Configuration Photograph - Handset ......................................... 15 3.5 Radiated Emission Data - Handset ........................................................................... 16 3.6 Radiated Emission on the bandedge......................................................................... 19 3.7 Line Conducted Configuration Photograph - Base Unit .......................................... 21 3.8 Line Conducted Emission Data - Base Unit ............................................................. 22 4.0 Equipment Photographs .............................................................................................. 25 5.0 Product Labelling ......................................................................................................... 27 6.0 Technical Specifications ............................................................................................... 29 7.0 Instruction Manual ....................................................................................................... 31 8.0 Security Code Information .......................................................................................... 33 INTERTEK TESTING SERVICES FCC ID: NYCPMP-3860 iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emission for Baseconfig photos.doc Test Setup PhotoRadiated Emission for Handsetconfig photos.doc Test ReportEmission Plotemission.pdf Test Setup PhotoConducted Emissionconfig photos.doc Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoexternal photos.doc Internal PhotoInternal Photointernal photos.doc Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf User ManualFCC Informationfcc information.pdf INTERTEK TESTING SERVICES FCC ID: NYCPMP-3860 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NYCPMP-3860 2 1.0 General Description 1.1 Product Description T…
