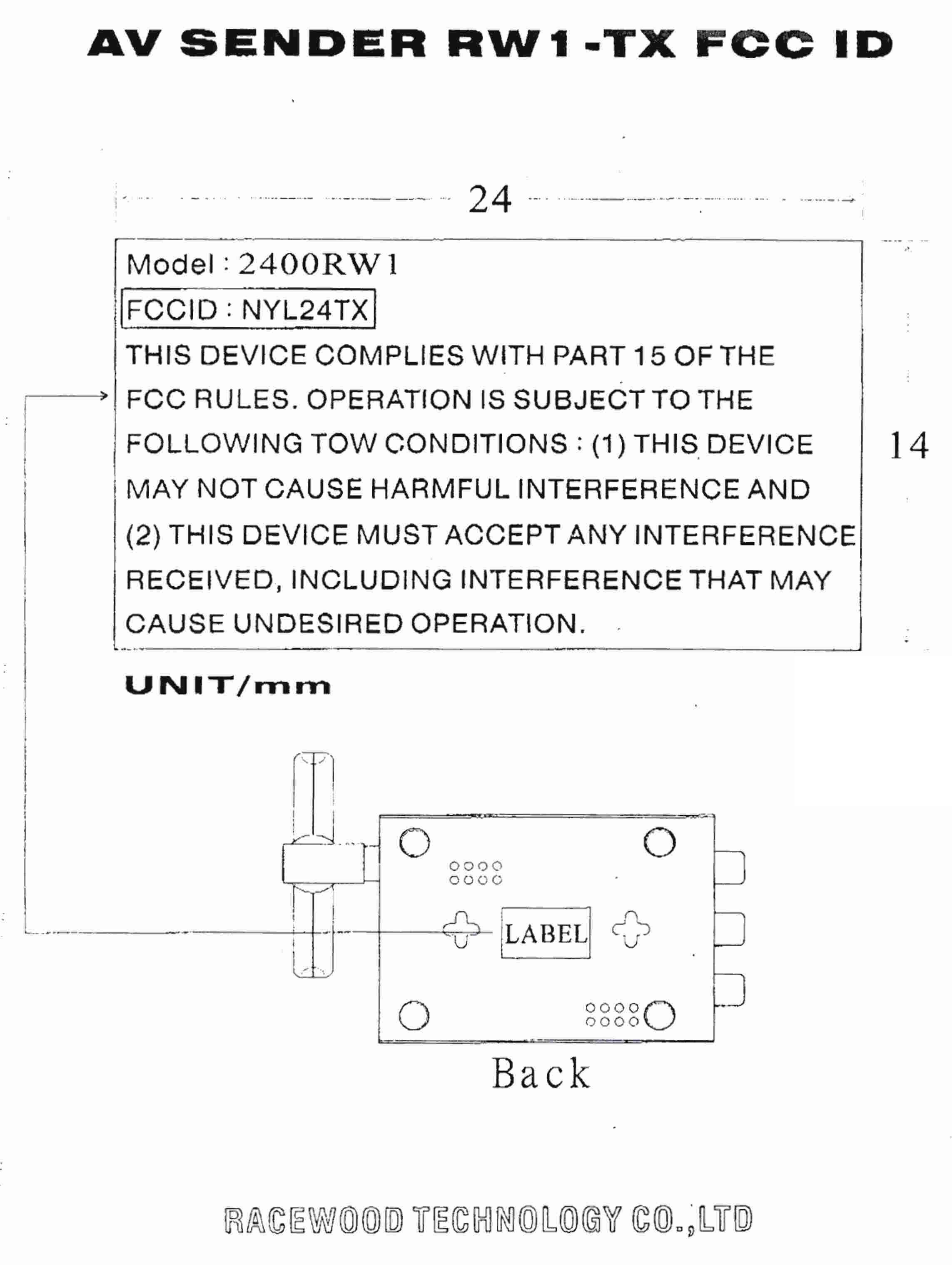

NYL24TXA/V SENDER

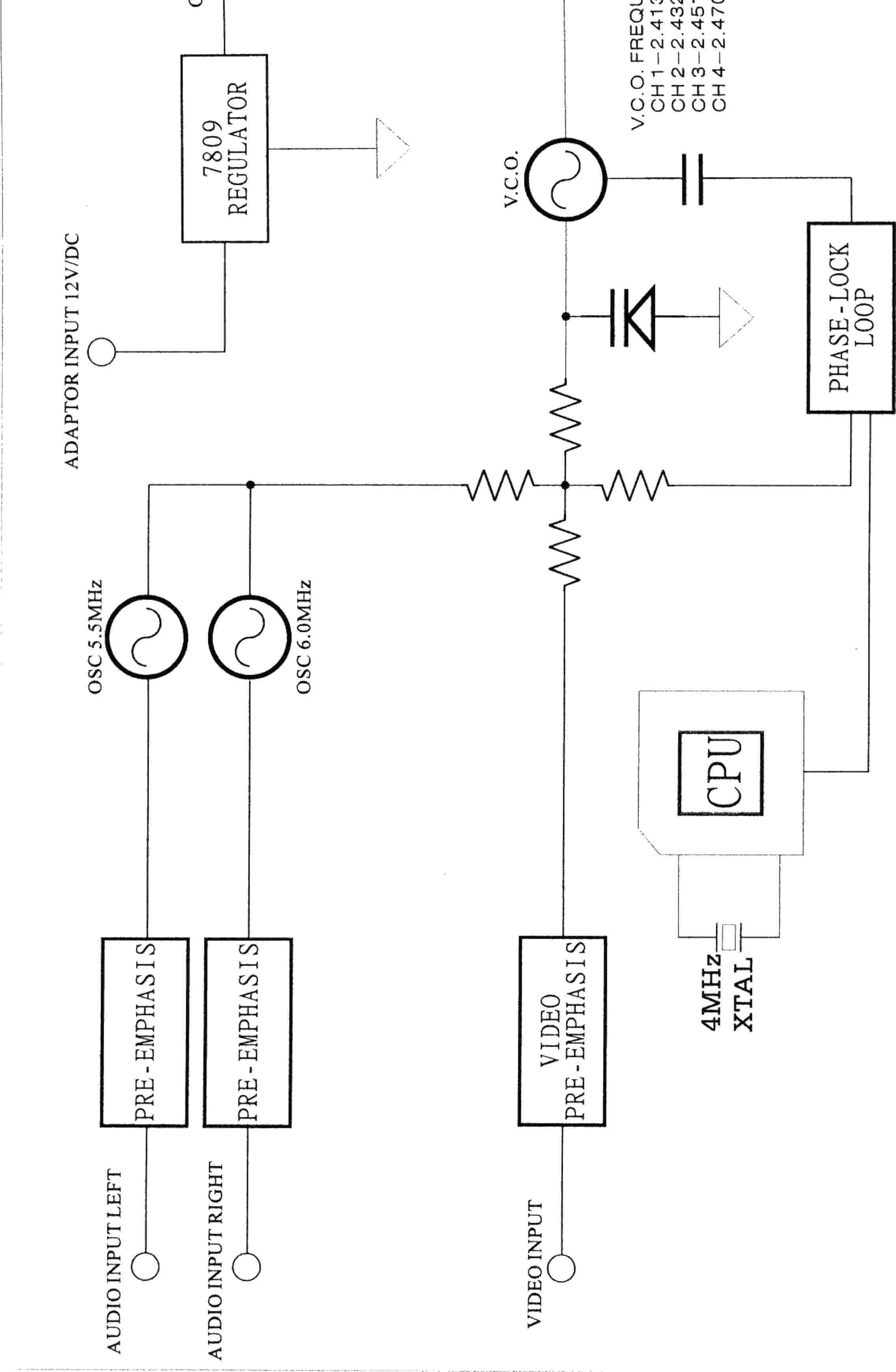

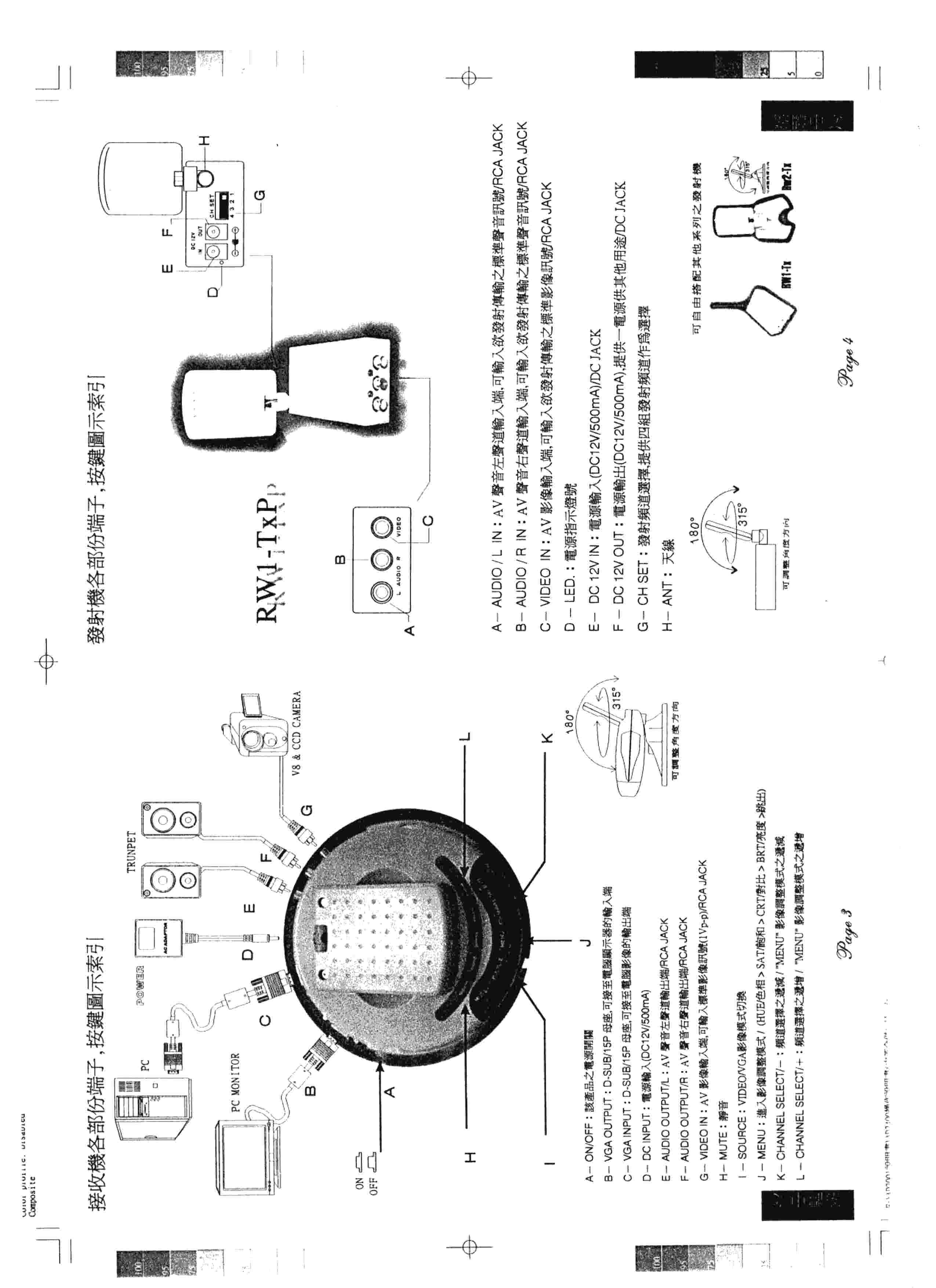

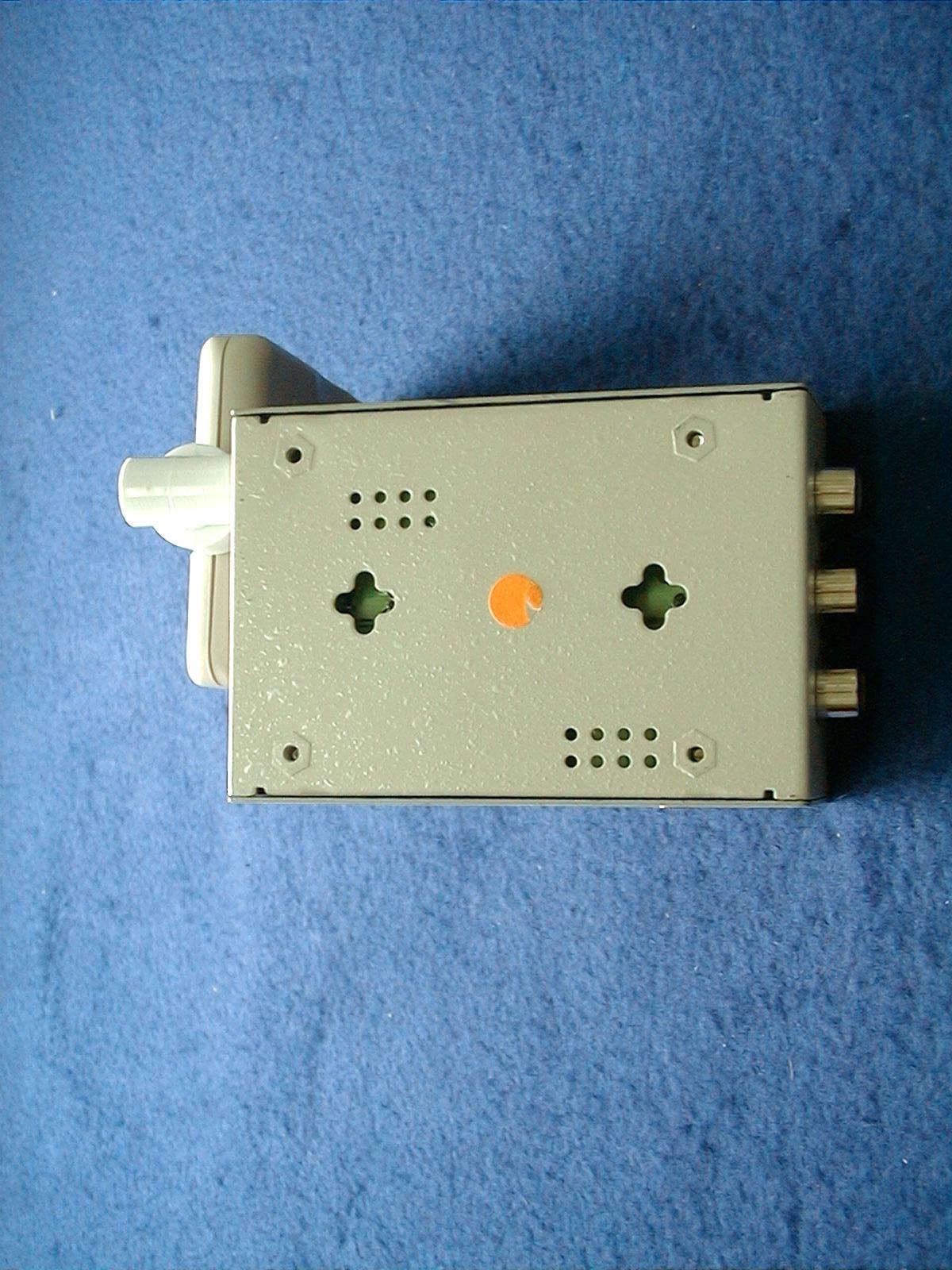

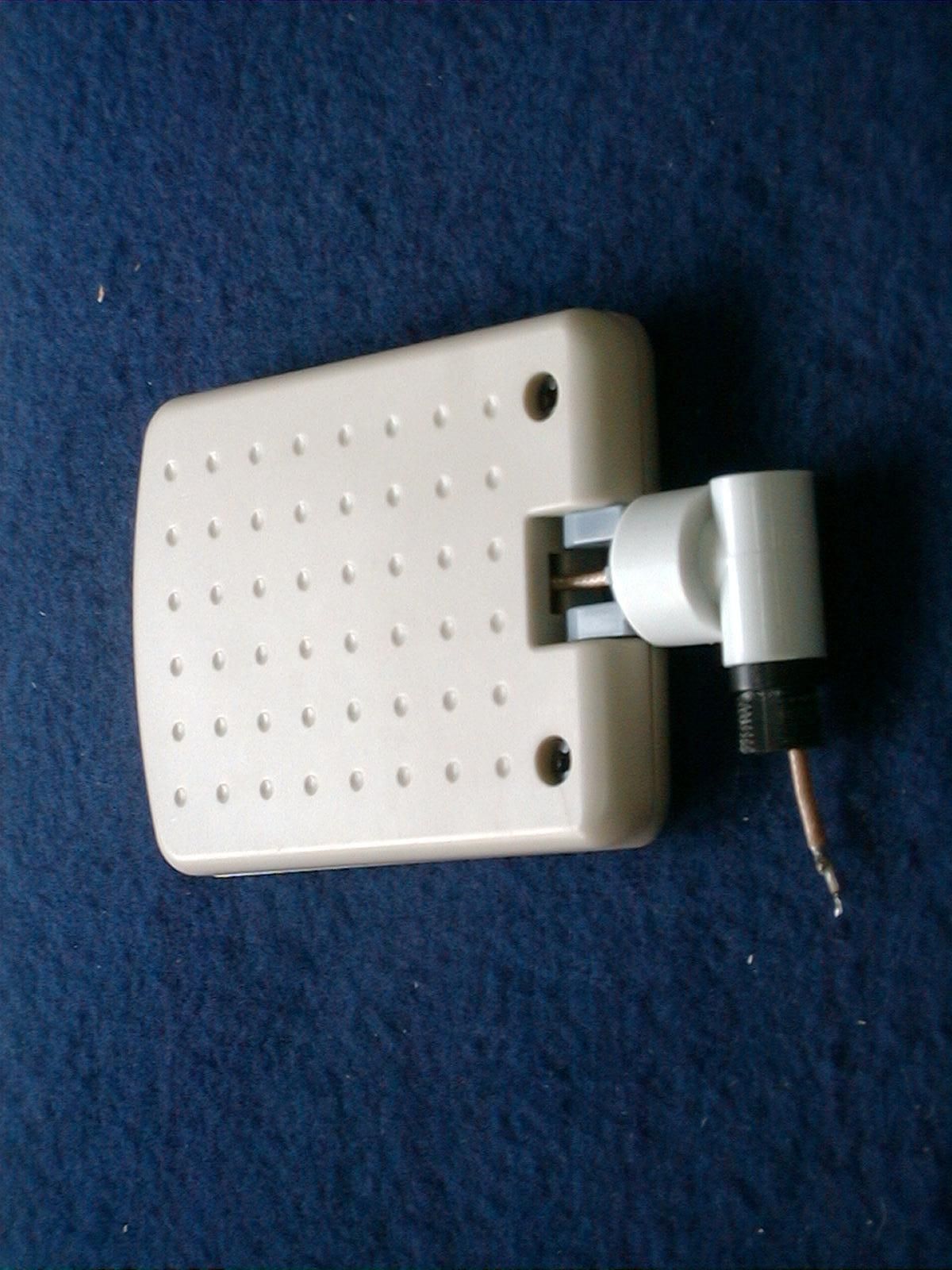

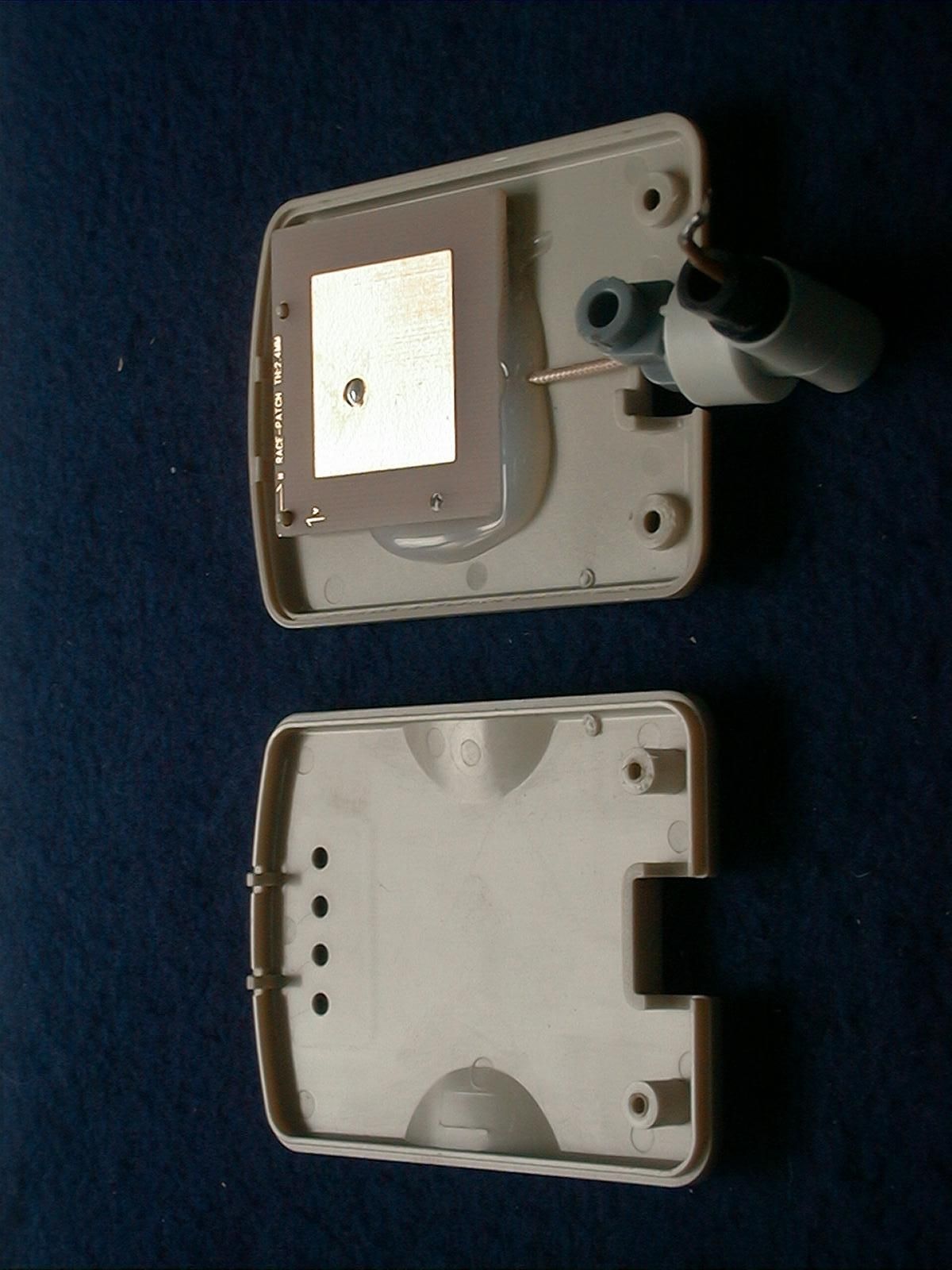

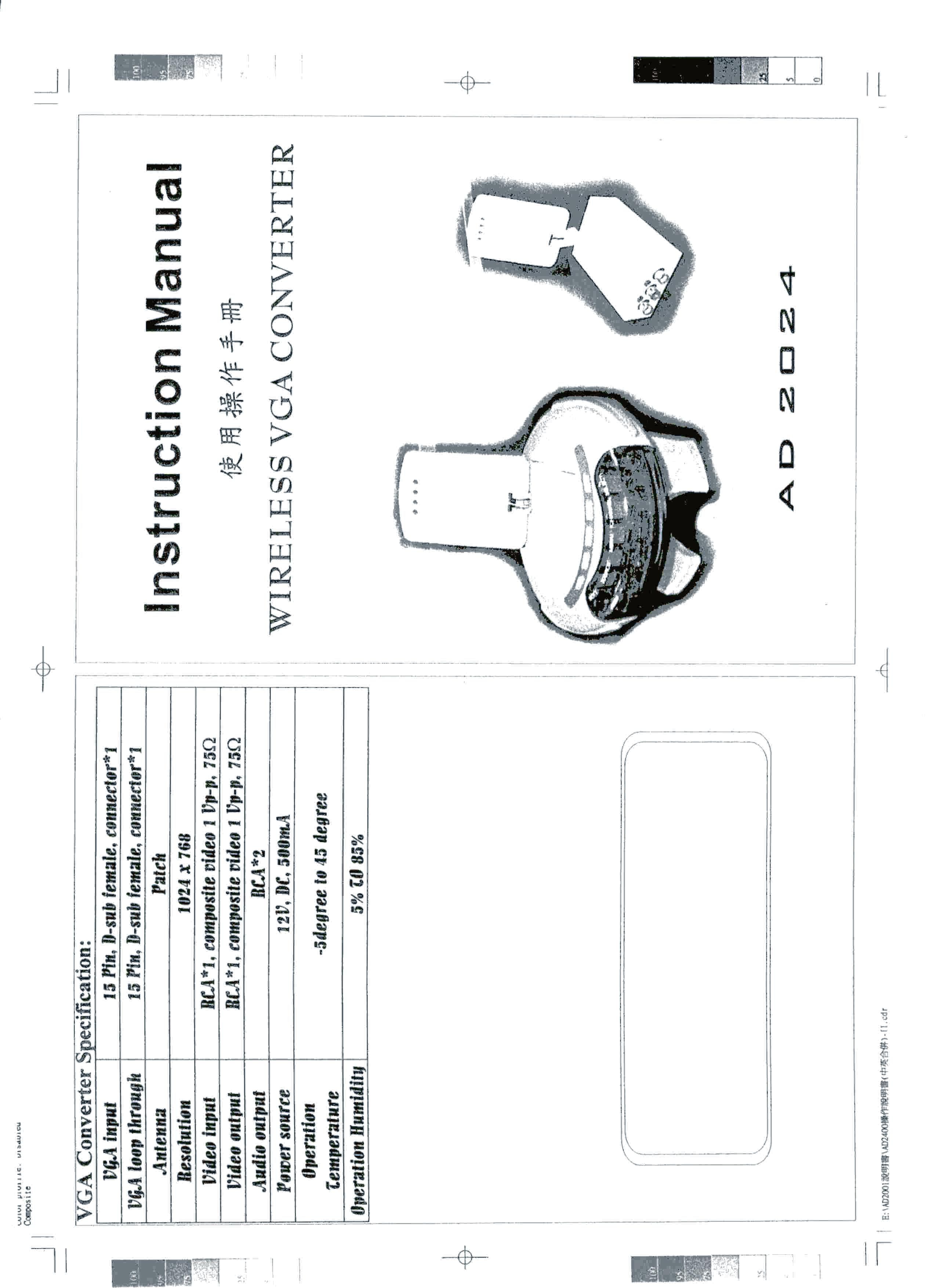

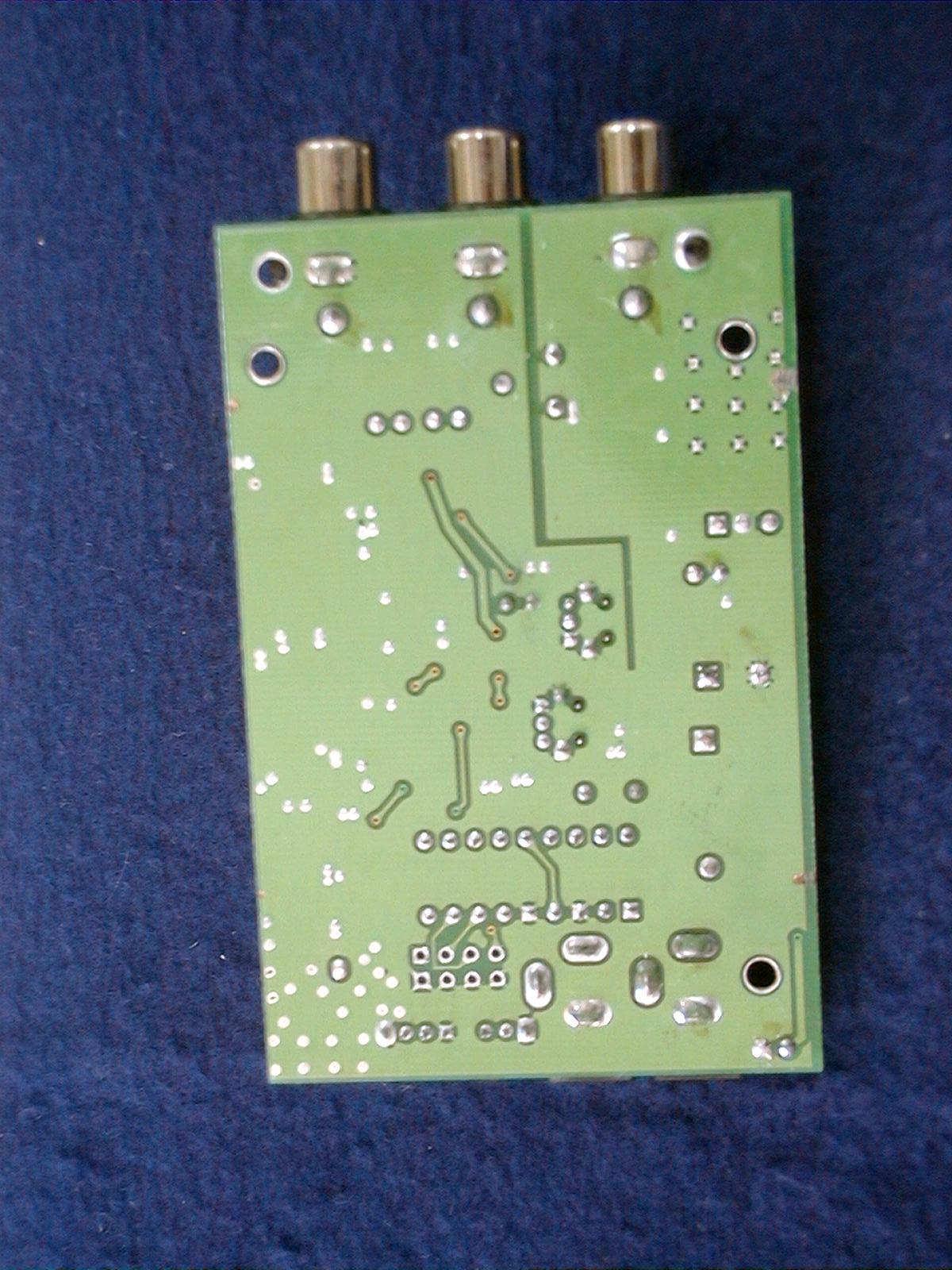

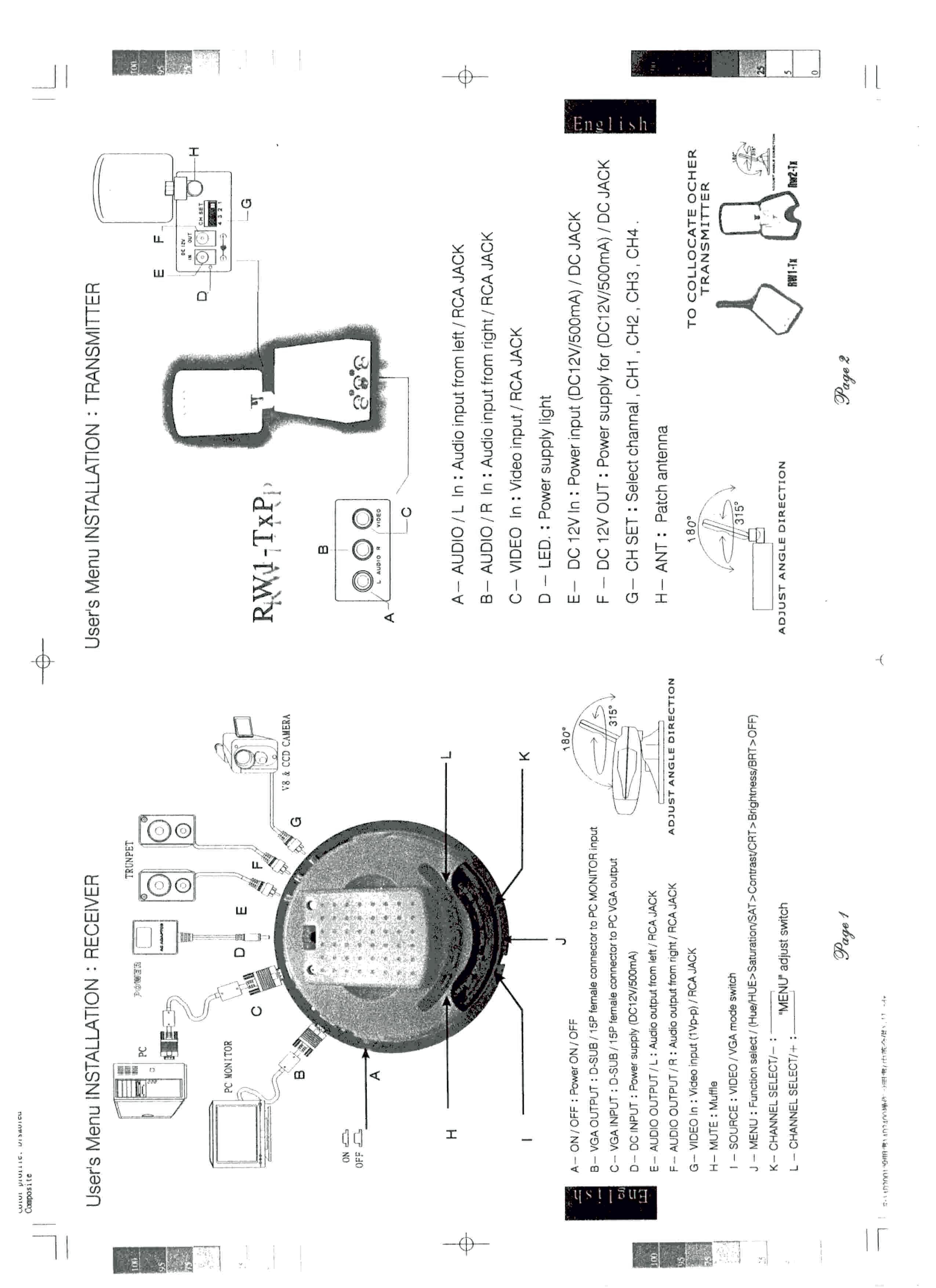

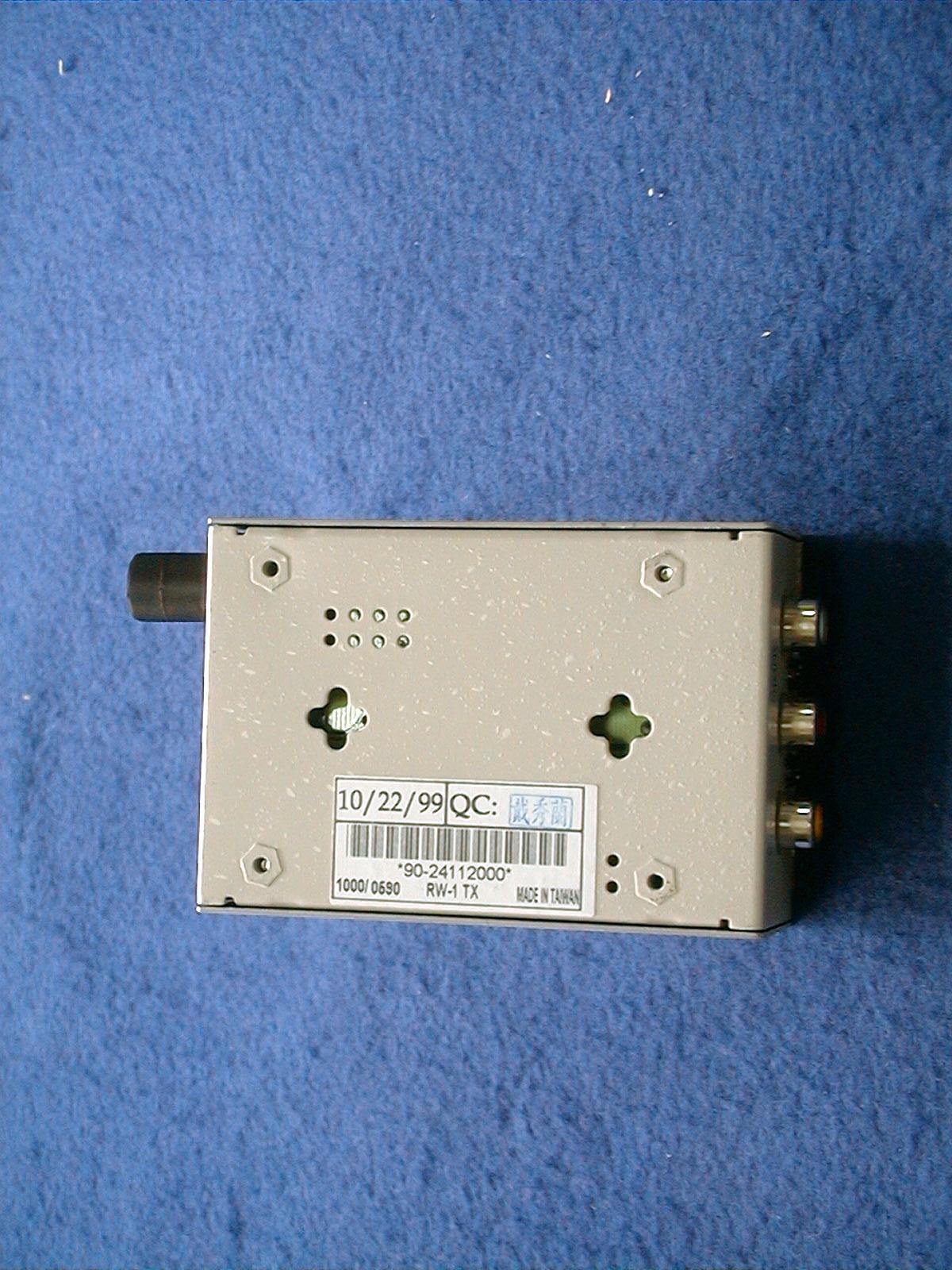

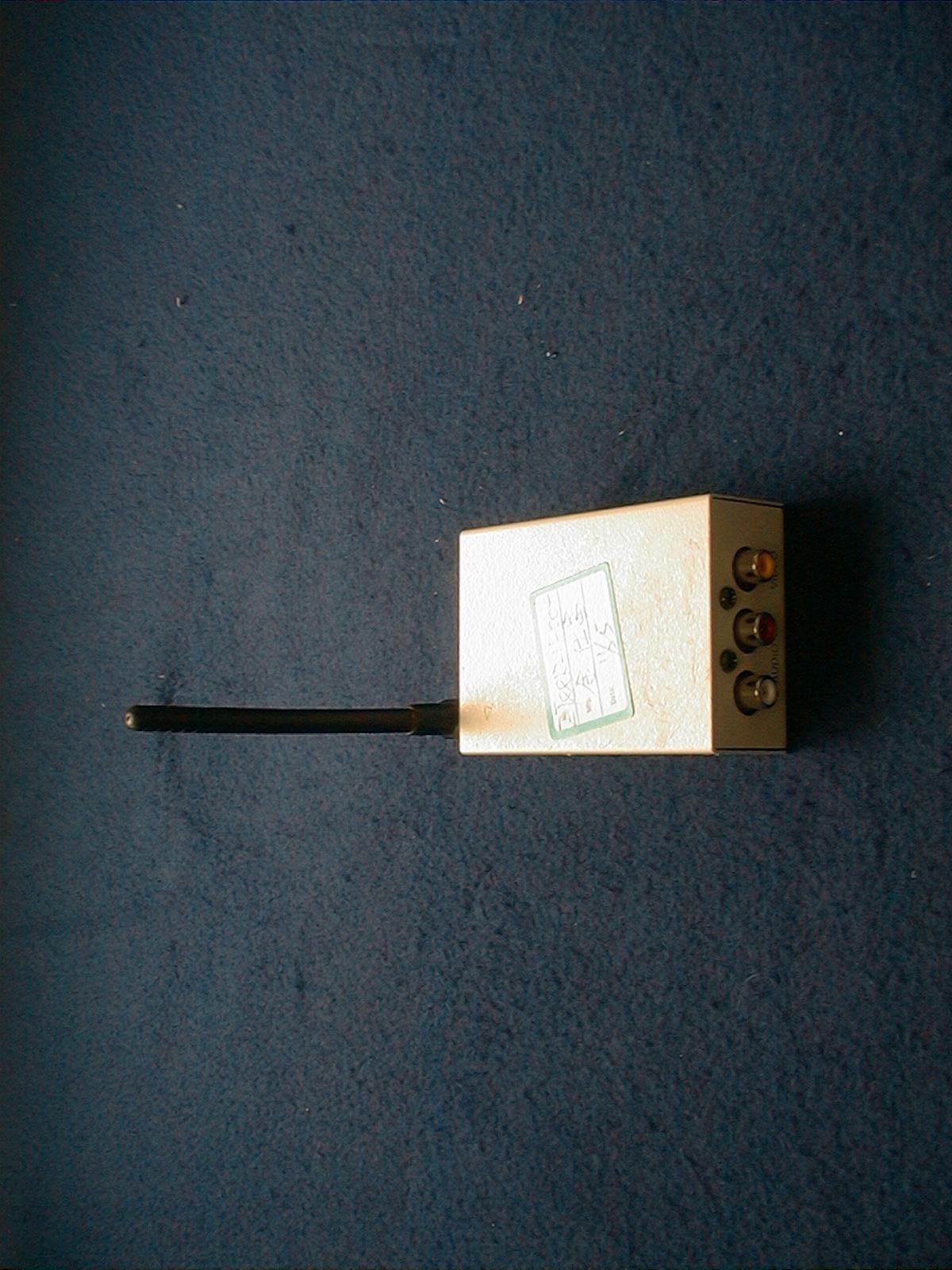

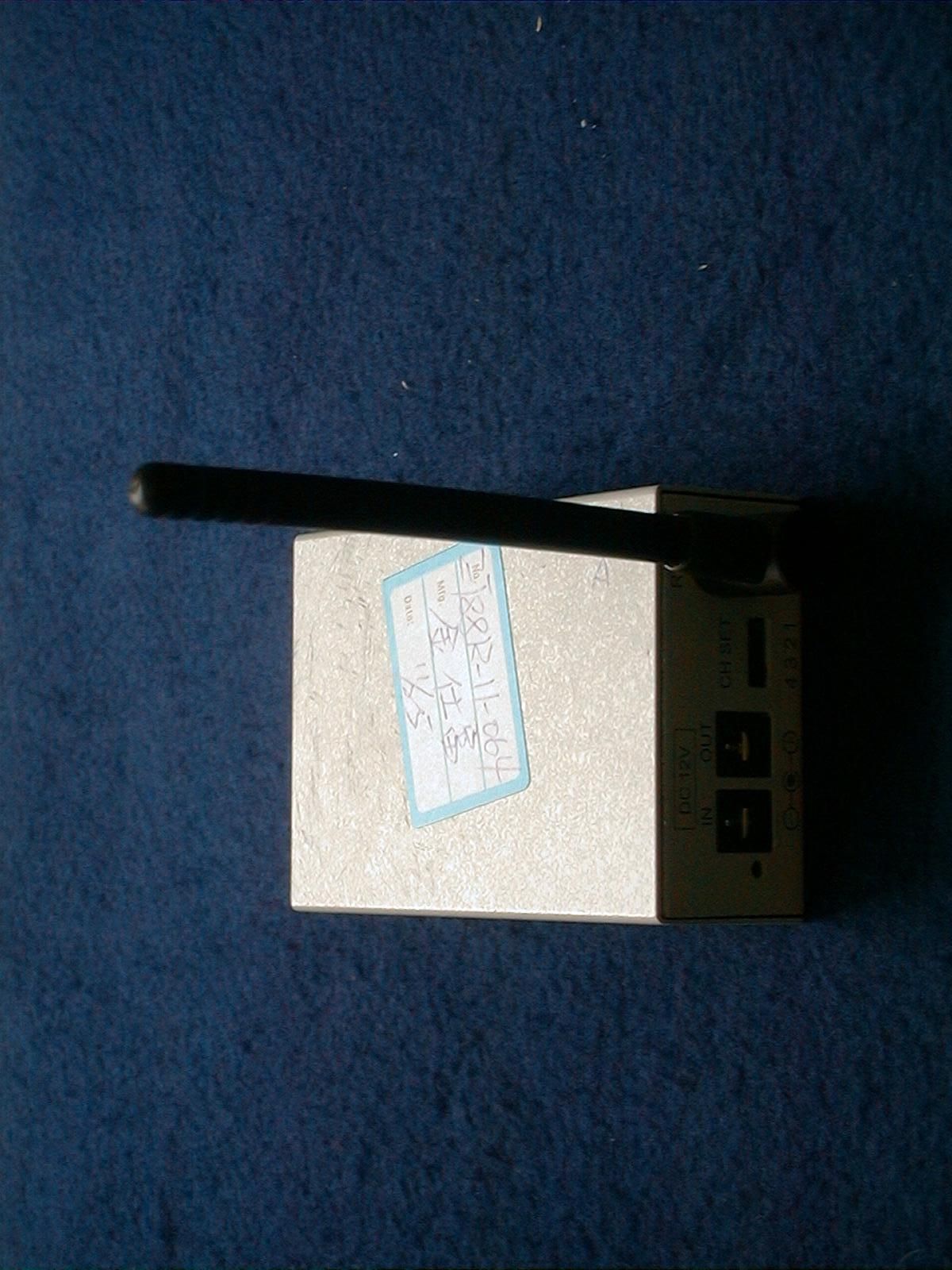

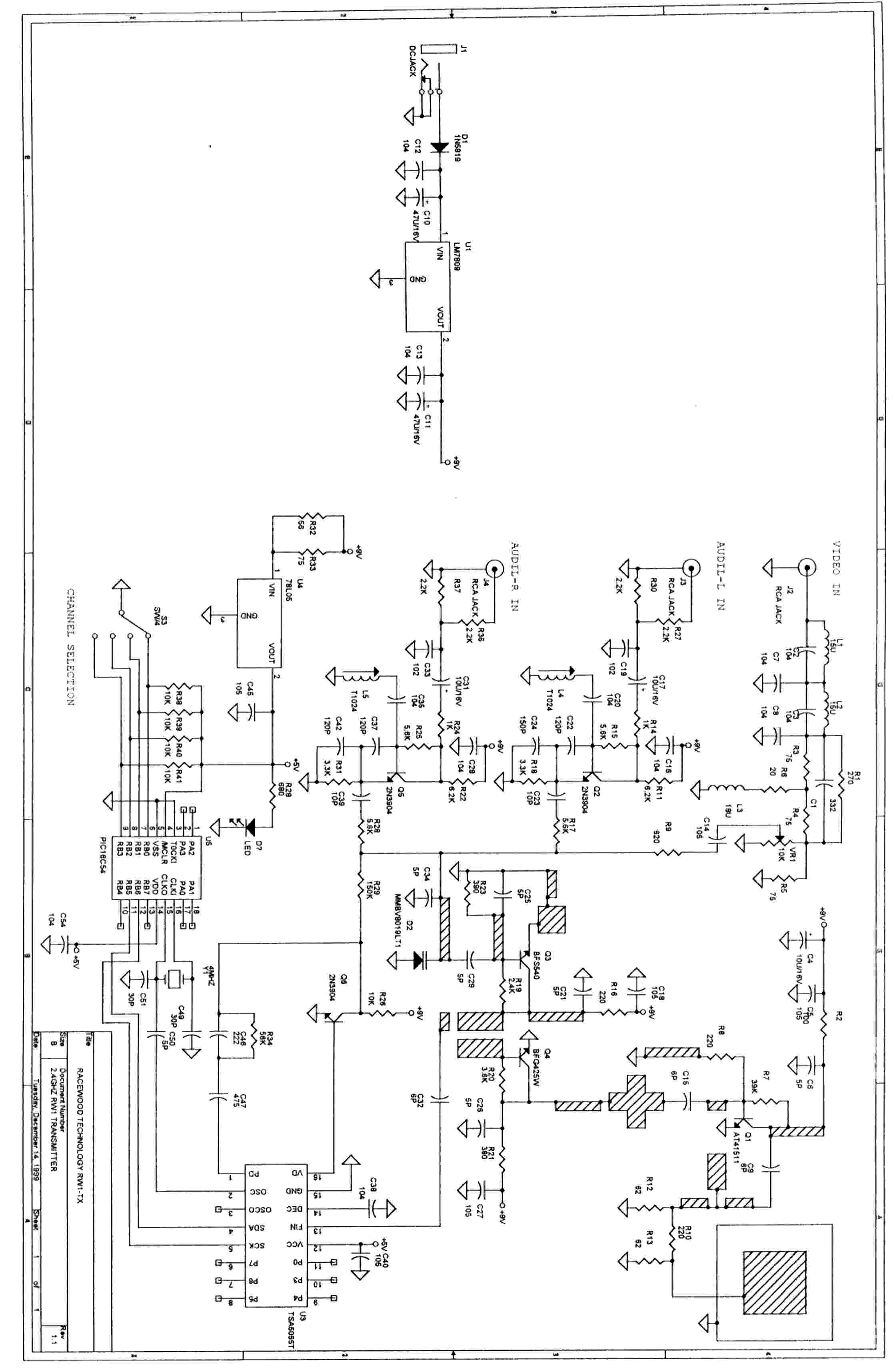

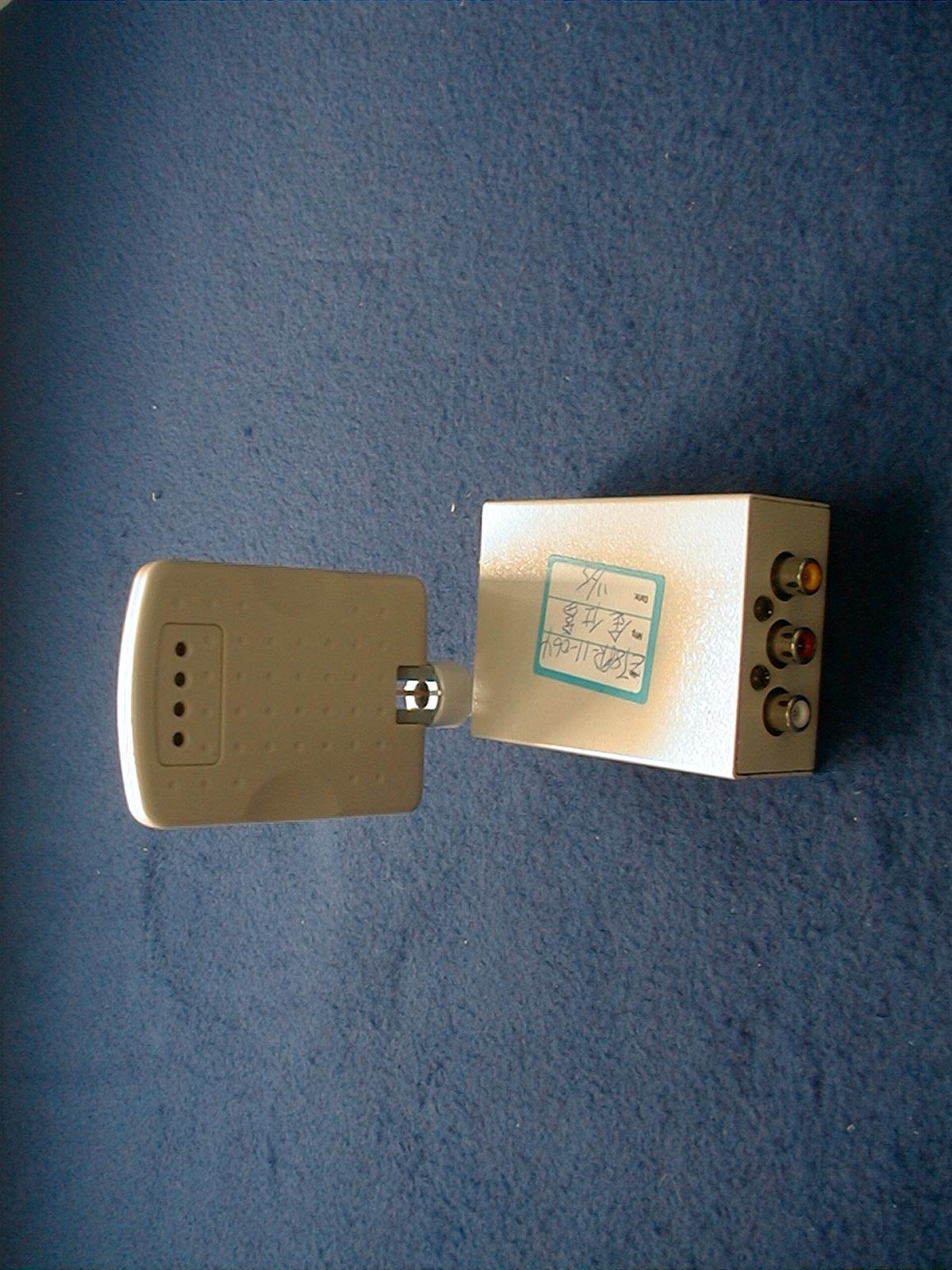

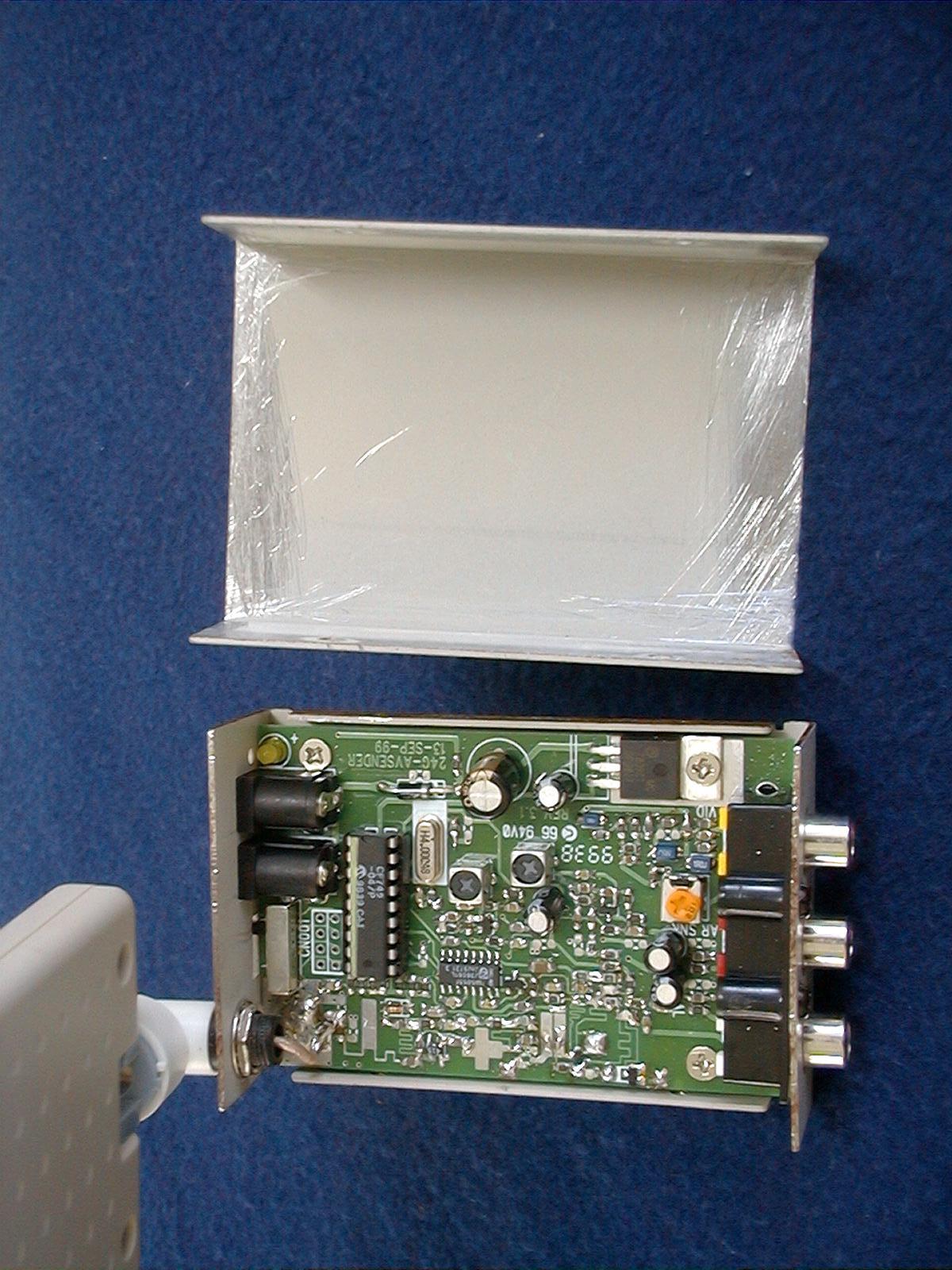

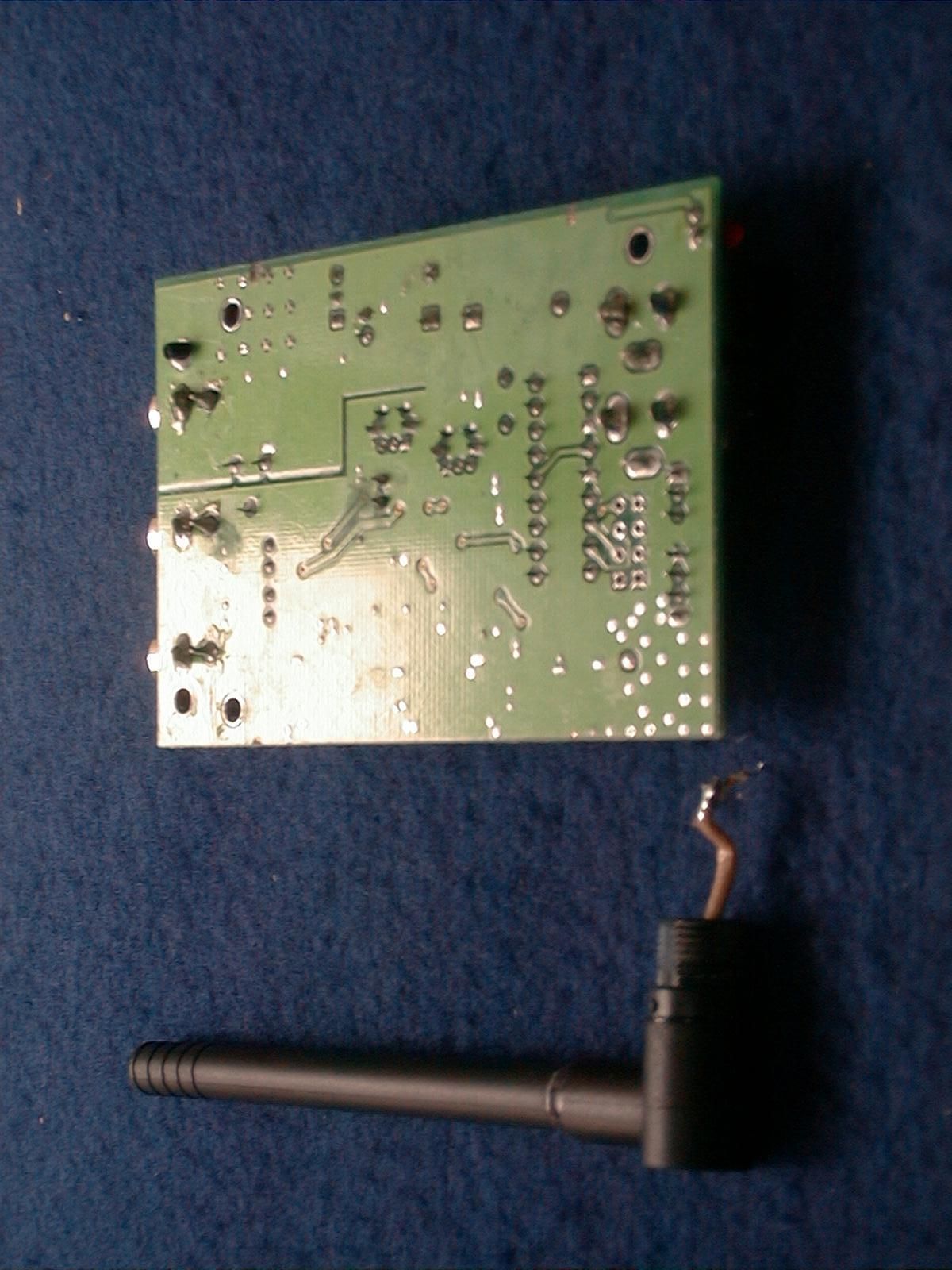

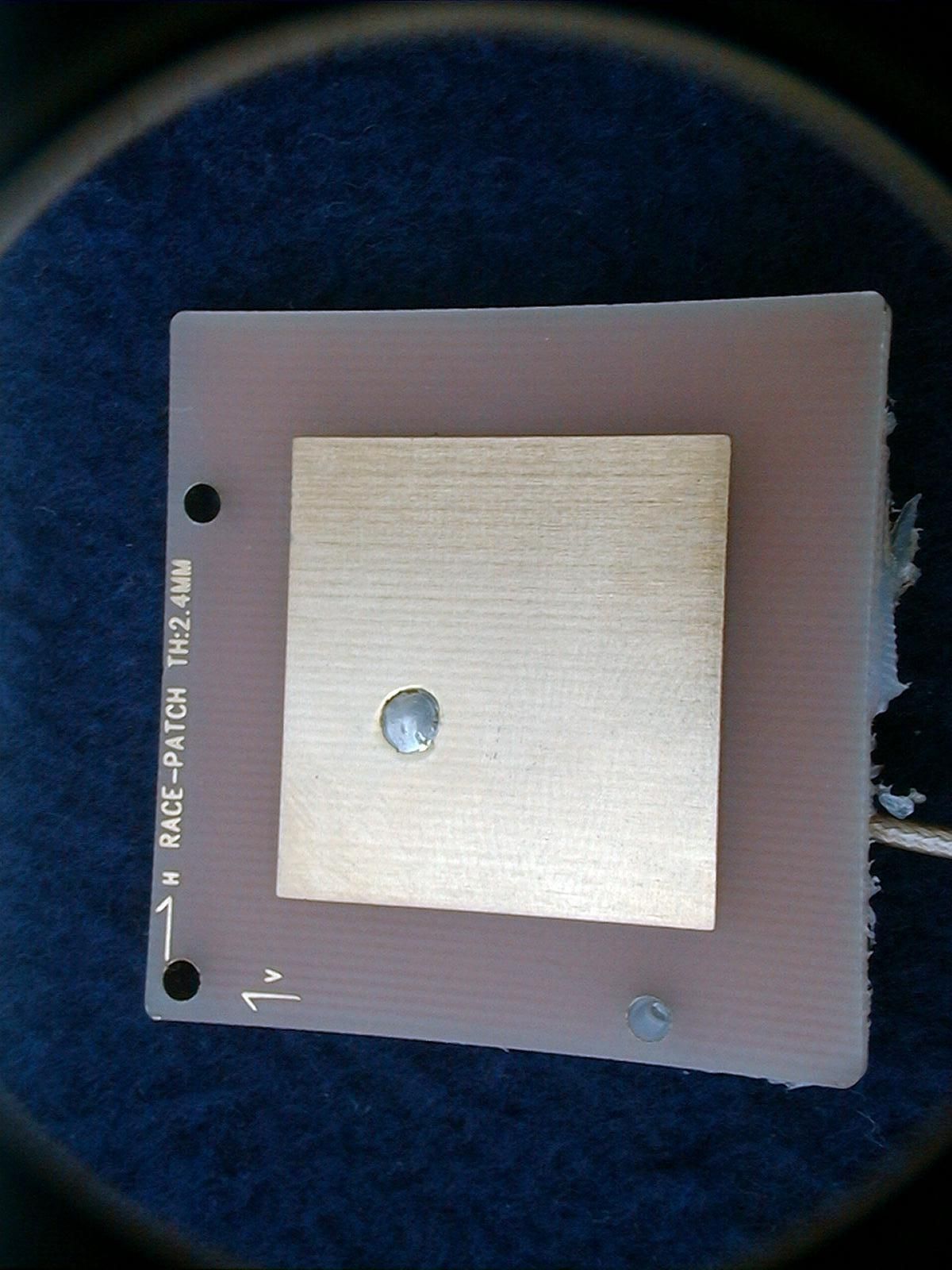

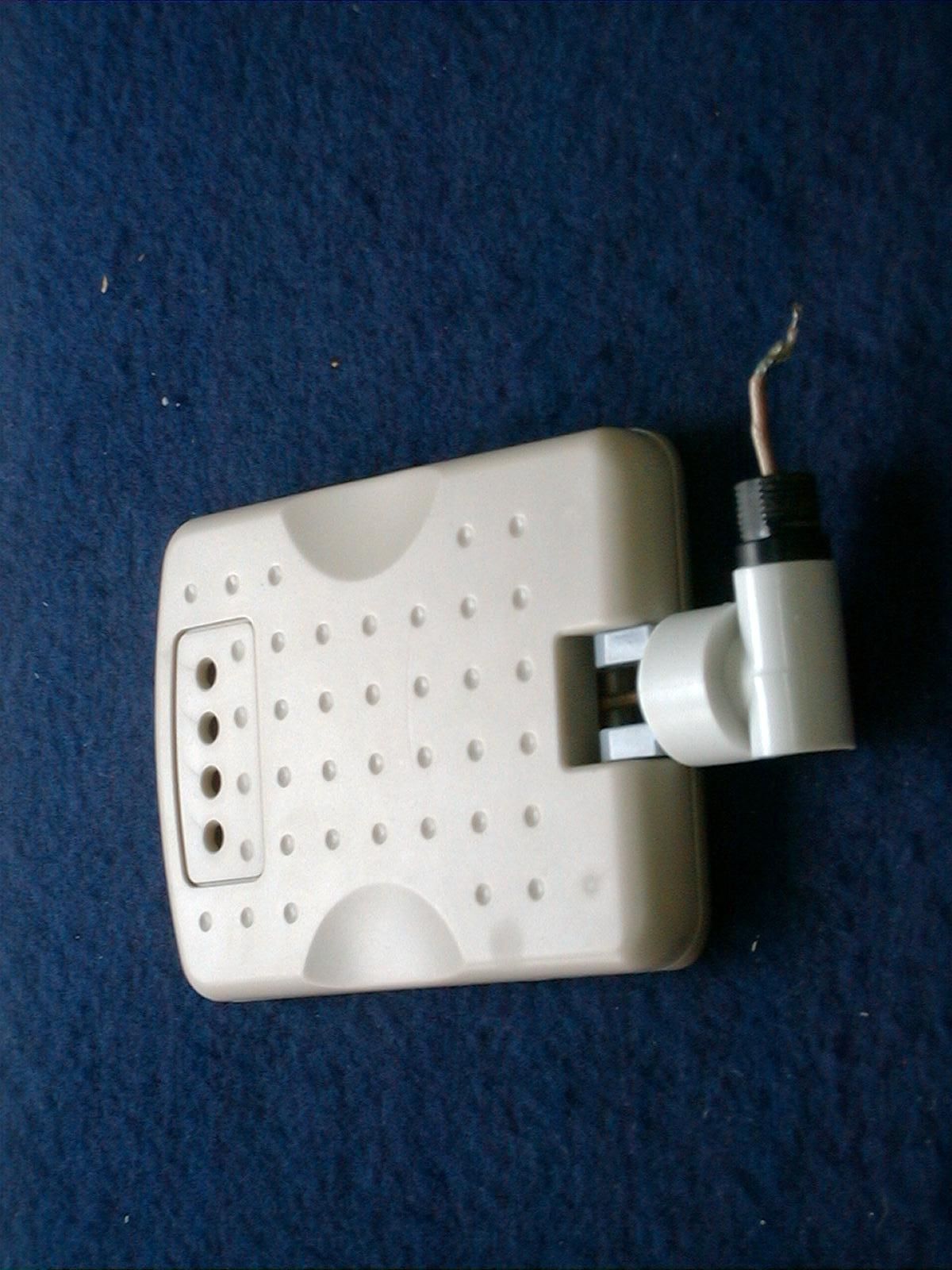

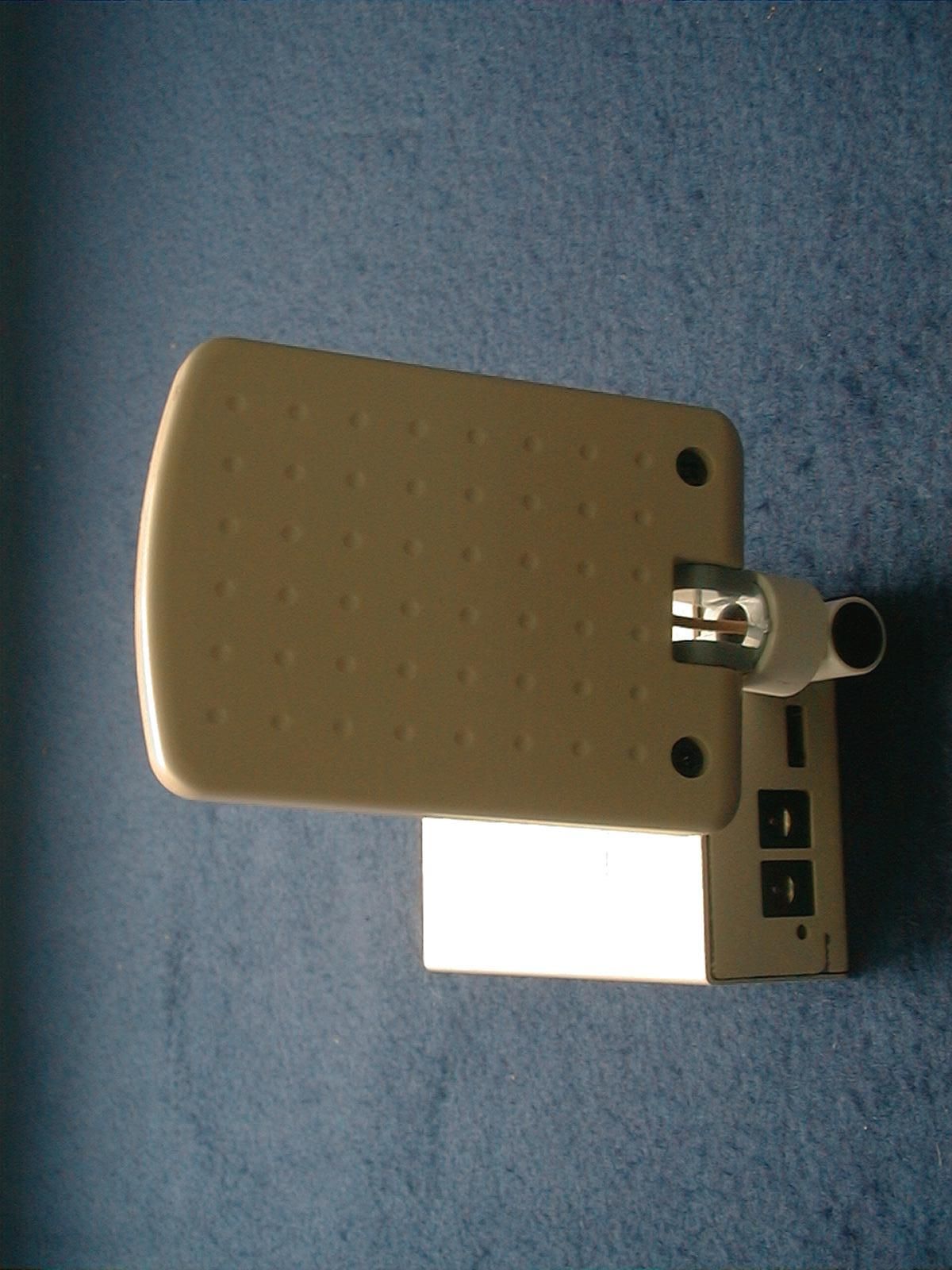

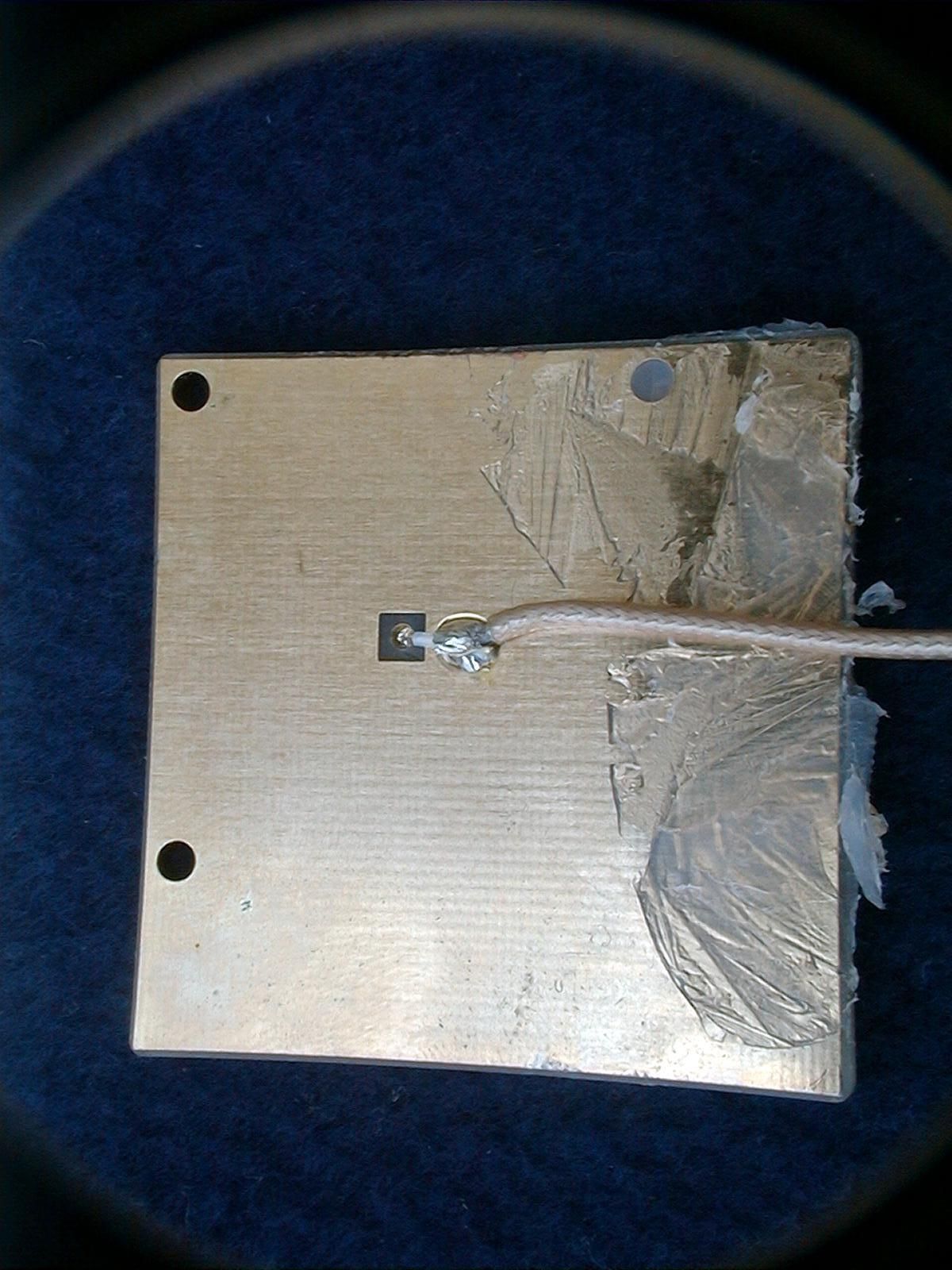

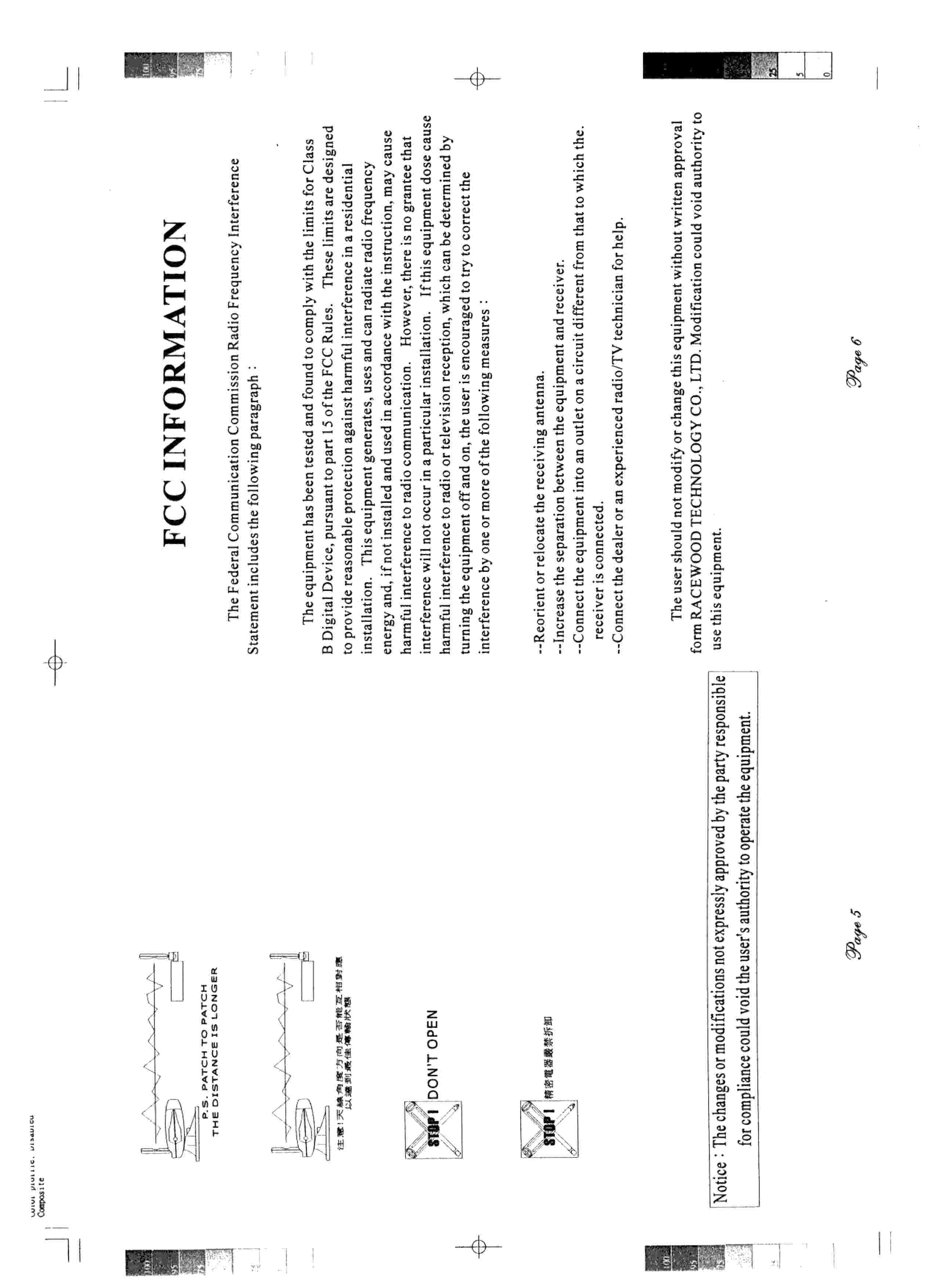

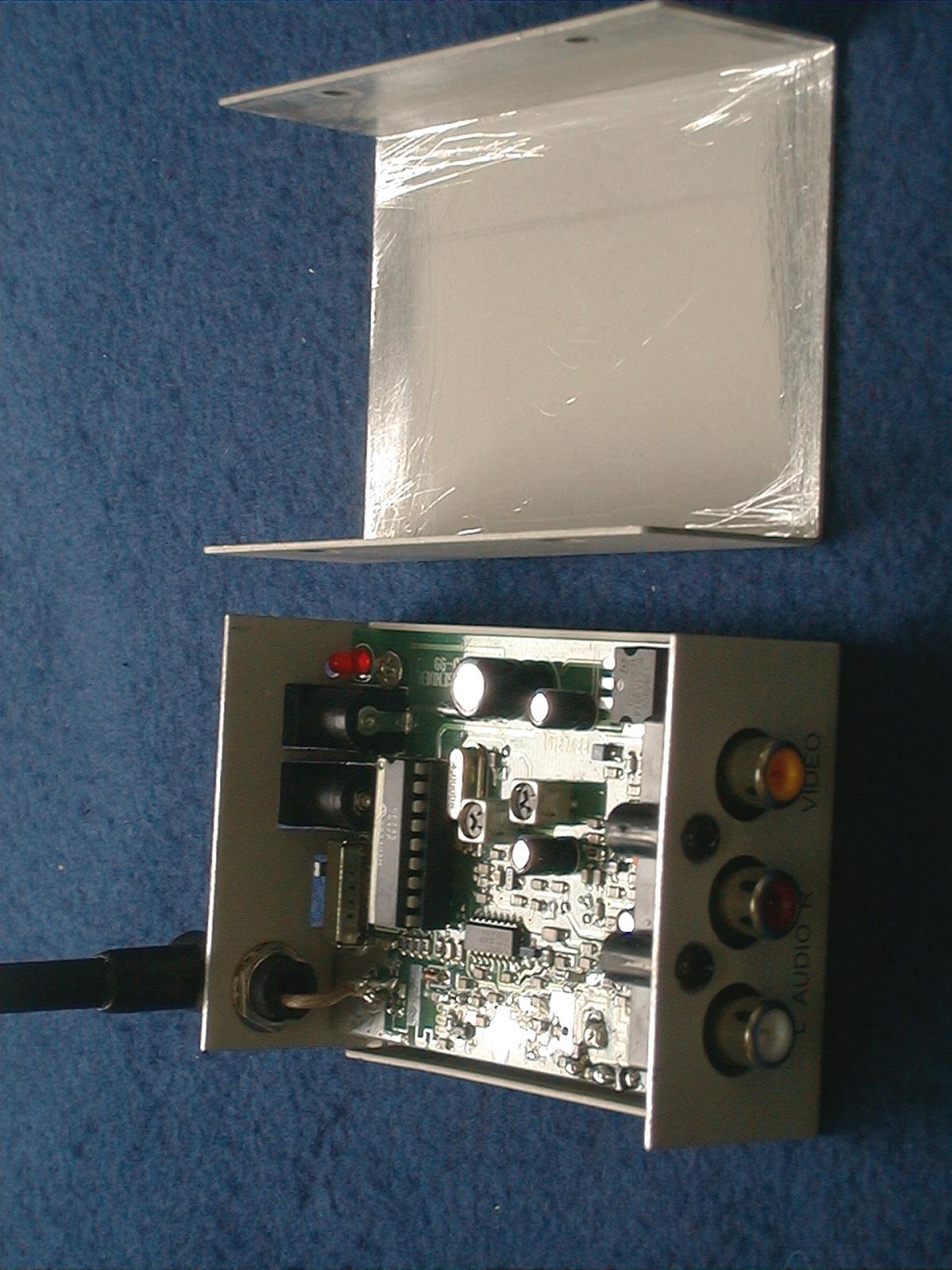

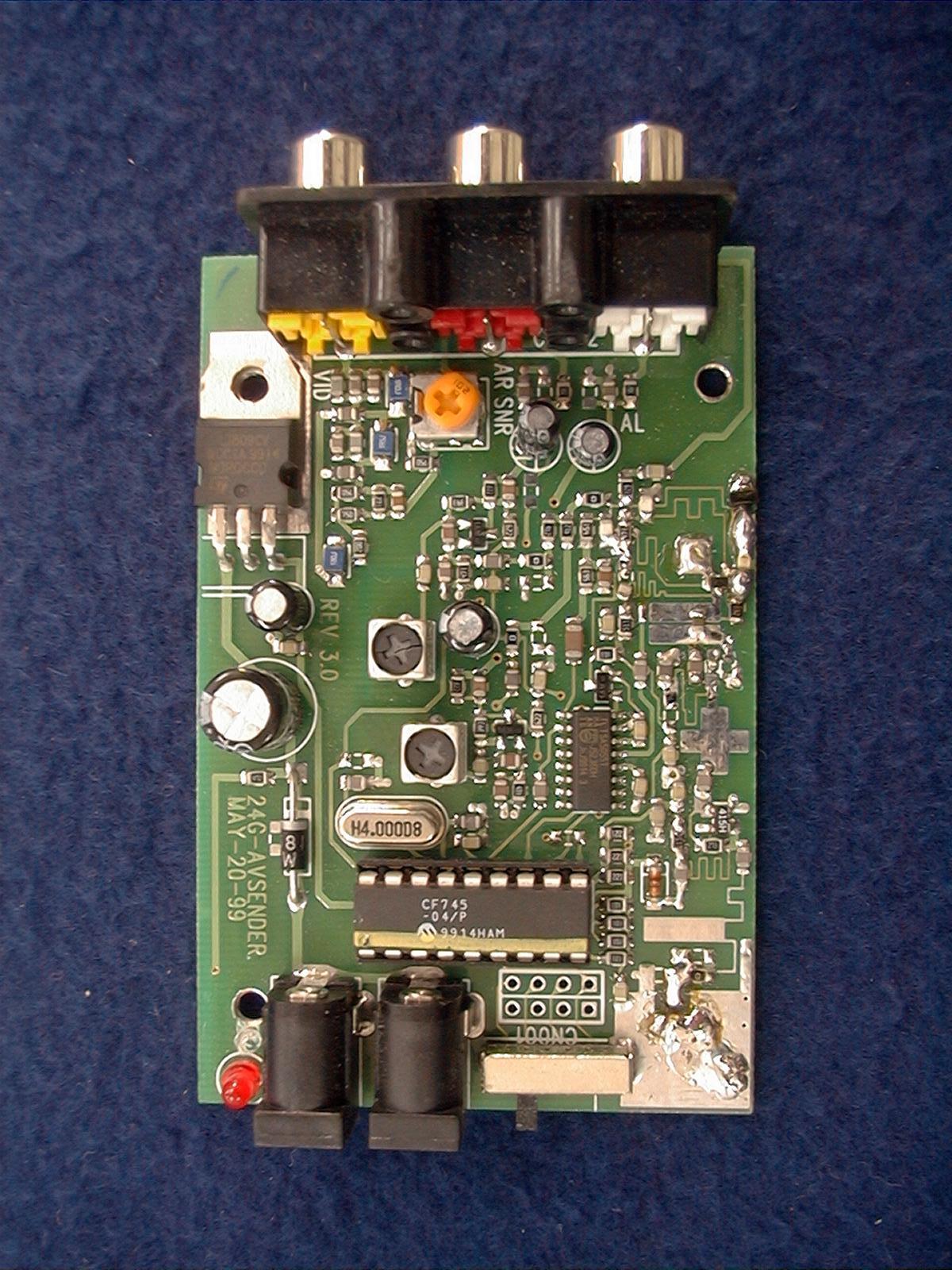

2.4 GHz AV SENDER, using FM method for Audio/Video signal modulation. It has better signal to noise ratio than Amplitude Modulation. There are four channels to relative to the following frequencies: CH 1 : 2413 MHz, CH 2 : 2432 MHz, CH 3 : 2451 MHz, CH 4 : 2470 MHz, this device is used for surveying environment situation or similar applications of Audio and Video signals transmission.

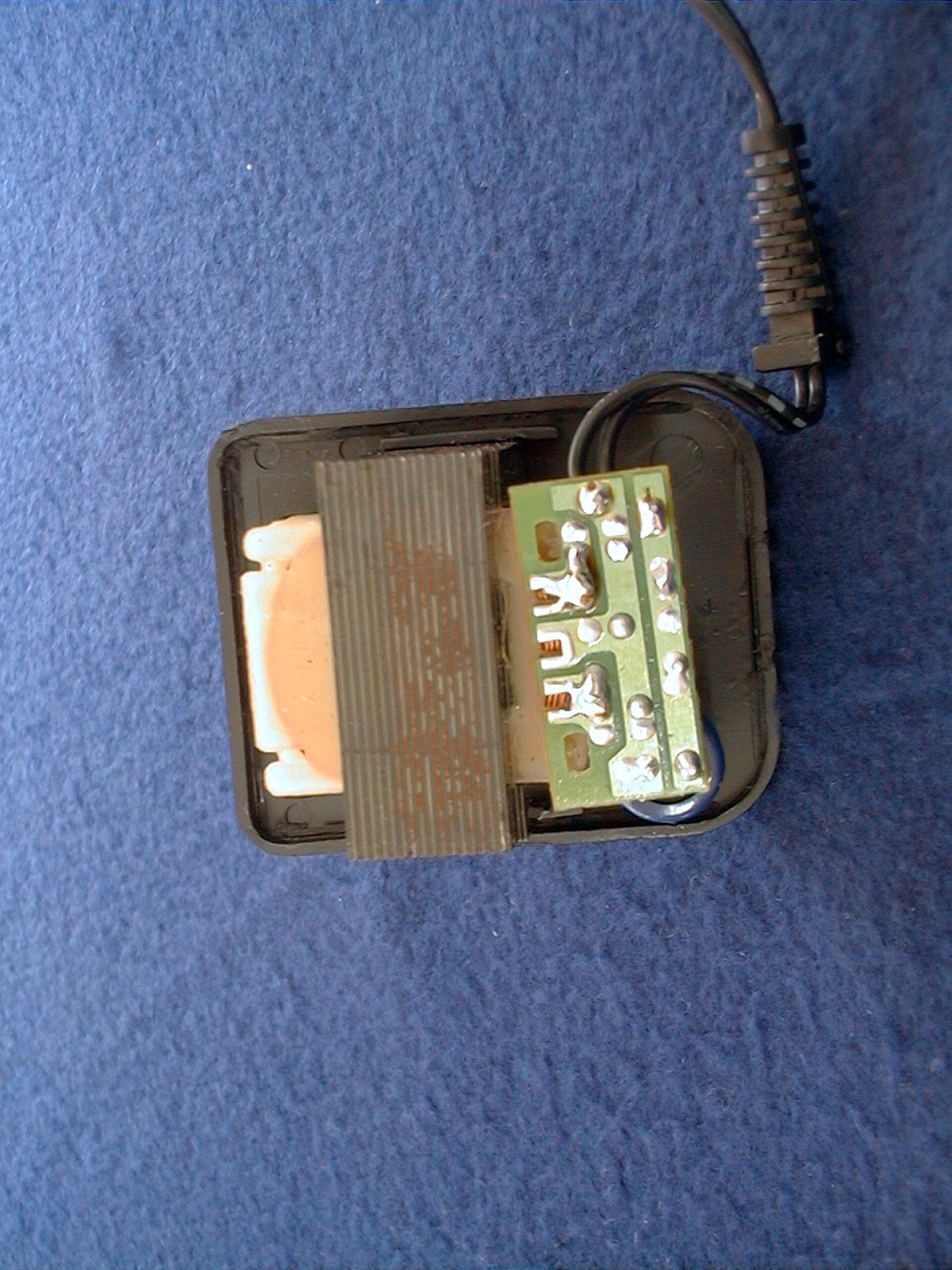

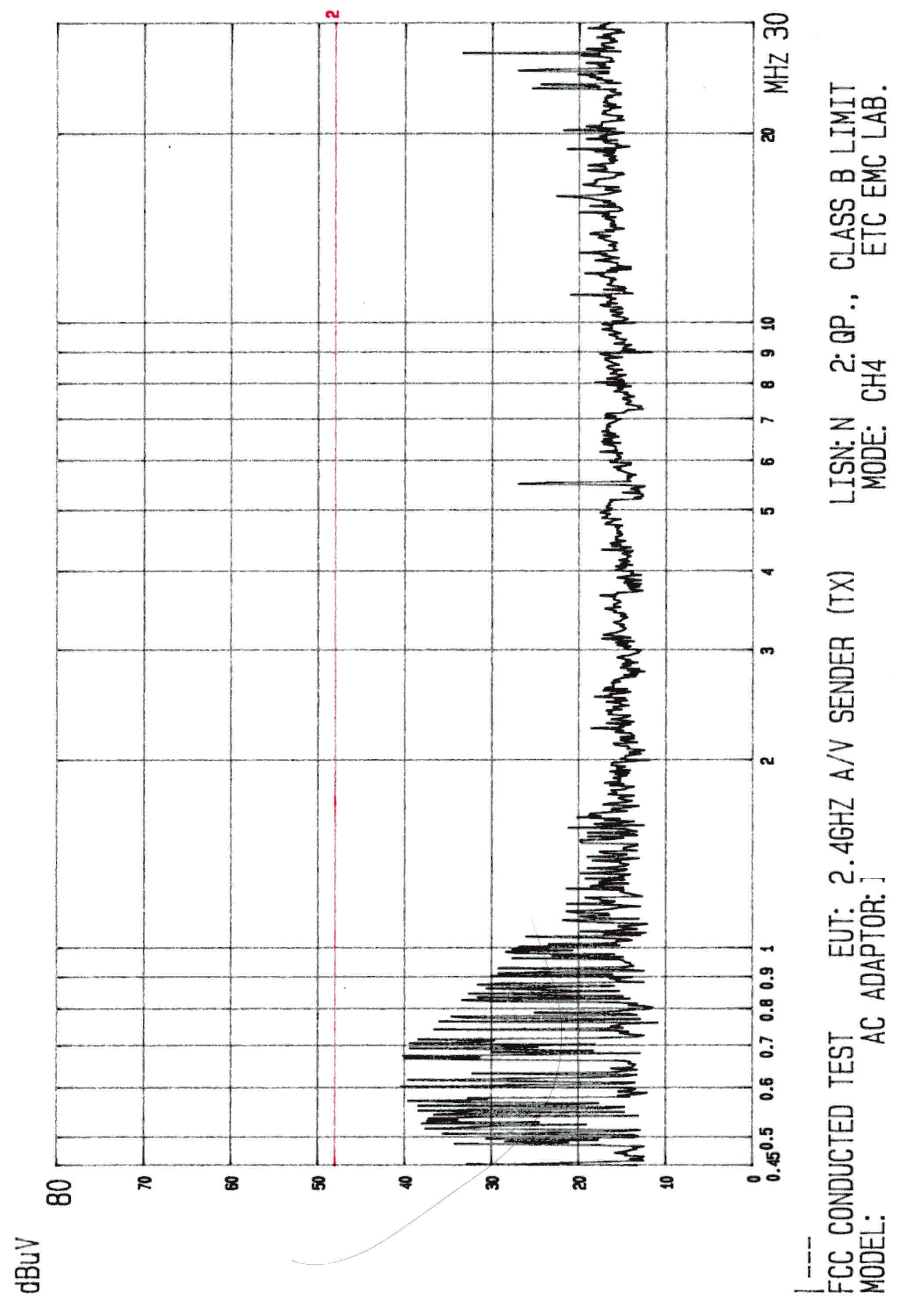

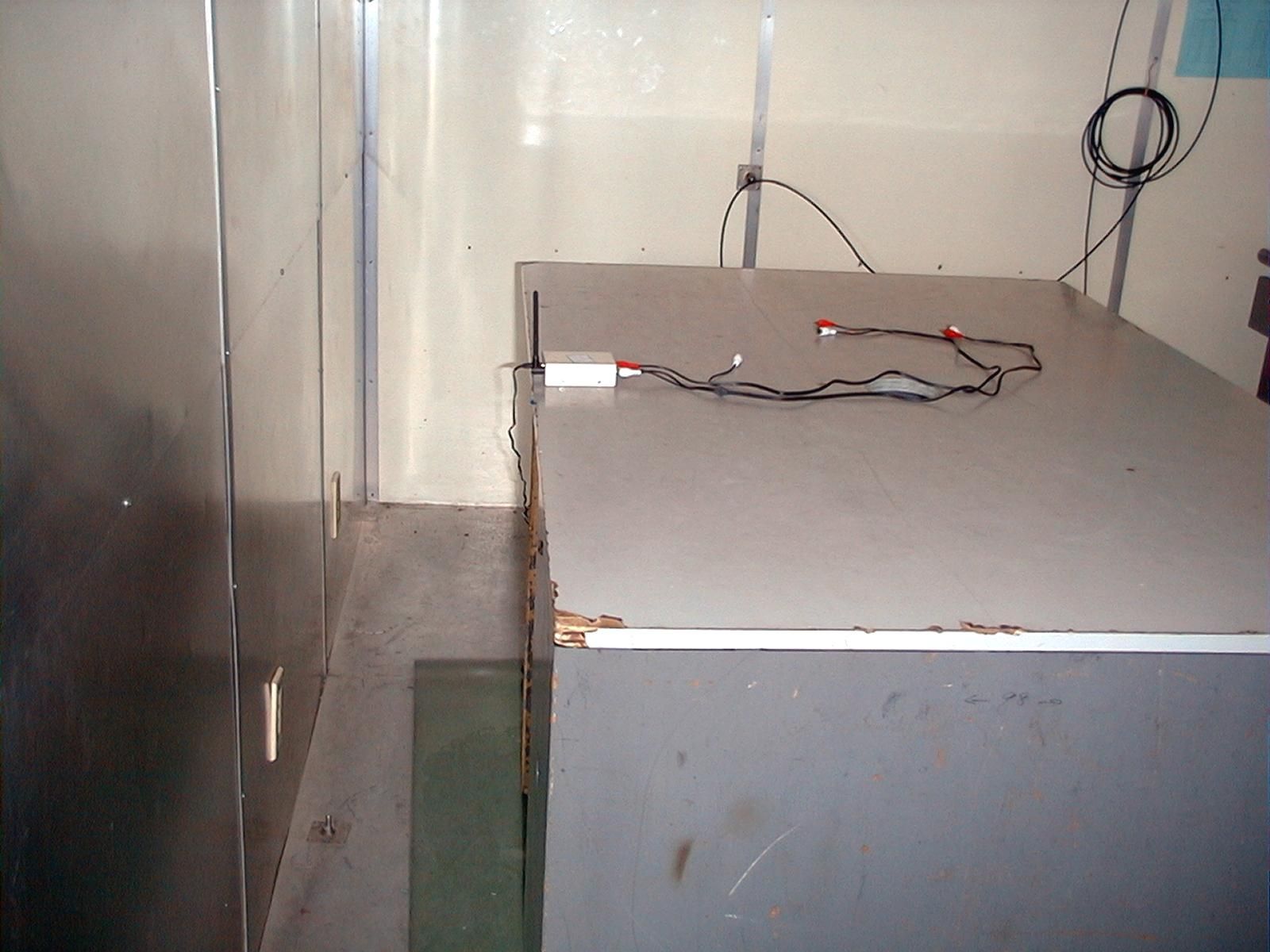

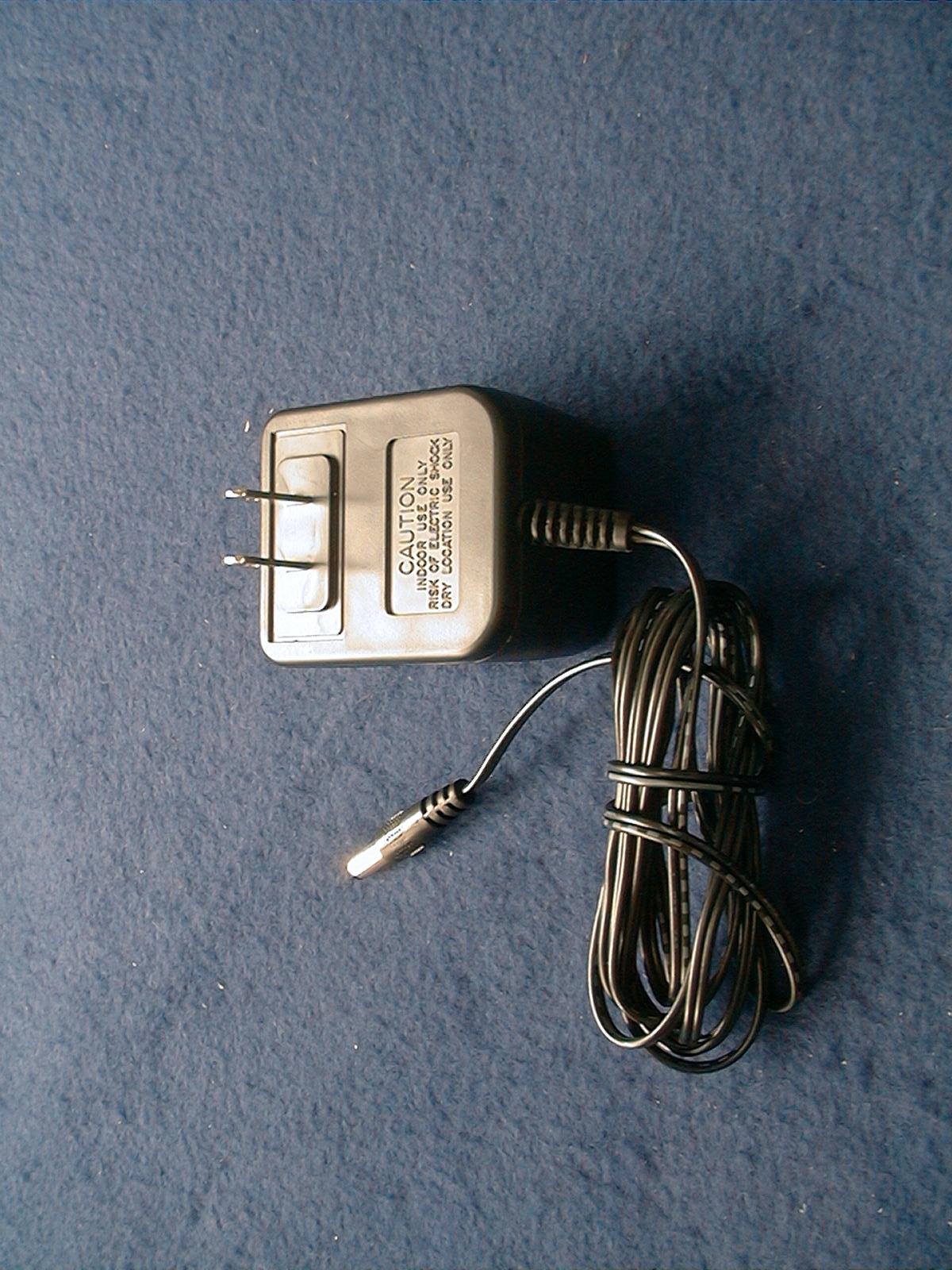

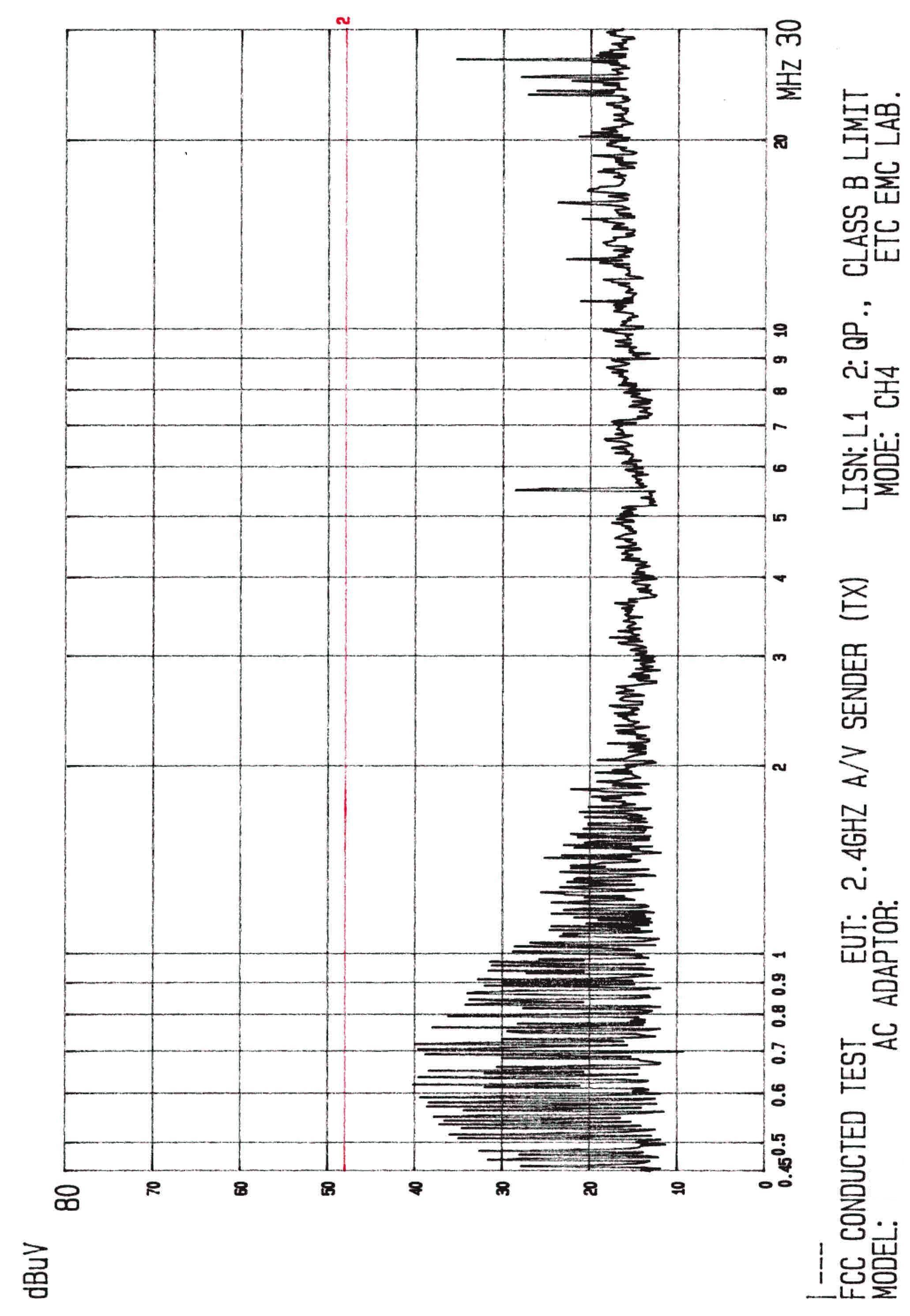

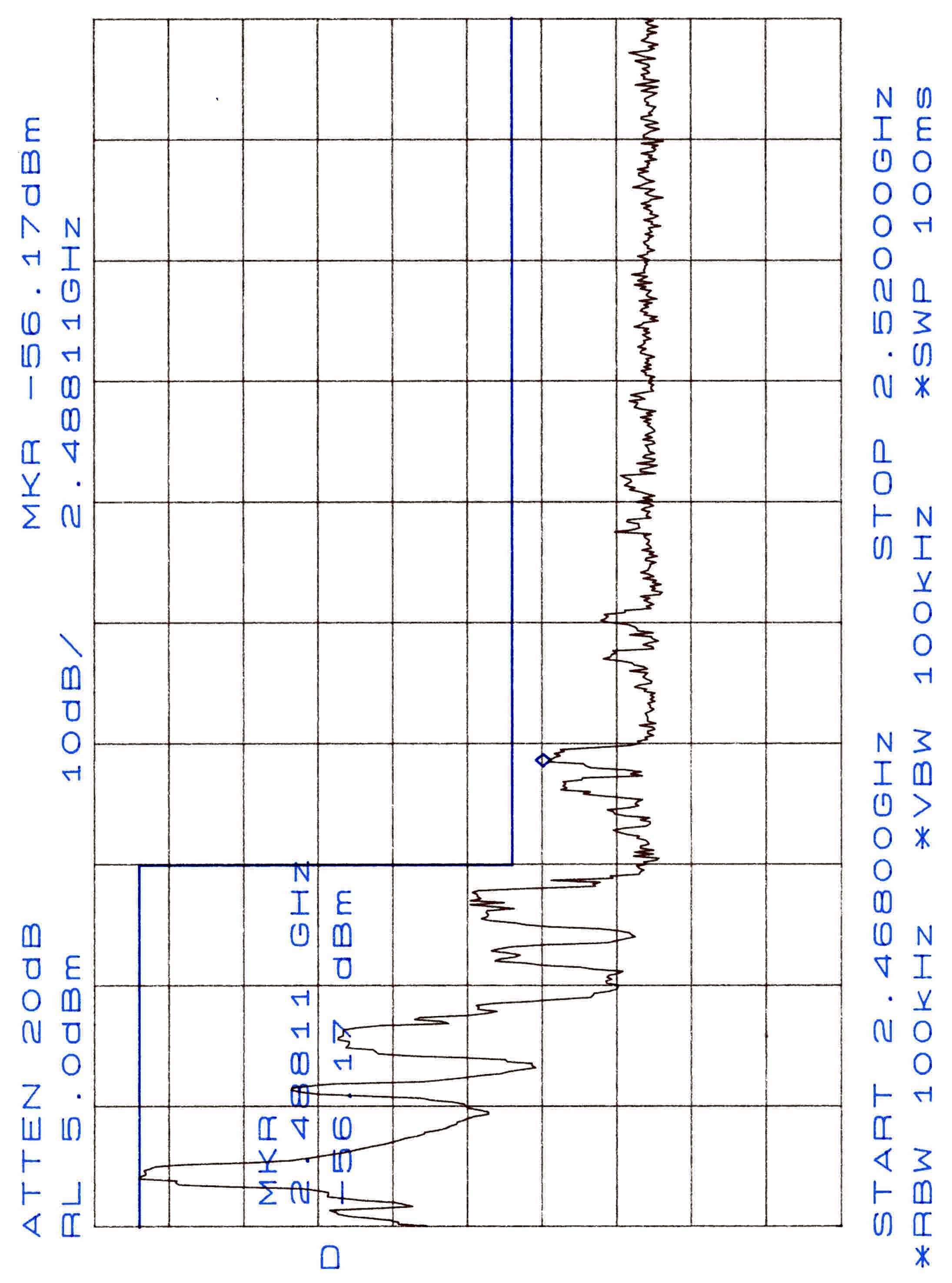

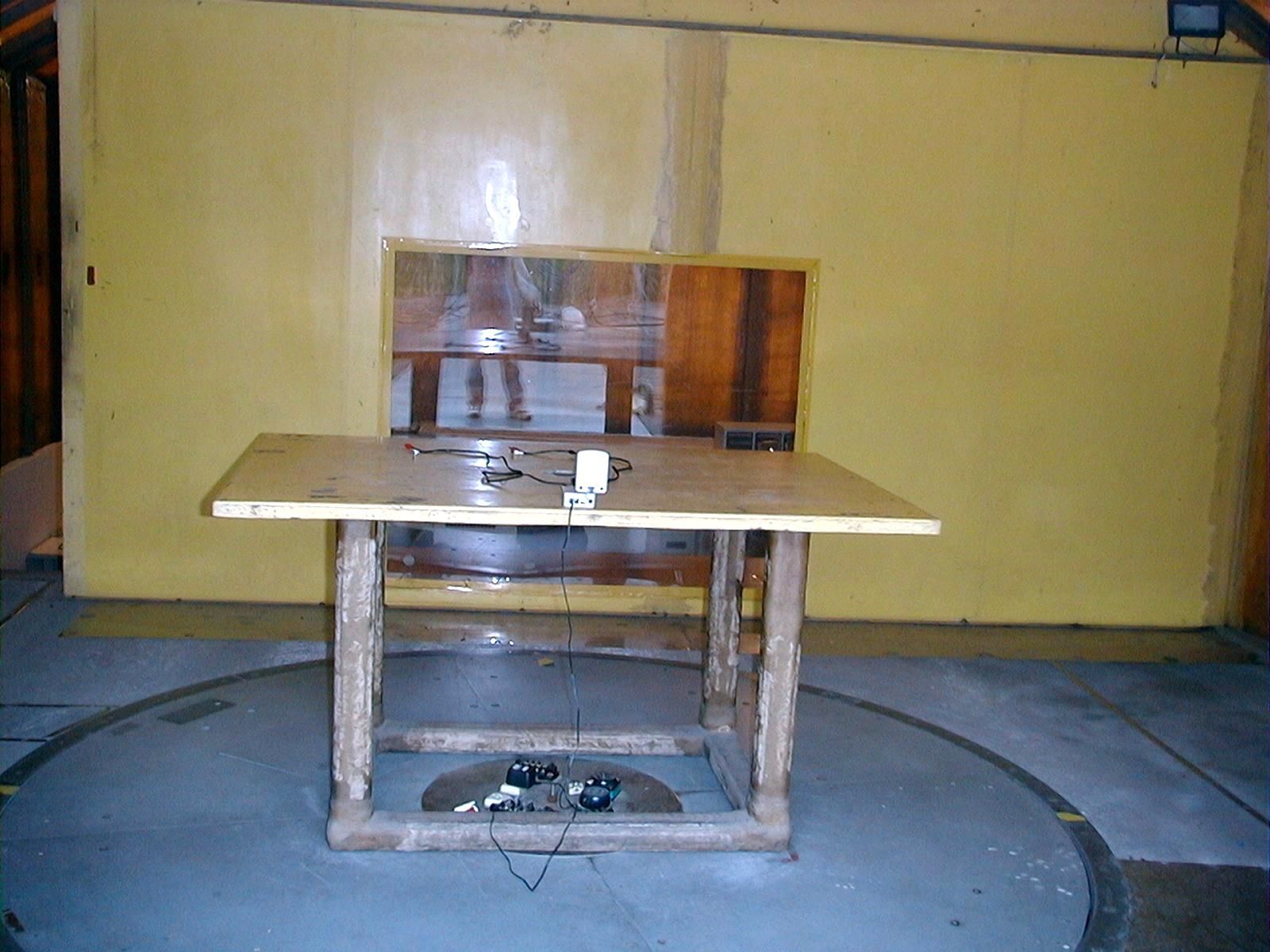

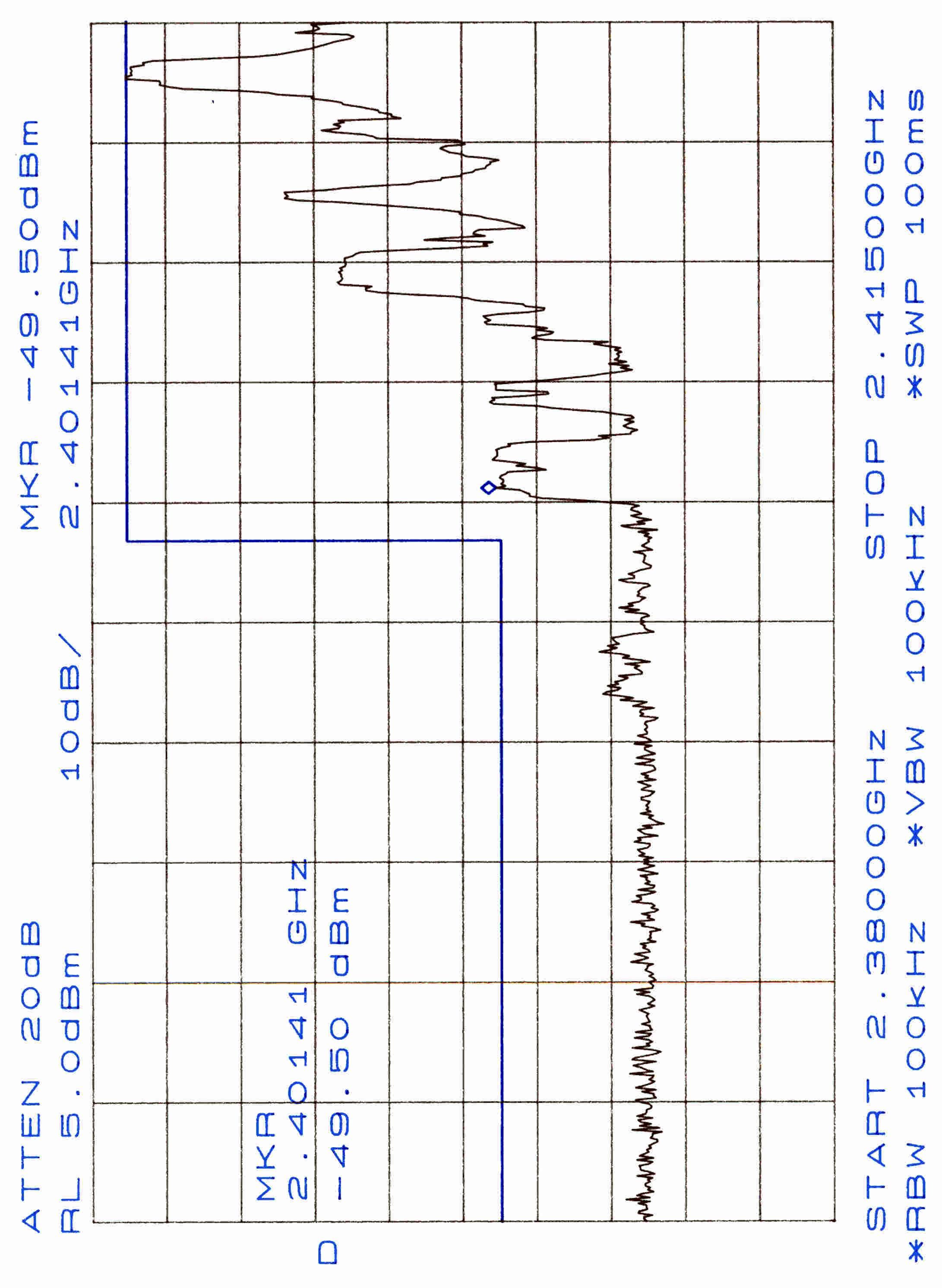

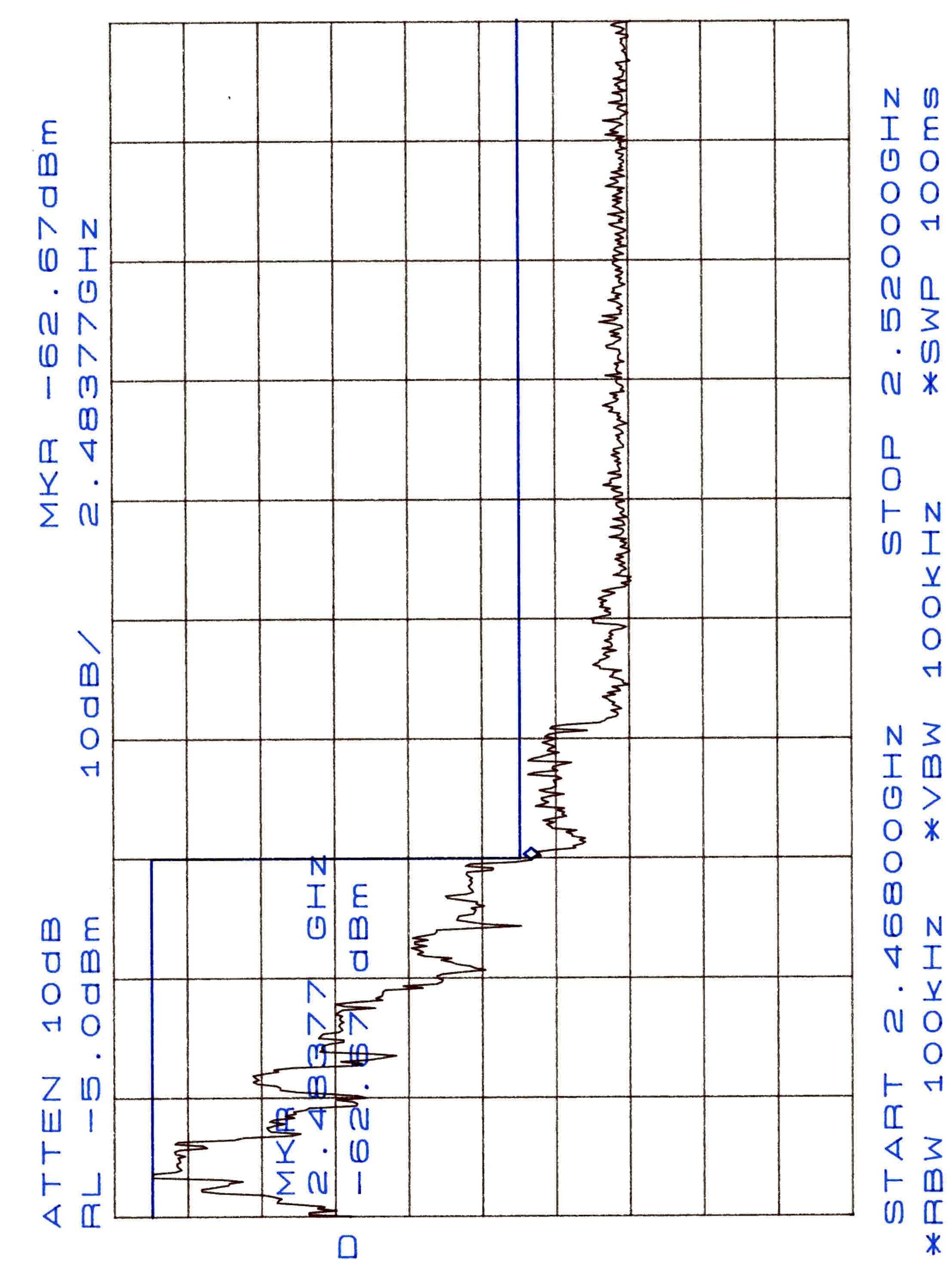

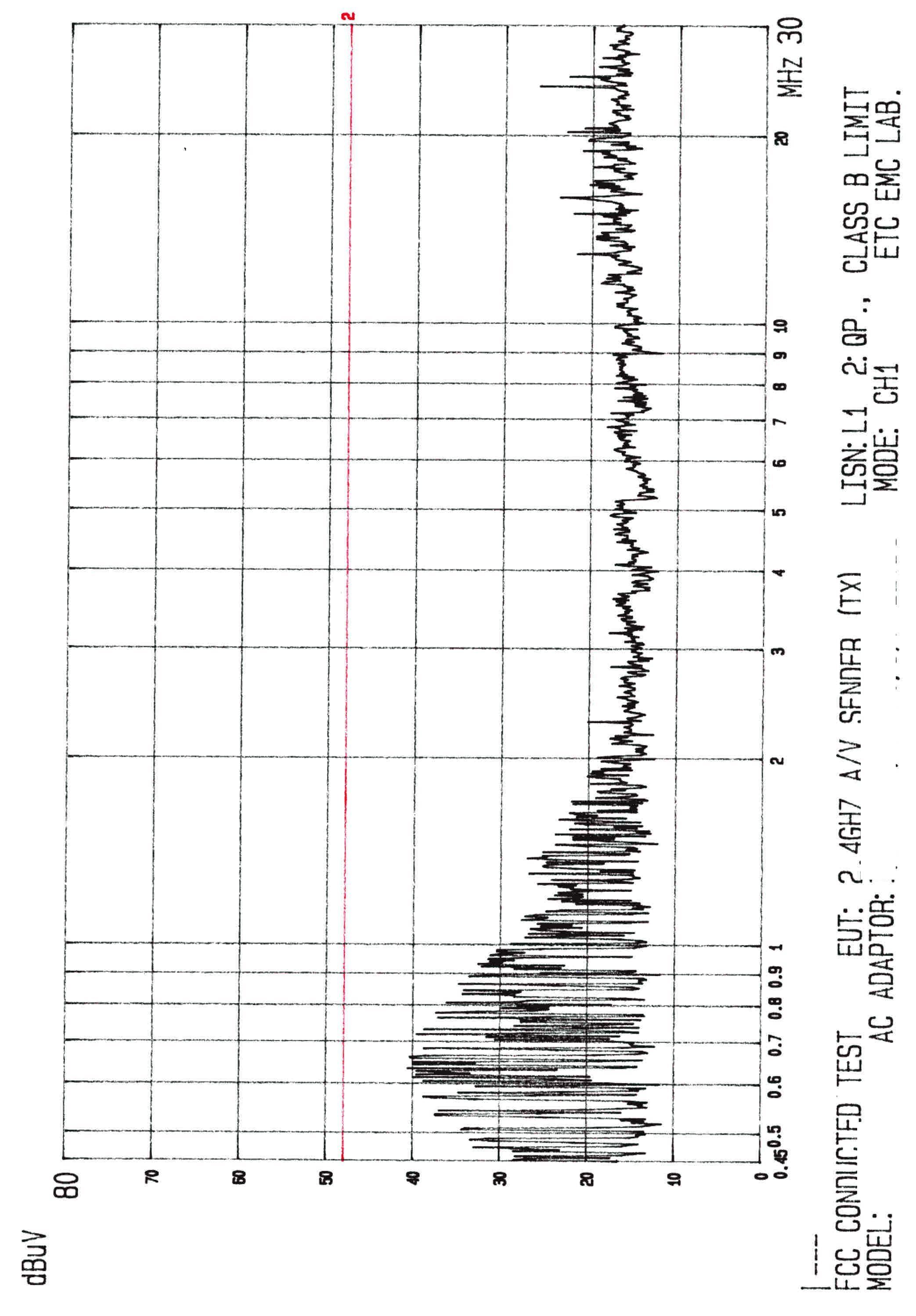

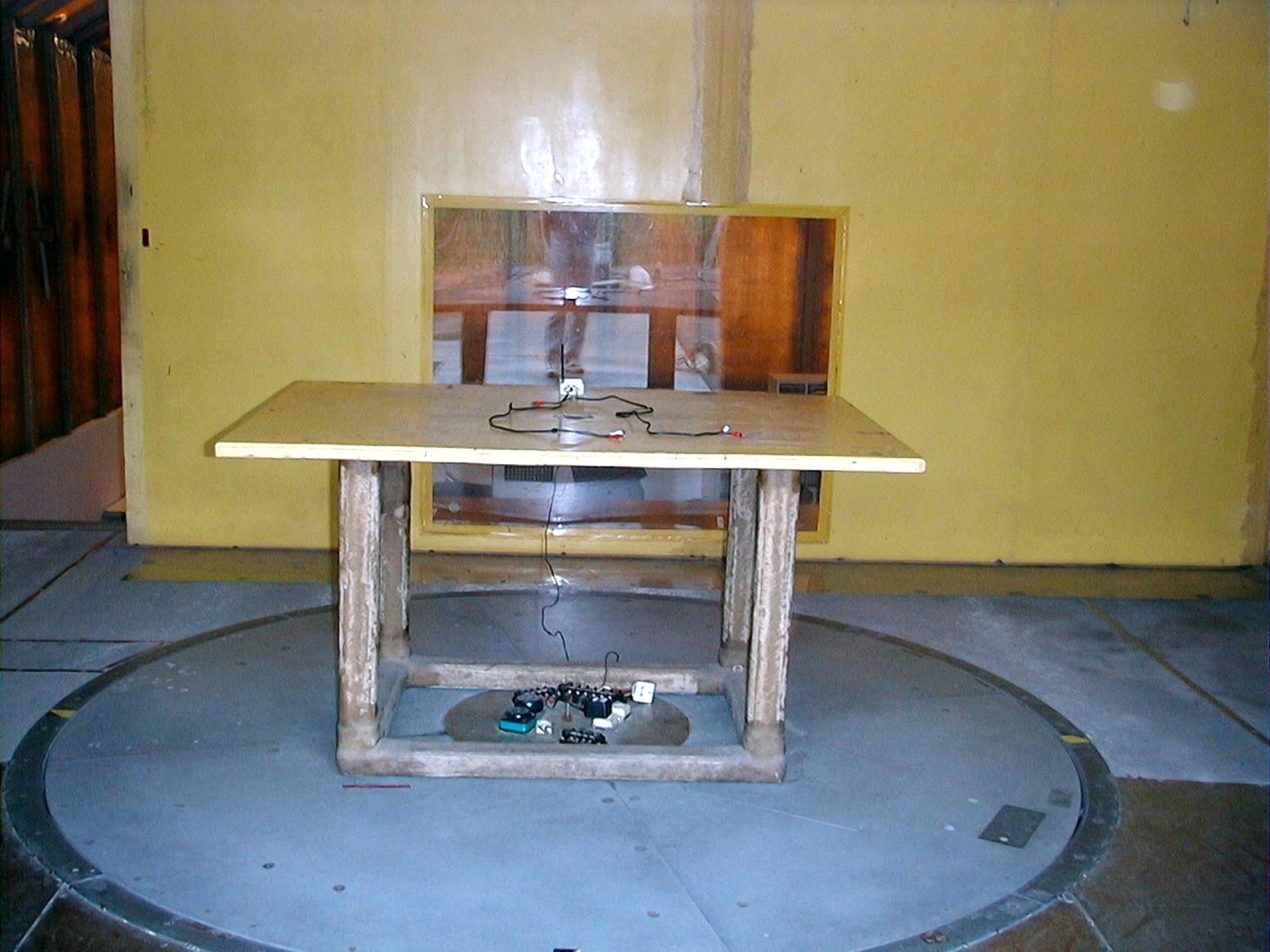

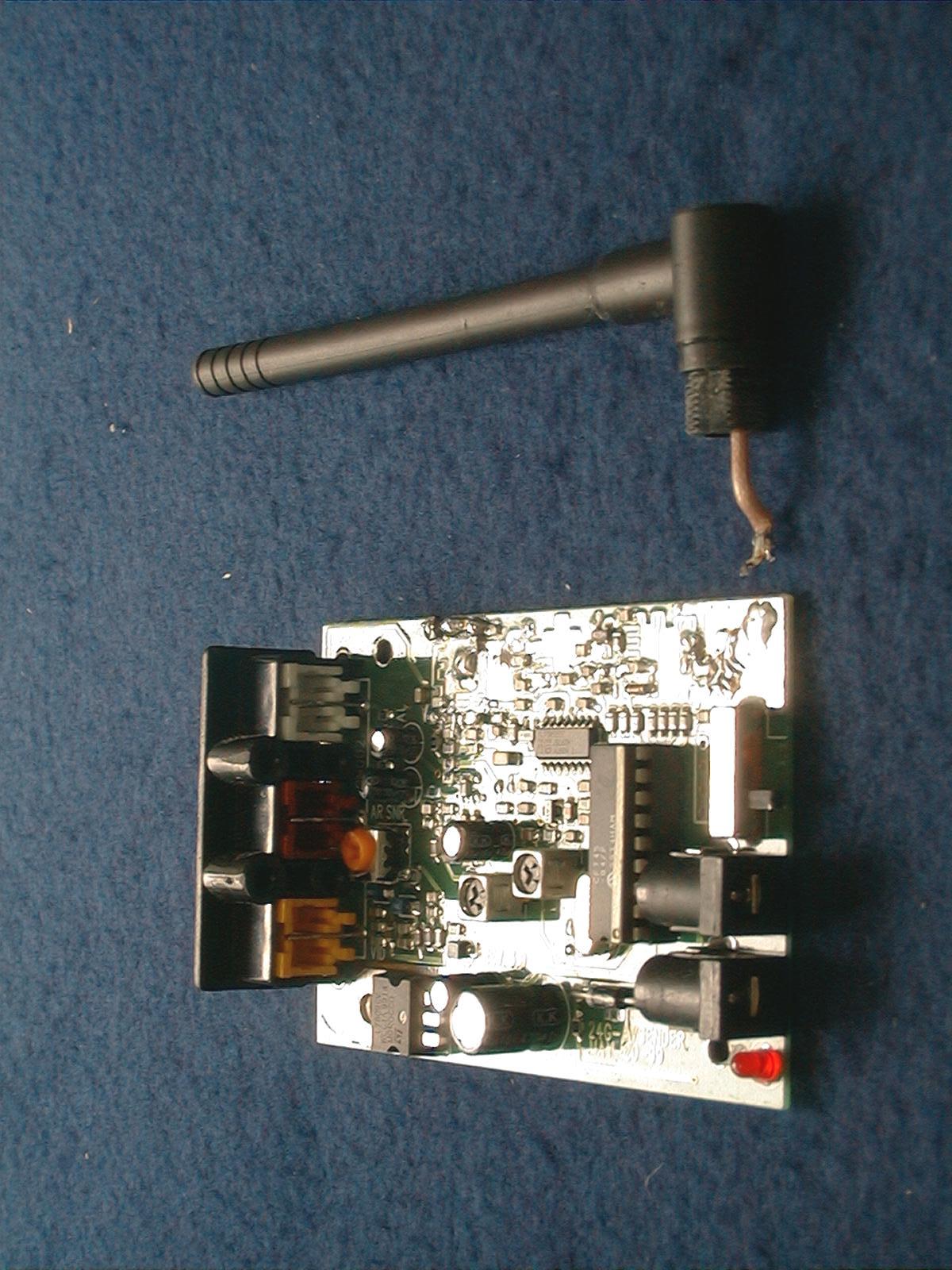

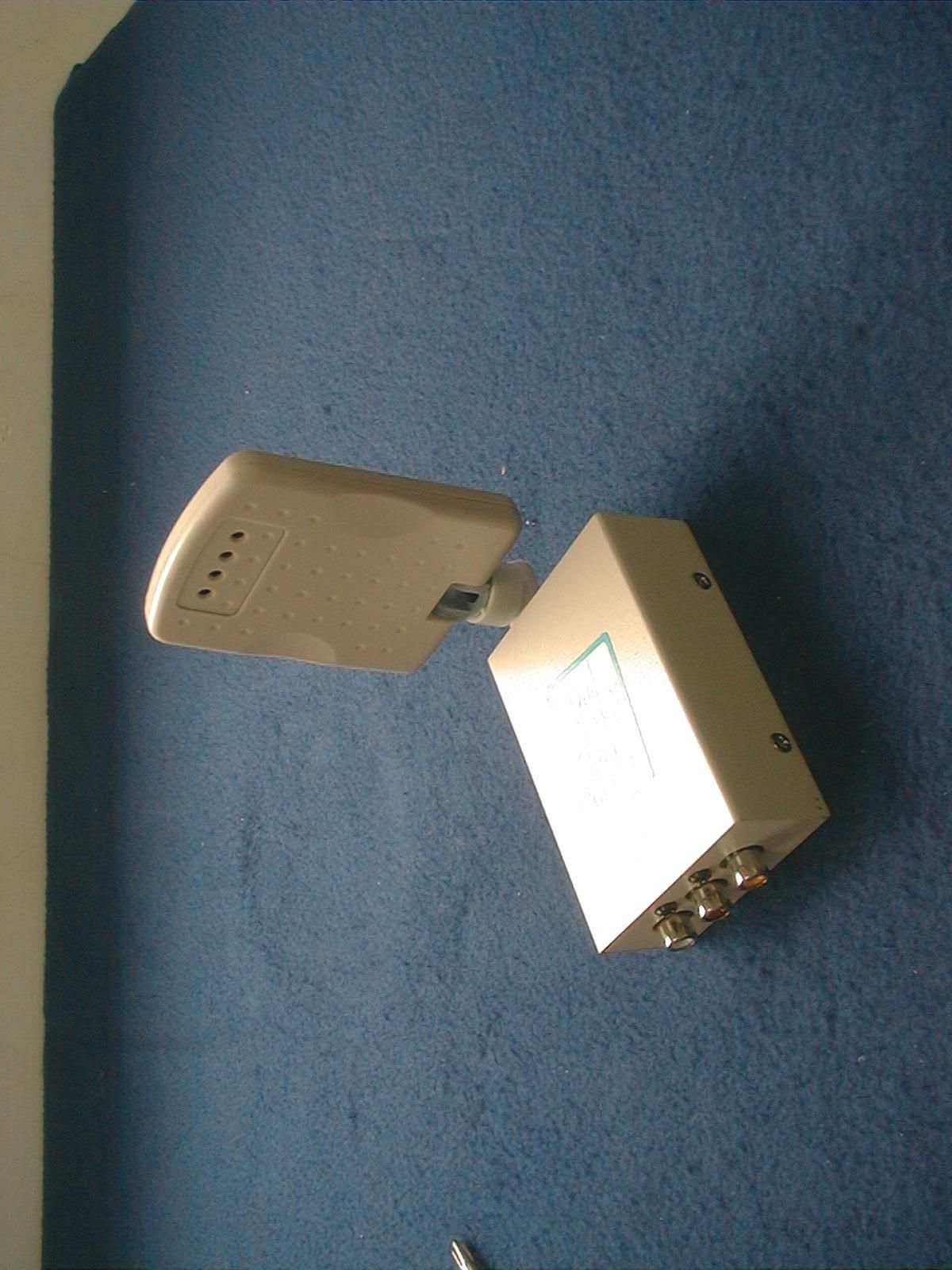

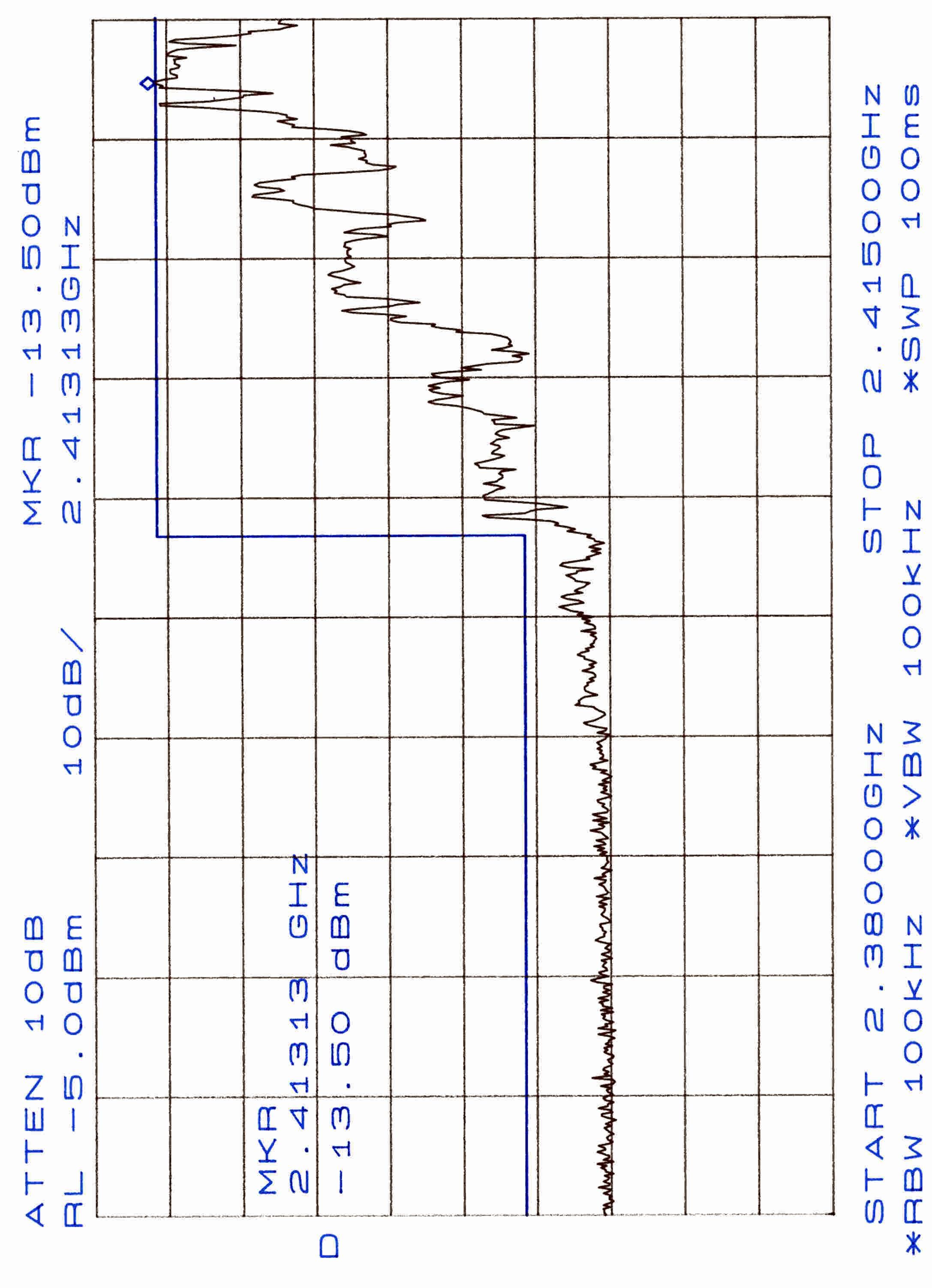

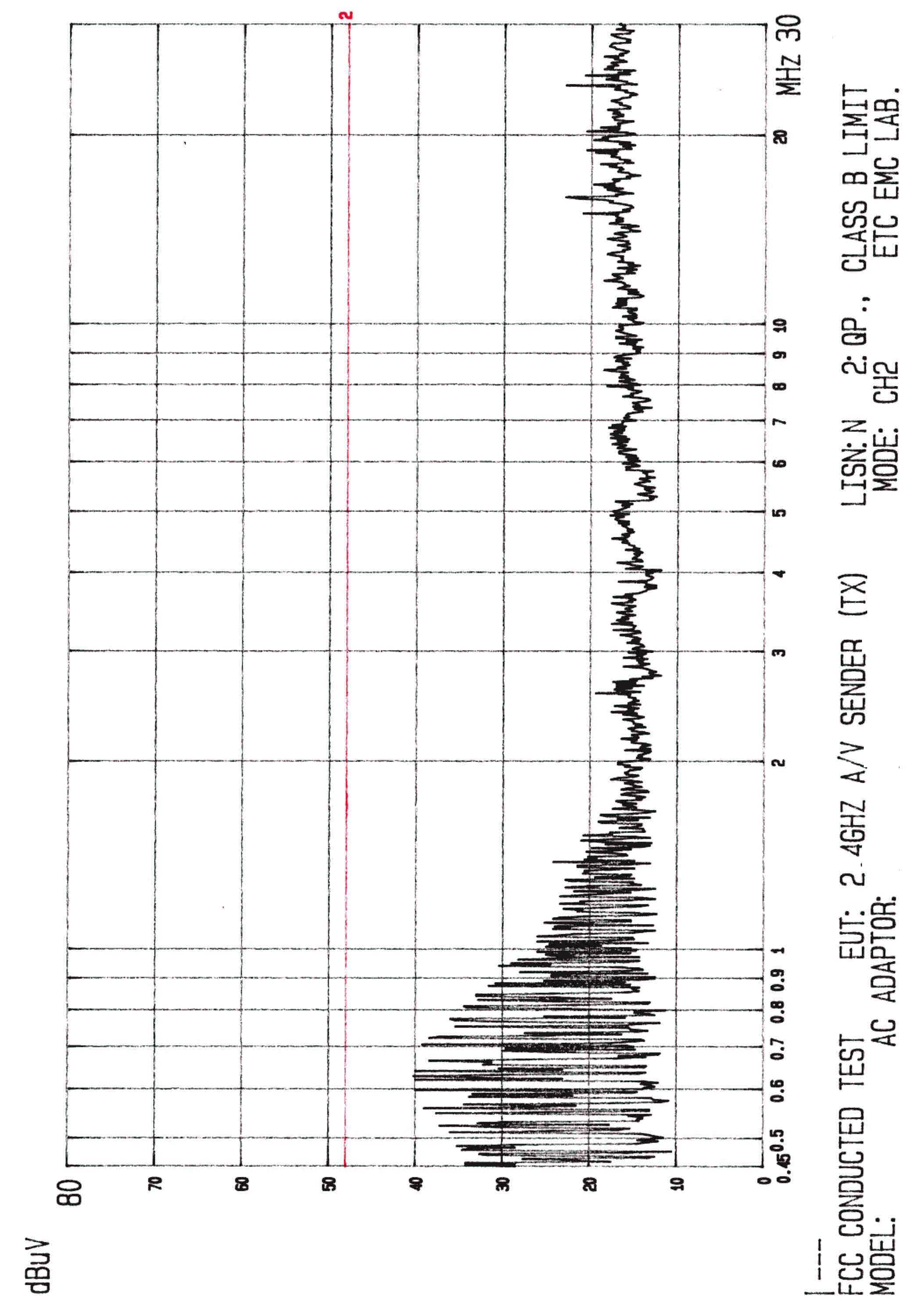

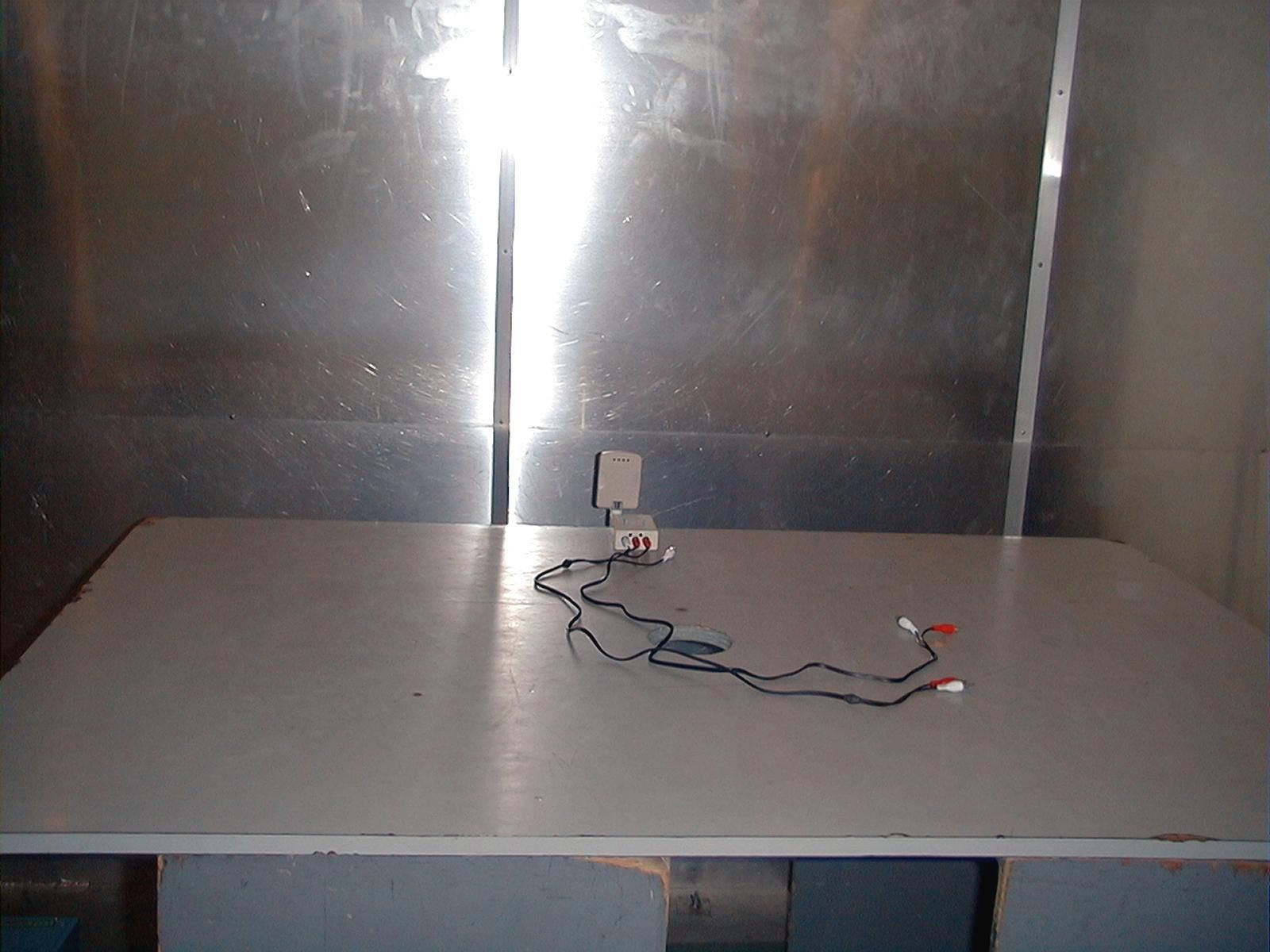

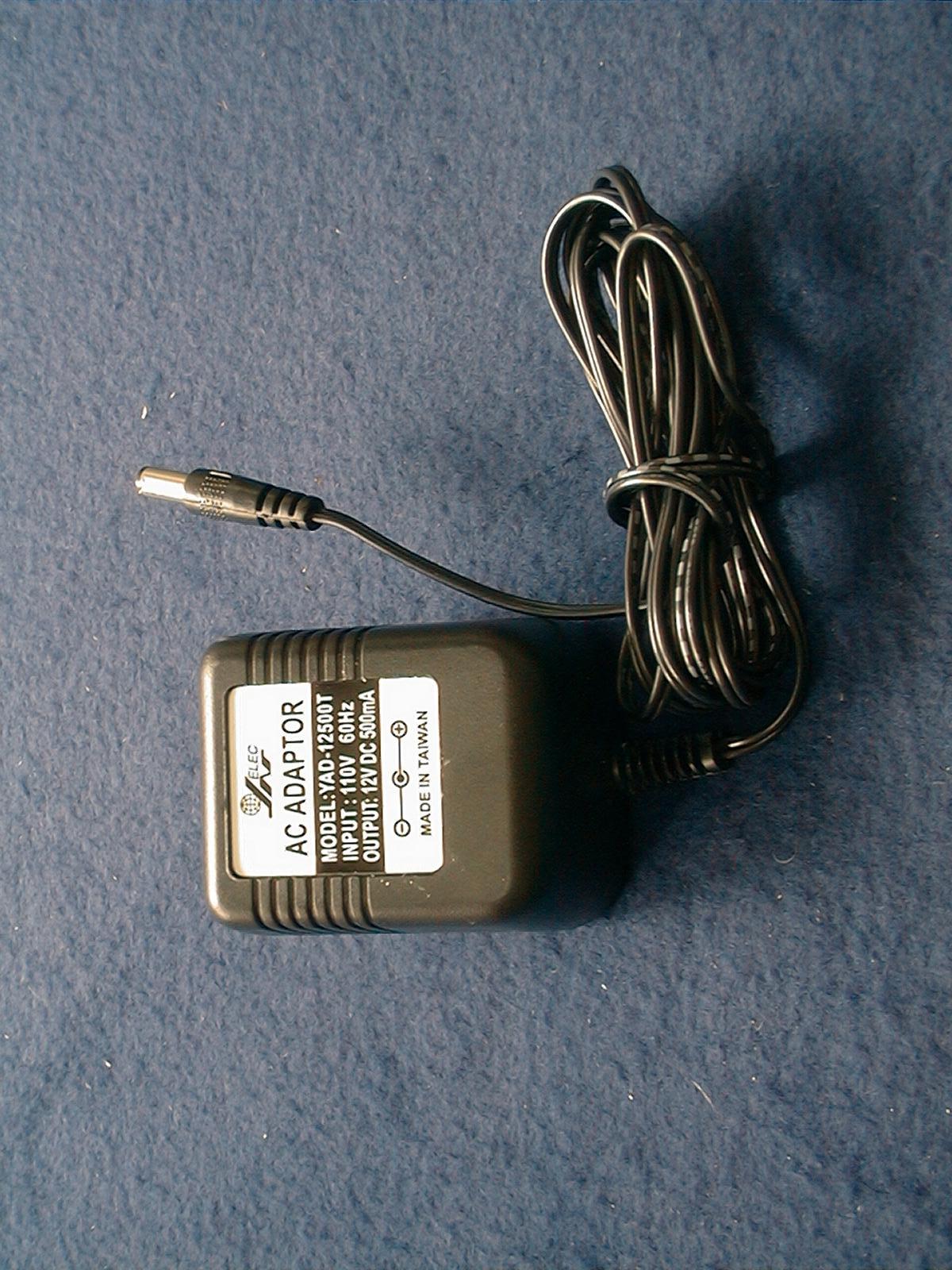

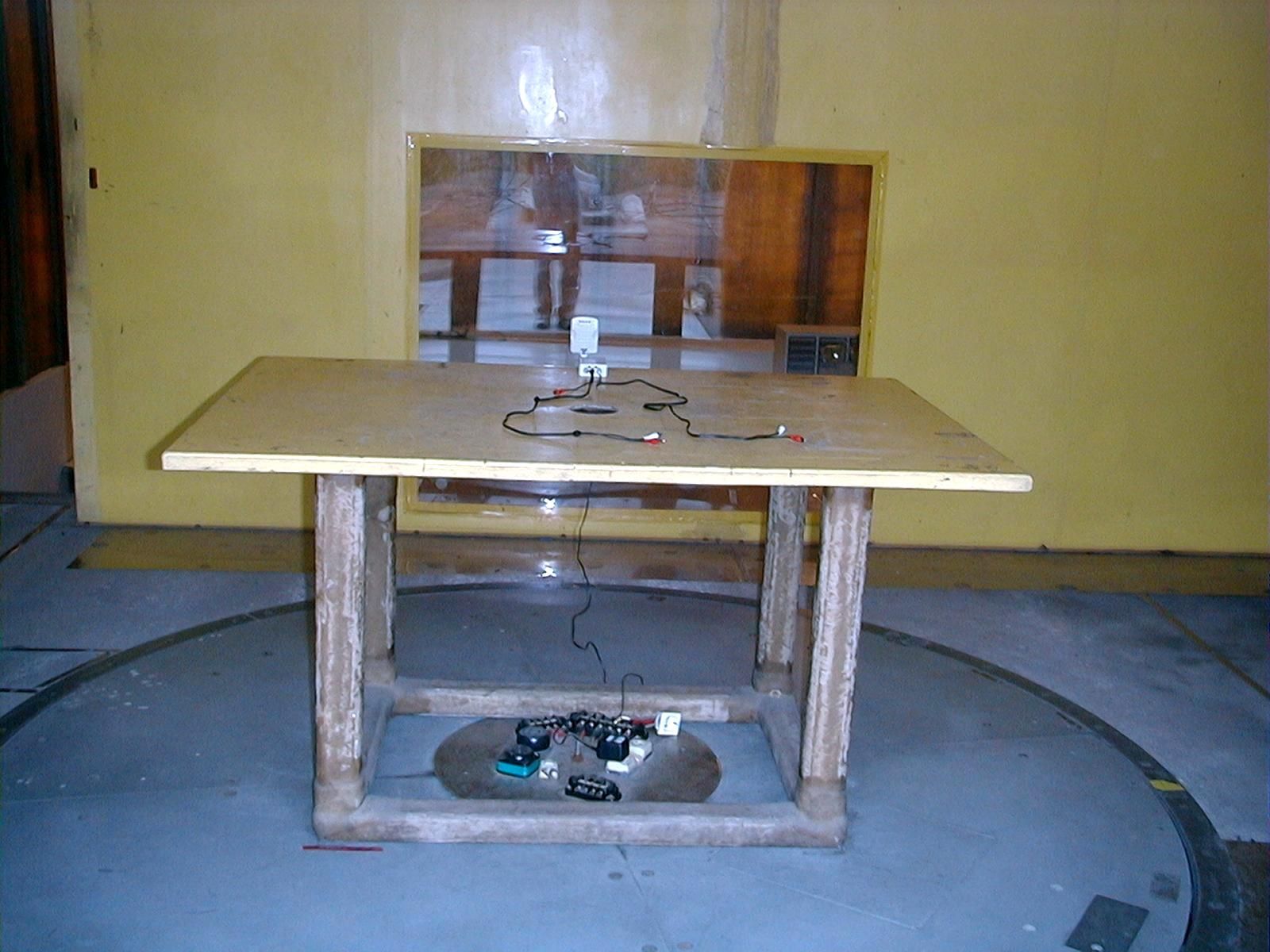

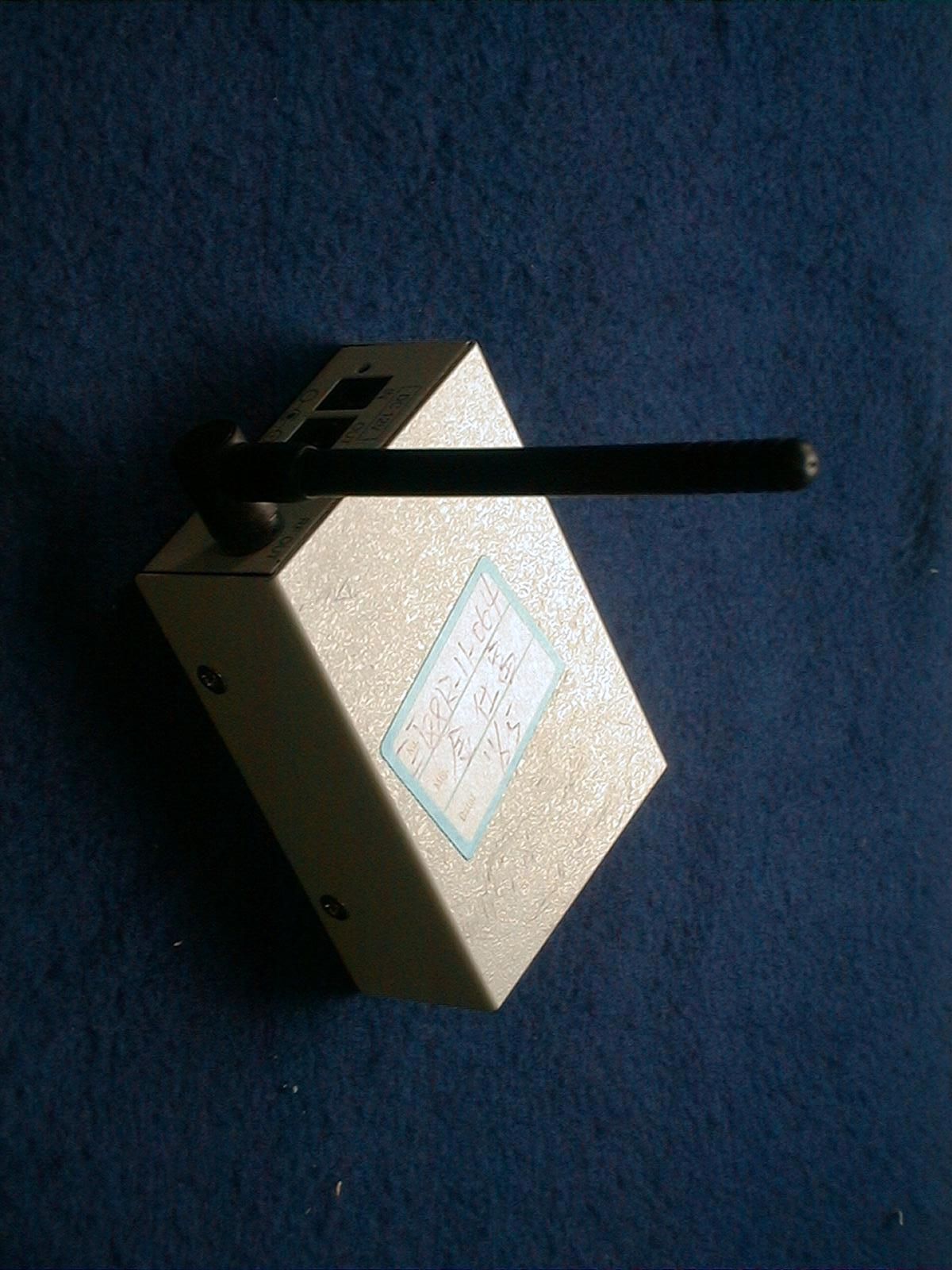

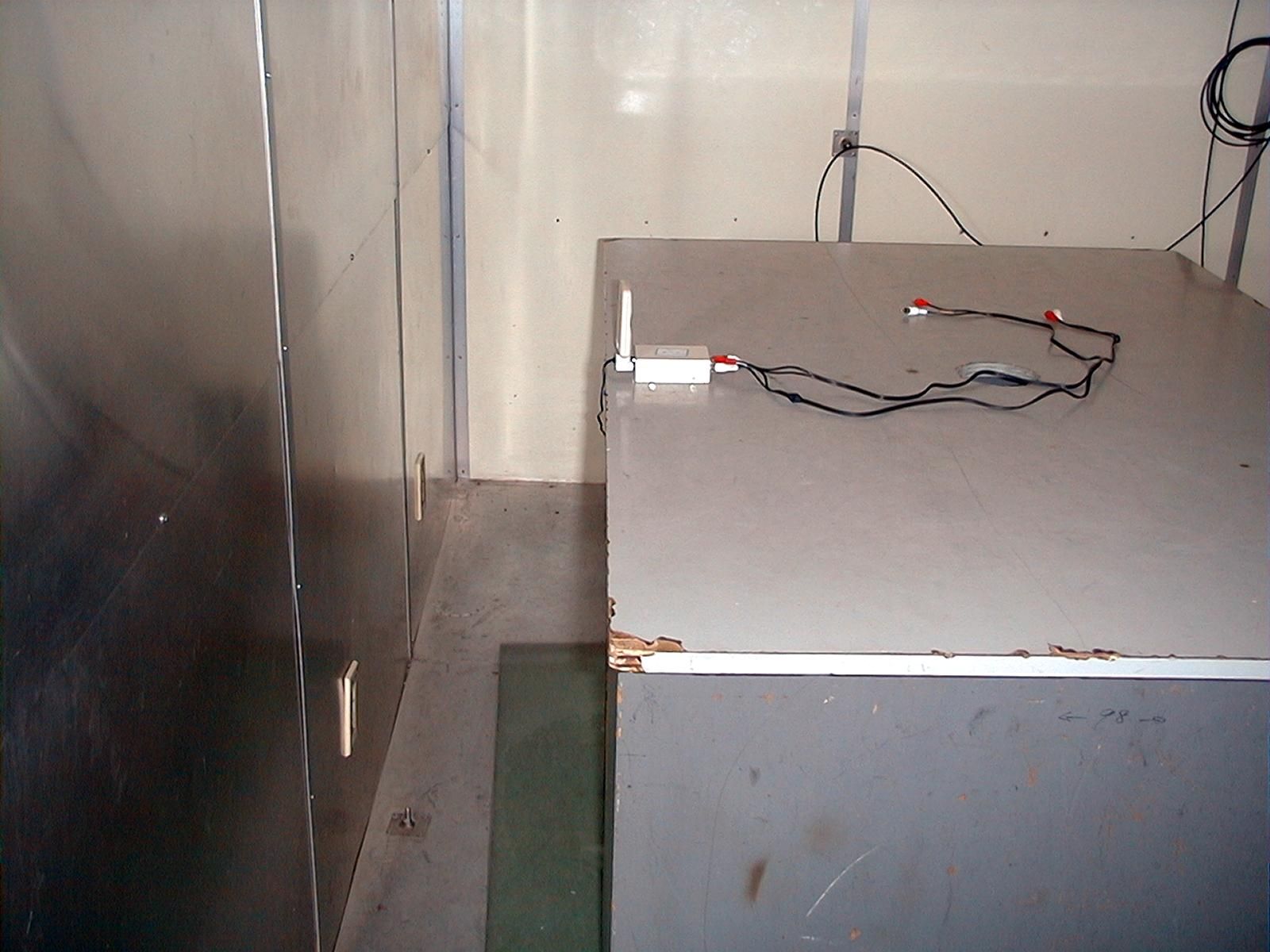

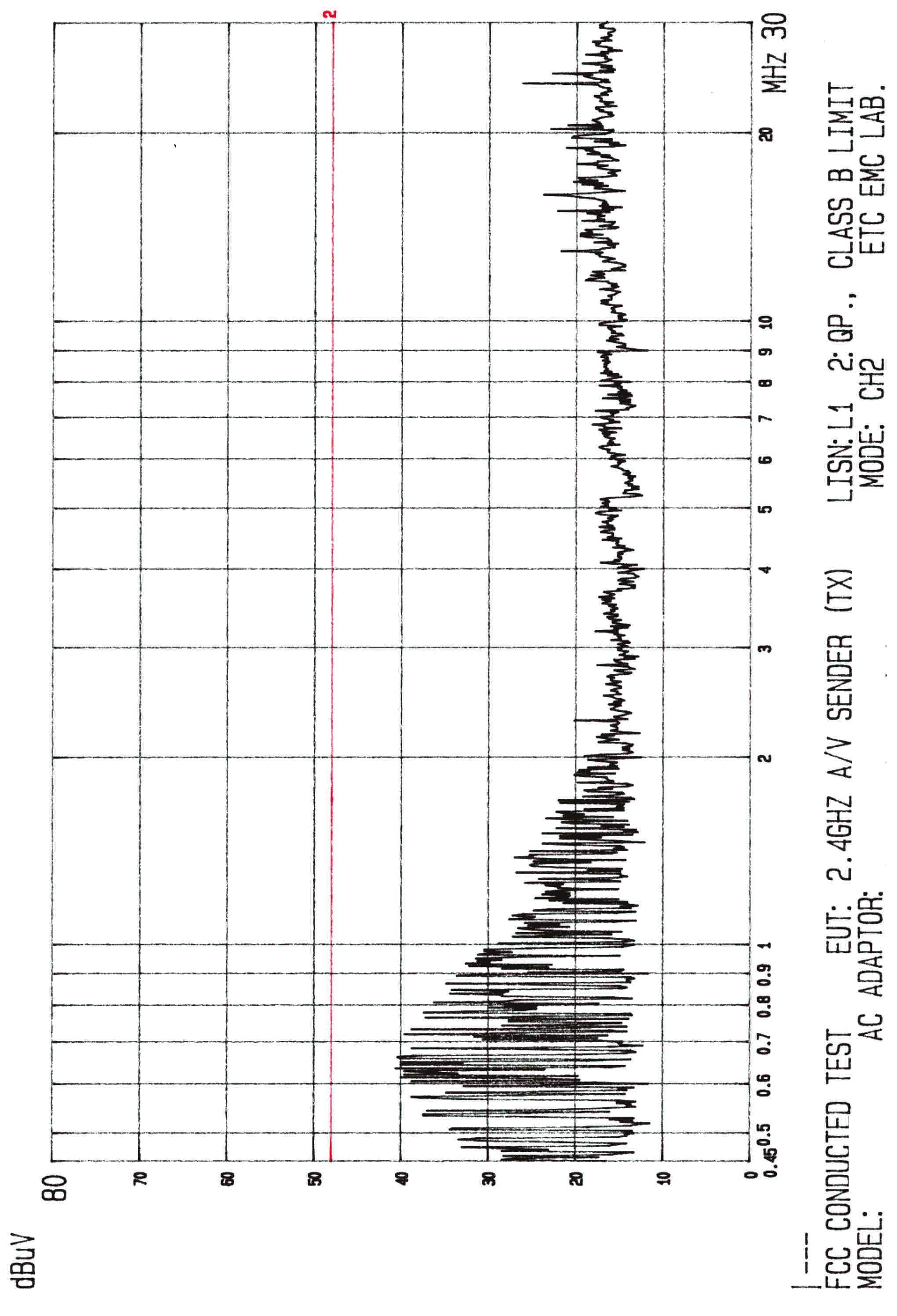

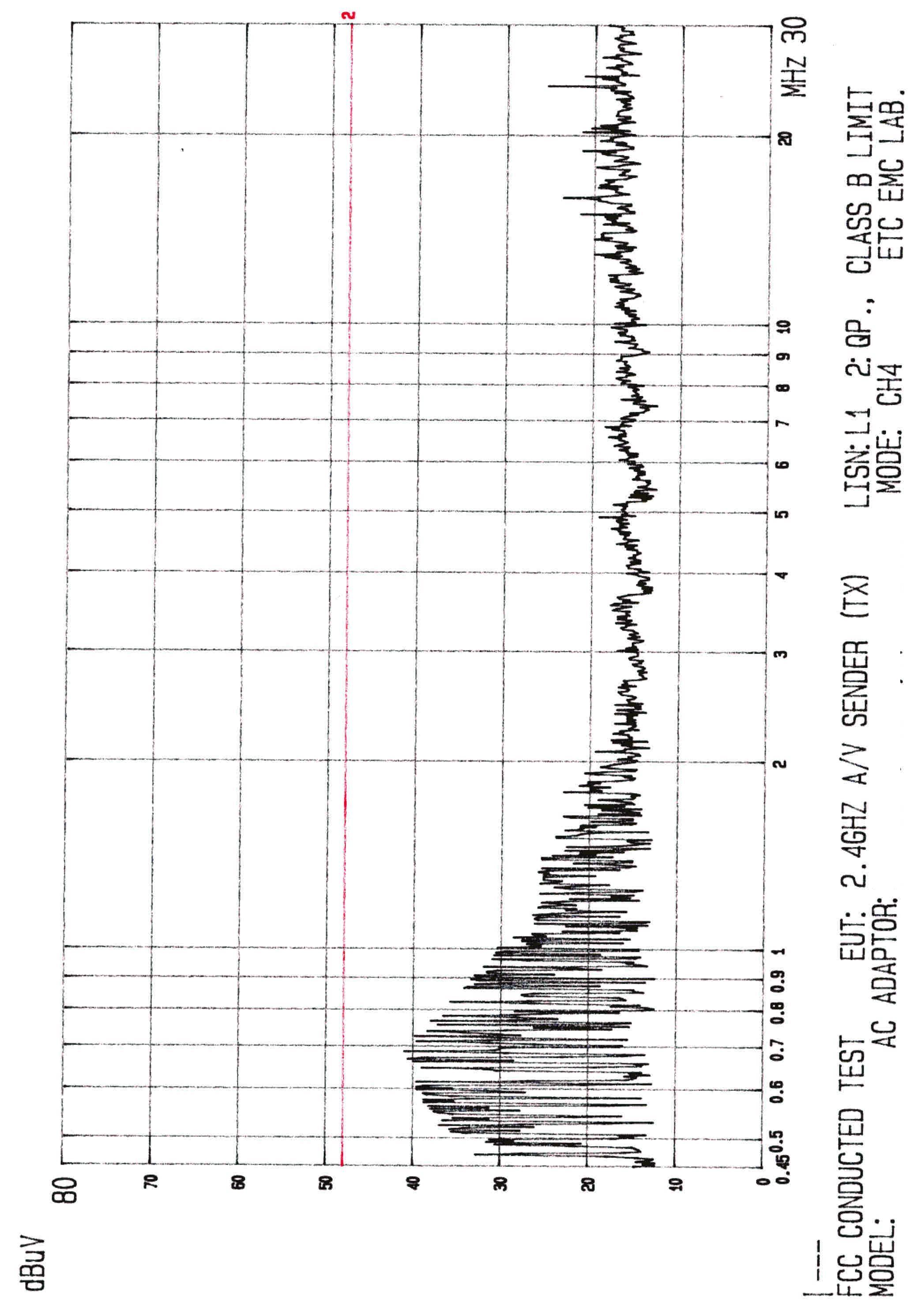

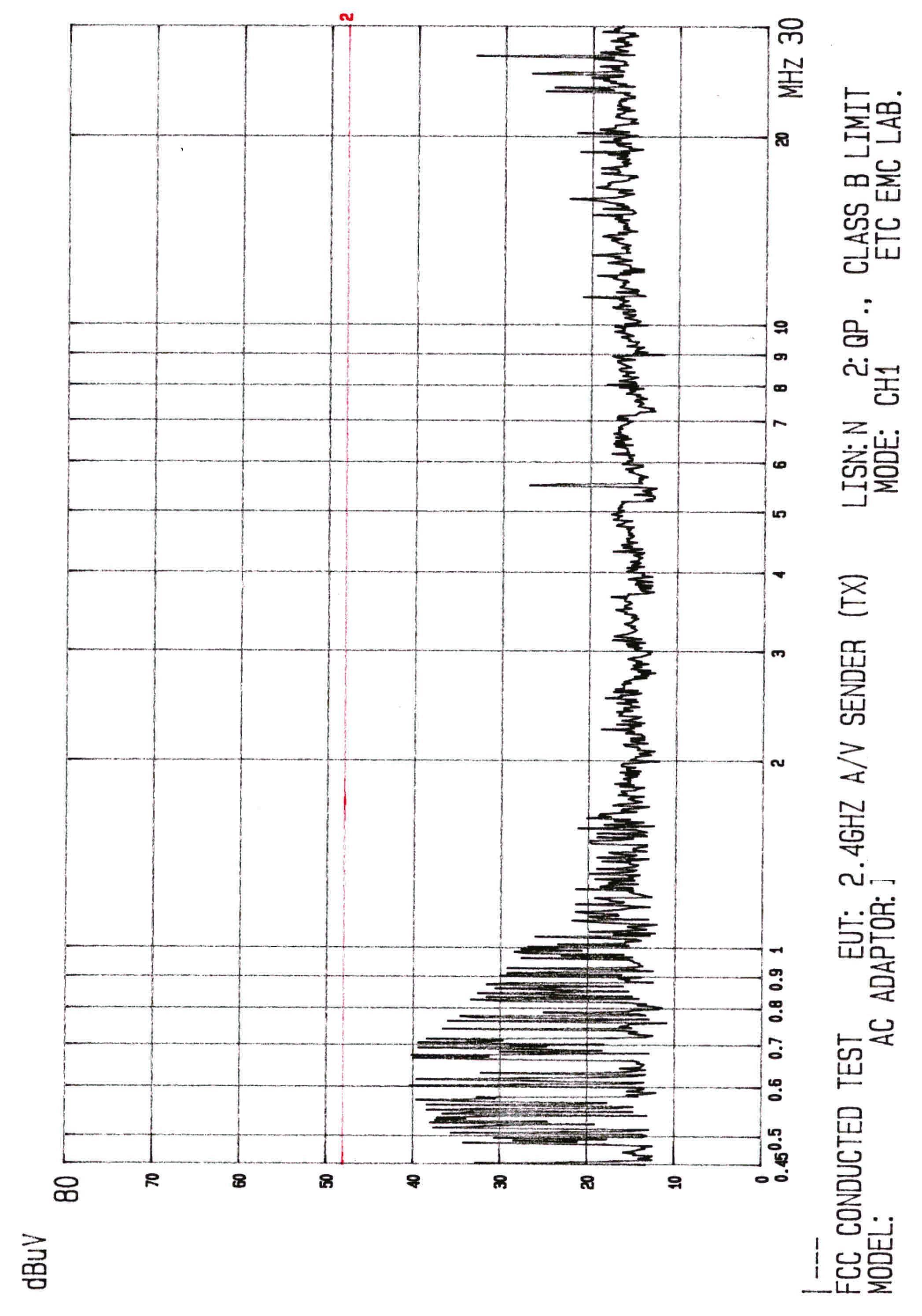

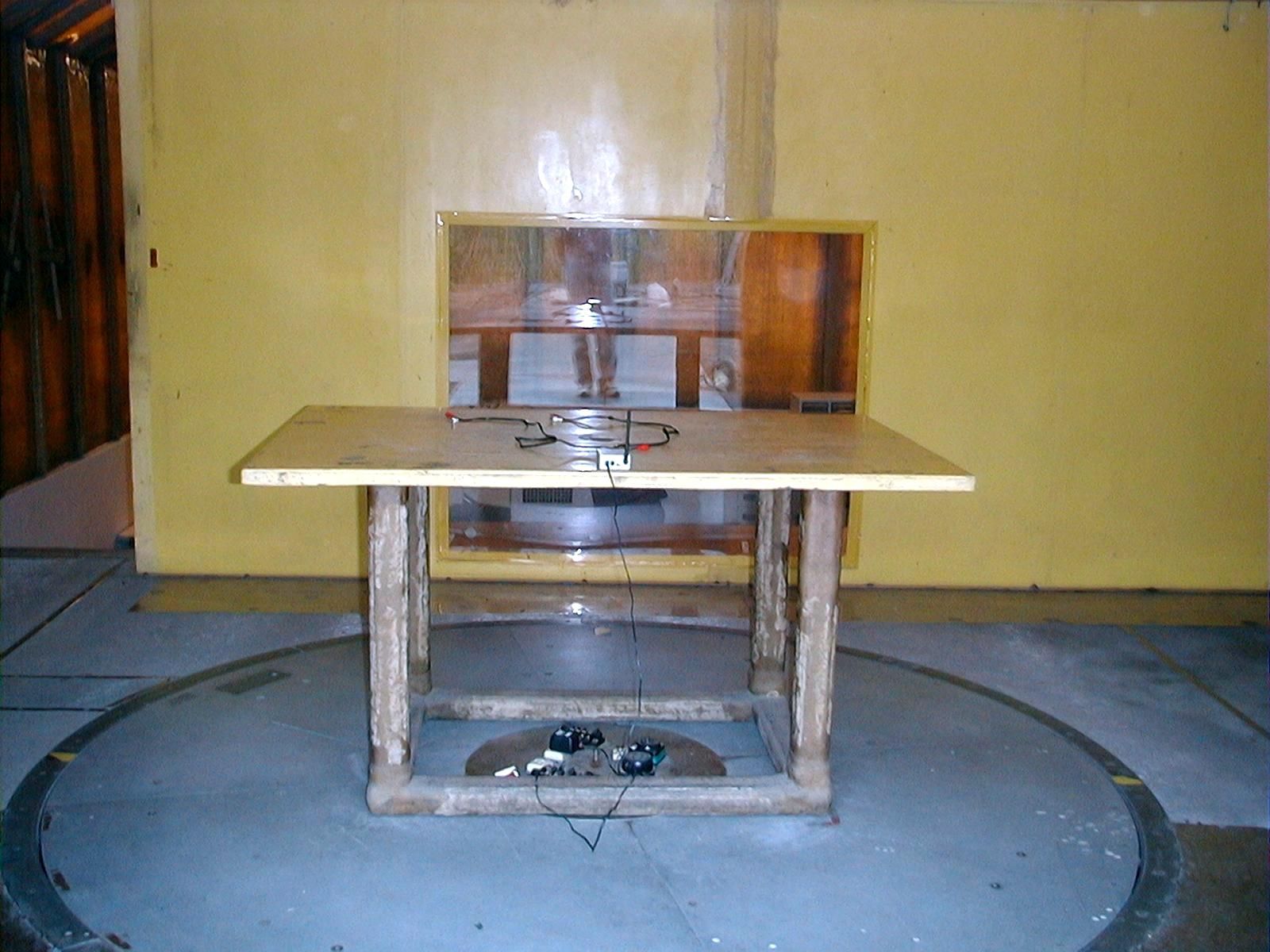

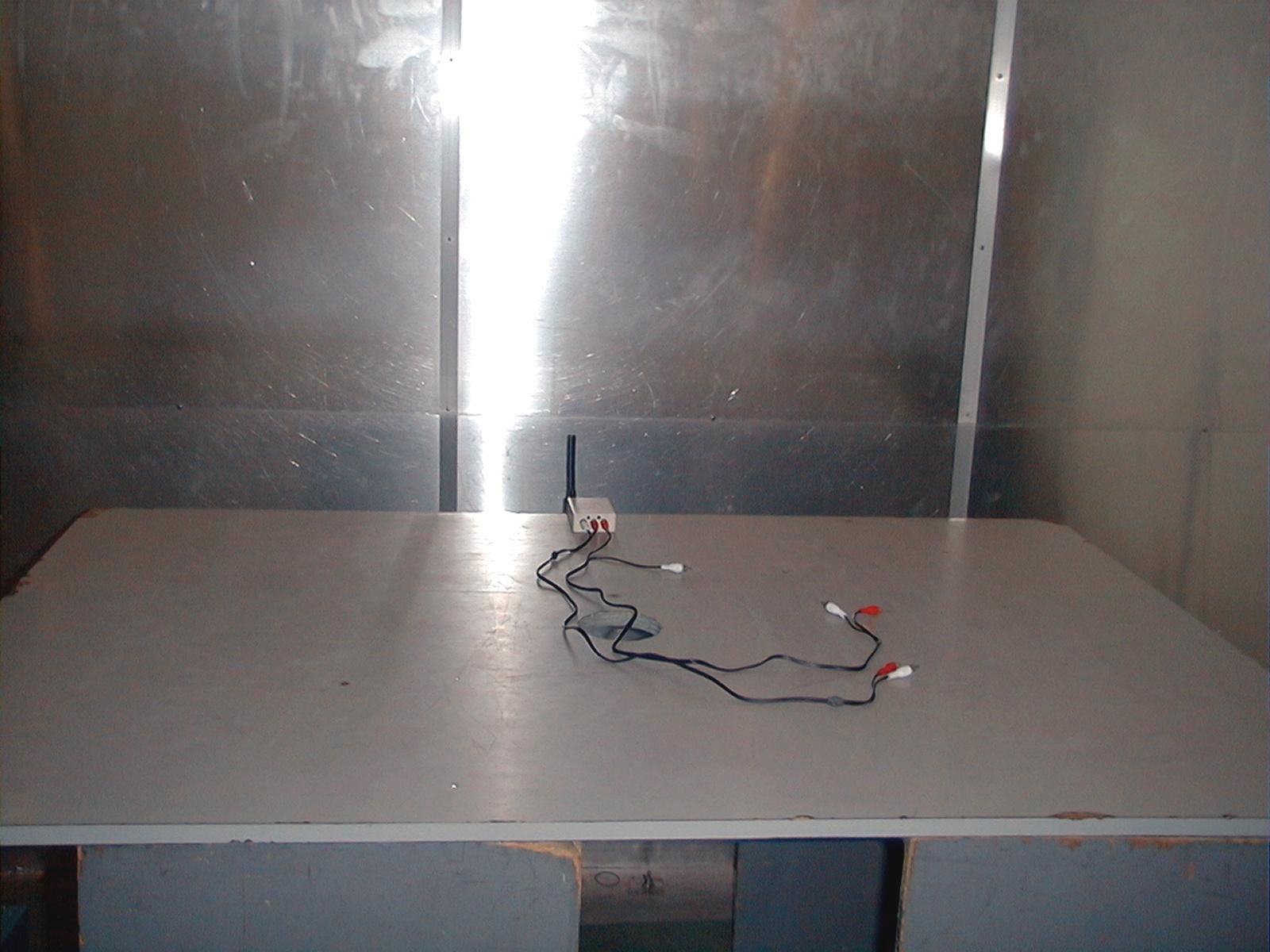

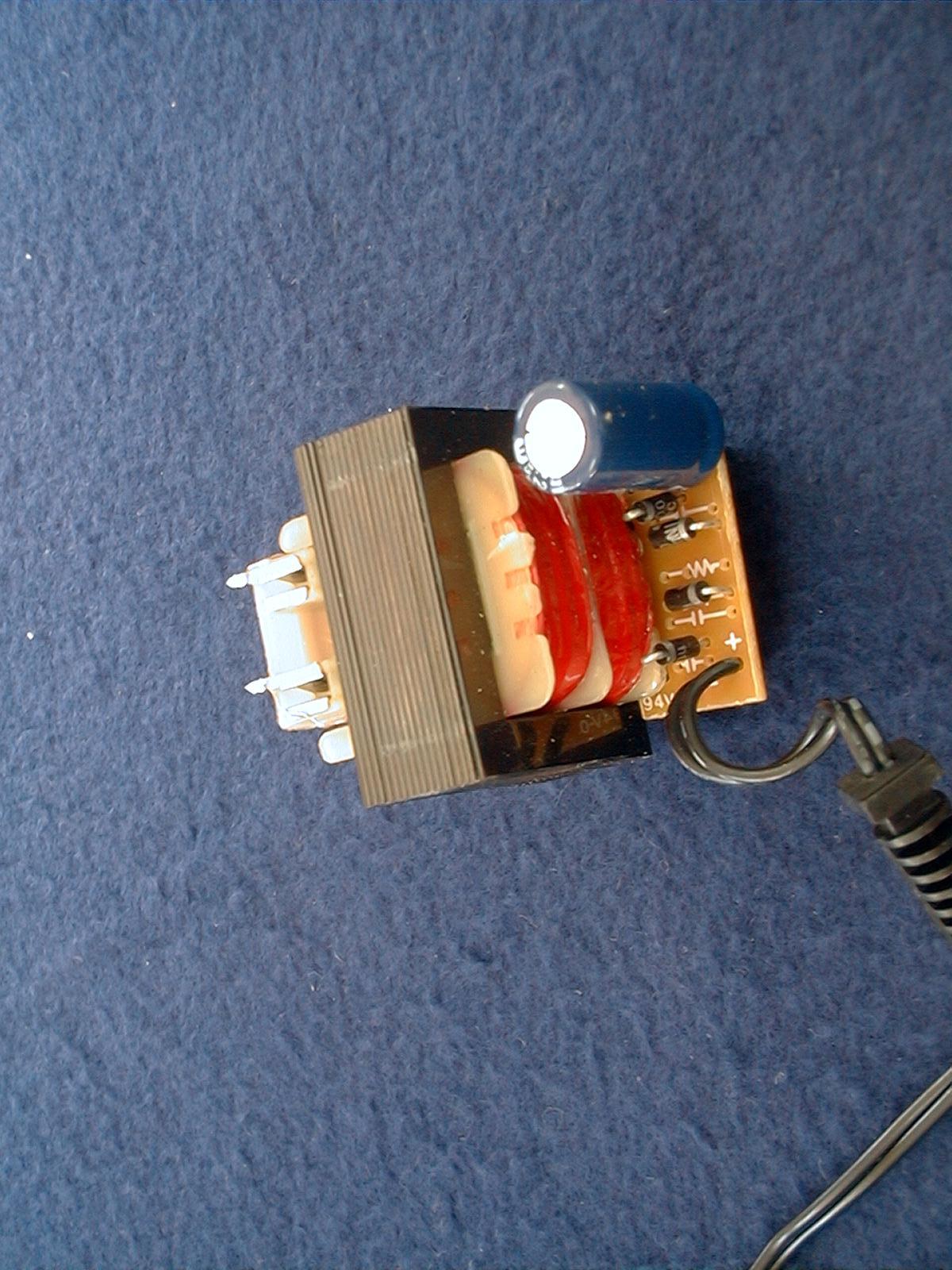

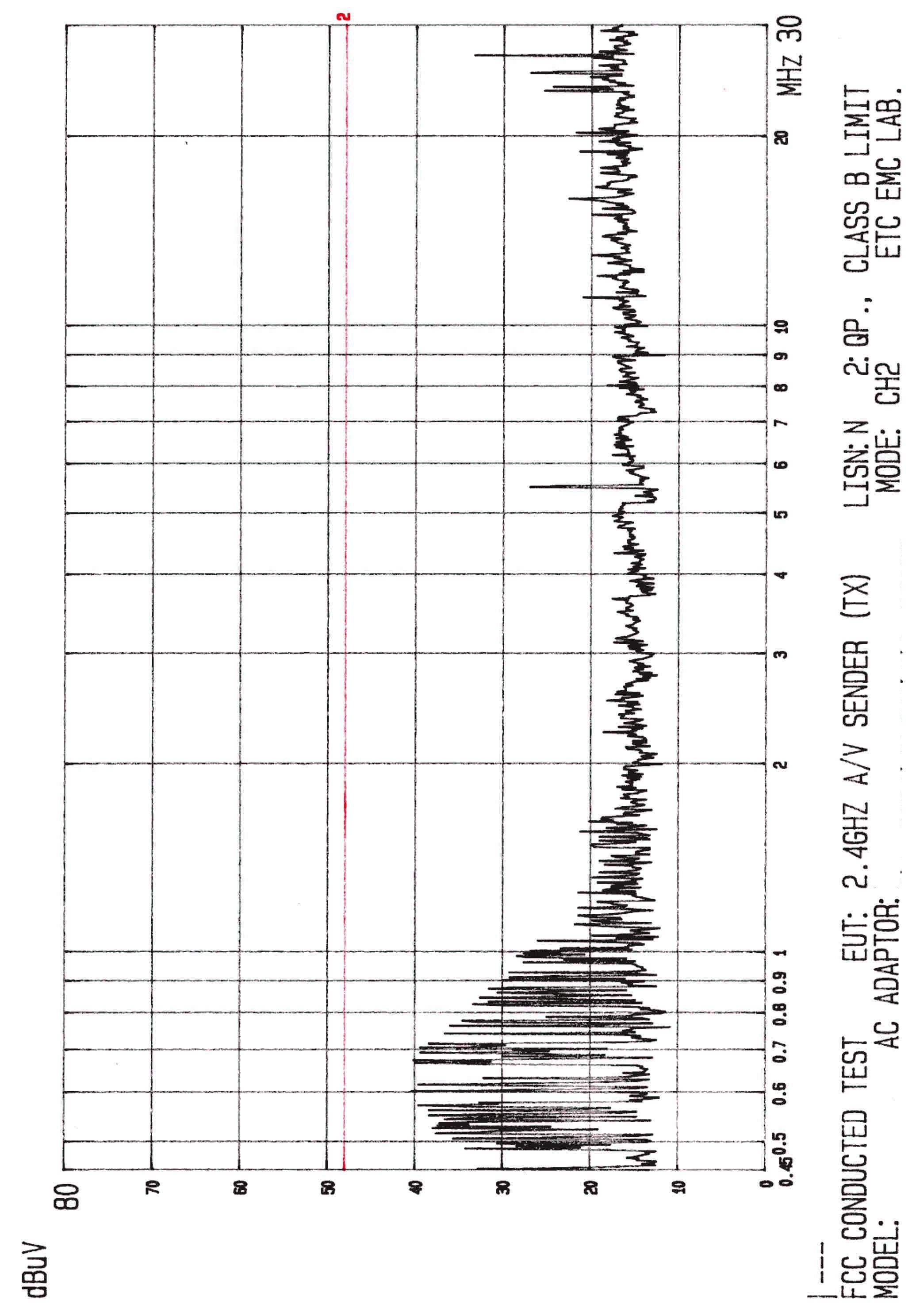

FCC ID. : NYL24TX Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4 GHz AV SENDER MODEL : 2400RW1 FCC ID. : NYL24TX for APPLICANT : RACEWOOD TECHNOLOGY CO., LTD. ADDRESS: 4F, 480-4, SEC. 6, YEN-PING N. RD., TAIPEI, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-11-064-01 ETC Report No. : ET88R-11-064-01FCC ID. : NYL24TX Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: RACEWOOD TECHNOLOGY CO., LTD. 4F, 480-4, SEC. 6, YEN-PING N. RD., TAIPEI, TAIWAN, R.O.C. Manufacturer: RACEWOOD TECHNOLOGY CO., LTD. 4F, 480-4, SEC. 6, YEN-PING N. RD., TAIPEI, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: 2.4 GHz AV SENDER b) Trade Name: AON c) Model No.: 2400RW1 d) AC Power Adaptor : Model : YAD-1250T I/P: 110V, 60Hz; O/P: DC 12V, 500mA e) Working Frequency : 2400-2483 MHz Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :DEC. 20, 1999 Test Engineer : ( Tien Lu Liau ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET88R-11-064-01FCC ID. : NYL24TX Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Test Methodology.............................................................................................................................. 1 1.4 Test Facility ....................................................................................................................................... 1 2 PROVISIONS APPLICABLE........................................................................................................... 2 2.1 Definition........................................................................................................................................... 2 2.2 Requirement for Compliance............................................................................................................. 3 2.3 Restricted Bands of Operation........................................................................................................... 5 2.4 Labeling Requirement ....................................................................................................................... 5 2.5 User Information................................................................................................................................ 6 3 SYSTEM TEST CONFIGURATION............................................................................................... 7 3.1 Justification........................................................................................................................................ 7 3.2 Devices for Tested System ................................................................................................................ 7 4 RADIATED EMISSION MEASUREMENT................................................................................... 8 4.1 Applicable Standard .......................................................................................................................... 8 4.2 Measurement Procedure .................................................................................................................... 8 4.3 Measuring Instrument ...................................................................................................................... 10 4.4 Radiated Emission Data .................................................................................................................. 11 4.4.1 Tx Portion................................................................................................................................................ 11 4.4.2 Other Emissions ...................................................................................................................................... 17 4.5 Field Strength Calculation ............................................................................................................... 18 4.6 Photos of Radiation Measuring Setup ............................................................................................. 19 5 CONDUCTED EMISSION MEASUREMENT ............................................................................ 21 5.1 Standard Applicable ........................................................................................................................ 21 5.2 Measurement Procedure .................................................................................................................. 21 5.3 Conducted Emission Data ............................................................................................................... 22 5.4 Result Data Calculation ................................................................................................................... 25 5.5 Conducted Measurement Equipment............................................................................................... 25 5.6 Photos of Conduction Measuring Setup ..................................................................................…
