O2E-ILR-IM2Position Marker

Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 26 of 34 Appendix I: Manual Please refer to the following pages. i-MARK 2, i-MARK 3 Installation and Hardware Manual i-MARKInstallation and Hardware Manual Page 2 of 22 Proprietary Notice This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be used or disclosed to other parties in whole or in part without prior written authorization from IDENTEC SOLUTIONS. Disclaimer and Limitation of Liability IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents provide the information contained in this Manual on an “as-is” basis and do not make any express or implied warranties or representations with respect to such information including, without limitation, warranties as to non-infringement, reliability, fitness for a particular purpose, usefulness, completeness, accuracy or up-to-dateness. IDENTEC SOLUTIONS shall not in any circumstances be liable to any person for any special, incidental, indirect or consequential damages, including without limitation, damages resulting from use of or reliance on information presented herein, or loss of profits or revenues or costs of replacement goods, even if informed in advance of the possibility of such damages. Trademarks “IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR” and the stylized “i” are registered trademarks and “i-Q”, “i-D”, “i-B”, “i-CARD”, “i-PORT”, “i-LINKS”, “Solutions. It’s in our name.”, “Smarten up your assets” are trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS AG. Copyright Notice Copyright © 2007 IDENTEC SOLUTIONS. All rights reserved. No part of this document may be reproduced or transmitted in any form by any means, photographic, electronic, mechanical or otherwise, or used in any information storage and retrieval system, without the prior written permission of IDENTEC SOLUTIONS. Reg. No. IM.0732.EN Order Code: Issue 0 / June 2007 – 25. June 2007 – IDENTEC SOLUTIONS AG, Millenium Park 2, 6890 Lustenau, Austria Phone: +43 5577 87387- 0, Fax: +43 5577 87387-15 Email: [email protected] www.identecsolutions.com Subject to alteration without prior notice. © Copyright IDENTEC SOLUTIONS 2007 Printed in Germany i-MARK Installation and Hardware Manual Page 3 of 22 Radio Frequency Compliance Statement IDENTEC SOLUTIONS, Inc. is the responsible party for the compliance of the following devices: MODEL: i-MARK 2 i-MARK 3 FCC ID: O2E-ILR-IM2 O2E-ILR-IM3 CANADA: 3538B-IM2 3538B-IM3 EUROPE: CE 0678(!) CE 0678(!) The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by IDENTEC SOLUTIONS, Inc. The use of accessories and peripherals, other than those approved by IDENTEC SOLUTIONS, Inc., or unauthorized changes to approved products, may void the compliance of these products and may result in the loss of the user(s) authority to operate the equipment. Operation is subject to the following conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference, including interference that may cause undesired operation of the device. FCC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. For FCC compliance, the supplied ferrite cores must be placed onto the driver loops where the leads attach to the i-MARK 3. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canada Compliance This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. European Notification according R&TTE Directive This equipment complies to Art. 6.4 of R&TTE Directive (1999/5/EC). It is tested for compliance with the following standards: EN 300 220-1 V1.3.1 (2000-09), EN 300 220-3 V1.3.1 (2000-09), ETSI EN 301 489 V1.4.1 (2002-08), ETSI EN 301 489 V1.4.1 (2002-08) i-MARKInstallation and Hardware Manual Page 4 of 22 This product contains components that are sensitive to electrostatic discharges. Please observe the special instructions for their protection. Incorrect handling can damage the unit and cause the invalidation of the warranty. Minimum safety precautions against electrostatic discharge: • Establish earth contact before you touch the unit. For example, touch the earthing screw on the unit. Even better: Use an antistatic ribbon and earth yourself permanently for the time you handle the unit. • Avoid unnecessary contact with the unit connectors and assemblies inside the unit. • Only open the unit if the operational settings (as described in the manual) expressly require this. • Use antistatic tools for the setting of the unit. (Warning: Do not touch life-threatening voltages with these tools). • Do not store unit and components without protective packaging. • Only remove unit and components from the packaging immediately prior to installation. These notes are not sufficient to guarantee complete protection from electrostatic discharges! W…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 18 of 34 Appendix B: FCC Confidentiality Request Letter Please refer to the following page. Beyond RFID www.identecsolutions.com IDENTEC S OLUTI ONS Inc. Sui te 200 – 13 58 St. Pau l Str ee t Kelo wna, BC V1Y 2E1 Canad a Tel: (972) 535-4144 Fa x: ( 469) 424-0404 i nf o@i dentec so lu ti ons. c om 1 November 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Request For Confidentiality Reference A: FCC ID: O2E-ILR-IM2 To Whom It May Concern: Further to the device approval identified at Reference A, IDENTEC SOLUTIONS hereby requests confidentiality pursuant to Section 0.459 of the Commission’s rules (CFR 47). IDENTEC SOLUTIONS requests that the following documents be withheld from public inspection: 1. Schematics 2. Block Diagram 3. Theory of Operati on These exhibits contain IDENTEC SOLUTIONS’ proprietary information, trade secrets, or other confidential information that IDENTEC SOLUTIONS does not release to the public and which is otherwise not available to the general public. Since this design is a basis from which future technological products will evolve, IDENTEC SOLUTIONS considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. IDENTEC SOLUTIONS protects all of its proprietary, intellectual property rights and confidential information by requiring all of its employees and all other recipients of such information to sign confidentiality and non- disclosure agreements prior to receiving such information. If you have any questions or concerns, please do not hesitate to contact me at (972) 535-4437. Yours truly, IDENTEC SOLUTIONS, INC. Dwayne McMurchy Systems Engineer, EIT E m a i l: d m c m u r chy @i de nt e c so lut i o ns . co m

Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 17 of 34 Appendix A: FCC/TCB Agency Authorization Letter Please refer to the following page. Beyond RFID www.identecsolutions.com IDENTEC SOLUTIONS Inc. Suite 200 – 1358 St. Paul Street Kelowna, BC V1Y 2E1 Canada Tel: (972) 535-4144 Fax: (469) 424-0404 [email protected] 20 June 2007 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 SUBJECT: Agent Authorization To Whom It May Concern: Please consider this letter as our authorization for Rhein Tech Laboratories, Inc. (RTL), 360 Herndon Parkway, Suite 1400, Herndon, VA 20170 to act as our agent in all matters relating to the Reference FCC applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. If you have any questions or concerns, please do not hesitate to contact me at (972) 535-4437. Yours truly, IDENTEC SOLUTIONS, INC. Dwayne McMurchy Systems Engineer, EIT Email: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 10, 2007 RE: FCC ID: O2E-ILR-IM2_ATCB005727 Attention: Kathy Grzovic I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the 731 states the device operates at 125kHz under 15.209, and the block diagram only shows a BT module. The operational description indicates that the 125kHz transmitter is inside the micro processor, but there is no indication of this on the block diagram. Please either point to the transmitter on the block diagram or please provide a block diagram for the 125kHz transmitter. 2. Please note that the report states the testing is to ‘FCC Rules Part 15.209: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902- 928 MHz, 2400-2483.5 MHz and 5725-5850 MHz”. Please note that 15.209 is not FHSS, Direct Sequence SS or hybrid in the ranges mentioned but is the general limits section of Part 15. Please correct the report to show compliance to the proper rule sections and please properly describe the rules under which you are seeking certification. 3. Please clarify if the BT module has its own certification and the device label has “contains FCC ID:xxxxx” for the BT module. If this is the case then there should be no issues. However, if the BT deivce does not have its own ID or if the applicant is seeking to include the BT module under this ID, then test data must be provided for the BT transmitter. Also, if the later is the case you cannot have one model with the BT and one without. That would require 2 separate ID numbers. 4. FYI – 15.207 limits are not CISPR B limits and reference to CISPR B should not be made for intentional radiators. 5. FYI - Please note that for RSS210 section 2.6 states “Devices operating below 490 kHz all of whose emissions are at least 40 dB below the limit given in Table 3 are Category II devices subject to RSS-310.” Please note that if the emissions were to be taken at three distances and the limit extrapolated to 300 meters it is obvious that the end result would be the device would be more than 40dB below the limit and the device would be a Class II IC device subject to RSS310.. Has this been considered? 6. Please note that the test setup photos show only the configuration using the Bicon. Frequencies below are tested using a loop antenna. Please note that while the test report states a loop was used, the setup photos do not agree. Please confirm the tests were done using a loop antenna. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 10, 2007 RE: FCC ID: O2E-ILR-IM2_ATCB005727 Attention: Kathy Grzovic I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the 731 states the device operates at 125 kHz under 15.209, and the block diagram only shows a BT module. The operational description indicates that the 125 kHz transmitter is inside the micro processor, but there is no indication of this on the block diagram. Please either point to the transmitter on the block diagram or please provide a block diagram for the 125 kHz transmitter. Response: The block diagram shows the 125 kHz TX section in the upper right section of the block diagram (viewed in landscape mode). The flow is as follows: out the SPI pin of the uP, to the waveform generator, to the digital potentiometer, to the power amp, out to the antenna, to the peak value detector, and back to the uP through the ADC pin. 2. Please note that the report states the testing is to ‘FCC Rules Part 15.209: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902928 MHz, 2400-2483.5 MHz and 5725-5850 MHz”. Please note that 15.209 is not FHSS, Direct Sequence SS or hybrid in the ranges mentioned but is the general limits section of Part 15. Please correct the report to show compliance to the proper rule sections and please properly describe the rules under which you are seeking certification. Response: Please see the revised test report uploaded with this response. 3. Please clarify if the BT module has its own certification and the device label has “contains FCC ID:xxxxx” for the BT module. If this is the case then there should be no issues. However, if the BT device does not have its own ID or if the applicant is seeking to include the BT module under this ID, then test data must be provided for the BT transmitter. Also, if the later is the case you cannot have one model with the BT and one without. That would require 2 separate ID numbers. Response: The BT module has modular approval under FCC ID: R7TAMB2300. Please see the revised label exhibit uploaded with this response. 4. FYI – 15.207 limits are not CISPR B limits and reference to CISPR B should not be made for intentional radiators. Response: Please see the revised test report uploaded with this response. 5. FYI - Please note that for RSS210 section 2.6 states “Devices operating below 490 kHz all of whose emissions are at least 40 dB below the limit given in Table 3 are Category II devices subject to RSS-310.” Please note that if the emissions were to be taken at three distances and the limit extrapolated to 300 meters it is obvious that the end result would be the device would be more than 40dB below the limit and the device would be a Class II IC device subject to RSS310. Has this been considered? Response: The IC request is being withdrawn at this time. 6. Please note that the test setup photos show only the configuration using the Bicon. Frequencies below are tested using a loop antenna. Please note that while the test report states a loop was used, the setup photos do not agree. Please confirm the tests were done using a loop antenna. Response: A loop antenna was used for radiated measurements below 30 MHz. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

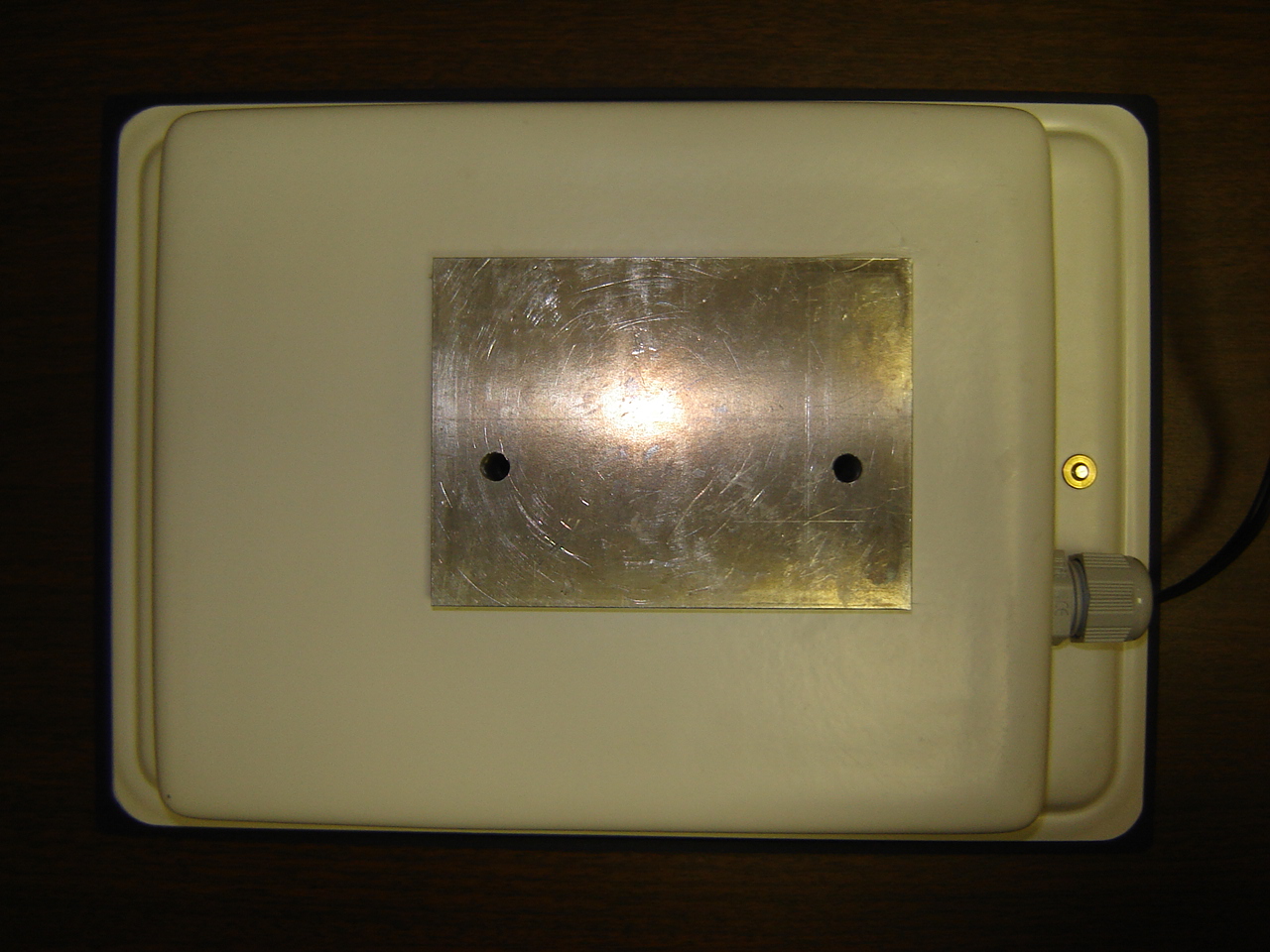

Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 29 of 34 Appendix K: External Photographs Photograph 5: EUT Top View Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 30 of 34 Photograph 6: EUT Bottom View

Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standard: FCC 15.209 FCC ID: O2E-ILR-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 17 of 30 Appendix C: Label and Label Location Photograph 1: ID Label Sample for EUT Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standard: FCC 15.209 FCC ID: O2E-ILR-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 18 of 30 Photograph 2: ID Label Location on EUT ID Label Here

Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 31 of 34 Appendix L: Internal Photographs Photograph 7: PCB with Cover in EUT Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 32 of 34 Photograph 8: PCB Top View without Cover in EUT Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 33 of 34 Photograph 9: PCB Top View without Cover Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 34 of 34 Photograph 10: PCB Bottom View

Engineering and Testing for EMC and Safety Compliance Accredited under A2LA Certificate # 2653.01 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 FCC Part 15.209 Certification Application Report Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Herndon, VA 20170 EMail: [email protected] Web: http://www.rheintech.com Applicant: Identec Solutions Inc. Tel: 250-860-6567 Suite 200, 1358 St. Paul Street Kelowna, BC V1Y 2E1 Canada Contact: Barry Allen Email: [email protected] FCC ID: O2E-ILR-IM2 Test Report Date: December 14, 2007 Platform: N/A RTL Work Order #: 2007279 Model: i-Mark 2 RTL Quote #: QRTL07-336, -351 American National Standard Institute: ANSI C63.4-2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Classification: DCD – Part 15 Low Power Transmitter Below 1705 kHz FCC Rule Part(s)/Guidance: FCC Rules Part 15.209: Radiated emission limits; general requirements Digital Interface Information Digital Interface was found to be compliant Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 0.125 N/A N/A 10K8A1D I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15, and ANSI C63.4. Signature: Date: December 14, 2007 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Identec Solutions Inc. The test results relate only to the item(s) tested. Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standard: FCC 15.209 FCC ID: O2E-ILR-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 2 of 30 Table of Contents 1 General Information....................................................................................................................................4 1.1 Scope..................................................................................................................................................................4 1.2 Description of EUT...............................................................................................................................................4 1.3 Test Facility.........................................................................................................................................................4 1.4 Related Submittal(s)/Grant(s)..............................................................................................................................4 1.5 Modifications........................................................................................................................................................4 2 Test Information..........................................................................................................................................5 2.1 Description of Test Modes...................................................................................................................................5 2.2 Exercising the EUT..............................................................................................................................................5 2.3 Test Result Summary..........................................................................................................................................5 2.4 Test System Details.............................................................................................................................................6 2.5 Configuration of Tested System..........................................................................................................................6 3 Radiated Emissions - §15.209...................................................................................................................7 3.1 Limits of Radiated Emissions Measurement........................................................................................................7 3.2 Radiated Emissions Measurement Test Procedure.............................................................................................7 3.3 Distance Correction Factor..................................................................................................................................8 3.4 Intentional Radiated Emissions Test Results – §15.209......................................................................................8 3.5 Unintentional Radiated Emissions Test Procedure..............................................................................................9 3.6 Unintentional Radiated Emissions Test Data.....................................................................................................10 4 Conducted Emissions – FCC §15.207....................................................................................................11 4.1 Test Methodology for Conducted Line Emissions Measurements.....................................................................11 4.2 Conducted Line Emissions Test Procedure.......................................................................................................12 4.3 Conducted Line Emissions Test Data................................................................................................................12 5 Conclusion................................................................................................................................................14 Rhein Tech Laboratories, Inc. Client: Ident…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 27 of 34 Appendix J: Test Photographs Photograph 3: Radiated Testing – Front View Rhein Tech Laboratories, Inc. Client: Identec Solutions Inc. 360 Herndon Parkway Model Name: i-Mark 2 Suite 1400 Standards: FCC 15.209/IC RSS-210 FCC/IC ID: O2E-ILR-IM2/3538B-IM2 Herndon, VA 20170 http://www.rheintech.com Report #: 2007279 Page 28 of 34 Photograph 4: Radiated Testing – Back View
