O2K-SMINDLTEMedi-Minder Guardian

1 Medi Minder Guardian USER MANUAL 2 Table of Contents TABLE OF CONTENTS .................................................................. 2 INTRODUCTION ............................................................................. 2 MEDI MINDER GUARDIAN ......................................................... 3 PENDANTS AND DETECTORS .................................................... 4 USING MEDI MINDER GUARDIAN ........................................... 4 DISPLAYS AND WARNINGS ........................................................ 6 CELLULAR SIGNAL QUALITY ................................................... 7 CELLULAR UDP/SERVER ............................................................ 7 SPECIFICATIONS ........................................................................... 8 Introduction Your SmartLink Medi Minder Guardian has been designed to provide you with the freedom and peace of mind in that, should you need assistance or HELP, it is available to you 24 hours a day with the simple press of a Button. The modern slim line design of the SmartLink Medi Minder Guardian allows it to be installed unobtrusively anywhere and is ready when you need help. HELP can be summoned by pressing a Button on your personal Pendant or Wristwatch, which you can wear both inside your home or outside in the garden, ready for any emergency, giving you the freedom you enjoy for total control at all times. The SmartLink Medi Minder Guardian has been built to the highest of technical standards for the protection of people and property and manufactured to Australian and International quality standards. Your SmartLink Medi Minder Guardian can be supplied with additional fixed or portable Radio Key Pendants, which can be worn or placed around the home as needed. Please contact your supplier for more information. 3 Medi Minder Guardian Aux Inputs/Outputs Plug Pack 9V DC 300mA Rechargeable Battery 4.8V Ni-MH 1600mAh (Part No. 142-031) Direct Serial DB9 Pin Programming Lead (Part No. 450-185) SIM Card Battery ON-OFF Switch RS232 Programming POWER 9VDC ONLY 4 Pendants and Detectors Universal Pendant (106-385) SmartFall Blue Fall detector (Bluetooth) Vibration Blue Vibration Pendant (Bluetooth) Using Medi Minder Guardian NORMAL OPERATION Your Medi Minder Guardian will normally look like this: The MAINS ON Light & the CANCEL (GREEN) BUTTON should be ON. 5 TO CALL FOR HELP You can make your Medi Minder Guardian Call for Help by either: 1 Pressing the HELP (RED) BUTTON on your Medi Minder Guardian 2 The HELP (RED) BUTTON will FLASH rapidly & Medi Minder Guardian will start beeping. This is a Pre-Alarm warning, while this is sounding you can Cancel the Help alarm by pressing the CANCEL (GREEN) BUTTON on your Medi Minder Guardian. OR Pressing the Large HELP (Panic) BUTTON on your Wristwatch/ Pendant for 2 Seconds. 3 If the CANCEL (GREEN) BUTTON is not pressed within the pre-alarm time (10 seconds), then your Medi Minder Guardian will dial your Monitoring Centre . to is displayed. When your Monitoring Centre has received the Help Call, your Medi Minder Guardian will beep 7 times to let you know that the Call has been received. The HELP (RED) BUTTON will now FLASH slowly every 4 seconds to indicate that your Medi Minder Guardian has Called for Help. 6 Displays and Warnings MAINS ON Light Flashing AC Power Fail – Check/Make sure that the MAINS Power Plug Pack is plugged in and turned ON at the Power Point. Flashing & BATTERY LOW Light Flashing Check/Make sure that the Battery Switch is turned ON underneath the Medi Minder Guardian. Contact your Installer/Monitoring Centre. The Medi Minder Guardian failed to send an Alarm Check/Make sure that the Antenna/SIM Card is plugged in. Contact your Installer/Monitoring Centre. (The Medi Minder Guardian will also beep for 25 seconds). or “cF” CELLULAR has failed or “Si” SIM Card Missing/Removed Check/Make sure that the Antenna/SIM Card is plugged in. Contact your Installer/Monitoring Centre. (The Medi Minder Guardian will also beep for 25 seconds). or is on the Display & HELP RED Button Flashing The HELP RED Button on the Medi Minder Guardian has been Pressed. to Flashing & HELP RED Button Flashing Pendants No. 1 to 8 has been Pressed. to Flashing & HELP RED Button Flashing Pendants No. 1 to 8 has been Pressed. to Flashing & HELP RED Button Flashing Pendants No. 1 to 8 has been Pressed. to Flashing & HELP RED Button Flashing Pendants No. 1 to 8 has been Pressed. to Flashing & HELP RED Button Flashing Detectors No. 1 to 8 Programmed as Fire “Fi” Option has been Activated. to is on the Display Pendants No. 1 to 8 has detected a Low Battery. Contact your Installer/Monitoring Centre. to is on the Display Detectors No. 1 to 8 has detected a Low Battery. Contact your Installer/Monitoring Centre. 7 Cellular Signal Quality To Check the Signal Quality/Strength: While the Medi Minder Guardian is in Normal/Operation Mode, Press the CANCEL Green Button and the Signal Strength Displays/Flashes for 2 Seconds. to The Medi Minder Guardian Displays/Flashes the Signal Quality from 0 to 8 0 to 1 = Weak Signal 2 to 6 = Good Signal (Industry Average) 7 to 8 = Very Strong Signal The Unit Updates the Signal Quality/Strength Every Minute. Cellular UDP/Server Medi Minder Guardian The Medi Minder Guardian has an internal GPRS/GSM Module to perform Network Reporting. This reporting is used to transmit alarm reporting messages from a subscriber’s site to a Data Monitoring Centre via a mobile data network and internet. The alarm reporting messages has packeted into ARMOR IP REPORTING PROTOCOL format, and use the UDP/IP internet protocol to transmit the alarm reporting message to a Data Monitoring Centre by specified Host/Server IP Address and Port Number. [ntwI] Network Initiating [ntw0] Network Opening [prt0] Port Opening [cnct] UDP Connection [rpt] Reporting [rsp] Acknowledge Response [ntwC ] Closes a Port on the Cellular Network [ntwc] Closes Connection with the Cellular Network. 8 Specification…

Text truncated - open the document above for the full version.

Ness Corporation Pty Ltd. 4167 Prospect Highway,Seven Hills,Sydney, NSWAustralia 2147 , Tel: 612 8a25 9272 ; Fax:61 2 9838 8508 Date: November 27 , 2O2O Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Su bject: Request for Confidentiality FCC lD: O2K-SMINDLTE To Whom lt May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR590.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. a Schematic Diagram a Block Diagram a Part List o OperationalDescription a Tu ne-up Proced ure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmfulto our company and would give competitor an unfair advantage in the market. ln additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT 52.803 and the importation rules in 47 CFR 92.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA O4-L7O5. a External Photos a lnterna I Photos a Test Setup Photos o User Manual It is our understanding that all measurement test reports, FCC lD label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Rega rds, \ ./" J (.^,n l'- Contact: Johl Circosta Email: j [email protected]

Ness Corporation Pty Ltd. 4157 Prospect Highway,Seven Hills,Sydney, NSWAustralia 2147 Tel: 61 2 8825 9222; Fax: 61 2 9838 8508 Date: November 27 ,2020 Power of Attorney To whom it may concern, Please be notified that I, John Circosta, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters ofrelating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act ol 1998,21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: 02K-SMINDLTE If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, z/ '/ L,-."-1.- Contact: John Circosta Email: [email protected]

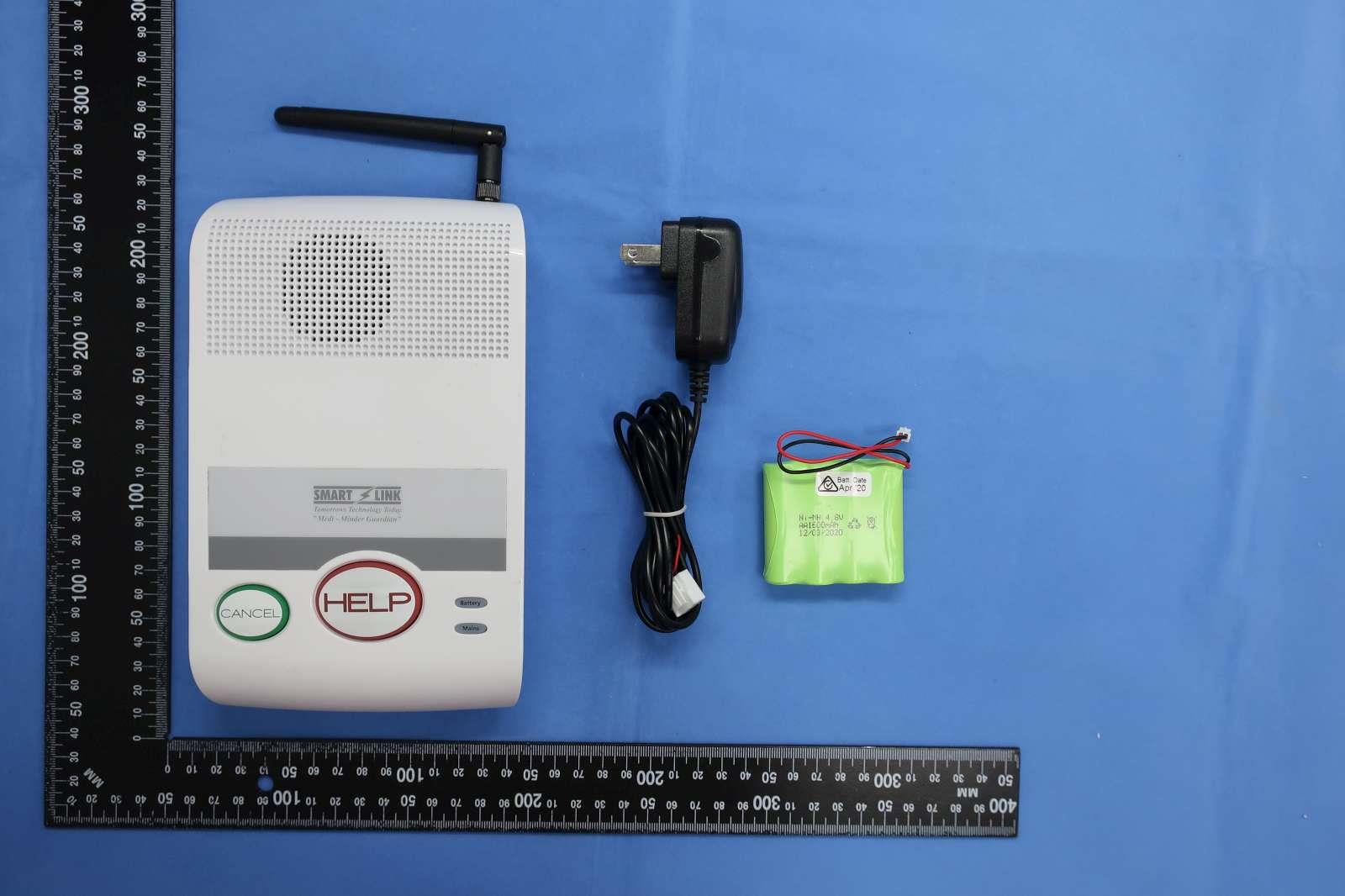

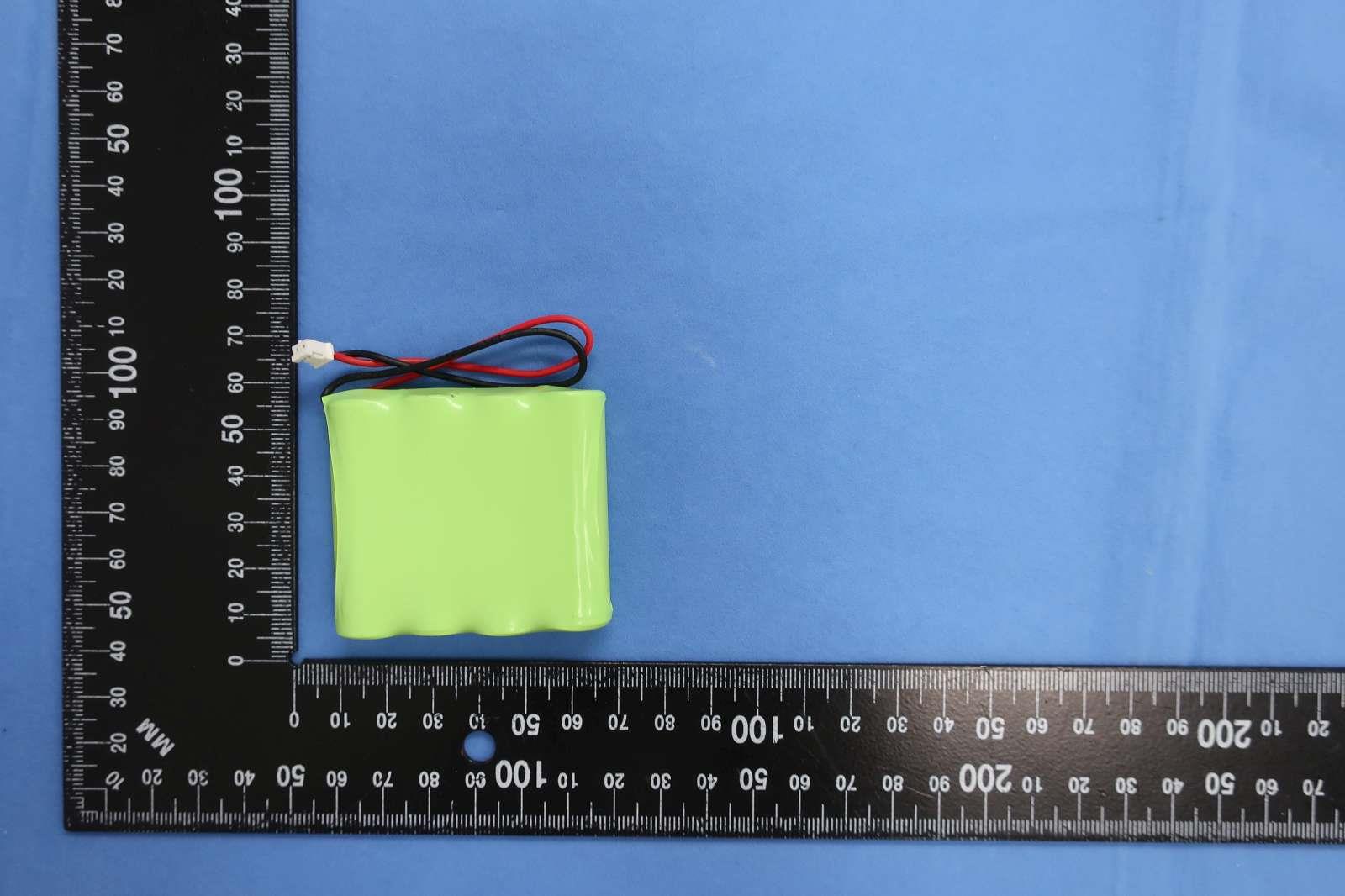

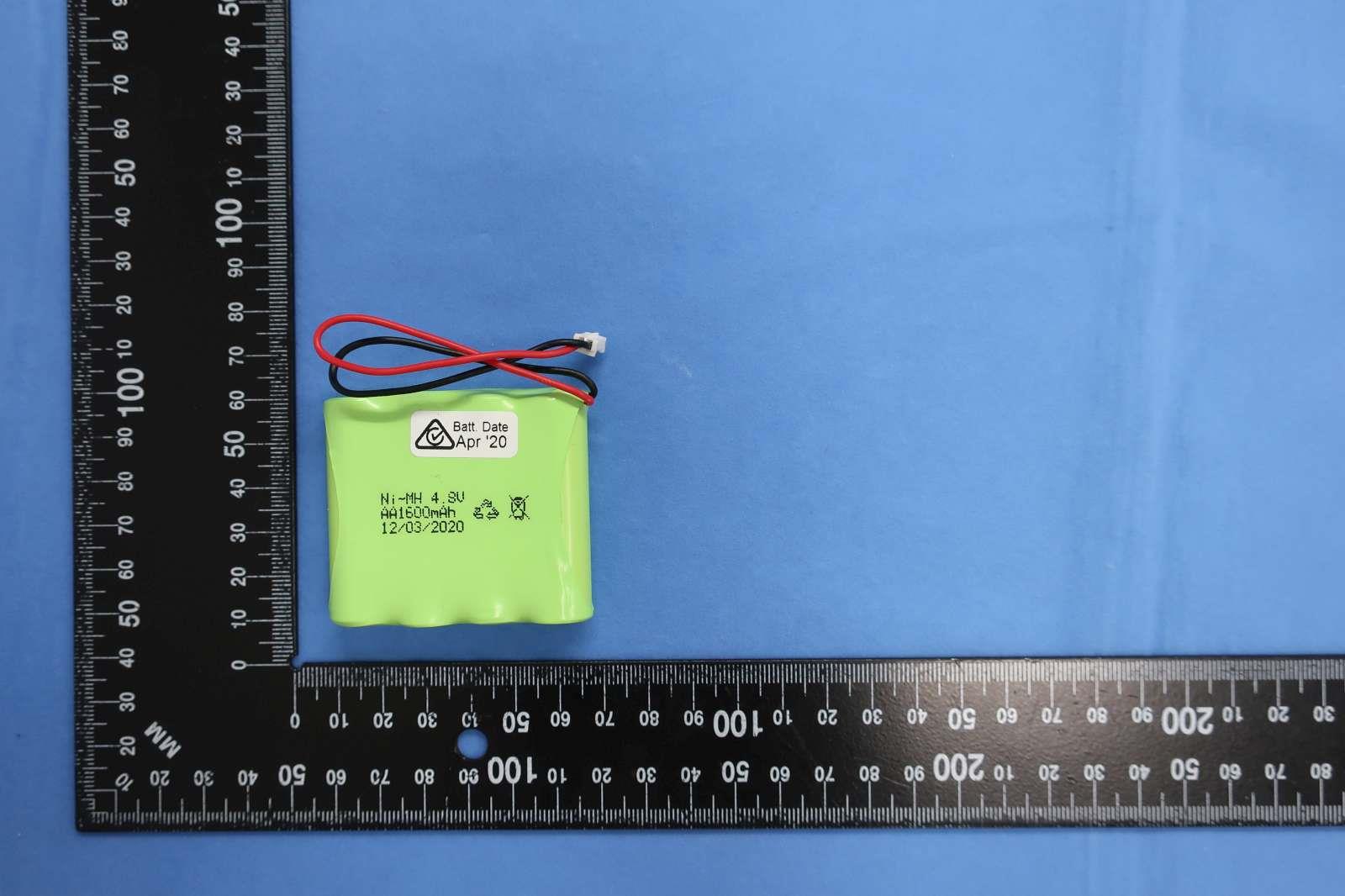

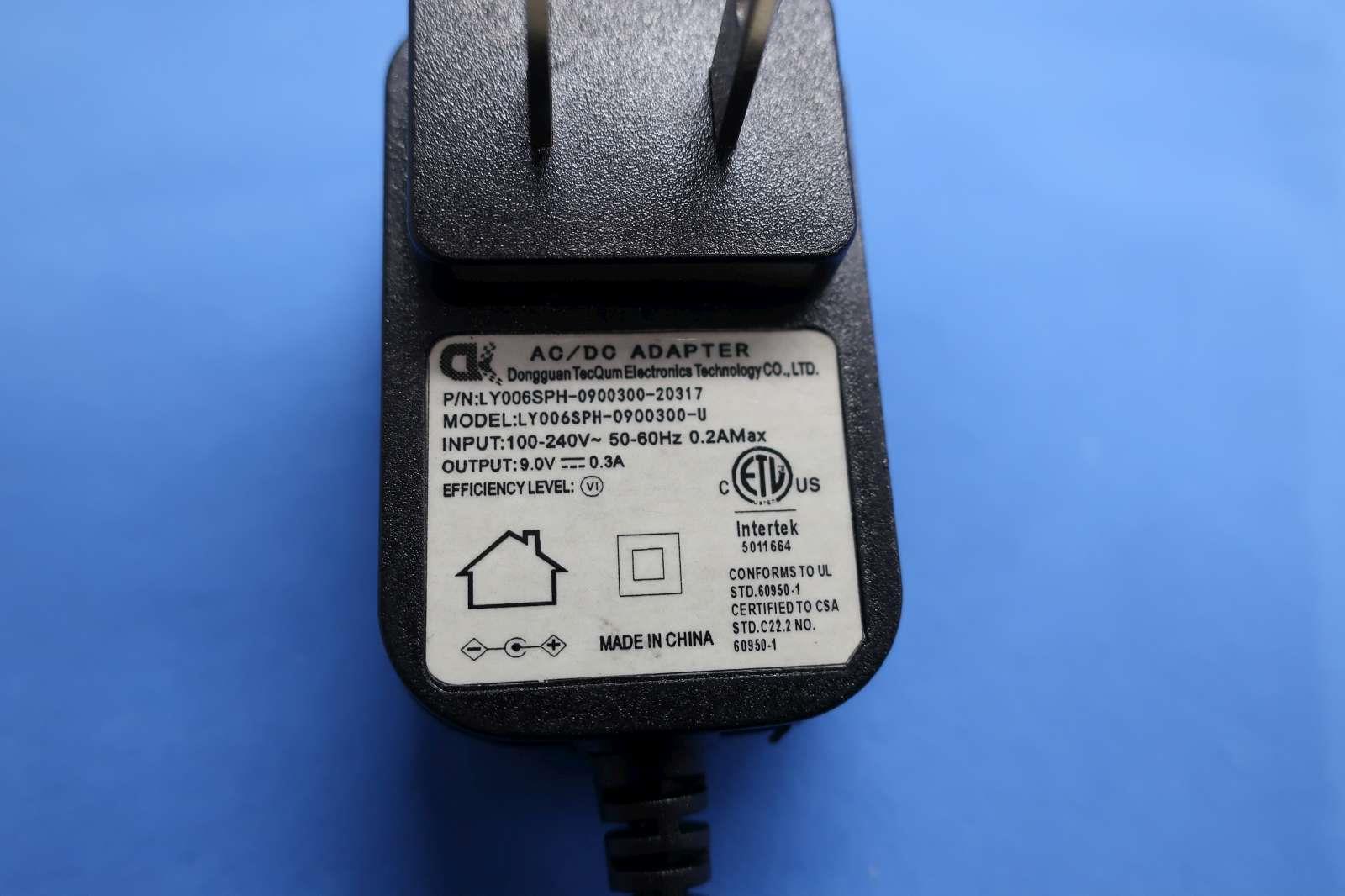

Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 1 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE 1. External Photograph of EUT Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 2 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 3 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 4 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 5 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 6 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 7 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE List of Accessory： Specification of Accessory AC Adapter 1 Brand Name DongguanTecQum Model Name LY006SPH-0900300-U Battery 1 Brand Name KBS Model Name 4HAA1600*4.8 WWAN Antenna Brand Name Jinchang Model Name JCG015KZW Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 8 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 9 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE AC Adapter 1 Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 10 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Battery Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 11 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 12 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE WWAN Antenna

Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 13 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE 3. Internal Photograph of EUT WWAN Antenna < Tx/Rx > SRD Antenna <Tx/Rx> Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 14 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 15 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 16 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 17 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 18 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 19 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 20 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 21 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 22 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 23 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 24 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 25 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 26 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 27 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 28 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 29 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LTE Sporton International (Shenzhen) Inc. Page Number : 30 of 37 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Photographs of EUT Report No.: EP082803 Brand Name: Smartlink (A division of Ness Corporation Pty Ltd.)/ Model Name: SMIND-GUARD-LT…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 8 TEL : +86-755-86379589 Report Issued Date : Oct. 14, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE RF Exposure Evaluation Report Report No. : FA082803 RF Exposure Evaluation Report APPLICANT : Ness Corporation Pty Ltd. EQUIPMENT : Medi-Minder Guardian BRAND NAME : Smartlink (A division of Ness Corporation Pty Ltd.) MODEL NAME : SMIND-GUARD-LTE FCC ID : O2K-SMINDLTE STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 We, Sporton International (Shenzhen) Inc., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International (Shenzhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Hank Huang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 8 TEL : +86-755-86379589 Report Issued Date : Oct. 14, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE RF Exposure Evaluation Report Report No. : FA082803 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT TUNE UP POWER AMONG PRODUCTION UNITS ....................... 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation ............................................................................................... 8 Sporton International (Shenzhen) Inc. Page Number : 3 of 8 TEL : +86-755-86379589 Report Issued Date : Oct. 14, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE RF Exposure Evaluation Report Report No. : FA082803 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA082803 Rev. 01 Initial issue of report. Oct. 14, 2020 Sporton International (Shenzhen) Inc. Page Number : 4 of 8 TEL : +86-755-86379589 Report Issued Date : Oct. 14, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE RF Exposure Evaluation Report Report No. : FA082803 1. Administration Data 1.1. Testing Laboratory Sporton International (Shenzhen) Inc. is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.01. Testing Laboratory Test Firm Sporton International (Shenzhen) Inc. Test Site Location 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China TEL: +86-755-86379589 FAX: +86-755-86379595 Test Site No. FCC Designation No. FCC Test Firm Registration No. CN1256 421272 Applicant Company Name Ness Corporation Pty Ltd. Address 4/167 Prospect Highway, Seven Hills, NSW, 2147, Australia Manufacturer Company Name Ness Corporation Pty Ltd. Address 4/167 Prospect Highway, Seven Hills, NSW, 2147, Australia Sporton International (Shenzhen) Inc. Page Number : 5 of 8 TEL : +86-755-86379589 Report Issued Date : Oct. 14, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE RF Exposure Evaluation Report Report No. : FA082803 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Medi-Minder Guardian Brand Name Smartlink (A division of Ness Corporation Pty Ltd.) Model Name SMIND-GUARD-LTE FCC ID O2K-SMINDLTE Wireless Technology and Frequency Range WCDMA Band II: 1852.4 MHz ~ 1907.6 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz LTE Band 2: 1850.7 MHz ~ 1909.3 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz LTE Band 5: 824.7 MHz ~ 848.3 MHz LTE Band 12: 699.7 MHz ~ 715.3 MHz LTE Band 13: 779.5 MHz ~ 784.5 MHz SRD: 903 MHz ~ 927 MHz Mode RMC 12.2Kbps HSDPA HSUPA LTE: QPSK, 16QAM SRD: GFSK HW Version 5 SW Version 1.5 Antenna Type / Gain WWAN : Fixed External Antenna with gain 2.00 dBi SRD: Fixed Internal Antenna with gain 2.15 dBi EUT Stage Identical Prototype Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Comments and Explanations: 1. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2. The maximum RF output tune up power, antenna gain also the safe distance used for evaluate RF exposure were declared by manufacturer. Sporton International (Shenzhen) Inc. Page Number : 6 of 8 TEL : +86-755-86379589 Report Issued Date : Oct. 14, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE RF Exposure Evaluation Report Report No. : FA082803 3. Maximum RF average output tune up power among production units <WCDMA> Mode Maximum Average power(dBm) WCDMA Band II 24.50 Band V 24.50 <LTE> Mode Maximum Average power(dBm) LTE Band 2 24.00 Band 4 24.00 Band 5 24.00 Band 12 24.00 Band 13 24.00 <SRD> Mode Maximum Average Power (dBm) SRD 22.00 Sporton International (Shenzhen) Inc. Page Number : 7 of 8 TEL : +86-755-86379589 Report Issued Date : Oct. 14, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE RF Exposure Evaluation Report Report No. : FA0828…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 14 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Report Template No.: BU5-FG22/24 Version 2.0 FCC RF Test Report Report No. : FG082803A FCC RF Test Report APPLICANT : Ness Corporation Pty Ltd. EQUIPMENT : Medi-Minder Guardian BRAND NAME : Smartlink (A division of Ness Corporation Pty Ltd.) MODEL NAME : SMIND-GUARD-LTE FCC ID : O2K-SMINDLTE STANDARD : 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Aug. 28, 2020 and completely tested on Sep. 13, 2020. We, Sporton International (ShenZhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.26-2015 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Derreck Chen / Supervisor Approved by: Eric Shih / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 14 TEL : +86-755-86379589 Report Issued Date : Oct. 13, 2020 FAX : +86-755-86379595 Report Version : Rev. 01 FCC ID : O2K-SMINDLTE Report Template No.: BU5-FG22/24 Version 2.0 FCC RF Test Report Report No. : FG082803A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ....................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Maximum ERP/EIRP Power .............................................................................................................. 6 1.7 Testing Location ................................................................................................................................ 6 1.8 Test Software .................................................................................................................................... 6 1.9 Applicable Standards ........................................................................................................................ 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System ................................................................................................ 9 2.3 Support Unit used in test configuration ............................................................................................. 9 2.4 Frequency List of Low/Middle/High Channels ................................................................................... 9 3 CONDUCTED TEST RESULT ................................................................................................................... 10 3.1 Measuring Instruments .................................................................................................................... 10 3.2 Test Setup ....................................................................................................................................... 10 3.3 Conduct…

Text truncated - open the document above for the full version.
