O2K-TR915Universal Pendant KeyFob

What is the Universal Pendant? Your Universal Pendant allows you to press a button to generate an alarm call from your home base unit when you need help. Intended use This device is intended to enable a user in a non-medical setting to request assistance by providing a method of activating their home base unit, from within the operating range, in the event of a potential medical emergency What is in the package? The package contains this user guide, a Universal Pendant, a neck chain and a wrist strap. How It Works: Press the button on the Universal Pendant to send a message to the base unit. Technical information Weight: 25g [0.88oz] Dimensions: 50 x 32 x 12mm [2” x 1.3” x 0.45”] (WxHxD) Battery: CR2032 (3v Lithium cell) Not User Serviceable Radio Freq: 902 to 928 MHz Water resistance: IP67 (up to 1 metre [3ft.] for 30 minutes) Temperature: Operating temperature (to perform to full specification) = 0°C to 45°C, storage = -10°C to 50°C Humidity: Operating relative humidity (non condensing to perform to full specification) = 0 to 80%, storage relative humidity (non condensing) = 0 to 93% 2 “A division of Ness Corporation Pty Ltd” Ness Corporation manufacturing processes are accredited to ISO9001 quality standards and all possible care and diligence has been applied during manufacture to ensure the reliable operation of this product. However there are various external factors that may impede or restrict the operation of this product in accordance with the product’s specification. To the best of our knowledge, the information contained in this manual is correct at the time of print. SmartLink “A division of NESS CORPORATION PTY LTD” reserves the right to make changes to the features and specifications at any time without prior notice in the course of product development. FCC Part 15.19 Warning Statement- THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC Part 15.21 Warning Statement- NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. IC RSS-GEN, Sec 8.4 Warning Statement- This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. EQUIPMENT NAME: Universal Pendant Model: TR915 FCC ID: O2K-TR915 CANADA IC: 2290B-TR915 SmartLink “A division of Ness Corporation” www.smartlink.com.au USA Contact: Elk Products. 3266 US-70, Connelly Springs, NC 28612 Tel: 828-397-4200 © Ness Corporation Pty Ltd ABN 28 069 984 372

www.ness.com.au Ness Corporation Pty Ltd ABN 28 069 984 372 Private Bag 23 Seven Hills NSW 1730 Australia Ph +61 2 8825 9222 Fax +61 2 9838 8508 Email: [email protected] Sydney Melbourne Brisbane Adelaide Perth 4 / 167 Prospect Hwy 4 / 56 Norcal Rd 3 / 471 Lytton Rd Unit 1 / 22 Ware Street 1 / 567 Newcastle St Seven Hills NSW 2147 Nunawading VIC 3131 Morningside QLD 4170 Thebarton SA 5031 West Perth WA 6005 Phone 02 8825 9222 Phone 03 9875 6400 Phone 07 3399 4910 Phone 08 8152 0000 Phone 08 9328 2511 Fax 02 9674 2520 Fax 03 9875 6422 Fax 07 3217 9711 Fax 08 8152 0100 Fax 08 9227 7073 [email protected] [email protected] [email protected] [email protected] [email protected] Date: October 29,2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, FL 32669 SUBJECT: Application(s) for Certification for FCC ID: O2K-TR915, O2K-TRM915 IC: 2290B-TR915, 2290B-TRM915 To Whom It May Concern: We, the undersigned, hereby authorize Sharon Hoffman at TIMCO ENGINEERING, INC. on our behalf, to apply for certification on our equipment referenced above. Any and all acts carried out by TIMCO ENGINEERING, INC. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, John Circosta Technical Manager Tel: +61-2-8825-9222 Fax: +61-9674-2520 Email: [email protected]

www.ness.com.au Ness Corporation Pty Ltd ABN 28 069 984 372 Private Bag 23 Seven Hills NSW 1730 Australia Ph +61 2 8825 9222 Fax +61 2 9838 8508 Email: [email protected] Sydney Melbourne Brisbane Adelaide Perth 4 / 167 Prospect Hwy 4 / 56 Norcal Rd 3 / 471 Lytton Rd Unit 1 / 22 Ware Street 1 / 567 Newcastle St Seven Hills NSW 2147 Nunawading VIC 3131 Morningside QLD 4170 Thebarton SA 5031 West Perth WA 6005 Phone 02 8825 9222 Phone 03 9875 6400 Phone 07 3399 4910 Phone 08 8152 0000 Phone 08 9328 2511 Fax 02 9674 2520 Fax 03 9875 6422 Fax 07 3217 9711 Fax 08 8152 0100 Fax 08 9227 7073 [email protected] [email protected] [email protected] [email protected] [email protected] Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: O2K-TR915 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Schematic Diagram Block Diagram Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mr John Circosta Technical Manager Ness Corporation Pty Ltd 31-October-2020

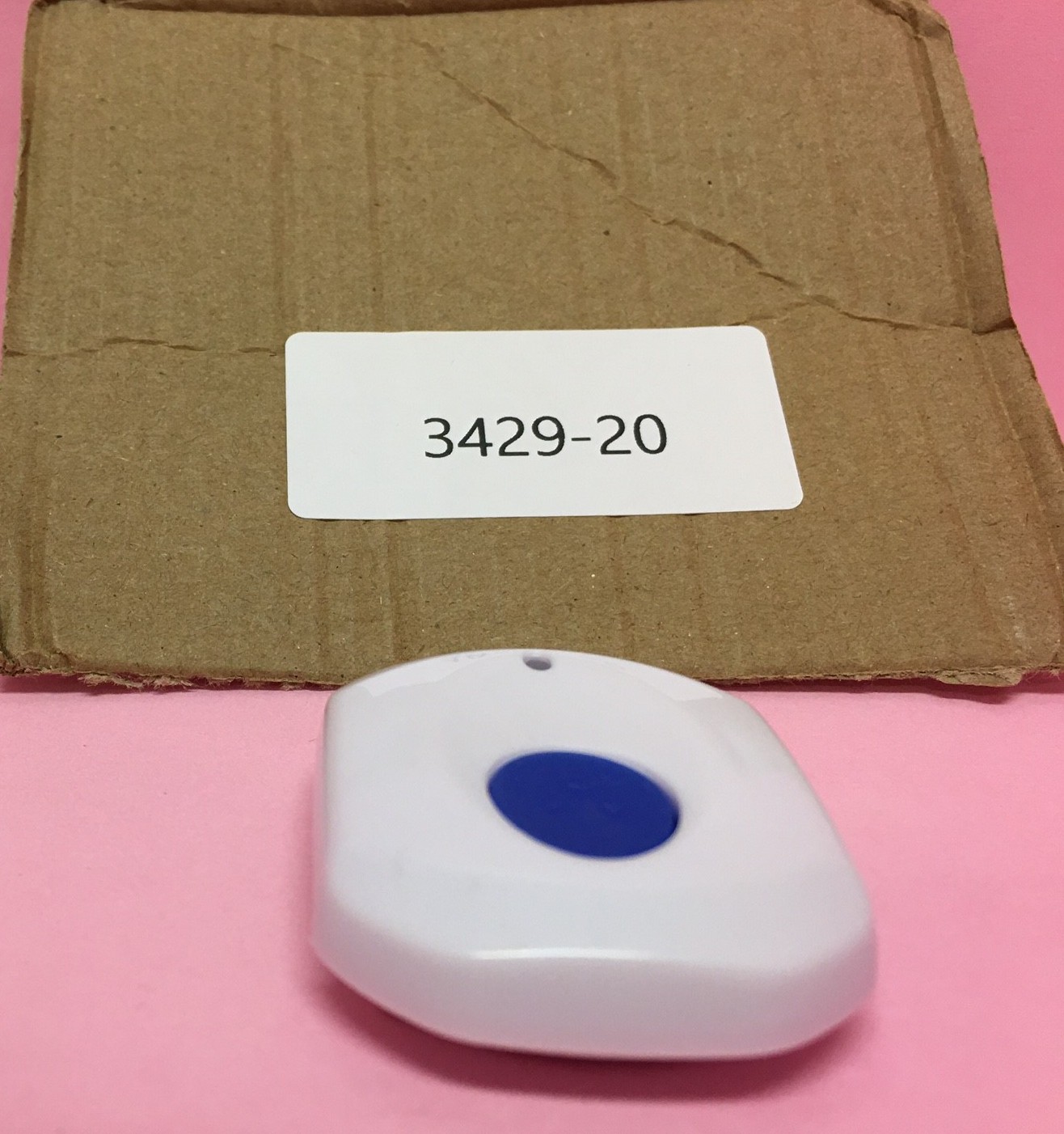

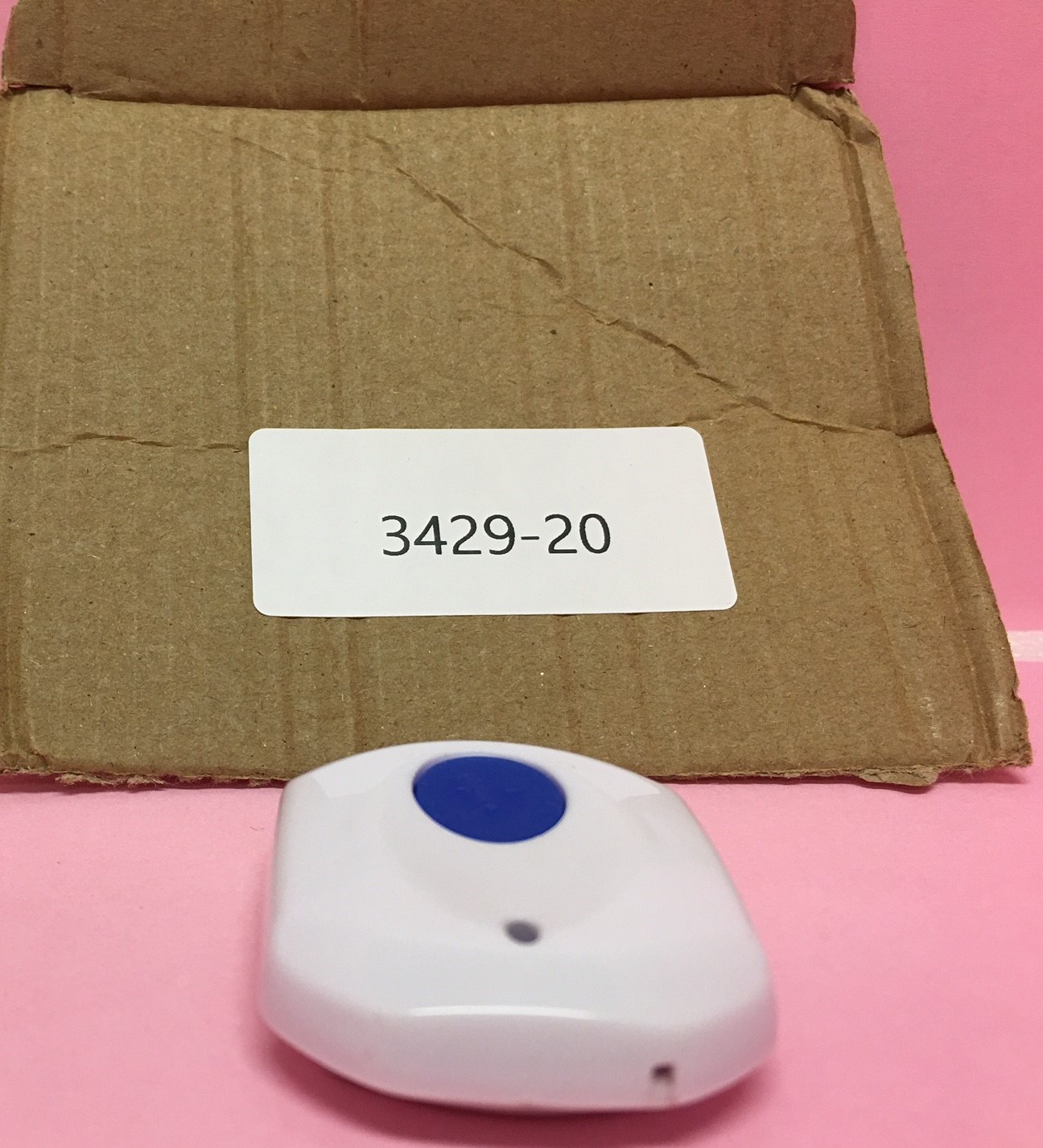

Applicant: Ness Corporation Pty. Ltd. FCC ID: O2K-TR915 IC: 2290B-TR915 EXTERNAL PHOTOS

Sep 20 SMARTLINK IC: 2290B-TR915 FCC ID: O2K-TR915 Model:TR915 TXID: F30AB123

Applicant: Ness Corporation Pty. Ltd. FCC ID: O2K-TR915 IC: 2290B-TR915 INTERNAL PHOTOS

Timco Test Report # TR_3429-20_FCC_15.247_3 Revision: 3 Issue Date: September 24, 2020 Final Test Date: September 23, 2020 An IIA Company Te s t Report - FCC PART 15.247 Prepared For: Ness Corporation Pty. Ltd. Approved for Release By: Signature: Name & Title: Bruno Clavier, General Manager Date of Signature (YYYY-MM-DD): 2020-09-24 This test report shall not be reproduced except in full without the written and signed permission of Timco Engineering Inc. (IIA). This test report relates only to the items tested as identified and is not valid for any subsequent changes or modifications made to the equipment under test. Timco Engineering, Inc., an IIA Company 849 NW State Road 45, Newberry, Florida 32669 (352) 472-5500 / [email protected] Page 2 of 37 This test report shall not be reproduced except in full without the written and signed permission of Timco Engineering Inc. (IIA). Table of Contents 1. CUSTOMER INFORMATION .......................................................................................................................................................................................... 3 1.1 TEST RESULT SUMMARY............................................................................................................................................................................................................ 3 2. LOCATION OF TESTING ................................................................................................................................................................................................ 5 2.1 TEST LABORATORY ................................................................................................................................................................................................................... 5 2.2 TESTING WAS PERFORMED, REVIEWED BY .................................................................................................................................................................................. 5 3. TEST SAMPLE(S) (EUT/DUT) .......................................................................................................................................................................................... 6 3.1 DESCRIPTION OF THE EUT ....................................................................................................................................................................................................... 6 3.2 CONFIGURATION OF EUT ......................................................................................................................................................................................................... 7 3.3 TEST SETUP OF EUT ................................................................................................................................................................................................................. 7 4. TEST METHODS & APPLICABLE REGULATORY LIMITS ............................................................................................................................................. 8 4.1 TEST METHODS/STANDARDS/GUIDANCE: ................................................................................................................................................................................. 8 4.2 APPLIED LIMITS AND REGULATORY LIMITS: ............................................................................................................................................................................... 8 5. MEASUREMENT UNCERTAINTY ................................................................................................................................................................................... 8 6. ENVIRONMENTAL CONDITIONS ................................................................................................................................................................................. 8 6.1 TEMPERATURE & HUMIDITY ...................................................................................................................................................................................................... 8 7. LIST OF TEST EQUIPMENT AND TEST FACILITY ........................................................................................................................................................ 9 7.1 LIST OF TEST EQUIPMENT ......................................................................................................................................................................................................... 9 8. TEST RESULTS ............................................................................................................................................................................................................... 10 8.1 HOPPING CHARACTERISTICS .....................................................................................................................................................................................................11 8.1.1 Carrier Frequency Separation Plot .................................................................................................................................................................... 12 8.1.2 Number of Hopping Frequencies Plot ............................................................................................................................................................... 13 8.1.3 Time of Occupancy Plot ....................................................................................................................................................................................... 14 8.1.4 Hops in 10 s Plot ................................................................................................................................................................................................... 15 8.1.5 Hopping Channel Occupancy Time ..................…
