O2SNURIT8000SWMPOINT OF SALE DEVICE

Verifone Inc.
POINT OF SALE DEVICE - FCC ID O2SNURIT8000SWM - Verifone Inc.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Feb 12, 2004
Application Purpose
Original Equipment
Date of Application
Feb 12, 2004
Equipment Note
POINT OF SALE DEVICE
Frequency Range
896.00000000 - 901.00000000
Company
Verifone Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

โ†—

Attestation Statements

โ†—

Cover Letter(s)

โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

Parts List/Tune Up Info

โ†—

RF Exposure Info

โ†—
โ†—

Test Report

โ†—
โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

NURIT 8000 Wireless Palmtop Solution Installation Manual Lipman Electronic Engineering Ltd. 11 Haamal Street, Park Afek, Rosh Haayin, Israel 48092 Tel: +(972)-3-9029730 Fax: +(972)-3-9029731 E-mail: [email protected] Web Site: www.lipman.biz Copyright Notice Copyrightยฉ Lipman Electronic Engineering Ltd. All rights reserved. The content of this publication is for informational purposes only and is subject to change without notice. It does not represent a commitment on the part of Lipman Electronic Engineering Ltd. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated to any language in any form by any means without the prior written permission of Lipman. Trademark Information NURITยฎ is a registered trademark of Lipman Electronic Engineering Ltd. All other product and brand names contained in this manual are trademarks of their respective owners. Catalog Number DOC00222 Orig. Print Date February 2004 Installation Manual iii Foreword Thank you for purchasing the NURIT 8000 Wireless Palmtop Solution. You now own one of the most advanced electronic point-of-sale (POS) terminals manufactured today. This manual provides basic installation instructions. To fully utilize the features of your NURIT 8000, and for general safety purposes, it is recommended that you familiarize yourself with this manual, the terminal and any peripheral equipment or accessories. Figure 1 NURIT 8000 - General View iv Installation Manual Note All graphic images in this manual are for illustrative purposes only. Different models of this terminal may exist and may vary in appearance according to country of use or particular customer requirements. The basic installation procedure is the same for most units. The operation of the terminal is application-dependent. It is recommended that you store this manual in a safe place for future reference. Installation Manual v Table of Contents Copyright Notice ........................................ ii Trademark Information................................. ii Catalog Number ......................................... ii Print Date ................................................ ii Foreword............................................. iii Product Regulatory Information ....................... 1 FCC Compliance Statement............................ 1 FCC Part 15 Requirements ............................. 1 FCC Part 68 Requirements ............................. 2 FCC Part 90 Requirements ............................. 4 In Canada: ................................................ 4 EU Directives Compliance Statement ................ 4 Document Conventions ................................. 5 General Safety Instructions.......................... 7 Radio Frequency Energy Emission ...................11 Safety Precautions for Medical Devices.............12 Pacemakers .............................................12 Other Medical Devices.................................12 Safety Precautions for Other Electronic Devices ..13 Specifications ....................................... 14 Initial Setup ......................................... 15 Unpacking the Box .....................................15 Contents Checklist .....................................16 Selecting a Point-Of-Sale Location ..................19 Optional Accessories ............................... 21 General Features ................................... 25 vi Installation Manual Installing the Battery Pack ........................ 28 Battery Pack Maintenance ............................30 Connecting the NURIT 8000 to the AC Power Supply32 Installing the External Modem.................... 34 Connecting the Car Adapter........................ 35 Loading Paper in the Printer...................... 37 Installing the Keypad Privacy Shield............. 39 Installing a SIM or SAM Card......................... 41 Installing the SIM/SAM Cardholder Compartment Cover .. 45 Installing a SIM Card in the TEL SIM Slot............47 Connecting Peripheral Devices....................... 50 Connecting a Cellular Headset ................... 52 General Care and Maintenance ..................... 53 Cleaning the NURIT 8000..............................53 Cleaning the Printer ...................................54 Maintenance Recommendations .....................55 Technical Assistance...................................55 Shipping the NURIT 8000 ..............................56 Troubleshooting..................................... 57 Appendix A Using the Magnetic Card Reader ...... 64 Appendix B Using the Smart Card Reader.......... 65 Installation Notes................................... 67 Installation Manual vii List of Figures Figure 1 NURIT 8000 - General View iii Figure 2 Secure Device Label 15 Figure 3 NURIT 8000 โ€“ Box Contents 18 Figure 4 NURIT 8000 - Optional Accessories 21 Figure 5 NURIT 8000 - Top View 27 Figure 6 NURIT 8000 - Bottom View 27 Figure 7 Battery Pack Installation 28 Figure 8 Battery Pack Removal 29 Figure 9 AC Power Supply Connection 32 Figure 10 External Modem Installation 34 Figure 11 Car Adapter Connection 35 Figure 12 Loading Paper in the Printer 38 Figure 13 Keypad Privacy Shield Installation 39 Figure 14 SIM/SAM Cardholder Locking-Clasp 43 Figure 15 SIM/SAM Card Installation 44 Figure 16 SIM/SAM Cardholder Compartment Cover Installation 46 Figure 17 Void Label Installation 46 Figure 18 SIM Cardholder Ejection 47 Figure 19 SIM Card Installation 48 Figure 20 SIM Cardholder Insertion 48 Figure 21 Barcode Reader Connection 51 Figure 22 Cellular Headset Connection 52 Figure 23 Magnetic Card Reader 64 Figure 24 Smart Card Reader 65 Installation Manual 1 Product Regulatory Information Note The following product regulatory information and compliance statements apply to all models of the NURIT 8000x, where x represents a suffix, such as S , SVP, or Secure, designating the specific security features of a particular model. Caution Changes or modifications to this device that are nโ€ฆ

Text truncated - open the document above for the full version.

Cover Letter(s)

January 5, 2004 TIMCO ENGINEERING INC. P.O. Box 370 849 N.W. State Road 45 Newberry, Florida Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 896-901 MHz (12.5kHz Channel Spacing). Applicant: Lipman USA, Inc Product: Point of Sale Device Model: NURIT 8000 FCC ID: O2SNURIT8000SWM Dear Sir/Madam, As appointed agent for Lipman USA, Inc, we would like to submit the application for certification of the above product. Please review all files uploaded to TIMCO Electronic Filing Site. The Point of Sale Device consists of an integrated Wavenet Technology Pty Ltd. Boomer III OEM Modem Module (FCC ID PQS-BM3900M) with an internal Mars Antennas & RF Systems Ltd. embedded Mobitex 900 MHz antenna (Model: MA89940VOMML, 0 dBi gain). The incorporated radio is identical in design and construction to the original; no changes were made on the radio. Thus, in this application, to demonstrate compliance with FCC Part 90, Ultratech Engineering Labs Inc. will provides test reports addressing the RF Power Output, Emission Mask, Field Strength of Spurious Radiation and SAR for compliance with ยง 2.1093. For all other required tests pertaining to FCC Part 90 please refer to Wavenet Technology Pty Ltd. Test Report. Product name description for certification filings: Lipman Electronic Engineering Ltd's NURIT 8010 is being marketing under two brand names "NURIT 8010" and "NURIT 8000" in different markets, for marketing reasons only. In most markets it will be sold as a "NURIT 8000". The marketing name appearing on the terminal may be followed by additional designations ("NURIT 8000S", "NURIT 8000Secure", "NURIT 8000SVP", etc.). These designations, when present, indicate to the customer whether certain security features are present, such as protection of secret encryption keys, and whether security-related approvals have been received. The electronics are equivalent regardless of the suffix, which is included for marketing purposes and clarity only. Regardless of the name appearing on the device, the product code which appears with the terminal's serial number is always "8010-" followed by specific option designators. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

Cover Letter(s)

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 16 September 2003 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Subject: Request for Confidentiality Applicant: Wavenet Technology Pty Ltd Product: Wireless Radio Modem for iPAQ Model: BM3-900M FCC ID: PQS-BM3900M Dear Sir/Madam, Wavenet Technology Pty Ltd, hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Parts Lists and Operational Description Exhibit submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These documents contain detailed information about the product, which Wavenet Technology Pty Ltd considers to be proprietary, confidential and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Wavenet Technology Pty Ltd considers this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely DAVID SHAWCROSS Technology Manager

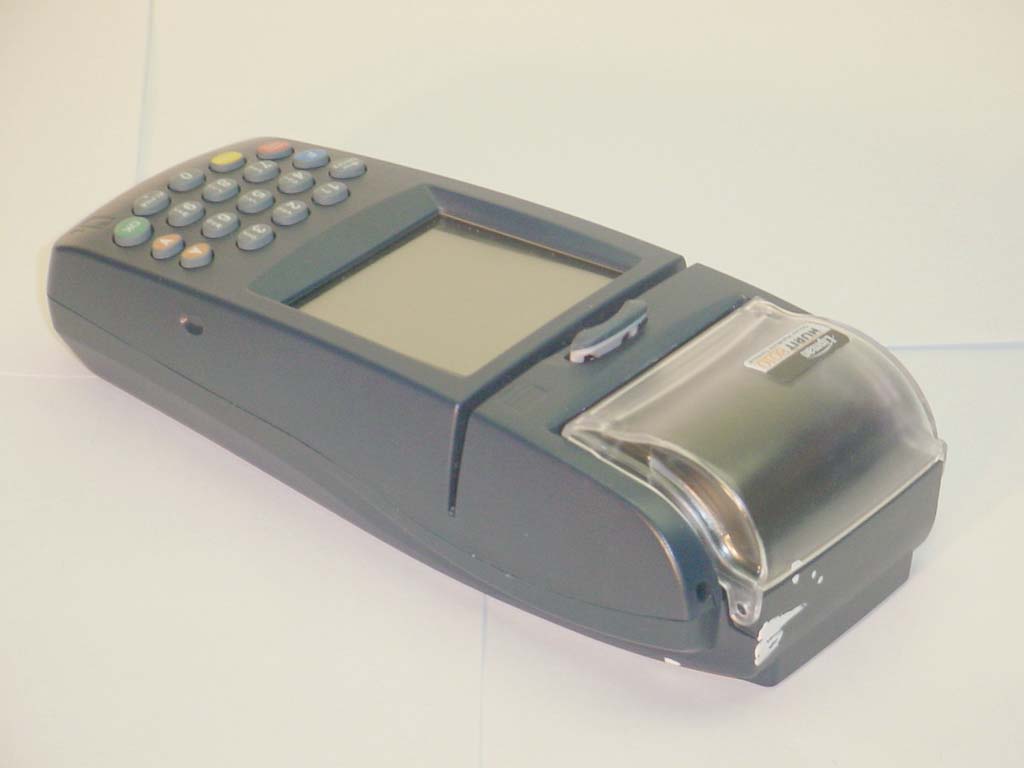

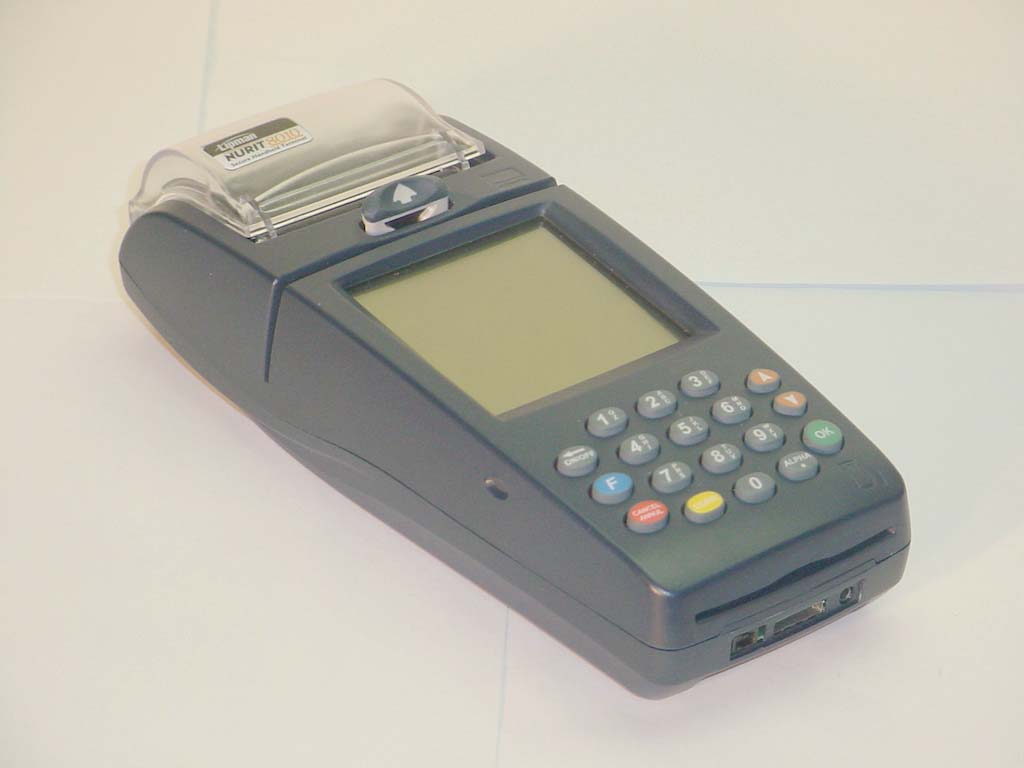

External Photos

ANNEX 2 โ€“ EXTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 1 ANNEX 2 โ€“ EXTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 2 ANNEX 2 โ€“ EXTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 3

ID Label/Location Info

REVISIONS ZONE LTRDESCRIPTION DATE APPROVED ECN NO. 0958113 0958113 11.12.03 DESIGN ACTIVITY DESIGN CHECK DRAWN CONTRACT NO. RELEASE DATE SCALE SIZE A DATE TITLE DWG NO. FILE: SHEET 1OF1 REV. O.FRIEDMAN S.LEPEL SIGNATURE A BOTTOM LABEL - NURIT 8000S FOR USA (WAVENET) I.R X ON REVERSE SIDE OF LABEL 467MP, 3M COMPANY POLYCARBONATE, MATTE, 0.25mm THICK BLACK MATERIAL ADHESIVE ADHESIVE TYPE TEXT COLOR BACKGROUND COLOR PANTONE 430C 11.12.03 11.12.03 LIPMAN PART No: LBP09565 LIPMAN ELECTRONIC ENGINEERING LTD. CUTTING DIMENSIONS 21,6 51 MODEL: NURIT 8000S NURIT 8000S K.ZELTSER Lipman USA, Incorporated FCC ID: O2SNURIT8000SWM IC: 4804A - N8000SWM WAVENET MOBITEX ESN: INPUT VOLTAGE: 8.4/1A MAX. USE RECOMMENDED LIPMAN CHARGER ONLY Assembled in Israel GRAPHICS

Internal Photos

ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 1 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 2 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 3 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 4 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 5 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 6 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 7 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 8 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 9 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 10 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 11 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 12 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 13 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 14 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 15 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 16 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 17 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 18 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 19 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 20 ANNEX 3 โ€“ INTERNAL PHOTOGRAPHS Lipman USA, Inc. Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM IC: 4804A-N8000SWM A2 - 21

Parts List/Tune Up Info

140 Burswood Rd. Burswood Western Australia, 6100 Tel: +61 8 9262 0200 Fax: +61 8 9355 5622 Email: [email protected] Web Site: www.wavenet.com.au ABN 88 079 965 003 8 October 03 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia MD 21406 Subject: Tuning Information Applicant: Wavenet Technology Pty Ltd Product: Boomer-III OEM modem module Model: BM3-900M FCC ID: PQS-BM3900M Dear Sir/Madam, The Boomer-III OEM modem module is a broadband device across the authorised band with controlled output power that is flat across the same band. As such there is no tuning procedure to be performed or required. The functional operation and system description is provided in Exhibit โ€œOperational Descriptionโ€. The operating frequency range of the device is fixed in the modem firmware at the time of manufacture and cannot be changed by the user. The frequency band is restricted to that permitted by the FCC. The transmit output power and duty cycle is fixed in the modem firmware at the time of manufacture and cannot be changed by the user. The output power level is measured and fixed using calibrated test equipment to the approved level of 33dBm maximum. The duty cycle is limited to 30% maximum. Yours sincerely DAVID SHAWCROSS Technology Manager

RF Exposure Info

Hand Held Point of Sale Device Model No.: NURIT8000S Tested For Lipman USA, Inc. 50 Gordon Dr. USA, 11791 In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation โ€“ Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: LEE-009-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 9, 2003 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: JaeWook Choi, SAR System Engineer Issued Date: December 9, 2003 Test Dates: December 03, 2003 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation โ€“ Human Exposure) Amendment Standard 2000 (No. 1) Hand Held Point of Sale Device M/N: NURIT8000S FCC ID: O2SNURIT8000SWM TABLE OF CONTENTS EXHIBIT 1.INTRODUCTION................................................................................................................................................4 1.1.SCOPE...............................................................................................................................................................................4 1.2.REFERENCES...................................................................................................................................................................4 EXHIBIT 2.PERFORMANCE ASSESSMENT.....................................................................................................................5 2.1.CLIENT AND MANUFACTURER INFORMATION......................................................................................................5 2.2.DEVICE UNDER TEST (D.U.T.) DESCRIPTION..............................................................................................................5 2.3.LIST OF D.U.T.โ€™S ACCESSORIES:.................................................................................................................................. 6 2.4.SPECIAL CHANGES ON THE D.U.T.โ€™S HARDWARE/SOFTWARE FOR TESTING PURPOSES.............................6 2.5.ANCILLARY EQUIPMENT.............................................................................................................................................6 2.6.GENERAL TEST CONFIGURATIONS...........................................................................................................................6 2.6.1.Equipment Configuration...........................................................................................................................................6 2.6.2.Exercising Equipment.................................................................................................................................................6 2.7.SPECIFIC OPERATING CONDITIONS......................................................................................................................................6 2.8.BLOCK DIAGRAM OF TEST SETUP.............................................................................................................................7 EXHIBIT 3.SUMMARY OF TEST RESULTS......................................................................................................................8 3.1.LOCATION OF TESTS.....................................................................................................................................................8 3.2.APPLICABILITY & SUMMARY OF SAR RESULTS.....................................................................................................8 EXHIBIT 4.MEASUREMENTS, EXAMINATIONS & TEST DATA................................................................................9 4.1.TEST SETUP.....................................................................................................................................................................9 4.2.PHOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................10 4.3.PHOTOGRAPHS OF D.U.T. POSITION........................................................................................................................12 4.3.1.Body Configuration..................................................................................................................................................12 4.3.1.1.Back-side in parallel to the phantom with the spacing of 15 mm............................................................................................12 4.3.1.2.Right-side in parallel to the phantom with the spacing of 15 mm............................................................................................13 4.3.1.3.Top-side perpendicular to the phantom with the spacing of 15 mm........................................................................................14 4.4.MAXIMUM PEAK SPATIAL-AVERAGE SAR........................................................................................................................15 4.4.1.Maximum Peak Spatial-average SAR Data..............................................................................................................15 4.4.2.Maximum Peak Spatial-Average SAR Location.......................................................................................................15 4.5.SAR MEASUREMENT DATA..............................................................................................................................................16 4.5.1.Body Cโ€ฆ

Text truncated - open the document above for the full version.

Test Report

Boomer-III Mobitex Wireless OEM Modem Module Model No.: BM3-900M FCC ID: PQS-BM3900M Applicant: Wavenet Technology Pty Ltd. 140 Burswood Road Burswood, Perth, WA Australia, 6100 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: WTP015QFCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 01, 2003 Report Prepared by: Dharmajit Solanki, RFI Engineer Tested by: Mr.Hung Trinh, RFI Technician Issued Date: October 01, 2003 Test Dates: September 24 - 30, 2003 ยƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ยƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i Boomer-III Mobitex Wireless OEM Modem Module, Model BM3-900M FCC ID: PQS-BM3900M ULTRATECH GROUP OF LABS File #: WTP015QFCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 01, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com ยƒ All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST...................................................................................................................... 1 EXHIBIT 2. INTRODUCTION ....................................................................................................................................... 2 2.1. SCOPE....................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 2 2.3. NORMATIVE REFERENCES ................................................................................................................................. 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................ 3 3.1. CLIENT INFORMATION ........................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................... 3 3.3. EUTโ€™S TECHNICAL SPECIFICATIONS................................................................................................................ 4 3.4. LIST OF EUTโ€™S PORTS................................................................................................................................................ 5 3.5. ANCILLARY EQUIPMENT............................................................................................................................................. 5 3.6. TEST SETUP BLOCK DIAGRAM...................................................................................................................................... 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................. 7 4.1. CLIMATE TEST CONDITIONS........................................................................................................................................ 7 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS..................................................................... 7 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................. 8 5.1. LOCATION OF TESTS ............................................................................................................................................ 8 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS................................................................................... 8 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES.................................................................. 9 5.4. DEVIATION FROM STANDARD TEST PROCEDURES ....................................................................................... 9 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS........................... 10 6.1. TEST PROCEDURES................................................................................................................................................... 10 6.2. MEASUREMENT UNCERTAINTIES...............................................................................................................................10 6.3. MEASUREMENT EQUIPMENT USED:............................................................................................................................ 10 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER:................................... 10 6.4.1. RF power output @ FCC 2.1046 & 90.205..................................................................................................... 11 6.4.2. Limits @ FCC 90.205. Please refer to FCC CFR 47, Part 90, Subpart I, Para. 90.205 for specification details. 11 6.4.3. Method of Measurements................................................................................................................................. 11 6.4.4. Test Equipment List ...................................................................................................................................โ€ฆ

Text truncated - open the document above for the full version.

Test Report

Point of Sale Device Model No.: NURIT 8000 FCC ID: O2SNURIT8000SWM Applicant: Lipman USA, Inc. 50 Gordon Dr. Syosset, NY USA, 11791 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: LEE-009FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: January 5, 2004 Report Prepared by: Dan Huynh Issued Date: January 5, 2004 Tested by: Mr.Hung Trinh, RFI Technician Test Dates: November 6 - 9, 2003 ยƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ยƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i Point of Sale Device, Model NURIT 8000 FCC ID: O2SNURIT8000SWM ULTRATECH GROUP OF LABS File #: LEE-009FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 January 5, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST ....................................................................................................................................... 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................................... 2 2.1. SCOPE 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................................... 2 2.3. NORMATIVE REFERENCES ..................................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................................. 3 3.1. CLIENT INFORMATION ..................................................................................................................................................โ€ฆ

Text truncated - open the document above for the full version.

Contact Information

Applicant

Andrey Glemb(Certificate Engineer)
[email protected]+972 3 9029730Fax: 516-484-9057

Test Firm

UltraTech Engineering Labs Inc.Victor Kee
[email protected]9058291570Fax: 9058298050

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
190896 MHz - 901 MHz2 W12K0F1D1.5000000000 ppm
Confidentiality
Long Term
Grant Notes
Power Listed is Conducted. This device and its antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This device must transmit with a source-based time-averaging duty factor not exceeding 12.5%. End-users must be provided with specific operating instructions for satisfying RF exposure compliance. This device complies with OET Bulletin 65 for General Population use. The highest reported SAR level is: Body 1.26 W/kg for 12.5% Duty Cycle.
