O34-GPRSELITE 790 GPRS POINT OF SALE TERMINAL

2.5 Battery charging procedure: 2.5.1 Charging the battery pack: 1. After unpacking it is important to provide an Initial charge. This conditio ning cycle is required for the battery pack to reach full capacity quickly. 2. Connect the AC power to the slow or fast charging base using the supplied power pack designed for the Elite 790. Place the Elite 790 terminal or standalone battery pack on the slow or fast charging base. The terminal will power-up and remain ON throughout the charging period. The green indictor at front of the FAST charging base turns off once the battery pack is fully charged. On the other hand, the green indicator at front of the SLOW charging base will always be ON.  Make sure that you use the correct AC power adapter supplied with the El ite 790. Many adapters can appear similar and will plug into the Elite 790 base but will not work properly causing erratic behavior, poor charging or even damage to the unit . 2.5.2 Normal use  1. After a full charge the Elite 790 in normal usage is expected to provide 50 or more transactions before the terminal has to be returned to the base for charging. Slow printing and the low battery message on the display followed by the beep indicates the battery needs recharging. 2. The Elite 790 has a “r eserve” capability in the event that more transactions are occasionally needed. As long as the print time is acceptable the terminal will provide additional transactions beyond normal. The effect will be a continued slowdown of the printer as well as a longer recharge cycle. 3. Fast Charging Base is designed for quick and uninterrupted battery charging. If the Elite 790 terminal is removed from the fast charging base for more than 10 seconds, charging is reinitiated. When the battery is fully charged, the green LED at the front of the base will turn OFF. Do not use the fast charging base for frequent and short battery charging (between each transaction) – this may damage the battery and reduce its lifetime. To optimize the life of the battery pack, charge it with the fast charging base when the low battery message appears on the terminal, or when the printing speed is reduced. 3. Cleaning procedure: 1. Clean the outside of the Elite 790 with a soft cloth moistened with a mild detergent solution. 2. Never spray cleaning solution directly onto the Elite 790 as liquid may enter the unit. 3. Do not use Isopropyl Alcohol based cleaning products. 4. Technical specifications: 4.1 Network: The Elite 790 is equipped with an RF modem for exchanging data over one of the following networks: 1. GPRS 2. CDMA 4.2 Power supply: The power adapter is mainly used for charging the internal Ni-MH battery. Power input voltag e................: 100- 220V AC. Power input freque ncy ...........: 50-60 Hz. Power output ......................... : 11V DC, 1.5A Figure 4: DC Plug 4.3 Operating environment Operating temperature : 5 to 40°C Humidity: 5% to 90% RH, with no condensation. 5. Thermal Paper Specification: The following specifications identify the thermal paper roll that must be used with Elite 790 terminals: • Single ply thermal sensitive - POS or facsimile grade. • Basis Weight: (lb/rm 17 ins. X 22 ins. - 500) --- 14.5 +/- 5% (GSM) --- 55 +/- 5% • Caliper: 2.4 +/- 0.2 Mils or 60 +/- 5 Microns • Brightness: Min. 85% • Smoothness (Bekk Minimum): 300 s • Roll Width: 2.25 +/- 0.020 in (58 mm +/- 0.5 mm). • Roll Diameter: 2.0 in (51 mm) maximum. • Roll Core ID: 0.500 in (13 mm) nominal. • Roll Core OD: 0.625 in (16 mm) nominal. For the best performance, Ingenico recommends the following sources/brands: KANZAKI P300 APPLETON T1012A KOEHLER K55 5.1 Storage Recommendation for Thermal Paper: Thermal paper should NOT be exposed to vinyl, plastics, adhesives, shrink-wraps, wet-toner copies or certain carbon papers, office light, UV light, high humidity and temperature (above 65%, 25C) for long periods of time. 6. If you experience problems : Call one of the customer service centers listed below: In Canada: In the USA: RBA Inc. Ingenico Inc. 3190 Orlando Drive TotalCARE Mississauga, Ontario 1335 North Meadow L4V 1R5 Parkway, Suite 116 1-800-387-3938 Atlanta GA 30076 or (905) 672-1048 1-800 – 435-3014 US Federal Communicati ons Commission (FCC) Warnings: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are de signed to provide reasonable protection against harmful interference when this equipment is operated in a commercial envi ronment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canadian Department of Communications (DOC) Warnings: This digital apparatus does not exceed the Class A limits for radio noise emissions from the digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications. Ingenico Inc. 1003 Mansell Road, Atlanta, GA 30076 Tel: 770.594.6000 Fax 770.594.6003 www.ingenico-us.com Ingenico Canada Ltd. 79 Torbarrie Road, Toronto, Ontario – Canada M3L 1G5 Tel:416.245.6700 Fax: 416.245.6701 www.ingenico-ca.com Elite 790 Installation Guide 0130-03460-0400 1. Terminal description: 1.1 Introduction: The Elite 790 is a fully self-contained RF EFTPOS terminal with an integrated printer and the functionality to process all smart card, debit and credit purchases. The terminal communicates with the bank using the RF data network or via the telephone network by using a Fast or Slow Charging Base. This RF network is similar to that used for mobile …

Text truncated - open the document above for the full version.

GSM/GPRS Embedded Data/Fax/Voice Wireless Modem MTMMC-G-F1 MTMMC-G-F2 Developer’s Guide Wireless ModemModule MTMMC-G-F1 and MTMMC-G-F2 Developer’s Guide 2 ModemModule Developer’s Guide MTMMC-G-F1 and MTMMC-G-F2 PN S000295A, Version A 07/15/03 Copyright This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All rights reserved. Copyright © 2003, by Multi-Tech Systems, Inc. Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes. Revisions Revision LevelDate Description A07/15/03First release. Patents This device is covered by patent number 5,673,268. Trademarks Trademarks of Multi-Tech Systems, Inc. are ModemModule and the Multi-Tech logo. MNP and Microcom Network Protocol are registered trademarks of Microcom, Inc. Microsoft, Windows, Windows 95, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. World Headquarters Multi-Tech Systems, Inc. 2205 Woodale Drive Mounds View, Minnesota 55112 Phone: 763-785-3500 or 800-328-9717 Fax: 763-785-9874 Technical Support CountryBy EmailBy Phone France:[email protected](33) 1-64 61 09 81 India: [email protected] (124) 6340778 U.K.:[email protected](44) 118 959 7774 U.S. and Canada: [email protected](800) 972-2439 Rest of the World: [email protected](763) 717-5863 Internet Address: http://www.multitech.com Wireless ModemModule MTMMC-G-F1 and MTMMC-G-F2 Developer’s Guide 3 Table of Contents CHAPTER 1 – PRODUCT DESCRIPTION AND SPECIFICATIONS ................................................................5 I NTRODUCTION...........................................................................................................................................................5 Scope of the Developer Guide ................................................................................................................................5 G ENERAL CHARACTERISTICS......................................................................................................................................6 General...................................................................................................................................................................6 Electrical ................................................................................................................................................................6 Mechanical .............................................................................................................................................................6 F EATURE DETAILS......................................................................................................................................................6 Telephony ...............................................................................................................................................................6 Short Message Service (GSM and GPRS mode).....................................................................................................6 GSM Circuit Data Features ...................................................................................................................................7 GPRS Packet Data Features ..................................................................................................................................7 GSM Supplementary Services.................................................................................................................................7 Other Features .......................................................................................................................................................7 Interfaces ................................................................................................................................................................7 F EATURE DESCRIPTIONS.............................................................................................................................................8 A PPLICATIONS............................................................................................................................................................9 M ECHANICAL DESIGN OVERVIEW............................................................................................................................10 CHAPTER 2 – MECHANICAL SPECIFICATIONS ............................................................................................11 M ECHANICAL DIMENSIONS.......................................................................................................................................11 C LIMATIC AND MECHANICAL ENVIRONMENT TESTING COMPLIANCE......................................................................12 CHAPTER 3 – ELECTRICAL CHARACTERISTICS.........................................................................................13 I NTRODUCTION.........................................................................................................................................................13 50-P IN CONNECTOR INTERFACES..............................................................................................................................14 50-Pin Connector Description..............................................................................................................................14 Power Supply.....................................................................................................…

Text truncated - open the document above for the full version.

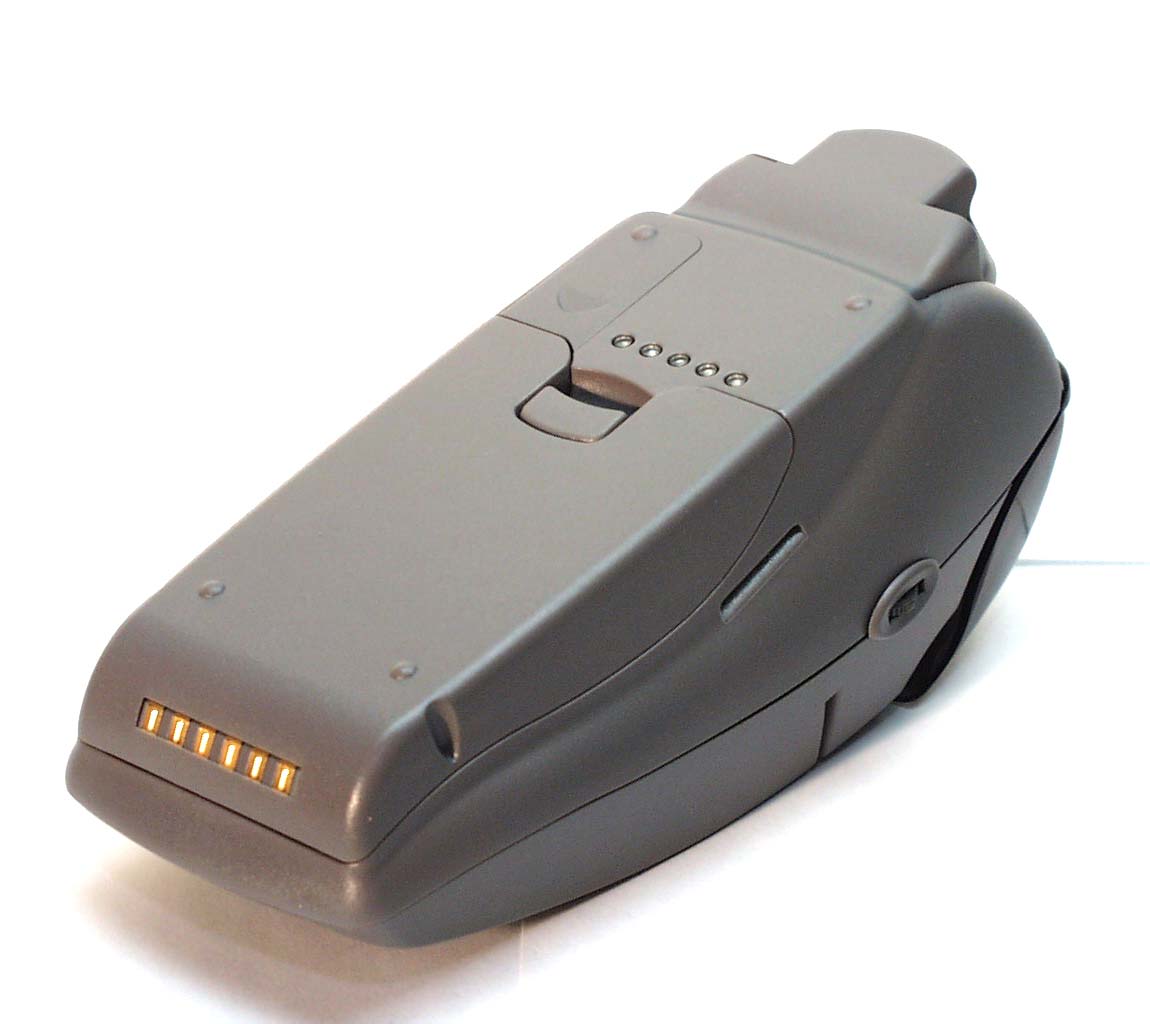

ANNEX 2 – EXTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A2 - 1 ANNEX 2 – EXTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A2 - 2

Elite 790 product label

ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 1 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 2 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 3 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 4 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 5 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 6 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 7 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 8 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 9 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 10 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 11 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 12 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 13 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 14 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 15 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 16 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 17 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 18 ANNEX 3 – INTERNAL EUT PHOTOS Ingenico Elite 790 GPRS, Model ELITE 790 GPRS FCC ID: O34-GPRS A3 - 19

INSTALLATION AND INSTRUCTION MANUAL INCLUDING HUMAN EXPOSURE STATEMENT As required by § 2.1033(c)(3), here is a part of the User's Guide and Technical Manual that describes modem features, installation, and operation. Also provided, on page 52 of our User’s Manual, is a statement addressing human exposure to radio frequency radiation. This information is necessary to ensure that equipment installers, operators and users are made aware of the dangers of exposure to radio frequency radiation and that the Modem is installed and operated in compliance with 47 CFR Part 24, Subpart E and 47 CFR Part 22, Subpart H of the FCC Rules and Regulations. Pursuant to § 24.52 RF hazards, all emissions from the Modem, both fundamental and unwanted, are subject to the radio frequency radiation exposure requirements given in § 1.1307(b), § 2.1091 and § 2.1093, as appropriate. For fixed transmitters, § 1.1307(b) requires the preparation of an Environmental Assessment (EA) if the transmitter would cause human exposure to levels of radio frequency radiation in excess of the applicable limits given in § 1.1310. However, determination of compliance with these limits and preparation of an EA if they are exceeded is required only for licensed PCS facilities, operations and transmitters with the following characteristics: 1. Personal Communications Services (part 24) Broadband PCS (subpart E): non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 2000 W ERP (3280 W EIRP) Building-mounted antennas: total power of all channels > 2000 W ERP (3280 W EIRP) 2. Cellular Radiotelephone Service (subpart H of part 22). Non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 1000 W ERP (1640 W EIRP) Building-mounted antennas: total power of all channels > 1000 W ERP (1640 W EIRP) Fixed" in this context means that the device is physically secured at one location and is not able to be easily moved to another location. Since the modem transmits on a single channel with a maximum peak output power of 1.0 W (30 dBm) at 1900 MHz and 1,66 W (32.2 dBm) at 850 MHz nominal, the maximum specified antenna gain of 7 dBi / 0.2 dB results by using maximum permissible Exposure for general population of 1 mW/cm² / 0,57 mW/cm², below the level which would trigger a routine environmental evaluation. Therefore, in fixed applications, the modem is categorically excluded from performance of a routine environmental evaluation or preparation of an EA. In § 2.1091(b), a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's antenna and the body of the user or nearby persons. In accordance with § 2.1091(c), mobile PCS devices are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use if their e.r.p is less than 3 W (34.8dBm) for 1900 MHz operations and 1.5 W for 850 MHz operations. The Modem user’s manual requires a separation distance of at least 20 cm between the unit's antenna and the body of the user and nearby persons for all uses and applications, both mobile and fixed. Furthermore, for mobile applications, the maximum e.i.r.p. will not exceed 2 W (33 dBm), in accordance with the requirements of § 24.232(b). Therefore, for mobile applications, the modem is categorically excluded from a routine environmental evaluation for RF exposure. In all applications and uses, compliance with current FCC RF regulations limiting human exposure to radio frequency exposure is dependent upon installation, operation and use of the equipment in accordance with all instructions provided. HUMAN EXPOSURE COMPLIANCE STATEMENT Pursuant to 47 CFR § 24.52 of the FCC Rules and Regulations, personal communications services (PCS) equipment is subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), § 2.1091 and § 2.1093, as appropriate. Wavecom, Inc. certifies that it has determined that the Modem complies with the RF hazard requirements applicable to broadband PCS equipment operating under the authority of 47 CFR Part 24, Subpart E and 47 CFR Part 22, of the FCC Rules and Regulations. This determination is dependent upon installation, operation and use of the equipment in accordance with all instructions provided. The Modem is designed for and intended to be used in fixed and mobile applications. "Fixed" means that the device is physically secured at one location and is not able to be easily moved to another location. "Mobile" means that the device is designed to be used in other than fixed locations and generally in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter's antenna and the body of the user or nearby persons. The Modem is not designed for or intended to be used in portable applications (within 20 cm of the body of the user) and such uses are strictly prohibited. To ensure that the Modem complies with current FCC regulations limiting both maximum RF output power and human exposure to radio frequency radiation, a separation distance of at least 20 cm must be maintained between the unit's antenna and the body of the user and any nearby persons at all times and in all applications and uses. Additionally, in mobile applications, maximum antenna gain must not exceed 3 dBi for 1900 MHz operations and -0.5 dB for 850 MHz operations.

October 14, 2004 File No.: IVI-138-SAR Ingenico Canada Ltd. 79 Torbarrie Road Mississauga, On Canada M3L 1G5 NOT TRANSFERABLE This Verification Certificate is hereby issued to the named GRANTEE and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below: GRANTEE'S NAME: Ingenico Canada Ltd. PRODUCT UNDER TEST: POINT OF SALE (POS) TERMINAL MODEL NO.: ELITE 790 GPRS FCC ID: 034-GPRS OPERATING FREQUENCY RANGE: 824.2 ~ 848.8 MHz (GSM-850) 1850.2 ~ 1909.8 MHz (PCS-1900) RATED RF OUTPUT POWER: 30.44dBm ERP (GSM-850) 29.79dBm ERP (PCS-1900) DEVICE CATEGORY: Portable EXPOSURE CATEGORY: General Population/Uncontrolled MAX. PEAK SPATIAL-AVERAGE SAR 1g : 0.25 W/Kg This wireless portable device has been shown to be compliant for Specific Absorption Rate (SAR) for GENERAL POPULATTION/UNCONTROLLED exposure limit. APPLICABLE STANDARDS: SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C Edition 01-01), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) Approved by: Tri M. Luu, P.Eng. V.P. – Engineering UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 00-034

POINT OF SALE (POS) TERMINAL Model No.: ELITE 790 GPRS Tested For Ingenico Canada Ltd. 79 Torbarrie Road Mississauga, On Canada M3L 1G5 In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: IVI-138-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 14, 2004 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: Carolyn Luu Issued Date: October 14, 2004 Test Dates: September 29, 2004 ~ September 30, 2004 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) Point of Sale (POS) Terminal M/N: Elite 790 GPRS FCC ID: 034-GPRS ULTRATECH GROUP OF LABS File #: IVI-138-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 14, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA ) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ................................................................................................................................................ 5 1.1. SCOPE ............................................................................................................................................................................... 5 1.2. REFERENCES................................................................................................................................................................... 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ..................................................................................................................... 6 2.1. CLIENT AND MANUFACTURER INFORMATION ...................................................................................................... 6 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION.............................................................................................................. 6 2.3. LIST OF D.U.T.’S ACCESSORIES:.................................................................................................................................. 7 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES ............................. 7 2.5. ANCILLARY EQUIPMENT ............................................................................................................................................. 7 2.6. GENERAL TEST CONFIGURATIONS ........................................................................................................................... 7 2.6.1. Equipment Configuration ........................................................................................................................................... 7 2.6.2. Exercising Equipment................................................................................................................................................. 7 2.7. SPECIFIC OPERATING CONDITIONS...................................................................................................................................... 7 2.8. BLOCK DIAGRAM OF TEST SETUP ............................................................................................................................. 8 EXHIBIT 3. SUMMARY OF TEST RESULTS ...................................................................................................................... 9 3.1. LOCATION OF TESTS ..................................................................................................................................................... 9 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS..................................................................................................... 9 EXHIBIT 4. MEASUREMENTS, EXAMINATIONS & TEST DATA .............................................................................. 10 4.1. TEST SETUP ................................................................................................................................................................... 10 4.2. PHOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................ 11 4.3. PHOTOGRAPHS OF D.U.T. POSITION ........................................................................................................................14 4.3.1. Body Configuration .................................................................................................................................................. 14 4.3.1.1. GSM-850 ................................................................................................................................................................................. 14 4.3.1.1.1. Left Side in parallel to the phantom and in contact........................................................................................................... 14 4.3.1.1.2. Top side perpendicular to the phantom and in contact ...........................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_515FCC22-24_2003_MTMMC FCC Part 22,24 / RSS 133 Model: MTMMC-G-F2 FCC ID: AU792U03G23720 IC ID: 125A-0009 Test report no.: EMC_515FCC22-24_2003_MTMMC Issue date: 2003-09-22 Page 2 (99) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_515FCC22-24_2003_MTMMC Issue date: 2003-09-22 Page 3 (99) 1.3 Details of applicant Name : Multi-Tech Systems, Inc Street : 2205 Woodale Drive City / Zip Code : Mounds View, MN 55112 Country : USA Contact : Terry Boe Telephone : +1 763-717-5506 Tele-fax : +1 763-717-5814 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2003-07-05 Date of test : 2003-07-10/11/12/13/14 1.5 Test item Manufacturer : Applicant Marketing Name : SocketModem GSM/GPRS Model No. : MTMMC-G-F2 Description : GSM 850/1900 Modems FCC-ID : AU792U03G23720 IC-ID : 125A-0009 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : External Power supply : 5.0VDC Output power : 30.44dBm (1.11W) max. ERP measured in GSM-850 29.79dBm (952.8mW) max. EIRP measured in PCS-1900 Extreme vol. Limits : Lower: 4.75Vdc Nominal: 5.0Vdc Upper: 5.25Vdc…

Text truncated - open the document above for the full version.
