O34E790CDMAWireless Point of Sale Terminal

The Global Provider of Secured Transactions Systems ELITE 790 CDMA U ser’s Manual February 2004 ELITE 790 Terminal 2 Table of Contents I- TERMINAL DESCRIPTION ....................................................................... 3 1- Introduction .............................................................................................................. 3 2- The Terminal............................................................................................................. 4 3- The Terminal Connections ...................................................................................... 4 4- The Base Connections ............................................................................................ 4 5- The Keyboard (Example only – yours may differ) ................................................. 5 6- The Card Readers .................................................................................................... 6 7- Wireless functionality .............................................................................................. 6 II- ELITE 790 TECHNICAL OVERVIEW........................................................ 8 1- Terminal features ..................................................................................................... 8 2- Display ...................................................................................................................... 8 3- Printer ....................................................................................................................... 8 4- RS232 Interface (base)............................................................................................. 9 5- Dial Modem ............................................................................................................... 9 6- SIM Slots ................................................................................................................... 9 7- Serial Connector .................................................................................................... 10 8- Hands free kit Connector ...................................................................................... 10 9- Power Supply ......................................................................................................... 11 10- Operating Range ................................................................................................. 11 III- INSTALLATION PROCEDURES ............................................................ 12 1- Entering Date and Time ......................................................................................... 12 2- Telephone Network Parameters............................................................................ 13 3- Options menu ......................................................................................................... 14 4- Application Software Downloading Procedure ................................................... 15 5- Configuration Receipt............................................................................................ 16 IV- PRACTICAL INFORMATION............................................................... 17 1- Charging the battery pack ..................................................................................... 17 2- Cleaning Procedures ............................................................................................. 18 3- Changing the paper roll ......................................................................................... 18 V- RECOMMENDATIONS............................................................................ 19 1- Battery handling..................................................................................................... 19 2- RF Safety................................................................................................................. 20 3- General safety ........................................................................................................ 21 December 2003 3 I- Terminal Description 1- Introduction The ELITE 790 is a mobile payment terminal using the 1XRTT standard for radio communications and a dial modem for PSTN communications. This terminal was created to process credit or debit payments using magnetic stripe or smart cards. The ELITE 790 has an integrated thermal printer which operates at 6 LPS. The ELITE 790 terminal benefits from a modular hardware design, which allows multiple different applications to run on the terminal securely without affecting each other. Your retailer or installer will be able to give you the necessary information on all available applications. ELITE 790 Terminal 4 2- The Terminal The terminal case contains the following elements: • The portable terminal and base. • A cable that connects the terminal to a telephone line. • A power pack that connects the terminal to a 115 or 230 volt supply (depending on the country) 3- The Terminal Connections There are two connectors on the back of the terminal. See section 7 for a picture. The blue jack is for a portable hands free kit. The black connector is suitable for a peripheral device like a barcode scanner, for which a specific software application is required. 4- The Base Connections Telephone Connection The telephone cable supplied with the Elite terminal must be connected to the port marked with the symbol . The other end of the cable (RJ11) must be connected to the telephone jack. Electrical Connection The jack from the power supply is plugged into the port marked with the symbol . The electrical plug is connected to a wall socket (115 or 220 volts, depending on the country). Only use the power pack provided with the terminal. Connection to an external peripheral device The serial port can be used to connect to devices such as cheque readers or PC’s. The ELITE 790 terminal must be powered off before connecting the cable to the serial port. Telephone line Power Supply Serial port October 2001 5 5- The Key…

Text truncated - open the document above for the full version.

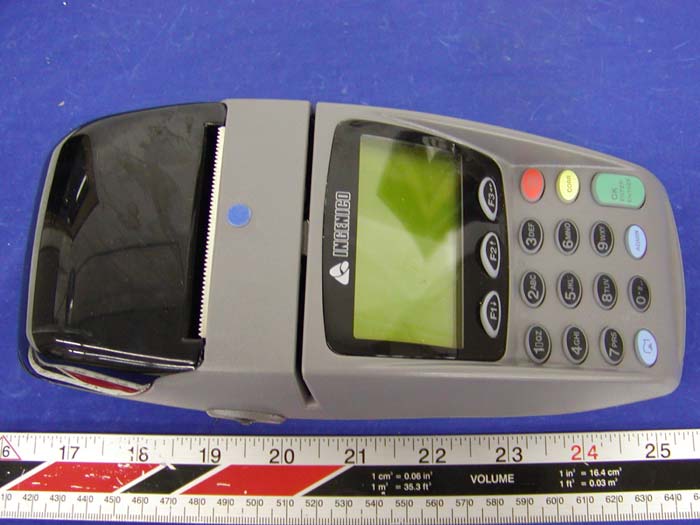

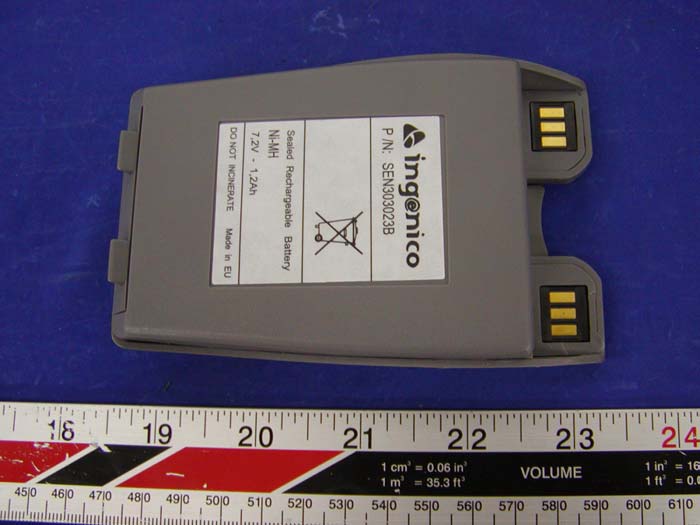

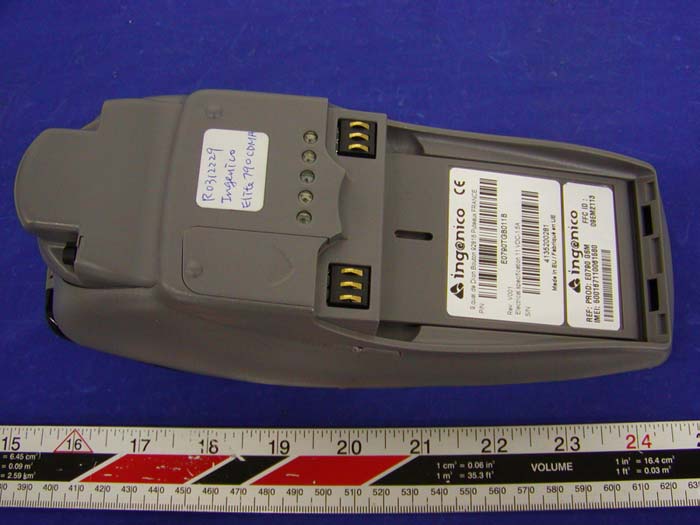

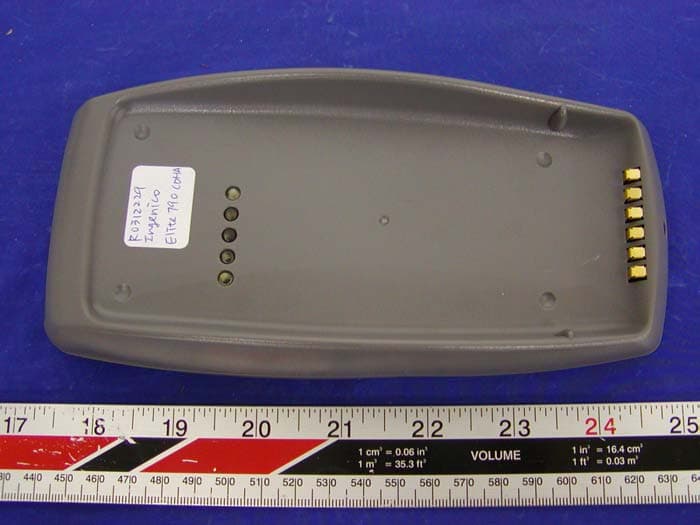

Ingenico Canada Ltd. FCC ID: O34-E790CDMA EXHIBIT C - EUT PHOTOGRAPHS Chassis - Front View Chassis – Rear View Ingenico Canada Ltd. FCC ID: O34-E790CDMA Chassis – Rear View without Battery EUT – Base Top View Ingenico Canada Ltd. FCC ID: O34-E790CDMA EUT – Base Bottom View EUT – Base Port View Ingenico Canada Ltd. FCC ID: O34-E790CDMA Battery – Top View Battery – Bottom View Ingenico Canada Ltd. FCC ID: O34-E790CDMA AC Power Adpater

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Front View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: O34-E790CDMA

Ingenico Canada Ltd. FCC ID: O34-E790CDMA Chassis – Cover off View EUT – Component View 1 Ingenico Canada Ltd. FCC ID: O34-E790CDMA EUT – Component View 2 EUT – Solder View Ingenico Canada Ltd. FCC ID: O34-E790CDMA EUT – Solder View with Transceiver EUT – Solder View without Transceiver Ingenico Canada Ltd. FCC ID: O34-E790CDMA Transceiver – Layer 1 Component View Transceiver – Layer 2 Component View Ingenico Canada Ltd. FCC ID: O34-E790CDMA Transceiver – Layer 1 Solder View Transceiver – Layer 2 Solder View Ingenico Canada Ltd. FCC ID: O34-E790CDMA Transceiver – Solder View

2.5 Battery charging procedure: 2.5.1 Charging the battery pack: 1. After unpacking it is important to provide an Initial charge. This conditio ning cycle is required for the battery pack to reach full capacity quickly. 2. Connect the AC power to the slow or fast charging base using the supplied power pack designed for the Elite 790. Place the Elite 790 terminal or standalone battery pack on the slow or fast charging base. The terminal will power-up and remain ON throughout the charging period. The green indictor at front of the SLOW or FAST charging base turns off once the battery pack is fully charged.  Make sure that you use the correct AC power adapter supplied with the El ite 790. Many adapters can appear similar and will plug into the Elite 790 base but will not work properly causing erratic behavior, poor charging or even damage to the unit . 2.5.2 Normal use  1. After a full charge the Elite 790 in normal usage is expected to provide 50 or more transactions before the terminal has to be returned to the base for charging. Slow printing and the low battery message on the display followed by the beep indicates the battery needs recharging. 2. The Elite 790 has a “r eserve” capability in the event that more transactions are occasionally needed. As long as the print time is acceptable the terminal will provide additional transactions beyond normal. The effect will be a continued slowdown of the printer as well as a longer recharge cycle. 3. Fast Charging Base is designed for quick and uninterrupted battery charging. If the Elite 790 terminal is removed from the fast charging base for more than 10 seconds, charging is reinitiated. When the battery is fully charged, the green LED at the front of the base will turn OFF. Do not use the fast charging base for frequent and short battery charging (between each transaction) – this may damage the battery and reduce its lifetime. To optimize the life of the battery pack, charge it with the fast charging base when the low battery message appears on the terminal, or when the printing speed is reduced. 3. Cleaning procedure: 1. Clean the outside of the Elite 790 with a soft cloth moistened with a mild detergent solution. 2. Never spray cleaning solution directly onto the Elite 790 as liquid may enter the unit. 3. Do not use Isopropyl Alcohol based cleaning products. 4. Technical specifications: 4.1 Network: The Elite 790 is equipped with an RF modem for exchanging data over one of the following networks: 1. GPRS 2. CDMA 4.2 Power supply: The power adapter is mainly used for charging the internal Ni-MH battery. Power input voltag e................: 100- 220V AC. Power input freque ncy ...........: 50-60 Hz. Power output ......................... : 11V DC, 1.5A Figure 4: DC Plug 4.3 Operating environment Operating temperature : 5 to 40°C Humidity: 5% to 90% RH, with no condensation. 5. Thermal Paper Specification: The following specifications identify the thermal paper roll that must be used with Elite 790 terminals: • Single ply thermal sensitive - POS or facsimile grade. • Basis Weight: (lb/rm 17 ins. X 22 ins. - 500) --- 14.5 +/- 5% (GSM) --- 55 +/- 5% • Caliper: 2.4 +/- 0.2 Mils or 60 +/- 5 Microns • Brightness: Min. 85% • Smoothness (Bekk Minimum): 300 s • Roll Width: 2.25 +/- 0.020 in (58 mm +/- 0.5 mm). • Roll Diameter: 2.0 in (51 mm) maximum. • Roll Core ID: 0.500 in (13 mm) nominal. • Roll Core OD: 0.625 in (16 mm) nominal. For the best performance, Ingenico recommends the following sources/brands: KANZAKI P300 APPLETON T1012A KOEHLER K55 5.1 Storage Recommendation for Thermal Paper: Thermal paper should NOT be exposed to vinyl, plastics, adhesives, shrink-wraps, wet-toner copies or certain carbon papers, office light, UV light, high humidity and temperature (above 65%, 25C) for long periods of time. 6. If you experience problems : Call one of the customer service centers listed below: In Canada: In the USA: RBA Inc. Ingenico Inc. 3190 Orlando Drive TotalCARE Mississauga, Ontario 1335North Meadow L4V 1R5 Parkway, Suite 116 1-800-387-3938 Atlanta GA 30076 or (905) 672-1048 1-800 – 435-3014 US Federal Communicati ons Commission (FCC) Warnings: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are de signed to provide reasonable protection against harmful interference when this equipment is operated in a commercial envi ronment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canadian Department of Communications (DOC) Warnings: This digital apparatus does not exceed the Class A limits for radio noise emissions from the digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications. Ingenico Inc. 1003 Mansell Road, Atlanta, GA 30076 Tel: 770.594.6000 Fax 770.594.6003 www.ingenico-us.com Ingenico Canada Ltd. 79 Torbarrie Road, Toronto, Ontario – Canada M3L 1G5 Tel:416.245.6700 Fax: 416.245.6701 www.ingenico-ca.com Elite 790 Installation Guide 0130-03460-0300 1. Terminal description: 1.1 Introduction: The Elite 790 is a fully self-contained RF EFTPOS terminal with an integrated printer and the functionality to process all smart card, debit and credit purchases. The terminal communicates with the bank using the RF data network or via the telephone network by using a Fast or Slow Charging Base. This RF network is similar to that used for mobile phones except that it supports data as well. The terminal features a secure, multi-app…

Text truncated - open the document above for the full version.

Wavecom Wismo Quik Q2438 Module RF Circuitry Description: Frequency Tuning This product has factory preset frequency adjustment. There is no frequency field adjustment for this product. In the field, frequency is locked to the base station and controlled by the VCTCXO adjustments to offset any possible error. Limiting Power Each mobile is individually calibrated at the factory to ensure a minimum MAX power of 23.0dBm (Cellular and PCS CDMA) and MIN power of –50dBm by employing proper frequency and temperature compensation schemes for both the RX and TX automatic gain control (AGC) amplifier. Suppression of Spurious Radiations Spurious and harmonic suppression is achieved by proper design with various filters and sufficient use of metallic shields. Rigorous testing at the factory ensures continuous compliance. Frequency Stability A voltage controlled temperature compensated crystal oscillator (VCTCXO) is utilized as a frequency reference for all of the transceiver local oscillators. This crystal oscillator is specified to a frequency stability of +/- 2.5ppm. The synthesizer lock status is constantly monitored by the microprocessor and transmission is disabled whenever an out of lock condition is detected. The mobile is locked to the base station and makes necessary frequency adjustments on the VCTCXO to correct and frequency errors between the mobile and the base station. Limiting Modulation The audio input is sampled, digitally limited, and then filtered to an amplitude and frequency limit the signal applied to the modulator. The device supports IS-2000 for CDMA operation, and IS-98 for AMPS operation. The device has an operating temperature of –30 o C to +60 o C. The functions include a compandor, PLL lock detector, filtering of received data, audio signal filtering for signals.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For Ingenico Canada Ltd. 79 Torbarrie Road, Toronto Ontario M3L 1G5, Canada FCC ID: O34-E790CDMA 2004-02-12 This Report Concerns: Original Report Equipment Type: Wireless Point of Sale Terminal Test Engineer: Eric Hong Report No.: R0312229S Test Date: 2004-01-23 Reviewed By: Hans Mellberg Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Ingenico Canada Ltd. FCC ID: O34-E790CDMA Report #R0312229S SAR Evaluation Report Page 2 of 46 TABLE OF CONTENTS SUMMARY....................................................................................................................................................................4 1 - REFERENCE ...........................................................................................................................................................5 2 - TESTING EQUIPMENT.........................................................................................................................................6 2.1 EQUIPMENTS LIST & CALIBRATION INFO...............................................................................................................6 2.2 EQUIPMENT CALIBRATION CERTIFICATE...............................................................................................................6 3 - EUT DESCRIPTION .............................................................................................................................................13 4 - SYSTEM TEST CONFIGURATION...................................................................................................................14 4.1 JUSTIFICATION.....................................................................................................................................................14 4.2 EUT EXERCISE PROCEDURE................................................................................................................................14 4.3 EQUIPMENT MODIFICATIONS...............................................................................................................................14 5 – CONDUCTED OUTPUT POWER MEASUREMENTS ...................................................................................15 5.1 PROVISION APPLICABLE.......................................................................................................................................15 5.2 TEST PROCEDURE................................................................................................................................................15 5.3 TEST EQUIPMENT.................................................................................................................................................15 5.4 TEST RESULTS.....................................................................................................................................................15 6 - DOSIMETRIC ASSESSMENT SETUP...............................................................................................................16 6.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................................................17 6.2. SYSTEM COMPONENTS........................................................................................................................................18 6.3 MEASUREMENT UNCERTAINTY............................................................................................................................22 7 - EVALUATION PROCEDURE.............................................................................................................................23 7.1 SAR EVALUATION PROCEDURE...........................................................................................................................23 7.2 EXPOSURE LIMITS................................................................................................................................................24 7.3 SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION...................................................................................24 7.4 SAR MEASUREMENT...........................................................................................................................................24 7.5 SYSTEM ACCURACY VERIFICATION.....................................................................................................................25 7.6 LIQUID MEASUREMENT RESULT..........................................................................................................................26 8 - SAR TEST RESULTS............................................................................................................................................29 8.1 SAR BODY AND HEAD WORST-CASE TEST DATA...............................................................................................29 8.2 PLOTS OF TEST RESULT.......................................................................................................................................29 EXHIBIT A - SAR SETUP PHOTOGRAPHS .........................................................................................................34 EUT TOP SIDE TOUCHING FLAT PHANTOM...............................................................................................................34 EUT BACK SIDE TOUCHING FLAT PHANTOM...........................................................................................................34 EUT RIGHT SIDE TOUCHING FLAT PHANTOM...........................................................................................................35…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 24 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For Ingenico Canada Ltd. 79 Torbarrie Road, Toronto Ontario M3L 1G5, Canada FCC ID: O34-E790CDMA 2004-02-10 This Report Concerns: Original Report Equipment Type: Wireless Point of Sale Terminal Test Engineer: Ling Zhang / Report No.: R0312229 Test Date: 2004-01-22 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Ingenico Canada Ltd. FCC ID: O34-E790CDMA Report # R0312229Rpt Page 2 of 28 FCC Part 24 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 REMOTE SUPPORT EQUIPMENT LIST AND DETAILS......................................................................................................5 POWER SUPPLY INFORMATION.....................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 ENVIRONMENTAL CONDITIONS....................................................................................................................................8 TEST RESULTS.............................................................................................................................................................8 §2.1053 - SPURIOUS RADIATED EMISSIONS .....................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST RESULT.............................................................................................................................................................11 §2.1046, & §24.232 - RF POWER OUTPUT.............................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 ENVIRONMENTAL CONDITIONS...............................................................................................................…

Text truncated - open the document above for the full version.

Ingenico Canada Ltd. FCC ID: O34-E790CDMA EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Ingenico Canada Ltd. FCC ID: O34-E790CDMA Radiated Emission - Front View Radiated Emission - Rear View
