O3M324131201801Philips HUE bridge 2.0

Hue Bridge 2.0 3241312018 User Manual The hue bridge 2.0 is a small square box that is located somewhere in the home. It is powered by an external power adaptor. One of the functions is to bridge between wired Ethernet (or WiFi) and RF ZigBee network. The Ethernet interface is a RJ45 connector to support 10/100‐TX Ethernet networks. The RF antennas for the ZigBee and WiFi are internally. There are some LEDs on the box to provide user feedback. There is also link‐button which should be illuminated by a lightring, and a factory reset button (on the back). The consumer product package includes the hue bridge 2.0, Ethernet cable, power supply, manual and packaging. The bulk package includes the hue bridge 2.0 only. The hue bridge 2.0 is derived from a Linux based router platform, where the Linux distribution is provided and supported by ODM. The image below shows a hue bridge in a hue system.

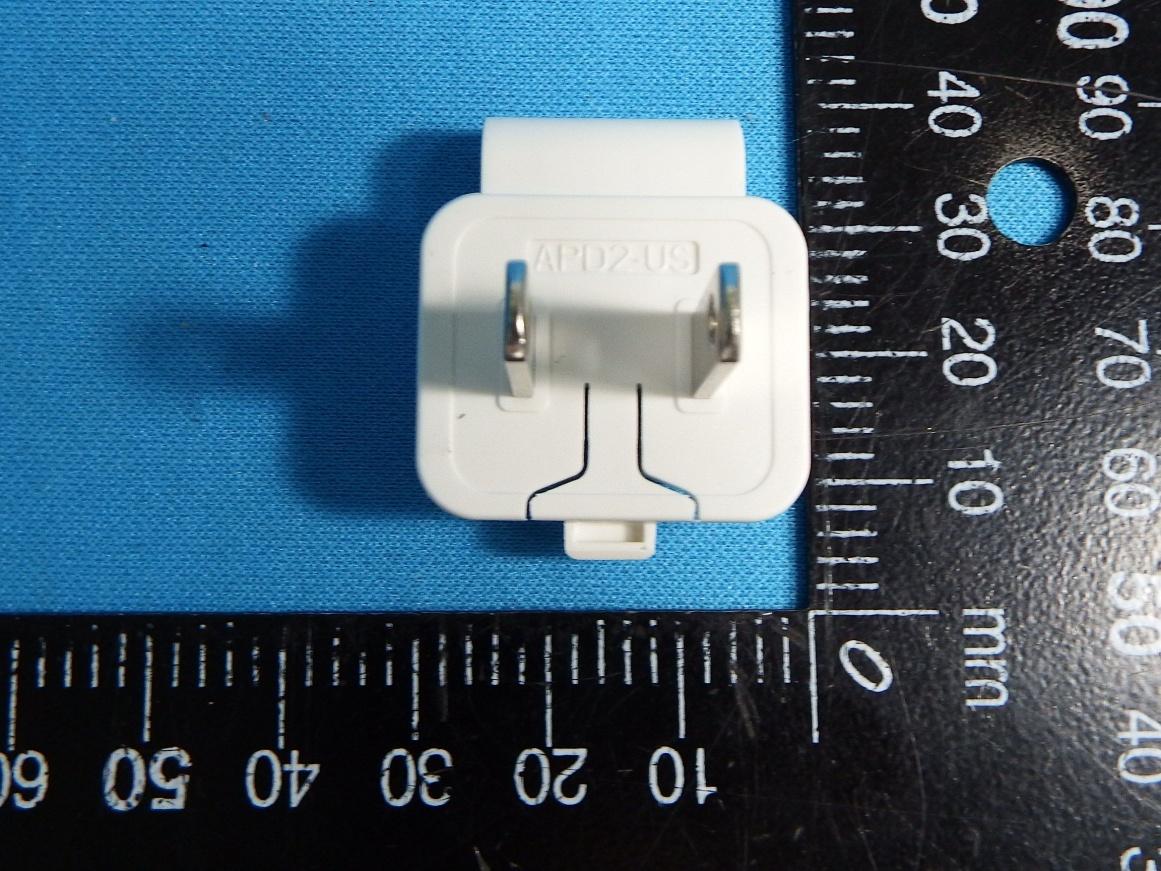

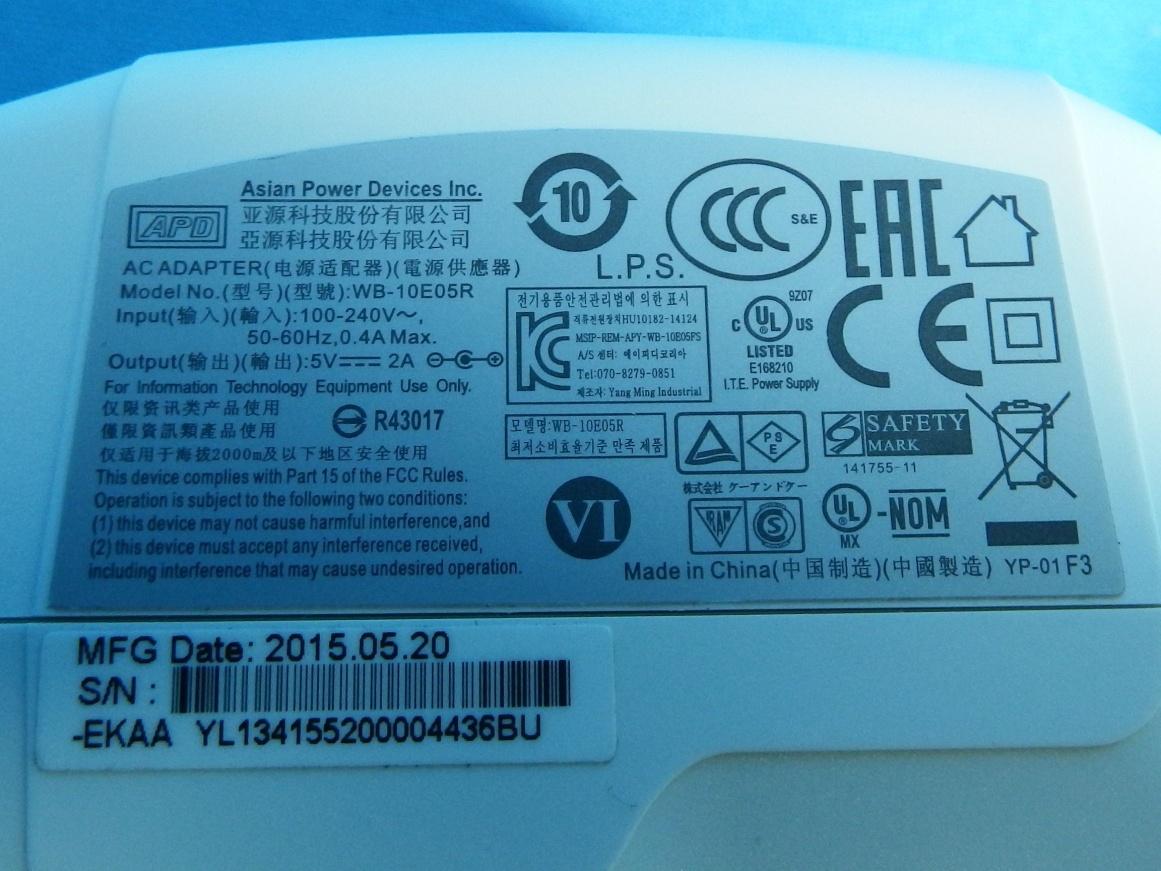

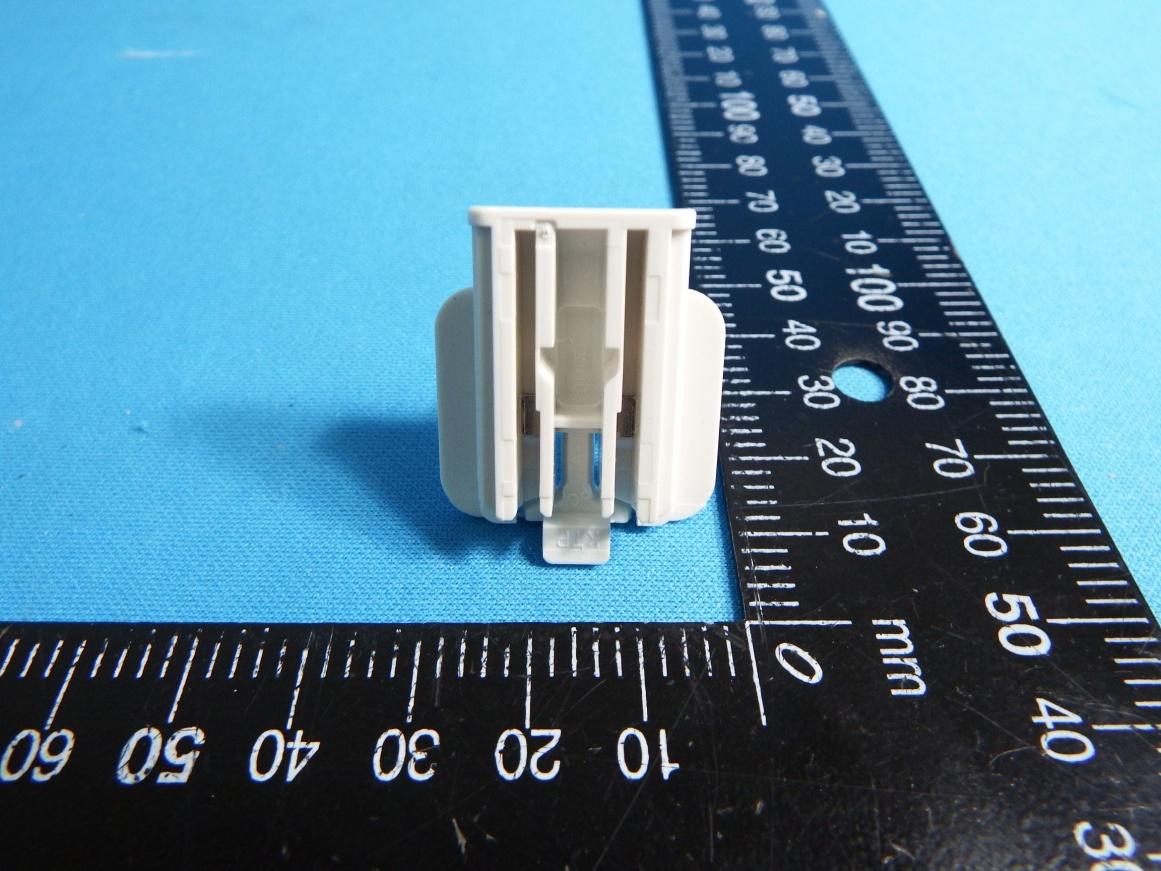

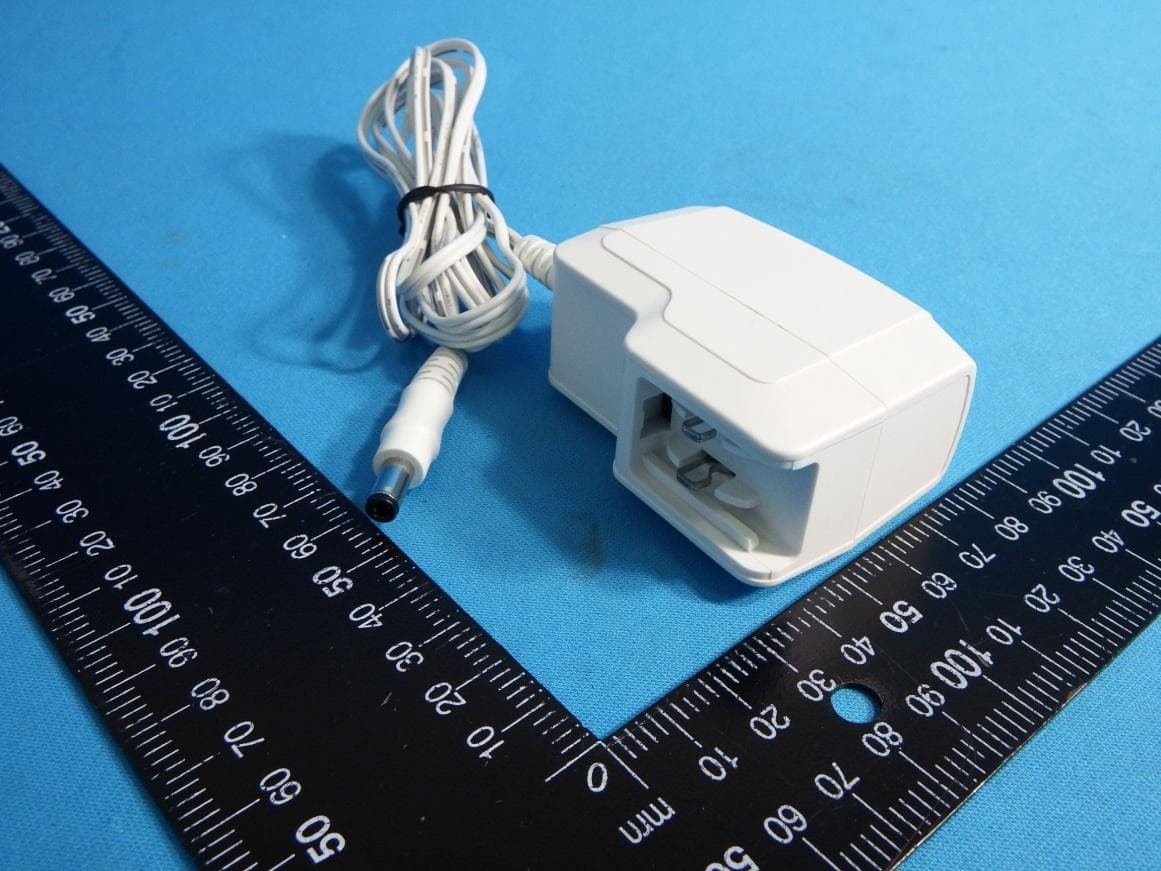

Report No. : EP562304 SPORTON International Inc. Page Number : B1 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP562304 SPORTON International Inc. Page Number : B2 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP562304 SPORTON International Inc. Page Number : B9 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP562304 SPORTON International Inc. Page Number : B10 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP562304 SPORTON International Inc. Page Number : B11 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

APPROVED CHECKED DESIGNED MODEL No.PART NAMEPART No.
 Blue 2015.07.17 product label50910 108977 2 CO0307-Q Philips 85.4mm 85.754mm 1:1 A0 E152043 Consumo de energía: 1,669 WhEn modo de espera: 1,639 WhIFETEL NO. XXXXXXXXXX restore factory settings FCC ID: O3M324131201801IC: 10469A-BRIDGE 324131201801Model: 3241312018 (Customer/ ): (Material/ ): 50# (Glaze/ : PP (Color/ ): LABEL Color RAL9003 BLACK (Demension/ ): 85.4 x 85.754mm Tolerance/ ): +-0.2mm
  /  : /:  Philips    50μ Polyester Film White Matt Label with Depressive Liner ) ( Print

Report No. : EP562304 SPORTON International Inc. Page Number : B3 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP562304 SPORTON International Inc. Page Number : B4 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP562304 SPORTON International Inc. Page Number : B5 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Zigbee IC Report No. : EP562304 SPORTON International Inc. Page Number : B6 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Wi-Fi IC Report No. : EP562304 SPORTON International Inc. Page Number : B7 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Zigbee Antenna Report No. : EP562304 SPORTON International Inc. Page Number : B8 of B11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Wi-Fi Antenna

Maximum Permissible Exposure Report No. : FA532304 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Maximum Permissible Exposure Equipment : Philips HUE bridge 2.0 Brand Name : PHILIPS Model No. : 3241312018 FCC ID : O3M324131201801 Standard : ANSI/IEEE C95.1 Applicant Manufacturer : Philips (China) Investment Co.,Ltd. No.9, 888 Tianlin Road, Min Hang District, Shanghai 200233,China The product sample received on Jun. 23, 2015 and completely tested on Jul. 09, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI/IEEE C95.1 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor Maximum Permissible Exposure Report No. : FA532304 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 HUMAN EXPOSURE ASSESSMENT ................................................................................................... 4 1.1 Maximum Permissible Exposure ............................................................................................................ 4 Maximum Permissible Exposure Report No. : FA532304 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FA532304 Rev. 01 Initial issue of report Jul. 24, 2015 Maximum Permissible Exposure Report No. : FA532304 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Maximum Permissible Exposure Report No. : FA532304 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G WLAN) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 19.23 2400-2483.5 g 2412-2462 1-11 [11] 1 20.81 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 20.32 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 1 15.45 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 DG (dBi) EIRP Power PD (S) (mW/cm²) g 1 20.81 2.40 23.21 0.04166 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Maximum Permissible Exposure Report No. : FA532304 SPORTON INTERNATIONAL INC. Page No. : 6 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (2.4G Zigbee) RF General Information Frequency Range (MHz) Modulation Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 O-QPSK 2405-2480 1-16 [16] 1 15.08 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 DG (dBi) EIRP Power PD (S) (mW/cm²) O-QPSK 1 15.08 1.60 16.68 0.00926 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR562304AZ SPORTON INTERNATIONAL INC. Page No. : 1 of 37 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : Philips HUE bridge 2.0 Brand Name : PHILIPS Model No. : 3241312018 FCC ID : O3M324131201801 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant Manufacturer : Philips (China) Investment Co.,Ltd. No.9, 888 Tianlin Road, Min Hang District, Shanghai 200233,China The product sample received on Jun. 23, 2015 and completely tested on Jul. 09, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR562304AZ SPORTON INTERNATIONAL INC. Page No. : 2 of 37 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Transmitter Bandedge Emissions ........................................................................................................ 23 3.6 Transmitter Unwanted Emissions ......................................................................................................... 26 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 37 A PPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR562304AZ SPORTON INTERNATIONAL INC. Page No. : 3 of 37 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.3002800MHz 23.99 (Margin 26.25dB) - AV 30.43 (Margin 29.81dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz]: 1.41 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 17.82 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz]: -2.96 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Transmitter Bandedge Emissions Restricted Bands [dBuV/m at 3m]: 2483.520MHz 63.32 (Margin 10.68dB) - PK 52.75 (Margin 1.25dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 7320MHz 51.36 (Margin 2.64dB) - AV 61.39 (Margin 12.61dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR562304AZ SPORTON INTERNATIONAL INC. Page No. : 4 of 37 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR562304AZ Rev. 02 Initial issue of report Jul. 24, 2015 2500-2690 FCC Test Report Report No. : FR562304AZ SPORTON INTERNATIONAL INC. Page No. : 5 of 37 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Modulation Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 O-QPSK 2405-2480 1-16 [16] 1 17.82 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. 1.1.2 Antenna Information Antenna Category Integral antenna (ant…
