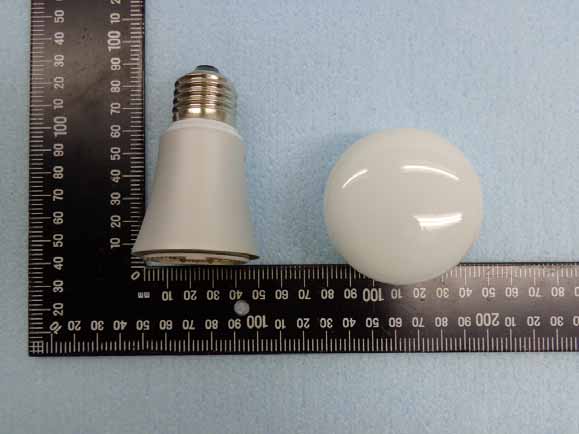

FCC ID: O3M9290002265AX Page 1 of 1 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 Figure 1 General Appearance (Front View) Figure 2 General Appearance (Cover Removed)

HUE A19 8.5W 160mA 110-130Vac 50/60Hz HUE A19 8.5W 160mA 110-130Vac 50/60Hz FCC ID: O3M9290002265AX IC:10469A-2265AX Font size: 1.3mm height Font size: 1.3mm height Model: 9290002265A A3 A3 Date Code Factory Mark this is a custom laser mark and the heat sink manufacturer should not print it on the heat sink 13mm 6mm Made in China Made in China Font size: 2mm height Serial No.: ABC123 Serial No.: ABC123 laser mark 距离上下高度5mm Should be centered on the back 需要更新 5mm 5mm 字体至少8号字 600 Lumens FCC ID: O3M9290002265AX IC:10469A-2265AX 9290002265A 600 Lumens

FCC ID: O3M9290002265AX Page 1 of 5 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 Figure 1 Internal View Figure 2 Internal View FCC ID: O3M9290002265AX Page 2 of 5 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 Figure 3 LED Light Board (Component Side) Figure 4 LED Light Board (Solder Side) FCC ID: O3M9290002265AX Page 3 of 5 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 Figure 5 Power Board (Component Side) Figure 6 Power Board (Solder Side) FCC ID: O3M9290002265AX Page 4 of 5 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 Figure 7 Wireless Board (Component Side) Figure 8 Wireless Board (Solder Side) Ant. FCC ID: O3M9290002265AX Page 5 of 5 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 Figure 9 Wireless Board (Crystal Oscillator)

1.1 Applicable Standard KDB 447498 D01 General RF Exposure Guidance v05 1.2 Specification Limits Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 f = frequency in MHz *Plane-wave equivalent power density NOTE: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. The limit value 1.0mW/cm 2 is available for this EUT. 1.3 MPE Calculation Method S = PG/(4πR 2 ) R = [PG/(4πS)] 0.5 where: S = power density (in appropriate units, e.g. mW/ c m 2 ) P = power input to the antenna (in appropriate units, e.g., mW) (the measured power value see Report: F12124 Section 6.6) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) 1.4 Calculated Result 2.4.1 Radio Frequency Radiation Exposure Evaluation Frequency Output Power to Antenna Antenna Gain Power Density Limit (MHz) (mW) (dBi) (Numeric) (mW/cm 2 ) (mW/cm 2 ) 2405 2.37 -3 0.50 0.0002359 1. 2450 2.41 -3 0.50 0.0002398 1. 2480 2.43 -3 0.50 0.0002418 1. Separation distance R= 20cm. Frequency Output Power to Antenna Antenna Gain Limit Distance (MHz) (mW) (dBi) (Numeric) (mW/cm 2 ) (cm ) 2405 2.37 -3 0.50 1.0 0.3072 2450 2.41 -3 0.50 1.0 0.3097 2480 2.43 -3 0.50 1.0 0.3110 The antenna used for this transmitter must be installed to provide a separation distance of at least 0.3072cm from all persons.

FCC ID: O3M9290002265AX Page 1 of 59 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 APPLICATION FOR CERTIFICATION On Behalf of Philips (China) Investment Co., Ltd. LED Lamp Model No. : 9290002265A Brand : Philips FCC ID : O3M9290002265AX Prepared for Philips (China) Investment Co., Ltd. No. 9, Lane 888, Tian Lin Road, 200233, Shanghai, China Prepared by Audix Technology (Wujiang) Co., Ltd. EMC Dept. No. 1289 Jiangxing East Road, the Part of Wujiang Economic Development Zone Jiangsu China 215200 Tel : +86-512-63403993 Fax :+86-512-63403339 Report Number ： ACWE-F1407002 Date of Test ： Jun.05~30, 2014 Date of Report ： Jul.10, 2014 FCC ID: O3M9290002265AX Page 2 of 59 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ....................................................................................................... 4 1. SUMMARY OF MEASUREMENTS AND RESULTS ............................................................. 5 2. GENERAL INFORMATION ....................................................................................................... 6 2.1. Description of Device (EUT) .................................................................................................................. 6 2.2. Description of Test Facility .................................................................................................................... 7 2.3. Measurement Uncertainty ....................................................................................................................... 7 3. CONDUCTED EMISSION MEASUREMET ............................................................................ 8 3.1. Test Equipment ....................................................................................................................................... 8 3.2. Block Diagram of Test Setup .................................................................................................................. 8 3.3. Power line Conducted Emission Limit ................................................................................................... 8 3.4. Test Procedure ........................................................................................................................................ 9 3.5. Conducted Emission Measurement Results ............................................................................................ 9 4. RADIATED EMISSION MEASUREMENT ............................................................................ 16 4.1. Test Equipment ..................................................................................................................................... 16 4.2. Block Diagram of Test Setup ................................................................................................................ 16 4.3. Radiated Emission Limits ..................................................................................................................... 18 4.4. Test Procedure ...................................................................................................................................... 18 4.5. Assessment In All Three Orthogonal Planes ........................................................................................ 19 4.6. Measurement Results ............................................................................................................................ 19 4.7. Restricted Bands Measurement Results (For Below 1GHz) ................................................................. 21 4.8. Restricted Bands Measurement Results (For Above 1GHz) ................................................................ 25 4.9. Spurious Emission Measurement Results in Band Edge Emission (FCC Part 15, 15.205) .................. 29 5. 6 DB BANDWIDTH MEASUREMENT ................................................................................... 37 5.1. Test Equipment ..................................................................................................................................... 37 5.2. Block Diagram of Test Setup ................................................................................................................ 37 5.3. Specification Limits (§15.247(a)(2)) .................................................................................................... 37 5.4. Test Procedure ...................................................................................................................................... 37 5.5. Test Results ........................................................................................................................................... 37 6. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................................... 40 6.1. Test Equipment ..................................................................................................................................... 40 6.2. Block Diagram of Test Setup ................................................................................................................ 40 6.3. Specification Limits (§15.247(b)(3)) .................................................................................................... 40 6.4. Test Procedure ...................................................................................................................................... 40 6.5. Test Results ........................................................................................................................................... 41 7. BAND EDGES MEASUREMENT ............................................................................................ 42 7.1. Test Equipment ..................................................................................................................................... 42 7.2. Block Diagram of Test Setup ...............................................................…

Text truncated - open the document above for the full version.

FCC ID: O3M9290002265AX Page 1 of 3 Audix Technology (Wujiang) Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 1. PHOTOGRAPHS OF MEASUREMENT 1.1. Photos of Conducted Disturbance Measurement Front View of Conducted Disturbance Measurement Side View of Conducted Disturbance Measurement FCC ID: O3M9290002265AX Page 2 of 3 Audix Technology (Wujiang) Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 1.2. Radiated Disturbance Measurement Below 1GHz Above 1GHz FCC ID: O3M9290002265AX Page 3 of 3 Audix Technology (Wujiang) Co., Ltd. EMC Dept. Report No.: ACWE-F1407002 1.3. Measurement for section 5/6/7/8/9/10
