O3M440400942161X1LED Module

Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification Blue Parrot Module Disclaimer: This document is a guideline how to design-in a specific led module into an article. Use of this led module in Philips AND non Philips factories (external suppliers, ODM/OEM) needs to be checked and approved by Philips Quality team (Quality Project Leader). General Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 1 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification Operating conditions in articles Tp max(on heat speader) = 65°C @ Ta = 25°C Tp max(on PCB) = 90°C @ Ta = 25°C Outdoor Not suitable. Extra protection needs to be foreseen to guarantee reliability. Electrical Nominal voltage (red) 22V +/- 10% Nominal Voltage (yellow) 4.3V +/-5% Common Ground 0V Maximum current (red) 300mA Maximum current (yellow) 100mA Nominal wattage 3.8 W Rated wattage 4 W Max Wattage 5.0W Standby Wattage 0.09W ESD Class 2 Dimming Min 5% Mechanical Dimensions Diameter 65mm, thickness 25mm. Wires AWG 22~26 Extra requirements article, environment: Module need external heat sink for thermal dissipation, please guarantee the heat spreader temperature lower than 65C for operation. Multiple modules in the same article allowed, they must be placed in parallel with each other on the mains input, please check the RF performance for module position. Thermal measurements: During measurement articles with blue parrot modules extra things should be done: Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 2 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification --always measure the input power and the Tp point --for Tp point you can choose between Tp heat spreader and Tp pcb ( Tp pcb is maximum 10C higher than Tp heat spreader) blue points on below pictures. Thermal point on PCB Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 3 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification P ROCEDURE: --Measure The Tp-point on PCB (near the NTC) -- Measure the Tp-point heat spreader Tp point on Heat spreader Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 4 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification Mounting: Blue parrot support front/back mount with different screw. 3 screws (M3) can be used for front mount 3 screws (M4) can be used for back mount Approbation CE/UL Blue parrot module CE/UL Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 5 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification Drawing (to be added exact layout with label and marking) Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 6 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification “tc” indicates to “Tp”point on heatspreader as above picture. Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 7 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 8 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification Signature Commodity Engineer Product Manager Supplier Representative Supersedes: Blue Parrot - 4404 0094 2161 2013-11-23 9 21 p A4 © Philips Lighting bv/MPDL-AFD Machine & Product Documentation Lighting (Product family) Blue Parrot Module (Document type) Technical Specification EN Please go to www.meethue.com to learn more about hue and how to use it. FCC ID bridge: EW780891300 FCC ID lamp: O3M440400942161X1 This device complies with Part 15 of the FCC Rules and with RSS- 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Certification: - LED lamp: company number: 10469A, UPN: 2161X. - ZigBee IP bridge: company number: 1135B, UPN: 80891300. This Class B digital apparatus complies with Canadian ICES-003. This digital apparatus does not exceed the class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. NOTICE: Changes or modifications made to this device not expressly approved by Philips Lighting Company (USA) and Philips Electronics Ltd (Canada) (collectively “Philips”) may void the U.S. FCC and Canadian authorization to operate this device. The advanced interface module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment…

Text truncated - open the document above for the full version.

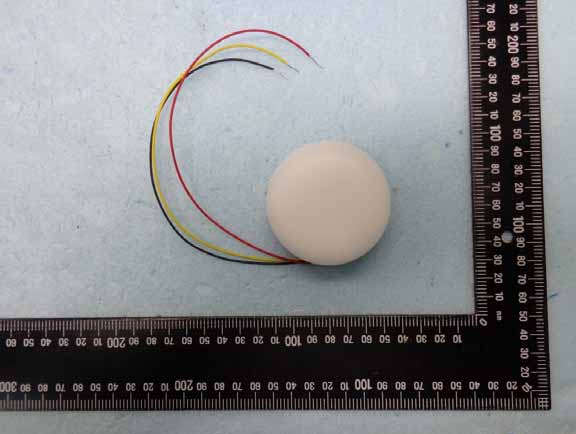

FCC ID: O3M440400942161X1 Page 1 of 1 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1403008 Figure 1 General Appearance (Front View) Figure 2 General Appearance (Back View)

Model: 440400942161 FCC ID: O3M440400942161X1 IC: 10469A-2161X 22V/4.3V, 250mA/21mA, tc=65°C

FCC ID: O3M440400942161X1 Page 1 of 4 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1403008 Figure 1 General Appearance (Front Cover Removed) Figure 2 Internal View FCC ID: O3M440400942161X1 Page 2 of 4 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1403008 Figure 3 Internal View Figure 4 Main Board (Component Side) FCC ID: O3M440400942161X1 Page 3 of 4 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1403008 Figure 5 Internal View Figure 6 Main Board (Solder Side) Ant. FCC ID: O3M440400942161X1 Page 4 of 4 Audix Technology (Wujiang )Co., Ltd. EMC Dept. Report No.: ACWE-F1403008 Figure 7 Main Board (Crystal Oscillator)
