Remote control 2.4 GHz eco (external RF-recei v er + RF eco) February 18, 2014 ID-no. 71864 page 1 / 4 DE GB DK / NO SE Funktionsbeschreibung Pairing-Methode: 1. Verbinden Sie den Funkempfänger mit dem OKIMAT c 2. Drücken Sie 2x die Pairing- Taste am Empfänger bis die LED aufleuchtet. Der Pairing-Prozess ist für die nächsten 10 Sekunden aktiv. 3. Drücken Sie gleichzeitig die Tasten X und Y am Handsender, bis die grüne LED anfängt zu blinken. Das Blinken bestätigt den erfolgreichen Pairing- Prozess. Hinweis: Für den Pairing-Prozess sollte der Abstand zwischen Sender und Empfänger weniger als zwei Meter betragen. Functional Description Pairing method: 1. Connect the RF receiver to the OKIMAT c 2. Press the pairing button on the receiver 2x until the LED turns on. You now have 10s for the pairing process. 3. Press Keys X and Y of the handset simultaneously until the LED on the receiver starts blinking. The blinking confirms successful pairing. Note: For pairing the distance between transmitter and receiver should be less than 2 meters. Funktionsbeskrivelse Opsætning/indlæring: 1. Tilslut RF modtageren til din OKIMAT c 2. Tryk 2x på indlærings- tasten på modtag- eren indtil LED lyser. Du har nu 10 sek. Til indlæringsprocessen. 3. Tryk X og Y på hånd- senderen på samme tid indtil LED lampen på modtageren begynder at blinke. Når LED på modtageren blinker er indlæringsprocessen gennemført. Bemærk: Afstanden mellem modtager og sender bør ikke være mere end 2 meter i indlærings-processen. Funktionsbeskrivning Anslutning: 1. Sätt i RF-mottagarens kontakt i uttaget på din OKIMAT c 2. Tryck 2x på anslutnings- knappen på mottagaren tills den LED- lampan lyser. Du har nu 10 sekunder på dig att ansluta. 3. Tryck på knapp X och Y samtidigt på fjärrkontrollen tills LED-lampan på mottagaren börjar blinka. När LED-lampan på mottagaren blinkar är anslutningen genomförd. Observera: Avståndet mellan mottagaren och fjärr- kontrollen bör inte vara mer än två meter under anslutnings-processen. Zur kabellosen Bedienung Ihres motorisierten Komfortbettes For wireless operation of your motorized comfort bed system Til fjernbetjening af dit Comfort motor system För fjärrstyrning av ditt komfortmotorsystem OKIMAT 9 Kabellos, ergonomisch, zuverlässig, einfache Bedienung, elegantes Design 9 Wireless, ergonomic, reliable, easy handling, elegant design 9 Kabelløs, ergonomisk, driftsikkert, let håndtering, elegant design 9 Kabellös, ergonomisk, driftsäker, enkel hantering, elegant design RF-receiver RFeco 2x Remote control 2.4 GHz eco (external RF-recei v er + RF eco) February 18, 2014 ID-no. 71864 page 2 / 4 DE - Technische Daten: GB- Technical data: DK / NO - Tekniske data: SE - Tekniska data: Handsender Handset Håndsæt Fjärrkontroll Abmessungen Dimensions Dimensioner Dimensioner 164*57*46mm Frequenzbereich Frequency Range Frekvens Frekvens 2.4 GHz Batterie Battery Batteri Batteri 3x AAA Arbeitsstrom Operating Current Driftsstrøm Driftström < 20 mA Standby – Stromverbrauch Standby Current Standby strøm Standby-ström < 10uA Umgebungstemperatur Ambient Temperature Arbejdstemeratur Arbetstemperatur +10 – +40 °C Empfänger Receiver Modtager Mottagare Abmessungen Dimensions Dimensioner Dimensioner 102*58*25mm Frequenzbereich Frequency Range Frekvens Frekvens 2.4 GHz Eingangsspannung Input voltage Indgangsspænding Inspänning DC 30 V from AC Power Notabsenkung Pairing Arbeitsstrom Operating Current Driftstrøm Driftström < 250 mA Emergency lowering Pairing Standby – Stromverbrauch Standby Current Standby strøm Standby-ström < 5 mA Nødsænkning Opsætning/Indlæring Umgebungstemperatur Ambient Temperature Arbejdstemperatur Arbetstemperatur +10 – +40 °C Nödsänkning Anslutning Remote control 2.4 GHz eco (external RF-recei v er + RF eco) February 18, 2014 ID-no. 71864 page 3 / 4 FCC Warning / IC Warning FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Any changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. IC: This device complies with Industry Canada RSS-210 standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." Leprésent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio Exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement."

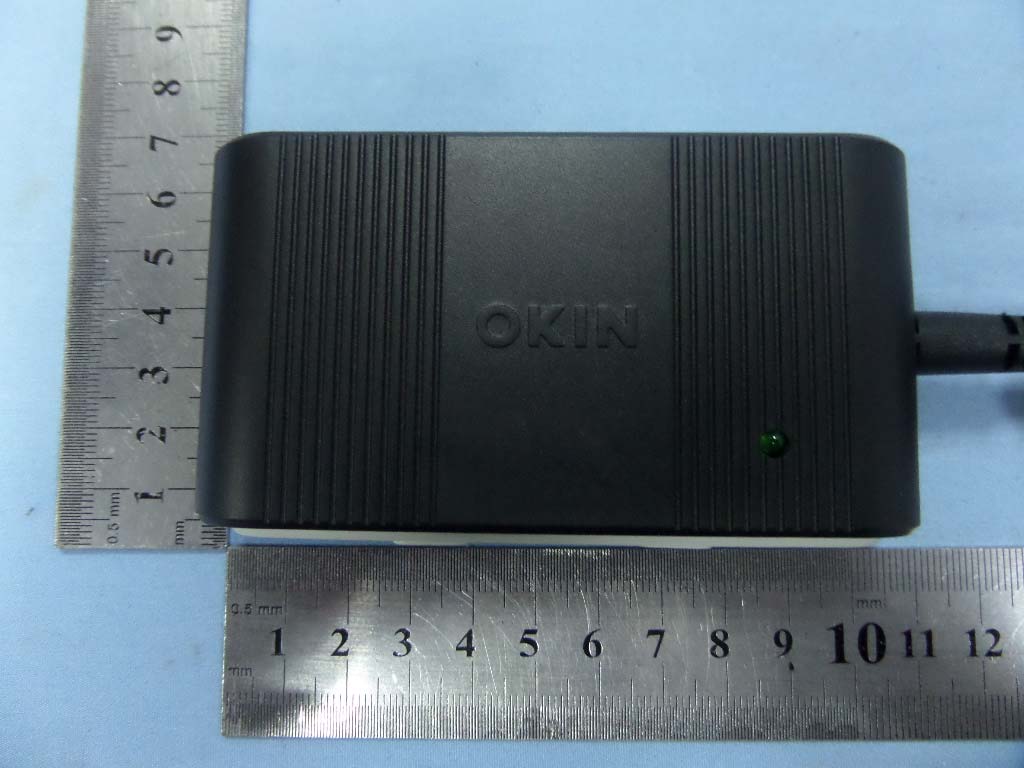

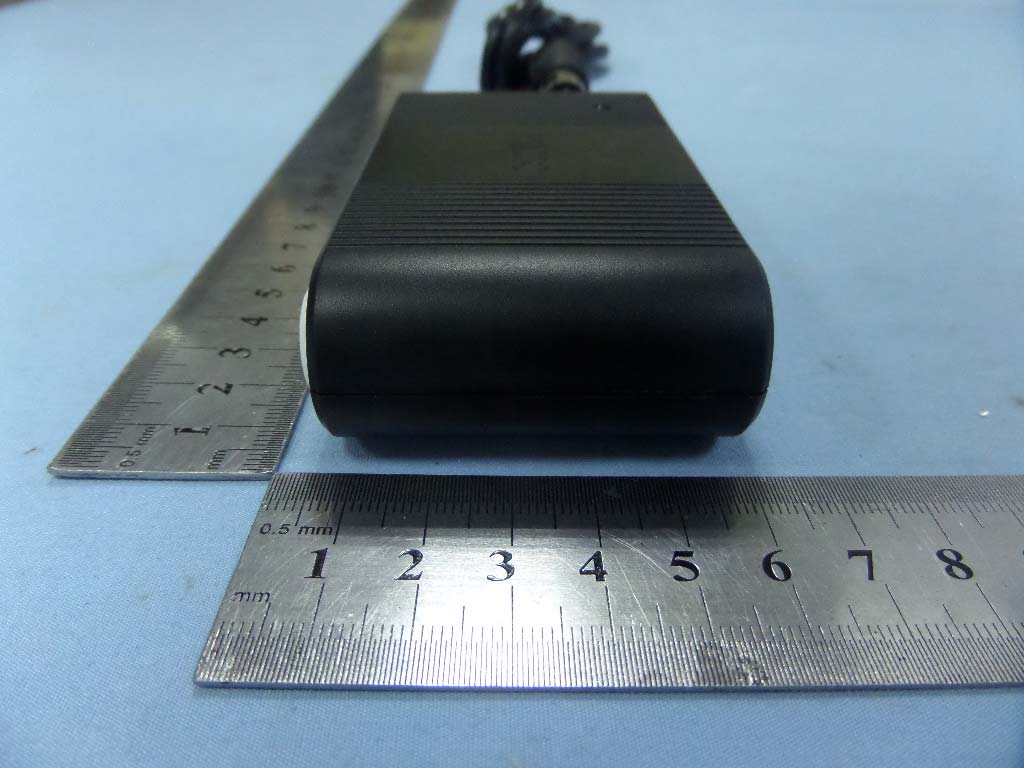

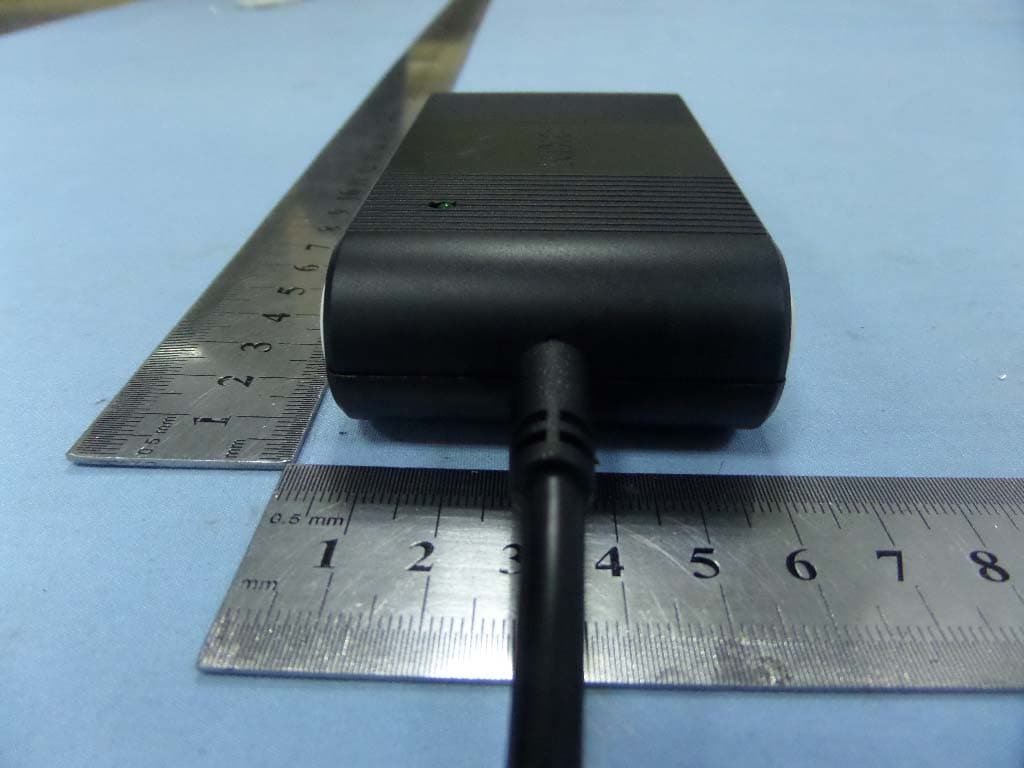

DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I FCC PART 15.249 EUT View 3 EUT View 4 DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I FCC PART 15.249 EUT View 5 EUT View 6

DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I FCC PART 15.249 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I FCC PART 15.249 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 RF Antenna DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I FCC PART 15.249 Solder Board-Component View 2

DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I PAGE 1 OF 28 FCC PART 15.249 FCC Part 15C Measurement and Test Report For DewertOkin GmbH Weststr. 1, 32278 Kirchlengern, Germany FCC ID: O3YRF151A FCC Rule(s): FCC Part 15.249 Product Description: REMOTE CONTROL ECO Tested Model: RF151A Report No.: STR14078150I Tested Date: 2014-08-06 to 2014-08-11 Issued Date: 2014-08-12 Tested By: Vigoss Liang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. DewertOkin GmbH Model: RF151A REPORT NO.: STR14078150I PAGE 2 OF 28 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. ANTENNA REQUIREMENTS ................................................................................................................................ 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. RADIATED EMISSIONS ......................................................................................................................................... 8 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................................. 8 4.2 STANDARD APPLICABLE ......................................................................................................................................... 8 4.3 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 8 4.4 TEST PROCEDURE ................................................................................................................................................... 9 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .............................................................................................. 9 4.6 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 10 4.7 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 5. OUT OF BAND EMISSIONS ................................................................................................................................. 19 5.1 STANDARD APPLICABLE ....................................................................................................................................... 19 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 19 5.3 TEST PROCEDURE ................................................................................................................................................. 19 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 19 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 19 6. EMISSION BANDWIDTH ..................................................................................................................................... 22 6.1 STANDARD APPLICABLE ....................................................................................................................................... 22 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 22 6.3 TEST PROCEDURE ................................................................................................................................................. 22 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 22 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 22 7. CONDUCTED EMISSIONS .................................................................................................................................. 25 7.1 MEASUREMENT UNCERTAINTY ...........................…
