  1. Home/
  2. DewertOkin GmbH/
  3. O3YRF258A

O3YRF258AREMOTE CONTROL 258A

DewertOkin GmbH
REMOTE CONTROL 258A - FCC ID O3YRF258A - DewertOkin GmbH
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Mar 20, 2013
Application Purpose
Original Equipment
Date of Application
Mar 20, 2013
Equipment Note
REMOTE CONTROL 258A
Frequency Range
2403.00000000 - 2480.00000000
Company
DewertOkin GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

October 31, 2012 Page 7 of 9 2.3 Remote handset 75019 Keys for fixed positions Choose between comfortable positions Manual adjustment keys Move head & foot rest up and down manually Massage keys X With the timer key you program duration and stop the massage function. X The LEDs signal the programmed duration, the key below starts the massage. With the Head & Foot keys you can select the massage zones. KeyFunction 1 Massage Head ON 2 Adjust Massage timer 3 Massage Foot ON 4 Move bed in TV position 5 Start both Massage (Head and Foot) 6 Move bed in Lounge position 7 Relay 1 on 8 Move bed in Flat position 9 Relay 3 on 10 Relay 2 on 11 Move bed in Zero G position 12 Relay 4 on Frontside 1 2 3 4 5 6 7 8 9 10 11 12 Pairing button & battery box (flipside) Insert 3x AAA 13 13 Pairing October 31, 2012 Page 8 of 9 Performance data remote (RF transmitter) Modulation GFSK Frequency Range 2.400~2.4835GHz Transmitted Power 0 dBm Battery AAA Working Current <40mA Standby Current <8uA Ambient Temperature -40—85Ԩ RC Dimension 145*50*14mm PCB Material & Size FR4 1.6mm 79*42mm Housing Material ABS+PC FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

External Photos

DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 EUT View 3 EUT View 4 DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 EUT View 5 EUT View 6

ID Label/Location Info

DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: O3YRF258A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: O3YRF258A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Internal Photos

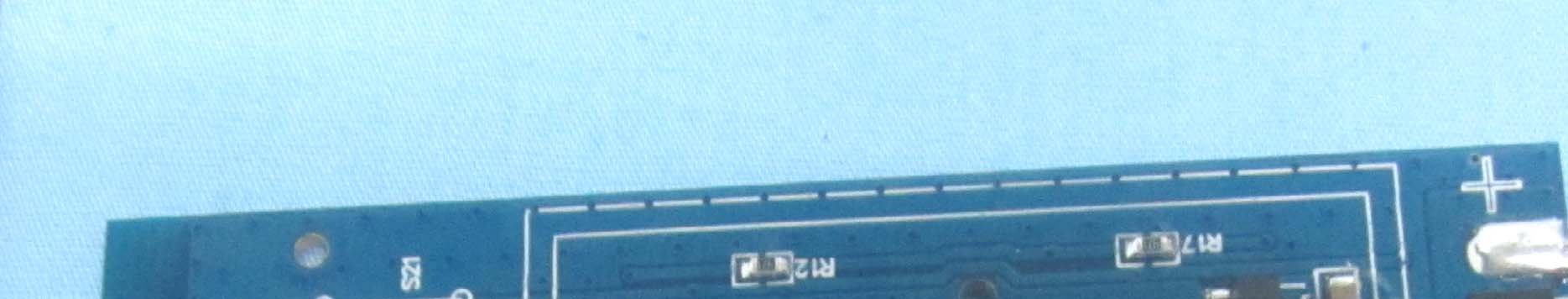

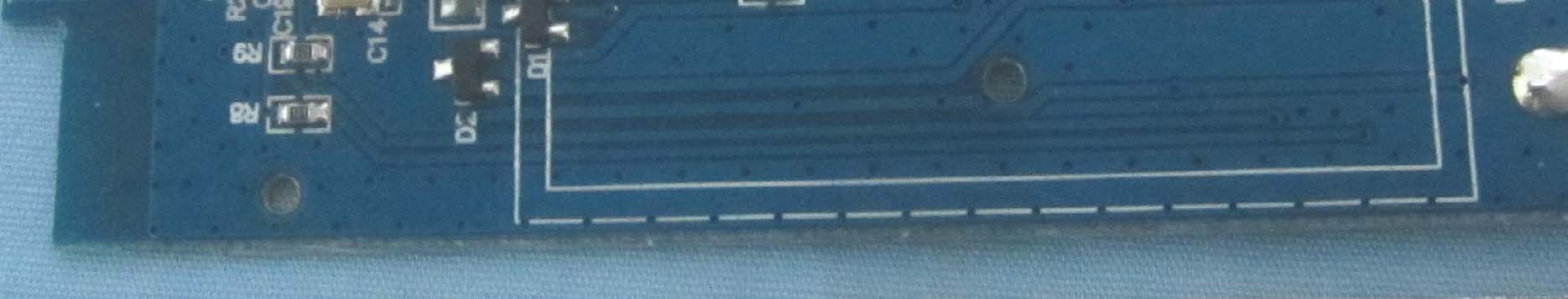

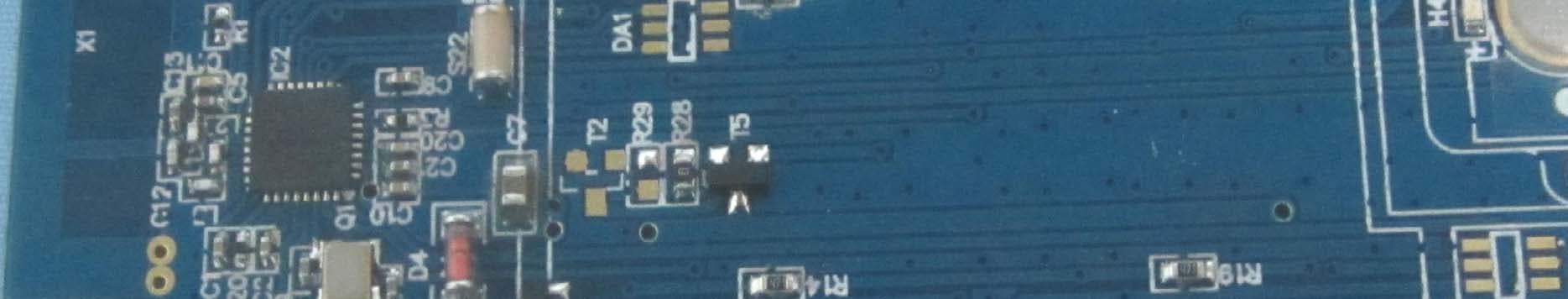

DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 Solder Board-Component View 1 Solder Board-Component View 2 DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 Antenna View: 2.4G Ant. 2403~2480MHz

Test Report

DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I PAGE 1 OF 23 FCC PART 15.249 FCC Part 15C Measurement and Test Report For DewerOkin GmbH Weststr. 1, 32278 Kirchlengern, Germany FCC ID: O3YRF258A FCC Rules: FCC Part 15.249 Product Description: Remote Control 258A Tested Model: RF258A Report No.: STR13028169I Tested Date: 2013-03-01 to 2013-03-05 Issued Date: 2013-03-07 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.(518101) Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I PAGE 2 OF 23 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT SETUP AND TEST MODE.................................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. ANTENNA REQUIREMENTS................................................................................................................................7 3.1 STANDARD APPLICABLE.........................................................................................................................................7 3.2 TEST RESULT..........................................................................................................................................................7 4. RADIATED EMISSIONS .........................................................................................................................................8 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 4.2 STANDARD APPLICABLE.........................................................................................................................................8 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................9 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................10 5. OUT OF BAND EMISSIONS.................................................................................................................................18 5.1 STANDARD APPLICABLE.......................................................................................................................................18 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 5.3 TEST PROCEDURE.................................................................................................................................................18 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................18 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................18 6. EMISSION BANDWIDTH .....................................................................................................................................21 6.1 STANDARD APPLICABLE.......................................................................................................................................21 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................21 6.3 TEST PROCEDURE.................................................................................................................................................21 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................21 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................21 DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I PAGE 3 OF 23 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: DewertOkin GmbH Address of applicant: Weststr. 1, 32278 Kirchlengern, Germany Manufacturer: …

Text truncated - open the document above for the full version.

Test Setup Photos

DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) DewertOkin GmbH Model: RF258A REPORT NO.: STR13028169I FCC PART 15.249 Radiation Emission Test Setup (Above 1GHz)

Contact Information

Applicant

Werner Kracht(Engineer)
[email protected]+49 5223 979 184Fax: +49 5223 979 179

Test Firm

SEM.Test Compliance Service Co., Ltd.Jandy So
[email protected]086-755-33663308Fax: 086-755-33663309

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
Confidentiality
Long Term
