CompuStar 2000-AS User's Manual Page 1 of 10 FCC ID : O44J1000R CompuStar 1000AS USER’S GUIDE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Any changes or modifications of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. CompuStar 2000-AS User's Manual Page 2 of 10 1. Transmitter Button Functions ChannelButtonFunction 1.LockArm 2.Unloc kDisarm 3.Lock+PanicAux 1 4.Unlock+PanicAux 2 5.PanicPanic 6.StartRemote Starting 7.StopRemote Stop 8.TrunkTrunk Release 9.(Lock+Unlock)Siren Chip - On/Off 10.(Lock+Start)Valet Mode - On/Off 11.(Lock+Stop)Shock Sensor On/Off 13.(Unlock+Stop)Timer Mode 1.5 hour - On/Off 15.(Lock+Trunk)Option Programming 1 16.(Unlock+Trunk)Option Programming 2 CompuStar 2000-AS User's Manual Page 3 of 10 2. Alarm Function Upon arming, your alarm will be triggered by: • Light Impact (first stage shock sensor). The siren will chirp 4 times and the parking lights will flash 4 times. • Heavy impacts (second stage shock sensor). The siren will go off and t he parking lights will flash for 60 seconds. • Door opened. The siren will go off and the parking lights will flash for 60 seconds • If you have installed the Optional starter kill function, your vehicle will no t start w ith key w he n s yste m is ar med. Note: (Siren duration 30Sec. or 60Sec. refer to programming section) 3. Panic In Case of emergency, and you want to attract attention. Press button Panic. 4. Start Function Press button III for 2 seconds to start the engine. The engine will start. The engine will run 15 minutes (25 min for diesel) or 25 minutes (40 min for diesel). If the engine has a problem starting the system will retry 2 additional times. If the engine does not start after the 3 rd attempt, please call you Authorized Dealer. Note: Runtime, please consult you Authorized Dealer. Diagnosis for Remote Starting Error If there is an error, you will hear three chirps when you attempt to remote starting the vehicle. 2 seconds later, the cause for the error will be indicated by the chirping and parking light flashes. Error Number Error Reason 1Engine On 2Key On 3Door Open 4Trunk Open 5Brake On / Valet Switch On 6Hood Open CompuStar 2000-AS User's Manual Page 4 of 10 7Reservation Off (Manual Transmission Only) 5. Remote Starting for the manual transmission IMPORTANT 1. The transmission must be in the NEUTRAL position. 2. The vehicle windows must be rolled up. 3. Do not set the reservation mode with any people in the vehicle. 4. Do not remote start with any people in the vehicle. Note: The system is not recommended for vehicle with removable tops. Reservation Mode must be set for manual transmission. Step 1: After arriving at the destination, and before turning the engine OFF, place the transmission in the Neutral position. Step 2: Remove your foot from the foot brake. Step 3: Activate the parking brake. Step 4. Remove the key from the ignition. The engine will remain running. Step 5. Exit the vehicle and close the door within two minutes from step 3. The engine will shut off and reservation mode for the remote starter is now complete. Your vehicle is now ready for remote starting. However, the reservation mode will be cancelled if the door is opened or the CompuStar is put in Valet mode after the reservation has been set. Once cancelled, you will have to start the vehicle with the key and repeat the above 5 steps if you want to restore the reservation. Note: If you try to remote start the vehicle when the reservation mode has not been set or cancelled, the system will not start. The parking lights will flash three times Canceling Reservation Mode CompuStar 2000-AS User's Manual Page 5 of 10 If you do not want to set the reservation mode, shut off the engine before you exit the vehicle. The engine will shut off if (a) you do not activate your parking brake or press the foot brake when you turn your key to off position, (b) release your parking brake while engine is running, or if (c) you press button III between step 3 and 4. 6. Safety Shut Down System has several Shut Down inputs. That will shut down the engine or prevent from remote starting. • the Hood is opened, • the Brake is pressed, • the Valet mode is entered, or • the Valet switch is turned on. 7. Aux 1 & Aux 2 The system has Aux 1 & Aux 2 output to be utilized with optional features. (Consult your Authorized Dealer) 8. Valet Mode In Valet mode, the system will only activate Locks, Trunk, and the Auxiliary only 9. Valet Switch Turn On the switch to shut off the Remote Starter System only. Turn Off By-Pass switch to activate remote starting function. 10. Shock Sensor Dual Stage Shock Sensor will activate 30 sec. After the system is armed (Locked). When 1 st stage is triggered the siren will chirp 4 . 11. Timer Start To enter the Timer Mode press buttons Unlock & Stop simultaneously for ½ second. The system will start every 1.5 Hrs. till Timer Mode is deactivated and automatically canceled if the vehicle is started with the Key CompuStar 2000-AS User's Manual Page 6 of 10 or Remotely. To Exit Timer Mode press buttons Unlock & Stop simultaneously for ½ second again. 12. Transmitter Learning Procedure Your transmitter has been programmed at the factory. However, if you replace or add additional Remote, follow this procedure. Steps 1: Put the system in Valet mode with key: Ignition on and off five times wit h key within 10 seconds. The parking light will flash once. Step 2: Within 6 seconds, press the button Lock for a half-second. Step3: The parking light will flash twice to confirm Step 2. Step 4: Program 2 nd transmitter or 3 rd transmitter by pressing any button. The system will program up to 3 transmitters. The parking light will fl…

Text truncated - open the document above for the full version.

O44J1000R Block Diagram (B1(BLOCK1)~B12(BLOCK12))  ANTENNA(Internal) B11. Second Amplify 447.7(ΜΗζ) B10. Second Filter B9. First Amplify 447.7/3(ΜΗζ) B8. First Filter B7. Output Oscillator 447.7/9(ΜΗζ) B3. Micro-Controller(HT48100) B5. Rf-Output Power enable/disable B4. Real time clock 4(ΜΗζ) B1. Buttons B6. Modulation B2. +DC3.0VX2 Battery B12. Τηιρδ Φιλτερ

External Photos

ID Label

Internal Photos

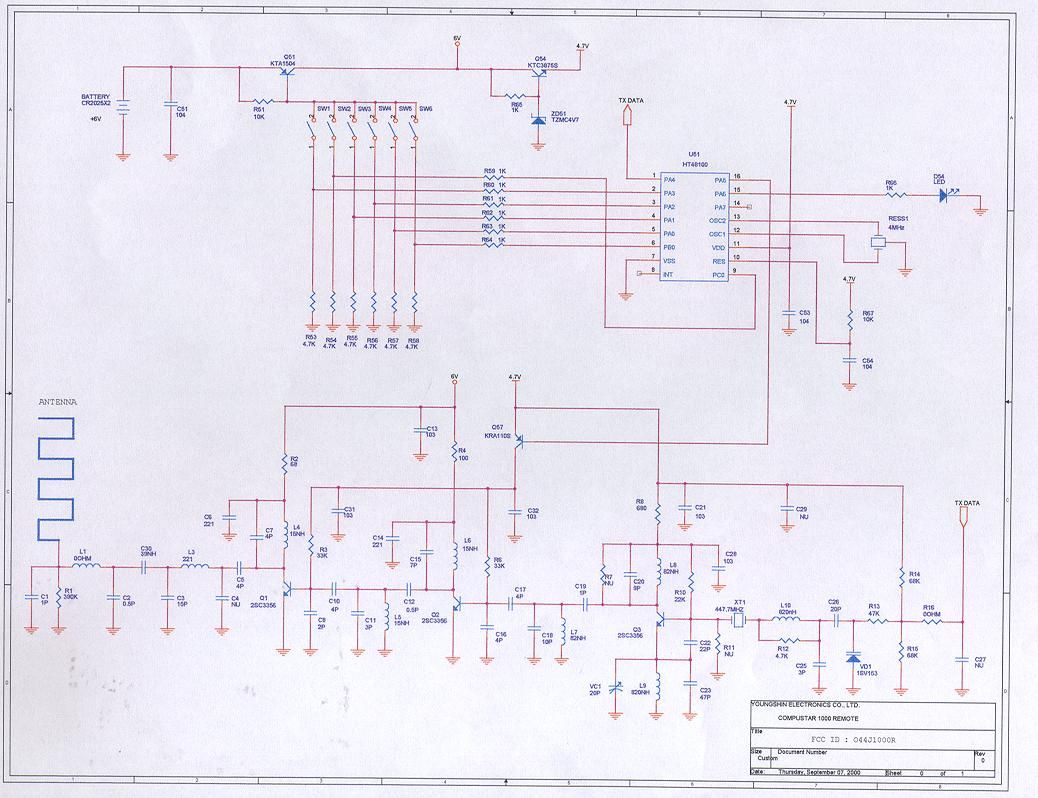

O44J1000R Circuit Descriptions. Βλοχκ1 : Τηε Βυττονσ οφ τηισ προδυχτ. Ωηεν Βεινγ πρεσσεδ τηισ ρεμοτε σταρτσ το ωορκ. Βλοχκ2 : Τηε Βαττερψ συππλψ τηε ποωερ οφ 6πολτσ το τηε χιρχυιτσ Βλοχκ3 : Τηισ ισ τηε μιχρο−χοντρολλερ Υ51(Μιχρο−χοντρολλερ) ρεαδσ τηε βυττον ανδ μακε τηε ραδιο τρανσμιττιον χιρθυιτσ ωορκ. Βλοχκ4 : Τηισ ισ τηε ρεαλ τιμε χιρχυιτ ΡΕΣΣ1 συππλψ τηε ρεαλ τιμε χλοχκ το τηε Υ51. Βλοχκ5 : Τηισ ισ τηε ραδιο ποωερ χοντρολ χιρχυιτ βψ Υ51. Υ51 μακε ραδιο φρεθυχνχψ χιρχυιτσ(Β7.Β9. Β11) εναβλε βψ Βλοχκ5. Βλοχκ6 : Υ51 χαν μακε τηε μοδυλατιον βψ τηισ βλοχκ. Βψ σωιτχηινγ(βετωεεν 0π ανδ 4.7π) ατ ς∆1 τηε φρεθυενχψ μοδυλατιον ισ δονε. Βλοχκ7. : Τηισ ισ τηε βασιχ οσχιλλατιον χιρχυιτ το ραδιατε τηε ραδιο φρεθυενχψ. Θ3 οσχιλλατεσ 447.7/9(ΜΗζ) βψ ΞΤ1, Λ8, Χ20. Βλοχκ8. : Βεσιδεσ 447.7/9 ωιλλ βε ρεμοπεδ βψ φιλτερ(Λ7,Χ18). Βλοχκ9. : Τηε Τηιρδ ηαρμονιχ φρεθυενχψ 447.7/3(ΜΗζ) οφ Βλοχκ7 ωιλλ βε αμπλιφιεδ ατ τηισ βψ Θ2. Βλοχκ10. : Βεσιδεσ 447.7/3 ωιλλ βε ρεμοπεδ βψ φιλτερ(Λ5,Χ11). Βλοχκ11. : Τηε τηιρδ ηαρμονιχ φρεθυενχψ 447.7(ΜΗζ) οφ βλοχκ9 ωιλλ βε αμπλιφιεδ ατ τηισ βψ Θ1. Βλοχκ12. : Βεσιδεσ 447.7 ωιλλ βε ρεμοπεδ βψ φιλτερ(Λ3,Χ3,Χ4).
