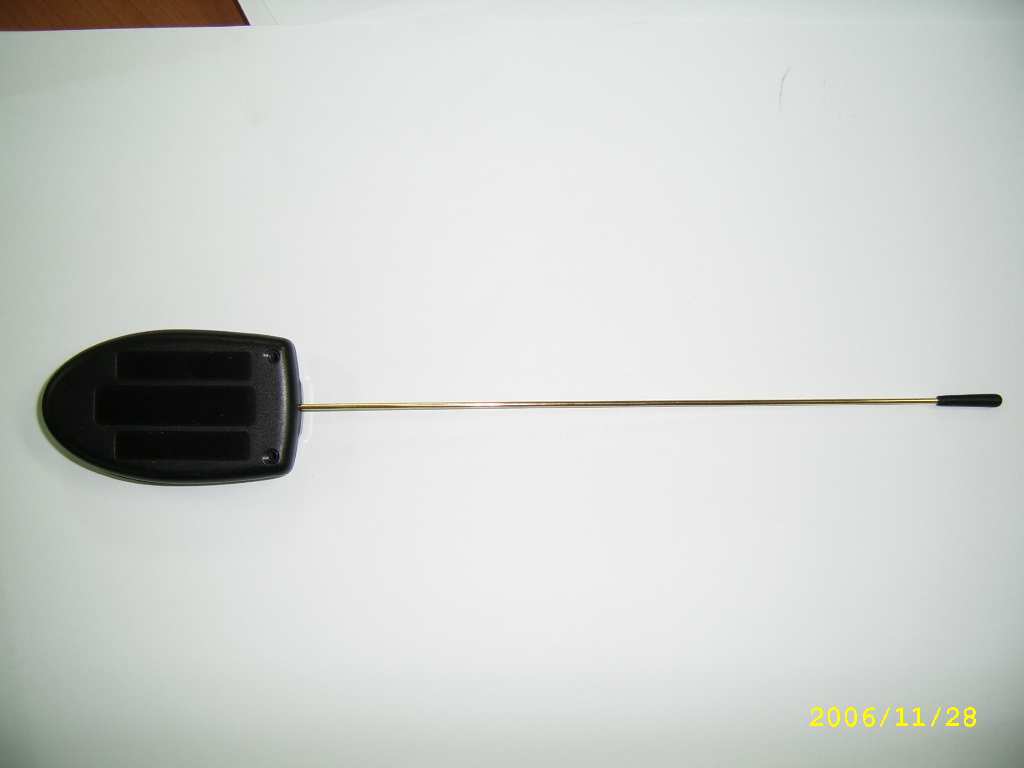

CM3000 CM3000 INSTALLATION GUIDE CM3000 YOUNG SHIN Electronics Co., Ltd. www .MAGICAR.com FCC ID : 044JMA510SS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate this device. INSTALLATION GUIDE Compustar A Controllers Page 2 TABLE OF CONTENTS ᵄ Wiring Diagram ᵄ Installation of FM or SS Antennas and RPS ᵄ Option Programming for Four Button Remote ᵄ Option Programming for Six Button(ONE WAY) Remotes ᵄ Remote - Pager Programming Menu Options Page 4Page 5Page 6Page 7Page 7 ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ Under normal circumstances, Reservation Mode is cancelled when a door or hatchback opens. Please verify if the opening of any door or hatchback cancels Reservation Mode. If any of the doors or hatchback is not monitored by CompuStar because of improper installation or a faulty dome light switch,do not use the CompuStar and take your vehicle to the dealer immediately for repair. Do not set Reservation Mode when the window(s) are open or if there is anyone inside of the vehicle including animals. This system requires no specific maintenance. Your remote-pager is powered by a singleAA battery that will last approximately one month under normal use depending on themake and model of your vehicle. There is a battery icon in the lower right corner of theCompuGLO LCD indicating remaining battery life. When the battery weakens, the operating range will be reduced and the CompuGLO LCD will dim. Contact your authorized CompuStar dealer if you have additional questions. System Maintenance Page 4 Important! The model name, 2WSSR, stands for Two Way Spread Spectrum Remote with Liquid Crystal Display . This 5-channel transmitter that allows you to activate multiple functions by pressing a combination of 4 buttons on the unit in order to transmit signals. REMOTE-PAGER : 2WSSR w/LCD The remote-pager comes with CompuGLO which is a unique color LCD display that visually tells the vehicle owner the security status of your car at all times. There are differing icons that will appear on your CompuGLO LCD indicating what your vehicle iscurrently doing. CompuGLO color LCD (Liquid Crystal Display) The product s warranty is automatically void if its date code or serial number is defaced, missing or altered. This warranty will not be valid unless you have completed the registration card and mailed it to Firstech, Inc., within 10 days after the purchase to the address listed on the registration card. Your Warranty Congratulations on the purchase of your high-tech vehicle security system and remote auto-starter. This system has been designed to provide years of trouble-free operation. Due to the complexity of the system, it must only be installed by an authorized CompuStar dealer for full warranty and technical support. Installation of this product byanyone other than an authorized dealer voids the warranty. The owner s guide should help you to get the most out of your system. Please take time to read it thoroughly prior to using this system. Additional replacement copies of thismanual are available for downloading at www.compustar.org. Important Information Please take these safety precautions under the following conditions: 1. Servicing the vehicleWhen servicing (i.e. changing the oil, washing your car) your automobile, the CompuStarsystem should be in Valet Mode. There is a safety shutdown switch under the hood thatdeactivates the remote starter function if the hood is open. However, if the switch hasbeen damaged or the switch has been installed improperly, the vehicle may start whenButton II is pressed for 2 seconds even if the hood is open. 2. Loaning your vehicle to othersWhenever you loan your vehicle to an individual who is not familiar with Compustar,please put the vehicle in Valet mode. This will prevent the vehicle loaner from accidental-ly activating the CompuStar auto-security system. 3. For manual transmission vehiclesIf the Compustar 2WSSR is installed in a manual transmission vehicle, extra precautionsare required because the Compustar does not monitor the gear shift : Safety Information Page 3 Page 6 Page 5 Shock Turbo Timer Passive Indicates if the Shock Sensor is on or off. See page 12.Indicate if Turbo Mode is on or off. See page 17.Indicates if Timer Start Mode is on or off. See page 16. Indicates if Passive Arming Mode is on or off. See page 17. Icon Explanation Indicates that the second stage shock sensor has been triggered. If the icon appears continuously, you are in mute(vibration) mode. If theicon blinks, the first stage shock sensor has been triggered. See page 15. Indicates if you are in Valet Mode. See page 15.Indicates if your car parking lights are flashing.Indicates that your car siren is turned on or off when you lock or unlock the vehicle.Indicates that someone is paging you from your vehicle.Displays if your car is locked or unlocked. Indicates if your remote-pager is transmitting signals to the controller unit. Displays remaining battery life.Displays if your door is open.Displays if your vehicle has auto-started properly or ignition on.Displays if your trunk is open. Remote-Pager Button Functions 123456789 10111213 I II III IV I - I I - III - IV - ( I+ II) ( I+ III) ( II+III) (II+ IV) (III+IV) ( I + III ) - 14151617 1/2 sec1/2 sec1/2 sec1/2 sec 2 sec2 sec2 sec2 sec 1/2 sec1/2 sec1/2 sec1/2 sec1/2 sec 2 sec Alarm Mode - on/off, RPS - on/offAuxiliary Option 1Auxiliary Option 2Query Function Alarm Mode - on/off, RPS - on/offAuto-start Function - on/offTrunk Release - on/offPanic ModeCar Siren for Lock/ Unlock-on/offValet Mode - on/offPassive Arming - on/offTimer Start Mode - on…

Text truncated - open the document above for the full version.

YoungShin Electonics Co.,LTD Date: 29th of November, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Korea Testing Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Korea Testing Laboratory, on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Korea Testing Laboratory as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (An Byung Hoon / Assistant Research Engineer) (YoungShin Electronics Co.,LTD) REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Helen Zhao Subject: FW: Youngshin Electronics Co.,Ltd., FCC ID: O44JMA510SS, Assessment NO.: AN07T6638, Notice#1 3/28/2007 From: temple Sent: Tuesday, March 27, 2007 6:11 PM To: Helen Zhao Subject: Re: Youngshin Electronics Co.,Ltd., FCC ID: O44JMA510SS, Assessment NO.: AN07T6638, Notice#1 Dear Helen, I really appreciated your help. Yes, it was my mistake about 20 dB bandwidth. so, i revised the test report , please replace attached file instead of old one. Thank you -----Original Message----- From: Helen Zhao Sent: Friday, March 23, 2007 5:43 PM To: Helen Zhao Subject: Youngshin Electronics Co.,Ltd., FCC ID: O44JMA510SS, Assessment NO.: AN07T6638, Notice#1 Question #1: The report shows the channel separation distance is over 25KHz, but less than 20dB bandwidth, which does not meet 15.247(a)(1) requirement: "Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. " Please note FCC specifies "whichever is greater", which means the limit is the greater of 25KHz and 20dB bandwidth. Please address this non-compliance issue. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

YoungShin Electonics Co.,LTD C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030) E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material YoungShin Electonics Co.,LTD would like the following documents regarding this submission for FCC ID : O44JMA510SS : to be kept confidential. 1. Block Diagram 2. Schematic Diagram 3. Transmitter Timing Diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 29th of November , 2006 By An Byung hoon Title : Assistant Research Engineer ============================================================

O44JMA510SS Circuit Descriptions. Block 1: The Battery supply the power of 12volts to the Regulator. Block 2: This is the 5volts Regulator circuit by U5, C43, TC1. Block 3: This is the 3volts Regulator circuit by U3, TC1, TC2. Block 4: This is the micro-controller. U2(Micro-controller) reads the button and make the radio transmission circuits work. Block 5: This is the real time circuit. XT2 supply the real time clock to the U3. Block 6: This is the radio power control circuit by U3. U3 make radio frequency circuit (B8, B9, B10, B13, B14) enable by Block6. Block 7: This is the basic oscillation circuit to radiate the radio frequency. Oscillates 19.2MHz by XT1, R11, R12. Block 8: This is the Single Chip RF Transceiver IC (LNA, PA, Multiplexer, VCO, Demodulator, Modulator, Mixer, PLL) circuit by U1. BlocK 9: The basic frequency 907.1973 ~ 909.6473 MHz of Block8 will be amplified at this by Q2, L4. Block 10: This is the Single Chip Power Amplifier IC circuit by U1. Block 11: Besides 909.6473MHz will be removed by first filter (L2, C5, C6). Block 12: Besides 909.6473MHz will be removed by second filter (L1, C1, C2). Block 13: This is the First Low Noise Amplify circuit by Q2, L13. Block 14: This is the Second Low Noise Amplify circuit by Q3, L12. Block 15: This is the 908.00MHz SAW Filter circuit by SAW1.

Report No.: 2006-1341-039 Page 1 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1464 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 TEST REPORT 1. Applicant Name : YoungShin Electronics Co.,Ltd. Address : 2. Products Name : Car alarm Model/Type : O44JMA510SS Manufacturer : YoungShin Electronics Co.,Ltd. 3. Test Standard/Method : 4. Test Results : Positive 5. Use of Report : - 6. Date of Application : Dec 14, 2006 7. Date of Issue : Mar 13, 2007 Tested by Approved by ` Bum-Jong KIM Seok-Jin Kim Telecommunication Team Senior Engineer Telecommunication Team Manager The test results contained apply only to the test sample(s) supplied by the applicant, and this test report shall not be reproduced in full or in part without approval of the KTL in advance. C-7F, Bupyung Woolim Lion’ s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, FCC Part 15, Subpart B and C / ANSI C63.4-2003 Report No.: 2006-1341-039 Page 2 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 TABLE OF CONTENTS I. GENERAL INFORMATION 4 1. Applicant(client) 2. Equipment(EUT) 3. Testing Laboratory II. GENERAL REQUIREMENTS OF EUT 5 1. Labelling Requirements 2. Information to user 3. Special Accessories III. RADIATED EMISSION MEASUREMENT (Section 15.209/15.247) 6 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data IV. 20dB BANDWIDTH & HOPPING CHANNEL SEPARATION (Section 15.247(a)(1) 11 1. Test Procedure 2. Measurement data 3. Measurement Plot V. NUMBER OF HOPPING FREQUENCY (Section 15.247(a)(1)) 14 1. Test Procedure 2. Measurement data 3. Measurement Plot Report No.: 2006-1341-039 Page 3 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 VI. DWELL TIME (Section 15.247(a)(1)) 15 1. Test standard 2. Measurement Data 3. Measurement Plot VII. MAXIMUM PEAK OUTPUT POWER (Section 15.247(b)) 17 1. Test standard 2. Measurement Data 3. Measurement Plot VIII. 100 kHz BANDWIDTH OF BAND EDGES (Section 15.247(d)) 19 1. Test standard 2. Measurement Plot IX. CONDUCTED SPURIOUS EMISSION AT ANTENNA TERMINALS (Section 2.1051) 22 1. Test Standard 2. Test Procedure 3. Measurement Plot X. TEST EQUIPMENTS USED FOR MEASUREMENTS 26 Report No.: 2006-1341-039 Page 4 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 I. GENERAL INFORMATIONS 1.1 Applicant (Client) Name YoungShin Electronics Co., Ltd. Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030 Contact Person Eui-Seok, Chung Telephone No. + 82-32-623-5550 (EXT. 434) Facsimile No. + 82-32-623-6668 E-mail address [email protected] 1.2 Equipment (EUT) Type of equipment Car alarm Model Name O44JMA510SS Power Source DC 12V Dimension 60 mm(W) x 36 mm(H) x 15 mm(D) Ant. Gain -6.524 dBi Using Oscillator - Power Consumption - Standard FCC Part 15, Subpart B and C Measuring Procedure ANSI C63.4-2003 Manufacturer Name YoungShin Electronics Co., Ltd. Manufacturer Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030) 1.3 Testing Laboratory Testing Place Korea Testing Labortory (KTL) 222-13 Guro-dong, Guro-Gu, Seoul 152-848 Korea Test Engineer Bum-Jong KIM Telephone number +82 2 860 1464 Facsimile number +82 2 860 1468 E-mail address [email protected] Other Comments - Report No.: 2006-1341-039 Page 5 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 . GENERAL REQUIREMENTS OF THE EUTII 1. Labelling Requirement (Section 15.19 ) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’ guide manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ ■ ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Report No.: 2006-1341-039 Page 6 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 III. RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 3 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT while rotating the table and varying antenna height. Emissions level from the EUT with various configurations were examined on a Spectrum Analyzer conne…

Text truncated - open the document above for the full version.

TEST Photographs < Radiated emission Test > < Conducted Test >
