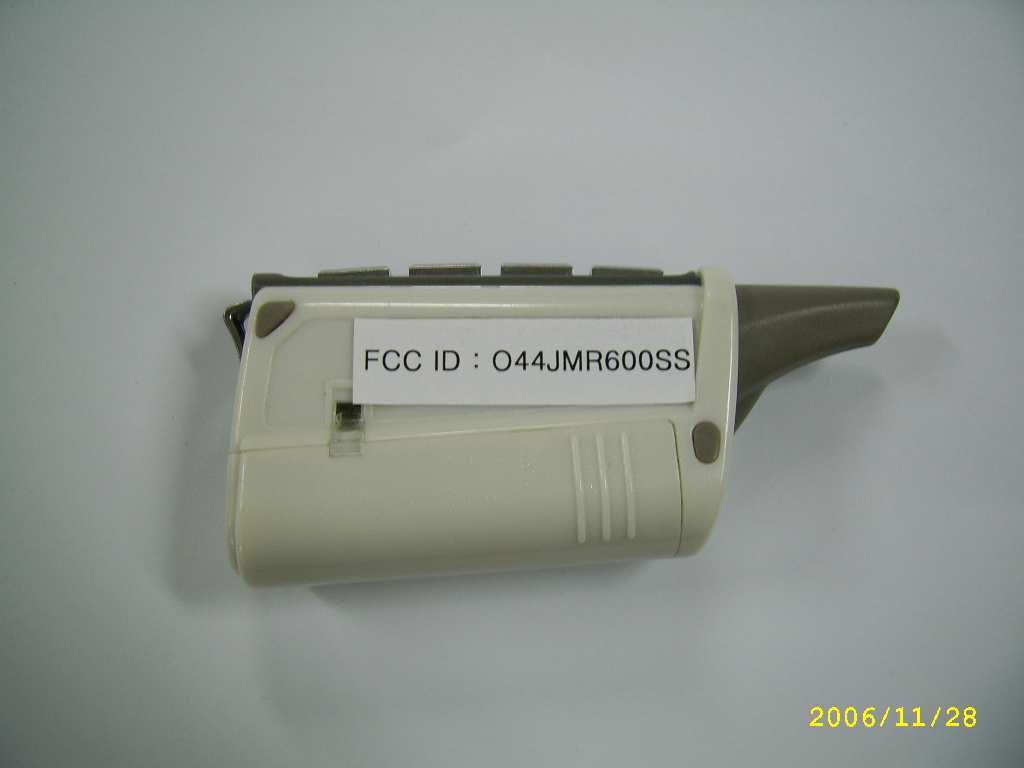

O44JMR600SSCar Alarm

FCC ID : 044JMR600SS USER’S GUIDE 2WSSR YOUNG SHIN Electronics Co., Ltd. www .MAGICAR.com USER’S GUIDE 2WSSR FCC ID : 044JMR600SS Two-Way Spread Spectrum Remote This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate this device. Page 2 TABLE OF CONTENTS Page 3 Spread Spectrum TechnologyIntroductionLimited Lifetime Consumer Warranty Your WarrantyImportant InformationSafety Information System MaintenanceRemote-Pager : 2WSSR w/LCD CompuGLO color LCD (Liquid Crystal Display) Remote-Pager Button FunctionsRemote-Pager LearningRemote-Pager Factory Reset Procedure Using Your System Alarm Mode Dual Stage Shock SensorAuto-start FunctionPanic ModeReservation Mode (Manual Transmission only)Query FunctionTrunk Release Vibration ModeCar Siren Valet Mode Timer Start Mode Optional Programmable Features Ignition LockPassive Arming Turbo Mode Optional Installation FeaturesRPS (Remote Paging System)Cold Start Mode Optional Auxiliary 1 & Auxiliary 2 Safety Shut down Features Frequently Asked Questions Troubleshooting Page 4Page 4Page 5Page 6Page 6Page 6Page 7Page 7Page 7Page 9Page 10Page 11Page 11Page 11Page 12Page 13Page 13Page 14Page 15Page 15Page 15Page 15Page 15Page 16Page 17Page 17Page 17Page 17Page 18Page 18Page 18Page 18Page 19Page 19Page 20 ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ Spread Spectrum Technology This groundbreaking technology uses a transmitted signal that is spread over a wide frequency band and the transmitter abruptly changes (or hops) the frequency in accor-dance with a pseudo random sequence. With this revolutionary technology, the FCC has allowed Firstech, Inc. to use 28X more power than any of the transmitters currently marketed in the US and in most case 56X the power. We are using 560K uV/m in contrast to most transmitters power of 5 K to 20K uV/m. The result is that our range is extended up to 1.25 miles. The FCC allows massive power usage because the spreadspectrum technology makes it possible for many transmitters to communicate withoutinterfering with each other. For the first time in the history of the auto security industry, Firstech has achieved aremarkable technological break-through in utilizing a FCC-approved Spread Spectrumand 900 Mhz Technology. Introduction Thank you for choosing CompuStar, a state-of-the-art Two-Way alarm/remote start system for your vehicle that uses Spread Spectrum Technology (SST). We, at Firstech,Inc., are constantly performing research and development to make you and your vehiclesafe and more comfortable. Security and comfort, that s what Firstech, Inc. is all about. CompuStar 2WSSR system consists of the following two devices :Controller : This 5 inch by 3.5 inch by 1 inch rectangular black box is the brain of the CompuStar 2WSSR system and is installed underneath the dashboard of your vehicle.Upon receipt of a digital signal from the antenna, the controller can perform car taskssuch as remote keyless entry, auto-start and security alerts.Remote-Pager : This device allows the user to activate multiple functions of theCompuStar 2WSSR controller such as auto-start, keyless entry and security features by pressing a combination of 4 buttons on the unit for up to a 1.25 miles distance. Also, the unique color LCD display called CompuGLO allows the user to visually, audibly and through vibration, monitor the security status of your car at all times. Firstech, LLC Warrants to the original purchaser that this product shall be free of defects in material and workmanship under normal use and circumstances for the period of timethat the original owner of this product owns the vehicle in which it is installed; except thatthe remote controller unit for the period of one year from the date of installation to the origi-nal owner of this product. When the original purchaser returns the product to the retail storewhere it was purchased or pre-paid postal to Firstech, LLC., 3415 S. 116 th St Seattle, WA 98168, USA within the warranty period, and if the product is defective, Firstech, LLC,will at its option repair or replace such. TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES AREEXCLUDED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THESTREAM OF COMMERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOTLIMITED TO, THE EXCLUSION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WARRANTY OF FITNESS FOR A PARTICULAR PUR-POSE AND/OR ANY AND ALL WARRANTY OF NON-INFRINGEMENT OR PATENTS,IN THE UNITED STATES OF AMERICA AND/OR ABROAD. NEITHER THE MANUFAC-TURER OF ANY ENTITIES CONNECTED THEREWITH SHALL BE RESPONSIBLE ORLIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO,ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAM…

Text truncated - open the document above for the full version.

YoungShin Electonics Co.,LTD Date: 29th of November, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Korea Testing Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Korea Testing Laboratory, on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Korea Testing Laboratory as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (An Byung Hoon / Assistant Research Engineer) (YoungShin Electronics Co.,LTD) REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

YoungShin Electonics Co.,LTD C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030) E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material YoungShin Electonics Co.,LTD would like the following documents regarding this submission for FCC ID : O44JMR600SS : to be kept confidential. 1. Block Diagram 2. Schematic Diagram 3. Transmitter Timing Diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 29th of November , 2006 By An Byung hoon Title : Assistant Research Engineer ============================================================

O44JMR600SS Circuit Descriptions. (Block1, 2, 3, 4, 5, 6 is Logic part and another block is RF part) Block 1: The Battery supply the power of 1.5volts to the Regulator. Block 2: This is the 3volts Regulator circuit by U1, U2, D1, D2, L1, TC1, TC2, TC2, TC4. Block 3: The Buttons of this product. When being pressed this remote starts to work. Block 4: This is the micro-controller. U3(Micro-controller) reads the button and make the radio transmission circuits work. Block 5: This is the real time circuit. XT1 supply the real time clock to the U3. Block 6: This is the radio power control circuit by U3. U3 make radio frequency circuit (B8, B10, B12, B13) enable by Block6. Block 7: This is the basic oscillation circuit to radiate the radio frequency. Oscillates 19.2MHz by XT1, Q6, R11, R12. Block 8: This is the Single Chip RF Transceiver IC (LNA, PA, Multiplexer, VCO, Demodulator, Modulator, Mixer, PLL) circuit by U1. BlocK 9: The basic frequency 907.1973 ~ 909.6473 MHz of Block8 will be amplified at this by Q2, L4. Block 10: Besides 909.6473MHz will be removed by first filter (L2, C4). Block 11: Besides 909.6473MHz will be removed by second filter (C1, C2, L1). Block 12: This is the First Low Noise Amplify circuit by Q1, L3. Block 13: This is the Second Low Noise Amplify circuit by Q5, L10. Block 14: This is the 908.00MHz SAW Filter circuit by SAW1.

Report No.: 2006-1341-040 Page 1 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1464 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 TEST REPORT 1. Applicant Name : YoungShin Electronics Co.,Ltd. Address : 2. Products Name : Car alarm Model/Type : O44JMR600SS / Car alarm Manufacturer : YoungShin Electronics Co.,Ltd. FCC ID : O44JMR600SS 3. Test Standard/Method : 4. Test Results : Positive 5. Use of Report : - 6. Date of Application : Dec 14, 2006 7. Date of Issue : Mar 13, 2007 Tested by Approved by ` Bum-Jong KIM Seok-Jin Kim Telecommunication Team Senior Engineer Telecommunication Team Manager The test results contained apply only to the test sample(s) supplied by the applicant, and this test report shall not be reproduced in full or in part without approval of the KTL in advance. C-7F, Bupyung Woolim Lion’ s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, FCC Part 15, Subpart B and C / ANSI C63.4-2003 Report No.: 2006-1341-040 Page 2 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 TABLE OF CONTENTS I. GENERAL INFORMATION 4 1. Applicant(client) 2. Equipment(EUT) 3. Testing Laboratory II. GENERAL REQUIREMENTS OF EUT 5 1. Labelling Requirements 2. Information to user 3. Special Accessories III. RADIATED EMISSION MEASUREMENT (Section 15.209/15.247) 6 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data IV. 20dB BANDWIDTH & HOPPING CHANNEL SEPARATION (Section 15.247(a)(1) 11 1. Test Procedure 2. Measurement data 3. Measurement Plot V. NUMBER OF HOPPING FREQUENCY (Section 15.247(a)(1)) 14 1. Test Procedure 2. Measurement data 3. Measurement Plot Report No.: 2006-1341-040 Page 3 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 VI. DWELL TIME (Section 15.247(a)(1)) 15 1. Test standard 2. Measurement Data 3. Measurement Plot VII. MAXIMUM PEAK OUTPUT POWER (Section 15.247(b)) 17 1. Test standard 2. Measurement Data 3. Measurement Plot VIII. 100 kHz BANDWIDTH OF BAND EDGES (Section 15.247(d)) 19 1. Test standard 2. Measurement Plot IX. CONDUCTED SPURIOUS EMISSION AT ANTENNA TERMINALS (Section 2.1051) 22 1. Test Standard 2. Test Procedure 3. Measurement Plot X. TEST EQUIPMENTS USED FOR MEASUREMENTS 27 Report No.: 2006-1341-040 Page 4 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 I. GENERAL INFORMATIONS 1.1 Applicant (Client) Name YoungShin Electronics Co., Ltd. Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030 Contact Person Eui-Seok, Chung Telephone No. + 82-32-623-5550 (EXT. 434) Facsimile No. + 82-32-623-6668 E-mail address [email protected] 1.2 Equipment (EUT) Type of equipment Car alarm Model Name O44JMR600SS Power Source DC 1.5V Dimension 63 mm(W) x 40 mm(H) x 13 mm(D) Ant. Gain -3.083 dBi Using Oscillator 32.78 kHz Power Consumption - Standard FCC Part 15, Subpart B and C Measuring Procedure ANSI C63.4-2003 Manufacturer Name YoungShin Electronics Co., Ltd. Manufacturer Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030 1.3 Testing Laboratory Testing Place Korea Testing Labortory (KTL) 222-13 Guro-dong, Guro-Gu, Seoul 152-848 Korea Test Engineer Bum-Jong KIM Telephone number +82 2 860 1464 Facsimile number +82 2 860 1468 E-mail address [email protected] Other Comments - Report No.: 2006-1341-040 Page 5 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 . GENERAL REQUIREMENTS OF THE EUTII 1. Labelling Requirement (Section 15.19 ) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’ guide manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ ■ ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Report No.: 2006-1341-040 Page 6 of 26 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 III. RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 3 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT while rotating the table and varying antenna height. Emissions level from the EUT with various configurations w…

Text truncated - open the document above for the full version.

TEST Photographs < Radiated emission Test > < Conducted Test >
