O44J2W8000RCar Alarm System

Young Shin Electronics,Inc. www.magicar.com USER’S GUIDE 2W8000FMR 2W8000FMR-2 nd Young Shin Electronics, Inc. www.magicar.com Two-Way FM Remote 2W8000FMR / 2W8000FMR-2 nd FCC ID : O44J2W8000R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate this device. Page 2 1. Safety InformationPage 3 2. Remote-Pager : 2W8000FMR, 2W8000FMR -2 nd W/LCDPage 3 3. Description of Remote AppearancePage 4 4. GLO color LCDPage 4 5. LCD IconsPage 5 6. Remote-Pager Button Functions Page 6 7. More Button Functions Page 7 8. Remote-Pager Learn RoutinePage 8 9.Auto-Start FunctionPage 8 10. Reservation Mode Page 9 11. Canceling Reservation Mode Page 10 12. Valet ModePage 11 13. Safety Shut Down FeaturesPage 11 14 [I-] Auto ArmingPage 11 15. Turbo ModePage 12 16. 2 nd car ModePage 12 17. Limited Lifetime Consumer Warranty Page 13 Your Warranty Page 14 TABLE OF CONTENTS ................ ................................................................. ............................................ ...........,......................................................... .......................................................................... ............................................... ........................................................... ................................................... ............................................................... ............................................................... ................................................ ....................................................................... .................................................. ...................................................................... ..................................................................... ....................................... ................................................................... ................................................................ Important!Under normal circumstances, Reservation Mode is cancelled when a door or hatchback opens. Please verify that the opening of any door or hatchback cancels Reservation Mode. If any of the doors or hatch back are not monitored by Young Shin Electronics, Inc. because of improper installation or a faulty dome light switch, do not use the Young Shin Electronics, Inc.and take your vehicle immediately to the dealer for repair. Do not set Reservation Mode if the window(s) are open or if there is anyone inside the vehicle, this includes animals. Remote start installation in a manual transmission vehicle with a convertible top is not recommended. Page 3 Safety Information Please take these safety precautions into consideration under the following conditions: 1. Servicing the vehicle When servicing your automobile (i.e. changing the oil, washing your car), the Young Shin Electronics, Inc.system should be in Valet Mode. There is a safety shutdown switch under the hood that deactivates the remote start function if the hood is open. However, if the switch has been damaged or the switch has been installed improperly, the vehicle may start when button II is pressed for 2 seconds, even if the hood is open. 2. Loaning your vehicle to others Whenever you loan your vehicle to an individual who is not familiar with Young Shin Electronics, Inc., you may want to put the system in Valet mode. This will prevent the borrower from accidentally activating the Young Shin Electronics, Inc.auto-security system. 3. For manual transmission vehicles If the Young Shin Electronics, Insystem is installed in a manual transmission vehicle, extra precautions are required because the Young Shin Electronics, Inc.does not monitor the gear shifter : Remote-Pager : 2W8000FMR/ 2W8000FMR-2 nd w/LCD The model name, 2W8000FMR, 2W8000FMR -2 nd is a Two Way 447Mhz Frequency ModulatedRemote with Liquid Crystal Display . This transmitter allows you to activate multiple functions by pressing different combinations of the 4 buttons on the unit. The remote-pager comes with GLO, which is a unique color LCD display that visually tells you the security status of your vehicle as long as you are in range. There are differing icons that will appear on your GLO LCD indicating what your vehicle is currently doing. GLO color LCD Page 4 Description of Remote Appearance FrontSide Rear 2W8000FMR-2 nd 2W8000FMR Page 5 LCD Icons Indicates that someone is paging you from your vehicle. Indicates that your car is locked or unlocked. Indicates that your remote-pager is transmitting signals to the controller unit. Indicates that vibration mode is on. Indicates if RPS is on. Displays remaining battery life. 1. Time Clock. 2. Remainder of the engine running time. Indicates that Timer Mode is on. Indicates that Turbo Mode is on. ( 2W8000FMR ) Indicates that Passive Arming Mode is on. Indicates that 2 nd Vehicle Mode is on. ( 2W8000FMR-2 nd ) Indicates that the Shock Sensor has been triggered. Indicates that Shock sensor is turned off. IconExplanation Indicates that you are in Valet Mode. Indicates that your parking lights are flashing. Indicates that your siren is turned on. (Locking and unlocking only.) Indicates if the Auto Lock/ Unlock mode is on. ( Icon flashes for longer range.) Remote-Pager Button Functions Indicates that your vehicle has auto-started properly or that the ignition is on. IconExplanation Indicates that your trunk is open. Indicates that your hood is open. Page 6 5 6 7 8 9 10 11 1/2 sec 1/2 sec 1/2 sec II III IV II I III IV (I + II) 1/2 sec 1/2 sec 1/2 sec 1/2 sec 2 sec 2 sec 2 sec Lock / Arm Unlock / Disarm AUX 1 AUX 2 Query Function Trunk Release Auto-start Function – on/off Panic, Press I to turn off the s…

Text truncated - open the document above for the full version.

‘’

1 Helen Zhao Subject:FW: Youngshin Electronics Co., Ltd., FCC ID: O44J2W8000R, Assessment NO.: AN05T4454, Notice#1 IDLabel_2W8000R.j pg O44J2W800R_Tx_r eport.pdf O44J2W8000R Block.PDF From: jmkim Sent: Monday, January 10, 2005 2:17 AM To: Helen Zhao Subject: Re: Youngshin Electronics Co., Ltd., FCC ID: O44J2W8000R, Assessment NO.: AN05T4454, Notice#1 > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Wednesday, January 05, 2005 4:01 PM > To: Helen Zhao > Subject: Youngshin Electronics Co., Ltd., FCC ID: O44J2W8000R, > Assessment NO.: AN05T4454, Notice#1 > > > Question #1: Based upon FCC2.925(a)(1) "The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line." Please revise the FCC ID label format accordingly. > > Question #2: Page 3 of the test report indicated the frequency of the device is 433.9MHz, which does not agree with the other documents in the filing. Please revise. > > Question #3: Please update block diagram to correct FCC ID. > > Best Regards, > Helen Zhao > > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. > > > >

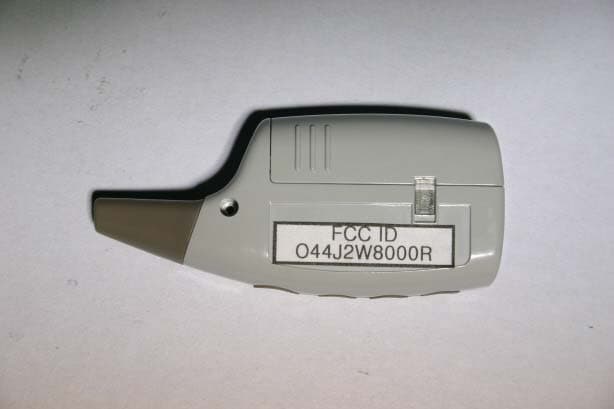

[External Photos]

[Internal Photos]

Ref. Report No. Name and address of the applicant YoungShin Electronic Co., Ltd. 102-701, Bucheon Techno-park 364 Smajeong-dong, Ojeong-gu, Bucheon-si, Gyeonggi-do, 421-740 Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : November 15, 2004 Test item(s) ; Remote Control/Security Device Transceiver (Two Way Car Alarm System) Model/type ref. ; 2W8000FMR Manufacturer ; Youngshin Electronic Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : O44J2W8000R -Note : Test report(Verification) of Receiver portion of this unit is issued on Ref. Report No. 04-341-030-02. Test date : December 27, 2004 Issue date : January 04, 2005 This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim, Senior Engineer Won-Seo Cho , Telecommunication Team Manager FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 04 - 1341 – 030 - 01 Page 2 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) . RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data . OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 13 . TEST EQUIPMENTS USED FOR MEASUREMENT 14 Ref. Report No. 04 - 1341 – 030 - 01 Page 3 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL INFORMATION 1. Grantee’s Name and : YoungShin Electronics Co., Ltd. Mailing Address 102-701, Bucheon Techno-park, 364, Samjeong-dong, Ojeong-gu, Bucheon-si, Kyungki-Do, 421-740 Korea 2. Manufacturer's Name and : YoungShin Electronics Co., Ltd. Mailing Address 102-701, Bucheon Techno-park, 364, Samjeong-dong, Ojeong-gu, Bucheon-si, Kyungki-Do, 421-740 Korea 3. Equipment Descriptions 3.1 Operating Frequency : 447.7 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Power Supply : DC 1.5 V (Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-2001 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : December 27, 2004 Ref. Report No. 04 - 1341 – 030 - 01 Page 4 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 04 - 1341 – 030 - 01 Page 5 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 04 - 1341 – 030 - 01 Page 6 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Te…
