O44J2WAMRCar Alarm System

USER’S GUIDE 2WAMR Young Shin Electronics, Inc. Young Shin Electronics, Inc. www.magicar.com USER’S GUIDE 2WAMR Two-Way AM Remote FCC ID : O44J2WAMR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate this device. Page 2 Page 3 1. Safety InformationPage 4 2. Remote-Pager : 2WAMR W/LCDPage 4 3. Description of Remote AppearancePage 5 4. GLO Color LCDPage 5 5. LCD IconsPage 6 6. Remote-Pager Button Functions Page 7 7. More Button FunctionsPage 8 8. Remote-Pager Learn RoutinePage 9 9.Alarm ModePage 9 10. Dual Stage Shock SensorPage 10 11.Auto-Start FunctionPage 10 12. Reservation ModePage 11 13. Canceling Reservation ModePage 13 14.Trunk ReleasePage 13 15.Query FunctionPage 13 16.Panic ModePage 13 17. Valet ModePage 14 18.Timer Start ModePage 14 19. Safety Shut Down FeaturesPage 14 20. R.P.S (Remote Paging System) Page 15 21. Optional Programmable FeaturesPage 15 Ignition LockPage 15 Passive ArmingPage 15 Turbo ModePage 16 22. Optional installaton Features Page 17 Cold Start Mode Page 17 Optional Auxiliary 1 & Auxiliary 2 Page 17 23. Limited Lifetime Consumer Warranty Page 18 Your Warranty Page 19 TABLE OF CONTENTS Page 5 Safety Information Remote-Pager : 2WAMR w/LCD The model name, 2WAMRstands for . This transmitter allows you to activate multiple functions by pressing different combinations of the 4 buttons on the unit. Please take these safety precautions into consideration under the following conditions: When servicing your automobile (i.e. changing the oil, washing your car), the Young Shin Electronics, Inc system should be in Valet Mode. There is a safety shutdown switch underthe hood that deactivates the remote starter function if the hood is open. However, if the switch has been damaged or the switch has been installed improperly,the vehicle may start when Button is pressed for 2 seconds, even if the hood is open. Whenever you loan your vehicle to an individual who is not familiar with Young Shin Electronics, Inc, you may want to put the vehicle in Valet mode. This will prevent the borrower from accidentally activating the Young Shin Electronics, Incauto-security system. If the Young Shin Electronics, Inc2WAMR is installed in a manual transmission vehicle, extra pre- cautions are required because the Young Shin Electronics, Incdoes not monitor the gear shift : Under normal circumstances, Reservation Mode is cancelled when a door or hatchback opens. Please verify that the opening of any door or hatchback cancels Reservation Mode. If any of the doors or hatchback are not monitored by Young Shin Electronics, Incbecause of improper installation or a faulty dome light switch, do not use the Young Shin Electronics, Incand take your vehicle immediately to the dealer for repair. Do not set Reservation Mode if the window(s) are open or if there is anyone inside the vehicle, this includes animals. Remote start installation in a manual transmission vehicle with a convertible top is not recommended. Page 4 GLO color LCD The remote-pager comes with GLO which is a unique color LCD display that visually tells the vehicle owner the security status of your car at all times. There are differing icons that will appear on your GLO LCD indicating what your vehicle is currently doing. Description of Remote Appearance FrontSide Rear The model name, 2WAMR, stands for Page 7 Remote-Pager Button Functions 1 2 3 4 5 6 7 8 9 10 11 1/2 sec 1/2 sec 1/2 sec 1/2 sec 1/2 sec 1/2 sec 1/2 sec 2 sec 2 sec 2 sec Alarm Mode - on/off, RPS - on/off, Siren Off, Starter Kill (Anti-Grind) - on/off AUX 1 AUX 2 Query Function Trunk Release Auto-start Function – on/off Panic, Press to shut off Siren. Siren Chirps – on/off Valet Mode – on/off Passive Arming – on/off Timer Start Mode – on/off Turbo Mode - on/off Shock Sensor – on/off ButtonPressedFor Function 12 13 14 15 1/2 sec 1/2 sec 2 sec 2 sec 2 sec Programming Menu 1 - Installer Only Programming Menu 2 - Installer Only Represents pressing the button for 2 seconds. Represents simultaneously pressing the buttons. Represents simultaneously pressing the buttons for 2 seconds. Page 6 Indicates if Vibrator is on or off. Indicates that Shock sensor is turned on or off. Indicates that your car siren is turned on or off when you lock or unlock the vehicle. Displays if your Hood is open. Displays if your door is open. 1. Time Clock. 2. Remainder of the engine running time. Indicates if Timer Mode is on or off. Indicates if Turbo Start Mode is on or off. Indicates if Passive Arming Mode is on or off. Displays remaining battery life. Indicates that your remote-pager is transmitting signals to the controller unit. Indicates if you are in Valet Mode. Display if your car is lock or unlcok Indicates that the Shock Sensor has been triggered. Displays if your Trunk is open. Indicates if RPS is on or off. Indicates that someone is paging you from your vehicle. Displays if your vehicle has auto-started properly or ignition on. IconExplanation LCD Icons Indicates if your carparking lights are flashing. Page 8 More Button Functions (1) Time Setting Tones will sound for confirmation STEP 1 2 sec ButtonPressedFor Function Time setting is on. The numbers will flash, and tones will sound. STEP 2 1/2 sec Change hour. Change minutes. Time setting is off. Tones will sound. STEP 3 STEP 4 1/2 sec 1/2 sec 2 sec (2) RPS & Vibration mode on or off Step 2 must be completed within 15 seconds. If not, start over at step 1. Tones will sound for confirmation STEP 1 2 sec ButtonPressedFor Function STEP 2 RPS on or off, tones will sound for confirmation. Vibration mode on or off, tones will sound for confirmation. 1/2 sec 1/2 sec Page 9 Remote-Pager Learn …

Text truncated - open the document above for the full version.

– –

1 Helen Zhao Subject:FW: Youngshin Electronics Co., Ltd., FCC ID: O44J2WAMR, Assessment NO.: AN05T4456, Notice#1 IDLabel_2WAMR.jp g From: jmkim Sent: Monday, January 10, 2005 2:16 AM To: Helen Zhao Subject: Re: Youngshin Electronics Co., Ltd., FCC ID: O44J2WAMR, Assessment NO.: AN05T4456, Notice#1 > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Wednesday, January 05, 2005 4:06 PM > To: Helen Zhao > Subject: Youngshin Electronics Co., Ltd., FCC ID: O44J2WAMR, Assessment > NO.: AN05T4456, Notice#1 > > > Question #1: Based upon FCC2.925(a)(1) "The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line." Please revise the FCC ID label format accordingly. > > Best Regards, > Helen Zhao > > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. > > > >

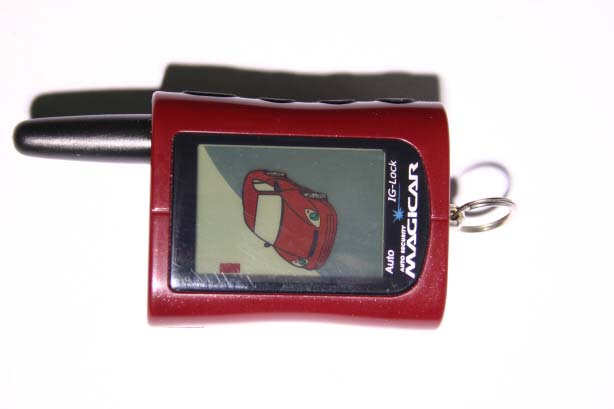

[External Photos]

[Internal Photos]

KTL KTL Korea Testing Laboratory Page 1 of 14 Korea Testing Laboratory Page 1 of 14 TEST REPORTTEST REPORT Ref. Report No. 04-1341-031-01 Name and address of the applicant YoungShin Electronic Co., Ltd. 102-701, Bucheon Techno-park 364 Smajeong-dong, Ojeong-gu, Bucheon-si, Gyeonggi-do, 421-740 Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : November 15, 2004 Test item(s) ; Remote Control/Security Device Transceiver (Two Way Car Alarm System) Model/type ref. ; 2WAMR Manufacturer ; YoungShin Electronic Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : O44J2WAMR -Note : Test report(Verification) of Receiver portion of this unit is issued on Ref. Report No. 04-341-031-02. Test date : December 27, 2004 Issue date : January 04, 2005 This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim, Senior Engineer Won-Seo Cho , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 04 - 1341 – 031 - 01 Page 2 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement II. GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) III. RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data IV. OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 13 V. TEST EQUIPMENTS USED FOR MEASUREMENT 14 Ref. Report No. 04 - 1341 – 031 - 01 Page 3 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 I. GENERAL INFORMATION 1. Grantee’s Name and : YoungShin Electronics Co., Ltd. Mailing Address 102-701, Bucheon Techno-park, 364, Samjeong-dong, Ojeong-gu, Bucheon-si, Kyungki-Do, 421-740 Korea 2. Manufacturer's Name and : YoungShin Electronics Co., Ltd. Mailing Address 102-701, Bucheon Techno-park, 364, Samjeong-dong, Ojeong-gu, Bucheon-si, Kyungki-Do, 421-740 Korea 3. Equipment Descriptions 3.1 Operating Frequency : 433.92 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Power Supply : DC 1.5 V (Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-2001 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : December 27, 2004 Ref. Report No. 04 - 1341 – 031 - 01 Page 4 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 II. GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 04 - 1341 – 031 - 01 Page 5 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 04 - 1341 – 031 - 01 Page 6 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 III. RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the…
