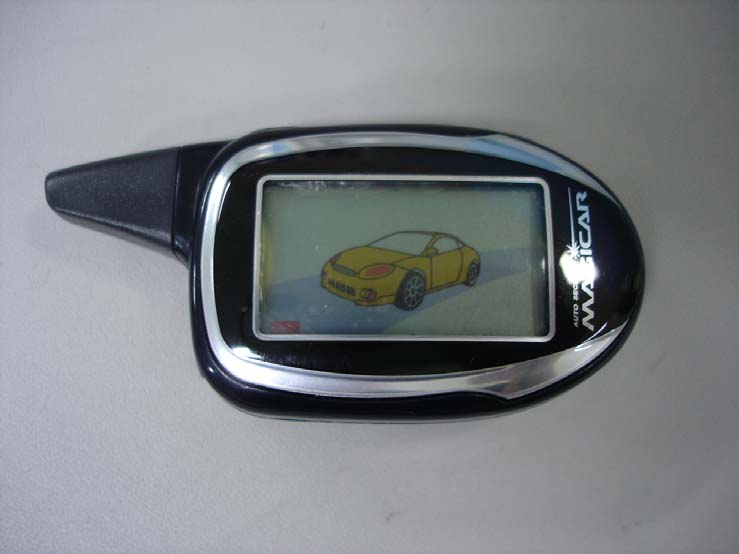

O44JR561FM907Two Way Car Alarm System

USER’S GUIDE By Youngshin Electronics Co., Ltd. www.magicar.com 2W9000Pro /2W9000Pro-2 nd FCC ID : O44JR561FM907 USER’S GUIDE FCC ID : O44JR561FM907 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. Two-Way FM Remote 2W9000Pro /2W9000Pro-2 nd TABLE OF CONTENTS Page 2 Page 3 1. Safety Information Page 4 2. Remote-Pager : 2W9000Pro, 2W9000Pro - 2 nd w/LCD Page 4 3. Description of Rmote Appearance Page 5 4. Color LCD Page 5 5. LCD Icons Page 6 6. Remote-Pager Button Functions Page 7 7. More Button Functions Page 8 8. Remote-Pager Learn Routine Page 9 9. Alarm Mode Page 9 10. Dual Stage Shock Sensor Page 10 11. Auto-Start Function Page 10 12. Reservation Mode Page 1113. Canceling Reservation Mode Page 1214. Trunk Release Page 13 15. Query Function Page 13 16. Panic Mode Page 13 17. Valet Mode Page 14 18. Timer Start Mode Page 14 19. Safety Shut Down Features Page 14 20. R.P.S (Remote Paging System) Page 15 21. Optional Programmable Features Page 15 Ignition Lock Page 15 Passive Arming Page 15 Turbo Mode Page 16 2 nd car Mode Page 16 22. Optional installaton Features Page 17 Cold Start Mode Page 17 Optional Auxiliary 1 & Auxiliary 2 Page 17 ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍᴍ ᴍᴍᴍᴍᴍᴍᴍᴍ The remote-pager comes with GLO which is a unique color LCD displaythat visually tells the vehicle owner the security status of your car at all times. There are differing icons that will appear on your GLO LCD indicating what your vehicle is currently doing. Safety Information Color LCD Please take these safety precautions under the following conditions: 1. Servicing the vehicle When servicing (i.e. changing the oil, washing your car) your automobile, theMAGICAR system should be in Valet Mode. There is a safety shutdown switch under the hood that deactivates the remote starter function if the hood is open. However, if the switch has been damaged or the switch has been installed improperly, the vehicle may start when Button II is pressed for 2 seconds even if the hood is open. 2. Loaning your vehicle to others Whenever you loan your vehicle to an individual who is not familiar with Compustar,please put the vehicle in Valet mode. This will prevent the vehicle loaner from accidentally activating the MAGICAR auto-security system. 3. For manual transmission vehicles If the MAGICAR 2W9000Pro,2W9000Pro-2 nd is installed in a manual transmission vehicle, extra precautions are required because the MAGICAR does not monitor the gear shift: Important! Under normal circumstances, Reservation Mode is cancelled when a door or hatchback opens. Please verify if the opening of any door or hatchback cancels Reservation Mode. If any of the doors or hatchback is not monitored by MAGICAR because of improper installation or a faulty dome light switch, do not use the MAGICAR and take your vehicle to the dealer immediately for repair. Do not set Reservation Mode when the window(s) are open or if there is anyone inside of the vehicle including animals. Remote-Pager : 2W9000Pro/ 2W9000Pro2 nd w/LCD The model name, 2W9000Pro, 2W9000Pro -2 nd stands for Two Way Frequency Modulation Remote with Liquid Crystal Display . This transmitter that allows you to activate multiple functions by pressing acombination of 4 buttons on the unit in order to transmit signals. Page 4 Page 5 Description of Remote Appearance Front Rear The model name, 2W9000Pro, 2W9000Pro -2 nd stands for 2 Way FM 4 Button Remote. 2W9000Pro-2 nd 2W9000Pro Page 7 Remote-Pager Button Functions 12345678 9 1011 1/2 sec1/2 sec1/2 sec II III IV II - I , I - (I + II) 1/2 sec1/2 sec1/2 sec1/2 sec 2 sec2 sec2 sec Alarm Mode - on/off, RPS - on/off, Siren Off, Starter Kill (Anti-Grind) -on/off AUX 1 AUX 2 Query Function Trunk Release Auto-start Function – on/off Panic, Press I to shut off Siren. Siren Chirps – on/offValet Mode – on/offPassive Arming – on/offTimer Start Mode – on/offTurbo Mode - on/off (2W9000Pro) 2 nd Car-on/off (2W9000Pro-2 nd ) Shock Sensor – on/off Button PressedFor Function 12131415 (I + III) (II + III) (II + IV) (III + IV) (I + III) - (I + II) - (I + IV) - 1/2 sec1/2 sec 2 sec2 sec2 sec Programming Menu 1 - Installer OnlyProgramming Menu 2 - Installer Only Note : "" Represents pressing the button for 2 seconds. " ( ) " Represents simultaneously pressing the buttons. " ( ) " Represents simultaneously pressing the buttons for 2 seconds. Page 6 LCD Icons Indicates that someone is paging you from your vehicle. Display if your car is lock or unlcok Indicates that your remote-pager is transmitting signals to thecontroller unit. Indicates if Vibrator is on or off. Indicates if RPS is on or off.Displays remaining battery life.1. Time Clock. 2. Remainder of the engine running time. Indicates if Timer Mode is on or off. Indicates if Turbo Start Mode is on or off. ( 2W9000Pro ) Indicates if Passive Arming Mode is on or off. 2 nd Vehicle - on/off. ( 2W9000Pro-2 nd ) Indicates that the Shock Sensor has been triggered.Indicates that Shock sensor is turn…

Text truncated - open the document above for the full version.

YoungShin Electronics Co.,LTD Date: 23th of June, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Korea Testing Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Korea Testing Laboratory, on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Korea Testing Laboratory as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (Kim Seon Ja/Engineer) (YoungShin Electronics Co.,LTD) REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

YoungShin Electronics Co.,LTD C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030) E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material YoungShin Electonics Co.,LTD would like the following documents regarding this submission for FCC ID : O44JR561FM907 : to be kept confidential. 1. Block Diagram 2. Schematic Diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 23th of June , 2006 By Seon Ja Signature Printed Title : Assistant Manager ============================================================

1 Helen Zhao Subject: FW: Youngshin Electronics Co.,Ltd., FCC ID: O44JR561FM907, Assessment NO.: AN06T5940, Notice#1 Test_report(TX).pd f External photo.pdf From: skcho Sent: Wednesday, July 12, 2006 6:26 PM To: Helen Zhao Subject: Re: Youngshin Electronics Co.,Ltd., FCC ID: O44JR561FM907, Assessment NO.: AN06T5940, Notice#1 Dear Helen I attache revised external photo and test report. Thankyou. Best Regards, sung-kyu Cho > -----Original Message----- > From: Helen Zhao > Sent: Wednesday, July 12, 2006 5:30 PM > To: Helen Zhao > Subject: Youngshin Electronics Co.,Ltd., FCC ID: O44JR561FM907, > Assessment NO.: AN06T5940, Notice#1 > > > Question #1: Please provide additional external photos to show 4 buttons. > > Question #2: Page 9 of the test report indicates that "The upper frequency range of this test was 5 GHz". Since the fundamental frequency is 907.1695MHz, based upon FCC15.33(a), you should investigate upto the 10th harmonic of the highest fundamental frequency, which is 9.1GHz. Please provide additional radiated spurious emission test from 5-9.1GHz. > > Best Regards, > Helen Zhao > > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. > > > >

O44JR561FM907 Product Bottom.JPG

O44JR561FM907 PCB Top.JPG O44JR561FM907 PCB Bottom.JPG

O44J O44JO44J O44JR561FM907 Circuit Descriptions. R561FM907 Circuit Descriptions.R561FM907 Circuit Descriptions. R561FM907 Circuit Descriptions. (Block1, 2, 3, 4, 5, 6, 17 is Logic part and another block is RF part) Block 1: The Battery supply the power of 1.5volts to the Regulator. Block 2: This is the 3volts Regulator circuit by U101, D100, L100, TC101, TC102. Block 3: The Buttons of this product. When being pressed this remote starts to work. Block 4: This is the micro-controller U100(Micro-controller) reads the button and make the radio transmission circuits work. Block5: This is the real time circuit XT100 supply the real time clock to the U100. Block6: This is the radio power control circuit by U100. U1 make radio frequency circuit (B7) enable by Block6. Block7: U1 can make the modulation by this block. By switching (between 0V and 3V) at C43 the frequency modulation is done. Block8: This is the basic oscillation circuit to radiate the radio frequency. Oscillates 907.1695MHz by U2, XT3, VC2. Block9: Besides 907.1695MHz will be removed by first filter (L17, C37). Block10: Besides 907.1695MHz will be removed by second filter (C33, C34, L12, L13). Block11: This is the Low Noise Amplify and SAW filter circuit by Q1, Q2, L21, L3, SAW1. Block 12: This is the First local Frequency oscillator(885.7695MHz) circuit by XT2, Q5, Q7, L10, L16. Block 13: This is the First mixer (21.4MHz) circuit by Q3, L7, MCF1. Block 14: This is the Second local frequency oscillator circuit by XT1, R14, C21, C22. Block 15: This is the Second mixer (455KHz) circuit by U1, FT2. Block 16: This is the Discriminator circuit by U1, FT1. Block 17: This is the reception power control circuit by U1.

< FCC ID : < FCC ID : < FCC ID : < FCC ID : O44J O44JO44JO44JR561FM907 R561FM907R561FM907R561FM907 > > > > Transmission Data Format Transmission Data FormatTransmission Data FormatTransmission Data Format Leading_A Leading_ALeading_ALeading_A BIT0 BIT0BIT0BIT0 BIT1 BIT1BIT1BIT1 End EndEndEnd Data DataDataData Format Format Format Format 1Word 1Word 1Word 1Word Data DataDataData Format FormatFormatFormat Content ContentContentContent - 1-Word Data Time Length : 64msec ~ 74msec - At One time press button to transmit data of 8-word - 8-Word Data Time Length : 512msec ~592msec End Pulse - - - - - - 10Bit0 Leading_A Total 35BIT Leading_A - - - - - 9msce 55msec ~ 65msec 64msec ~ 74msec 740usc 740usc740usc740usc 1480 / 1480us 1480 / 1480us1480 / 1480us1480 / 1480us 1110/1110usc 1110/1110usc1110/1110usc1110/1110usc 740/740usc 740/740usc740/740usc740/740usc

KTL Korea Testing Laboratory Page 1 of 14 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Sung-Kyu Cho, Engineer Seok-Jin Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 06-1341-023-1 Name and address of the applicant Youngshin Electronics Co., Ltd. C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : Jun 29, 2006 Test item(s) ; Remote Control/Security Device Transceiver (Two Way Car Alarm System) Model/type ref. ; 2W9000Pro/2W9000Pro-2 nd Manufacturer ; Youngshin Electronics Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : O44JR561FM907 -Note : Test report(Vertification) of Receiver portion of this unit is issued on Ref. Report No. 06-341-023-02. Test date : July 4, 2006 Issue date : July 7, 2006 Ref. Report No. 06 – 1341 – 023 – 1 Page 2 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement II. GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) III. RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data IV. OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 13 V. TEST EQUIPMENTS USED FOR MEASUREMENT 14 Ref. Report No. 06 – 1341 – 023 – 1 Page 3 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 I. GENERAL INFORMATION 1. Grantee’s Name and : Youngshin Electronics Co., Ltd. Mailing Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea 2. Manufacturer's Name and : Youngshin Electronics Co., Ltd. Mailing Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 907.1695 MHz 3.2 Type of Emission : Pulse Coded Signal 3.3 Power Supply : DC 1.5 V (Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-2003 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : July 4, 2006 Ref. Report No. 06 – 1341 – 023 – 1 Page 4 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 II. GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 06 – 1341 – 023 – 1 Page 5 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, voice or video, and the radio control of toys ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 06 – 1341 – 023 – 1 Page 6 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 III. RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier …
