O44JR200AMENCar Alarm System

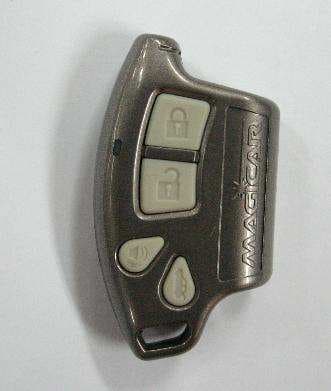

USER’S GUIDE By Youngshin Electronics Co., Ltd. www.magicar.com FCC ID : O44JR200AMEN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. User’s GUIDE TABLE OF CONTENTS Safety InformationRemote : R200 Remote Button FunctionsRemote Learning RoutineKeyless EntryAlarm ModeTrunk ReleasePanic ModeValet ModeOptional Programmable Features Ignition LockPassive Locking Optional Installation Features Door pulse Duration Flashing Signal LightAnti-jacking Page 4Page 4Page 5Page 5Page 6Page 6Page 7Page 7Page 7Page 8Page 8 Page 8 Page 8 Page 8Page 8Page 8 Page 3 User’s GUIDE The model name, R200 sta nds for One Way AM 4 Button Remote. Safety Information Please take these safety precautions into consideration, under the following conditions : Page 4 1. Servicing the vehicle When servicing your automobile (i.e. changing the oil, washing your car), the Magicar system should be in Valet Mode. 2. Loaning your vehicle to others Whenever you loan your vehicle to an individual who is not familiar with Magicar, please put the vehicle in Valet mode. This will prevent the vehicle barrower from accidentally activating the Magicar auto-security system. Remote Page 5 Remote Button Functions 123456789 10 Lock 0.5 sec0.5 sec0.5 sec0.5 sec Unlock Button Press Function 2 sec Panic, Press Lock to shut off Siren Valet Mode - on/offSiren Chirps for Lock /Unlock - on/off 0.5 sec Ignition Lock - on/off 0.5 sec Passive Arming - on/off 0.5 sec Shock Sensor - on/off 2 sec Trunk Release 2 sec Programming Menu - Installer Only Note : "" Means pressing the button for 2 seconds. " () " Means simultaneously pressing the buttons. " () " Means simultaneously pressing the buttons for 2 seconds. Remote Learning Routine The Magicar will allow up to three remotes to be programmed to one vehicle.Please perform the following procedure to add or reprogram additional remotes. Step1: Activate Valet/ Programming mode by manually turning the ignition on and off three times (between Acc and On) with the key within a 7 second period. The parking lights will flash once with successful completion of this step. You can exit Valet Mode only by pressing buttons simultaneously. To arm the vehicle, press the button .To disarm the vehicle, press the button. If pressing the arm/disarm buttons does not arm/disarm the vehicle, you will need torelease the button and try again, as the remote stops transmitting as soon as theLED stops flashing.Press the buttons for a 0.5 second to mute the vehicle siren when arming or disarming your vehicle. Keep in mind that your siren will still be activatedfor all other modes(i.e.panic or alarm trigger) regardless of whether or not your sirenis in mute mode. The siren will be mute only when arming or disarming your vehicle.When the alarm is armed, the starter kill function (an optional feature provided byyour installer) is activated. This feature disengages the starter mechanism on yourvehicle and prevents it from starting, even with a key.To lock the vehicle, pressing the button for a 0.5 second. To unlock the vehicle, press the button for a 0.5 second. If the pressing of thelock/unlock buttons does not lock/unlock the doors, you will need to release thebutton and try again, as the remote stops transmitting as soon as the LED stopsflashing. If the button is pressed for 2 seconds, it will panic the system. Page 7 Keyless Entry Alarm Mode Page 6 Step2 : Within a 7 second period after cycling the ignition for the 3 rd time, Press the button for a 0.5 second. The parking lights will flash once to confirm that the transmitter has been programmed. You can continue programming additional remotes. The parking lights will flash two times when the programming mode has expired. Note : If you lose your remote after you have armed the vehicle, use your key to open the door. The siren will go off. Turn the ignition on and off, 3 times with your key to shut down the alarm and put the system into valet mode. You can cancel valet mode with a remote later on. See: Valet mode, on page 7. Trunk Release Press the button for 2 seconds, in order to unlock and release your trunk door. If pressing the trunk release button does not release the trunk, you will need torelease the button and try again, as the remote stops transmitting as soon as theLED stops flashing.Note that the trunk release function will not only release the trunkbut will unlock the all doors as well. Panic Mode If Anti-Jacking option has been programmed (ask your dealer if you would like to have this option) and the Ignition-Kill has been installed , Panic Mode works as Anti-Jacking if the car key in the ignition. In Anti-Jackingmode is activated while key is in the ignition, a) the Siren will go off for 1.5 minutes, and b) Ignition-Kill will be activated after the first 30 seconds. This is to give a 30 second warning to the hijacker, then to disconnect the ignition to stop the vehicle. Press the button for 2 seconds to enter Panic Mode. In this mode, the car will bearmed,if not armed already, and the siren will be activated and the parking lights will beflashed. In order to disengage Panic Mode, press the button.Then, press the button for a 0.5 second to unlock/ disarm your vehicle. Valet Mode While the vehicle is in valet mode, the only feature is the keyless entry and optional auxiliaryfunctions.In order to enter Valet mode, press the buttons simultaneously for a 0.5 sec- ond . In order to manually enter Valet Mode, insert your car key into the ignition and turn the ignition on and off (between ACC and ON) three times within 7 seconds Page 9 Page 8 OPTIONAL PROGRAMMABLE FEATURES Ignition Lock These additio…

Text truncated - open the document above for the full version.

YoungShin Electronics Co.,LTD Date: 23th of June, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Korea Testing Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Korea Testing Laboratory, on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Korea Testing Laboratory as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (Kim Seon Ja/Engineer) (YoungShin Electronics Co.,LTD) REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

YoungShin Electonics Co.,LTD C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea(403-030) E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material YoungShin Electonics Co.,LTD would like the following documents regarding this submission for FCC ID : O44JR200AMEN : to be kept confidential. 1. Block Diagram 2. Schematic Diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 23th of June , 2006 By Seon Ja Signature Printed Title : Assistant Manager ============================================================

O44JR200AMEN PCB Bottom.jpg

044J 044J044J 044JR200AMEN R200AMENR200AMEN R200AMEN Circuit Descriptions. Circuit Descriptions. Circuit Descriptions. Circuit Descriptions. Block1 : The Buttons of this product. When Being pressed this remote starts to work. Block2 : The Battery supply the power of +DC12 volts to the circuits Block3 : This is the LED display Block4 : This is the Integrated circuit U1(Integrated circuit ) reads the button and make the radio transition circuits’ work. Block5 : This is the radio power control circuit by U1. U1 make radio frequency circuits(B6.B7) enable by Block5. Block6 : This is the basic oscillation circuit to radiate the radio frequency. (433.920MHz by SAW1) And By switching(between 0v and 3V) at R2 the frequency modulation is done. Block7 : The basic frequency 433.920MHz of Block7 will be amplified at this by Q1. Block8 : Besides 433.920MHz will be removed by filter(L3,C6,C10).

< FCC ID : < FCC ID : < FCC ID : < FCC ID : O44JR200AMEN > O44JR200AMEN >O44JR200AMEN >O44JR200AMEN > Transmission Data Format Transmission Data FormatTransmission Data FormatTransmission Data Format S SSSYNC YNCYNCYNC BIT0 BIT0BIT0BIT0 BIT1 BIT1BIT1BIT1 Data DataDataData Format Format Format Format 1Word 1Word 1Word 1Word Data DataDataData Format FormatFormatFormat Content ContentContentContent - When press button will repeat transmit data of 1-Wo rd and open button stop transmit. - 1-Word Data Time Length : 70msec ~ 73msec 4Bit Data 4Bit Data 4Bit Data 4Bit Data 20Bit Address (ex 100110 - - - 0100) 20Bit Address (ex 100110 - - - 0100)20Bit Address (ex 100110 - - - 0100)20Bit Address (ex 100110 - - - 0100) Sync SyncSyncSync Total : 24 BIT DATA Total : 24 BIT DATATotal : 24 BIT DATATotal : 24 BIT DATA 18msce 18msce18msce18msce 55msec 55msec 55msec 55msec BIT1 BIT1BIT1BIT1 1760usc/520usc 1760usc/520usc1760usc/520usc1760usc/520usc BIT0 BIT0BIT0BIT0 520usc/1760usc 520usc/1760usc520usc/1760usc520usc/1760usc 520usc/17.95msce 520usc/17.95msce 520usc/17.95msce 520usc/17.95msce

KTL Korea Testing Laboratory Page 1 of 14 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Sung-Kyu Cho, Engineer Seok-Jin Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 06-1341-017 Name and address of the applicant Youngshin Electronic Co., Ltd. C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon- dong, Bupyeong-gu, Inchen, Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : Jun 05, 2006 Test item(s) ; Security/Remote Control Transmitter (Car Alarm System) Model/type ref. ; R200 Manufacturer ; Youngshin Electronic Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : O44JR200AMEN Test date : Jun 10, 2006 Issue date : July 07, 2006 Ref. Report No. 06 - 1341 – 017 Page 2 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement II. GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) III. RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data IV. OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 13 V. TEST EQUIPMENTS USED FOR MEASUREMENT 14 Ref. Report No. 06 - 1341 – 017 Page 3 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 I. GENERAL INFORMATION 1. Grantee’s Name and : Youngshin Electronic Co., Ltd. Mailing Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea 2. Manufacturer's Name and : Youngshin Electronic Co., Ltd. Mailing Address C-7F, Bupyung Woolim Lion’s Vally 425, Cheongcheon-dong, Bupyeong-gu, Inchen, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 433.92 MHz 3.2 Type of Emission : Pulse Coded Signal 3.3 Power Supply : DC 12.0 V (Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-2003 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : Jun 10, 2006 Ref. Report No. 06 - 1341 – 017 Page 4 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 II. GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 06 - 1341 – 017 Page 5 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, voice or video, and the radio control of toys ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 06 - 1341 – 017 Page 6 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 III. RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL absorber-lined…
