O6RBKM-ASpeed/Cadence Monitor

Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 1 MOUNTING THE BKM1 BIKE SPEED MONITOR ON TO A BICYCLE FRAME The BKM1 Bike Speed Monitor mounts easily onto the rear triangle of a bike frame. Position the magnet on a spoke at the same level as the monitor. • Attach both pieces securely. Any sliding motion will affect accuracy. • The bike magnet should sweep within 3 mm of the front of the monitor housing on a path perpendicular to the top edge of the monitor. Any misalignment will affect accuracy. PAIRING THE BKM1 BIKE SPEED MONITOR WITH A SPORTS MONITORING WATCH The BKM1 Bike Speed Monitor must “pair” with an ANT-enabled sports monitoring watch in order to display performance data to the user. To pair your monitor: • Bring the BKM1 Bike Speed Monitor within 10-30 inches (25-75 cm) of the sports monitoring watch. • Ensure that you are standing at least 72 inches (183 cm) away from any other ANT-enabled bike speed monitor. You can be in proximity to other ANT-enabled devices. • After the BKM1 Bike Speed Monitor pairs with the sports monitoring watch, the bike icon appears on the watch’s LCD display. SPECIFICATIONS Size (max dimensions): 31 x 29 x 14 mm Weight: 14 g Power: Single user-replaceable CR-2032 battery Battery life: 5 years assuming use of 1 hr/day at 20°C Storage temp: -20°C to +70°C Operating temp: -10°C to +50°C User-interface: Auto on/off RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol Communication range: > 3 m (receiver dependent) Regulatory compliance: FCC, IC, and CE ready BKM1 Wireless Bike Speed Monitor Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 2 FCC Compliance NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the product warranty and the user’s authority to operate this equipment under Part 15 regulations. REPLACING THE BATTERY ON YOUR BKM1 BIKE SPEED OR CADENCE MONITOR Your BKM1 Wireless Bike Speed Monitor uses one CR2032 3V lithium battery, which is estimated to last five years. The battery hatch is located on the back of the speed monitoring unit. Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 3 Warranty Information VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL VENDOR BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Warranty does not cover the receiver or the transmitter battery, damage due to misuse, abuse, accidents or non-compliance with the precautions; improper maintenance, commercial use, cracked or broken cases. Some jurisdictions do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. VENDOR retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. To obtain warranty service, contact your local VENDOR authorized dealer. Or call VENDOR Customer Service at one of the numbers shown below, for shipping instructions and an RMA tracking number. The unit should be securely packed with the tracking number clearly written on the outside of the package. The unit should then be sent, freight charges prepaid, to any VENDOR warranty center. A copy of the original invoice is required as the proof of purchase for warranty repairs. Products sold through online auctions are not eligible for rebates or other sp…

Text truncated - open the document above for the full version.

Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 1 MOUNTING THE BKM2 BIKE CADENCE MONITOR ON TO A BICYCLE FRAME The BKM2 Bike Cadence Monitor mounts easily onto the bottom of the rear triangle of a bike frame. Position the magnet on the inside of one of the crank arms. • Attach both pieces securely. Any sliding motion will affect accuracy. • As the pedal rotates, the bike magnet should sweep within 3 mm of the front of the monitor housing on a path perpendicular to the top edge of the monitor. Any misalignment will affect accuracy. PAIRING THE BKM2 BIKE CADENCE MONITOR WITH A SPORTS MONITORING WATCH The BKM2 Bike Cadence Monitor must “pair” with an ANT-enabled sports monitoring watch in order to display performance data to the user. To pair your monitor: • Bring the BKM2 Bike Cadence Monitor within 10-30 inches (25-75 cm) of the sports monitoring watch. • Ensure that you are standing at least 72 inches (183 cm) away from any other ANT-enabled bike cadence monitor. You can be in proximity to other ANT-enabled devices. • After the BKM2 Bike Cadence Monitor pairs with the sports monitoring watch, the bike icon appears on the watch’s LCD display. SPECIFICATIONS Size (max dimensions): 31 x 29 x 14 mm Weight: 14 g Power: Single user-replaceable CR-2032 battery Battery life: 5 years assuming use of 1 hr/day at 20°C Storage temp: -20°C to +70°C Operating temp: -10°C to +50°C User-interface: Auto on/off RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol Communication range: > 3 m (receiver dependent) Regulatory compliance: FCC, IC, and CE ready BKM2 Wireless Bike Cadence Monitor Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 2 FCC Compliance NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the product warranty and the user’s authority to operate this equipment under Part 15 regulations. REPLACING THE BATTERY ON YOUR BKM2 WIRELESS BIKE CADENCE MONITOR Your BKM2 Wireless Bike Cadence Monitor uses one CR2032 3V lithium battery, which is estimated to last five years. The battery hatch is located on the back of the speed monitoring unit. Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 3 Warranty Information VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL VENDOR BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Warranty does not cover the receiver or the transmitter battery, damage due to misuse, abuse, accidents or non-compliance with the precautions; improper maintenance, commercial use, cracked or broken cases. Some jurisdictions do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. VENDOR retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. To obtain warranty service, contact your local VENDOR authorized dealer. Or call VENDOR Customer Service at one of the numbers shown below, for shipping instructions and an RMA tracking number. The unit should be securely packed with the tracking number clearly written on the outside of the package. The unit should then be sent, freight charges prepaid, to any VENDOR warranty center. A copy of the original invoice is required as the proof of purchase for warranty repairs. Products sold through online …

Text truncated - open the document above for the full version.

Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 1 MOUNTING THE BKM3 BIKE SPEED OR CADENCE MONITOR ON TO A BICYCLE FRAME The BKM3 Bike Speed or Cadence Monitor mounts easily onto a bike frame. Measurement of bike speed or bike cadence can be selected by with the small micro-switch at the base of the unit. To measure speed, position the monitor on the back of the rear triangle and position the bike magnet pickup on the spoke. To measure cadence, position the monitor on the bottom of the rear triangle and position the bike magnet pickup on the crank arm. • Attach all pieces securely. Any sliding motion will affect accuracy. • The bike magnet should sweep within 3 mm of the front of the monitor housing on a path perpendicular to the top edge of the monitor. Misalignment will affect accuracy. PAIRING THE BKM3 BIKE SPEED OR CADENCE MONITOR WITH A SPORTS MONITORING WATCH The BKM3 Bike Speed or Cadence Monitor must “pair” with an ANT-enabled sports monitoring watch in order to display performance data to the user. To pair your monitor: • Bring the BKM3 Bike Speed or Cadence Monitor within 10-30 inches (25-75 cm) of the sports monitoring watch. • Ensure that you are standing at least 72 inches (183 cm) away from any other ANT-enabled bike speed or cadence monitor. You can be in proximity to other ANT-enabled devices. • After the BKM3 Bike Speed or Cadence Monitor pairs with the sports monitoring watch, the bike icon appears on the watch’s LCD display. BKM3 Wireless Bike Speed or Cadence Monitor, Selectable Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 2 SPECIFICATIONS Size (max dimensions): 31 x 29 x 14 mm Weight: 14 g Power: Single user-replaceable CR-2032 battery Battery life: 5 years assuming use of 1 hr/day at 20°C Storage temp: -20°C to +70°C Operating temp: -10°C to +50°C User-interface: Auto on/off RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol Communication range: > 3 m (receiver dependent) Regulatory compliance: FCC, IC, and CE ready FCC Compliance NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the product warranty and the user’s authority to operate this equipment under Part 15 regulations. Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 3 REPLACING THE BATTERY ON YOUR BKM3 BIKE SPEED OR CADENCE MONITOR Your BKM3 Bike Speed or Cadence Monitor uses one CR2032 3V lithium battery, which is estimated to last five years. The battery hatch is located on the back of the speed monitoring unit. Warranty Information VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL VENDOR BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Warranty does not cover the receiver or the transmitter battery, damage due to misuse, abuse, accidents or non-compliance with the precautions; improper maintenance, commercial use, cracked or broken cases. Some jurisdictions do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. VENDOR retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. To obtain warranty service, contact your local VENDOR authorized dealer. Or call VENDOR Customer Service at one of the numbers shown below, for shipping instructions and an RMA t…

Text truncated - open the document above for the full version.

Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 1 MOUNTING THE BKM4 BIKE SPEED+CADENCE MONITOR ON TO A BICYCLE FRAME The BKM4 Bike Speed+Cadence Monitor mounts easily onto a bike frame. The speed monitoring unit is positioned on the back of the rear triangle; the cadence monitoring unit is positioned on the bottom of the rear triangle. One bike magnet pickup is attached to a spoke for use with the speed monitoring unit; the other is attached to the inside of the crank arm for use with the cadence monitoring unit. • Attach all pieces securely. Any sliding motion will affect accuracy. • The bike magnet pickups must pass across the monitoring units. Misalignment will affect accuracy. PAIRING THE BKM4 BIKE SPEED+CADENCE MONITOR WITH A SPORTS MONITORING WATCH The BKM4 Bike Speed+Cadence Monitor must “pair” with an ANT-enabled sports monitoring watch in order to display performance data to the user. To pair your monitor: • Bring the BKM4 Bike Speed+Cadence Monitor within 10-30 inches (25-75 cm) of the sports monitoring watch. • Ensure that you are standing at least 72 inches (183 cm) away from any other ANT-enabled bike speed or cadence monitor. You can be in proximity to other ANT-enabled devices. • After the BKM4 Bike Speed+Cadence Monitor pairs with the sports monitoring watch, the bike icon appears on the watch’s LCD display. BKM4 Wireless Bike Speed+Cadence Monitor Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 2 SPECIFICATIONS Size (max dimensions): 31 x 29 x 14 mm Weight: 14 g Power: Single user-replaceable CR-2032 battery Battery life: 5 years assuming use of 1 hr/day at 20°C Storage temp: -20°C to +70°C Operating temp: -10°C to +50°C User-interface: Auto on/off RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol Communication range: > 3 m (receiver dependent) Regulatory compliance: FCC, IC, and CE ready FCC Compliance NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the product warranty and the user’s authority to operate this equipment under Part 15 regulations. Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 3 REPLACING THE BATTERY ON YOUR BKM4 BIKE SPEED+CADENCE MONITOR Your BKM4 Bike Speed+Cadence Monitor uses one CR2032 3V lithium battery, which is estimated to last five years. The battery hatch is located on the back of the speed monitoring unit. Warranty Information VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL VENDOR BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Warranty does not cover the receiver or the transmitter battery, damage due to misuse, abuse, accidents or non-compliance with the precautions; improper maintenance, commercial use, cracked or broken cases. Some jurisdictions do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. VENDOR retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. To obtain warranty service, contact your local VENDOR authorized dealer. Or call VENDOR Customer Service at one of the numbers shown below, for shipping instructions and an RMA tracking number. The unit should be securely packed with the tracking number clearly written on the outside of the package. The unit should the…

Text truncated - open the document above for the full version.

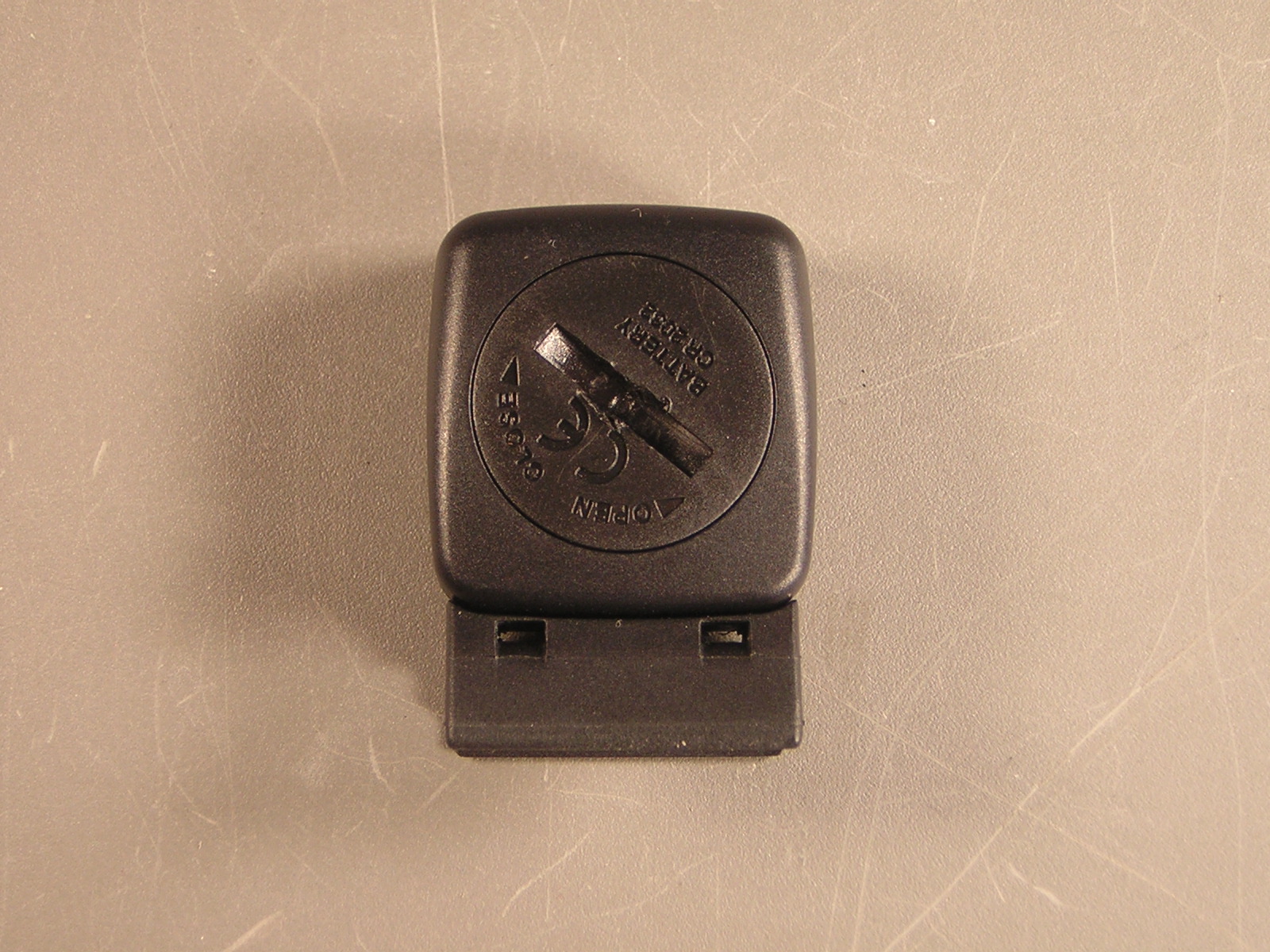

REPORT: EF0699-1 FCC ID: O6RBKM-A EXHIBIT: External Photos MODEL: BKM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EF0699-1 FCC ID: O6RBKM-A EXHIBIT: External Photos MODEL: BKM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

BKM1- Wireless Bike Speed Monitor (Generic) D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DYNASTREAM INNOVATIONS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DYNASTREAM INNOVATIONS IS PROHIBITED. DYNASTREAM INNOVATIONS 0.C 04/28/06 SHEET: 1 OF 1 DATE: REV: TITLE: COMMENTS: PROPRIETARY AND CONFIDENTIAL. 33 16.7 19 29 46.1 28.1 24.8 32.9 29 12.8 xxx Lot Code Stamped Here DRAWING NOT FOR PRODUCTION BACK FRONT (MADE IN HONG KONG) BKM1- Wireless Bike Speed Monitor FCC ID: O6RBKM-A IC: 3797A-BKMA MADE IN HONG KONG FRONT (MADE IN CHINA) BKM1- Wireless Bike Speed Monitor FCC ID: O6RBKM-A IC: 3797A-BKMA MADE IN CHINA BATTERY CR2032 - ALL DIMENSIONS IN MILLIMETERS. - ALL DIMENSIONS ARE APPROXIMATE, DO NOT SCALE DRAWING. - ***VENDOR TO NOTE MATERIALS HERE. BLACK ABS PLASTIC.*** - *** VENDOR TO SEND OFFICIAL COSMETIC DRAWING FOR APPROVAL.*** - ON BATTERY COVER, MARKINGS TO BE TOOLED INTO TEXTURED PLASTIC. - ON BACK SIDE, LOT CODE TO BE HOT STAMPED IN APPROXIMATE LOCATION SHOWN. - ON FRONT SIDE, “ANT SPORT”, “FCC”, “CE”, “MODEL NUMBER-MODEL NAME”, “COUNTRY OF MANUFACTURE”, “PRODUCT/CERTIFICATION LABEL”, “WEEE MARK”, “NO LEAD” TO BE PAD PRINTED DIRECTLY ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE 8402C. - ON FRONT SIDE, CUSTOMER LOGO TBD TO BE PAD PRINTED DIRECTLY ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE TBD. xxx Date Code Stamped Here xxx Date Code Stamped Here

BKM2- Wireless Bike Cadence Monitor (Generic) D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DYNASTREAM INNOVATIONS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DYNASTREAM INNOVATIONS IS PROHIBITED. DYNASTREAM INNOVATIONS 0.C 04/28/06 SHEET: 1 OF 1 DATE: REV: TITLE: COMMENTS: PROPRIETARY AND CONFIDENTIAL. 33 16.7 19 29 46.1 28.1 24.8 32.9 29 12.8 - ALL DIMENSIONS IN MILLIMETERS. - ALL DIMENSIONS ARE APPROXIMATE, DO NOT SCALE DRAWING. - ***VENDOR TO NOTE MATERIALS HERE. BLACK ABS PLASTIC.*** - *** VENDOR TO SEND OFFICIAL COSMETIC DRAWING FOR APPROVAL.*** - ON BATTERY COVER, MARKINGS TO BE TOOLED INTO TEXTURED PLASTIC. - ON BACK SIDE, LOT CODE TO BE HOT STAMPED IN APPROXIMATE LOCATION SHOWN. - ON FRONT SIDE, “PRODUCT/CERTIFICATION LABEL”, “WEEE MARK”, “NO LEAD” TO BE PAD PRINTED DIRECTLY ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE 8402C. - ON FRONT SIDE, CUSTOMER LOGO TBD TO BE PAD PRINTED DIRECTLY ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE TBD. xxx Lot Code Stamped Here DRAWING NOT FOR PRODUCTION BACK FRONT (MADE IN HONG KONG) BKM2- Wireless Bike Cadence Monitor FCC ID: O6RBKM-A IC: 3797A-BKMA MADE IN HONG KONG FRONT (MADE IN CHINA) BKM2- Wireless Bike Cadence Monitor FCC ID: O6RBKM-A IC: 3797A-BKMA MADE IN CHINA BATTERY CR2032 xxx Date Code Stamped Here xxx Date Code Stamped Here

BKM4- Wireless Bike Speed and Cadence Monitor (Generic) D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DYNASTREAM INNOVATIONS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DYNASTREAM INNOVATIONS IS PROHIBITED. DYNASTREAM INNOVATIONS 0.C 04/28/06 SHEET: 1 OF 1 DATE: REV: TITLE: COMMENTS: PROPRIETARY AND CONFIDENTIAL. 33 16.7 19 29 46.1 28.1 24.8 32.9 29 12.8 xxx Lot Code Stamped Here DRAWING NOT FOR PRODUCTION BACK FRONT (MADE IN HONG KONG) BKM4- Wireless Bike Speed and Cadence Monitor FCC ID: O6RBKM-A IC: 3797A-BKMA MADE IN HONG KONG FRONT (MADE IN CHINA) BKM4- Wireless Bike Speed and Cadence Monitor FCC ID: O6RBKM-A IC: 3797A-BKMA MADE IN CHINA BATTERY CR2032 - ALL DIMENSIONS IN MILLIMETERS. - ALL DIMENSIONS ARE APPROXIMATE, DO NOT SCALE DRAWING. - ***VENDOR TO NOTE MATERIALS HERE. BLACK ABS PLASTIC.*** - *** VENDOR TO SEND OFFICIAL COSMETIC DRAWING FOR APPROVAL.*** - ON BATTERY COVER, MARKINGS TO BE TOOLED INTO TEXTURED PLASTIC. - ON BACK SIDE, LOT CODE TO BE HOT STAMPED IN APPROXIMATE LOCATION SHOWN. - ON FRONT SIDE, “ANT SPORT”, “FCC”, “CE”, “MODEL NUMBER-MODEL NAME”, “COUNTRY OF MANUFACTURE”, “PRODUCT/CERTIFICATION LABEL”, “WEEE MARK”, “NO LEAD” TO BE PAD PRINTED DIRECTLY ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE 8402C. - ON FRONT SIDE, CUSTOMER LOGO TBD TO BE PAD PRINTED DIRECTLY ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE TBD. xxx Date Code Stamped Here xxx Date Code Stamped Here

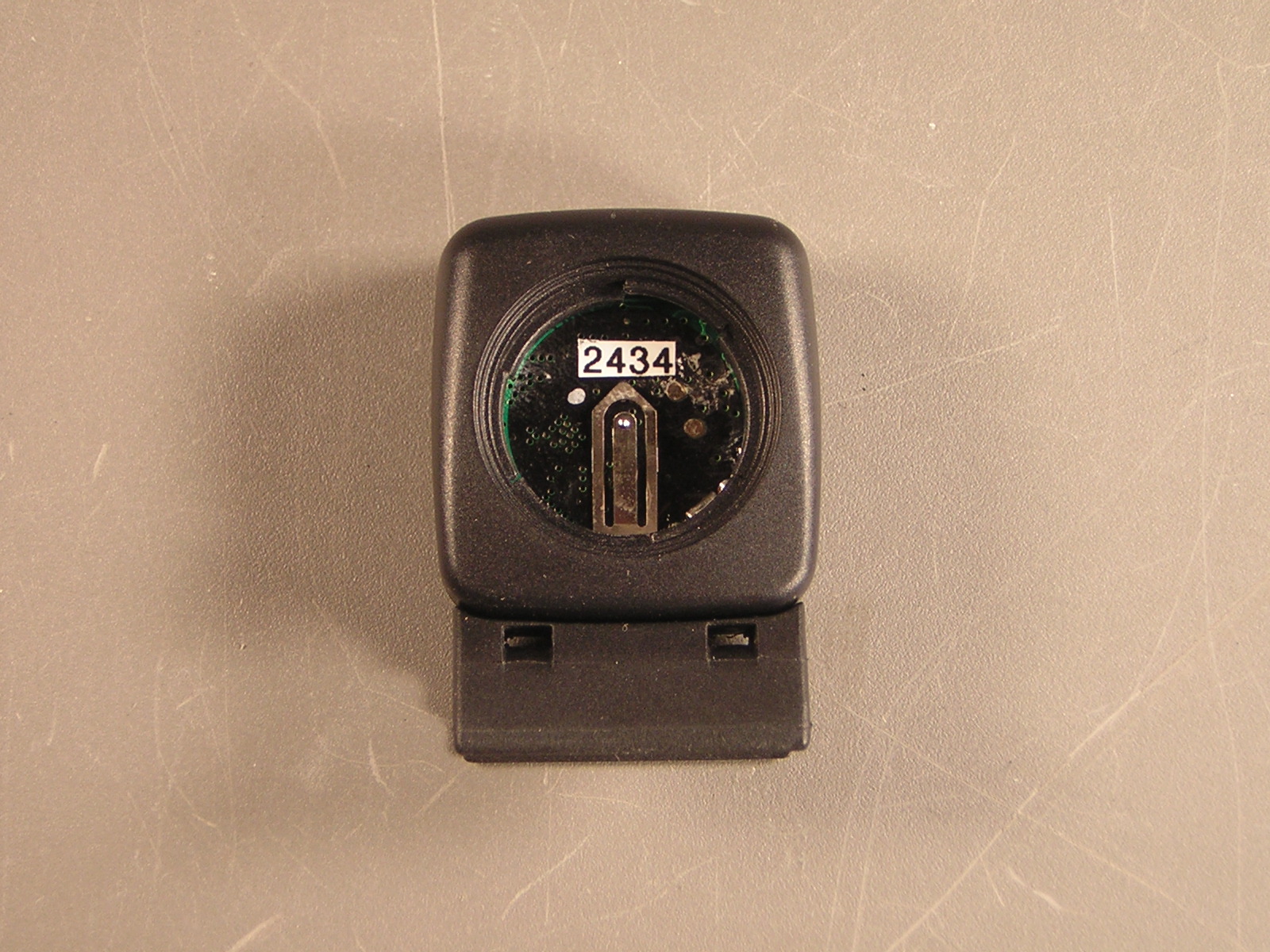

REPORT: EF0699-1 FCC ID: O6RBKM-A EXHIBIT: Internal Photos MODEL: BKM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 1

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EF0699-1 Client Dynastream Innovations, Inc. 228 River Ave Cochrane, Alberta T4C 2C1 Phone 403-932-9292 FRN 0008033557 FCC Part 15.249; RSS-210 Issue 6 Model BKM1 FCC ID O6RBKM-A IC 3797A-BKMA Equipment Type Low Powe…

Text truncated - open the document above for the full version.
