O6RHRM1Telemetry Device

Wearing the HRM1 Heart Rate Monitor Wear the HRM1Heart Rate Monitor directly on your skin, slightly below your breastbone. Wetting both sensors on the back of the Heart Rate Monitor will result in optimum capture of heart rate pulses (wet with water or biogel). The strap should fit snugly enough to remain in place during your exercise session. Proper placement of the Heart Rate Monitor is also important for optimum capture of heart rate pulses. Pairing the HRM1 Heart Rate Monitor with a Sports Monitoring Watch The HRM1Heart Rate Monitor must “pair” with an ANT-enabled Sports Monitoring Watch in order to display Heart Rate data to the user. To do this: ∑ Bring the HRM1Heart Rate Monitor within 10-30 inches (25-75cm) of the Sports Monitoring Watch ∑ Be sure to stand at least 72 inches (183cm) away from any other ANT-enabled Heart Rate Monitor ∑ You can be in proximity to other ANT-enabled devices ∑ After the HRM1Heart Rate Monitor pairs with the Sports Monitoring Watch, the heart rate icon should appear on the watch and you may also be in proximity to other ANT-enabled devices Specifications: Size (max dimensions): 347 x 42 x 22mm (W x H x D) Weight: 29g Strap: Detachable adjustable elastic strap, 425-641mm (L) Power: Single user-replaceable CR-2032 battery Battery life: 3 years assuming use of 1 hr/day at 20°C Storage temp: -20°C to +70°C Operating temp: -10°C to +50°C User-interface: Auto on/off RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol Communication range: > 3 m (receiver dependent) Regulatory compliance: FCC, IC, and CE ready FCC Compliance Part 15 of FCC Interference Limits for Class B Digital Devices The HRM1 complies with Part 15 of FCC Interference Limits for Class B Digital Devices. Documents are on file with the FCC. Section 21 - Emission of Radio Frequency Energy The HRM1 complies with FCC Section 21 - Emission of Radio Frequency Energy. Documents are on file with the FCC. Operational Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

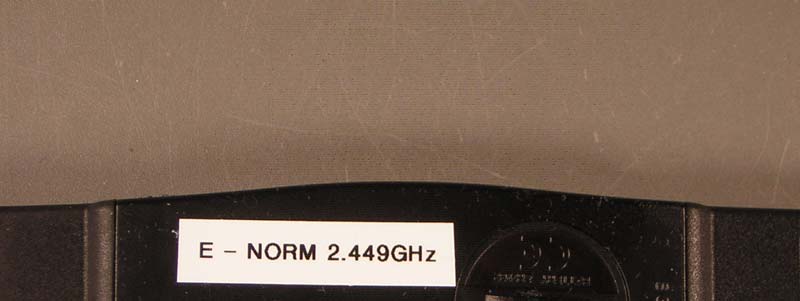

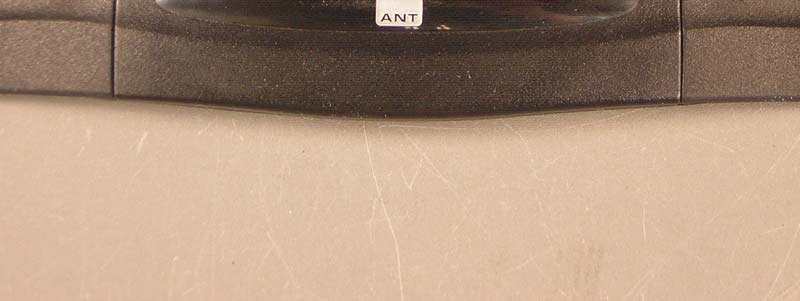

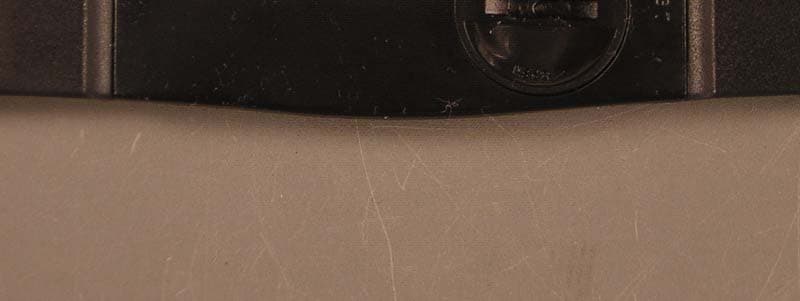

REPORT: EF0585-1 FCC ID: O6RHRM1 EXHIBIT: External Photos MODEL: HRM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EF0585-1 FCC ID: O6RHRM1 EXHIBIT: External Photos MODEL: HRM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

HRM1- Heart Rate Monitor ENLARGED TOP VIEW - DETAIL D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DYNASTREAM INNOVATIONS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DYNASTREAM INNOVATIONS IS PROHIBITED. DYNASTREAM INNOVATIONS 2 08/23/05 SHEET: 1 OF 1 DATE: REV: TITLE: COMMENTS: PROPRIETARY AND CONFIDENTIAL 27 34 TOP VIEW 11 347 81 SIDE VIEW 10 3 7 2 72 81 34 Ø 25 ENLARGED BOTTOM VIEW - DETAIL - ALL DIMENSIONS ARE APPROXIMATE - DO NOT SCALE DRAWING - ALL DIMENSIONS ARE IN MILLIMETERS HRM1- HEART RATE MONITOR xxx Lot Info Stamped Here - CUSTOMER LOGO SHOWN TOP VIEW TO BE PAD PRINTED IN DURABLE INK TO COLOR TO BE SPECIFIED - PRODUCT AND CERTIFICATION LABEL SHOWN IN BOTTOM VIEW TO BE DURABLE WHITE MYLAR WITH DURABLE BLACK SCREENED GRAPHICS FCC ID: O6RHRM1 IC: 3797A-HRM1 MADE IN XXXXXX XXXXXX Customer Logo Here Customer Logo Here XXXXXX Country of Manufacture Info Here

REPORT: EF0585-1 FCC ID: O6RHRM1 EXHIBIT: Internal Photos MODEL: HRM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 1

Test Report Report No EF0585-1 Client Dynastream Innovations, Inc. 228 River Ave Cochrane, Alberta T4C 2C1 Phone 403-932-9292 FRN 0008033557 RSS-210 Issue 6 Model HRM1 FCC ID O6RHRM1 IC 3797A-HRM1 Equipment Type Low Power Communications Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 8/24/05 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EF0585-1 FCC ID: O6RHRM1 IC: 3797A-HRM1 _____________________________________________________________ _____________________________________________________________ Table Of Contents Summary.........................................................................................................................3 Test Methodology............................................................................................................3 Statement of Conformity..................................................................................................4 EUT Configuration...........................................................................................................5 Fundamental Measurement............................................................................................6 Band Edge Measurements..............................................................................................7 Radiated Spurious Emissions.........................................................................................8 Test Equipment Used......................................................................................................9 Terms And Conditions...................................................................................................10 A2LA Accreditation........................................................................................................12 LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 14 Curtis-Straus REPORT: EF0585-1 FCC ID: O6RHRM1 IC: 3797A-HRM1 _____________________________________________________________ _____________________________________________________________ Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.249 and RSS-210(A2.9). The product is the Dynastream Innovations HRM1 Heart Rate Monitor. It is a transmitter that operates at one of 31 channels in the range 2434-2464MHz. The particular frequency for any given sample is chosen by the manufacturer; it cannot be changed by the user. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2003). Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. Fresh batteries were used during testing. The standard battery voltage is 3VDC. The environmental conditions are shown below. Date Temperature Humidity 8/19/05 24.6°C 36% 8/22/05 25.1°C 37% Frequency range investigated: 30MHz – 25GHz Measurement distance: 30MHz – 1GHz 3m 1 – 25GHz 1m LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 14 Curtis-Straus REPORT: EF0585-1 FCC ID: O6RHRM1 IC: 3797A-HRM1 _____________________________________________________________ _____________________________________________________________ Statement of Conformity The HRM1 has been found to conform to the following parts of 47 CFR as detailed below: RSS 210 Part 15 Comments 5.3 15.15(b) There are no controls accessible to the user that vary the output power. 5.2 15.19 The label is shown in the label exhibit. 7.1.5 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 7.1.4 15.203 The antenna for this device is hardwired to the PCB. 2.6 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 7.2.2 15.207 EUT is battery powered. A2.9 15.249 The unit complies with the requirements of 15.249 LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 14 Curtis-Straus REPORT: EF0585-1 FCC ID: O6RHRM1 IC: 3797A-HRM1 _____________________________________________________________ _____________________________________________________________ EUT Configuration EUT Configuration Work Order: F0585 Company: Dynastream Innovations, Inc. Company Address: 228 River Ave Cochrane, Alberta T4C 2C1 Contact: Victor Beda MNSN EUT: HRM1A through H EUT Description: Heart Rate Monitor EUT Max Fre quency: 2465MHz Support Equipment: MNSN None EUT Cables: QtyShielded?LengthFerrites None Unpopulated EUT Ports: QtyReason None Software / Operating Mode Description: HRM1 transmits an approximately 260μs pulse every 246ms in normal operation. The various samples make possible both normal operation and CW mode at the lowest, middle, and highest frequency. LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 14 Curtis-Straus REPORT: EF0585-1 FCC ID: O6RHRM1 IC: 3797A-HRM1 _____________________________________________________________ _____________________________________________________________ Fundamental Measurement LIMIT Quasi-Peak: 50mV/m = 93.9dBμV/m @ 3m [15.249(a)] Note: If Peak measurements meet Quasi-Peak limits, then Quasi-Peak measurements are not required. MEASUREMEN…

Text truncated - open the document above for the full version.

REPORT: EF0585-1 FCC ID: O6RHRM1 EXHIBIT: Setup Photos MODEL: HRM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 Normal Conditions Extreme Conditions REPORT: EF0585-1 FCC ID: O6RHRM1 EXHIBIT: Setup Photos MODEL: HRM1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2 Extreme Conditions – Door Open
