O6RSDM-ASpeed and Distance Monitor

Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 1 USING THE SDM2 SPEED AND DISTANCE MONITOR The SDM2 Speed and Distance Monitor (foot pod) must be attached securely on the shoe of the user as shown. The pod must stay in place on the shoe for optimum accuracy. • Press the button for 1-2 seconds to power on the pod. The red light slowly blinks, indicating the pod is powered on and sending data. If the red light is solid, the pod is not transmitting data and may require service. • After running, press and hold the button to turn off the pod. The red light becomes solid as the button is held and then turns off as the pod powers off. PAIRING THE SDM2 SPEED AND DISTANCE MONITOR WITH A SPORTS MONITORING WATCH The SDM2 Speed and Distance Monitor must “pair” with an ANT-enabled sports monitoring watch in order to display performance data to the user. Pairing is required only for first use and after a battery change. To pair your monitor: • Power on the SDM2 Speed and Distance Monitor. Bring the pod within 10-30 inches (25-75 cm) of the sports monitoring watch. • Ensure that you are standing at least 72 inches (183 cm) away from any other ANT-enabled speed and distance monitor. You can be in proximity to other ANT-enabled devices. • After the SDM2 Speed and Distance Monitor pairs with the sports monitoring watch, the running shoe icon appears on the watch’s LCD display. The pod and the watch remain paired until a battery change. If the watch has previously paired with a different foot pod, subsequent re-pairing is necessary. The re- pairing procedure is similar to pairing except that the SDM2 Speed and Distance Monitor must be started in RF Pair Mode. To power on the pod in RF Pair Mode, press and hold the button for 3-6 seconds. RF Pair Mode lasts for 60 seconds and is indicated by a double-blinking red light. SDM2 Wireless Speed and Distance Monitor Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 2 REPLACING THE BATTERY ON YOUR SDM2 SPEED AND DISTANCE MONITOR Your SDM2 Speed and Distance Monitor uses one AAA battery, which is estimated to last 65-70 hours. Power off the pod after running to lengthen battery life. The battery hatch is located on the front flat end of the monitor and can be opened with a coin. Select a coin that fits the slot on the battery door. Insert the coin into the slot and, applying firm downward pressure, turn the coin counterclockwise to open and remove the battery door. Insert the battery with the positive end first. Replace the battery door. Insert the coin into the slot and, applying firm downward pressure, turn the coin clockwise to close. SPECIFICATIONS Size (max dimensions): 73 (L) x 41 (W) x 25 (H) mm Weight: 40 g Sensors: Dynastream SpeedMax sensor Power: Single user-replaceable AAA battery Battery life: Minimum 65-70 hours run time at 20°C when used as a running pod; up to 2 weeks as an activity monitor Storage temp: -20°C to +70°C Operating temp: -10°C to +50°C Water resistance: 3 ATM for 24 hours User-interface: Wireless sports monitoring watches and other ANT-enabled data-receiving products Speed-distance computation: Dynastream patented SpeedMax algorithms Available data and accuracy: Speed and distance – uncalibrated >97%, calibrated >99% Speed range: 1.0-5.5 m/s (2.2-12.3 mph) RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol Communication range: > 3 m (receiver dependent) Regulatory compliance: FCC, IC, and CE Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 3 FCC Compliance NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the product warranty and the user’s authority to operate this equipment under Part 15 regulations. Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc. 6/6/2006 4 Warranty Information VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or …

Text truncated - open the document above for the full version.

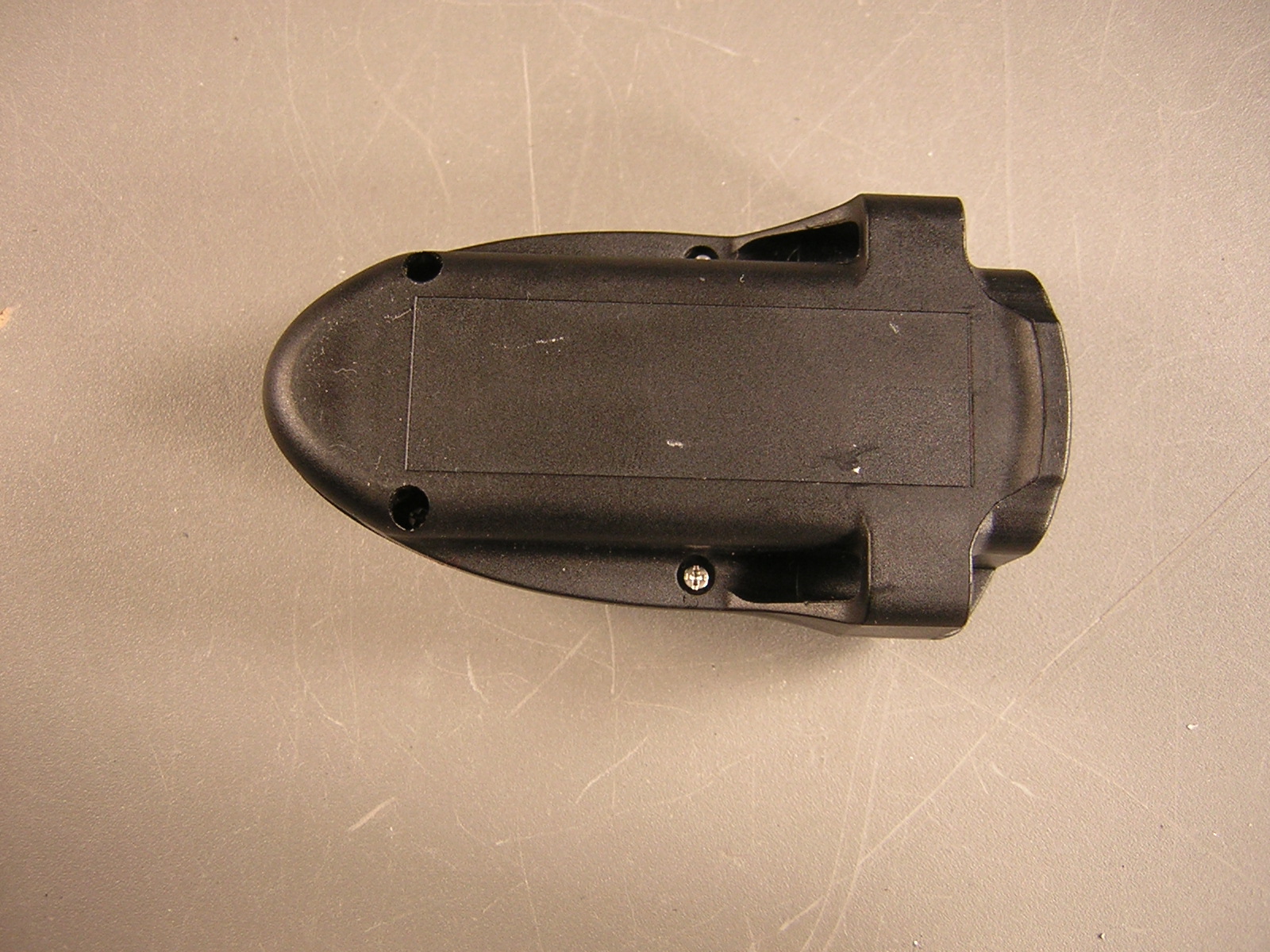

REPORT: EF0759-1 FCC ID: O6RSDM-A EXHIBIT: External Photos MODEL: SDM2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EF0759-1 FCC ID: O6RSDM-A EXHIBIT: External Photos MODEL: SDM2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DYNASTREAM INNOVATIONS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DYNASTREAM INNOVATIONS IS PROHIBITED. PROPRIETARY AND CONFIDENTIAL COMMENTS: TITLE: REV: DATE: SHEET: 1 OF 1 04/28/05 0.E DYNASTREAM INNOVATIONS TOP SIDE BOTTOM (HONG KONG) FRONT NOT FOR PRODUCTION SDM2- Wireless Speed and Distance Monitor (Generic) BOTTOM, ALTERNATE (CHINA) - ALL DIMENSIONS IN MILLIMETERS - ALL DIMENSIONS ARE APPROXIMATE - DO NOT SCALE DRAWING - BLACK ABS POLYLAC PLASTIC FOR ALL PARTS EXCEPT LCD LENS COVER (SAVE SPEC SHEET DIRECTORY AS COSMETIC DRAWING) - GRAPHICS ON BOTTOM CASE ARE SILK-SCREENED (PAD PRINTED) DIRECTLY ON PLASTICS VISIBLY, LEGIBLY AND INDELIBLY WITH INK, PANTONE 8402C - LOT CODE HOT STAMPED- LOT INFO RECORDED IN BUILD SPREADSHEET - DAYTON TO PRODUCE OFFICIAL DRAWING AND SEND TO DYNASTREAM FOR APPROVAL SDM2- Wireless Speed and Distance Monitor FCC ID: O6RSDM-A IC: 3797A-SDMA MADE IN HONG KONG xxx Lot Code Stamped Here xxx Lot Code Stamped Here SDM2- Wireless Speed and Distance Monitor FCC ID: O6RSDM-A IC: 3797A-SDMA MADE IN CHINA 6.26 5.01 22.3411.1819.72 73.10 12.99 23.99 24.02 12.52

REPORT: EF0759-1 FCC ID: O6RSDM-A EXHIBIT: Internal Photos MODEL: SDM2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EF0759-1 FCC ID: O6RSDM-A EXHIBIT: Internal Photos MODEL: SDM2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EF0759-1 Client Dynastream Innovations, Inc. 228 River Ave Cochrane, Alberta T4C 2C1 Phone 403-932-9292 FRN 0008033557 RSS-210 Issue 6; 47 CFR 15.249 Model SDM2 FCC ID O6RSDM-A IC 3797A-SDMA Equipment Type Low Power Communications Device Transmitter Equipment Code DXX Emission Designator 100MF1D Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 5/17/06 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EF0759-1 FCC ID: O6RSDM-A IC: 3797A-SDMA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 14 Table Of Contents Summary......................................................................................................................... 3 Test Methodology............................................................................................................ 3 Statement of Conformity.................................................................................................. 4 EUT Configuration........................................................................................................... 5 Fundamental Measurement............................................................................................ 6 Band Edge Measurements.............................................................................................. 7 Radiated Spurious Emissions......................................................................................... 8 Test Equipment Used...................................................................................................... 9 Terms And Conditions................................................................................................... 10 A2LA Accreditation........................................................................................................ 12 REPORT: EF0759-1 FCC ID: O6RSDM-A IC: 3797A-SDMA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 14 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.249 and RSS-210(A2.9). The product is the Dynastream Innovations Wireless Speed and Distance Monitor (Models: SDM2). It is a transmitter that operates in the range 2408-2470MHz. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2003) and RSS-GEN. Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. The standard operating voltage is 1.5VDC. Fresh batteries were used during testing. The environmental conditions are shown below. Date Temperature Humidity 10/24/05 22.6°C 34% 10/27/05 24.1°C 29% Frequency range investigated: 30MHz – 25GHz Measurement distance: 30MHz – 2GHz 3m 3 – 25GHz 1m REPORT: EF0759-1 FCC ID: O6RSDM-A IC: 3797A-SDMA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 14 Statement of Conformity The SDM2 has been found to conform to the following parts of 47 CFR and RSS 210 as detailed below: RSS-GEN RSS 210 Part 15 Comments 5.3 15.15(b) There are no controls accessible to the user that vary the output power. 5.2 15.19 The label is shown in the label exhibit. 7.1.5 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 7.1.4 15.203 The antenna for this device is hardwired to the PCB. 2.6 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 7.2.2 15.207 EUT meets the AC Line conducted emissions requirements of 15.207. A2.9 15.249 The unit complies with the requirements of 15.249 REPORT: EF0759-1 FCC ID: O6RSDM-A IC: 3797A-SDMA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 14 EUT Configuration EUT Configuration Work Order: F0759 Company: Dynastream Innovations, Inc. Company Address: 228 River Ave Cochrane, Alberta T4C 2C1 Contact: Victor Beda MNSN EUT: SDM21 EUT Description: Wireless Speed and Distance Monitor EUT Max Fre quency: 2470MHz Support Equipment: MNSN none EUT Cables: QtyShielded?LengthFerrites none1Yes6ftNo Unpopulated EUT Ports: QtyReason None Software / Operating Mode Description: SDM-A transmits an approximately 200μs pulse every 246ms in normal operation. The different samples make possible both normal operation and CW mode at the lowest, middle, and highest frequency. REPORT: EF0759-1 FCC ID: O6RSDM-A IC: 3797A-SDMA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 6 of 14 Fundamental Measurement LIMIT…
