Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 1 SMW1 SPORTS MONITORING WATCH User Manual User ManualUser Manual User Manual REV: 2006-08-18 Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 2 Introduction ................................................................... 3 Navigating Your SMW1 Sports Monitoring Watch........................ 9 Customizing Your SMW1 Sports Monitoring Watch.....................11 Training with Your SMW1 Sports Monitoring Watch ...................15 Device Pairing................................................................21 Footpod Calibration.........................................................22 Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 3 Introduction SMW1 Sports Monitoring System SMW1 Sports Monitoring SystemSMW1 Sports Monitoring System SMW1 Sports Monitoring System Features FeaturesFeatures Features • Full-featured digital sports watch for the fitness enthusiast or serious athlete • Integrates Dynastream’s ANT™ wireless technology to reliably connect simultaneously with a speed distance monitor, heart rate monitor, and bike speed/cadence monitor • Store and recall up to 50 laps of sport and fitness data • All wireless data is digitally encoded and transmitted in short bursts at 2.4 GHz to prevent cross-talk • Battery life of one year with typical use This Guide This GuideThis Guide This Guide The SMW1 Sports Monitoring Watch User Manual illustrates the functionality of the product when configured with a speed distance monitor, heart rate monitor, and bike speed/cadence monitor. Different configurations will have different functionality and will result in different available data. Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 4 SMW1 Modes and Features SMW1 Modes and FeaturesSMW1 Modes and Features SMW1 Modes and Features Your SMW1 Sports Monitoring Watch has four primary modes. TIME View and adjust time (two time zones) and date View, enable, and adjust daily alarm Enable chime mode SPORT Connect with ANT-enabled sports devices Display and record chronograph and sports data Set units, zone alarms, and other settings Save sessions for later recall TIMER Set two individual countdown timers Set single-expiry or repeating mode Utilize interleaved timers for flexibility during workout interval sessions DATA View history of workout sessions – up to 50 laps View available data: lap time, distance, speed, step count, calories, heart rate, and cadence Delete individual or full session history Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 5 Quick Start Steps Quick Start StepsQuick Start Steps Quick Start Steps Follow these basic instructions to begin using your speed distance monitor (footpod), heart rate monitor, and bike speed/cadence monitor and discover the functionality of your SMW1 Sports Monitoring Watch. SDM2 Speed Distance Monitor POWER ON • Press and hold the button for 2 seconds to power on the footpod. The red light flashes to indicate the pod is powered on. POWER OFF • Press and hold the button for 2 seconds to power off the pod. If left on, the pod will automatically turn off 30 minutes after foot motion has stopped. SECURE FIT • The SDM2 Speed Distance Monitor (footpod) must be attached securely to the shoe. • The footpod must stay in place on the shoe during running for optimum accuracy. Tight lacing will reduce jiggling or bouncing of the pod, which can be detrimental to speed and distance results. Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 6 HRM1 Heart Rate Monitor POWER ON • The HRM1 will turn on automatically and remain on while it is worn around the chest. POWER OFF • The HRM1 will turn off automatically 5 minutes after being removed from the chest. SECURE FIT • Proper placement of the HRM1 Heart Rate Monitor is important for optimum capture of heart rate pulses. • Wear the HRM1 directly on your skin and wet both sensors on the back with water or biogel. • The HRM1 should fit snugly enough to remain in place during your exercise session. • Wipe down the HRM1 with a wet cloth before and after use. Do not immerse in water. Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 7 BKM Bike Speed and/or Cadence Monitors The BKM Bike Monitors mount easily onto the rear triangle of a bike frame. • The BKM monitors turn on automatically and remain on as long as they detect magnet events (5-minute timeout). • Securely attach both speed and cadence monitors and ensure the magnet pickups pass within 5 mm of the trigger areas. Sliding motion and misalignment will affect accuracy. Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. REV: 2006-08-18 Page 8 SWM1 Wristwatch Quick Start Turn on the footpod, heart rate monitor, and/or bike monitor and bring the device[s] within range of the watch (<2 meters). The watch will search and connect to all ‘paired’ devices when placed into SPORT mode. • If your products came packaged together (watch, footpod, heart rate monitor, bike monitor), pairing will have already been performed and you do not need to…

Text truncated - open the document above for the full version.

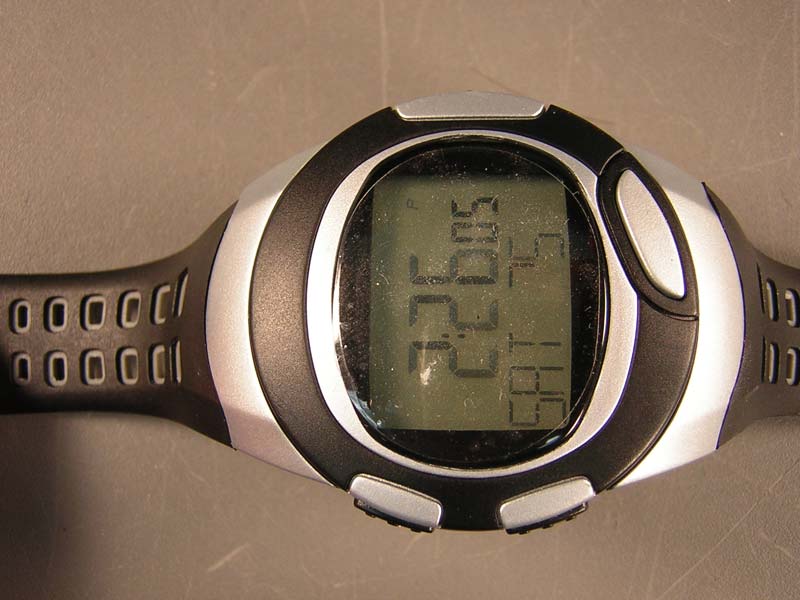

REPORT: EG0903-1 FCC ID: O6RSMW-A EXHIBIT: External Photos MODEL: SMW1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 1

REPORT: EG0903-1 FCC ID: O6RSMW-A EXHIBIT: Internal Photos MODEL: SMW1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EG0903-1 FCC ID: O6RSMW-A EXHIBIT: Internal Photos MODEL: SMW1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EG0903 Client Dynastream Innovations, Inc. 228 River Ave Cochrane, Alberta T4C 2C1 Phone 403-932-9292 FRN 0008033557 RSS-210 Issue 6; 47 CFR 15.249 Model SMW1 FCC ID O6RSMW-A IC 3797A-SMWA Equipment Type Low Power Communications Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 8/25/06 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EG0903-1 FCC ID: O6RSMW-A IC: 3797A-SMWA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 18 Table Of Contents Summary......................................................................................................................... 3 Test Methodology............................................................................................................ 3 Statement of Conformity.................................................................................................. 4 EUT Configuration........................................................................................................... 5 Fundamental Measurement............................................................................................ 6 Band Edge Measurements.............................................................................................. 7 Radiated Spurious Emissions......................................................................................... 8 Duty Cycle....................................................................................................................... 9 Test Equipment Used.................................................................................................... 10 Conditions Of Testing.................................................................................................... 14 A2LA Accreditation........................................................................................................ 16 REPORT: EG0903-1 FCC ID: O6RSMW-A IC: 3797A-SMWA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 18 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.249 and RSS-210(A2.9). The product is the Dynastream Innovations MultiWatch (Model: SMW1). It is a transmitter that operates in the range 2402-2479MHz. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2003) and RSS-GEN. Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. The standard voltage for the EUT is 3VDC. Fresh batteries were used throughout testing. The environmental conditions are shown below. Date Temperature Humidity 8/7/06 24.7°C 42% 8/8/06 24.8°C 39% Frequency range investigated: 30MHz – 25GHz Measurement distance: 30MHz – 8GHz 3m 8 – 25GHz 1m REPORT: EG0903-1 FCC ID: O6RSMW-A IC: 3797A-SMWA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 18 Statement of Conformity The SMWA has been found to conform to the following parts of 47 CFR and RSS 210 as detailed below: RSS-GEN RSS 210 Part 15 Comments 5.3 15.15(b) There are no controls accessible to the user that vary the output power. 5.2 15.19 The label is shown in the label exhibit. 7.1.5 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 7.1.4 15.203 The antenna for this device is hardwired to the PCB. 2.6 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 7.2.2 15.207 EUT is battery powered. So no line conducted emissions were taken. A2.9(1) 15.249(a) The fundamental and harmonics meet the limits in 15.249(a) A2.9(2) 15.249(d) Spurious emissions meet the limits in 15.209. REPORT: EG0903-1 FCC ID: O6RSMW-A IC: 3797A-SMWA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 18 EUT Configuration EUT Configuration Work Order: G0903 Company:Dynastream Innovations, Inc. Company Address: 228 River Ave Cochrane, Alberta T4C 2C1 Contact: Curtis Stafford MNSN EUT: SMWA501; 502; 503 EUT Description: MultiWatch EUT Max Fre quency: 2479MHz Support Equipment: MNSN None EUT Cables: QtyShielded?LengthFerrites None Unpopulated EUT Ports: QtyReason None Software / Operating Mode Description: SMWA transmits a 200μs pulse continuously in diagnostic TX Mode. In RX Mode, the EUT continuously receives a heart rate ramp waveform from the USB device and updates the LCD readout. The EUT was also programmed with a diagnostic CW Mode to measure the peak fundamental. REPORT: EG0903-1 FCC ID: O6RSMW-A IC: 3797A-SMWA _____________________________________________…
