O6RUSB-AWireless USB Adapter

Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 1 of 8 Quick Start Guide Note 1: Do not plug the USB1 Wireless USB Stick into any of your computer’s available USB ports until the driver installation/software utility setup has been completed. Note 2: After the driver has been installed, a PC running Win98SE operating system shall be restarted; for Win2000 OS or WinXP OS, the PC does not need to be restarted. Install Driver and Utility for Windows XP Step 1: Insert the accompanying CD into your computer’s CD-ROM drive. Using Windows Explorer or My Computer, navigate to the CD and double-click the "USB1.exe" program to enter the setup wizard. The InstallShield Wizard box will appear; click "Next" to continue. ***Edit Screenshot*** USB1 Wireless USB Stick Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 2 of 8 Step 2: Choose install folder. ***Edit Screenshot*** Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 3 of 8 The software has not passed Windows Logo testing, but is fully functional; click the "Continue Anyway" button to next step. ***Edit Screenshot*** Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 4 of 8 Step 3: Insert the USB1 Wireless USB Stick into an available USB port on your computer; the system will automatically find the device and search for its software. ***Edit Screenshot*** Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 5 of 8 Please wait while the wizard installs the software. ***Edit Screenshot*** The software has not passed Windows Logo testing, but is fully functional; click the "Continue Anyway" button. ***Edit Screenshot*** Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 6 of 8 Please wait while the wizard installs the software. The progress bar at the bottom of the screen indicates that the software is being installed. ***Edit Screenshot*** Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 7 of 8 Step 4: Click the “Finish” button to complete the installation. ***Edit Screenshot*** FCC Compliance Part 15 of FCC Interference Limits for Class B Digital Devices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ƒ Reorient or relocate the receiving antenna. ƒ Increase the separation between the equipment and receiver. ƒ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ƒ Consult the dealer or an experienced radio/TV technician for help. Changed or modifications not expressly approved by the party responsible for compliance could void the product warranty and the user's authority to operate this equipment under Part 15 regulations. Preliminary document not for redistribution. Company confidential. Product features and specifications may vary. Copyright ©2006 Dynastream Innovations Inc. USB1 Wireless USB Stick Quick Start Guide Page 8 of 8 Warranty Information VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL VENDOR BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Warranty does not co…

Text truncated - open the document above for the full version.

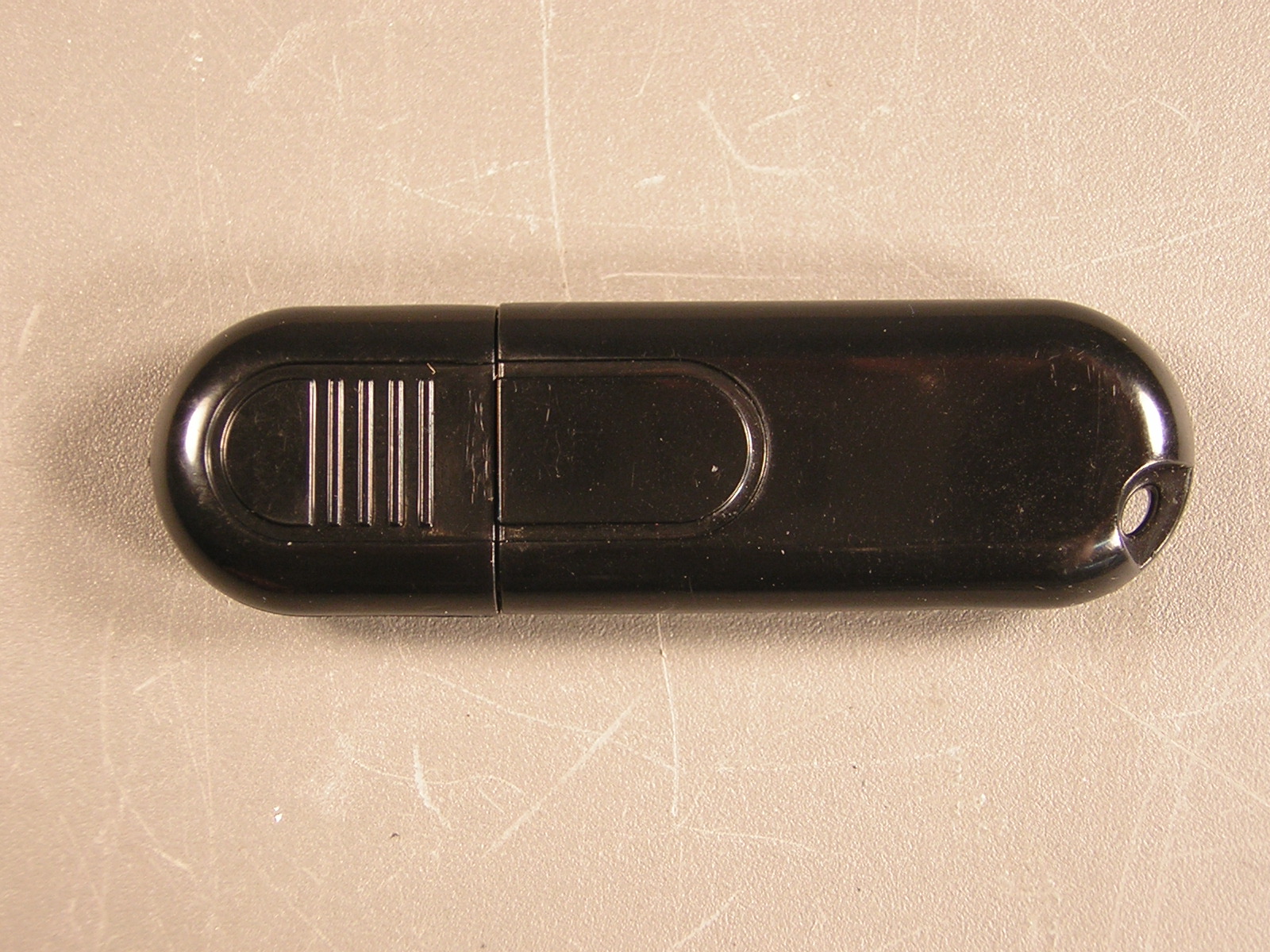

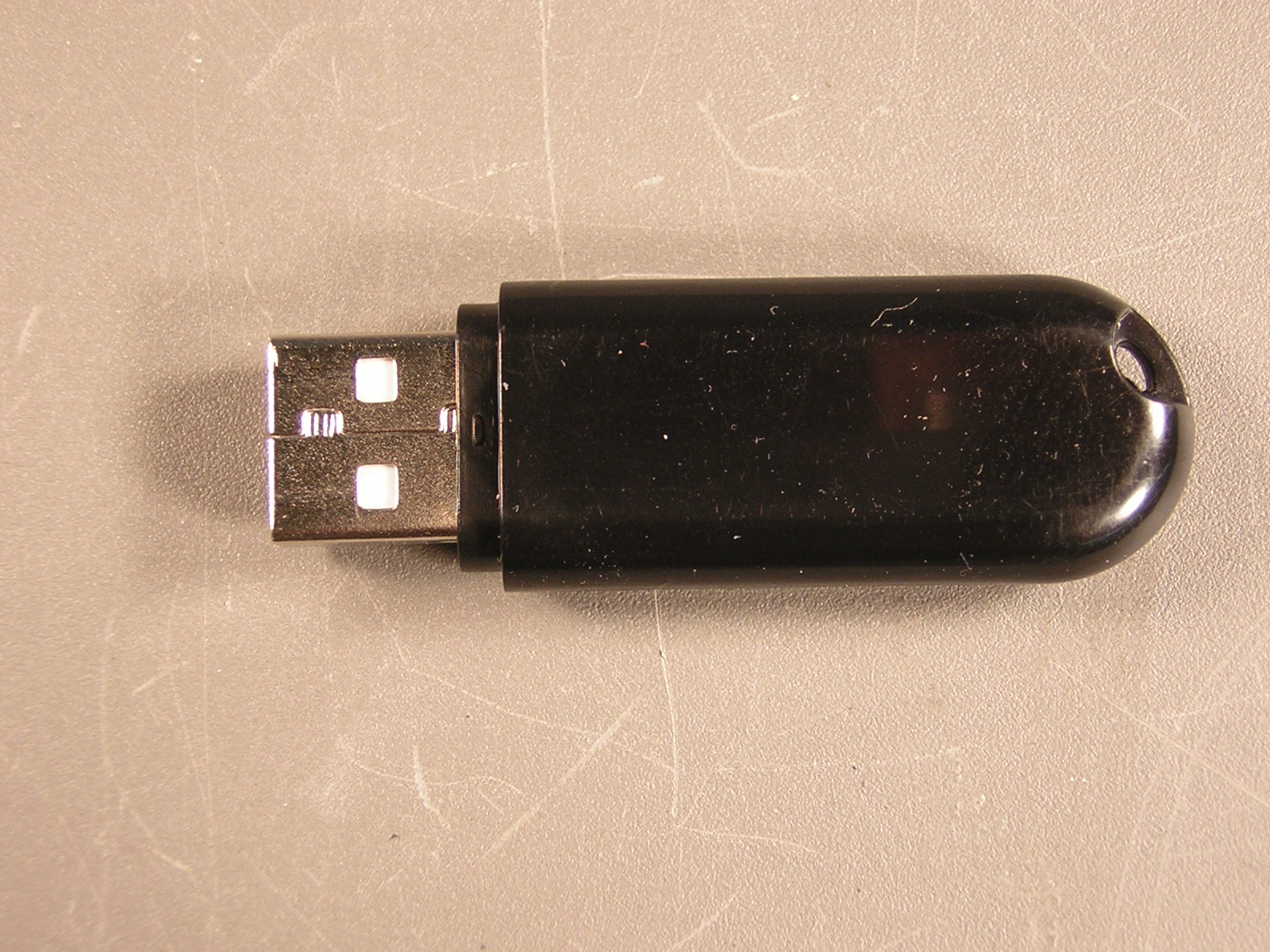

REPORT: EF0760-1 FCC ID: O6RUSB-A EXHIBIT: External Photos MODEL: USB1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EF0760-1 FCC ID: O6RUSB-A EXHIBIT: External Photos MODEL: USB1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

USB1- Wireless USB Stick (Generic) D C B A A B C D 1 2 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DYNASTREAM INNOVATIONS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DYNASTREAM INNOVATIONS IS PROHIBITED. DYNASTREAM INNOVATIONS 0.C 04/28/06 SHEET: 1 OF 1 DATE: REV: TITLE: COMMENTS: PROPRIETARY AND CONFIDENTIAL 58.90 18.75 18 28.40 18 8.60 - ALL DIMENSIONS ARE IN MILLIMETERS - DO NOT SCALE DRAWING - BLACK Color and soft Rubber Finish from Global Idea Network, MFG P/N UD-619 - VENDOR TO PROVIDE MATERIAL SPEC (PLEASE REFERENCE EQUIVALENT GE PLASTIC OR PROVIDE DATASHEET FOR PLASTIC) - VENDOR TO UPDATE DRAWING TO SHOW ACCURATE VIEW OF BACK (4 VERTICAL LINES ON LEFT HAND SIDE) - VENDOR TO UPDATE DRAWING TO SHOW ACCURATE VIEW OF FRONT - “ANT” LOGO AND “LABEL INFO” TO BE PAD PRINTED ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE 8402C - CUSTOMER LOGO CAN BE PLACED IN AREA WITH WORD “LOGO” . PAD PRINT ON PLASTIC VISIBLY, LEGIBLY AND INDELIBLY WITH INK, COLOR PANTONE 8402C OTHERWISE STATED DRAWING NOT FOR PRODUCTION TOP BOTTOM (MADE IN HONG KONG) OEM USB1- Wireless USB Stick FCC ID: O6RUSB-A IC: 3797A-USBA MADE IN HONG KONG BOTTOM (MADE IN CHINA) USB1- Wireless USB Stick FCC ID: O6RUSB-A IC: 3797A-USBA MADE IN CHINA

REPORT: EF0760-1 FCC ID: O6RUSB-A EXHIBIT: Internal Photos MODEL: USB1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 1

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EF0760-1 Client Dynastream Innovations, Inc. 228 River Ave Cochrane, Alberta T4C 2C1 Phone 403-932-9292 FRN 0008033557 RSS-210 Issue 6; 47 CFR 15.249 Model USB1 FCC ID O6RUSB-A IC 3797A-USBA Equipment Type Low Power Communications Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 5/17/06 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EF0760-1 FCC ID: O6RUSB-A IC: 3797A-USBA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 18 Table Of Contents Summary......................................................................................................................... 3 Test Methodology............................................................................................................ 3 Statement of Conformity.................................................................................................. 4 EUT Configuration........................................................................................................... 5 Fundamental Measurement............................................................................................ 6 Band Edge Measurements.............................................................................................. 7 Radiated Spurious Emissions......................................................................................... 8 AC Line Conducted Emissions........................................................................................ 9 Test Equipment Used.................................................................................................... 10 Terms And Conditions................................................................................................... 14 A2LA Accreditation........................................................................................................ 16 REPORT: EF0760-1 FCC ID: O6RUSB-A IC: 3797A-USBA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 18 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.249 and RSS-210(A2.9). The product is the Dynastream Innovations USB to ANT converter (Model: USB1). It is a transmitter that operates in the range 2405-2479MHz. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2003) and RSS-GEN. Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. Voltage variations were not performed for FCC due to the fact that the EUT cannot be supplied power independent from a computer. A 50ohm/50uH LISN was used for AC line conducted emissions measurements. The environmental conditions are shown below. Date Temperature Humidity 10/12/05 23.6°C 44% 10/13/05 23.4°C 43% 10/14/05 23.5°C 47% 10/20/05 24.2°C 29% 11/1/05 25.2°C 28% 12/2/05 23.8°C 26% Frequency range investigated: 0.15MHz – 25GHz Measurement distance: 0.15 – 30MHz Conducted 30MHz – 3GHz 3m 3 – 25GHz 1m REPORT: EF0760-1 FCC ID: O6RUSB-A IC: 3797A-USBA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 18 Statement of Conformity The USB1 has been found to conform to the following parts of 47 CFR and RSS 210 as detailed below: RSS-GEN RSS 210 Part 15 Comments 5.3 15.15(b) There are no controls accessible to the user that vary the output power. 5.2 15.19 The label is shown in the label exhibit. 7.1.5 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 7.1.4 15.203 The antenna for this device is hardwired to the PCB. 2.6 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 7.2.2 15.207 EUT meets the AC Line conducted emissions requirements of 15.207. A2.9 15.249 The unit complies with the requirements of 15.249 REPORT: EF0760-1 FCC ID: O6RUSB-A IC: 3797A-USBA _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 18 EUT Configuration EUT Configuration Work Order: F0760 Company: Dynastream Innovations, Inc. Company Address: 228 River Ave Cochrane, Alberta T4C 2C1 Contact: Victor Beda MNSN EUT: USB11 and 2 EUT Description: Wireless USB Stick EUT Max Fre quency: 2479MHz Support Equipment: MNSN IBM ThinkpadType 2621AA-FNBWN 00/03 EUT Cables: QtyShielded?LengthFerrites USB extension cable1Yes6ftNo Unpopulated EUT Ports: QtyReason None Software / Operating Mode Description: USB-A transmits an approximately 260μs pulse every 246ms in normal operation. The diag software makes possible both normal operation and CW mode at the lowest, middle, and h…

Text truncated - open the document above for the full version.

REPORT: EF0760-1 FCC ID: O6RUSB-A EXHIBIT: Setup Photos MODEL: USB1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EF0760-1 FCC ID: O6RUSB-A EXHIBIT: Setup Photos MODEL: USB1 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2
