O6RUSBLUSB link transmitter

Information is Power(text to come) triax pcv10 features • (text to come)• HRM StrapYour Heart Rate Monitor [HRM] Strap enables the Watch to display heart rate information. The HRM Strap will function automatically if worn correctly and is within a few meters of the watch. When worn directly against the skin, two electrodes detect the electrical impulses in your heart and transmit that data to the Watch as your heart rate.ATTENTION: Anyone beginning an exercise regimen for the first time (especially users of pacemakers or other implanted devices) should consult their physician or health professional before using the heart rate monitor. SDM PodYour Speed Distance Monitor [SDM] Pod measures the acceleration and deceleration of your foot 100 times each second. SDM Pod calculates your speed and distance even when your stride length or speed changes. Be sure to calibrate for best results. 1 triax pcv10 introduction (Text and Content to come) 2 Installing Drivers, Software and USB PCdock (Text and Content to come) 3 ContentsQuick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 TIME modeSet Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Set an Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 WORKOUT modeProgramming Workouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Activate a Programmed Workout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Calibrating the Speed Distance Monitor [SDM] Pod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Adjusting your Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 CHRONOGRAPH modeUsing the Chronograph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Setting the Chronograph Auto-Lap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 STATS modeReview Stored Runs/Workouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 PC modeLinking the Watch to your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Heart Rate Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Running Pace Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Water Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Mode Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Material Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 This document with updates is available online at www.nike.com/manuals 3 Attach other side of HRM Strap around chest. Position on rib cage just below the breast plate. Should be worn directly against skin and snug enough to not slip down while running. 1 Push tab up through slot in HRM Strap. Press down tab until flush 2 3 Secure the SDM Pod with black strap. The SDM Pod should rest just below where laces tie and be secure enough to not move while running. 1 Remove the SDM Pod from holder. 2 Loosen shoe laces and slide yellow clip up under laces. 4 Quick Start Follow steps thr ough to position your hardware and go for a run. 5 Generously wet both grooved areas on the back of HRM Strap to ensure a good pick up between your pulse and the strap. 44 Turn SDM Pod ON. Light will begin to blink.Press and hold power button to turn SDM Pod off. Start Run Lap ViewSplit ViewHeart Rate ViewDistanceViewPace View Scroll to CHRONOGRAPH mode 6 Press button to…

Text truncated - open the document above for the full version.

228 river ave, cochrane, alberta, canada T4C2C1 p 403.932.9292 f 403.932.6521 www.dynastream.com December 4, 2002 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB 527 Great Rd Littleton, MA 02702 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Dynastream Innovations Inc requests that the following documents regarding this submission for FCC ID 06RM7TXN and 06RUSBL be kept confidential: 1. Schematics 2. Block Diagram 3. Circuit/Technical Description The material above contains technical data, which would customarily be guarded from competitors. Sincerely, Victor Beda Designer Dynastream Innovations Inc.

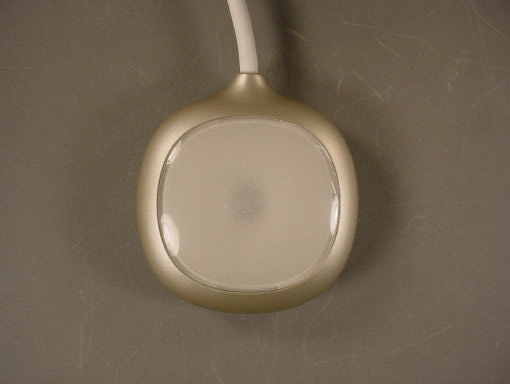

External Photos Model: SMA019 FCC ID: 06RUSBL Model: SMA019 FCC ID: 06RUSBL Model: SMA019 FCC ID: 06RUSBL

Label Information USBLink: Label will be screened directly onto the bottom part of the plastics creating a permanent bond. Foot Pod: Graphics will be molded into the plastics in a color different than the surrounding plastics to be easily visible, again this is a permanent solution Victor Beda Designer Dynastream Innovations Inc.

Internal Photos Model: SMA019 FCC ID: 06RUSBL Model: SMA019 FCC ID: 06RUSBL Model: SMA019 FCC ID: 06RUSBL

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Test Report Report No EC0948-1 Client Dynastream Innovations, Inc. 228 River Avenue Cochrane, Alberta T4C 2C1 Phone (403)-932-9292 Fax (403)-932-6521 FRN 0008033557 Model SMA019 FCC ID 06RUSBL Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 12/4/02 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EC0948-1 FCC ID: 06RUSBL Page 2 of 11 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Table Of Contents Summary.........................................................................................................................3 Test Methodology........................................................................................................3 Statement of Conformity..........................................................................................4 Fundamental Frequency Measurement............................................................5 Band Edge Measurements.....................................................................................6 Harmonic Frequency Measurements.................................................................7 AC Line Conducted Emission Measurements................................................8 Test Equipment Used................................................................................................9 Terms And Conditions............................................................................................10 REPORT: EC0948-1 FCC ID: 06RUSBL Page 3 of 11 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Summary This report is an application for Certification of a Transmitter operating pursuant to Part 15.249 of the FCC Rules, Code of Federal Regulations 47. The product covered by this report is the Nike SDM Triax Elite USB Link (Model SMA019). This report is designed to demonstrate the compliance of this device with the requirements outlined in 47 CFR Part 15 using the methods outlined in 47 CFR Part 2. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2000). Frequency range investigated: 30MHz –10GHz Measurement distance: 3 Meters (30MHz - ~7GHz) 1 Meter (~7GHz – 10GHz) Measurement distance is noted on data tables. EUT power source: Fresh AA battery pack (intentional scan) Laptop computer (unintentional scan) Emission Maximization: EUT rotated around three orthogonal axes Antenna height and polarization varied REPORT: EC0948-1 FCC ID: 06RUSBL Page 4 of 11 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Statement of Conformity The Dynastream SMA019 has been found to conform with the following parts of the 47 CFR as detailed below: Part 2 Part 15 Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 The antenna is soldered to the transmitter board, which is not user accessible, and there is no external antenna connection. 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 15.207 The unit complies with the AC line conducted limits of 15.207. 15.249 The unit complies with the field strength limits of 15.249. REPORT: EC0948-1 FCC ID: 06RUSBL Page 5 of 11 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Fundamental Frequency Measurement LIMITS Quasi-Peak: 50mV/m = 93.9dBμV/m @ 3m [15.249(a), (b), and (d)] Note: If Peak measurements meet Quasi-Peak limits, then Quasi-Peak measurements are not required. MEASUREMENT Fundamental Frequency Curtis-Straus LLC Date:02-Dec-02Engineer:Evan GouldWork Order:C0948 Company:Dynastream Innovations Inc.EUT:SMA019Fundamental Frequency:916.6MHz Test Site:"T"Cable:65 ft RG8A/UPre-amp:Black Antenna:Green-WhiteFilter/Attenuator:N/AAnalyzer:Orange Measurement Distance:3 MetersResolution BW:120kHz Detector Type:PeakVideo BW:300kHz Notes: AntennaPreampAntennaCableFilter/AttenuatorDuty CycleDistanceAdjusted47 CFR 15.249 PolarizationFrequencyReadingFactorFactorFactorFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dB)(dB)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) V916.683.421.622.04.10.00.00.087.993.9-6.0Pass ANALYZER PLOT REPORT: EC0948-1 FCC ID: 06RUSBL Page 6 of 11 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Band Edge Measurements LIMITS Quasi-Peak: 50dB below level of Fundamental OR General radiated emission limits of 15.209 “...whichever is the lesser attenuation.” [15.249(c)] Note: If Peak measurements meet Quasi-Peak limits, then Quasi-Peak measurements are not required. MEASUREMENTS Band Edges Curtis-Straus LLC Dat…

Text truncated - open the document above for the full version.
