O6XL-TG-800Low Power Security Transmitter

Wavetrend Technologies Limited

Click to zoom

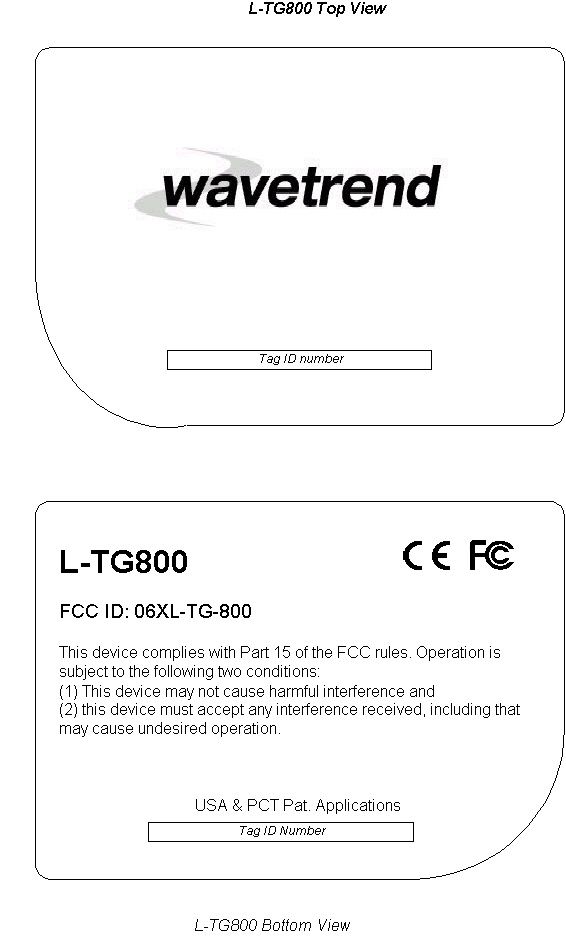

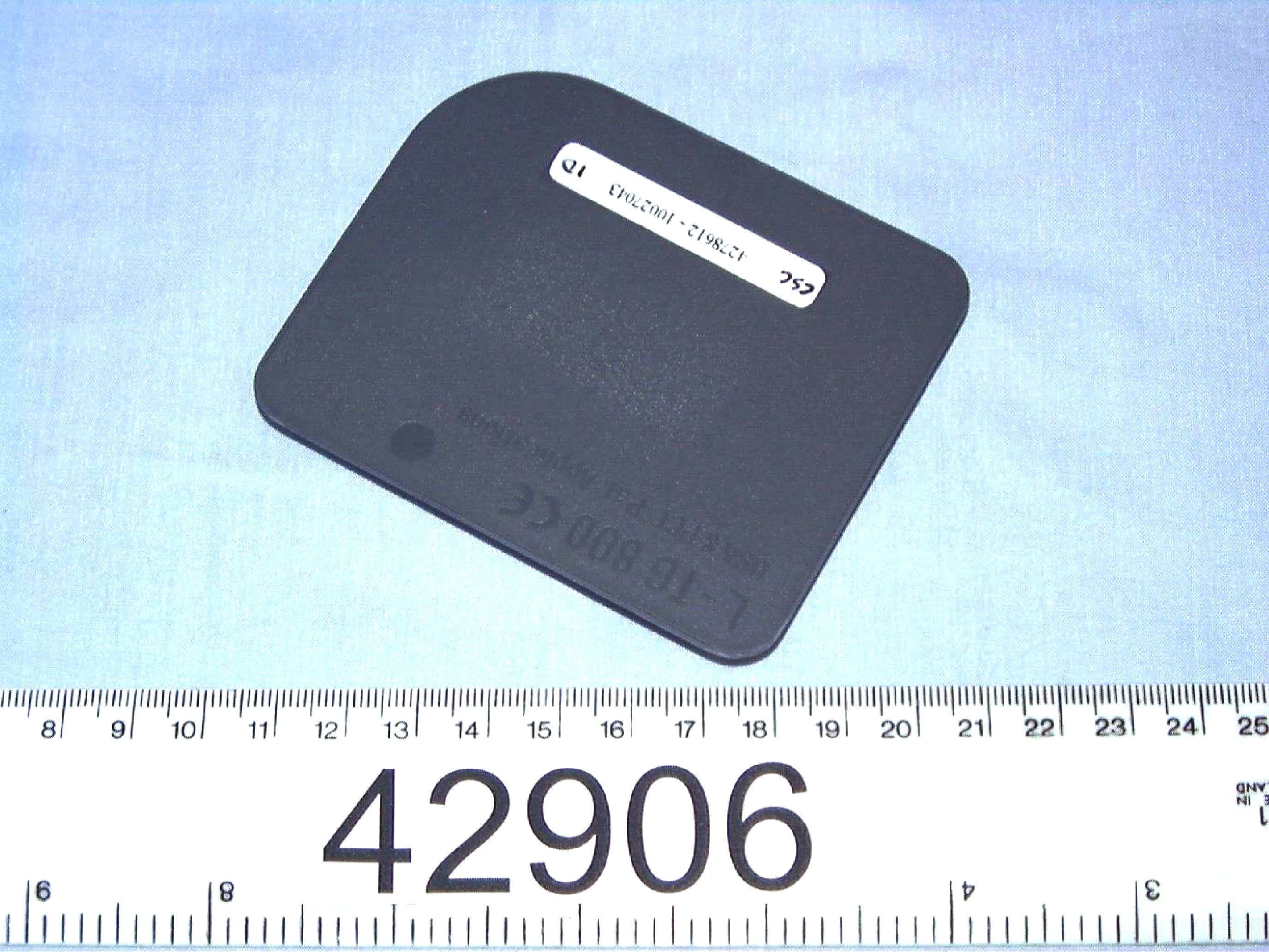

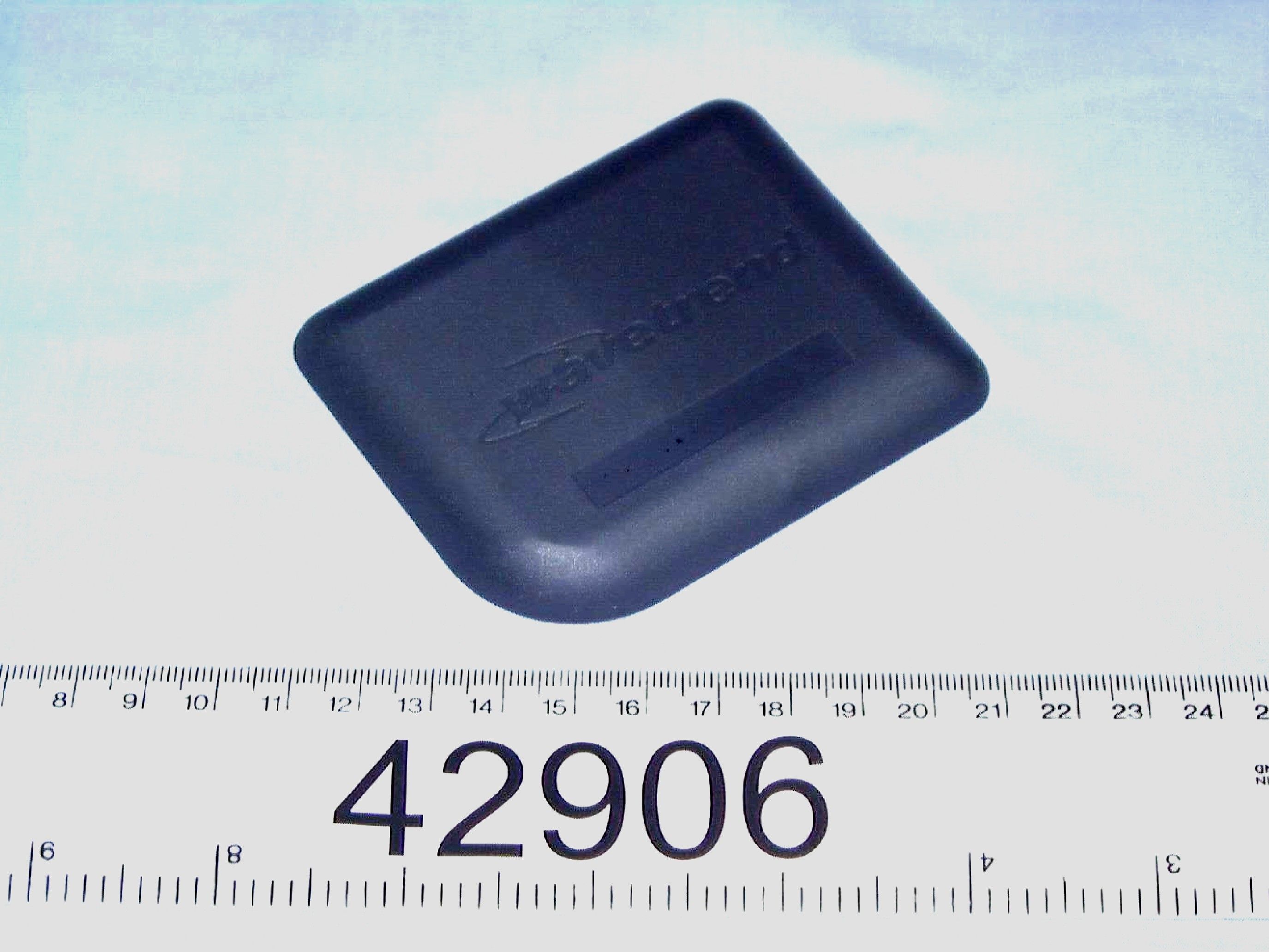

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Oct 08, 2002
Application Purpose: Original Equipment
Date of Application: Oct 08, 2002
Equipment Note: Low Power Security Transmitter
Frequency Range: 433.92000000 - 433.92000000
Company: Wavetrend Technologies Limited
Country: United Kingdom

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DOCUMENT NO PRODUCT NO WAVETREND DATE PAGE EAB-00400-00-PI L-TG800 WAVETREND ASSET TAG 2002/10/09 1 OF 2 Link-it™ Product Information Sheet Active Tags L-TG800 (Wavetrend Asset Tag) Description: The Link-it™ series of Active Asset Tags are powered by an internal battery. The Tag will, for the duration of its life, transmit a Radio Frequency (RF) signal at a pre-set time-interval. The Tag life is estimated at 5 years at a transmission time interval of approximately 15 seconds. The life-span of the Tag ends when the battery life is exhausted. Battery status can be inferred by interrogating the internal Tag Age Counter Value. The transmitted Tag data includes Customer Site Code (CSC), Tag ID, Tag Age Counter Value, Movement Alarm and Tamper Alarm status. For protection against adverse environmental conditions, Link-it™ Asset Tags are encapsulated in a moulded plastic case, which is ultrasonically sealed during the manufacturing process. The L-TG800 Tag generally used for Asset tagging applications. The L-TG800 is ideally suited for operating on metallic surfaces (or plastics containing a high metal content). The mounting and affixing of a Tag depends on the type of application. The standard method is by VHB type double-sided adhesive tape (Product Code L-TA600). The Tag can be configured to accommodate Wiegand interfacing. Features: • Configurable settings, including Site / Vendor ID, Tag ID, Transmission Repetition Interval and Alarm functions (these are programmed at order placement stage) • Low power consumption. Tag life is estimated at 5 years when transmitting at a 15-second interval. • Randomised time-slots (Standard percentage deviation) minimise continuos collisions DOCUMENT NO PRODUCT NO WAVETREND DATE PAGE EAB-00400-00-PI L-TG800 WAVETREND ASSET TAG 2002/10/09 2 OF 2 Link-it™ Product Information Sheet Specification: Environmental Operational temperature -10º C to +60º C Storage temperature -20º C to +70º C Humidity 5% to 90% (non condensing) Physical Size 85mm x 70mm x 9mm Weight < 25 grams Colour Grey (Clariant 04-600 2%) Type of material PVC (ultrasonically sealed) IP 65 RF Specifications T x Frequency 433.92Mhz ERP < 300μW (72 dB μV) Typical Transmission Range 8 Meters (24 feet) Power Output < -14 dBm, 72 db μV, 4300 μV/m, 38μW Modulation OOK Bandwidth < 1 MHz Stability Saw Stabilised Electrical Specifications Power Internally powered Lithium Battery Certification: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. The following standards applied in accordance with Article 5 of the directive, 1999/5/EC: EN 300 220-1 V1.2.1 (1997-11) ETS 300 683 (1997-03). Summary of tests: Effective radiated power 25MHz-4GHz Range of modulation bandwidth for wideband equipment Frequency stability under low voltage conditions EN55022 Radiated emissions 30MHz – 1GHz EN61000-4-3 Radiated immunity 80MHz – 1GHz, excl 433.92MHz±20MHz EN61000-4-2 Electrostatic discharge

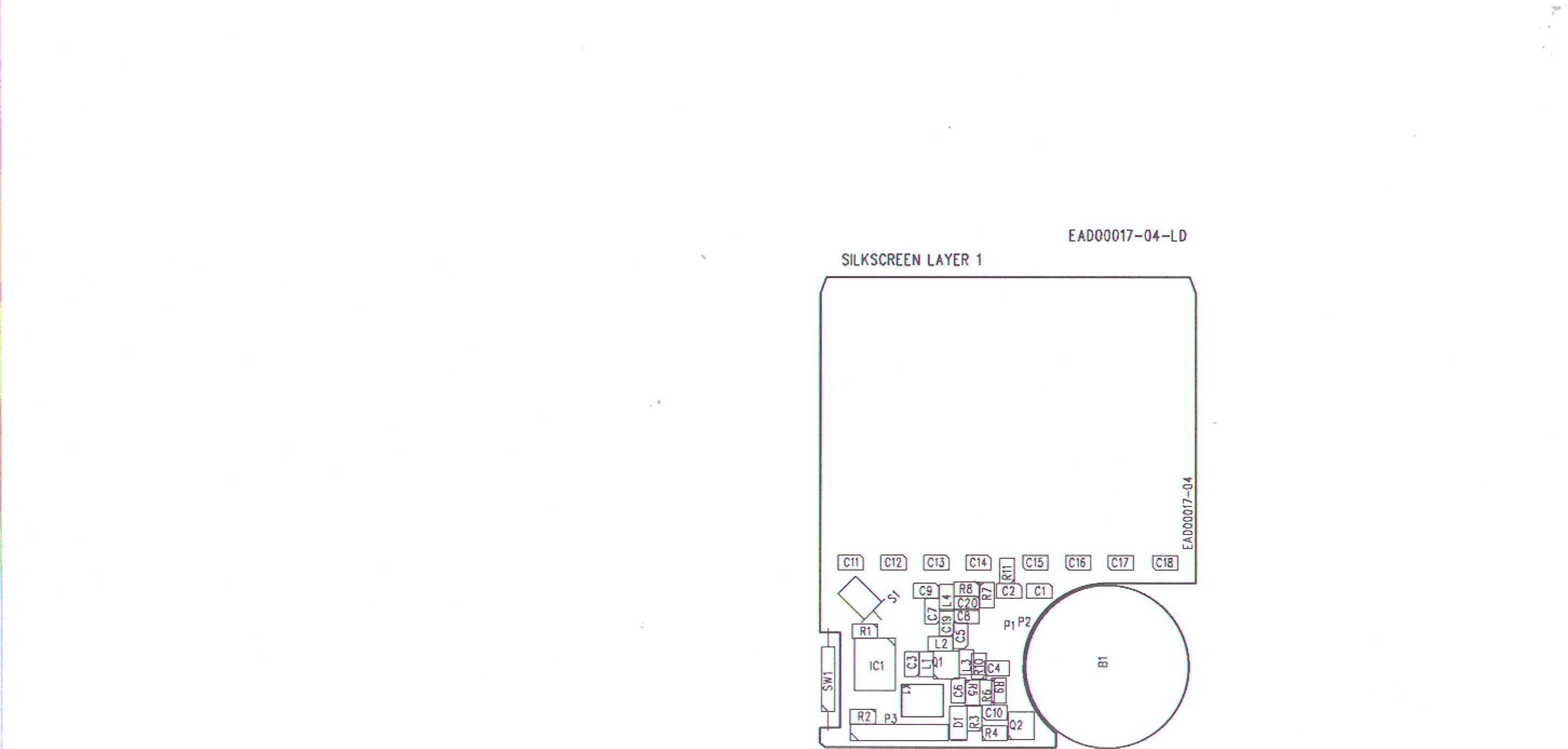

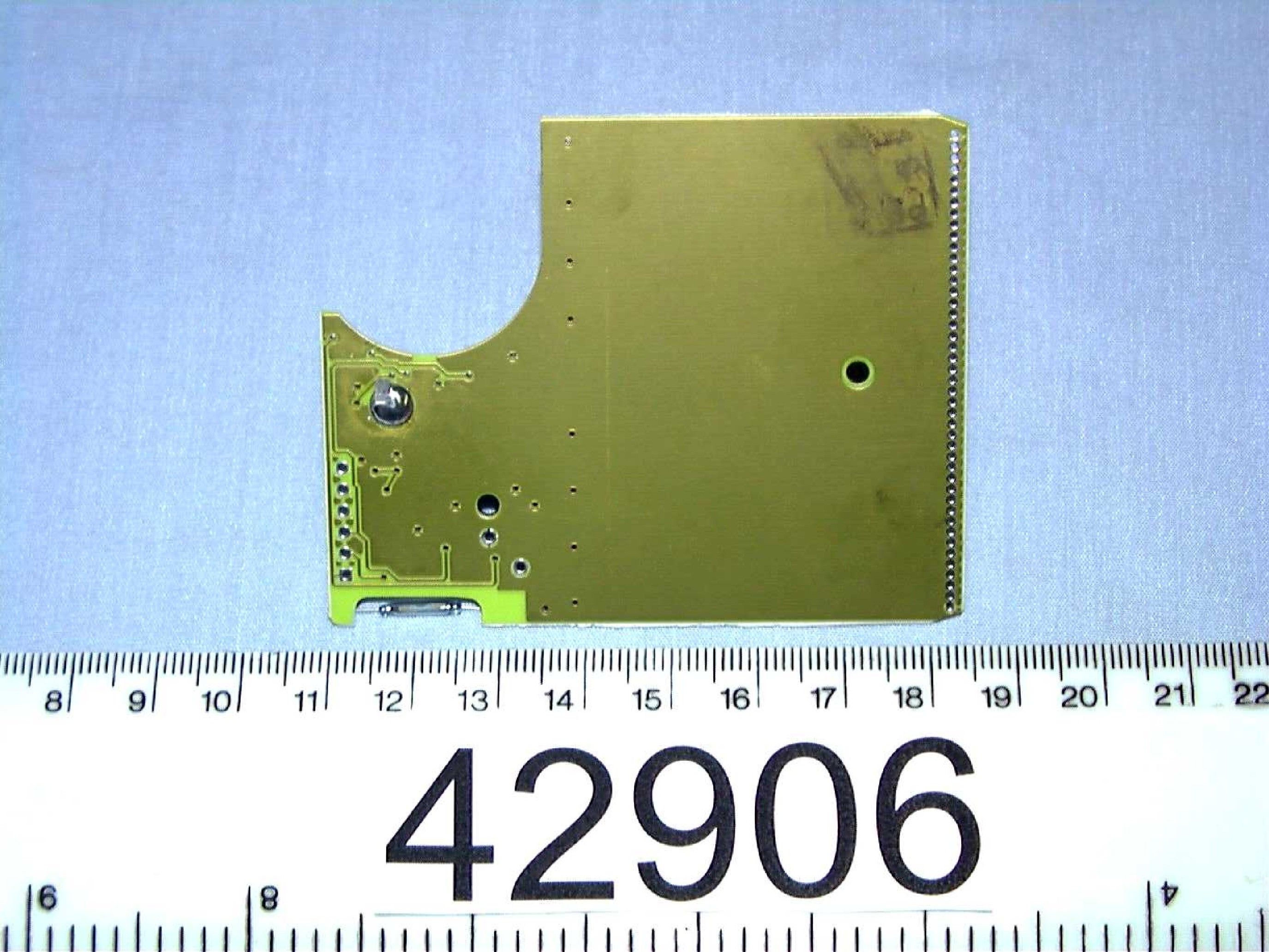

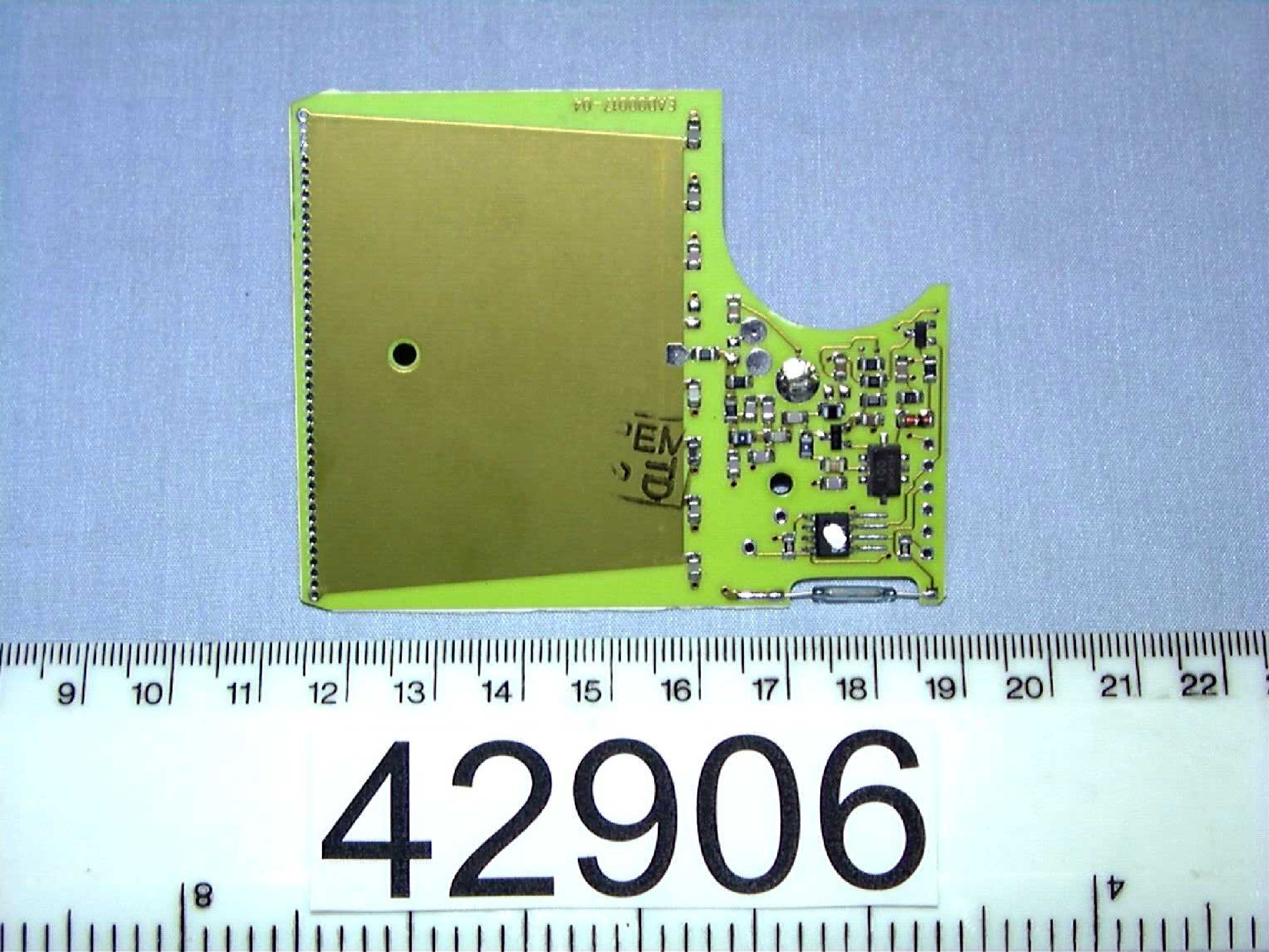

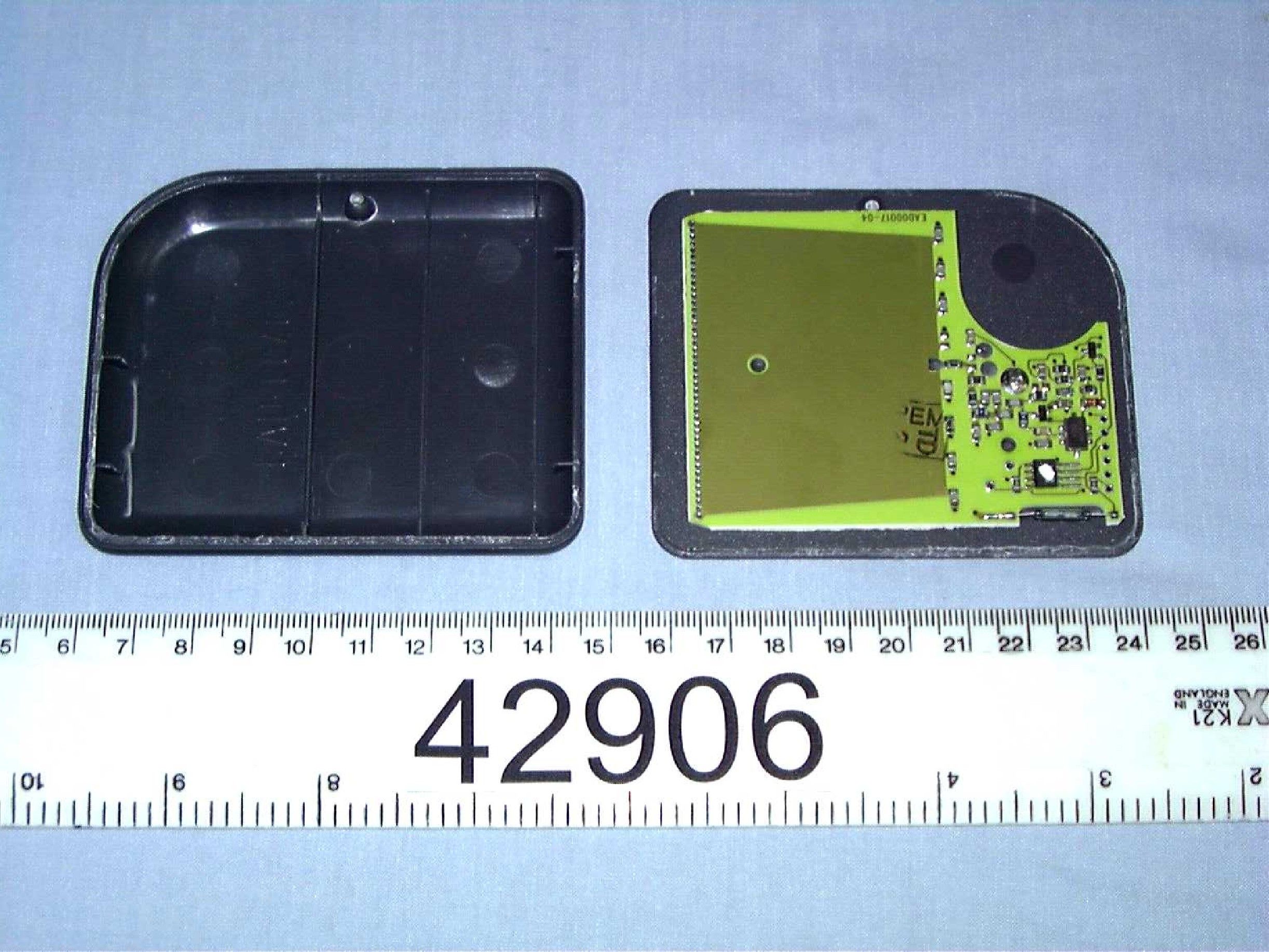

Block Diagram

Block Diagram of the Tag L-TG800: MICRO CONTROLLER RF OSCILLATOR CONFIGURATION INTERFACE (ANTI-TAMPER) POWER SUPPLY (3V) Link-it Tag Enclosure Magnetic Interface 433.92MHz Out ASK Modulated MOVEMENT SENSOR ANTENNA

Cover Letter(s)

09 October 2002 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: 06XL-TG-800 It is requested that the following information is to be held confidential on behalf of Wavetrend FCC Rules Part 0.459 refers. Circuit Diagram .jpg 1 1 Partlist.txt 1 1 Reason: US patents are still pending on this product. Disclosure of this information could financially harm Wavetrend. This information is available after signing of the confidentiality agreement with Wavetrend. Yours sincerely Deon Rabe

Operational Description

USER MANUAL FOR WAVETREND TAGS DOCUMENT NOPRODUCT NO REAL TIME RESOURCE CONTROL DATEPAGE EAA-00000-02-UML-TG100,501,800CONFIDENTIAL02/09/091 OF 11 USER MANUAL FOR THE WAVETREND TAGS Document Number:EAA-00000-02-UM Client:Wavetrend (Pty) Ltd Date:Created on 02/07/02 10:26 AM Status:Final Classification:None S/W File NameTag Operation This document contains information relating to the patented rights of Wavetrend. The confidentiality agreement provisions are applicable to this document. When no longer needed for authorised pur- poses, this document must be returned to Wavetrend. USER MANUAL FOR WAVETREND TAGS DOCUMENT NOPRODUCT NO REAL TIME RESOURCE CONTROL DATEPAGE EAA-00000-02-UML-TG100,501,800CONFIDENTIAL02/09/092 OF 11 AMENDMENT HISTORY IssueDateAmendment DetailsAmended By 0.0018 February 2002Draft and FinalC.L. Neuhoff 1.1026 March 2002Orientation of L-TG800 corrected at move- ment C.L. Neuhoff 1.209 September 2002Tag Age at 15 seconds intervalC.L. Neuhoff Table 1: Amendment History APPROVALS NumberNameDesignationDateSignature 1. A. EvangelidisTechnical Director 2. C.L. NeuhoffSystems Engineer Table 2: Approvals REFERENCED DOCUMENTS NumberTitleDocument NumberRevSource 1. 2. 3. 4. 5. Table 3: Referenced Documents USER MANUAL FOR WAVETREND TAGS DOCUMENT NOPRODUCT NO REAL TIME RESOURCE CONTROL DATEPAGE EAA-00000-02-UML-TG100,501,800CONFIDENTIAL02/09/093 OF 11 ABBREVIATIONS AbbreviationMeaning BCCBlock Check Character (Checksum) CRCarriage Return EOMEnd of Message I/OInput/Input IDIdentity LFLine Feed LSBLeast Significant Bit/Byte mMeter mmMillimeter MSBMost Significant Bit/Byte NCNo Connection PCPersonal Computer PCBPrinted Circuit Board PwrPower RFRadio Frequency RFIDRadio Frequency Identification RxReceive SOMStart of Message TBATo be Announced TxTransmit UPSUninterruptible Power Supply VHBVery High Bond Table 4: Abbreviations USER MANUAL FOR WAVETREND TAGS DOCUMENT NOPRODUCT NO REAL TIME RESOURCE CONTROL DATEPAGE EAA-00000-02-UML-TG100,501,800CONFIDENTIAL02/09/094 OF 11 TABLE OF CONTENTS 1SCOPE..........................................................................................................................5 1.1 IDENTIFICATION ...................................................................................................................................5 1.2 PRODUCT OVERVIEW..........................................................................................................................5 2TECHNICAL INFORMATION ....................................................................................... 6 2.1 TAG SPECIFICATIONS .........................................................................................................................6 2.2 TAG DATA AND CONFIGURATION......................................................................................................7 2.3 MOVEMENT SENSING..........................................................................................................................8 2.4 TAG MOUNTING METHODS.................................................................................................................9 2.4.1 TAG ACCESSORIES .....................................................................................................................9 2.5 ANTI-TAMPER .......................................................................................................................................9 3TROUBLE SHOOTING............................................................................................... 10 4NOTES........................................................................................................................ 11 4.1 CERTIFICATION ..................................................................................................................................11 USER MANUAL FOR WAVETREND TAGS DOCUMENT NOPRODUCT NO REAL TIME RESOURCE CONTROL DATEPAGE EAA-00000-02-UML-TG100,501,800CONFIDENTIAL02/09/095 OF 11 1 SCOPE 1.1 IDENTIFICATION Wavetrend Active Tags can be used in various applications such as access control, personnel monitoring, asset monitoring, vehicle monitoring and building management applications. Wavetrend Tags are suitably packaged to meet the various requirements for different applications. L-TG100L-TG501L-TG800 1.2 PRODUCT OVERVIEW Wavetrend tags are Active Radio Frequency Identification tags (i.e. self-powered). Tags can be configured to transmit its unique identification with a predefined time-interval, and can report events such as tampering and movement. Each tag in the Wavetrend Tag range has unique properties that enable the user to tag a wide range of appliances and objects. • L-TG100 Æ Tag plastic, wooden and rubber objects. • L-TG501 Æ Tag people. • L-TG800 Æ Tag metal objects, computers and notebooks. Wavetrend tags operate at a frequency of 433.92MHz. USER MANUAL FOR WAVETREND TAGS DOCUMENT NOPRODUCT NO REAL TIME RESOURCE CONTROL DATEPAGE EAA-00000-02-UML-TG100,501,800CONFIDENTIAL02/09/096 OF 11 Micro Controller Radio Frequency Generator Battery RF Anti-TamperMovement 2 TECHNICAL INFORMATION All tags consist of the same functional blocks. This functionality is illustrated in the figure below. • Battery: Lithium Battery provides life-span of up to 6 years • Micro-Controller: Handles communications and sensors. • Radio Frequency Generator: Modulates digital data for transmission over free air. • Anti-Tamper: Magnetic sensor used for tamper detection and to configure the tag with unique properties. • Movement Sensor: Detect and report movement (Only MS options) • RF: Modulated Radio signal transports data over free air 2.1 TAG SPECIFICATIONS PARAMETERL-TG100, L-TG501, L-TG800 Environmental Operational Temperature -10°C to +60°C Storage Temperature -20°C to +70°C Humidity5% to 90% (non condensing) Physical Ultrasonically sealed unit IP65 Size64 x 30 x 9mm (L-TG100) 86 x 54 x 6mm (L-TG501) 85 x 70 x 9mm (L-TG800) Weight<15grams, (L-TG100 excluding antenna) <15grams (L-TG501)…

Text truncated - open the document above for the full version.

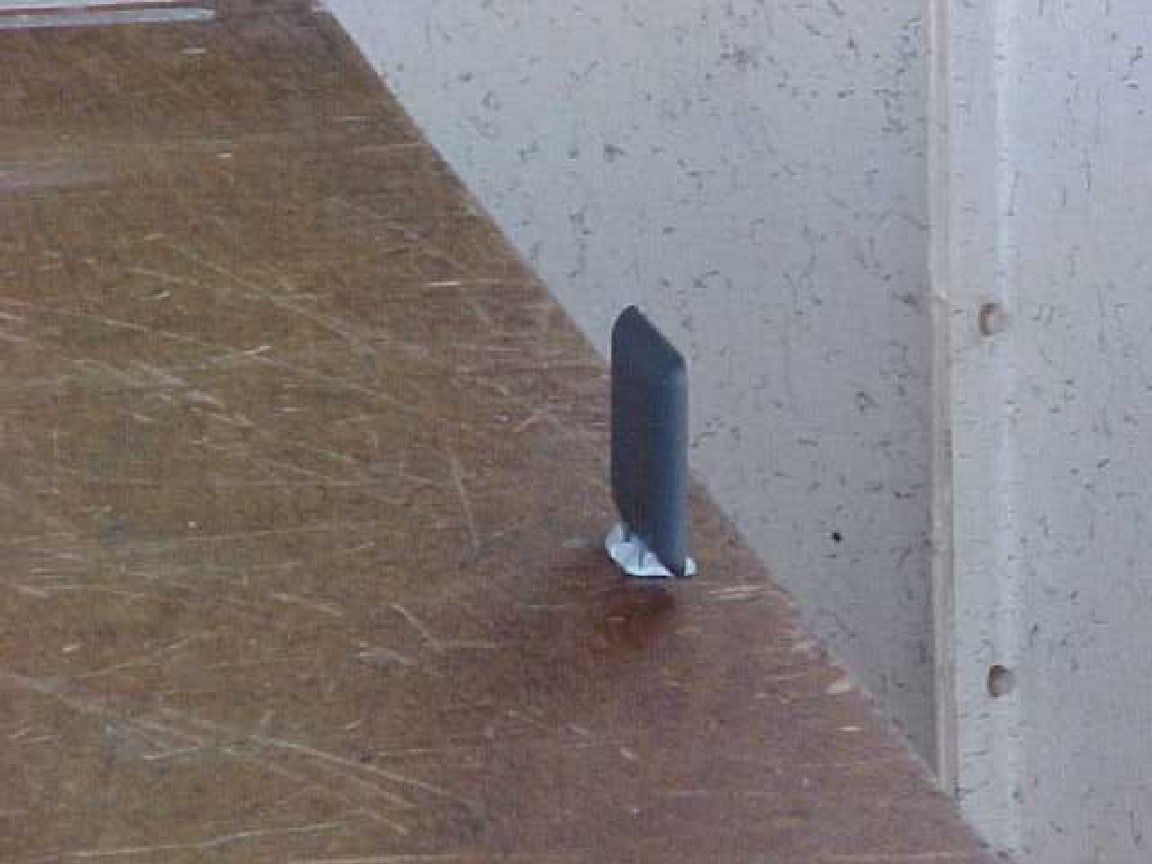

Test Report

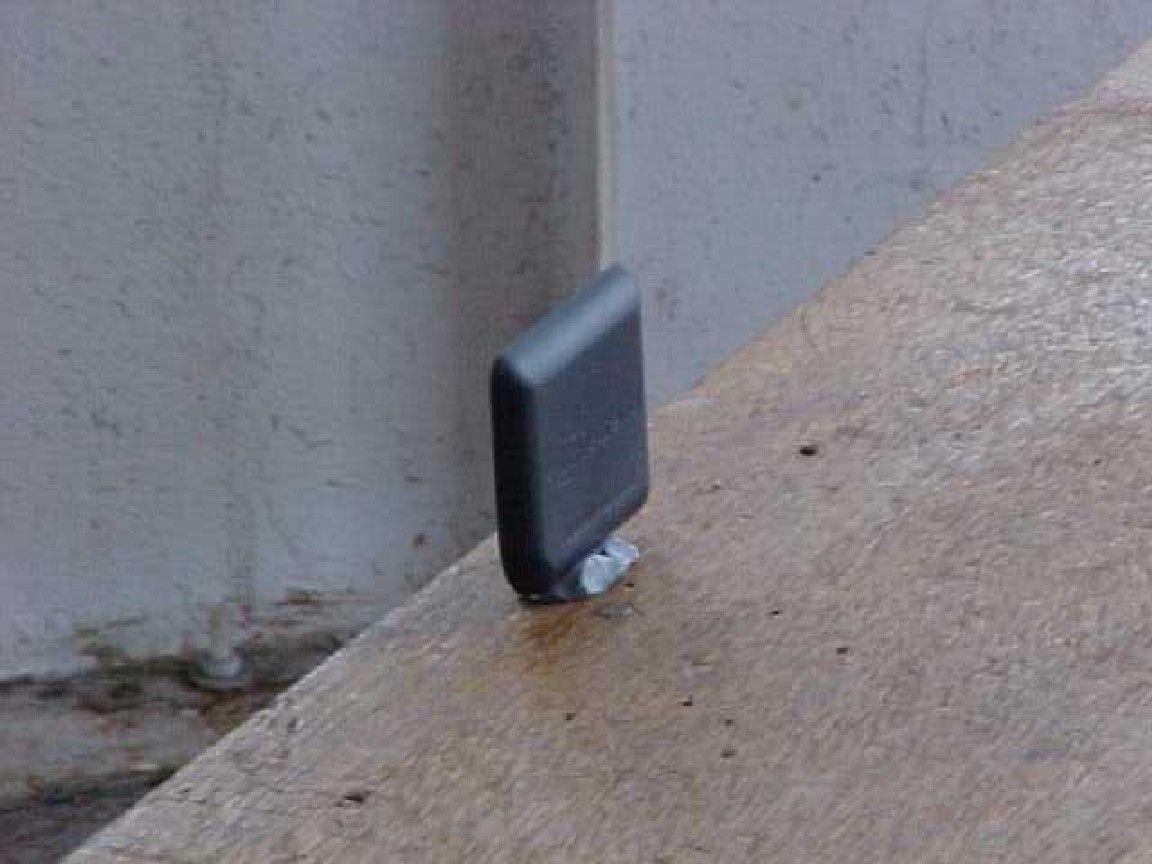

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Wavetrend (Pty) Ltd. L-TG800 Transmitter To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.231 Test Report Serial No: RFI/MPTB1/RP42906JD05A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 03 July 2002Test Dates: 24 May 2002 to 30 May 2002 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42906JD05A EMC DepartmentPage 2 of 30 Issue Date: 03 July 2002 Title:Test Of: Wavetrend (Pty) Ltd. L-TG800 Transmitter To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.231 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42906JD05A EMC DepartmentPage 3 of 30 Issue Date: 03 July 2002 Title:Test Of: Wavetrend (Pty) Ltd. L-TG800 Transmitter To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.231 Table of Contents 1. Client Information...................................................................................................... 4 2. Equipment Under Test (EUT) .................................................................................... 5 3. Test Specification, Methods And Procedures ......................................................... 6 4. Deviations From The Test Specification .................................................................. 8 5. Operation Of The EUT During Testing ..................................................................... 9 6. Summary Of Test Results ....................................................................................... 10 7. Measurements, Examinations And Derived Results ............................................. 11 8. Measurement Uncertainty....................................................................................... 17 Appendix 1. Test Equipment Used.............................................................................. 18 Appendix 2. Measurement Methods............................................................................ 19 Appendix 3. Test Configuration Drawings.................................................................. 21 Appendix 4. Graphical Test Results............................................................................ 24 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42906JD05A EMC DepartmentPage 4 of 30 Issue Date: 03 July 2002 Title:Test Of: Wavetrend (Pty) Ltd. L-TG800 Transmitter To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.231 1. Client Information Company Name: Wavetrend (Pty) Ltd Address: Block 2B, Upper Level The Cloisters Office Park Cnr Rivonia & 9th Avenue Rivonia Johannesburg 2128 South Africa Contact Name: Mr D Rabe RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42906JD05A EMC DepartmentPage 5 of 30 Issue Date: 03 July 2002 Title:Test Of: Wavetrend (Pty) Ltd. L-TG800 Transmitter To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.231 2. Equipment Under Test (EUT) The client has supplied the following information (with the exception of the Date of Receipt): 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Link-IT Model Name or Number: L-TG800 Serial Number: 4278612-10027043 Country of Manufacture: South Africa FCC ID Number: Not applicable Date of Receipt: 24 May 2002 2.2. Description Of EUT The L-TG800 is an intentional transmitter used for asset tagging applications. The transmitted data includes customer site code (CSC), tag ID, tag age counter value, movement alarm and tamper alarm status. Each tag unit is encapsulated in a moulded plastic case, which is ultrasonically sealed for protection against adverse weather conditions. 2.3. Modifications Incorporated In EUT None. 2.4. Additional Information Related To Testing Type Of Unit: Transmitter Transmit Output Power Characteristics: 38W Operating Frequency: 433.92 MHz Power Supply Requirement: Internal battery supply of 3.1 V Weight: <25 g Dimensions: 85 x 70 x 9 mm Highest frequency generated or used in the EUT: 433.92 MHz 2.5. Support Equipment There was no support equipment used to exercise the EUT during testing. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42906JD05A EMC DepartmentPage 6 of 30 Issue Date: 03 July 2002 Title:Test Of: Wavetrend (Pty) Ltd. L-TG800 Transmitter To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.231 3. Test Specification, Methods And Procedures 3.1. Test Specification Reference: FCC Part 15 Subpart C: 2001 (Intentional Radiators). Section 15.231(e) (Periodic Operation within the Band 40.66 to 40.70 MHz and above 70 MHz). Title: Code of Federal Regulations, Part 15 (47CFR15: 2001-01) Radio Frequency Devices: Digital Devices. Comments: A description of the test facility used for this test is on file with, and has been accepted by, the Federal Communications Commission as required by Section 2.948 of Federal Rules. Purpose of Test: To determine whether the equipment complied with the requirements of the specification for the purposes of certification. 3.2. Methods And Procedures The methods and procedures used were as detailed in: ANSI C63.2 (1996) Title: American National Sta…

Text truncated - open the document above for the full version.
