O6XTGA-AActive Duo RFID Tag TGA-A

Europe, Australasia and Middle East – Corporate Office +44 (0)20 8334 8400 KEY FEATURES Tag can be configured to hold standard 26-bit Wiegand numbering Configurable settings include:
Site/vendor ID
Tag ID
Tag Age Counter
Various transmission repetition intervals
Tamper Alarm Collision avoidance algorithm Ultra low power consumption




The TGA-A ActivDuo Asset Tag is a long life active tag that continuously transmits a unique ID number, which can be detected by Wavetrend ® reader. An internal battery powers the tag and Wavetrend’s patented ultra longer battery life at higher rates of transmission than any other brand of active RFID tag. Various preset transmission intervals are available. The TGA-A tag is available in both L-Series and L © 2011 Wavetrend Europe Limited | All Rights Reserved | All specifications are subject to change without notice. Corporate Office USA, Canada and South America +1 (703) 539 8502 +27 (0)11 792 BUSINESS BENEFITS hold standard Allows tag to be used with existing access control systems separately or together with the active RFID system. petition intervals
A unique code that can be allocated by Wavetrend to each customer on request. Readers can be set to ignore tags with incorrect site codes.
4.2 billion tag ID’s are available per site code.
The Age Counter allows for advance notification of the end of battery life and for the unique identification for each transmission made by the tag.
Different status transmission intervals allow tags to be used in diverse applications while offering the best battery life spans in the market.
Provides instant notification of unauthorized attempts to remove a tag from an asset. Reduces loss of data caused by simultaneous transmissions from multiple tags. Typical lifespan of 5 years when transmitting at the standard or greater interval.
Beacon tag transmitting a unique ID & data at pre
Ultra long-range transmitter
Anti-tamper alert option
Motion sensor option
Ruggedised IP68 Industrial Housing A ActivDuo Asset Tag is a long life active tag that continuously transmits a unique ID number, which can be detected reader. An internal battery powers the tag and Wavetrend’s patented ultra low power use design ensures longer battery life at higher rates of transmission than any other brand of active RFID tag. Various preset transmission Series and L-Series plus formats Limited | All Rights Reserved | All specifications are subject to change without notice. South Africa +1 (703) 539 8502 +27 (0)11 792 6066 Asset Tag TGA-A Personnel IP68 Waterproof Allows tag to be used with existing access control with the active RFID A unique code that can be allocated by Wavetrend to Readers can be set to 4.2 billion tag ID’s are available per site code. The Age Counter allows for advance notification of and for the unique identification Different status transmission intervals allow tags to be used in diverse applications while offering the best authorized attempts years when transmitting at the Best Usage Guide Beacon tag transmitting a unique ID & data at pre-set intervals A ActivDuo Asset Tag is a long life active tag that continuously transmits a unique ID number, which can be detected low power use design ensures longer battery life at higher rates of transmission than any other brand of active RFID tag. Various preset transmission Europe, Australasia and Middle East – Corporate Office +44 (0)20 8334 8400 The TGA-A Asset Tag has a unique omni directional antenna design allowing the tag to be read from all directions and to be deployed equally well on metallic and non metallic assets. Optimum read range is achieved on metal with a 10% reduction on Non metals. The tag is sealed to IP68 providing the highest level of water ingress protection. Model Range The tags can be ordered using the part numbers listed below: L-Series TGA-A Air Interface Protocols L-Series’ and L-Series+ refers to a proprietary communication protocol used between Wavetrend ® tags and readers. L-Series tags provide ultra long read range and are ideal for use in low tag density (< 30 tags per reader) operations such as personnel tracking, small asset management applications and access control systems. L-Series+ offers a wide range of extra features including: Increased levels of security, Encrypted air interface and secure concealed site code options Multiple classes, allowing the user to select shorter messaging packets for high speed or high density application User definable data fields, allowing up to 200 characters of user data to be stored on the tag Ordering & Further Information For more information on purchasing the TGA-A Tag please email Wavetrend’s Sales team: [email protected] For more information on Wavetrend ® visit our website. Typical Applications © 2011 Wavetrend Europe Limited | All Rights Reserved | All specifications are subject to change without notice. Corporate Office USA, Canada and South America +1 (703) 539 8502 +27 (0)11 792 Specifications Smart telemetry tag, that alert and log the user if out of bounds conditions in either temperature or humidity occur Greater selection of tag beacon rates offering greater tag of the reduction in spurious transmissions. L-Series+ tags can only be read by L-Series+ readers. L-Series readers can read both L-Series and L-Series+ tags. FCC Statement of Conformity Wavetrend , TGA-A Active Duo , FCC ID: 06XTGA-A This device complies with Part 15 of the FCC ru les subject to the following three 1) This device may not cause harmful interference. 2) This device must accept all interference received, including interference that may cause undesired operation. 3) This device is for commercial use only and intended for use in a confined area with an appropriate system receiver Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Environmental Operating temperature Storage temperature Humidity : -30°C …

Text truncated - open the document above for the full version.

User Manual Active RFID Tags USER MANUAL –Active RFID Tags Document No. Configuration No. Wavetrend Technologies Ltd Issue Date Page 25042002 REV 2.3 User Manual 25 TH APRIL 2012 2 OF 30 ABBREVIATIONS USED Abbreviation Meaning ActivDuo One of Wavetrend’s two ranges of Active RFID Tags ASK Amplitude-shift keying modulation BNC connector Bayonet Neill-Concelman connector (a common type of RF connector) CE Conformité Européenne, "European Conformity" in French. CISPR Comite international Special des Perturbations Radioelectriques, “International Special Committee on Radio Interference” in French. CSC ‘Customer Site Code’ – Uniquely assigned by Wavetrend to every customer, on request. EMC Electromagnetic Compatibility FCC Federal Communications Commission (USA) ID Identifier IEC International Electrotechnical Commission IP rating Ingress Protection rating IPR Intellectual Property Rights IT Information Technology m Meter (metric measurement) MHz Mega hertz (= 1000 Hz) OEM Original Equipment Manufacturing Ohm The unit of electrical impedance or, in the direct current case, electrical resistance, named after Georg Ohm PUC Product Unique Code RF Radio Frequency RFID Radio Frequency Identification RoHS Restriction of Hazardous Substances (EU Directive) RTLS Real Time Location System SABS South African Bureau of Standards Tx Transmit / Transmission VHB Very high bond WEEE Waste Electrical and Electronic Equipment (EU Directive) μV/m Microvolts per meter (the units used to describe the strength of an electric field created by the operation of a transmitter) Table 1: Abbreviations Used USER MANUAL –Active RFID Tags Document No. Configuration No. Wavetrend Technologies Ltd Issue Date Page 25042002 REV 2.3 User Manual 25 TH APRIL 2012 3 OF 30 IMPORTANT NOTICE TO THE READER Each of Wavetrend ® ’s ActivDuo active RFID tags have been specifically designed to operate in specific circumstances or applications and be attached to specific types of items in a specific manner. Failure to follow the guidelines and application notes contained in this manual for each tag listed can lead to their incorrect operation and failure to perform as expected or intended. The choice of which Wavetrend ® tags to use in any project must be made by a fully trained and Wavetrend ® certified engineer. Wavetrend ® accepts no responsibility for any failure of the product in any way caused by the incorrect selection, installation and usage of Wavetrend ® ’s active RFID tags, readers, ancillary devices and software. DISCLAIMER NOTICES REGARDING HARDWARE, SOFTWARE, DOCUMENTS AND SERVICES THAT ARE AVAILABLE FROM WAVETREND: In no event shall Wavetrend ® and/or its respective suppliers be liable for any special, indirect or consequential damages or any damages whatsoever resulting from loss of use, data or profits, whether in an action of contract, negligence or other tortuous action, arising out of or in connection with the use or performance of hardware, software, documents, provision of or failure to provide services, or information available from Wavetrend ® and/or our website http://www.wavetrend.net. The documents published by Wavetrend ® could include technical inaccuracies or typographical errors. Changes are periodically added to the information herein. Wavetrend ® and/or its respective suppliers may make improvements and/or changes in the product (s) and/or the program (s) described herein at any time without prior notice. FCC STATEMENT The ActivDuo devices described in this manual comply with Part 15 of the FCC Rules. Operation is subject to the following three conditions: The device may not cause harmful interference The device must accept all interference received, including interference that may cause undesired operation. The device is for commercial use only and intended for use in a confined area with an appropriate system receiver Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. USER MANUAL –Active RFID Tags Document No. Configuration No. Wavetrend Technologies Ltd Issue Date Page 25042002 REV 2.3 User Manual 25 TH APRIL 2012 4 OF 30 TABLE OF CONTENTS 1 THE WAVETREND RANGE OF ACTIVE RFID TAGS .................................................................................. 6 1.1 Product Overview .......................................................................................................................... 6 1.2 Key Features and Benefits of ActivDuo .......................................................................................... 7 1.3 Key Features and Benefits of Active Tags ..................................................................................... 8 1.4 Data Transmitted by ActivDuo and Active Tags ............................................................................. 9 1.5 General Facts about Wavetrend Tags ......................................................................................... 10 1.6 Obtaining Professional Advice on Using Tags .............................................................................. 10 1.7 ActivDuo Tag Functionality .......................................................................................................... 11 1.7.1 Standard Transmission Mode .................................................................................................. 11 1.7.2 Movement Alert Mode ............................................................................................................. 11 1.7.3 Tamper Alert Mode .................................................................................................................. 11 1.8 Wavetrend Tag Families Overview .............................................................................................. 12 1.8.1 TGP (Personnel) Family .......................................................................................................... 12 1.8.2 TGA (Asset) Family ...................…

Text truncated - open the document above for the full version.

Wavetrend Europe Ltd | Parkshot House | 5 Kew Road | Richmond | Surrey | TW9 2PR | United Kingdom Telephone +44 (0)208 334 8400 | fax +44 (0)208 334 8401 Company No 4011239 | Vat No 782 5292 06 LETTER OF AGENCY Date 20 th April 2012 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Thank you for your attention to these matters. Yours faithfully Company Name Wavetrend Europe Signature Full Name Will Damerell

Wavetrend Europe Ltd | Parkshot House | 5 Kew Road | Richmond | Surrey | TW9 2PR | United Kingdom Telephone +44 (0)208 334 8400 | fax +44 (0)208 334 8401 Company No 4011239 | Vat No 782 5292 06 REQUEST FOR CONFIDENTIALITY IN ACCORDANCE WITH FCC RULE 0.459 Date 25 th April 2012 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: 06XTGA-A To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of Wavetrend. • Bill of Materials • Circuit Diagrams • Block Diagrams The application contains technical information which Wavetrend deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Wavetrend Signature Will Damerell

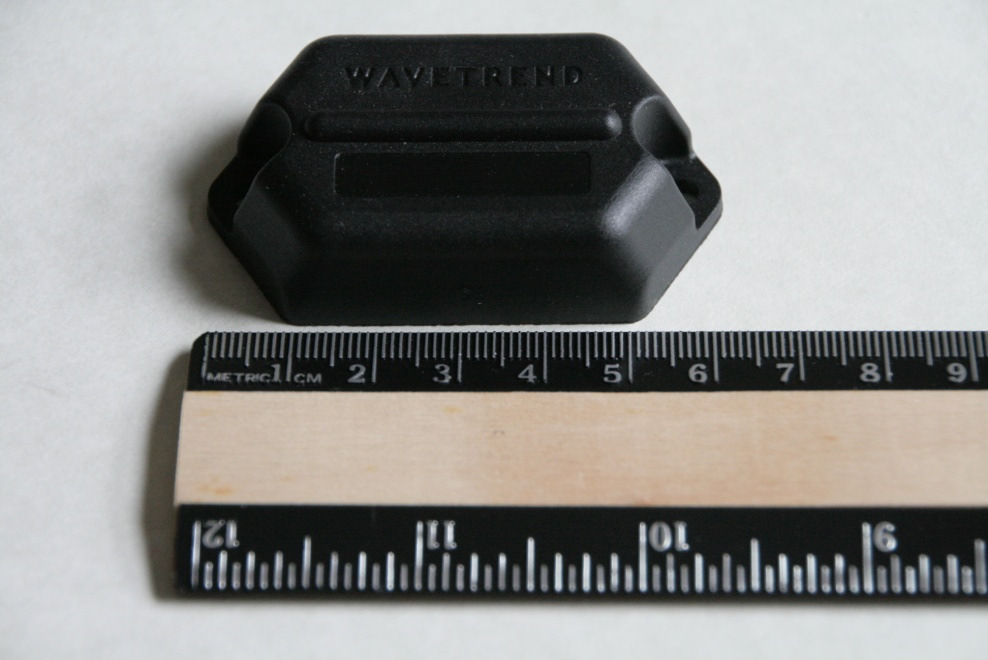

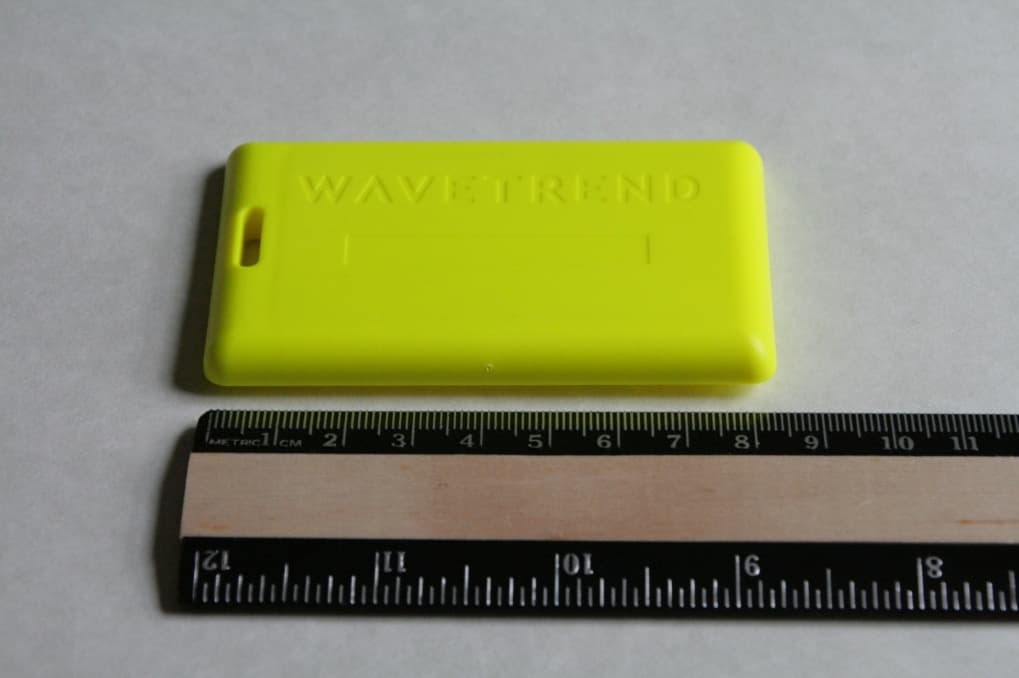

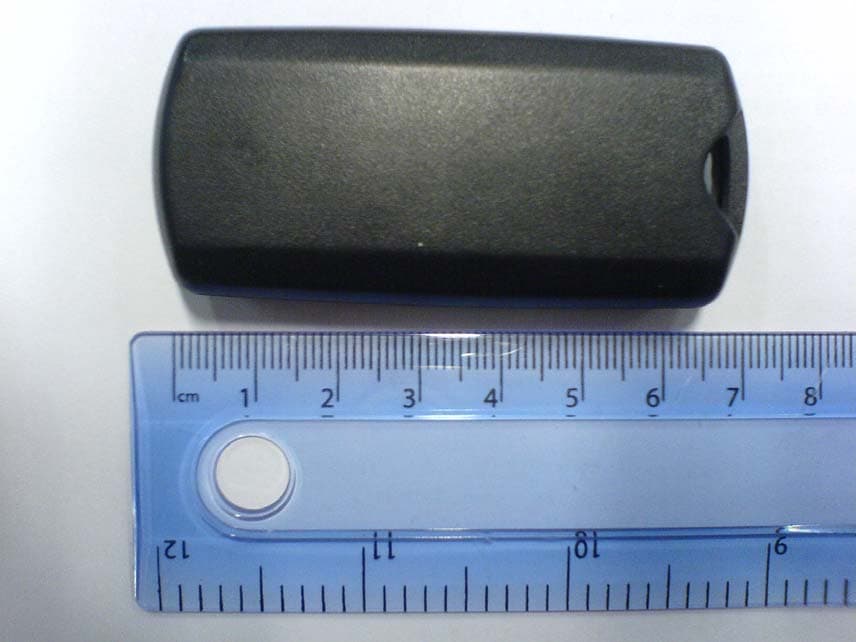

Page 8 3.0 External Photographs It should be noted that all case style and colour may change from model to model. The TGA The TGAI The TGAS 3.0 External Photographs It should be noted that all the TGA family all use the same circuitry however the case style and colour may change from model to model. The TGAI The TGAS circuitry however the

Page 1 FCC Statement of Conformity Wavetrend , TGA-A Active Duo , FCC ID: 06XTGA-A This device complies with Part 15 of the FCC rules subject to the following three 1) This device may not cause harmful interference. 2) This device must accept all interference received, including interference that may cause undesired operation. 3) This device is for commercial use only and intended for use in a confined area with an appropriate system receiver Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Labelling Wavetrend will use the following FCC identifier Active Duo Tags (FCC) TGP-A TGA-A TGM-A Due to the size of the tags the full FCC statement of compliance is supplied the tag data sheets. The Tag label dimensions are 18x38mm , the TGA-A TGA-A This device complies with Part 15 of the FCC rules subject to the following three conditions: This device may not cause harmful interference. This device must accept all interference received, including interference that may cause This device is for commercial use only and intended for use in a confined area with an Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Wavetrend will use the following FCC identifier FCC Identifier FCC ID: 06XTGP-A FCC ID: 06XTGA-A FCC ID: 06XTGM-A of the tags the full FCC statement of compliance is supplied The Tag label dimensions are 18x38mm , the tag label is illustrated below on a of the tags the full FCC statement of compliance is supplied on tag label is illustrated below on a

TGA PCB Photographs Author Doc Number Date W Damerell25 th April 2012 TGA 25042012 Revision 1.0

Page 1 TGA-A Operational Description Wavetrend Active RFID Hardware uses a half duplex 433.92 ASK communication protocol. The Wavetrend readers are receive only and listen for the transmission of the Wavetrend Active Duo tags. When a reader receives a tag packet over the air interface protocol it decodes the information and stores it in its internal tag buffer, this data is then either polled manually from a local host PC or if the reader is in auto poll pushed to the host. Wavetrend tags are transmit only they cannot receive, they are configured to have two modes of transmission , the primary is the tags beacon rate which can be set at either 15 or 30 seconds. A tag configured with a setting of 15 seconds will wake up automatically every 15 seconds and transmit a single 7ms packet of data, it will then return to sleep mode. All Wavetrend FCC tags have a motion sensor fitted which provides the tag with an external input that is used to drive the secondary beacon rate. The secondary beacons can only be transmited if the tag is in motion , these have the following interval settings 0.4,0.8,1.5 seconds. On motion the tag will transmit a group of 4 secondary beacons which contain the same 7ms tag packet that is transmitted in a primary beacon. As soon as the tag stops detecting motion , it switches out of the secondary beacon mode and back into the primary beacon mode. The beaconing rates can be selected by Wavetrend or by the end user via the use of a Tag programmer. It should be noted that the firmware in both the FCC tag and in the Tag programmers does not allow the FCC products to be set to primary beacon rates outside of the permeable range, IE the ETSI rates of 0.4, 0.8 or 1.5 seconds. For the absent of doubt , it is not possible to configure an FCC tag to beacon at any other than the FCC beacons schemes , even if programmed with an ETSI programmer. The FCC product is designated Wavetrend Active DUO This method of operation was reviewed and passed by the FCC in January 2012 on the following grant condition This device is for commercial use only and intended for use in a confined area with an appropriate system receiver as indicated in the Certification filing. FCC Contact Joe Dichoso [email protected]<mailto:[email protected]>

A RADIO TEST REPORT FOR WAVETREND EUROPE Ltd ON TGA-A DOCUMENT NO. TRA-009817-00W-US-02 TRaC Wireless Test Report : TRA-009817-00-W-US-02 Applicant : WAVETREND EUROPE Ltd Apparatus : TGA-A Specification(s) : CFR47 Part 15.231 July 2010 Purpose of Test : CERTIFICATION FCCID : 06XTGA-A Authorised by : : Radio Product Manager Issue Date :28 th May 2012 Authorised Copy Number : PDF Radio Test Report: TRA-009817-00-W-US-02 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Appendix A: Formal Emission Test Results 11 A1 Transmitter Intentional Emission Radiated 12 A2 Radiated Electric Field Emissions 13 Appendix B: Supporting Graphical Data 15 Appendix C: Additional Test and Sample Details 21 Appendix D: Additional Information 27 Appendix E: Calculation of the duty cycle correction factor 28 Appendix G: Variants 35 3 Radio Test Report: TRA-009817-00-W-US-02 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Telecoms & Radio [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: S Hodgkinson Report author: S Hodgkinson This report must not be reproduced except in full without prior written permission from TRaC Global. 4 Radio Test Report: TRA-009817-00-W-US-02 1.2 Tests Requested By This testing in this report was requested by : Wavetrend Europe Ltd Parkshot House 5 Kew Road Richmond Surrey TW9 2PR 1.3 Manufacturer As Above 1.4 Apparatus Assessed The followin g apparatus was assessed between 23 rd April 2012 and 25 th April 2012 EUT TGA-A The above equipment was a 434 MHz transmitter operating in the 433.04 MHz to 434.79 MHz band. 5 Radio Test Report: TRA-009817-00-W-US-02 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Spurious Emissions Radiated <1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15.231e & 15.209 ANSI C63.10 Pass Spurious Emissions Radiated >1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15.231e & 15.209 ANSI C63.10 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 N/A Intentional Emission Frequency Title 47 of the CFR: Part 15 Subpart (c) 15.231a ANSI C63.10 Pass Intentional Emission Field Strength Title 47 of the CFR: Part 15 Subpart (c) 15.231e ANSI C63.10 Pass Intentional Emission Band Occupancy Title 47 of the CFR: Part 15 Subpart (c) 15.215c ANSI C63.10 Pass Intentional Emission ERP (mW) Title 47 of the CFR: Part 15 Subpart (c) 15. ANSI C63.10 N/A Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 N/A Antenna Arrangements Integral: Title 47 of the CFR: Part 15 Subpart (c) 15.203 - N/A Antenna Arrangements External Connector Title 47 of the CFR: Part 15 Subpart (c) 15.204 - Pass Restricted Bands Title 47 of the CFR: Part 15 Subpart (c) 15.205 - Pass Maximum Frequency of Search Title 47 of the CFR: Part 15 Subpart (c) 15.33 - Pass Extrapolation Factor Title 47 of the CFR: Part 15 Subpart (c) 15.31(f) - Pass Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 Radio Test Report: TRA-009817-00-W-US-02 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 22 to 23 C Humidity : 45 to 75 % All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards test ed to. 7 Radio Test Report: TRA-009817-00-W-US-02 Section 2: Measurement Uncertainty 2.1 Measurement Uncertainty Values For the test data recorded in the following measurement uncertainty was calculated: Radio Testing – General Uncertainty Schedule All statemen…
