O6XTGF-AActive Duo RFID Tag TGF-A

© 2012 Wavetrend Europe Limited | All Rights Reserved | All specifications are subject to change without notice. Europe, Australasia and Middle East – Corporate Office USA, Canada and South America +44 (0)20 8614 7779 +1 (703) 539 8502 Key fob Tag TGF-A 0 The TGF Active Key fob can be operated in two modes both sleep and wake. Whilst awake both buttons operate and the tag has its standard beacon rate, when asleep both buttons operate and there is no beacon rate. The LED will flash once when button one which is closest to the LED is pressed and twice when button 2 is pressed in both Asleep and Awake settings. Personnel Beacon tag transmitting a unique ID & data at pre-set intervals Ultra long-range transmitter Low battery warning 2 Push Button alarms Flashing LED on Alarm Replaceable Battery KEY FEATURES BUSINESS BENEFITS Tag can be configured to hold standard 26-bit Wiegand numbering Allows tag to be used with existing access control systems separately or together with the active RFID system. Configurable settings include: Site / Vendor ID Tag ID Various transmission repetition intervals (default 10s) Panic Button 1 Panic Button 2 Replaceable coin cell battery Flashing LED Sealed to IP50 standards A unique code that can be allocated by Wavetrend to each customer on request. Readers can be set to ignore tags with incorrect site codes. 4.2 billion tag ID’s are available per site code. Different status transmission intervals allow tags to be used in diverse applications while offering the best battery life spans in the market. Transmits Motion Alert Transmits Tamper Alert Lifespan at 30 seconds is 3 years Provides user visual confirmation that an alarm has been transmitted. Best Usage Guide © 2012 Wavetrend Europe Limited | All Rights Reserved | All specifications are subject to change without notice. Europe, Australasia and Middle East – Corporate Office USA, Canada and South America +44 (0)20 8614 7779 +1 (703) 539 8502 Key fob Tag TGF-A The TGF-A Key fob tag can be used for both security and control purposes. In security applications it is often used awake with its beacon being used to locate personnel within and zone and to detect any alarms. In control applications the TGF tag can be combined with the RX211 access reader which when suitably configured can open either set of relays corresponding to either button 1 or button 2 being pressed on the TGF-A. Model Range The tag can be ordered using the part number listed below: L-Series TGF : Standard tag Ordering & Further Information For more information on purchasing the Activ TGF-A Tag please email Wavetrend’s Sales team: [email protected] For more information on Wavetrend ® visit our website. Specifications IP Information Wavetrend and the Wavetrend logo are either registered trademarks or trademarks of Wavetrend Technologies Limited in the United States and/or other countries. All other trademarks are the property of their respective owners. The product(s) described in this document are protected by various patents held by Wavetrend. Refer to the URL www.wavetrend.net/IPR for information on all patents and trademarks held, and for Wavetrend's Policy on Intellectual Property Rights. Typical Applications Environmental Operating temperature Storage temperature Humidity : -30°C to +60°C : -40°C to +70°C : 5% to 90% (non-condensing) Physical Size Weight Colour Material : 57 x 35 x 10 mm : 14 grams : Black : Nylon IP64 Radio Frequency Transmit Frequency Power Output (avg.) Range : 433.92 MHz : 77 dBV/m @ 3m : 1 to 100+ meters (actual range is determined by the choice of reader & antenna used to detect the tag and the environment it is used in) Electrical Power : Internally powered by Replaceable lithium battery FCC Statement of Conformity Wavetrend , TGFA Active Duo , FCC ID: 06XTGF-A This device complies with Part 15 of the FCC rules subject to the following three conditions: 1) This device may not cause harmful interference. 2) This device must accept all interference received, including interference that may cause undesired operation. 3) This device is for commercial use only and intended for use in a confined area with an appropriate system receiver Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Wavetrend Europe Ltd | Gothic House | 3 The Green | Richmond | Surrey | TW9 1PlL| United Kingdom Telephone +44 (0)2086147779 Company No 4011239 | Vat N o 782 5292 06 LETTER OF AGENCY Date 6 th July 2012 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Thank you for your attention to these matters. Yours faithfully Company Name Wavetrend Europe Signature Full Name Will Damerell

Wavetrend Europe Ltd | Gothic House | 3 The Green | Richmond | Surrey | TW9 1PlL| United Kingdom Telephone +44 (0)2086147779 Company No 4011239 | Vat N o 782 5292 06 REQUEST FOR CONFIDENTIALITY IN ACCORDANCE WITH FCC RULE 0.459 Date 6 th July 2012 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: 06XTGF-A To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of Applicants Name Here.  Bill of Materials Circuit Diagrams  Block Diagrams The application contains technical information which Applicants Name Here deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Wavetrend Signature Will Damerell

Page 1 FCC Statement of Conformity Wavetrend , TGF-A Active Duo , FCC ID: 06XTGF-A This device complies with Part 15 of the FCC rules subject to the following three conditions: 1) This device may not cause harmful interference. 2) This device must accept all interference received, including interference that may cause undesired operation. 3) This device is for commercial use only and intended for use in a confined area with an appropriate system receiver Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. TGF-A Label Detail Wavetrend will use the following FCC identifier on all labels Active Duo Tags (FCC) FCC Identifier TGP-A FCC ID: 06XTGP-A TGA-A FCC ID: 06XTGA-A TGM-A FCC ID: 06XTGM-A TGF-A FCC ID: 06XTGF-A Due to the size of the tags the full FCC statement of compliance is supplied on the tag data sheets. The Tag label dimensions are 25x20mm , the tag label is illustrated below.

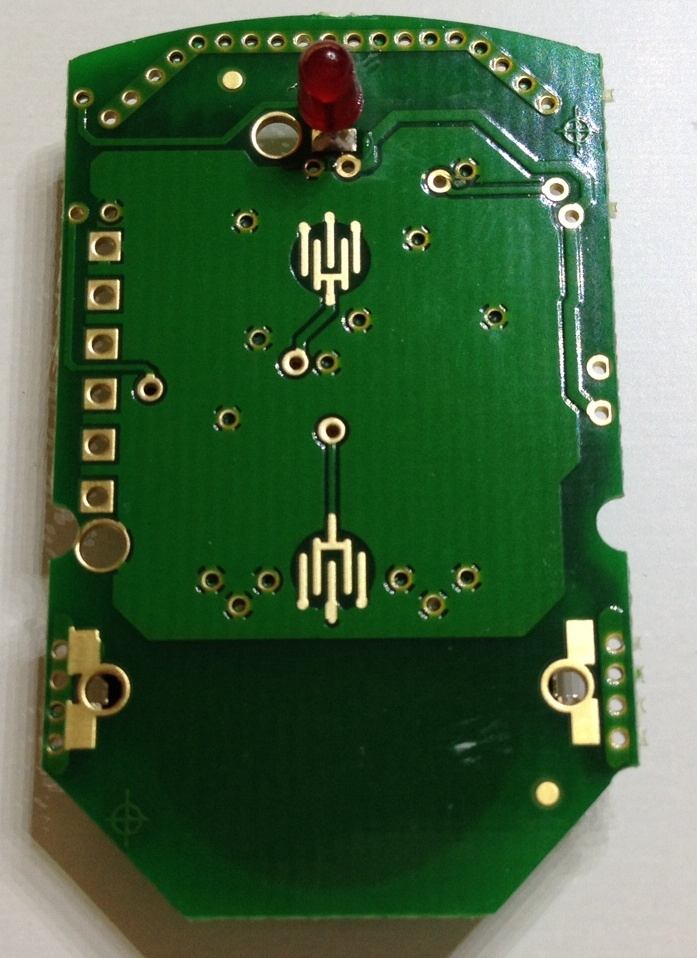

TGF-A PCB Photographs Author Doc Number Date W Damerell 12 th July 2012 TGF-A 12072012Revision1.0

Page 1 TGF-A Operational Description Wavetrend Active RFID Hardware uses a half duplex 433.92 ASK communication protocol. The Wavetrend readers are receive only and listen for the transmission of the Wavetrend Active Duo tags. When a reader receives a tag packet over the air interface protocol it decodes the information and stores it in its internal tag buffer, this data is then either polled manually from a local host PC or if the reader is in auto poll pushed to the host. Wavetrend tags are transmit only they cannot receive, they are configured to have two modes of transmission , the primary is the tags beacon rate which can be set at either 15 or 30 seconds. A tag configured with a setting of 15 seconds will wake up automatically every 15 seconds and transmit a single 7ms packet of data, it will then return to sleep mode. All Wavetrend FCC tags accept the TGF have a motion sensor fitted which provides the tag with an external input that is used to drive the secondary beacon rate. In the case of the TGF the secondary beacon is driven by pressing the key fob button. The secondary beacons can only be transmitted if the tag is in motion , these have the following interval settings 0.4,0.8,1.5 seconds. On motion the tag will transmit a group of 4 secondary beacons which contain the same 7ms tag packet that is transmitted in a primary beacon. As soon as the tag stops detecting motion , it switches out of the secondary beacon mode and back into the primary beacon mode. The beaconing rates can be selected by Wavetrend or by the end user via the use of a Tag programmer. It should be noted that the firmware in both the FCC tag and in the Tag programmers does not allow the FCC products to be set to primary beacon rates outside of the permeable range, IE the ETSI rates of 0.4, 0.8 or 1.5 seconds. For the absent of doubt , it is not possible to configure an FCC tag to beacon at any other than the FCC beacons schemes , even if programmed with an ETSI programmer. The FCC product is designated Wavetrend Active DUO This method of operation was reviewed and passed by the FCC in January 2012 on the following grant condition This device is for commercial use only and intended for use in a confined area with an appropriate system receiver as indicated in the Certification filing. FCC Contact Joe Dichoso [email protected]<mailto:[email protected]>

A RADIO TEST REPORT FOR WAVETREND EUROPE Ltd ON TGF DOCUMENT NO. TRA-009817-W-US-04 TRaC Wireless Test Report : TRA-009817-W-US-04 Applicant : WAVETREND EUROPE Ltd Apparatus : TGF Specification(s) : CFR47 Part 15.231 (e) July 2010 Purpose of Test : CERTIFICATION FCCID : 06XTGF-A Authorised by : : Radio Product Manager Issue Date :17 th July 2012 Authorised Copy Number : PDF Radio Test Report: TRA-009817-W-US-04 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Appendix A: Formal Emission Test Results 11 A1 Transmitter Intentional Emission Radiated 12 A2 Radiated Electric Field Emissions 13 Appendix B: Supporting Graphical Data 15 Appendix C: Additional Test and Sample Details 21 Appendix D: Additional Information 27 Appendix E: Calculation of the duty cycle correction factor 28 Appendix G: Variants Error! Bookmark not defined. 3 Radio Test Report: TRA-009817-W-US-04 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Telecoms & Radio [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D. Winstanley Report author: D. Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. 4 Radio Test Report: TRA-009817-W-US-04 1.2 Tests Requested By This testing in this report was requested by : Wavetrend Europe Ltd Parkshot House 5 Kew Road Richmond Surrey TW9 2PR 1.3 Manufacturer As Above 1.4 Apparatus Assessed The followin g apparatus was assessed between the dates 22 nd – 23 rd May 2012 EUT TGF The above equipment was a 434 MHz keyfob transmitter operating in the 433.04 MHz to 434.79 MHz band. 5 Radio Test Report: TRA-009817-W-US-04 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Spurious Emissions Radiated <1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15.231e & 15.209 ANSI C63.10 Pass Spurious Emissions Radiated >1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15.231e & 15.209 ANSI C63.10 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 N/A Intentional Emission Frequency Title 47 of the CFR: Part 15 Subpart (c) 15.231a ANSI C63.10 Pass Intentional Emission Field Strength Title 47 of the CFR: Part 15 Subpart (c) 15.231e ANSI C63.10 Pass Intentional Emission Band Occupancy Title 47 of the CFR: Part 15 Subpart (c) 15.215c ANSI C63.10 Pass Intentional Emission ERP (mW) Title 47 of the CFR: Part 15 Subpart (c) 15. ANSI C63.10 N/A Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 N/A Antenna Arrangements Integral: Title 47 of the CFR: Part 15 Subpart (c) 15.203 - N/A Antenna Arrangements External Connector Title 47 of the CFR: Part 15 Subpart (c) 15.204 - Pass Restricted Bands Title 47 of the CFR: Part 15 Subpart (c) 15.205 - Pass Maximum Frequency of Search Title 47 of the CFR: Part 15 Subpart (c) 15.33 - Pass Extrapolation Factor Title 47 of the CFR: Part 15 Subpart (c) 15.31(f) - Pass Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 Radio Test Report: TRA-009817-W-US-04 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 22 to 23 C Humidity : 45 to 75 % All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards test ed to. 7 Radio Test Report: TRA-009817-W-US-04 Section 2: Measurement Uncertainty 2.1 Measurement Uncertainty Values For the test data recorded in the following measurement uncertainty was calculated: Radio Testing – General Uncertainty Schedule All st…
