O87-20620150VHF Paging Transceiver

Copyright © 2020 Sea Air and Land Communications Ltd. All rights reserved. 20-62 VHF / UHF Transmitter with Ethernet PRODUCT MANUAL Version 1.3.3 June 2020 P a g e | 1 20-62 VHF & UHF TRANSMITTER Product Manual Sea Air and Land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand June 2020 Warranty and Disclaimer Salcom products are warranted for a period of 12 months from the date of purchase against faulty materials and workmanship. If any fault should occur, the unit should be returned to the vendor, freight pre-paid. Please include a description of the fault to assist with prompt return. Any unauthorised alterations or repairs will invalidate the warranty. We reserve the right to change products, specifications, and installation data at any time, without notice. All information provided in this document is carefully prepared and offered in good faith as a guide in the installation and use of Salcom products. Installers must ensure that the final installation operates satisfactorily within the relevant regulatory requirements. Salcom accepts no responsibility for incorrect installation. Please refer to the product specifications for specific certification information. P a g e | 2 20-62 VHF & UHF TRANSMITTER Product Manual Sea Air and Land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand June 2020 Contents Warranty and Disclaimer ........................................................................................................................... 1 Product Overview ...................................................................................................................................... 3 Connectors and Indicators ....................................................................................................................... 5 Physical Dimensions ................................................................................................................................... 6 20-62 Installation and Quick Start Guide .................................................................................................. 7 Salcom Protocol ......................................................................................................................................... 9 Sacoto Configuration Tool - Quick Start Guide ..................................................................................... 10 Configuring the 20-62 using Sacoto........................................................................................................ 13 Salcom UDP/TCP Test Tool ....................................................................................................................... 23 Virtual Serial Port over Ethernet ............................................................................................................... 24 Store & forward systems ........................................................................................................................... 26 Simulcast Modulation Delay .................................................................................................................... 28 Over-Temperature Cutout ....................................................................................................................... 30 Aerial Mismatch ........................................................................................................................................ 31 Antenna Selection and Installation ........................................................................................................ 33 Supported Messaging Protocols ............................................................................................................. 34 Trouble Shooting ....................................................................................................................................... 37 Glossary ..................................................................................................................................................... 38 Accessories and Related Products ......................................................................................................... 39 Technical Specifications .......................................................................................................................... 40 How to Contact Us ................................................................................................................................... 42 P a g e | 3 20-62 VHF & UHF TRANSMITTER Product Manual Sea Air and Land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand June 2020 Product Overview The Salcom 20-62 is a 5 Watt, stand-alone FSK transmitter with a POCSAG encoder and external NRZ input. Models are available for the VHF or UHF bands. Each model covers its full specified frequency range without the need for any mechanical adjustments or additional calibration. The output power level can be programmed from 50mW to 5W. Key Features: • POCSAG encoder: The 20-62 provides a built-in POCSAG encoder, supporting 512 and 1200 baud with numeric and alphanumeric messages. The 20-62 POCSAG encoder can queue up to 40 messages for transmission, with a total of up to 1000 characters combined. Individual messages can be up to 240 characters long. • External NRZ input: Externally generated NRZ data can be transmitted using the external modulation input and PTT input. • USB, Serial and Ethernet ports: The 20-62 may be controlled through four ports: two physical RS-232 ports, one USB serial port, and one TCP/IP or UDP Ethernet connection. • Message protocols: The 20-62 supports a wide range of messaging protocols, including Salcom protocol, TAP (PET), TNPP, and many more. The 20-62 can support up to four different messaging protocols concurrently, one on each port. For more details please refer to the protocol list provided in this manual. • Triggered messages: Messages may be trig…

Text truncated - open the document above for the full version.

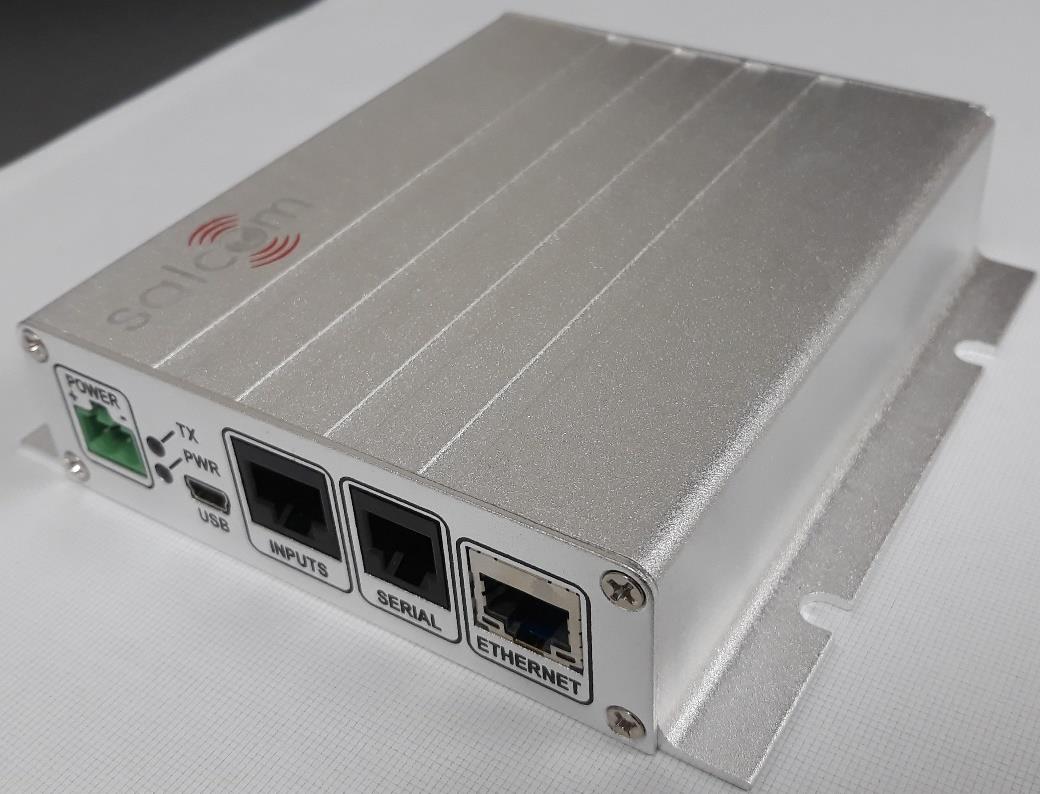

20-62-0150 (VHF Transmitter) External Photographs FCC ID: O87-20620150 External Case View (Front) External Case View (Rear) Case View (Bottom Label)

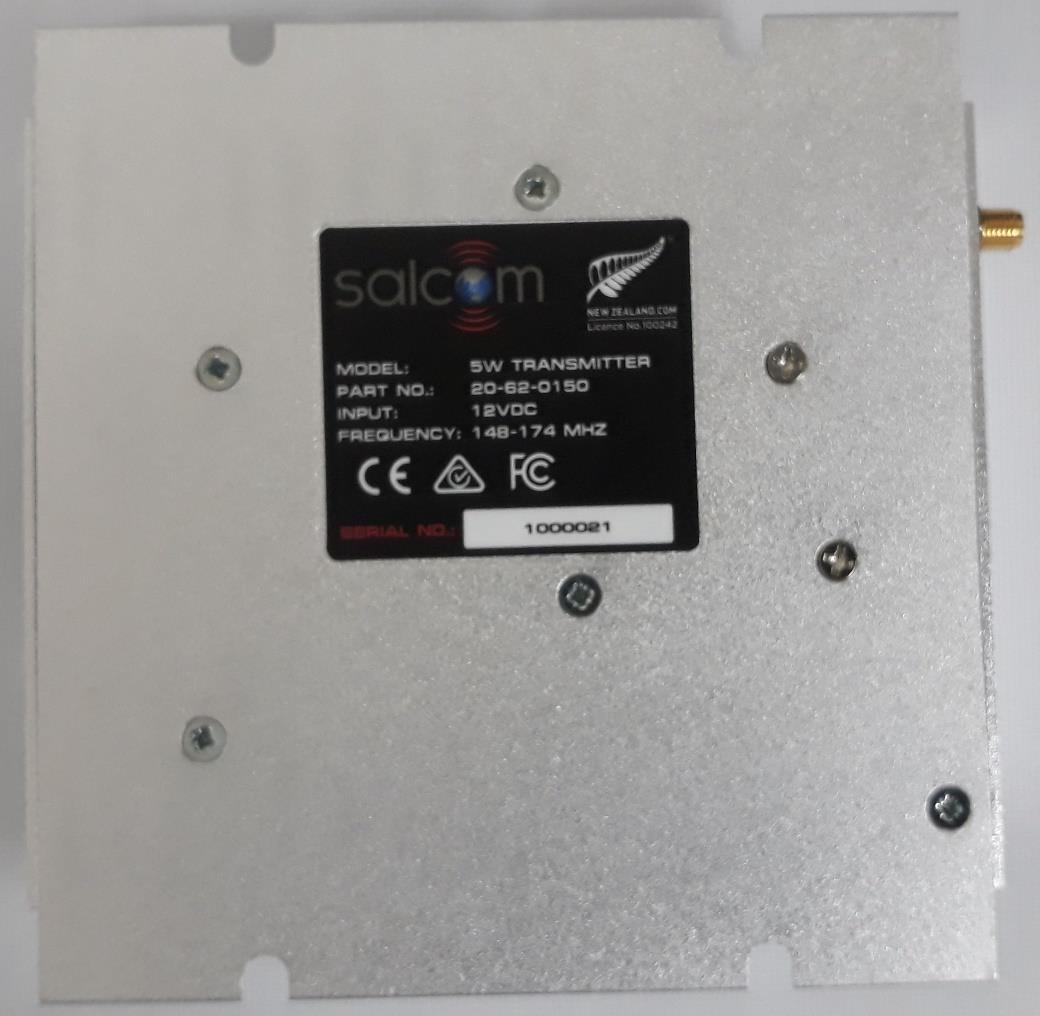

148-174 MHZ FREQUENCY: 5W TRANSMITTER MODEL: PART NO.: 20-62-0150 INPUT: 12VDC NOMINAL SERIAL NO.:100001 FCC ID: O87-20620150

20-62-0150 (VHF Transmitter) Internal Photographs FCC ID: O87-20620150 Top PCBa View (VCO Shield removed) Top PCBa View (VCO Shield fitted) Underside PCBa

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 31 Test Report No 191206.2b 2 nd June 2020 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd 47 Mackelvie St, Grey Lynn Auckland 1021 New Zealand Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.co.nz TEST REPORT Salcom 20-62-0150 (150.8-173.4 MHz) VHF POCSAG Paging Transmitter tested to the Code of Federal Regulations (CFR) 47 Part 90 –Private Land Mobile Services for Sea Air and Land Communications (SALCOM) Ltd This Test Report is issued with the authority of: ________________________________________ Andrew Cutler- General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 31 Test Report No 191206.2b 2 nd June 2020 This report may not be reproduced except in full. Table of Contents 1. COMPLIANCE STATEMENT 3 2. RESULT SUMMARY 3 3. ATTESTATION 4 4. CLIENT INFORMATION 5 5. TEST SAMPLE DESCRIPTION 5 6. TEST RESULTS 8 7. TEST EQUIPMENT USED 28 8. ACCREDITATIONS 28 11. PHOTOGRAPHS 29 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 31 Test Report No 191206.2b 2 nd June 2020 This report may not be reproduced except in full. 1. COMPLIANCE STATEMENT The Salcom 20-62-0150 (150.8-173.4 MHz) VHF POCSAG Paging Transmitter complies with the limits defined in 47 CFR Part 90 and 47 CFR Part 2 when tested in- accordance with the test methods described in 47 CFR Part 2 and ANSI / TIA-603-D- 2010. 2. RESULT SUMMARY The results of testing that was carried out between the 15th January 2020 and the 27 th February 2020 are summarised below. Clause Description Result 90.203 Certification required Noted 2.1046 90.205 RF power output Power and antenna height limits Noted Complies 2.1049 2.202 90.207 90.209 90.210 Occupied bandwidth Bandwidths Types of emissions Bandwidth limitations Emission masks Noted Noted Complies Complies Complies 2.1051 Spurious emissions at antenna terminals Complies 2.1053 Field strength of spurious radiation Not tested 2.1055 90.213 Frequency stability Frequency stability Noted Complies 90.214 Transient frequency behaviour Complies 1.1310 Radio frequency exposure limits Complies ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 31 Test Report No 191206.2b 2 nd June 2020 This report may not be reproduced except in full. 3. ATTESTATION This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report contain corrections on page 20 & 21, the value of limit has been corrected. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. All compliance statements have been made with respect of the specification limit with no reference to the measurement uncertainty. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. I further certify that the necessary measurements were made by EMC Technologies NZ Ltd, 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand. Andrew Cutler General Manager EMC Technologies NZ Ltd ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 31 Test Report No 191206.2b 2 nd June 2020 This report may not be reproduced except in full. 4. CLIENT INFORMATION Company Name Salcom Technologies Ltd Address 10 Vanadium place Addington Christchurch 8024 Country New Zealand Contact Mr Alan Jacks 5. TEST SAMPLE DESCRIPTION Brand Name Salcom Model Number 20-62-0150 Product VHF (150.8-173.4 MHz) POCSAG Transmitter Manufacturer Sea Air Land Communications Ltd Manufactured in New Zealand Serial Number DEMO-0005 FCC I.D O87-20620150 Rated Transmitter Output Power The power can be varied from 50 mW (17.0 dBm) to 5.0 W (37.0 dBm) using the client software. Transmitter Certification Range Part 90: 150.8-173.4 MHz Test frequencies Frequency (MHz) Power (Watts) Channel Bandwidth (kHz) Emission 150.900 5.0 25.0 F1D 160.000 5.0 25.0 F1D 173.300 5.0 25.0 F1D • Frequencies of the switching range as per the FCC frequency allocation 47 C.F.R. § 2.106 were selected for testing. ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 31 Test Report No 191206.2b 2 nd June 2020 This report may not be reproduced except in full. The product uses POCSAG as internal modulation scheme which is an asynchronous protocol used to transmit data to pagers. The modulation used is FSK with a ±4.5 kHz shift on the carrier. The high frequency represents a 0 and the low frequency a 1. The ±4.5 kHz frequency shift is used along with a 25.0 kHz channel spacing, known as "wideband". 512 and 1200 baud rates are supported by the product. Transmitter Type One way paging transmitter. Emission designators 12k2F1D for 25.0 kHz channel bandwidth Channel Spacing Equipment designed to operate using 2…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 26 of 31 Test Report No 191206.2 31 st January 2020 This report may not be reproduced except in full. Exposure of humans to RF fields As per FCC KDB 447498 D01 and Section 2.1091 radio frequency transmitters are required to be operated in a manner that ensures the public is not exposed to RF energy levels. Calculations have been made using the General Public/Uncontrolled Exposure limits that are defined in Section 1.1310. Minimum safe distances have been calculated below. Power density, mW/cm 2 = E 2 /3770 - General Population / Uncontrolled exposure is 0.2 mW/cm 2 As this radio can operate over the range of 30-300 MHz the lowest frequency of operation which will give the worst case result, would be 150.9 MHz. The power density at 150.9 MHz comes out to be 0.20 mW/cm 2 . For Uncontrolled Environment Power Density = 0.20 mW/cm 2 = E 2 /3770 E= √0.20*3770 E = 27.5 V/m The rated maximum transmitter power = 5 watts (+37 dBm). A worst case duty cycle (DC) of 100% (1.0) has been applied to the calculations. The client has suggested that a standard 3 dBi antenna type would be used by customers with the transmitter. ____________________________________________________________________________________________________________________________________________________________________________ Page 27 of 31 Test Report No 191206.2 31 st January 2020 This report may not be reproduced except in full. Calculations of the safe distance for these types of antenna are detailed as below. The minimum distance from the antenna at which the MPE is met is calculated from the following Field strength in V/m (E), Transmit power in watts (P) Transmit antenna gain (G) Transmitter duty cycle (DC) Separation distance in metres (D) The calculation is as follows: D = √ (30 * P * G*DC) / E The calculation for the safe distance would be as follows: D = √ (30 * P * G*DC) / E D = √ (30 * 5*2*1.0) / 27.5 D = 0.62 metres or 62 cm Result: Complies if the safe distances defined for this environment is applied.

____________________________________________________________________________________________________________________________________________________________________________ Page 31 of 31 Test Report No 191206.2 31 st January 2020 This report may not be reproduced except in full. Radiated Emission photos Schwarzbeck Biconnical Antenna (30 – 300 MHz) Schwarzbeck log periodic antenna (300 – 1000 MHz) EMCO 3115 Horn Antenna (1 – 18 GHz)
