WMOi3 Integrated Modem Main Electrical Parameter and Functional Specification 1 Users Manual WMOi3 integrated Modem confidential © This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 2 Contents / Sommaire 1Introduction ................................................................................... 3 1.1Scope ..................................................................................................... 3 2Generality ....................................................................................... 3 2.1Overview ................................................................................................ 3 2.2Physical characteristics........................................................................... 3 2.3Integrated Modem Design ...................................................................... 4 3Interface Description ..................................................................... 5 3.1The main connector................................................................................ 5 3.2PIN Description....................................................................................... 8 3.2.1 Power Supply ......................................................................................... 8 3.2.2Serial Link RS232 ......................................................................................... 8 3.2.3 Remote SIM Interface ............................................................................. 9 3.2.4 Audio...................................................................................................... 9 3.3SIM Interface ........................................................................................ 11 3.4RF Interface .......................................................................................... 11 4Connectors................................................................................... 12 4.1Interface Connector .............................................................................. 12 4.2RF Connector........................................................................................ 12 5Safety Precautions ....................................................................... 13 5.1Safety in explosive substance environments......................................... 13 5.2Aircraft safety ....................................................................................... 13 5.3Safety in medical equipment environments .......................................... 13 5.4Vehicle safety ....................................................................................... 13 5.5Precautions in case of loss or theft ....................................................... 14 5.6Precautions for antenna release ............................................................ 14 5.7Conclusion............................................................................................ 14 WMOi3 integrated Modem confidential © This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 3 1 Introduction 1.1 1.11.1 1.1 Scope ScopeScope Scope This document describes the interfaces, the technical specifications, the main electrical parameters and functional descriptions for the integrated modem called WMOi3. This product includes a WM2C-G900-G1900 EGSM/PCS dual band module (pls refer to the WM2C-G900/G1900 specifications). 2 Generality 2.1 2.12.1 2.1 Overview OverviewOverview Overview The integrated modem is a product with a sole connector which puts together all the interface signals in order to facilitate its integration. It has an integrated SIM connector as well as a standard RF connector type MMCX (Miniature Micro Connector). 2.2 2.22.2 2.2 Physical characteristics Physical characteristicsPhysical characteristics Physical characteristics The WMOI3 integrated modem has a complete self-contained shield. The physical characteristics are the following ones: Physical characteristicQualification Dimension Absolute maximum dimension 46 x64 x 12.4 mm WeightAbout 80 g Volume36.21 cm 3 CaseZamack + stainless steel WMOi3 integrated Modem confidential © This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 4 2.3 2.32.3 2.3 Integrated Modem Design Integrated Modem DesignIntegrated Modem Design Integrated Modem Design WMOi3 integrated Modem confidential © This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 5 3 Interface Description 3.1 3.13.1 3.1 The main connector The main connectorThe main connector The main connector This is a 50 pins interface connector with a pitch of 1.27 from SAMTEC, referenced FTS-125-01-L-DV. FTS-125-01-L-DV. FTS-125-01-L-DV. FTS-125-01-L-DV. (see figure1) Figure 1 Figure 1Figure 1 Figure 1 : 50 pins connector Bottom view : 50 pins connector Bottom view : 50 pins connector Bottom view : 50 pins connector Bottom view GND +5V GND SPK2N SPK2P SPK1P SPK1N MIC2P MIC2N MIC1P MIC1N GND GPIO0 CT104/RX CT105/RTS COL4 COL2 COL0 ROW3 ROW1 SPI_EN SPI_CLK SIMRST SIMPRES1 GND GND +5V CT109/DCD GPIO2 CT125/RI GPIO1 CT106/CTS ON/~OFF AUXV0 ~RST GND BOOT CT103/TX CT107/DSR CT108-2/DTR COL3 COL1 ROW4 ROW2 ROW0 GND SPI_IO SIMCLK SIMVCC SIMDATA 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 3…

Text truncated - open the document above for the full version.

WMOi3a Integrated Modem Main Electrical Parameter and Functional Specification 1 Users Manual WMOiJ integrated Madem Contents I Sommaire 1lntruduction................................................................................... 3 I.7 Scope .....................................................................................................3 2 Generality .......................................................................................3 2.7 overview ... ...............‘<./............................... ‘ .......................................... 3 2.2Physical characteristics ........................................................................... 3 2.3 integrated MademDesign ......................................................................4 3 Interface Description ..................................................................... 5 3.7 The main connector. ............................................................................... 5 3.2 PIN Description ....................................................................................... 8 3,2.-lPower Supply ......................................................................................... 8 3.2.2Serial Link RS232 ......................................... ...............................................8 3.2.3Remote SIM Interface............................................................................. 9 3.2.4Audio...................................................................................................... 9 3.3 3.4 4 4.3 4.2 5 5.1 5.2 5.3 5.4 5.5 5.6 5.7 6.0 7.0 SIM Interface........ ..‘...~ ................................. . ....................................... 1-I RF Interface .......................................................................................... 11 Connectors .................................................. . ................................ 12 Interface Connector .............................................................................. 12 RF Connector...... +. ... (...... . .., .................................................................. 12 Safety Precautions .......................................................................13 Safety in explosive substance environments .........................................13 Aircraft safety ................................................... ...)................................ 73 Safety in medical equipment environments .......................................... 13 Vehicle safety ........................................, ..............................................14 Precautions in case of loss or theft ....................................................... 14 Precautions for antenna release.. .......................................................... 14 Conclusion ............................................................................................ 14 RF Exposure instructions .......................................................................*....15 Instructions to OEM .................................................................................... 16 WMOi3 integrated Modem confidential © This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 3 1 Introduction 1.1 1.11.1 1.1 Scope ScopeScope Scope This document describes the interfaces, the technical specifications, the main electrical parameters and functional descriptions for the integrated modem called WMOi3. This product includes a WM2C-G900-G1900 EGSM/PCS dual band module (pls refer to the WM2C-G900/G1900 specifications). 2 Generality 2.1 2.12.1 2.1 Overview OverviewOverview Overview The integrated modem is a product with a sole connector which puts together all the interface signals in order to facilitate its integration. It has an integrated SIM connector as well as a standard RF connector type MMCX (Miniature Micro Connector). 2.2 2.22.2 2.2 Physical characteristics Physical characteristicsPhysical characteristics Physical characteristics The WMOI3 integrated modem has a complete self-contained shield. The physical characteristics are the following ones: Physical characteristicQualification Dimension Absolute maximum dimension 46 x64 x 12.4 mm WeightAbout 80 g Volume36.21 cm 3 CaseZamack + stainless steel WMOi3 integrated Modem confidential © This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 4 2.3 2.32.3 2.3 Integrated Modem Design Integrated Modem DesignIntegrated Modem Design Integrated Modem Design WMOi3 integrated Modem confidential © This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 5 3 Interface Description 3.1 3.13.1 3.1 The main connector The main connectorThe main connector The main connector This is a 50 pins interface connector with a pitch of 1.27 from SAMTEC, referenced FTS-125-01-L-DV. FTS-125-01-L-DV. FTS-125-01-L-DV. FTS-125-01-L-DV. (see figure1) Figure 1 Figure 1Figure 1 Figure 1 : 50 pins connector Bottom view : 50 pins connector Bottom view : 50 pins connector Bottom view : 50 pins connector Bottom view GND +5V GND SPK2N SPK2P SPK1P SPK1N MIC2P MIC2N MIC1P MIC1N GND GPIO0 CT104/RX CT105/RTS COL4 COL2 COL0 ROW3 ROW1 SPI_EN SPI_CLK SIMRST SIMPRES1 GND GND +5V CT109/DCD GPIO2 CT125/RI GPIO1 CT106/CTS ON/~OFF AUXV0 ~RST GND BOOT CT103/TX CT107/DSR CT108-2/DTR COL3 COL1 ROW4 ROW2 ROW0 GND SPI_IO SIMCLK SIMVCC SIMDATA 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 2 4 6 8 10 …

Text truncated - open the document above for the full version.

WM2C-G900/G190028/04/00 This confidential document is the property of WAVECOM and may not be copied without a written authorization 5 SIM Controller 3. Interfaces 3.1. Functional Description Battery Management Power Supply G E N E R A L P U R P O S E C O N N E C T O R SIM Supply FLASH SRAM Audio Interface A/D Converter RF F U N C T I O N S CPU Vocoder GPSI or SPI Controller Memory Management Unit Keyboard Controller UART RF Interface I/O Controller R.T.C RF C O N N E C T O R

Hatim Limati Chief, Operating Officer November 9, 2000 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21036 Gentlemen: We, Wavecom, Inc., Rue Ud Gouverneur General Eboue, Issy-les-Moulineaux Cedex, France 92442 hereby authorize Phillip Inglis of Cetecom bvba, 14085 Howard Rd, Dayton, Maryland 21036, to act as our agent in all matters relating to applications for equipment authorization, including signing of all documents relating to these matters for FCC ID:WMOI3. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. This authorization expires on June 1, 2001. Sincerely, Hatim Limati Chief, Project Manager

November 9, 2000 CONFIDENTIALITY REQUEST Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re:Wavecom application for certification of a Licensed Non-Broadcast Transmitter FC C ID: O9EWMO I3A Gentlemen: Wavecom herein submits an Application for Equipment Authorization to be followed by submission of a fee for $640.00 along with Form 159 for certification of a licensed non-broadcast transmitter under FCC Rules Part 24 as required by the FCC Rules. Wavecom requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: 1. Circuit diagrams submitted as Equipment Authorization Electronic Filing attachment: "schematics" to the application file. 2. Technical Description submitted as an Equipment Authorization Electronic Filing attachment: “technical description” to the application file. Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that Wavecom does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned by phone at 410-531-3439, by fax at 410-531-0807, by email at [email protected], or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Rega rds, (signed) Phillip Inglis, 14085 Howard Rd. Dayton, MD. 21036

November 10, 2000 TRP 14085 Howard Rd Dayton, MD In re: Wavecom application for certification FCC ID: O9EWMOI3A Gentle me n: Wavecom is submitting this application for a modularized transmitter to be operated in the 1850 to 1910 MHz band. It is intended to be used as a fixed or mobile transmitter to be integrated into a variety of products to provide wireless access to a PCS network. The module is a dual band transmitter intended to operate in the European GSM cellular network and the PCS American network using GSM protocols. Since the GSM cellular network is not available in the US, the device cannot be operated at this frequency in the US. Application examples include but are not limited to: data acquisition for mobile products, fleet management, meter reading, theft protection, emergency calls, and alarm devices where separation distance between the transmitter and the user is specified to be 20 cm or more. This device is not intended to be used in portable products as defined in Section 2.1093 of the FCC Rules. For purposes of RF Exposure requirements, it is intended for mobile use only as defined in Section 2.1091 of the FCC Rules. Further, manufacturers and installers are warned that the maximum gain of the antenna that is attached to the devices is limited to 3.0 dBi yeilding an EIRP of 2 watts or less. Please see the attachments for further information regarding this requirement. The module contains its own power supply regulator, data interfaces and buffering and is completely shielded by its own case. Wavecom requires other manufacturers that are using this product to use an antenna with no more than 3 dBi gain. Sincerely yours Phillip I nglis Agent for Wavecom

Memorandum To: FCC Exami ner CC: From: Phillip Inglis Date: 11/27/00 Re: Fee payme nt for F CC ID: O9EWMOI3A I am filing this correspondence to confirm that fees have been submitted to the FCC for the reference equipment. A copy of the mailing receipt and a copy of the UPS delivery confirmation is also being filed. The delivery confirmation shows the package was received by the Mellon Bank on November 20, 2000. If there is any question regarding this payment please contact me at 410 531 3439 or via email at [email protected]. Regards, Phil Inglis

NOTICE TO OEM’S This is a template of the instructions that are provided with the module to OEM’s that clearly state their obligations to include the following RF Exposure information in their manual provided to the end-user. Also refer to Sections 6 and 7 of the user manual an addendum that has been added to the file. Sections 6 and 7 provide additional information to the user. NOTICE: THE FOLLOWING STATEMENT M UST BE INCLUDED IN MANUAL FURNISHED TO THE END USER. A minimum separation distance distance of 20 cm must be maintained between the antenna and persons for this device to satisfy the RF Exposure requirements of the FCC. For fixed mount operation, the antenna co-location requirements of Section 1.1307(b)(3) of the FCC rules must be satisfied. For fixed mount operation, the maximum gain of the antenna must not exceed 7 Bi. For mobile operation, the maximum gain of the antenna must not exceed 3 dBi. WARNING! Use of this module in portable operations is not permitted. The above statement will be information provided to each OEM. Phillip I nglis, Cetecom bvba Agent for Wavecom

specifications WMOi3 READY TO USE The most congenial member of our WISMO™ family, our WMOi3 modem can be integrated into any application you choose. This solution is feature-packed and highly adaptable, with an advanced software platform and enhanced interfaces. The WMOi3 offers voice in a modem package as well as many other features, including: FEATURES - Dual Band GSM 900/1800 MhZ, GSM 900/1900 MHz (coming soon) - Voice, SMS, fax, and data - GPRS and WAP compliant - SIM with sliding SIM card holder - Power supply interface - Remote control by AT commands - 50-pin connector - Autobauding up to 115,200 bits/s

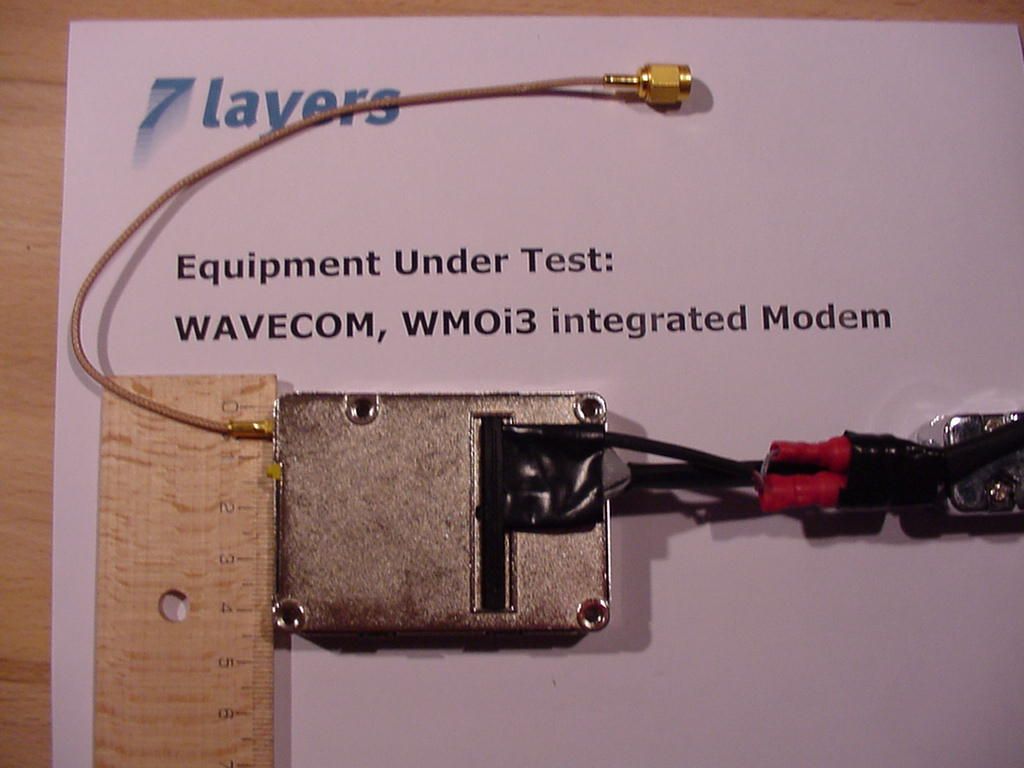

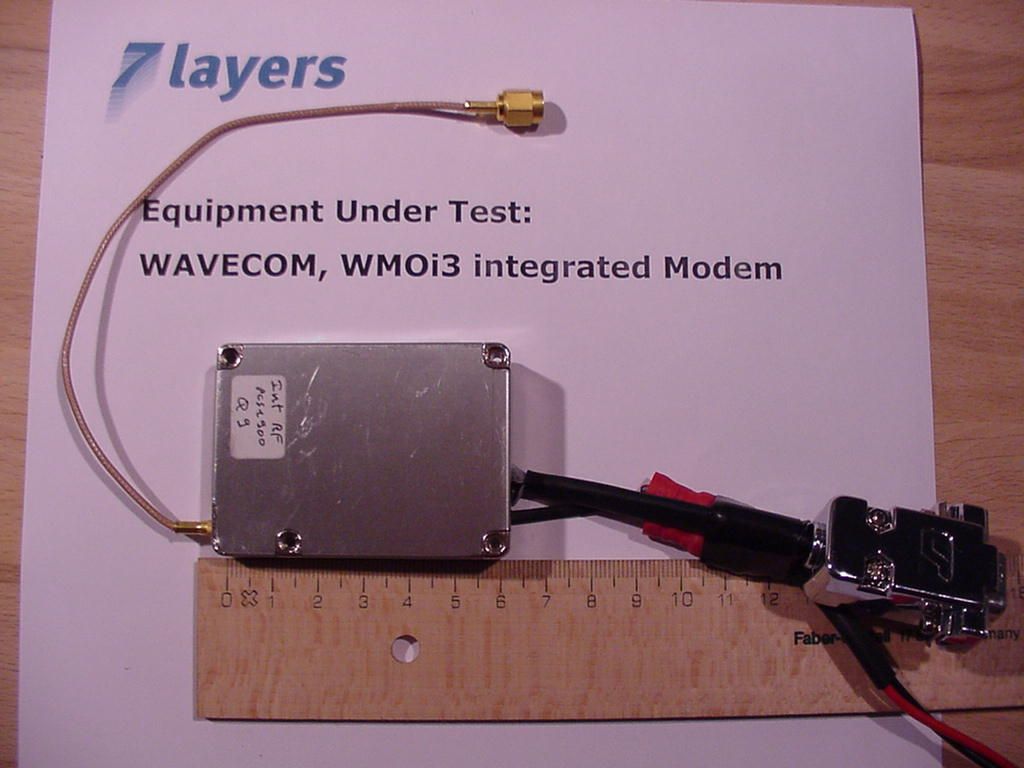

5. Foto Report Picture1Integrated Modem WMOi3 (top view): Picture2Integrated Modem WMOi3 (bottom view): Page 27 of 33Testreport Reference: 3_wavecom_FCC_01b

Below is the drawing of the proposed FCC ID label. This Label will be located on the bottom of the transmitter module case. FCC ID:O9EWMOI3A

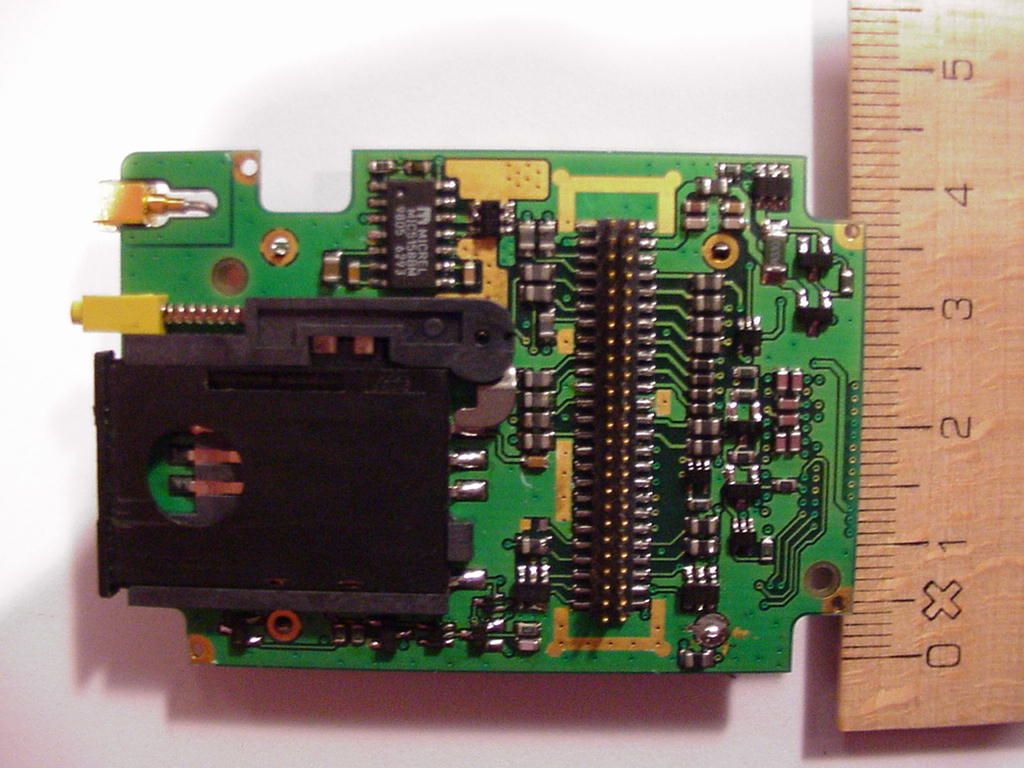

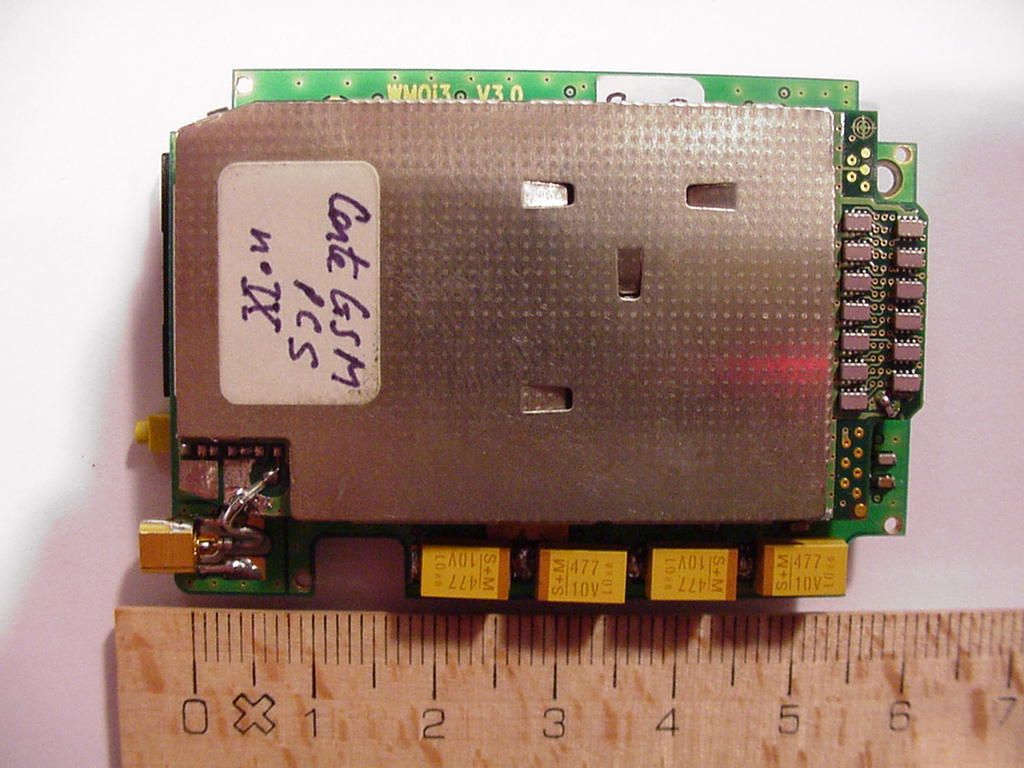

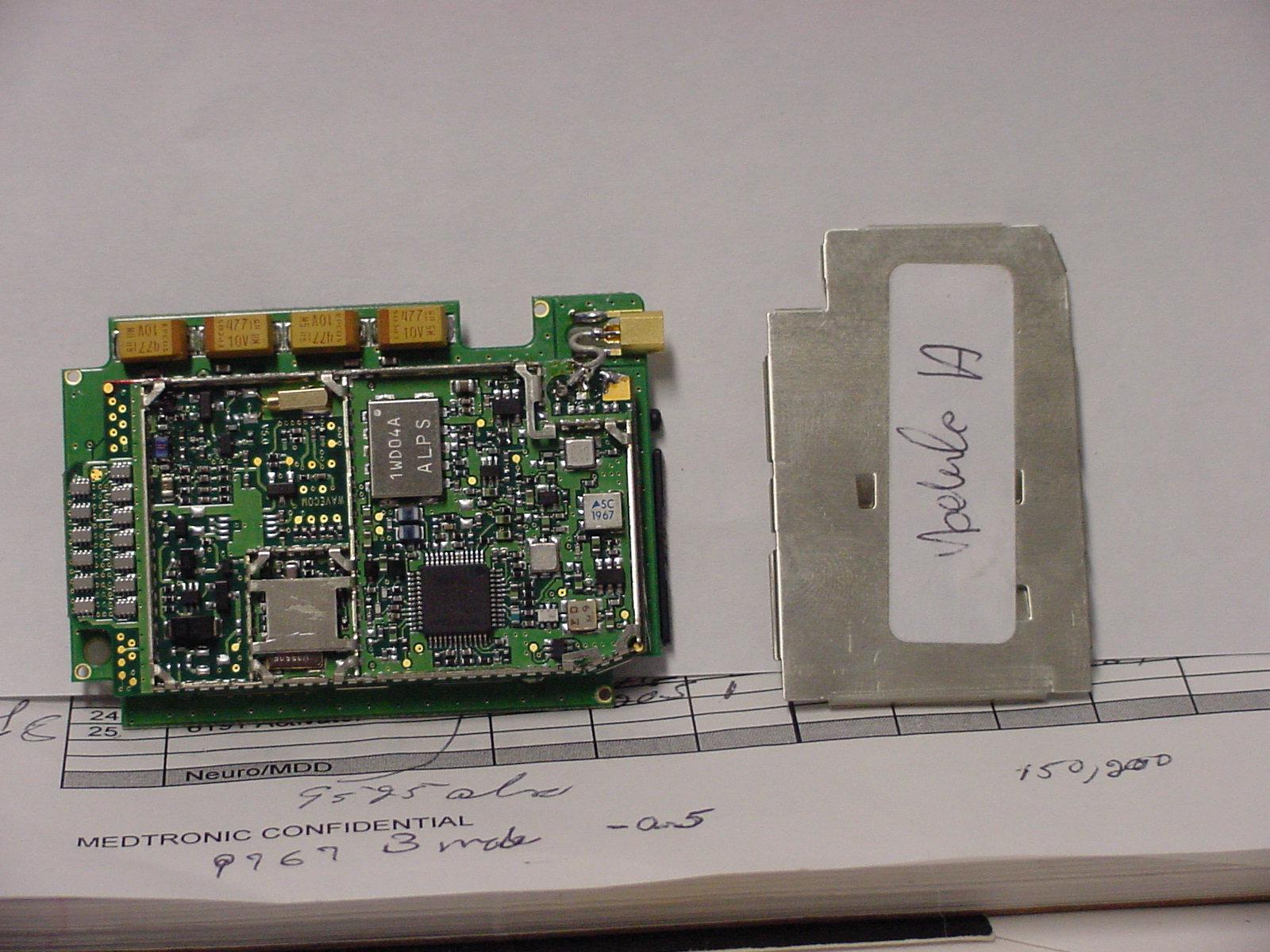

Picture3Integrated Modem WMOi3, enclosure removed ( PCB top view ): Picture4Integrated Modem WMOi3, enclosure removed ( PCB bottom view: Page 28 of 33Testreport Reference: 3_wavecom_FCC_01b

confidential © Parts List ***************************************************** * WAVECOM +++ * * * * MODULE+ : INTEGRATED MODEM * * REV 3.0 Date : 26 Juin 2000 * ***************************************************** REFERENCE DEVICE PACKAGE VALUE ------------------------------------------------------ |C1 |2.2UF |C0805 |C0805 |C2 |100NF |C0603 |C0603 |C3 |100NF |C0603 |C0603 |C4 |470PF |C0603 |C0603 |C5 |47PF |C0603 |C0603 |C6 |47PF |C0603 |C0603 |C7 |47PF |C0603 |C0603 |C8 |47PF |C0603 |C0603 |C9 |47PF |C0603 |C0603 |C10 |47PF |C0603 |C0603 |C11 |470UF |CTCE |CTCE |C12 |470UF |CTCE |CTCE |C13 |470UF |CTCE |CTCE |C14 |470UF |CTCE |CTCE |C15 |33PF |C0603 |C0603 |C16 |100NF |C0603 |C0603 |C17 |33PF |C0603 |C0603 |C18 |100NF |C0603 |C0603 |C19 |100NF |C0603 |C0603 |C20 |1NF |C0603 |C0603 |C21 |33PF |C0603 |C0603 |C22 |33PF |C0603 |C0603 |C23 |1NF |C0603 |C0603 |D1 | |BAT54W |SOT323 |D2 | |ESDA6V1SC6 |SOT23-6L |D3 | |DALC208SC6 |SOT23-6L |D4 | |BAT54CW |SOT323 |F1 | |BLM21A |BLM0805 |F2 | |BLM21A |BLM0805 |F3 | |BLM21A |BLM0805 |F4 | |BLM21A |BLM0805 |F5 | |BLM21A |BLM0805 |F6 | |BLM21A |BLM0805 |F7 | |BLM21A |BLM0805 |F8 | |BLM21A |BLM0805 |F9 | |BLM21A |BLM0805 |F10 | |BLM21A |BLM0805 |F11 | |BLM21A |BLM0805 |F12 | |BLM21A |BLM0805 |F13 | |BLM21A |BLM0805 |F14 | |BLM21A |BLM0805 |F15 | |BLM21A |BLM0805 |F16 | |BLM21A |BLM0805 |F17 | |BLM21A |BLM0805 |F18 | |BLM21A |BLM0805 |F19 | |BLM21A |BLM0805 |F20 | |WEEMI |WE0805 |J1 | |CONN50 |FTS12501LDVP |J2 | |C60_P05_MALE |C60_P05_2R |J3 |SIM_CON |91228-0002 |91228-0002 |J7 | |IMS2929 |IMS2929 ***************************************************** * WAVECOM +++ * * * * MODULE+ : INTEGRATED MODEM * * REV 3.0 Date : 26 Juin 2000 * ***************************************************** REFERENCE DEVICE PACKAGE VALUE ------------------------------------------------------ |L1 |100NH |L0603 |L0603 |L2 |100NH |L0603 |L0603 |L3 |100NH |L0603 |L0603 |L4 |100NH |L0603 |L0603 |R1 |0.33 |R1206 |R1206 |R2 |10K |R0603 |R0603 |R3 |20K |R0603 |R0603 |R4 |3.9K |R0603 |R0603 |R5 |100K |R0603 |R0603 |R6 |47K |R0603 |R0603 |R7 |47K |R0603 |R0603 |R8 |1M |R0603 |R0603 |R9 |100K |R0603 |R0603 |R10 |100K |R0603 |R0603 |R11 |100K |R0603 |R0603 |R13 |100K |R0603 |R0603 |R14 |10K |R0603 |R0603 |R17 |100K |R0603 |R0603 |T1 | |SI3441DV |SOT23-6 |T2 | |DTA144EE |EMT3 |T3 | |MMBT3904 |SOT23 |T4 | |MMBT3904 |SOT23 |T5 | |SI3454DV |SOT23-6 |T6 | |BC807 |SOT23 |T7 | |SI2306DS |SOT23 |T8 | |BC807 |SOT23 |U1 |ADJ |MIC5158BM |SOIC14 |U2 | |UMC5N |UMT5 |U3 | |UMC5N |UMT5 |U5 | |UMC5N |UMT5 |U6 | |UMC5N |UMT5 |VH |NC |R0603 |R0603

confidential © WM2C_G0919 Part List WAVECOM CONFIDENTIAL PARTLIST :WM2C_G0919_401 WM12065 MODULE DUAL BAND GSM PCS WM2C_G0919_401 PARTLIST with sources INDEX CODEWM Q UNIT CODEWM1 E H FUNCTION TYPE V M U T OLERANC E INFO PACK PART NAME SUPPLIER REMARK Source U3 WM10274 1XX RADIO CHIPSET SQFP48 WARM G2 WAVECOM U4 WM10275 1XX 5V SP4T RF SWITCH TSSOP16 CXG1091TN SONY U400 WM11926 1 KERNEL ONE C FPBGA180 VP40575-3 VLSI U500 WM11619 1 FLASH & SRAM STK_MCP TOP 90ns BGA72 RD28F1602C3T90 INTEL U5 WM00009 1XX LOW NOISE AMPLIFIER DCS SOT23-6 AM50-0006 MACOM X1 WM00026 1XX CRYSTAL 13 M Hz XM-2B-13MHZ SEIWA U14 WM00063 1XX POWER AMPLIFIER GSM MP16-L01J RF2138 RFMD F8 WM00069 1XX SAW FILTER F6-E-SIZE FAR-F6CE-1G9600-L2XB-T FUJITSU F2 WM10282 1XX SAW FILTER RX 440 M Hz IF QCC8C B39441B4841U310 (Ancien L924A) EPCOS F4 WM10283 1XX BALUN DCS 50/100 OHMS LDB15 LDB15C101A1900 MURATA F6 WM10284 1XX COUPLER DUAL BAND DIRECTIONNAL LDC15D LDC15D140J0003 MURATA U10 WM10285 1XX DUAL PLL LSB24A LMX2331LSLBX A TIONAL SEMICONDUCTOR U13 WM10289 1XX POWER AMPLIFIER DCS MP16-L01J RF2140 RFMD U9 WM10293 1XX LO VCO TRIBAND UCVE3X1 UCVE1-618A ALPS F1 WM10317 1XX LOW PASS FILTER HARMONIC LFTC15 LFTC15N19E0902B MURATA X400 WM10320 1XX CRYSTAL 32,768 K Hz ±20ppm 12,5pF MS1V-TK MS1V-TK 32,768Khz 12,5pF +/-20PPM MICROCRYSTAL F3 WM10349 1XX SAW FILTER RX E-GSM F6-E-SIZE B39941B4121U510 EPCOS F12 WM10351 1XX LOW PASS FILTER PCS LFTC15 LFTC15N19E1880B MURATA U8 WM10352 1XX POWER VCO DUAL 900/1900 UCVE8 UCVE8-W04A ALPS F5 WM10353 1XX CERAMIC FILTER RF PCS B69812N1967B360 EPCOS F7 WM11789 1 SAW FILTER RX E-GSM F6-E-SIZE WM11789 WM10350 XX SAW FILTER RX E-GSM F6-E-SIZE B4128 (ancien LA66C) EPCOS Obsolet Other Supplier WM11789 WM11790 SAW FILTER RX 942,5 M Hz E-GSM F6-E-SIZE B39941B4145U410 EPCOS Other Supplier U19 WM00090 1XX OP AMPLIFIER SOT23-5 LM7131ACM5 A TIONAL SEMICONDUCTOR U2 WM10288 1XX CMOS MULTI LDO SSOP8G R5320G001A RICOH U300 WM10288 1XX CMOS MULTI LDO SSOP8G R5320G001A RICOH U401 WM00117 1XX RESET CIRCUIT 2,63 V SOT23 WM00117 WM10410 XX RESET CIRCUIT 2,63 V SOT23 ADM809RART ANALOG DEVICES Other Supplier WM00117 WM10411 XX RESET CIRCUIT 2,63 V SOT23 IMP809REUR-T IMPALA Other Supplier WM00117 WM10412 XX RESET CIRCUIT 2,63 V SOT23 TCM809RENB TELCOM Other Supplier WM00117 WM10413 XX RESET CIRCUIT 2,63 V SOT23 MAX809REUR MAXIM Other Supplier WM00117 WM10414 XX RESET CIRCUIT 2,63 V SOT23 MCP809-270 MICROCHIP Other Supplier U402 WM11592 1XX LOGIC 2-INPUT AND USV WM11592 WM10292 XX LOGIC 2-INPUT AND SC70-5 TC7S08FU TOSHIBA Other Supplier WM11592 WM11593 XX LOGIC 2-INPUT AND SC70-5 NC7S08P5X FAIRCHILD Other Supplier U1 WM00010 1XX DUAL TRANS. NPN SO6 UPA800T-T1 NEC D201 WM00105 1XX DIODES ARRAY 4x UMD5 UMN1NTR ROHM U6 WM00109 1XX TRANSISTOR DIGITAL PNPX2 UMT5 UMA11N ROHM U33 WM00109 1XX TRANSISTOR DIGITAL PNPX2 UMT5 UMA11N ROHM U7 WM00109 1XX TRANSISTOR DIGITAL PNPX2 UMT5 UMA11N ROHM U11 WM00110 1XX TRANSISTOR DIGITAL PNP+NPN UMT6 UMD3NTR ROHM U12 WM00110 1XX TRANSISTOR DIGITAL PNP+NPN UMT6 UMD3NTR ROHM U202 WM00110 1XX TRANSISTOR DIGITAL PNP+NPN UMT6 UMD3NTR ROHM D203 WM00111 1XX DIODE ZENER 2,7 V UMD2 UDZ 2.7B ROHM D202 WM00137 1XX DIODE SCHOTTKY PMDS RB160L-40TE25 ROHM T1 WM00139 1XX TRANSISTOR DIGITAL PNP EMT3 DTA144EE ROHM T3 WM00139 1XX TRANSISTOR DIGITAL PNP EMT3 DTA144EE ROHM T701 WM00145 1XX TRANSISTOR DIGITAL NPN EMT3 DTC144EETL ROHM U200 WM00159 1XX TRANSISTOR DIGITAL NPNX2 UMT6 UMH6N ROHM U204 WM00161 1XX TRANSISTOR DIGITAL NPNX2 UMT6 UMH11N ROHM D2 WM00170 1XX DIODE S_VARICAP SOD323 BB149 PHILIPS D3 WM00170 1XX DIODE S_VARICAP SOD323 BB149 PHILIPS D1 WM00290 1XX DIODE V_VARICAP SOD323 SMV1104-93 ALPHA INDUSTRIES T2 WM10266 1 TRANSISTOR NPN SOT343 BFP520 INFINEON D300 WM10269 1XX DIODE SCHOTTKY SOT323 BAT54W PHILIPS WAVECOM CONFIDENTIAL PARTLIST :WM2C_G0919_401 WM12065 MODULE DUAL BAND GSM PCS WM2C_G0919_401 PARTLIST with sources INDEX CODEWM Q UNIT CODEWM1 E H FUNCTION TYPE V M U T OLERANC E INFO PACK PART NAME SUPPLIER REMARK Source D4 WM10277 1XX DUAL DIODE SCHOTTKY SOT363 HSMS282K-TR1 HEWLETT PACKARD D5 WM10290 1XX DIODE PIN SOD323 SMP1352-011 ALPHA INDUSTRIES T4 WM10316 1XX MOSFET P SOT323 TP0205A SILICONIX D200 WM10341 1XX DIODE REF. 2,5 V ±0,5% 100ppm/°C SOT23 WM10341 WM10342 XX DIODE REF. 2,5 V ±0,5% 100ppm/°C SOT23 LM4040CIM3-2.5 A TIONAL SEMICONDUCTOR Other Supplier WM10341 WM10343 XX DIODE REF. 2,5 V ±0,5% 100ppm/°C SOT23 LM4040CIM3-2.5 MICREL Other Supplier T700 WM11594 1XX MOSFET PMOS SOT23 WM11594 WM00217 XX MOSFET PMOS SOT23 NDS336P FAIRCHILD Other Supplier WM11594 WM11595 XX MOSFET PMOS SOT23 SI2315DS VISHAY Other Supplier T201 WM11596 1XX MOSFET PMOS SOT23 WM11596 WM00215 XX MOSFET PMOS SOT23 SI2301DS TEMIC Other Supplier WM11596 WM11595 XX MOSFET PMOS SOT23 SI2315DS VISHAY Other Supplier T600 WM11597 1XX TRANSISTOR BIPOLAR NPN UMT3 WM11597 WM00157 XX TRANSISTOR BIPOLAR NPN UMT3 2SC4097 T106 R ROHM Other Supplier WM11597 WM11598 XX TRANSISTOR BIPOLAR NPN SOT323 BC817-25W PHILIPS Other Supplier C2 WM00620 1 CAPACITOR Y5V 1 μ F +80/-20% 16V C0805 WM00620 WM10950 CAPACITOR Y5V 1 μ F +80/-20% 16V C0805 C2012Y5V1C105Z TDK Other Supplier WM00620 WM10951 CAPACITOR Y5V 1 μ F +80/-20% 16V C0805 CM21Y5V105Z16 KYOCERA Other Supplier WM00620 WM10952 CAPACITOR Y5V 1 μ F +80/-20% 16V C0805 GRM40Y5V105Z16 MURATA Other Supplier C4 WM00640 1 CAPACITOR Y5V 2,2 μ F +80/-20% 16V C0805 C27 WM00640 1 CAPACITOR Y5V 2,2 μ F +80/-20% 16V C0805 C300 WM00640 1 CAPACITOR Y5V 2,2 μ F +80/-20% 16V C0805 C7 WM00640 1 CAPACITOR Y5V 2,2 μ F +80/-20% 16V C0805 WM00640 WM10953 CAPACITOR Y5V 2,2 μ F +80/-20% 16V C0805 0805YG225ZAT2A AVX Other Supplier WM00640 WM10954 CAPACITOR Y5V 2,2 μ F +80/-20% 16V C0805 GRM40Y5V225Z16 MURATA Other Supplier C70 WM00651 1 CAPACITOR TANTALUM 2,2 μ F ±10% 6,3V R case TAJR225K006R AVX C6 WM00651 1 CAPACITOR TANTALUM 2,2 μ F ±10% 6,3V R case TAJR225K006R AVX C74 WM00651 1 CAPACITOR TANTALUM 2,2 μ F ±10% 6,3V R case TAJR225K006R AVX C31 WM02400 1 CAPACITOR C0G 1 p F ±0,1pF 50V C0402 C188 WM02400 1 CAPACI…
